Product Overview
Description
Equipment display
10-1000KW biomass gasification power generation equipment
Kexin Biomass Gasifier Plant Features
The features of Kexin equipment:
1. Down-suction fluidized bed gasification system. Strong adaptability to raw materials, as long as the size of survival material raw materials ≤30mm, water content ≤20%.
2. Cleaning system, using dry purification technology, avoid water and environmental pollution.
3, the control system adopts PLC intelligent control system, automatic work. Achieve intelligent control of biomass gasifier output biomass syngas, automatic control of feeding and ash removal, automatic sewage discharge, biomass gasifier can work continuously for a long time (can work continuously for 500 hours).
1. Down-suction fluidized bed gasification system. Strong adaptability to raw materials, as long as the size of survival material raw materials ≤30mm, water content ≤20%.
2. Cleaning system, using dry purification technology, avoid water and environmental pollution.
3, the control system adopts PLC intelligent control system, automatic work. Achieve intelligent control of biomass gasifier output biomass syngas, automatic control of feeding and ash removal, automatic sewage discharge, biomass gasifier can work continuously for a long time (can work continuously for 500 hours).
4. System structure design is compact, modular unit installation, convenient transportation. The modular system greatly saves 90% EPC engineering volume, and the equipment arrangement and commissioning can be completed in 1 month.
5. The overall use of carbon steel, key parts of the use of 316L and 304 stainless steel, copper pipe. Corrosion resistance, high temperature resistance, oxidation resistance, improve the service life of the equipment, can reach more than 20 years.
6. The emission is friendly to the environment and can meet the CE standard.
7. Abundant derivatives. In addition to electricity, biomass gas, biomass carbon, biomass oil and wood vinegar can also be obtained through gasification.
For example: consume 1KG of wood can get
Power 1.1-1.2KW
Biomass gas 2m3/h
Calorific value: 5.8-6.25MJ
Biomass carbon: 0.3Kg
8. High utilization rate of waste heat, which can reach more than 85%. Used to provide heat for drying/cogeneration etc
9. Internal electrical components are all international first-line brands, long service life. Later can be repaired and replaced in the customer's local area, reducing after-sales costs
10. Low tar content (10mg/Nm3), can ensure the stable operation of the engine.
5. The overall use of carbon steel, key parts of the use of 316L and 304 stainless steel, copper pipe. Corrosion resistance, high temperature resistance, oxidation resistance, improve the service life of the equipment, can reach more than 20 years.
6. The emission is friendly to the environment and can meet the CE standard.
7. Abundant derivatives. In addition to electricity, biomass gas, biomass carbon, biomass oil and wood vinegar can also be obtained through gasification.
For example: consume 1KG of wood can get
Power 1.1-1.2KW
Biomass gas 2m3/h
Calorific value: 5.8-6.25MJ
Biomass carbon: 0.3Kg
8. High utilization rate of waste heat, which can reach more than 85%. Used to provide heat for drying/cogeneration etc
9. Internal electrical components are all international first-line brands, long service life. Later can be repaired and replaced in the customer's local area, reducing after-sales costs
10. Low tar content (10mg/Nm3), can ensure the stable operation of the engine.
Specification parameters
Name | 10-500KW biomass gasification power generation equipment | ||||
Power generation | Model | Syngas production | Raw material consumption | ||
JXQ-10D | 10m3/h | 5kg/h | |||
JXQ-10A | 10m3/h | 5kg/h | |||
10KW | JXQ-30B | 30m3/h | 15kg/h | ||
30KW | KX-100SB | 100m3/h | 50kg/h | ||
50KW | KX-150SB | 150m3/h | 75kg/h | ||
100KW | KX-300SB | 300m3/h | 150kg/h | ||
150KW | KX-450SB | 450m3/h | 230kg/h | ||
200KW | KX-600SB | 600m3/h | 300kg/h | ||
250KW | KX-750SB | 750m3/h | 330kg/h | ||
300KW | KX-900SB | 900m3/h | 450kg/h | ||
400KW | KX-1200SB | 1200m3/h | 600kg/h | ||
500KW-1MW | KX-1500SB | 1500m3/h | 750kg/h | ||
Caloric value of syngas | 1000-1200Kcal | ||||
Gasification effiency | >75% | ||||
Voltage power | 380V/400V/410V/420V 50Hz/60Hz (Customizable) | ||||
Types of raw materials | Wheat straw, peanut shells, rice husks, corn cobs, corn stalks, wood, wood chips, wood chips, nut shells, walnut shells, macadamia shells, pistachio shells, coconut shells, hazelnut shells, chestnut shells, etc., discarded cardboard boxes (Various agricultural Biomass raw materials...) | ||||
use | Pyrolysis and gasification of various agricultural biomass and other raw materials, produce biomass synthesis gas, use biomass synthesis gas to generate electricity, or apply it to heating and so on. | ||||
Gasification principle

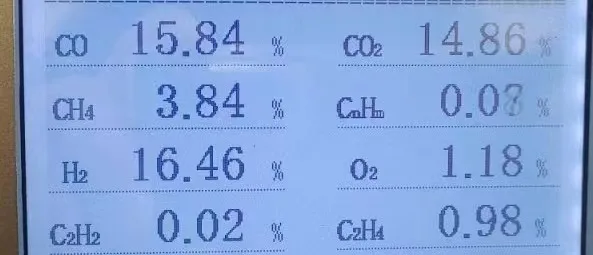

Generation principle of biomass syngas: biomass raw material enters the reactor of gasifier, is heated and dried, and then with the temperature rising, its volatile matters are separated out and pyrolyzed (cracked) at high temperature. The pyrolyzed gas and biomass react with the air supplied in the oxidation zone to generate CO2 and water vapor. The heat generated by combustion is used to maintain drying, pyrolysis and lower part Endothermic reaction in the original region. The gas generated after combustion reacts with high temperature carbon layer through reduction zone (c + CO2 = 2CO, C + HO2 = H2 + CO) to generate biomass synthesis gas containing Co, H2, CH4, CMHN and other components, which is led out from the lower part and sent out for use after removing impurities such as tar through purification system. The ash is discharged from the lower part of the gasifier.
Types of raw materials

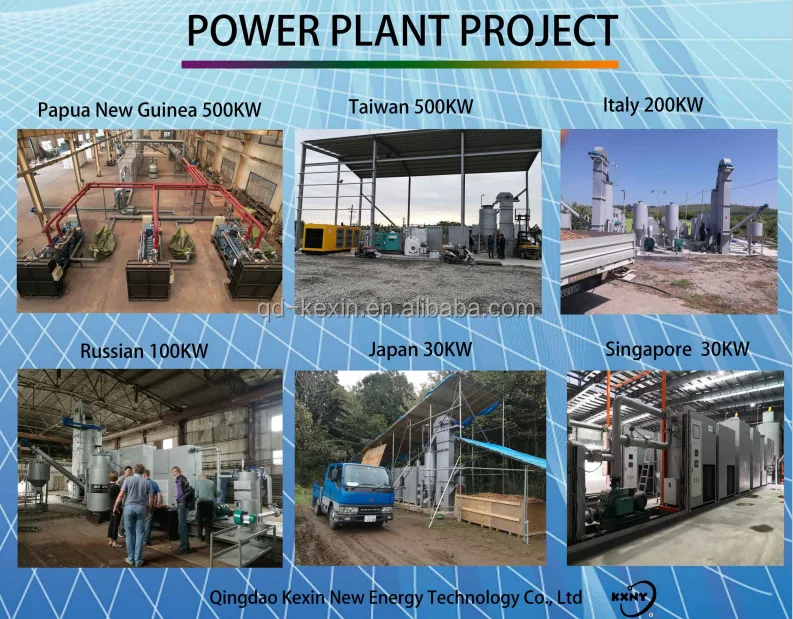

Project presentation
Our customers
Equipment delivery
Ordering process
Company profile
Qingdao Kexin New Energy Technology Co., Ltd., founded in 1998.
KX series fluidized bed biomass gasification equipment has passed the EU CE certification, and has been exported to many countries with high requirements on equipment quality and environmental protection quality, such as the United States, Italy, Japan, South Korea, Switzerland, Russia, Singapore and so on.
Supply JXQ series Series (simple type), KX series (downdraft fluidized bed type) biomass gasification equipment, KX series biomass syngas power generation system, biomass syngas special hot blast stove, biomass raw material drum dryer, biomass shredder, drum drying equipment, dust collector and other products. The whole set of biomass gasification power generation equipment has obtained a number of national invention patents and utility model patents.
KX series fluidized bed biomass gasification equipment has passed the EU CE certification, and has been exported to many countries with high requirements on equipment quality and environmental protection quality, such as the United States, Italy, Japan, South Korea, Switzerland, Russia, Singapore and so on.
FAQ
1. what kind of material our gasifier use
rice husk, wood chips, saw dust, straw, urban waste, MSW, nearly all of the biomass material can be the fuel of our gasifier. with half of biomass material, our gasifier even can process the rubber and plastic
2.is there any requirement for the raw material
our gasifier needs material as follow size30mm moisture20%
3.can user see the running plant in workshop
yes, we have a running gasifier with genset in our workshop, we can start it and test for you
4.Where did you sold the gasifier
USA,Finland, Thailand,Russia,Italy and so on
rice husk, wood chips, saw dust, straw, urban waste, MSW, nearly all of the biomass material can be the fuel of our gasifier. with half of biomass material, our gasifier even can process the rubber and plastic
2.is there any requirement for the raw material
our gasifier needs material as follow size30mm moisture20%
3.can user see the running plant in workshop
yes, we have a running gasifier with genset in our workshop, we can start it and test for you
4.Where did you sold the gasifier
USA,Finland, Thailand,Russia,Italy and so on
5.What's your Quality assurance?
The guarantee period of biomass gasifier is one year. The warranty period of generator set is one year or 1000 hours, whichever comes first.
