3R 4R 5R 6R Aluminum Sulfate Grinding Raymond Mill Metallic Ore Power Raymond Mill Factory
- Category: >>>
- Supplier: Henan Hongke Heavy Machinery Co. Ltd.
Share on (1601209491986):
Product Overview
Description

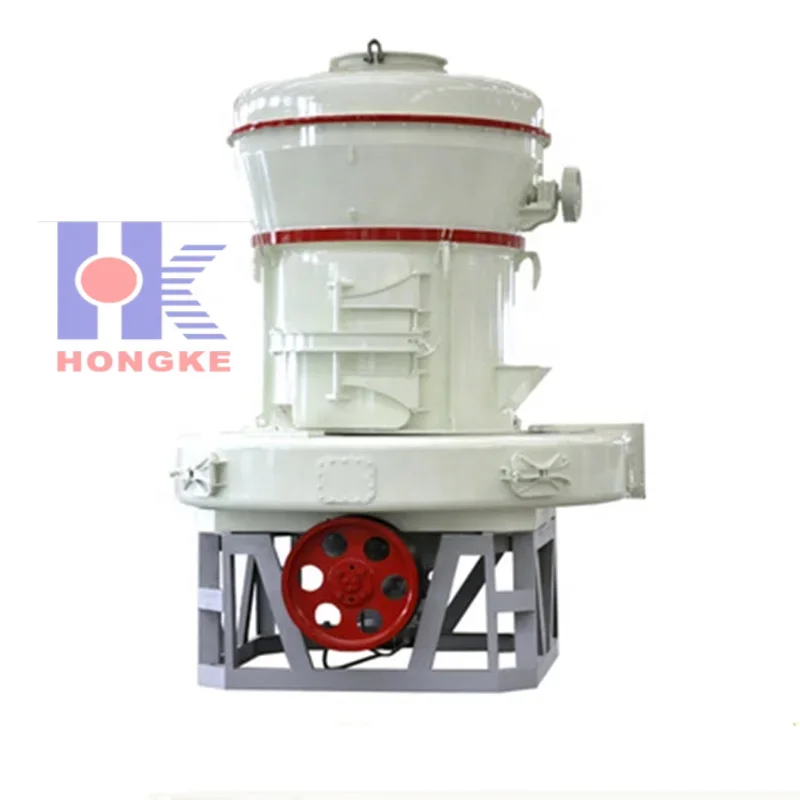

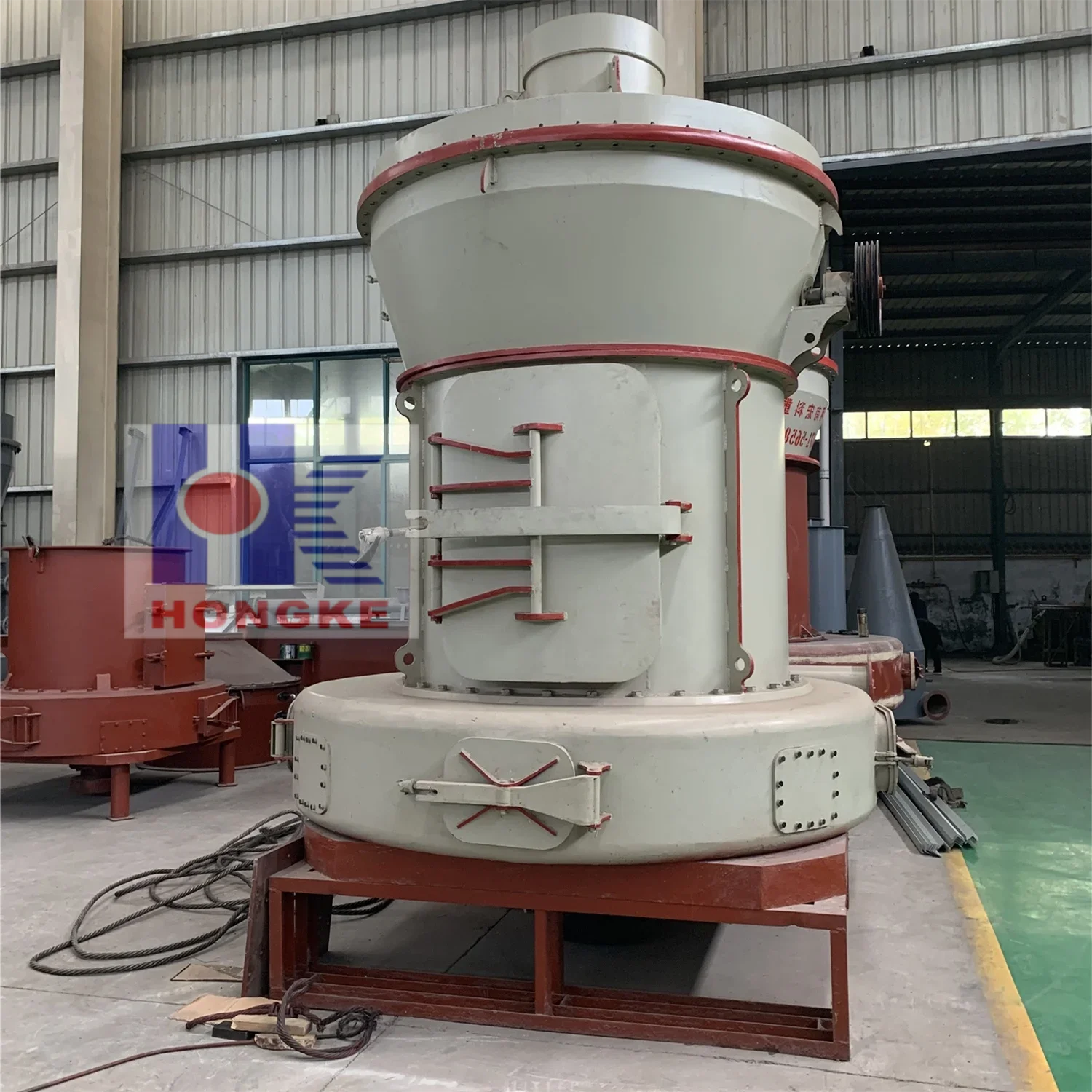

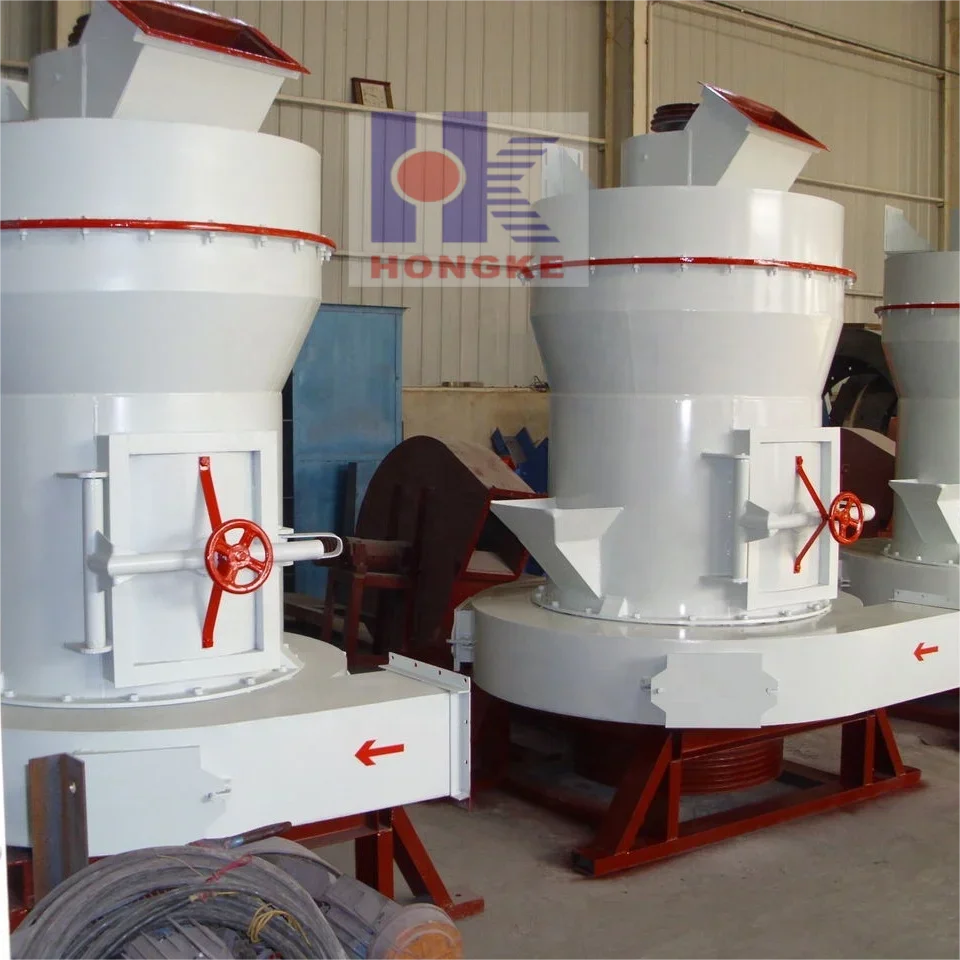

3R 4R 5R 6R Aluminum Sulfate Grinding Raymond Mill Metallic Ore Power Raymond Mill Factory
Product Overview
Raymond mill factory is used in grinding the non-flammable and non explosive stuff which has the mohs hardness below 9.3,humidity less than 6%:
such as gypsum,talc,Calcite,limestone, marble,feldspar,barite,dolomite,granite,kaolin,bentonite,bauxite,iron ore etc.the final
products could be 60-325 mesh.some materials could get 1000 mesh.
products could be 60-325 mesh.some materials could get 1000 mesh.
Working Principle of Raymond Mill Factory
Firstly, raw material is crushed by jaw crusher to the required size, which is lifted up to the hopper.
Secondly, the raw material goes into the grinding chamber of raymond mill machine through the electro-magnetic vibrating feeder at an even rate.
Thirdly, the raw material lifted by the shovel is ground into powderbetween the ring and roller. Fourthly, the powder isblown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go the classifier, will be reground into the needed powder.
FEATURES AT A GLANCE
1.The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw
material to grinding and packing is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant.
5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.
material to grinding and packing is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant.
5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.

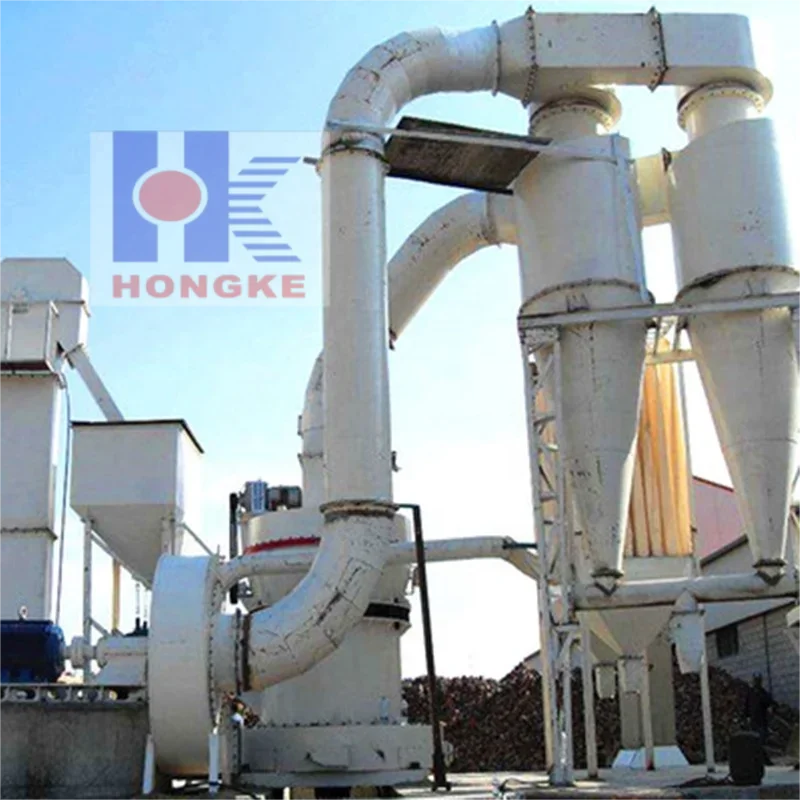

Raymond mill is consists of main frame,duct fan,analyzer,cyclone power collection device,bag
duct collector and pipe connection feeder,crusher and so on. to meet clients requirements.
duct collector and pipe connection feeder,crusher and so on. to meet clients requirements.
PRODUCT SPECIFICATIONS
Model | Max feeding size (mm) | Discharge Size (mm) | Capacity (t/h) | Mian Power (kw) | Roller dia. (mm) | Roller height (mm) | ||||||
3R2115 | <15 | 0.125-0.044 | 0.5-2 | 15 | 210 | 150 | ||||||
3R2615 | <20 | 0.125-0.044 | 1.7-3 | 18.5 | 260 | 150 | ||||||
3R2715 | <25 | 0.125-0.044 | 0.9-3.5 | 22 | 270 | 150 | ||||||
3R3015 | <25 | 0.125-0.044 | 1-4 | 22 | 300 | 150 | ||||||
4R3216 | <30 | 0.125-0.044 | 2-8 | 37 | 320 | 160 | ||||||
4R3218 | <30 | 0.125-0.044 | 2.5-9 | 37 | 320 | 180 | ||||||
5R4119 | <25 | 0.125-0.044 | 5-10 | 75 | 410 | 190 | ||||||
5R4121 | <30 | 0.125-0.044 | 8-15 | 75 | 410 | 210 | ||||||
6R4525 | <30 | 0.125-0.044 | 13-40 | 132 | 450 | 250 | ||||||
The capacity refers to limestone, professing capacity may vary with different materials and feeding size. | ||||||||||||
SALES AND SERVICE NETWORK

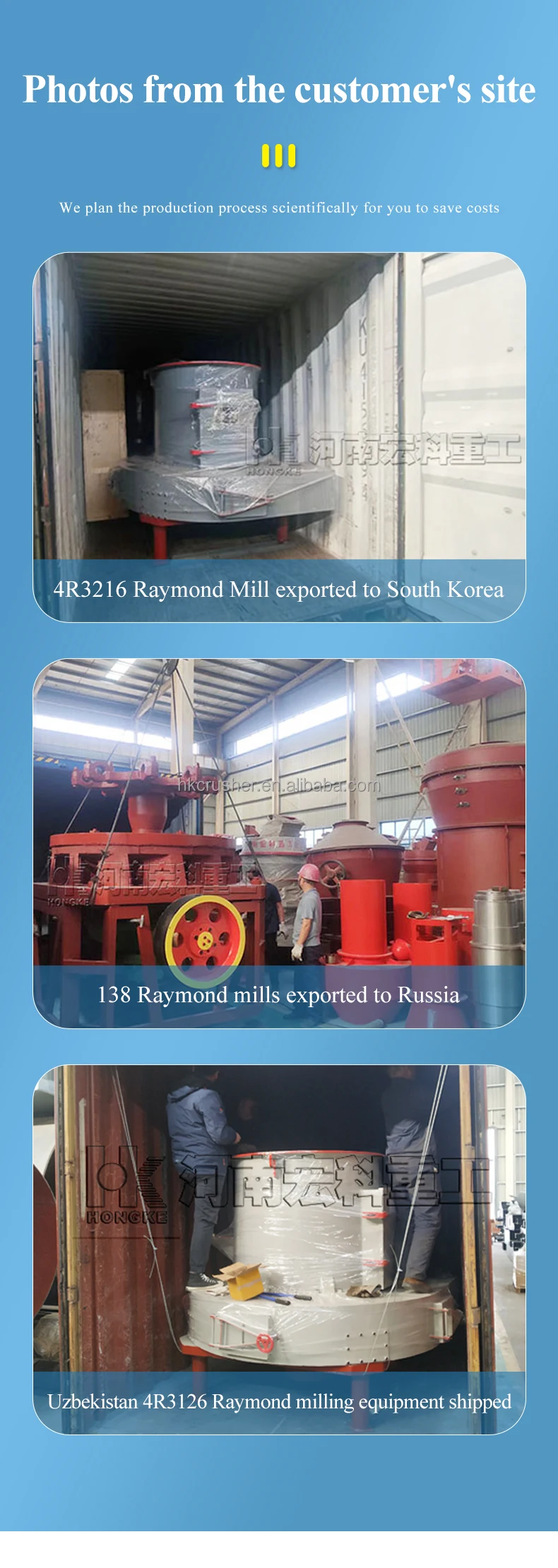

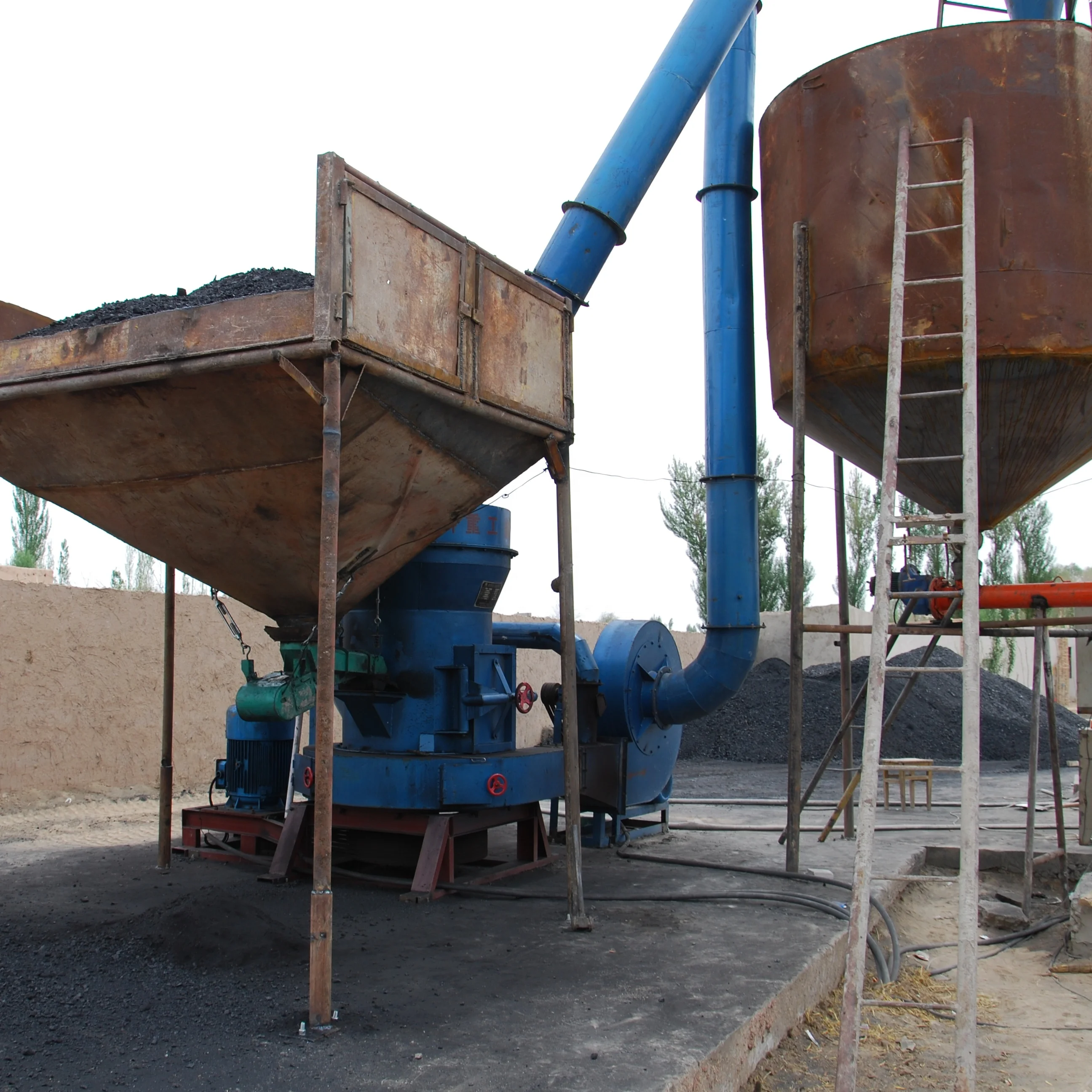

Successful Project
Delivery and Packing
Company Introduction
Henan Hongke Heavy Machinery Co., Ltd. is located in Henan Province which is the cultural base of the central area of China. We are a mining machinery manufacturing enterprise that integrates scientific research, production and marketing.
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on,
such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln,
metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill, stone production line,
mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.
We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to
cooperatingwith you!
We are a high-tech enterprise that specializes in the research and production of rotary kilns, dryers, crushers and so on,
such as new type of lime rotary kiln, ceramsite kiln, zinc oxide rotary kiln, sludge rotary kiln, chemical rotary kiln,
metallurgical rotary kiln, Raymond mill, ultra-fine mill, large and medium dryer, ball mill, sand mill, stone production line,
mineral processing equipment and so on.
From the design, production, installation and debugging, we provide you the entire tracking service.
We adhere to the aim of high quality to survive, good credibility to make development, and sincerely look forward to
cooperatingwith you!
FAQ
A; we can send our technician to your work site to make basement construction.
B; we can send our workers to your work site to make the plant installation.
C; we guarantee our kilns can produce the qualified products by your requirements.
D; we can offer all drawings of the plant.
E; we guarantee the best whole life after-sales.
Welcome for your inquire and visit!
B; we can send our workers to your work site to make the plant installation.
C; we guarantee our kilns can produce the qualified products by your requirements.
D; we can offer all drawings of the plant.
E; we guarantee the best whole life after-sales.
Welcome for your inquire and visit!
