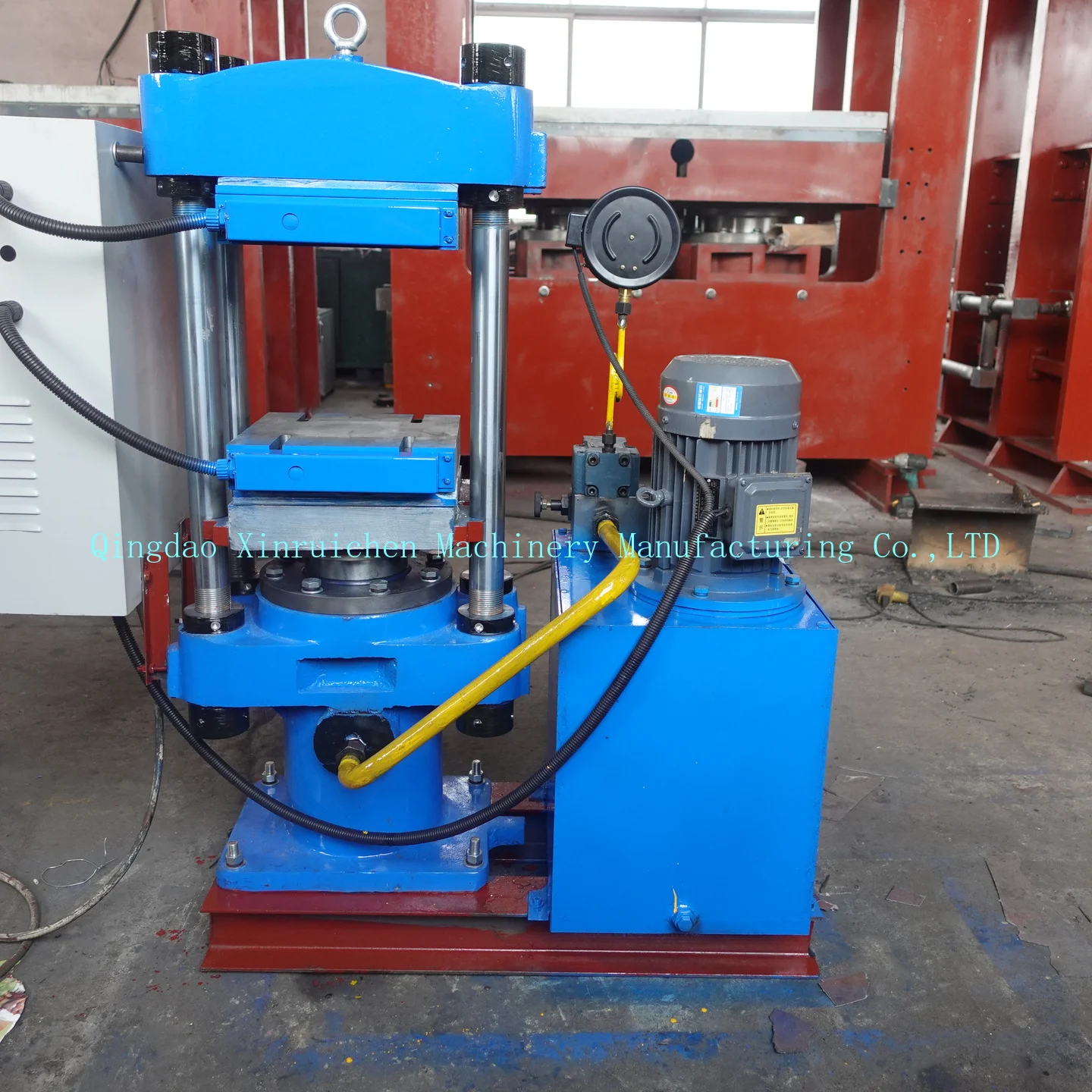

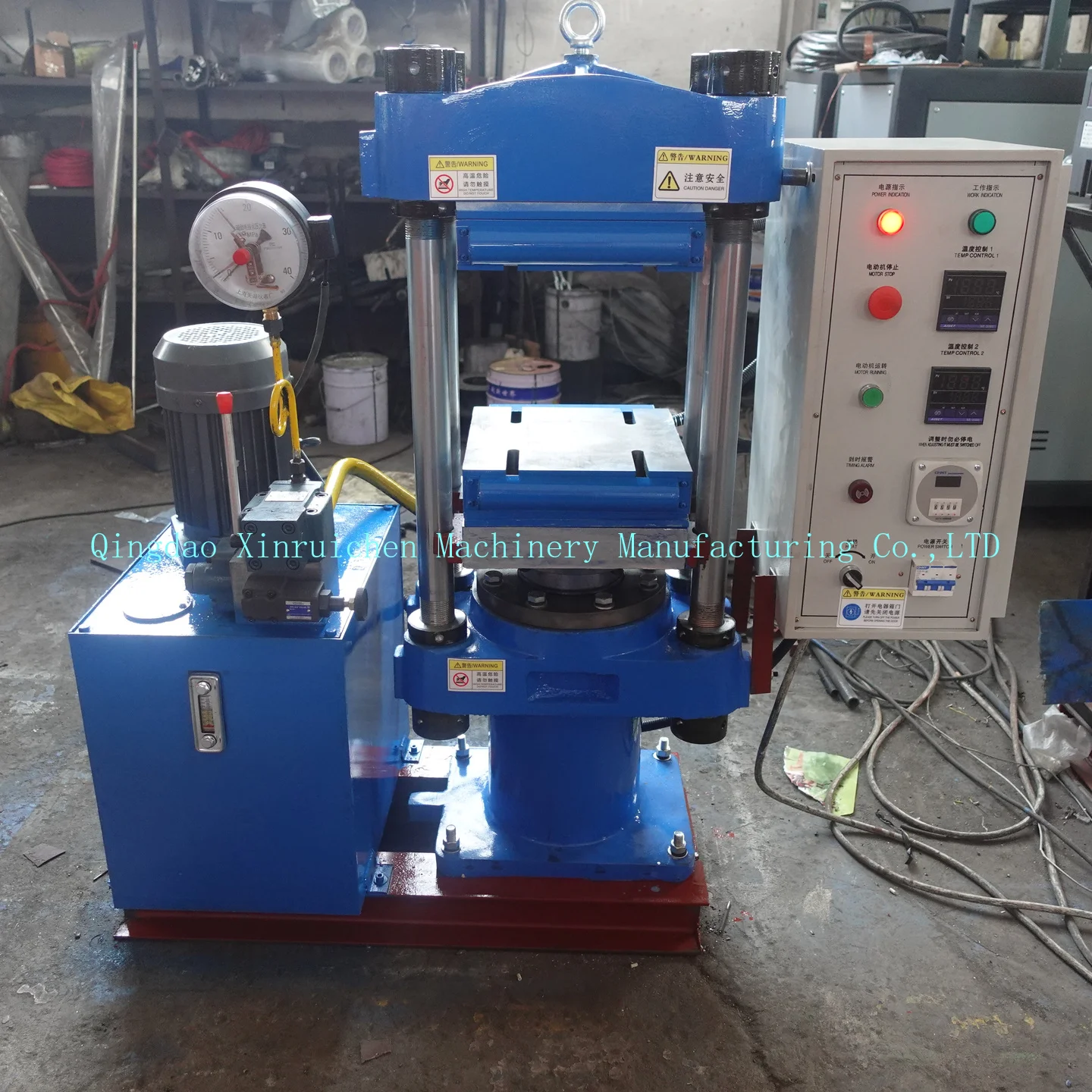

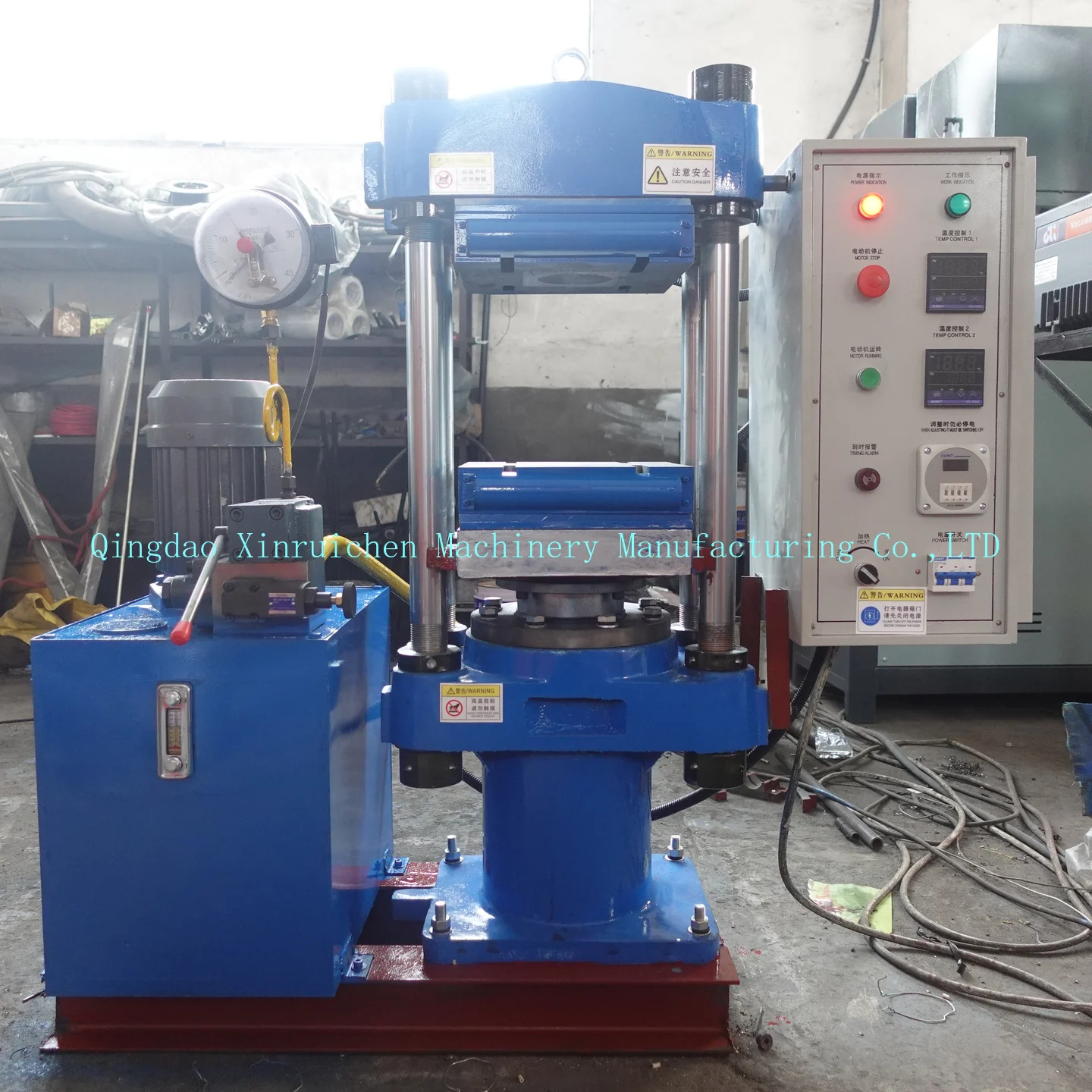

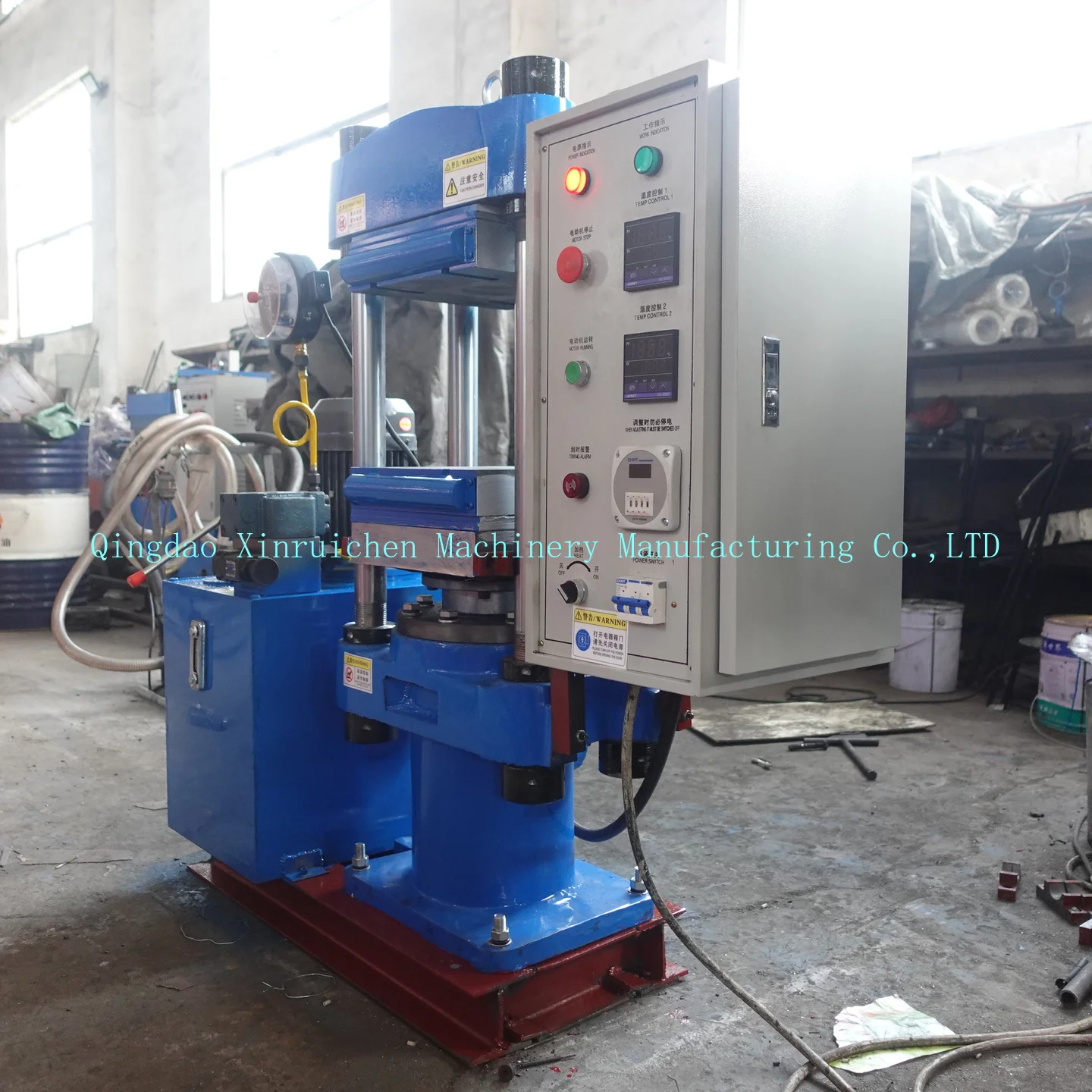

25T one layer plate vulcanizing plate with big distance/hot press machine/rubber products making machine

Product Overview

Description

25T one layer plate vulcanizing plate with big distance/hot press machine/rubber products making machine



Rubber Hydraulic Vulcanizing Press Machine is used to make rubber products. The machine can be used to make rubber molded products, as well as non-molded products. It also can be used as a cold press machine when don't heat it.

1. Design and making drawing.2. Processing machine parts strictly as per drawings, every process must have checking and control by
worker themselves.
3. QC team checking quality and precision degree.
4. Installaton the rubber hot press machine.
5. Commissioning
6. Packing while book shipping.
7. Delivery, loading container.

Rubber Products Making Procedure

Up mold and down mold consist a pair mold. When use the machine make the production. 1. Put rubber raw material into every cavity
of the down mold.
2. Press the mold close button on the machine.
3. The machine will close the mold, gives pressure and temperature.
4. When the set work time get out, the machine will open the mold automatically.
5. Workers get the finished rubber products out.
6. Do the next working cycle.
If there are different shape rubber products to make, just change the mold is ok, the machine is all purpose, universal use.

Model	XLB-50	XLB-100	XLB-200	XLB-300	XLB-350	XLB-400	XLB-500
mold closing force	50T	100T	200T	300T	350T	400T	500T
system pressure	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa
clamping stroke	280mm	280mm	300mm	300mm	300mm	300mm	300mm
rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s	60mm/s	60mm/s	60mm/s
plate size	350*350 400*400	450*450 500*500	510*540 600*550	700*650	700*700	900*800	700*700 800*800 950*800
daylight	350	350	350	350	350	350	350
Max temperature	250	250	250	250	250	250	250
motor	5.5	5.5	7.5	11	11	13	13
heating power	9.6	9.6	18.6	20.6	20.6	27.8	27.8
Oil capacity	160L	270L	320L	400L	400l	500L	600L
