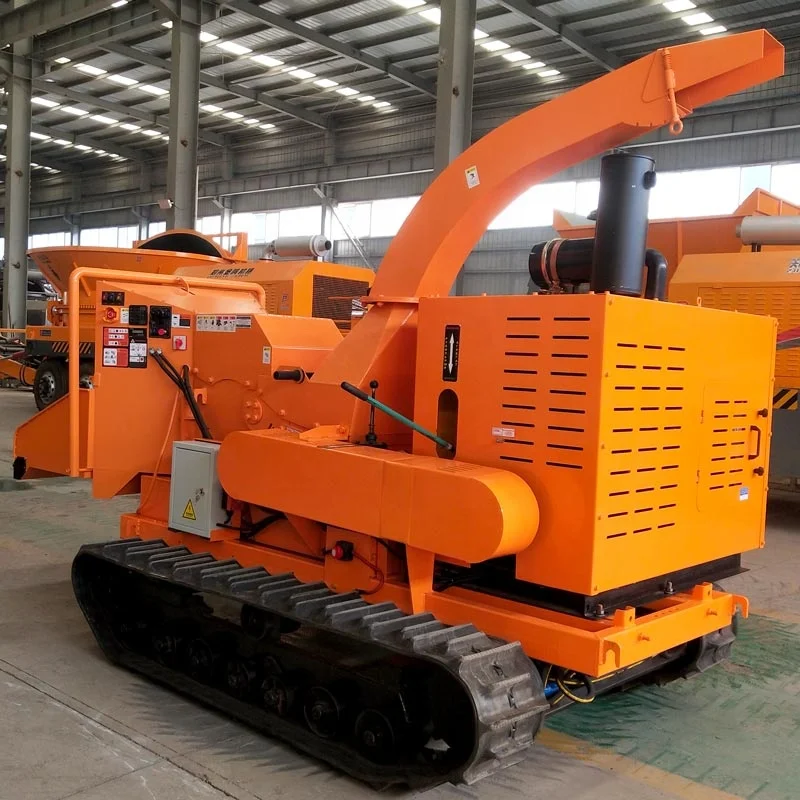

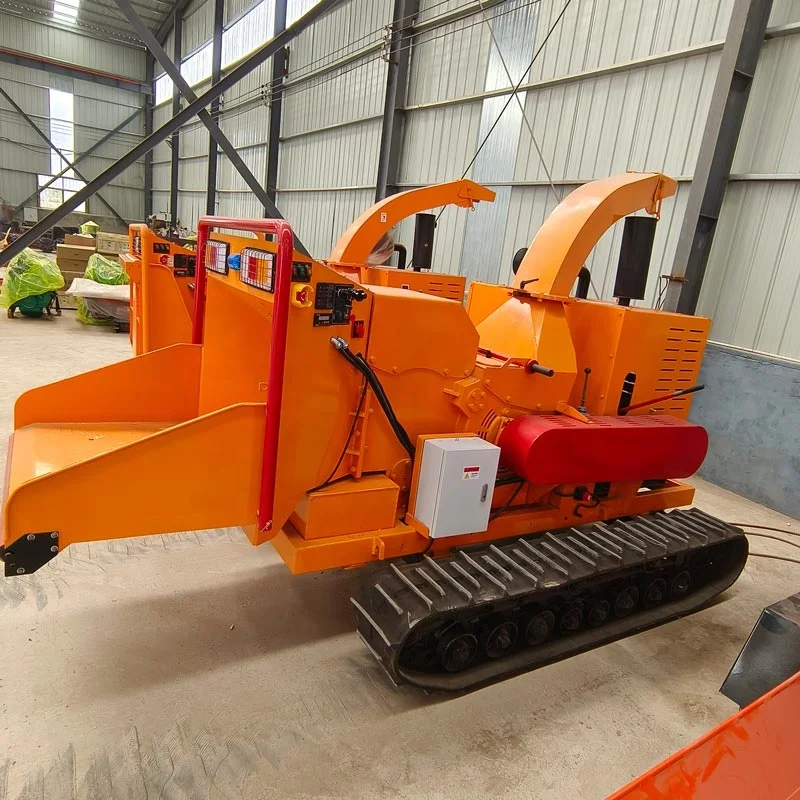

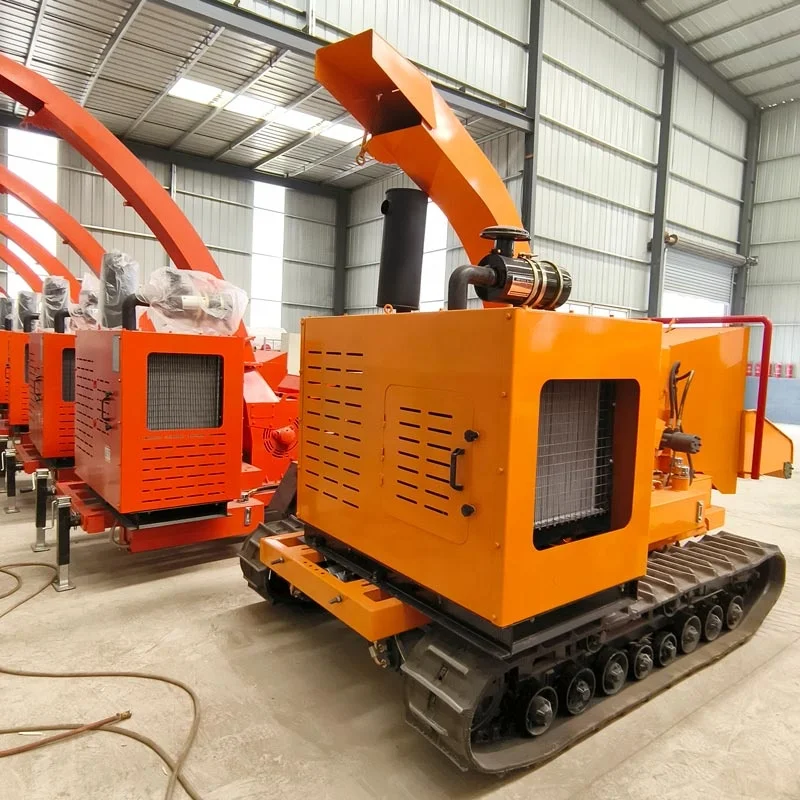

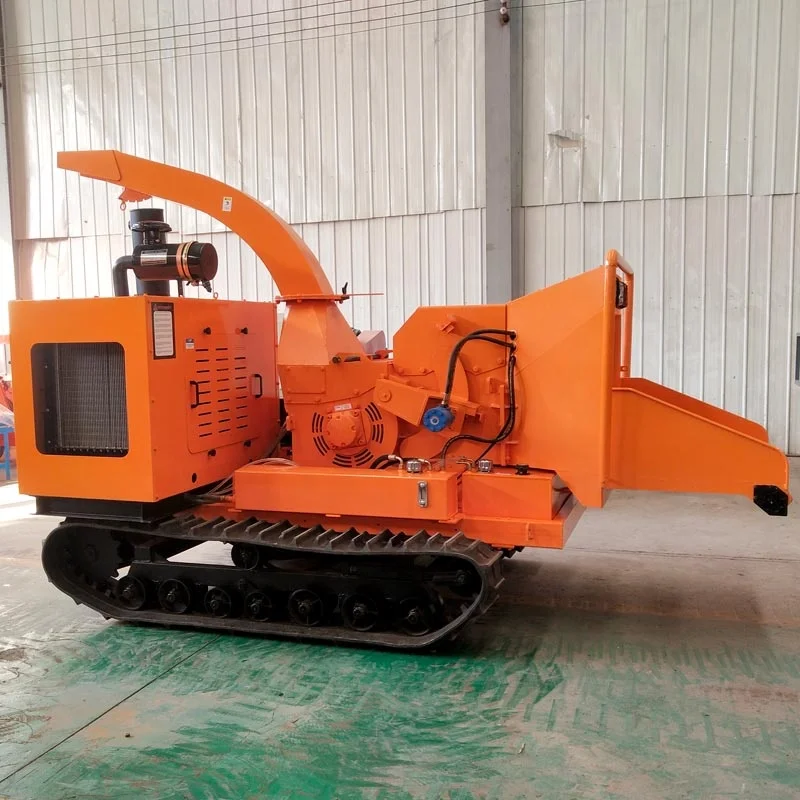

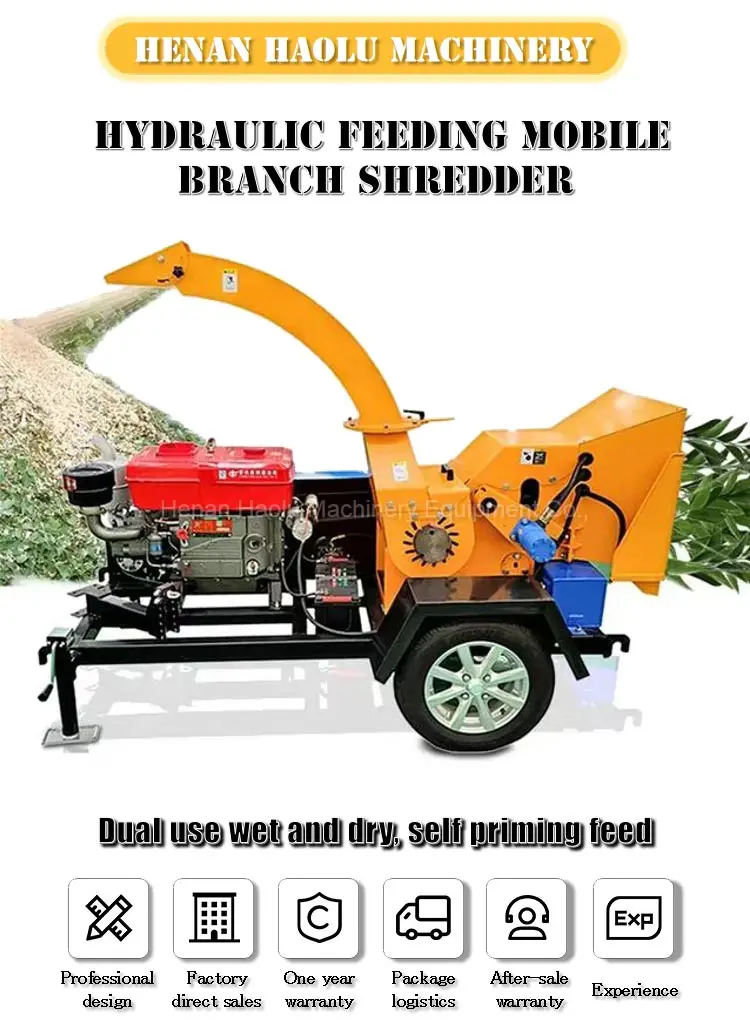

High Performance Mobile Crawler Type Branch Roots Bamboo Tung Shredder Machine Garden Shrub Dry And Wet Wood Shredder Machine
- Category: >>>
- Supplier: Henan Haolu Machinery Equipment Co. Ltd.
Share on (1601209536610):
Product Overview
Description
Product Paramenters

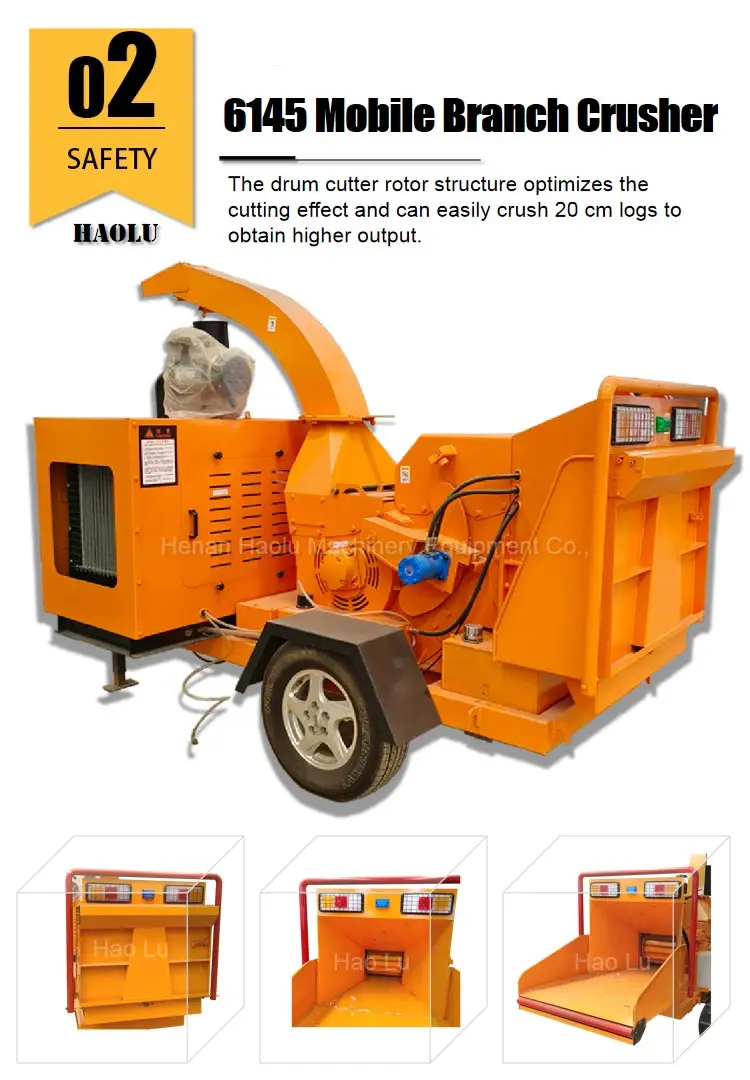

NO. | ZR-6130（medium） | ZR-6145（large） | |||||
NO. | Diesel type | Electric motor | Diesel type | Electric motor | |||
Blade diameter | 300mm | 300mm | 500mm | 500mm | |||
Engine | 25Hp | 4P-22Kw | 4108turbine pressure | 4P-55Kw | |||
Starting mode | Electric | Air switch | Electric | Air switch | |||
Main engine rotation | 2600r/min | 2900r/min | 2500r/min | 2500r/min | |||
Blade quantity | Operating knife*3 Static knife*1 | ||||||
Blade length | 300mm | 300mm | 450mm | 450mm | |||
Feed roller straight | 280mm | 280mm | 500mm | 500mm | |||
Feed roll action | Hydraulic motor | Hydraulic motor | Hydraulic motor | Hydraulic motor | |||
Feed gear manual | In three gears, one down, one stop. | ||||||
Inlet size | 300*200mm | 300*200mm | 450*380mm | 450*380mm | |||
Tyre size | 165/70r13 | 165/70r13 | 215/75r15 | 215/75r15 | |||
Hub size | 13 aluminum alloy wheels | ||||||
Generator power | 600w | None | 600w | None | |||
Battery | 12V 105aH | None | 24V 105aH | None | |||
Inlet direction | 360° | ||||||
The branch crusher mainly includes a frame, feeding device, hydraulic system, cutting and crushing device, power system, control system, finished product throwing output device, protective cover, walking and traction device, etc.The device is equipped with tires and can be towed and moved.The hydraulic motor provides power for feeding, runs smoothly, and is easy to operate,Manual control of the three gears of forward stop reverse.The upper 360 ° rotating discharge port can directly spray crushed wood chips into the compartment, avoiding loading and making it convenient and fast.
electrical machinery
100% pure copper wire motor ensures efficient, stable, and safe operation of the motor.

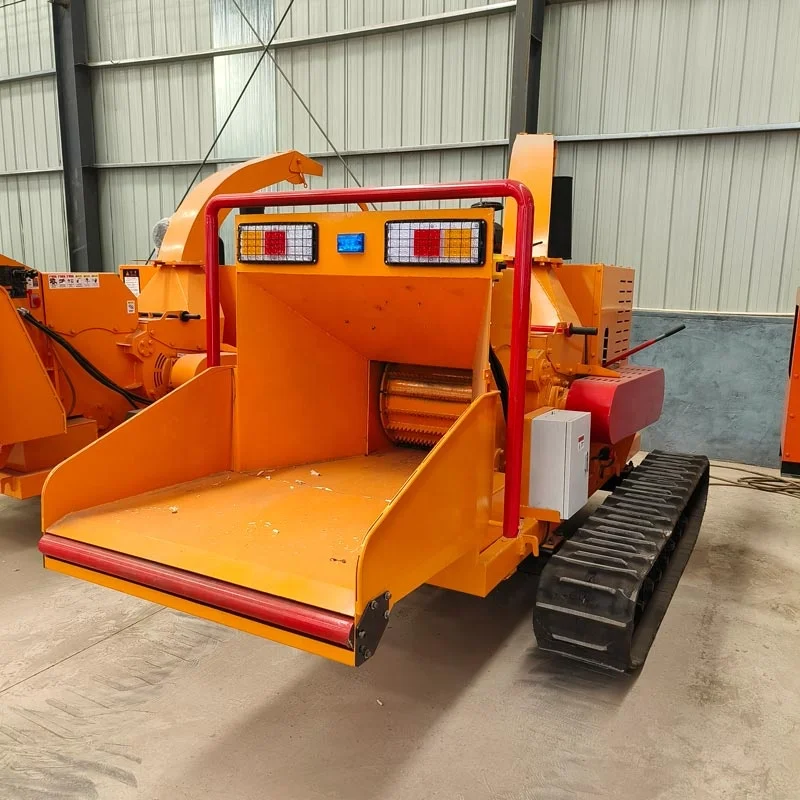

Hydraulic feed roller
Increase the thickness of the hydraulic feed roller,Sawtooth bite automatic feeding,Safe and convenient.
Lifting bracket
Foldable lifting bracket with stronger load-bearing capacity, suitable for various terrains.
Work indicator light
Taillight,Work lights,All kinds of lighting fixtures are complete, ensuring safe operation and working at night.

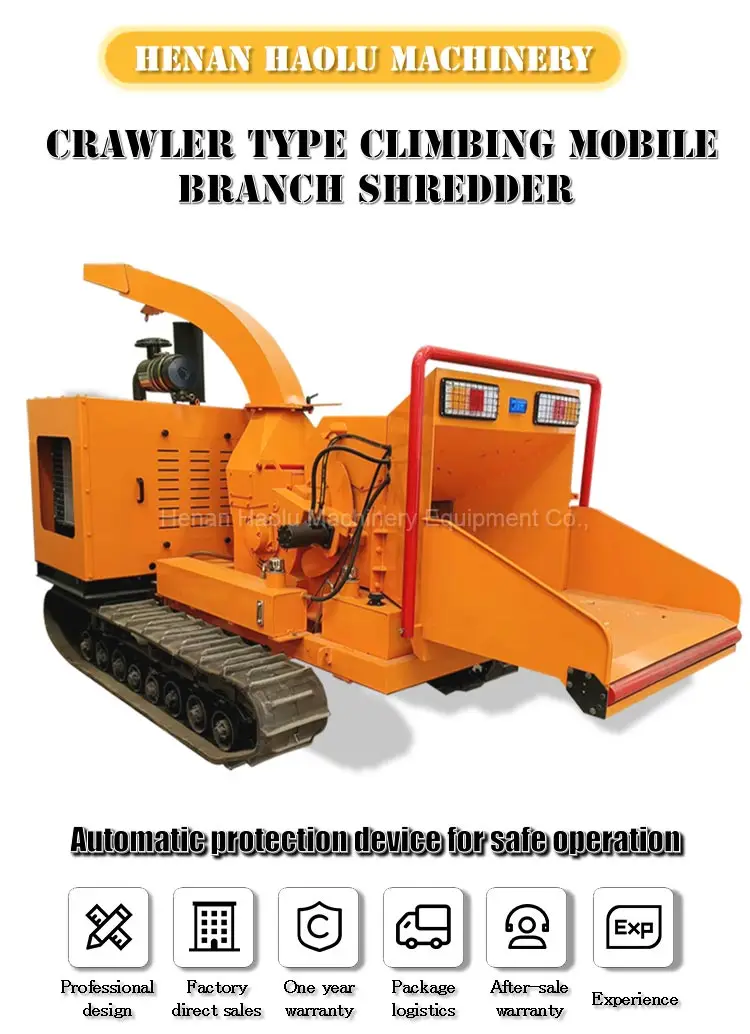

protection device
protection device for safe operation.Good machines are not only efficient, but also important for safety.

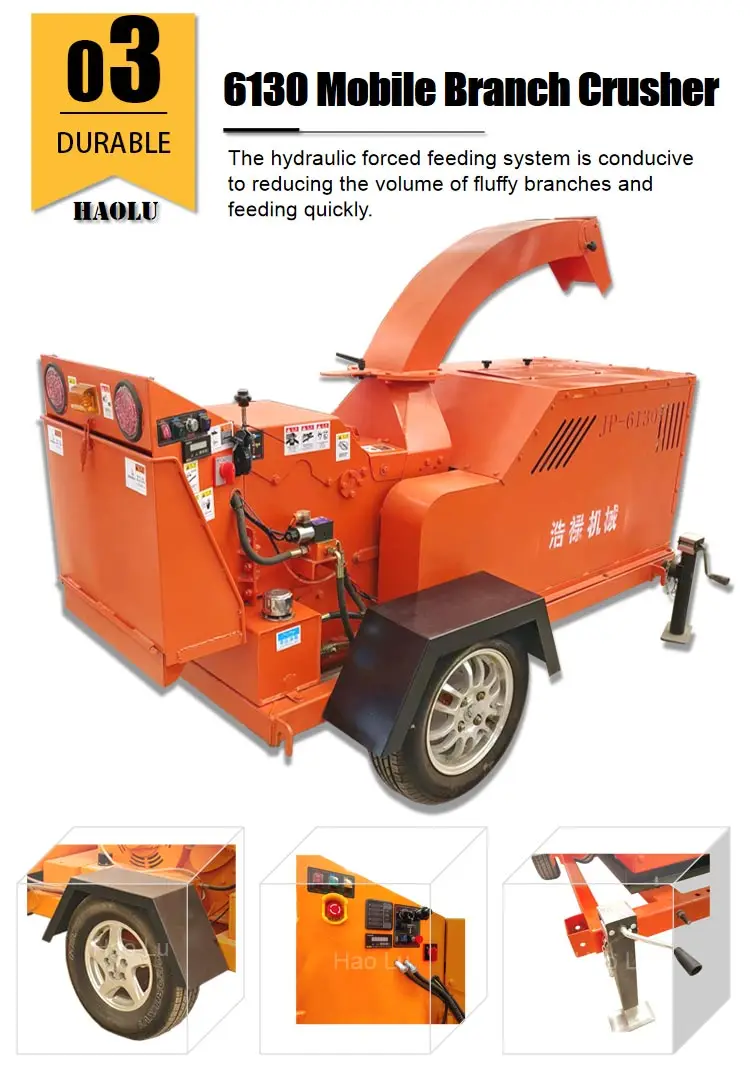

Equipped with an intelligent hydraulic forced feeding system, the 1-10 speed adjustment gear can adjust the speed freely to avoid material jams.The feed inlet can be opened and closed,Turn off during breaks to save space.
Automobile tire
Large size car tires, reliable quality, protection and wear resistance, stable and convenient walking. Adding traction at the front for more convenient movement
Intelligent panel
The intelligent operation panel (optional) displays the operating conditions of the whole machine (oil volume, water temperature, working hours, etc.) in time to find abnormalities and reduce maintenance.
Protective cover
The protective cover of the entire machine prevents overheating and injury, while ensuring that the machine itself is not damaged
Discharge pipe

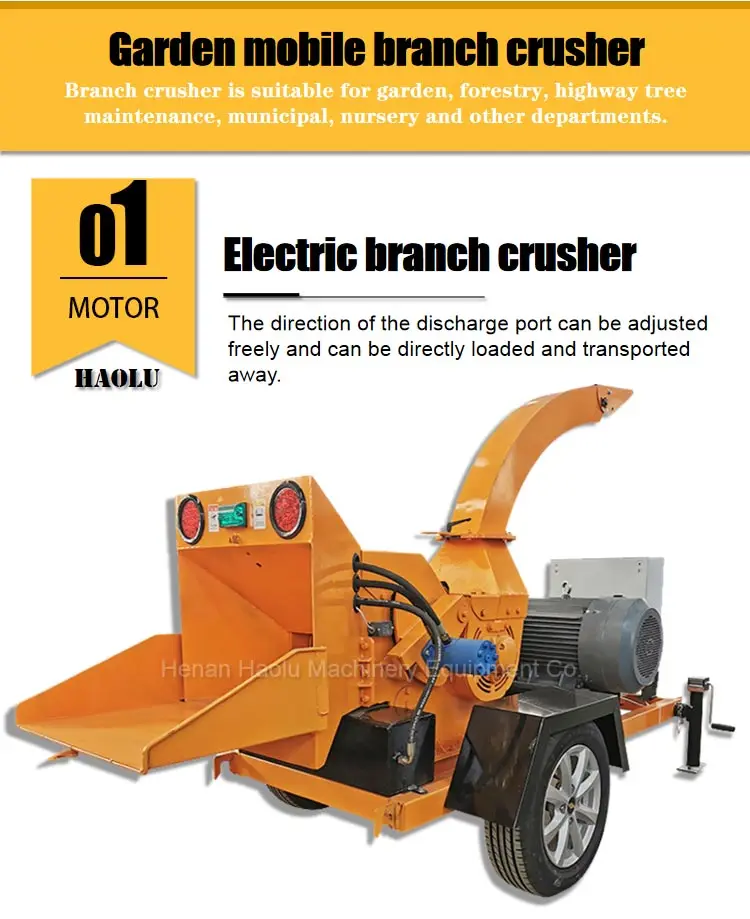

High discharge method,Curved discharge pipe,The angle of the discharge port can be adjusted up and down,The bottom of the discharge pipe can rotate 360 degrees,Can be sprayed onto the car in diameter.

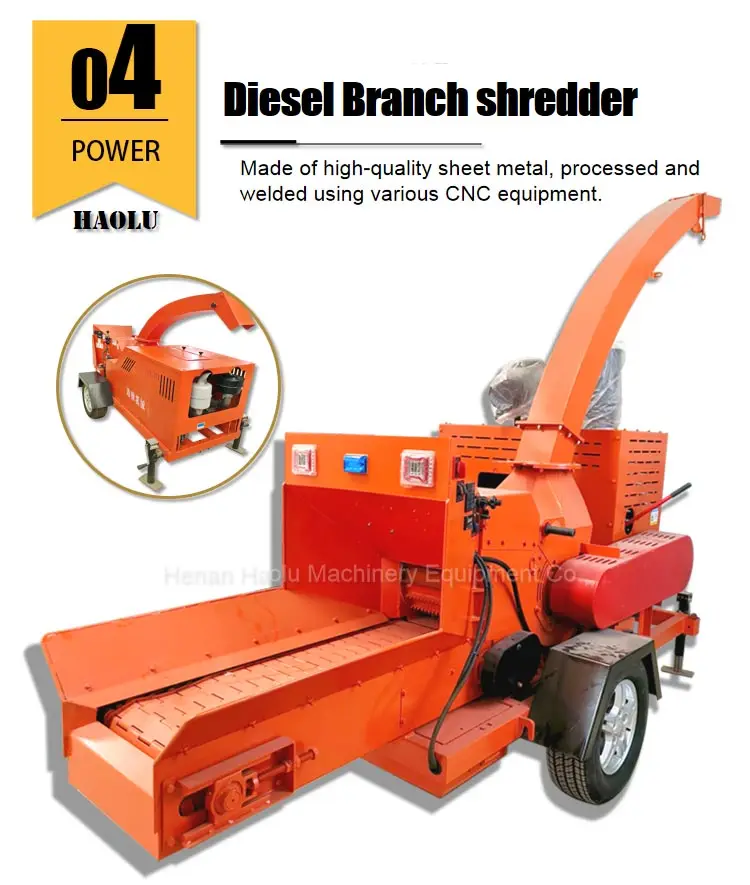

Conveyor chain plate
Conveyor plates can be added according to needs, customized iron chain plates, and riveting processes can be used to prevent slipping and non feeding.
4-bar 55 horsepower diesel engine,Powerful and durable.
1.The discharge nozzles, tires, and other easily installed parts of the machine will be dismantled to reduce transportation volume and save transportation costs.
2.The machine body will be wrapped with wrapping film to prevent moisture and scratches, and to assist in fixing the machine.
3.The parts in the wooden box will be individually reinforced to avoid collisions.

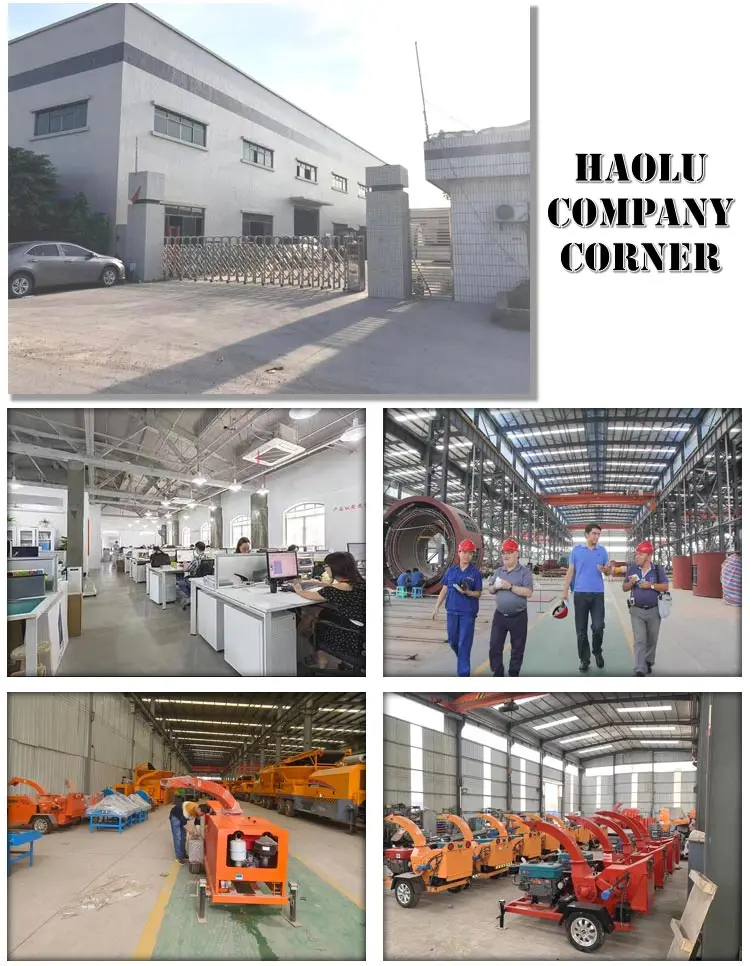

Henan Haolu Machinery Equipment Co., Ltd. has a history of over 18 years specializing in the design and manufacturing of wood processing machinery. Our company has an independent research and design team, and our production workshop is equipped with professional automated production equipment. Our main products include branch crusher, wood crusher, wood shredder, wood chipper, wood slicer, wood pellet machine, stump crusher, and wood shaving machine. With extensive experience, we provide professional customization and casting processing services.
