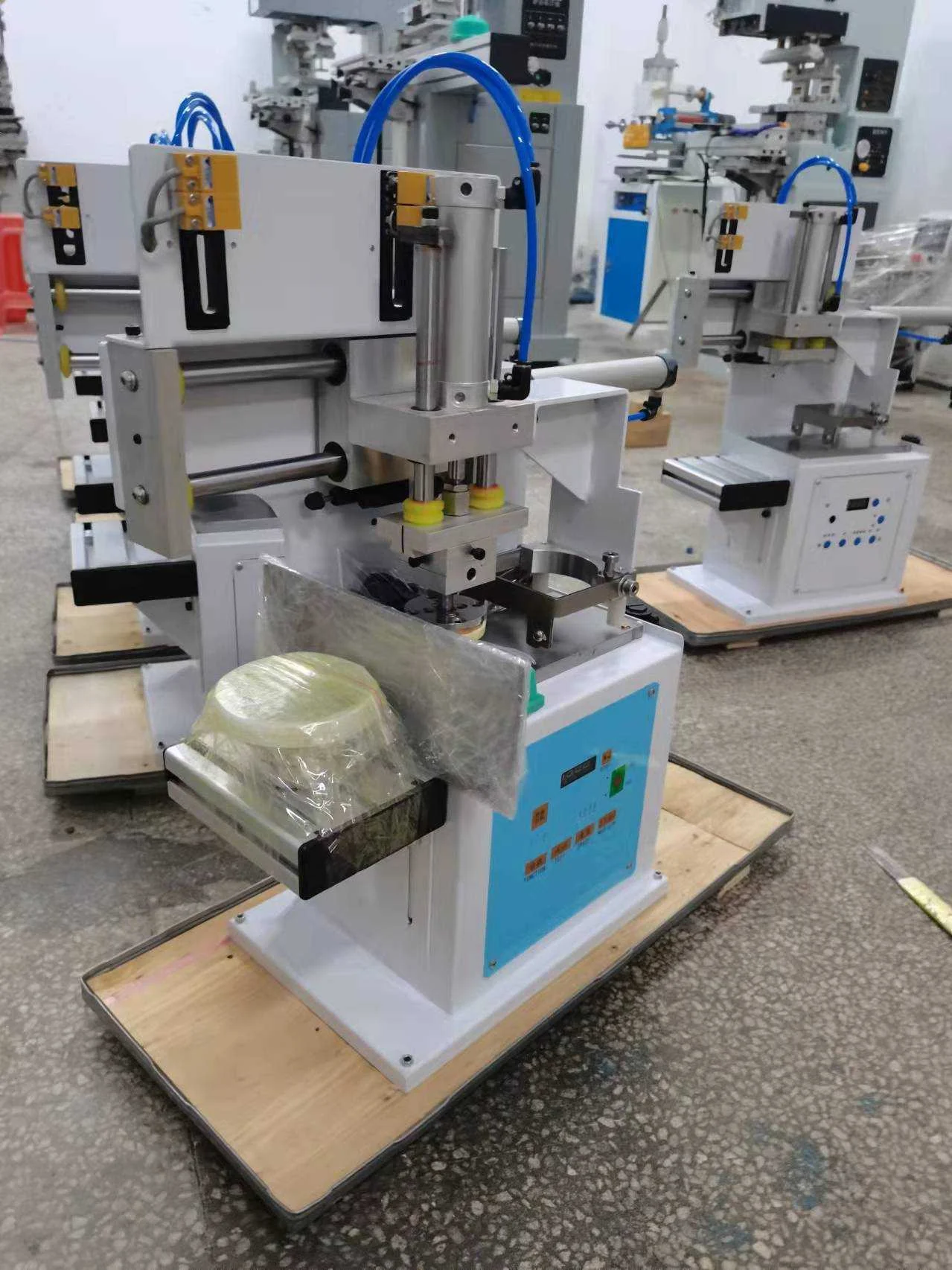

pneumatic mini desktop 1 color pad printer with 90mm cup for pen usb memory card lighter golf ball golf tee bulb sun glass

Product Overview

Description

pneumatic mini desktop 1 color pad printer with 90mm cup for pen usb memory card lighter golf ball golf tee bulb sun glass













Parameters:

Color:                                              1

Max. Steel Plate Size  ( mm)            100*100

Printing Area   (mm)                        75*75

Max. printing Capacity  (pcs/hr)       2100

Max. Height (mm)                           80

Ink Mode                                        Ink Well type

measurement(L*W*H)mm         560*350*540

Net Weight(kg)                              35

Power                                            110V or 220V 50/60Hz







Features:

·Advanced computerized system control
·pneumatically driven adopt from FESTO / AIRTAC, can adjust the movement speed of each part
·Built-in LED digital counter
·Emergency stop system to ensure the safety of operator
·Light-weight, strong aluminum cast machine frame
·Ink trays, work table and pads are independently adjustable for easy color registration
·Speed, pad and printing stroke are easily adjustable for different printing requirements
·Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning











Application:
1). The pad printer is for big size workpiece,automatic color registration.

2). Suitable for the products which surface is multi-color and needing exquisite
color printing,just need one fixture.

3). The product which is difficult in making plate and fixture can use it. it is suitable for cups,electrical appliances,barrels,stationary ,gifts and so on









  Wooden case with dust-poof packing

  Warranty for one year, lifetime assit maitenance

1. Payment terms: T/T or Western Union 50% in advance, balance before delivery upon inspection

2. Equipped with English Manual along with package
