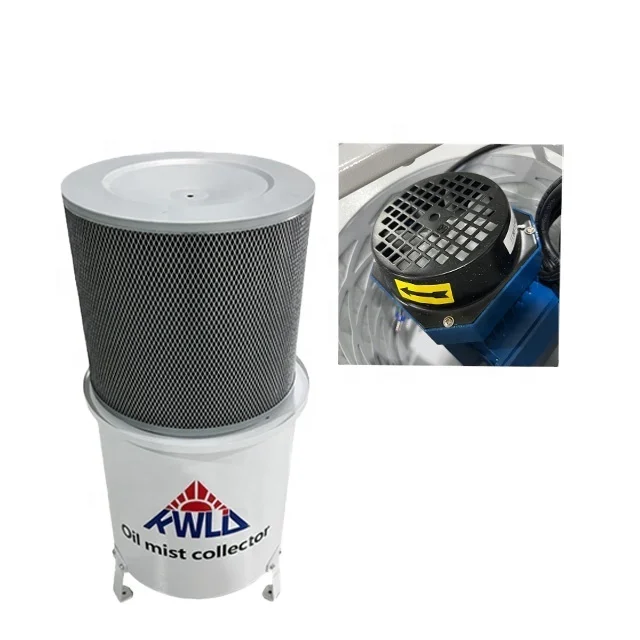

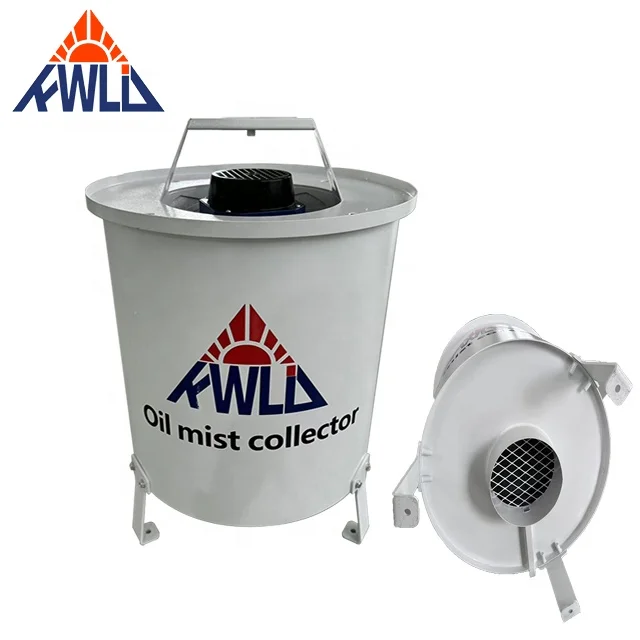

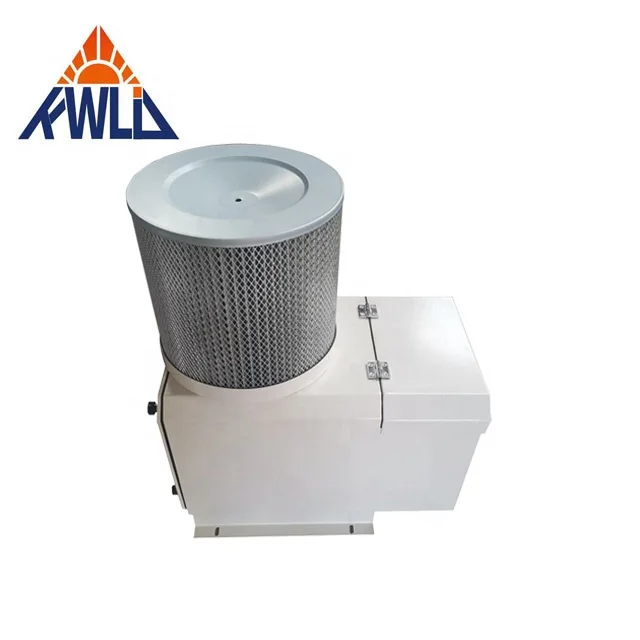

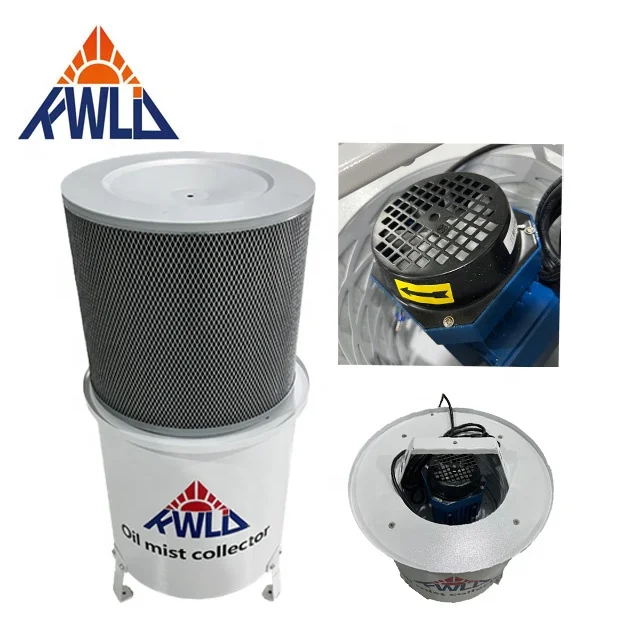

Centrifugal Vertical Oil Mist Collector For CNC Cutting Machine Waste Gas Purification Oil Mist Separator
- Category: >>>
- Supplier: Kwlid (jiangsu) Intelligent Equipment Manufacturing Co. Ltd.
Share on (1601209609540):
Product Overview
Description
Product Description
Centrifugal vertical oil mist collector is suitable for collecting and purifying water-soluble oil mist of various machine tools. The product features are small size, large air volume, high purification efficiency; low noise, long life of consumables, and low replacement cost. For high-concentration oil fume working conditions, a high-efficiency post filter can be selected, and the filtering accuracy can reach 0.3 micron level for effective purification. lt is an effective tool for you to save energy and reduce emissions,improve the workshop environment. and recycle resources!
Specification
Model | LJ-250 | LJ-370 | LJ-750 | LJ-750L | LJ-1100 |
Power | 0.25kw | 0.37kw | 0.75kw | 0.75kw | 1.1kw |
Voltage | 380V/220/3P | 380V/220/3P | 380V/220/3P | 380V/220/3P | 380V/220/3P |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Air volume | 680m³/h | 1080m³/h | 1380m³/h | 2300m³/h | 3000m³/h |
RPM | 2800 | 2800 | 2800 | 2800 | 2800 |
Inlet diameter | 125 | 150 | 150 | 150 | 150 |
Weight | 21kg | 30kg | 35kg | 37kg | 39kg |
Dimension(mm) | 380 x 800 | 430 x 900 | 470 x 900 | 470 x 1150 | 470 x 1150 |
Product principle
(A) The polluted air around the machine tool will be sucked into the pretreatment chamber at the bottom of the product.By the centrifugal force produced by the rotating turbine and the accelerating effect of coalescence principle, the oil mist can be easily combined and transformed into liquid state.

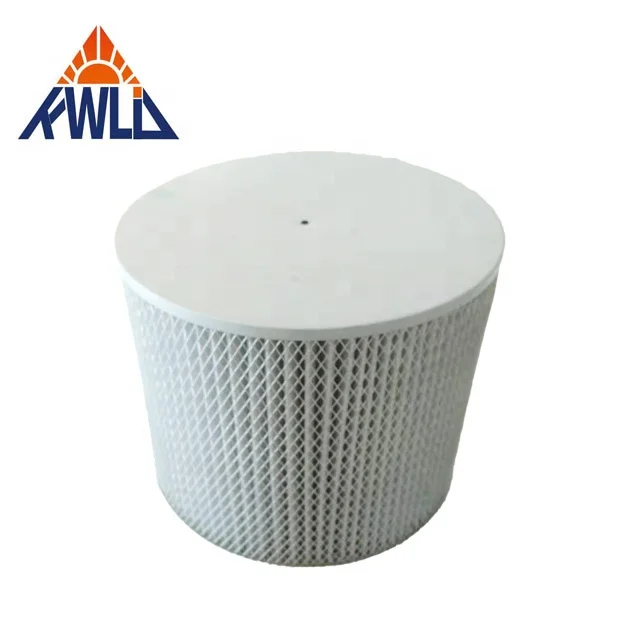

(B)The multi-level and high-efficiency filter cotton can intercept and capture even the smallest particulate pollutants, and prevent the release and diffusion of pollutants in the factory workshop again.
(C)The special oil drain pipe is designed to return the oil to the machine tool for reuse.
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Kwlid (jiangsu) intelligent Equipment Manufacturing Co., Ltd is a Sino-German cooperative enterprise.and specializing in the production of high-quality drag chain series, protective cover series, cantilever box series, oil mist dust purification equipment series, chip conveyor series and other products, The company is located in Shenzhou intelligent.
Manufacturing industrial Park, Changshu City, Jiangsu Province. The company integrates research and development , production and
sales. it is a large-scale supplier of mechanized equipment accessories in the domestic industry. The company has advanced production technology and equipment and an excellent design and R&D team. ts series of products are widely used in CNC machine tools, welding equipment, automation equipment, Glass machinery, stone equipment and many other industries. Kwlid company provides users with satisfactory services with first-class quality and good reputation. And we sincerely cooperate with colleagues at home and abroad to contribute to the development of CNC supporting products.
Exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are Manufacturer , we have professional team and professional production line.
Q: How long is your delivery time?
A: It depends on your order item and quantity.generally within 5 days if the goods are in stock.
7-15 workdays for customized products after receiving the prepayment or relevant L/C.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What’s the shipping way?
A: For small cargo order, we can send goods by UPS, DHL, or Fedex express which we have discount.
For bigger quantity order, we will arrange boat or air shipment according to client’s demands.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: We are Manufacturer , we have professional team and professional production line.
Q: How long is your delivery time?
A: It depends on your order item and quantity.generally within 5 days if the goods are in stock.
7-15 workdays for customized products after receiving the prepayment or relevant L/C.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What’s the shipping way?
A: For small cargo order, we can send goods by UPS, DHL, or Fedex express which we have discount.
For bigger quantity order, we will arrange boat or air shipment according to client’s demands.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
