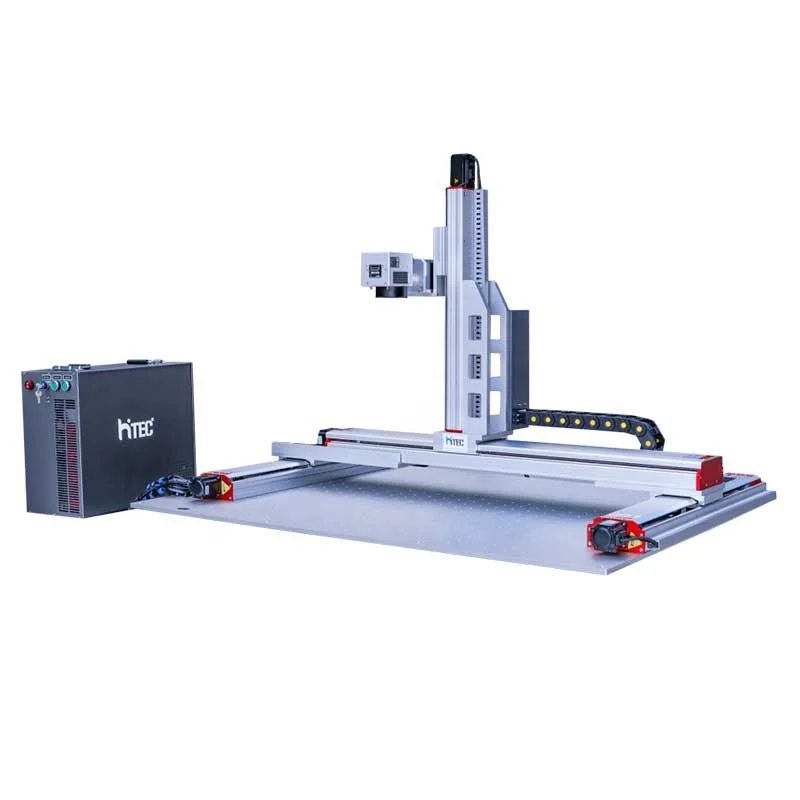

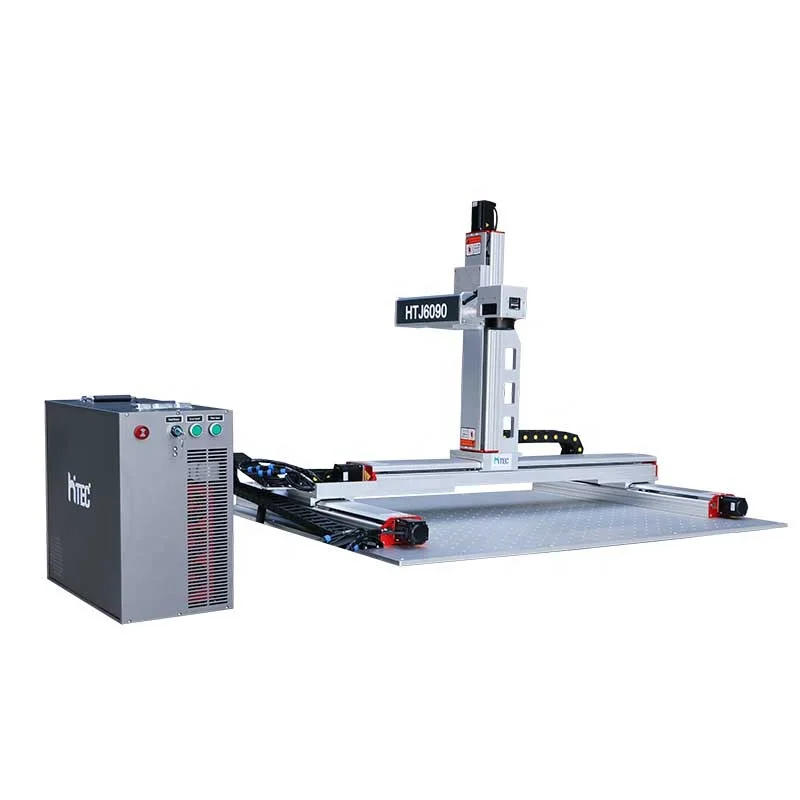

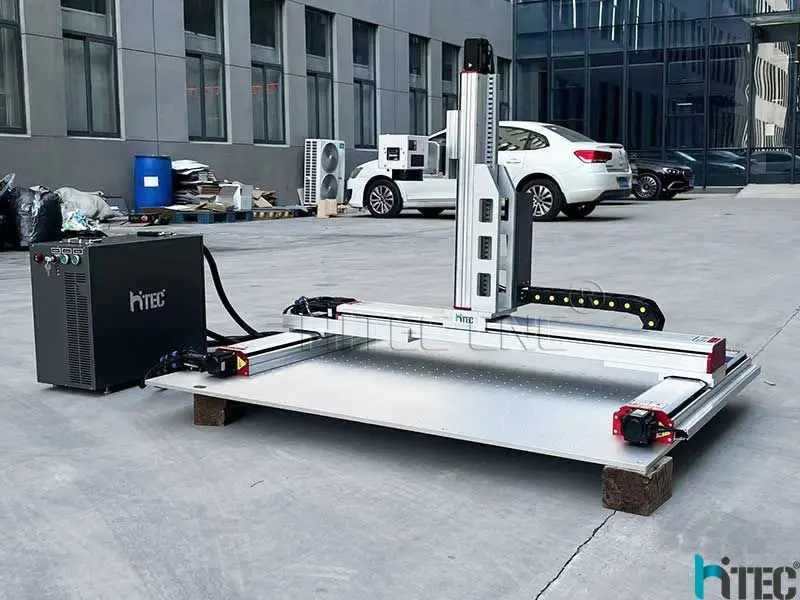

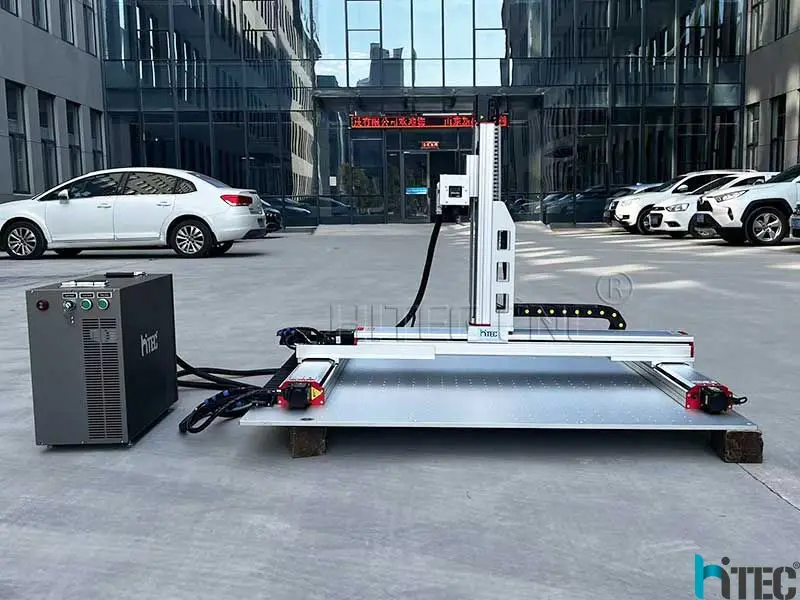

600*900mm Gantry laser XY Moving marking machine for large format metal nameplate elevator aluminum stainless steel engraving
- Category: >>>
- Supplier: Jinan Hitec Machinery Co. Ltd.
Share on (1601209669609):
Product Overview
Description
Product Overview
JPT 50W 60W 100W 200W Gantry Type HTJ-6090FM Series Laser Marking Machine With 600*900 mm Working Area For Metal Engraving
HTJ-6090FM series fiber laser marking machine have big working area, it is very effective for industrial metal marking such as nameplate marking, silicone keypad marking, bear marking etc.
Feature at glance
1. Fastest marking
2. No consumables
3. Low maintenance
4. Low operating costs
5. Surface treatments resistant
6. Mark at high temperatures
7. Laser safety guidance
2. No consumables
3. Low maintenance
4. Low operating costs
5. Surface treatments resistant
6. Mark at high temperatures
7. Laser safety guidance

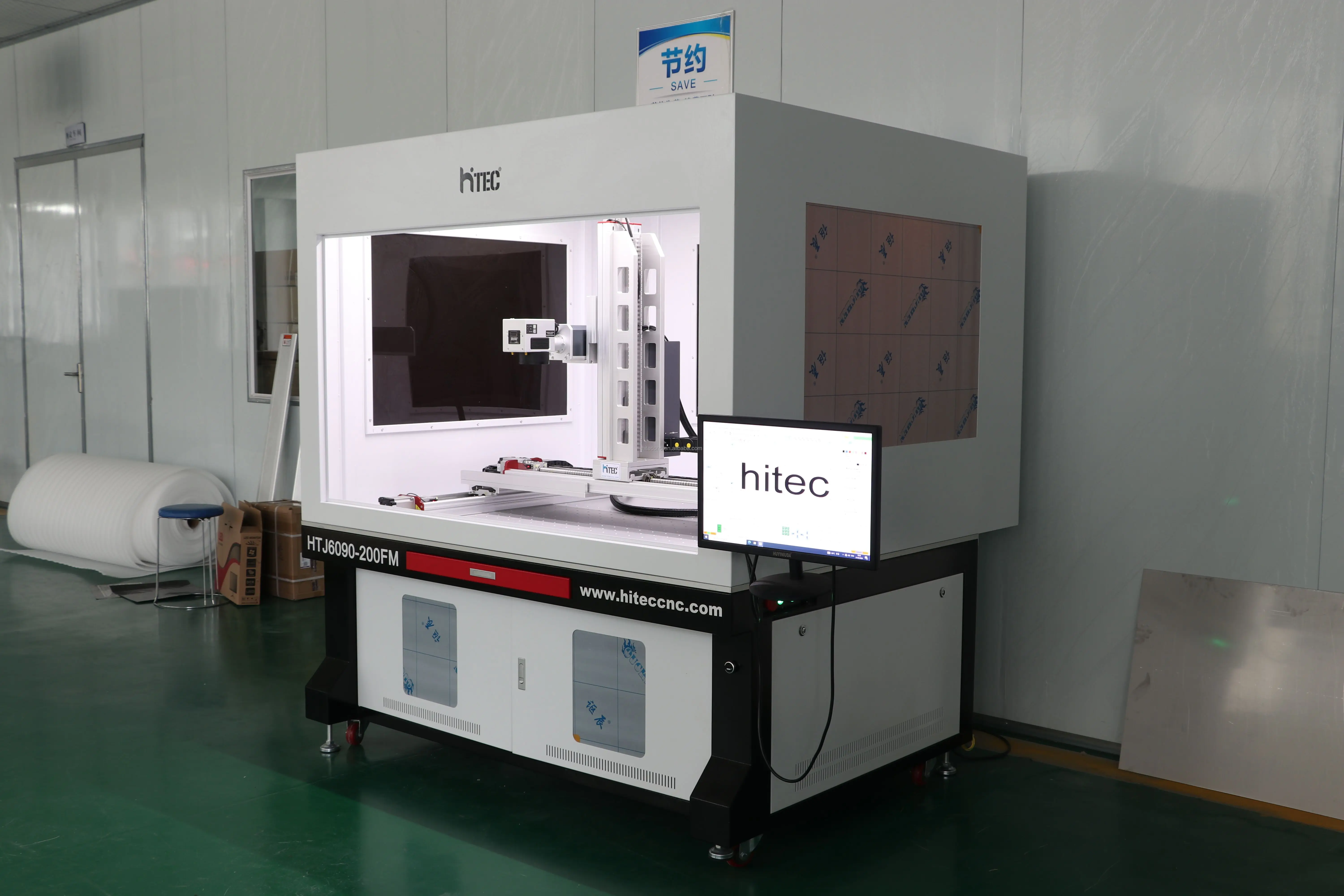

Right elevation
Left elevation

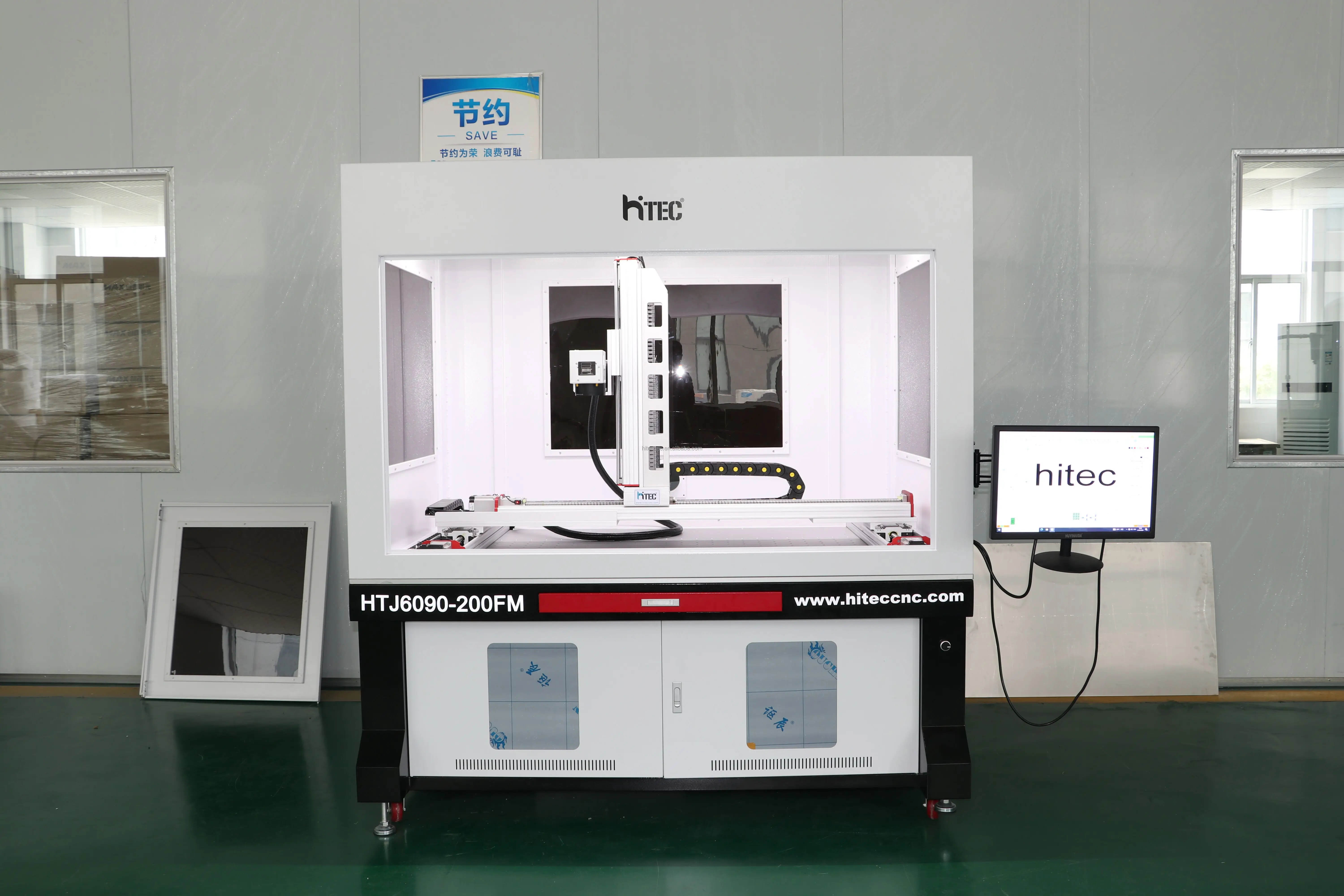

Front elevation
Product Configuration | ||||
No | Item | Data | ||
1 | Laser source | JPT/Raycus/IPG | ||
2 | Laser head | Original Beijing SG2206 Galvo head | ||
3 | Controller | EZCAD3/Zeus Controller | ||
4 | Power supply | Taiwan best brand MW laser power supply | ||
5 | Servo motor | China leadshine Servo motor | ||
6 | Safety glass | Safety glass | ||

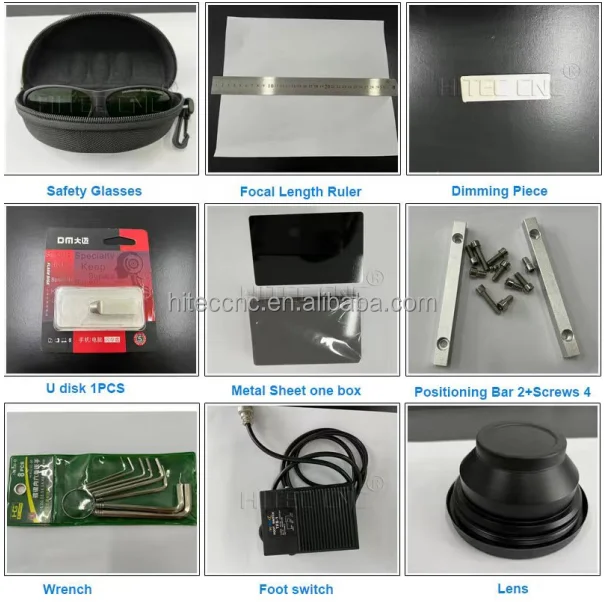

6 | Full necessary parts for the laser marking machine | Full necessary parts for the laser marking machine | ||
1. | Safety glasses | |||
2. | Focal length ruler | |||
3. | Dimming piece | |||
4. | U disk (1pcs) | |||
5. | Metal sheet 1 box | |||
6. | Positioning Bar 2+ Screws 4 | |||
7. | Wrench | |||
8. | Foot switch | |||
9. | Lens | |||
High speed Galvanometer SINO SG 2206
Taiwan MW Famous brand
China leadshine Servo motor
Safety glass
Zeus controller system(optional controller: EZCAD3)
JPT laser source(optional laser source: Raycus/IPG)
Product Technologies | ||
Type | HTJ-6090FM | |
Power | 50w/60w/100w/200w | |
Laser Wavelength | 1064nm | |
Laser Head | Original Beijing SG2206 Galvo head | |
Laser Source | JPT/IPG/Raycus | |
Marking Area | 600*900mm (optional area:1200*1200mm / 1300*2500mm) | |
Marking Depth/cutting depth | 1mm | |
Marking Speed | 8000mm/s | |
Minimum Line Width | 0.015mm | |
Minimum Character | 0.2mm | |
Repeated Precision | ±0.003mm | |
Life-span of Fiber Laser Module | 80 000-100 000 hours | |
Focus Spot Diameter | <0.01mm | |
Power Stability (8h) | <±1.5%rms | |
System Operation Environment | Windows XP / Windows 7 / Windows 8 / Windows 10/11 | |
Cooling Mode | Air cooling--Built-in | |
Working Temperature | 0℃~40℃ | |
Voltage | 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH | |
Power Requirement | <500W | |

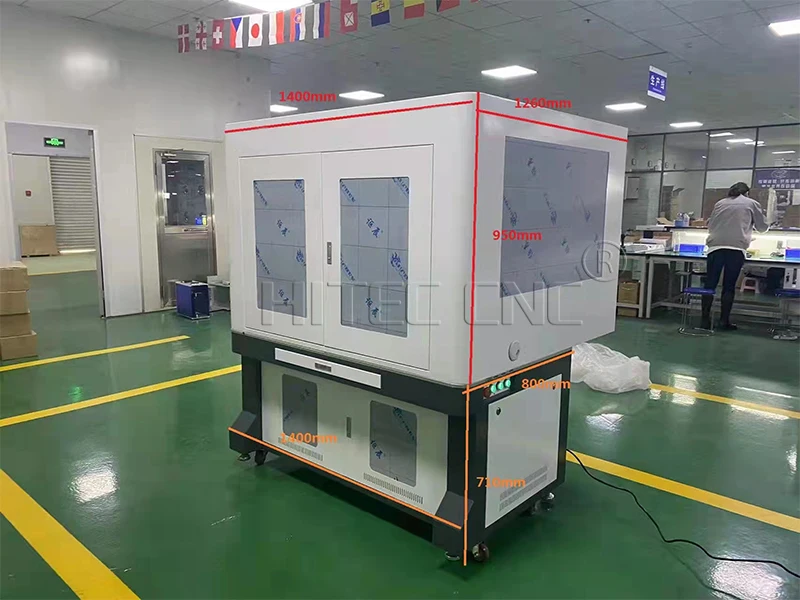

Dimension (L*W*H) | 1600*1200*590mm | |
Warranty | 3 Years | |
Certification | CE/FDA | |
Net Weight | 200KG | |
Gross Weight | 260KG | |
Samples
For nameplate marking
For nameplate marking
For nameplate marking
For metal plate marking
For nameplate marking
For metal plate marking
For plate marking
For metal plate marking
For metal plate marking
For metal plate marking
For metal plate marking
For mirror marking
For mirror marking
For color marking
Optional Area

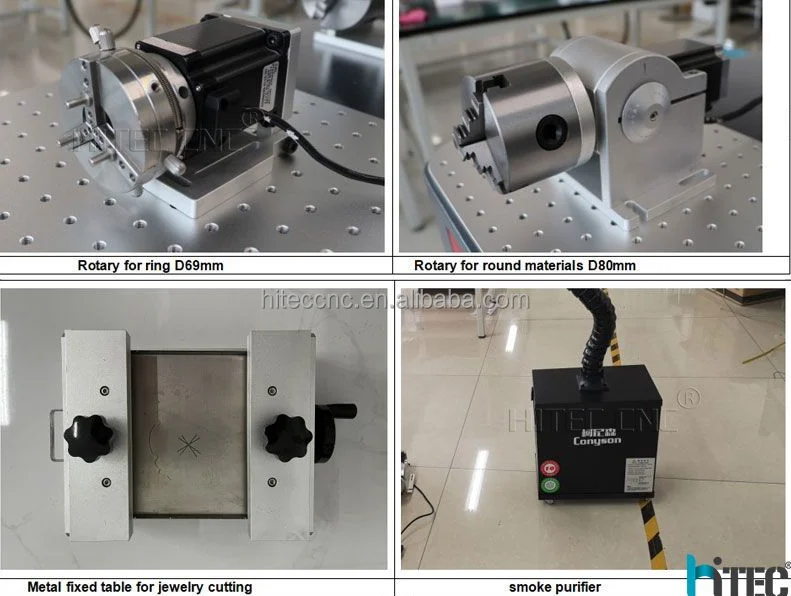

Optional Parts
Optional Type

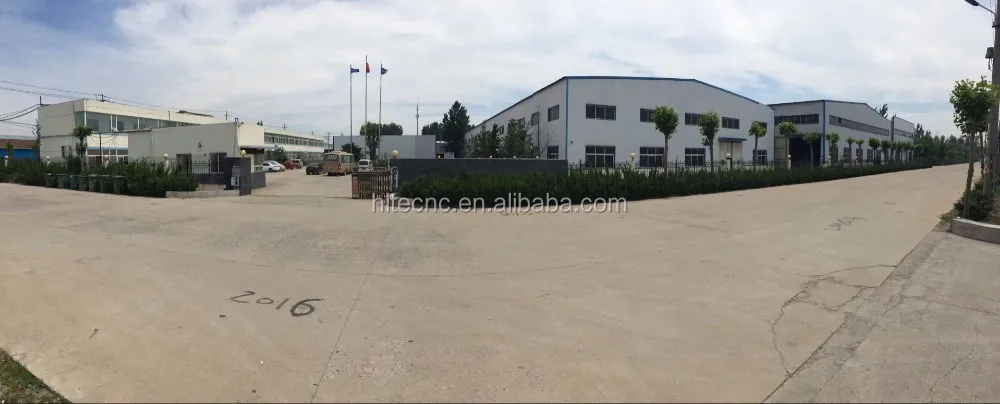

Company profile
JINAN HITEC MACHINERY CO.,LTD
Established in the year 2002,We are manufacturer and develop of the high technology machines. Hitec products are used in a wide variety of industries, markets and applications thoughout all over the world.Hitec is highly committed to offering the most advanced,capable and efficient manufacturing technology backed by unsurpassed service and support. We offer laser cutting machine, fiber laser cutter machine, cnc router machine, wood cnc lathe machine, cnc plasma cutter, cnc oscillating knife cutter machine.
QC and Service
QC
5 face cnc milling machine which process accurancy can be 0.001mm,to improve all the machine hardware precision,from machine bed,gantry parts to tapping.
All the machine parts Assembe by our machine milling and lathe machine,can be guarantee the machine precision and fast delivery time
All the machine parts Assembe by our machine milling and lathe machine,can be guarantee the machine precision and fast delivery time
Certification
CE FDA ISO certification
Service
Technology support
We welcome all our buyers come to visit our factory for directly free training, our professional engineer will support you to study the machine operation.
We will supply machine operation manual, training videos and machine parameters, our engineer will supply online machine installation and training.
The customers’ technicians can keep in touch with our engineer at any time, through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.
If customer need, we will send our engineer to the customers’ place to provide install and train the customer to use the
machine,our engineer will stay at customers’ place for 5-7days,customers should pay the round-trip airkets/hotels/food for our engineer.
We welcome all our buyers come to visit our factory for directly free training, our professional engineer will support you to study the machine operation.
We will supply machine operation manual, training videos and machine parameters, our engineer will supply online machine installation and training.
The customers’ technicians can keep in touch with our engineer at any time, through wechat/whatsapp/mobile phone or email, our engineer will help to solve your problems as soon as possible.
If customer need, we will send our engineer to the customers’ place to provide install and train the customer to use the
machine,our engineer will stay at customers’ place for 5-7days,customers should pay the round-trip airkets/hotels/food for our engineer.
The main purpose of pre-sales service is to assist customers to do engineering planning and system requirements analysis, so that
our products can meet the needs of users to the greatest extent, and at the same time make the customer's investment play the
largest comprehensive economic benefit.
our products can meet the needs of users to the greatest extent, and at the same time make the customer's investment play the
largest comprehensive economic benefit.
1. Strengthen user communication and exchange on project progress at any time; 2. As far as possible to meet the changes of the
user's reasonable temporary needs;
3. Collaborate friendly with users to deliver qualified products.
user's reasonable temporary needs;
3. Collaborate friendly with users to deliver qualified products.
Guarantee Policy
The guarantee period of quality shall be 3 years counting from the date on which the commodity arrives at the port of destination.
Except the damage is artificial, we are responsible for offering the fittings free of charge during the guarantee period, but you
need to send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. Out of
the guaranteed period, should the parts required to be repaired or replaced, if any, the parts will be charged.
Except the damage is artificial, we are responsible for offering the fittings free of charge during the guarantee period, but you
need to send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. Out of
the guaranteed period, should the parts required to be repaired or replaced, if any, the parts will be charged.
