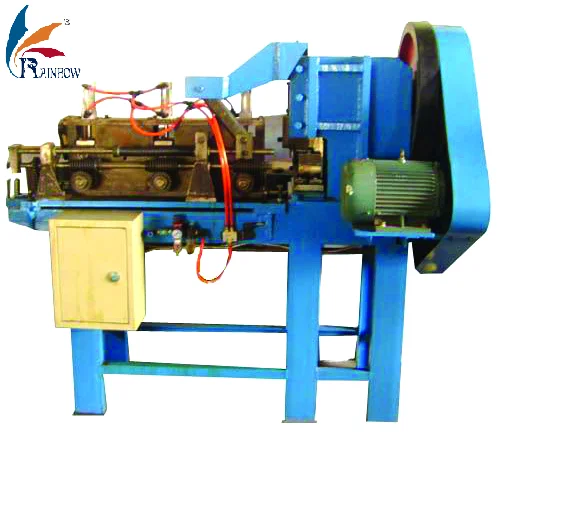

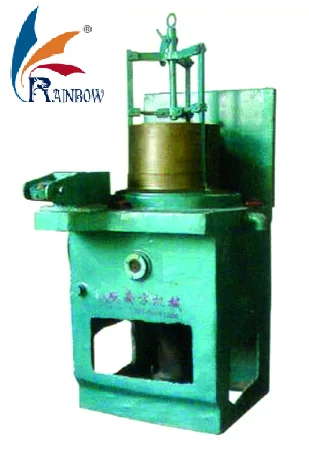

Special shaped spring washer machine serpentine spring making machine with Pay off stand
- Category: >>>
- Supplier: Harbin Rainbow Technology Co. Ltd.
Share on (1601209679576):
Product Overview
Description

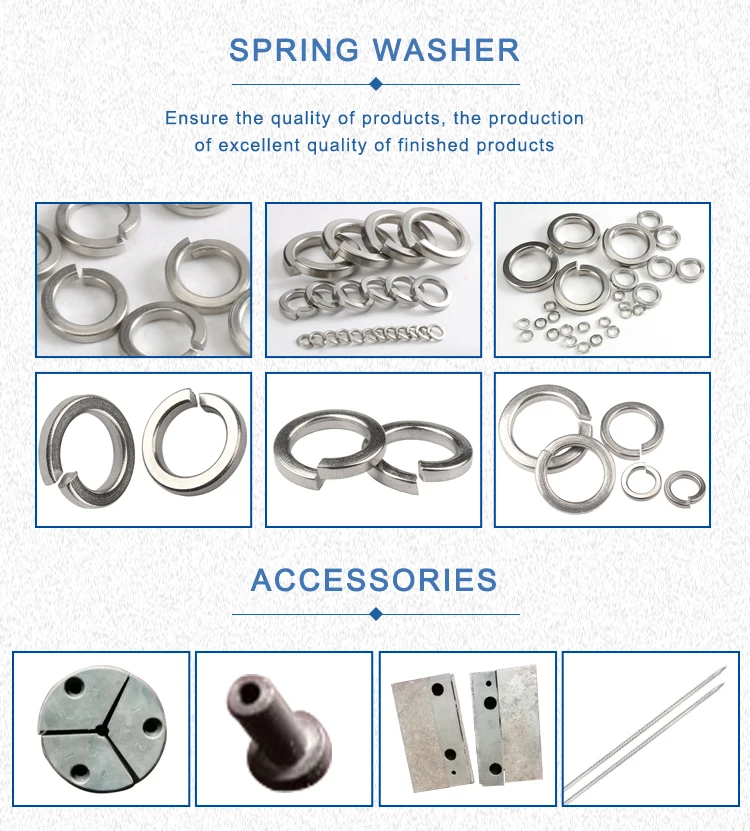

Spring washer making machine. we have all sizes from 3mm -30mm.
our machine had exported more than 100 sets to INIDA.
For any questions,pls feel free to contact us .

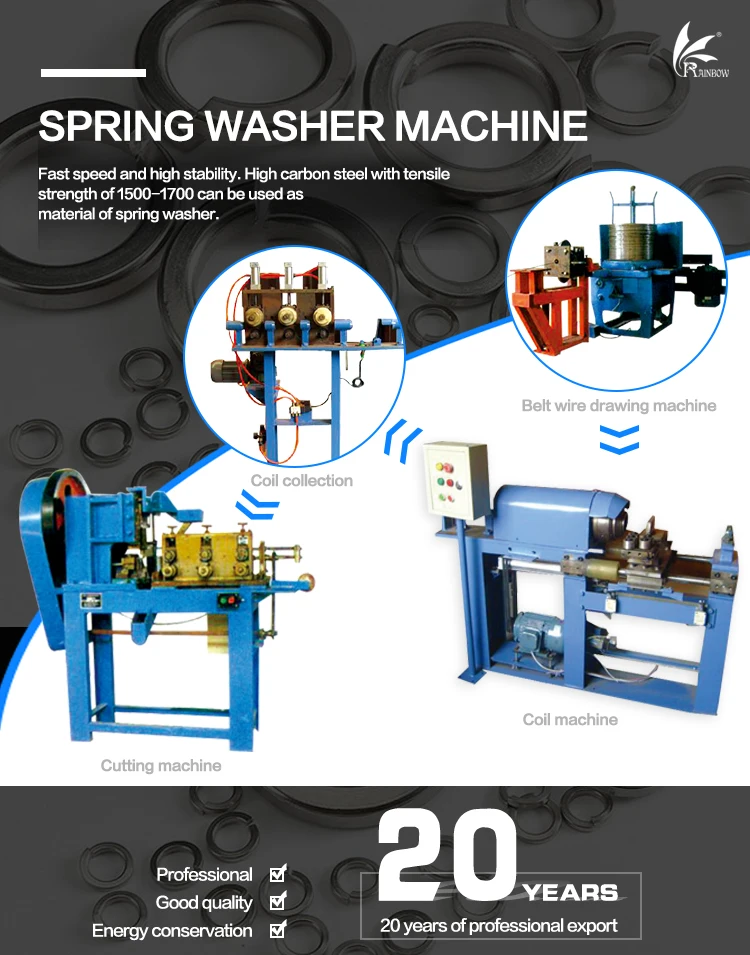

High Speed Spring Washer making Machine

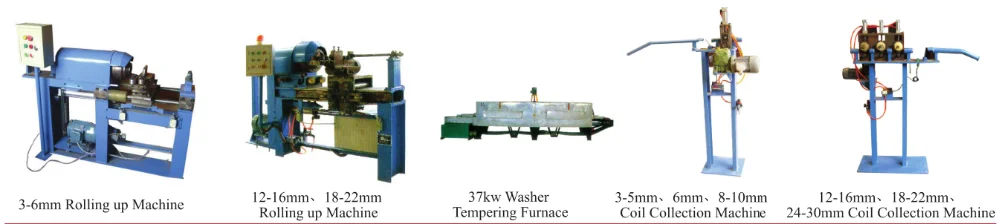

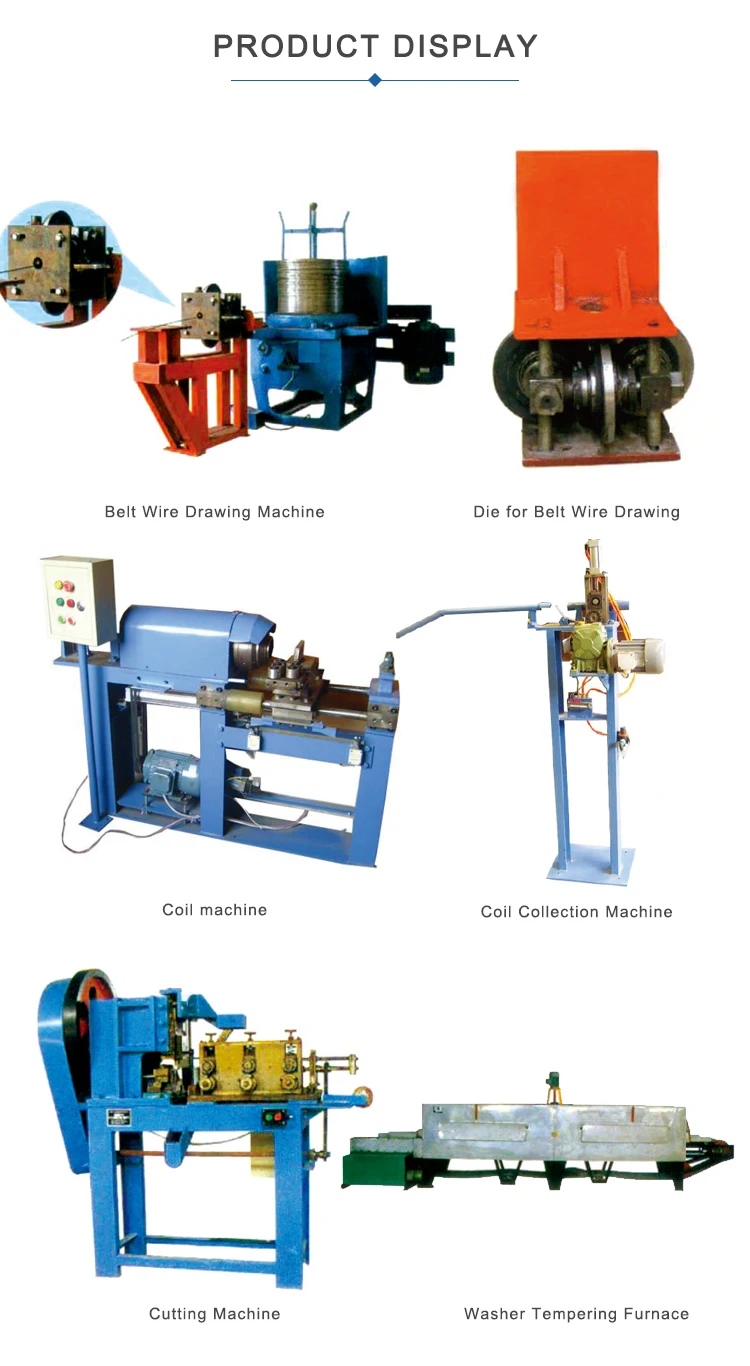

We can provide a whole line to make spring washer. The spring wahser production line contains cutting machine, belt wire drawing machine, rolling up machine, coil collection machine.
Spring washer machine it include three parts :

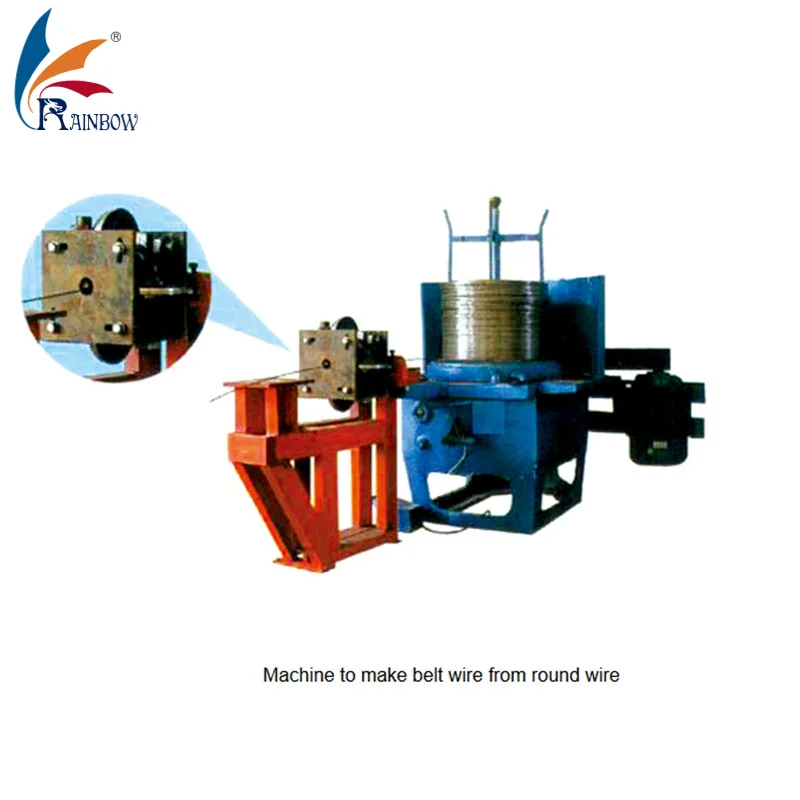

1 step,drawing the round wire to belt wire machine.

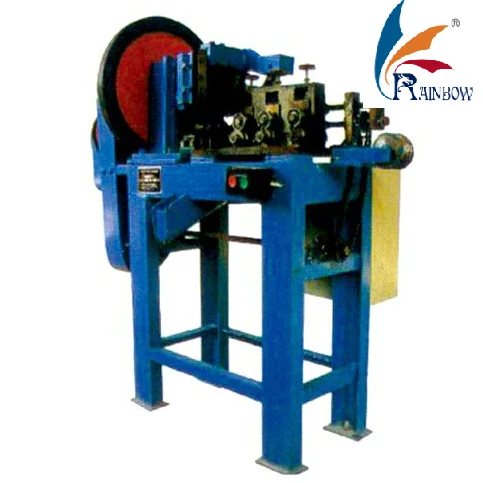

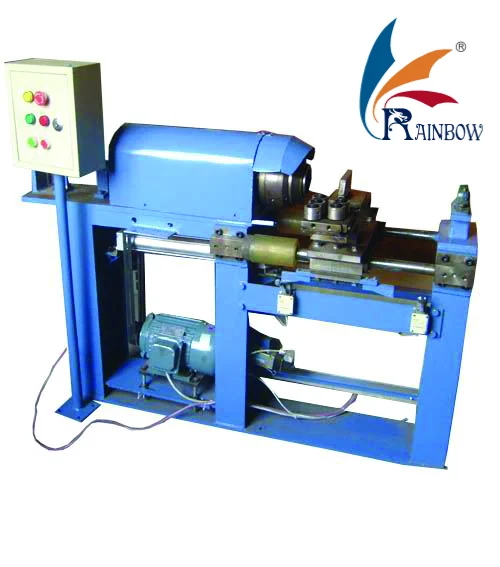

2 step,rolling up machine.
3 step, cutting machine.
Specifications
Item | Specification | Speed rpm | Dimension (L*W*H/mm) | Weight/kg |
Belt Wire Drawing Machine | Reel dia: 550 | |||
Reel dia: 350 | ||||
Coil Machine | 3-5mm (inner dia of final product) | 1080 | 1380*600*950 | 400 |
6mm (inner dia of final product) | 1080 | 1600*650*950 | 450 | |
8-10mm (inner dia of final product) | 720 | 1800*750*1350 | 600 | |
12-16mm (inner dia of final product) | 518 | 1800*750*1350 | 750 | |
18-22mm (inner dia of final product) | 392 | 2000*1000*1500 | 900 | |
24-30mm (inner dia of final product) | 262 | 2200*1000*1500 | 1200 | |
Above 33mm (inner dia of final product) | 150 | 2600*1100*1780 | 1800 | |
Coil Collection Machine | Below 12mm (inner dia of final product) | |||
12-22mm (inner dia of final product) | ||||

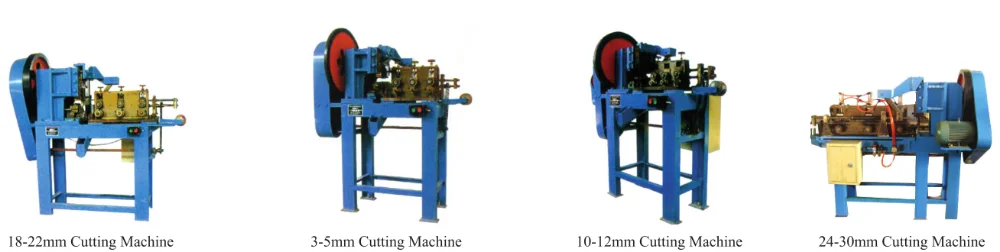

Cutting Machine | 3-5mm (inner dia of final product) | 530 | 850*700*1250 | 200 |
6-8mm (inner dia of final product) | 368 | 1200*750*1350 | 250 | |
10-12mm (inner dia of final product) | 296 | 1450*850*1500 | 300 | |
14-16mm (inner dia of final product) | 213 | 1550*950*1580 | 550 | |
18-20mm (inner dia of final product) | 150 | 1650*1000*1600 | 700 | |
22-30mm (inner dia of final product) | 120 | 1850*1200*1600 | 1200 | |
Above 33mm (inner dia of final product) | 70 | 2000*1500*2800 | 2900 | |
Mould (round wire to belt wire material) Cr12Movz | 150mm | |||
200mm | ||||
150mm mould sheet | ||||
200mm mould sheet |
