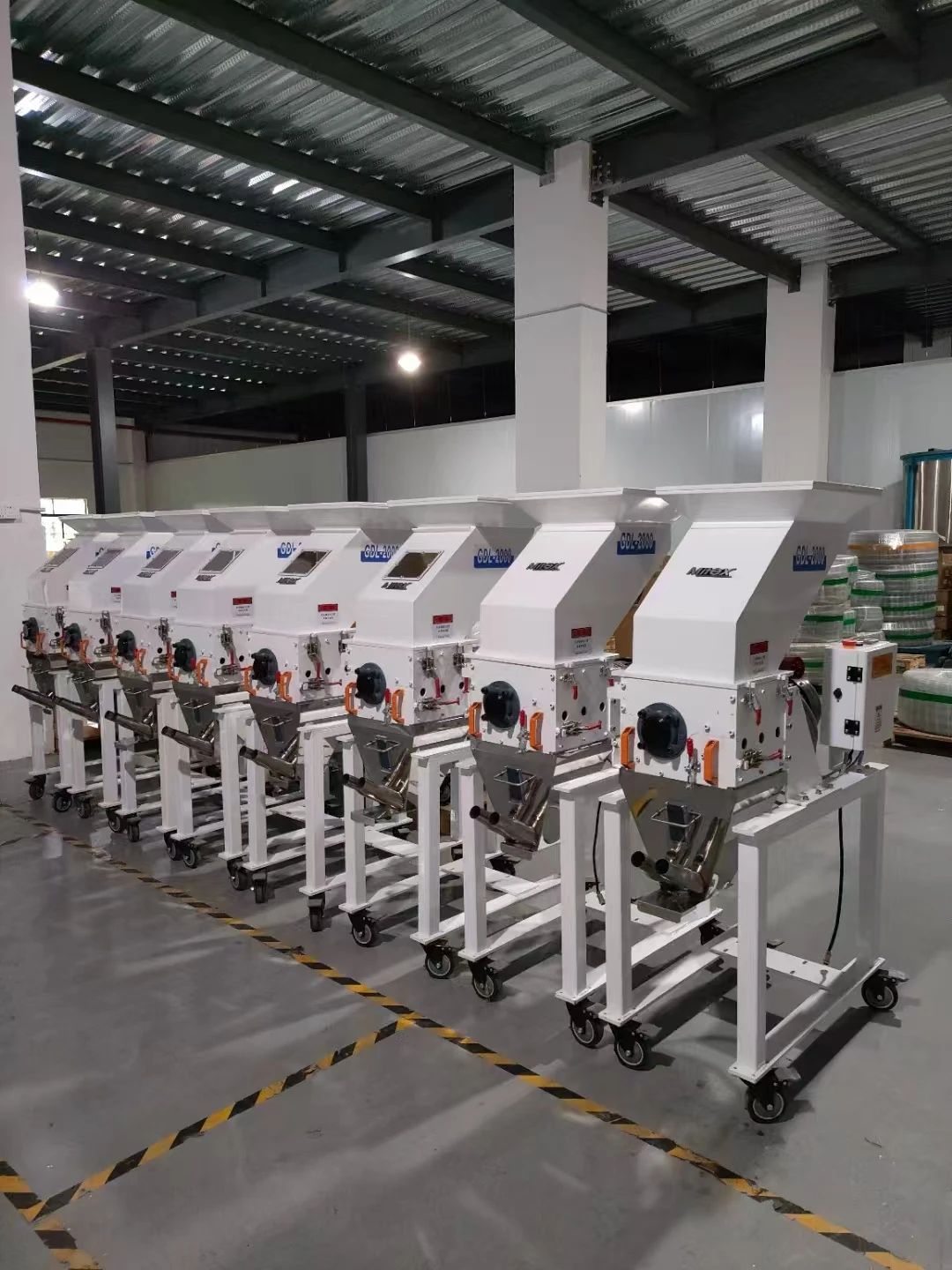

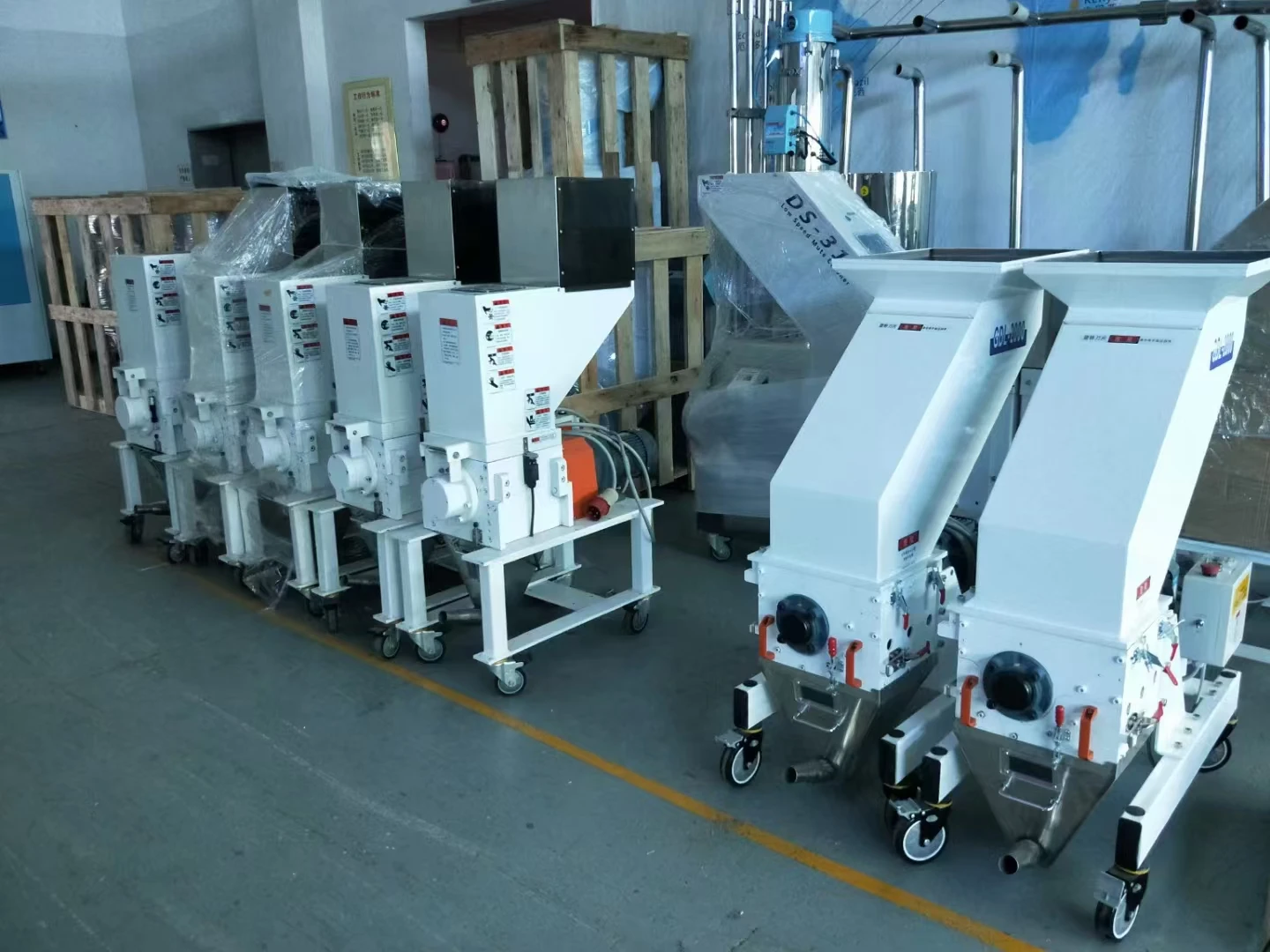

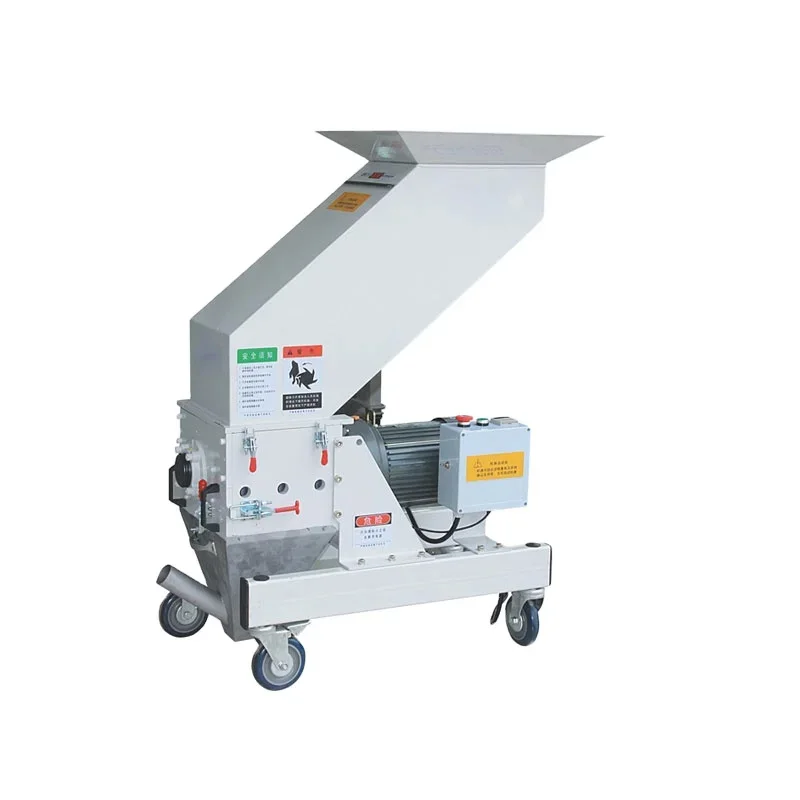

Medium Speed Granulator Plastics Recycling Crusher Plastic Crusher For Injection Molding Machine
- Category: >>>
- Supplier: DONGGUAN MITEX MACHINERY TECHNOLOGY CO. LTD
Share on (1601209774897):
Product Overview
Description
Product Description
1.Medium- speed crusher is wide applicability, can handle variety of different plastic materials.
2.Working process is stable and reliable.
3.All kinds of aperture sieve can meet the demand of various products.
3.All kinds of aperture sieve can meet the demand of various products.
Product Details
Rotor box of crushing cavity
MG series of rotor of crushing cavity are redesigned, improve the yield raised the broken effect.
Warehouse construction
The internal and external composite structure, to ensure the sealing performance of the warehouse.
Damping material
Double layer damping material, reduce noise, improve the environment.
Different size mesh sieve
All kinds of aperture sieve can meet demand of various products.
Molding tool
Special molding tool to ensure they remain fixed cutting curve after the punching and grinding.
Detachable structure
MG model easy disassembly and clean conveniently.
Blower cyclone recycling
Proportional valve

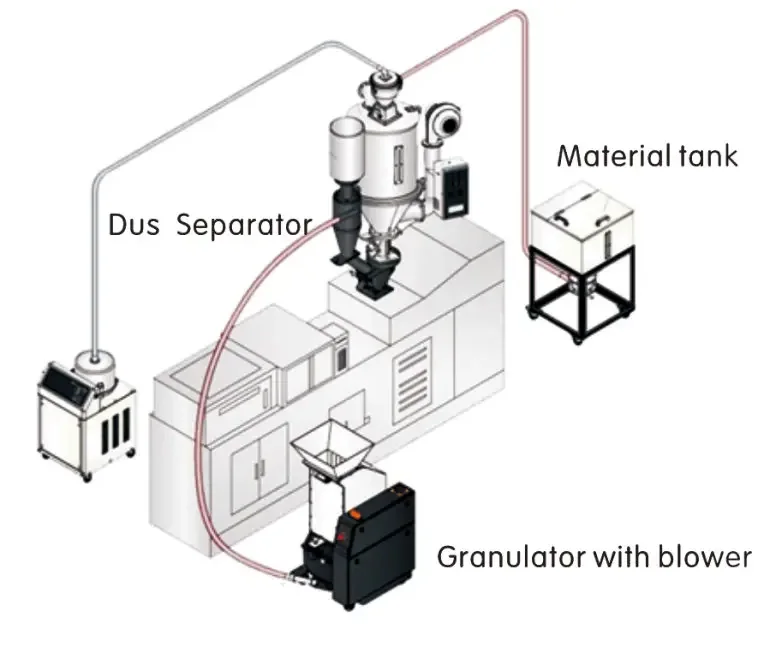

Inline Recycle System
Product Paramenters
Model | MG-3HP | MG-5HP | MG-10HP | MG-15HP | |||
Power specification | AC 380V, 3 Phase, 50Hz | ||||||
Motor power | 2.2KW | 3.7KW | 7.5KW | 11KW | |||
The Rotor Diameter | 185 | 185 | 300 | 300 | |||
The width of Rotary blade | 335MM | 395MM | 400MM | 600MM | |||
Rotating Speed | 150 RPM | ||||||
Input size （MM) | 234*280 | 234*285 | 400*400 | 600*400 | |||
Rotary Blade quantity | 24 Pcs | 30 Pcs | 33 Pcs | 48 Pcs | |||
Fixed Blade Number (Row) | 8 | 10 | 4 | 4 | |||
Mesh Dia | 5MM | 5MM | 8MM | 8MM | |||
Dimensions (MM) | 800*435*1230 | 800*435*1240 | 1150*1250*1900 | 1150*1450*1190 | |||
Net weight (kgs) | 275 | 315 | 550 | 510 | |||

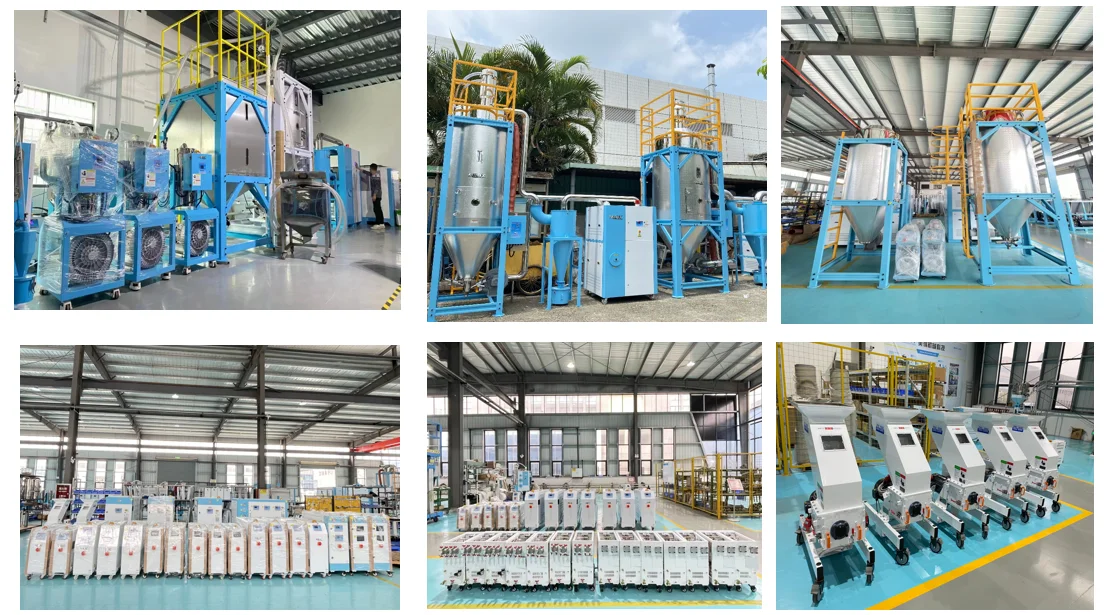

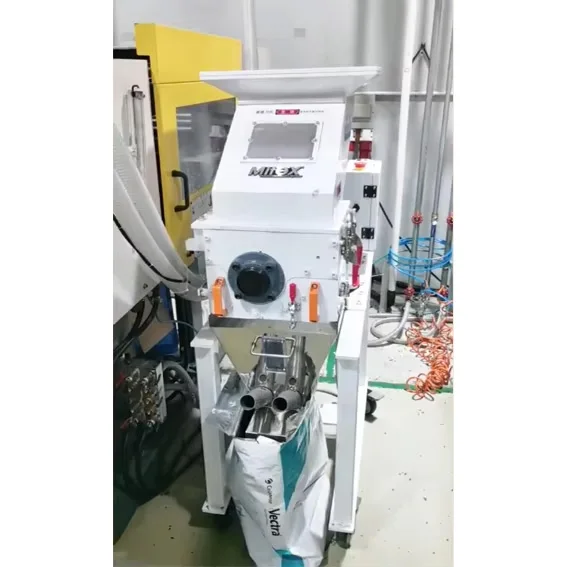

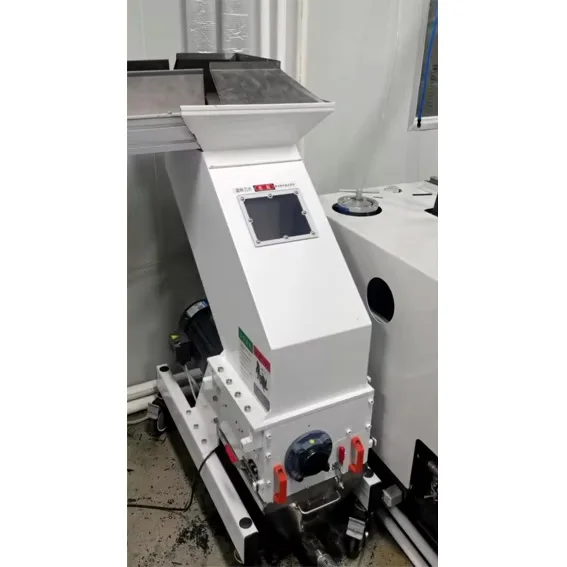

Customer Case
Best Selling

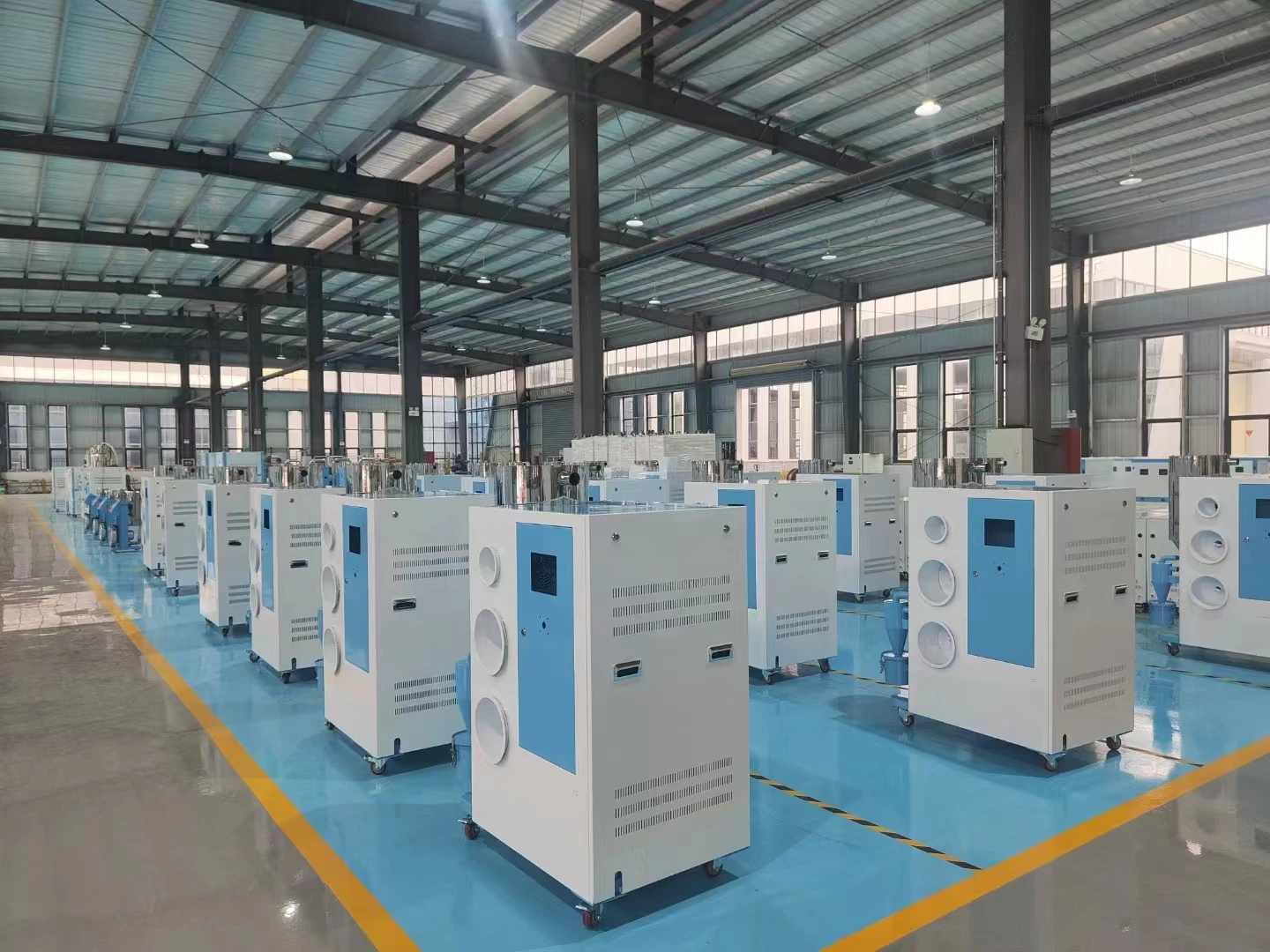

Company Introduction
Mitex Automation Machinery Co.,Ltd is a national-level high-tech enterprise that established in July, 2007.Also a plastic machinery manufacturer specializes in R&D, products and sales to the customer for plant project, design modern industry 4.0 resolution.
Main products
Mold temp. controller Industrial Chiller PET Crystallizer
Dehumidifier Volumetric Doser Gravimetric Blender

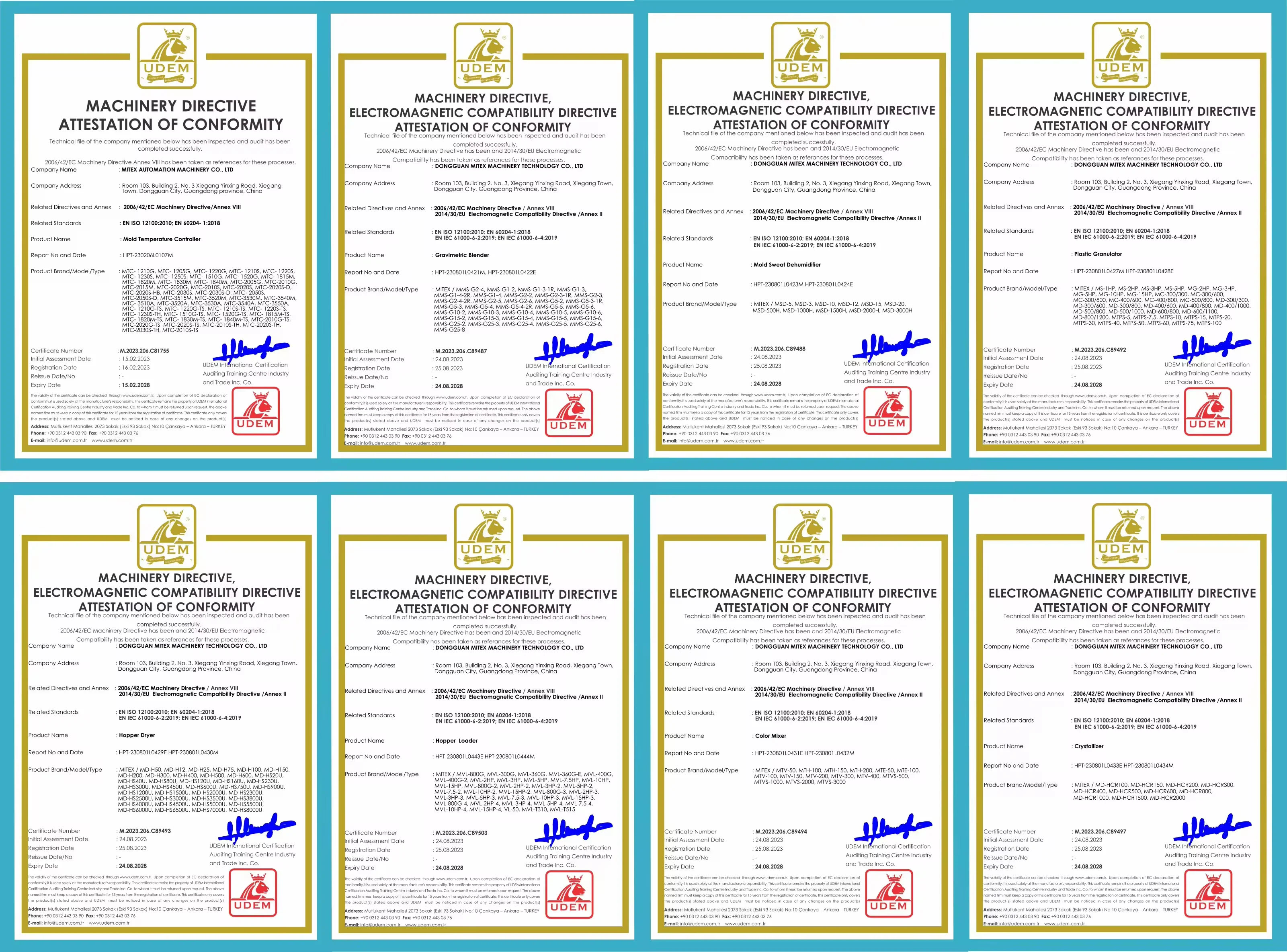

Certification & Patent
