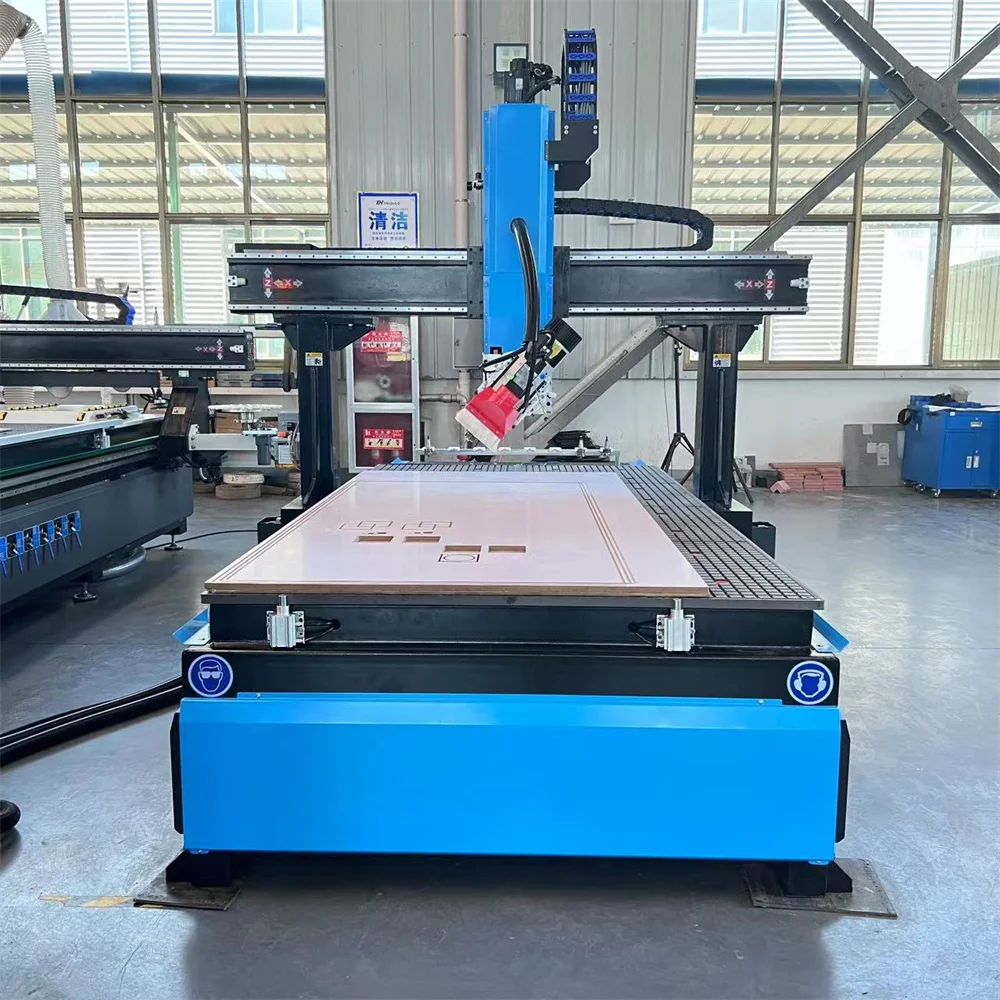

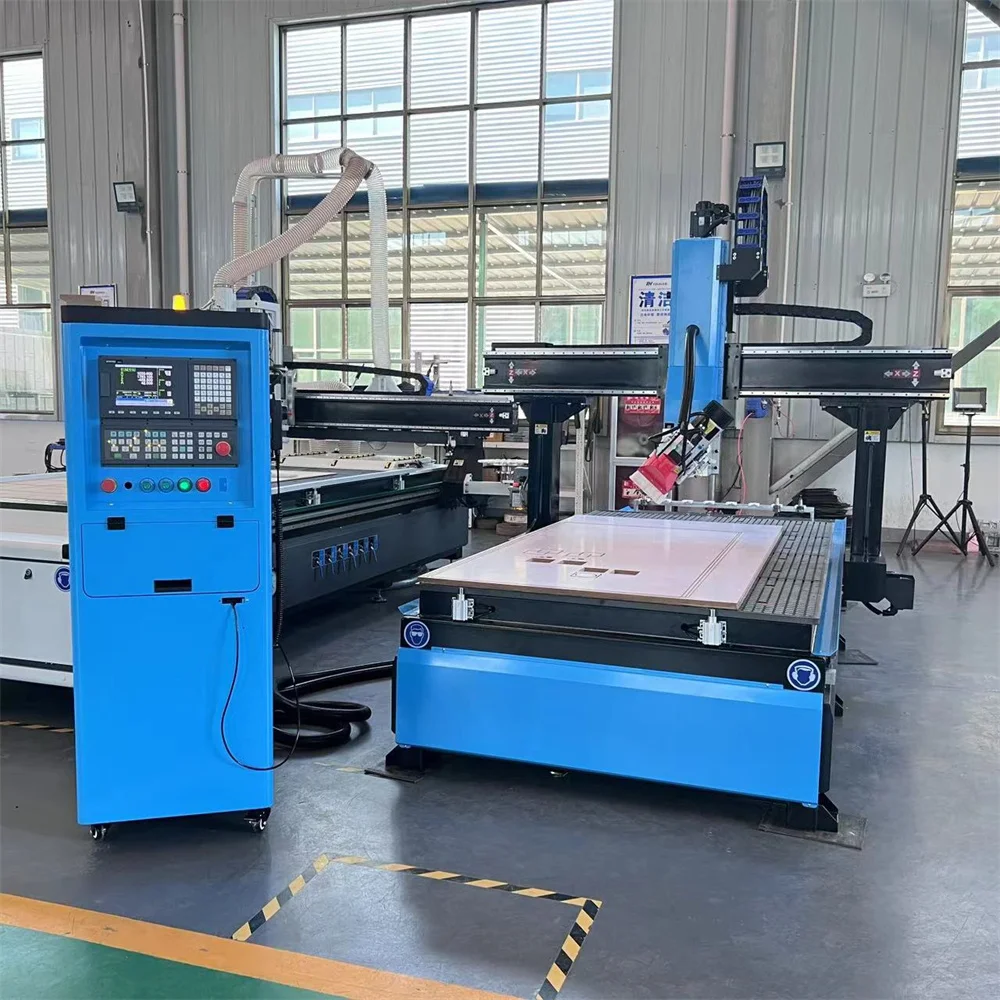

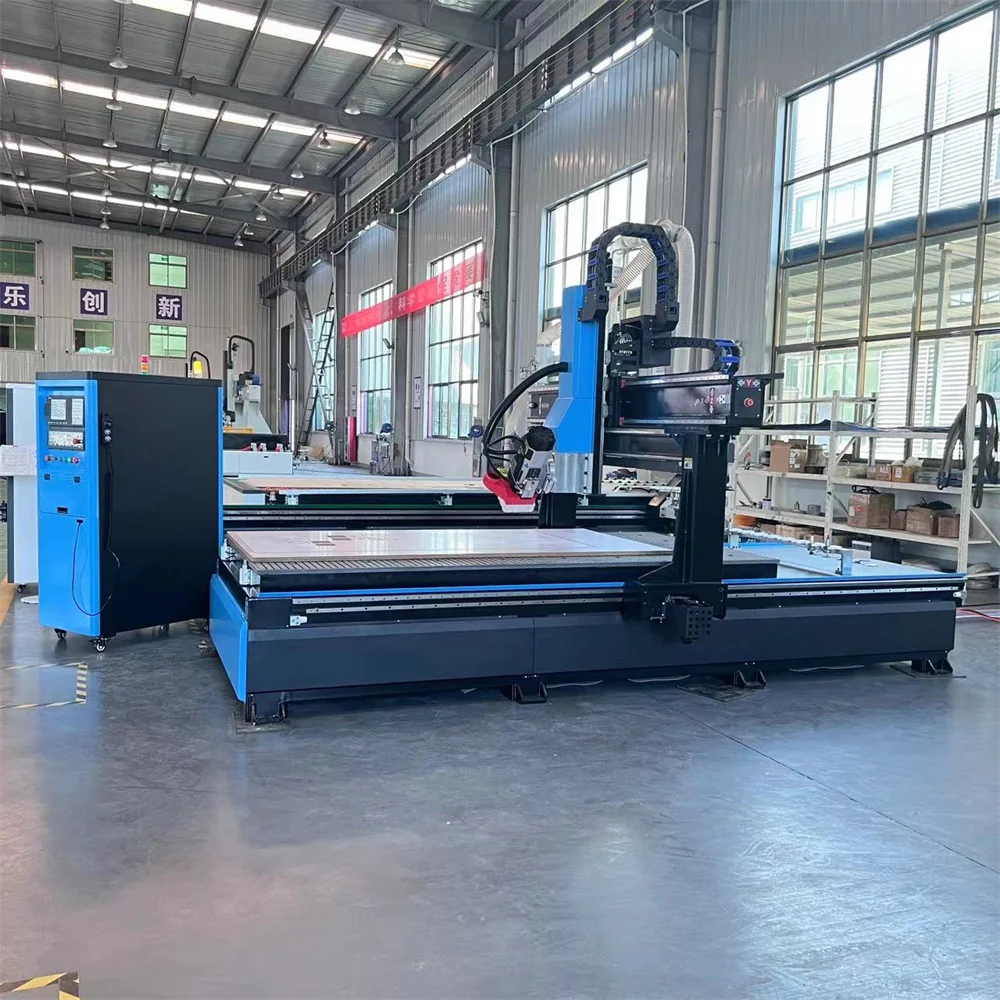

YOUHAOCNC 1325 1530 2030 2040 Woodworking CNC Router 4Axis 3D CNC Wood Cutting Milling Carving Engraving Machine Price
- Category: >>>
- Supplier: Shandong Youhao Energy Technology Co. Ltd.
Share on (1601210302497):
Product Overview
Description
1325 atc 4 axis 3d wood cnc router atc cnc router with swing head
Features of 1325 atc 4 axis 3d wood cnc router atc cnc router with swing head:
2.Taiwan helical rack transmission:lower noise,antioxidant,small deformation, anti corrosion, longer life,ensure high precision and speed.
3.8 mm thickness heavy duty body can ensure the lathe will not deform during long-term working.With enhanced welding technical,we provide our 4 axis cnc router milling machine with 180 degree rotation spindle good stable,long life and high accuracy rate. The heavy duty body structure adopt workmanship of electrostatic spraying and spraying plastics.

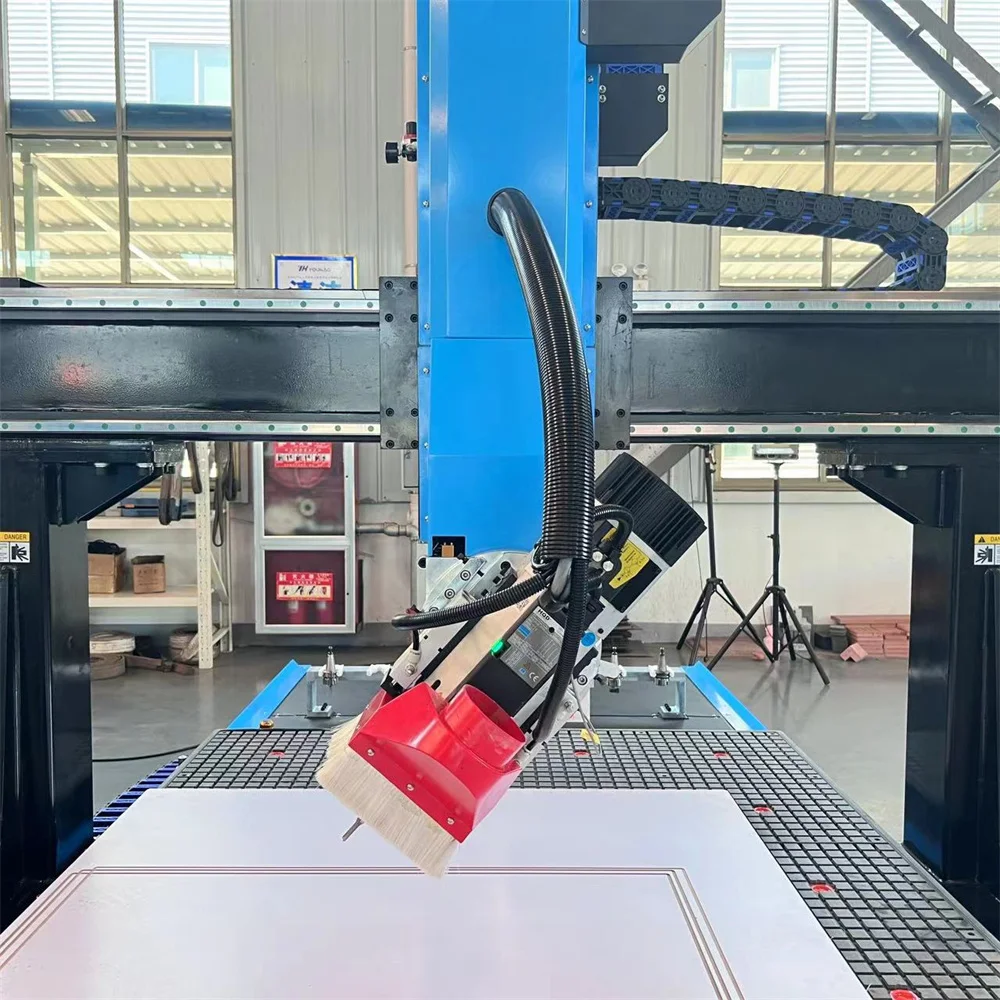

4.Italy HSD air cooling spindle:easy to install, lower maintain cost, large torque, high precision, longer life, It can 90-180 degrees smooth controlled by control system.
5.Taiwan HIWIN guide rail:The high imitation of Taiwan HIWIN guide rail is several hundred dollars cheaper than the original,which is a main cause our machines have a two-year warranty.
6.Active safety system: When people enter machine working area and impacted by the gantry, the machine would stop immediately to keep safe.
HQD 5KW air-cooled spindle

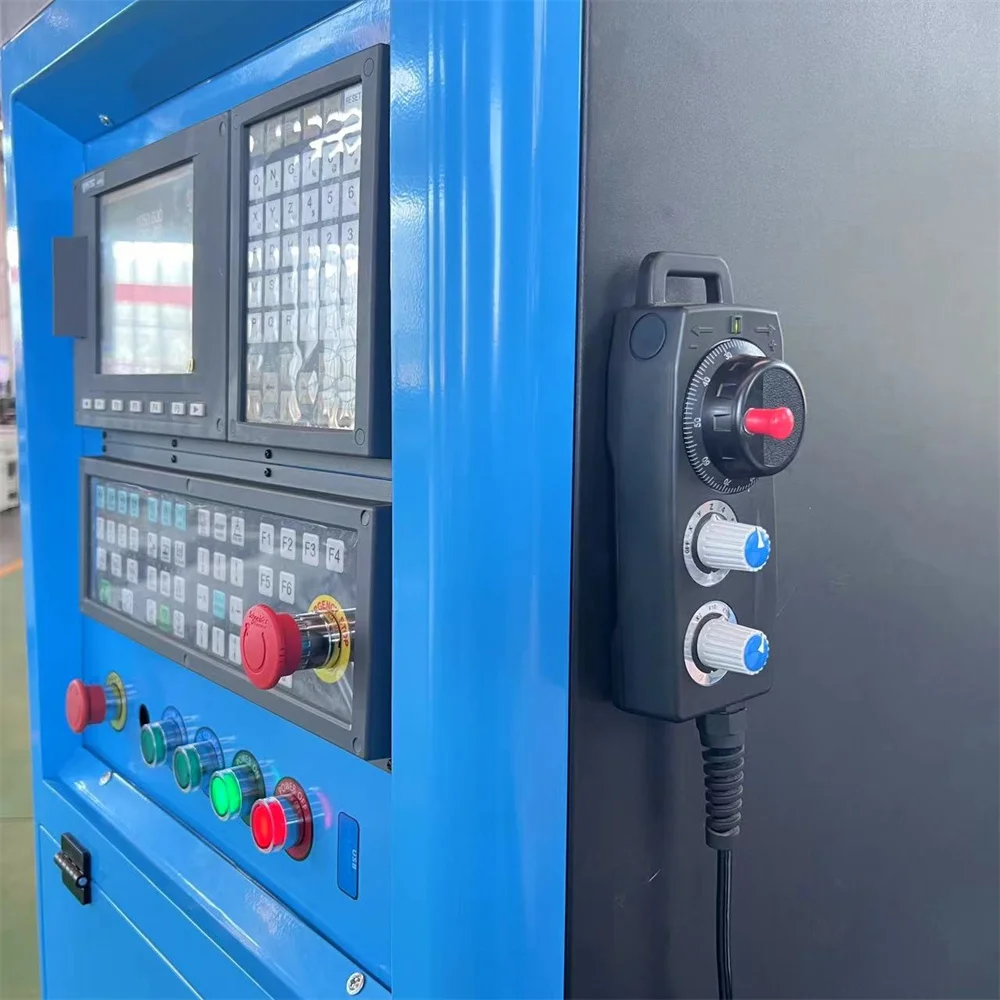

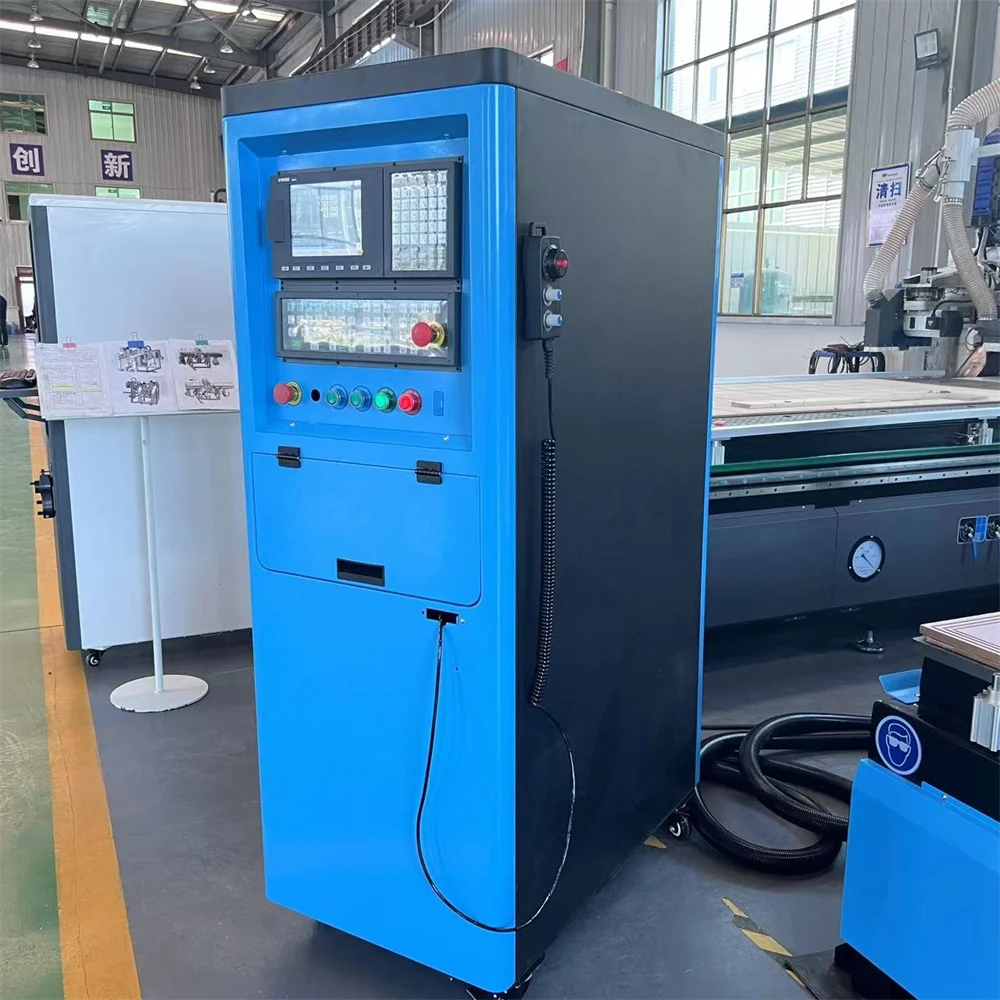

Taiwan LNC CW2600 Controller
Automatic Tool Changer
Model Type | T94A-1325 | |
1 | X,Y,Z Working Area | 1300x2500x600mm.B axis +-90° |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
3 | X,Y,Z Re-positioning Accuracy | ±0.05mm |
4 | Table Surface | Vacuum table and T-slot |
5 | Frame | Welded body Structure(6mm), cast iron for gantry (8mm) |
6 | X, Y Structure | HIWIN Square orbits and helical rack |
7 | Z Structure | HIWIN square orbit and TBI Ball Screw |
8 | Max. Rapid Travel Rate | 25000mm/min |
9 | Max. Working Speed | 20000mm/min |
10 | Spindle Power | 5kw |
11 | Spindle Speed | 24000RPM |
12 | Motor and Driver | Leadshine 1.5kw servo motor and driver on B axis |
13 | Working Voltage | 380V/220V |
14 | Command Language | G Code |
15 | Operating System | DSP/Ncstusio/Mach3 |
16 | Computer Interface | USB |
17 | Collet | ER32 |
18 | X,Y,Z Resolution | <0.05mm |
19 | Software Compatibility | Type3/UcancameV10/Artcam/Artengraver (optional) |
20 | Running Environment Temperature | 0 - 45 Centigrade |
21 | Relative Humidity | 30% - 75% |
22 | Packing Size | 3200 x 2150 x 650mm |
23 | N.W. | 1200KG |
24 | G.W. | 1300KG |
25 | Optional Parts | Spindle power |
Aluminum and PVC table | ||
Rotary System | ||
Servo motor | ||
Delta/ Panasonic Servo motors |

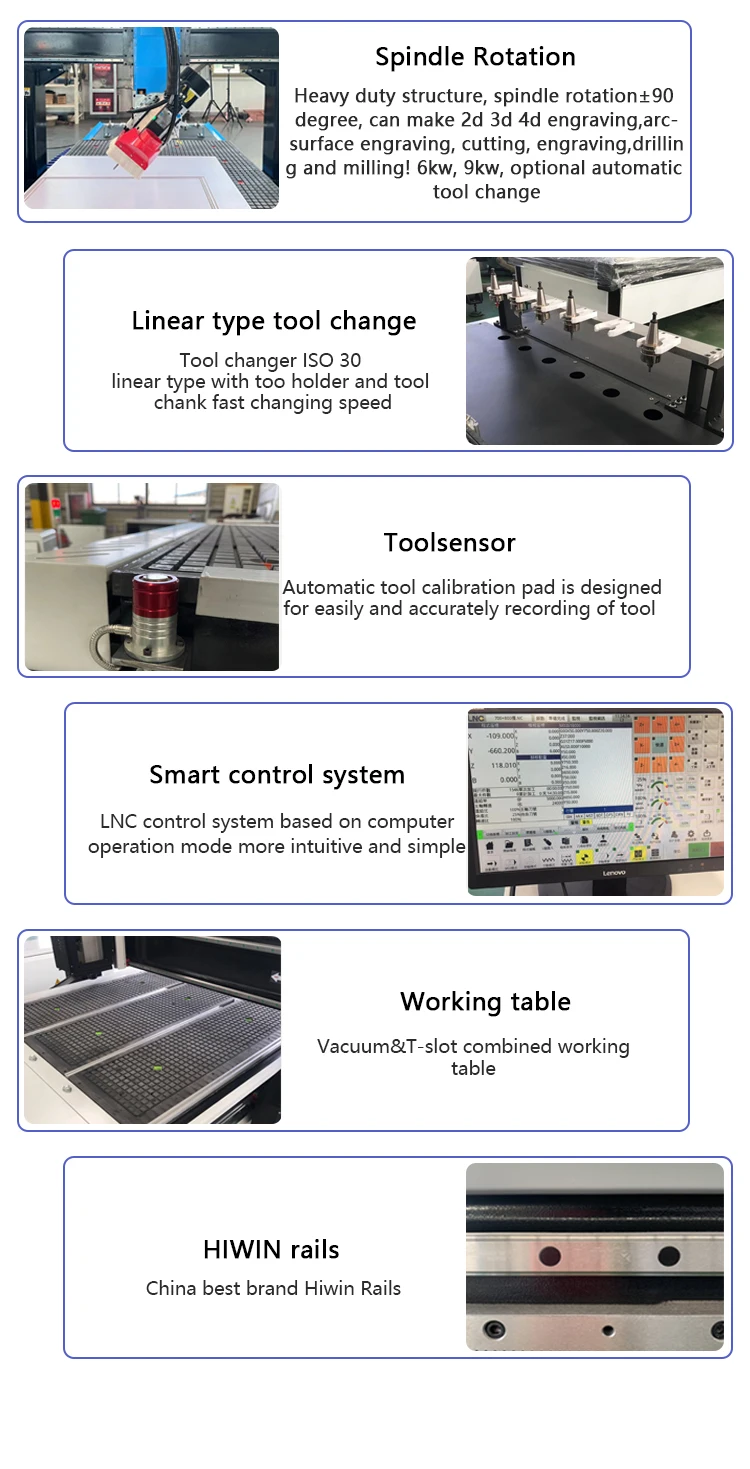

Details Images

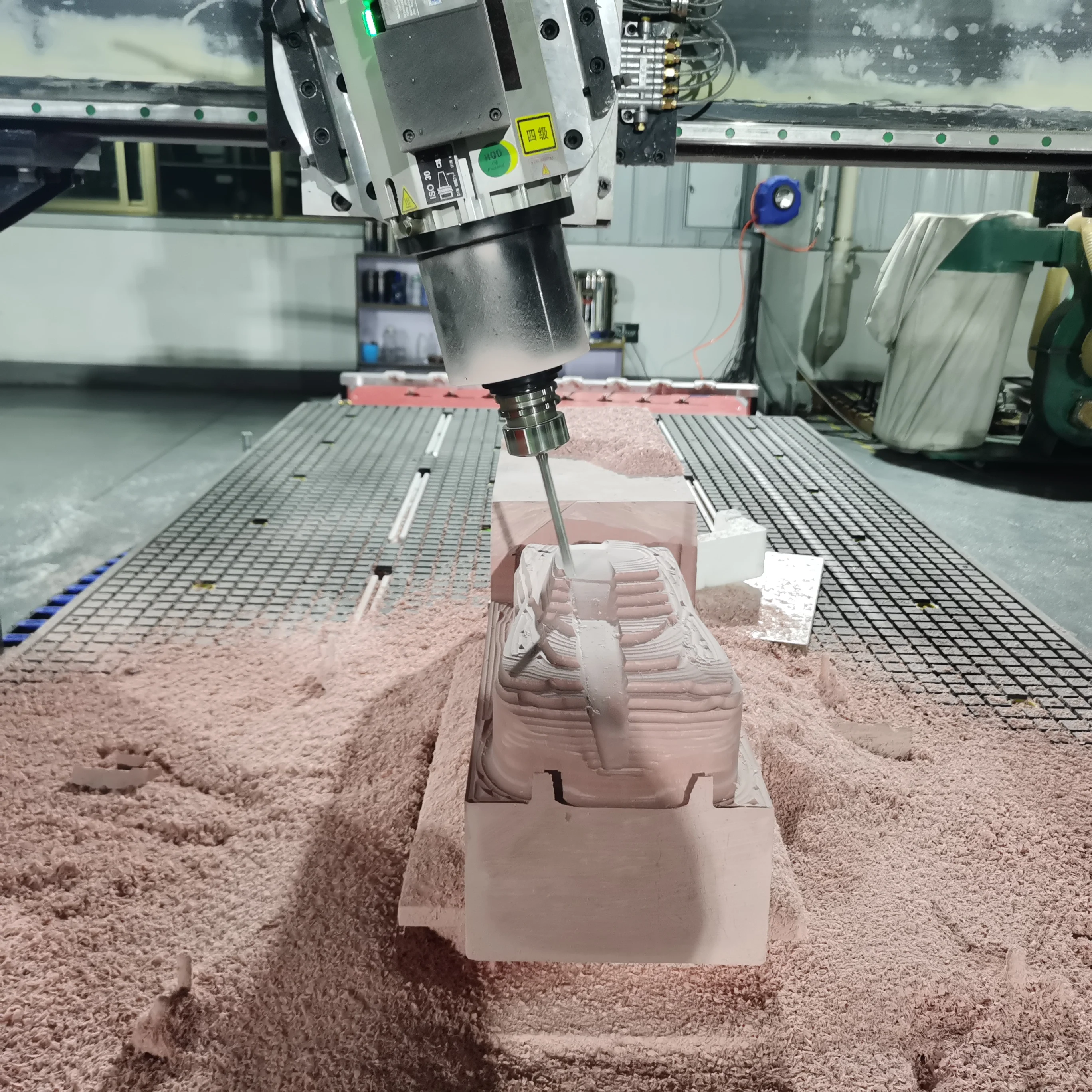

Applications
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

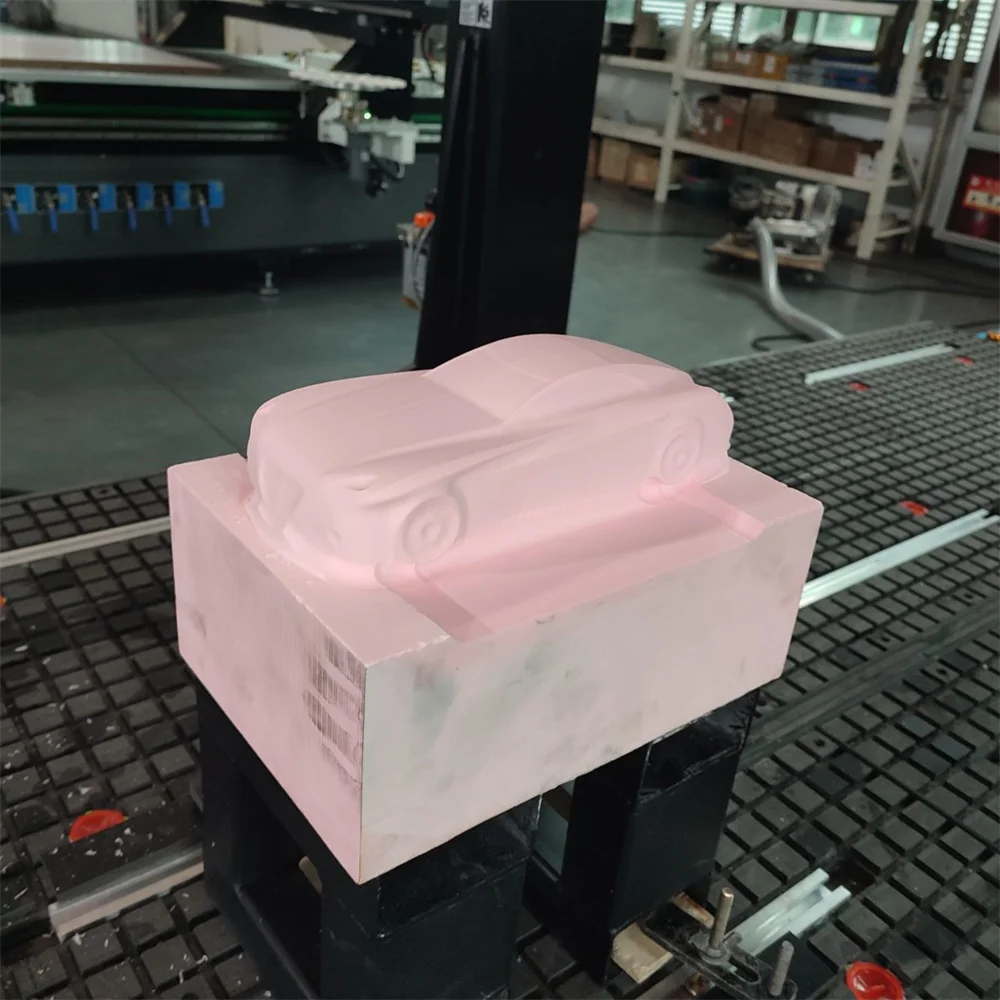

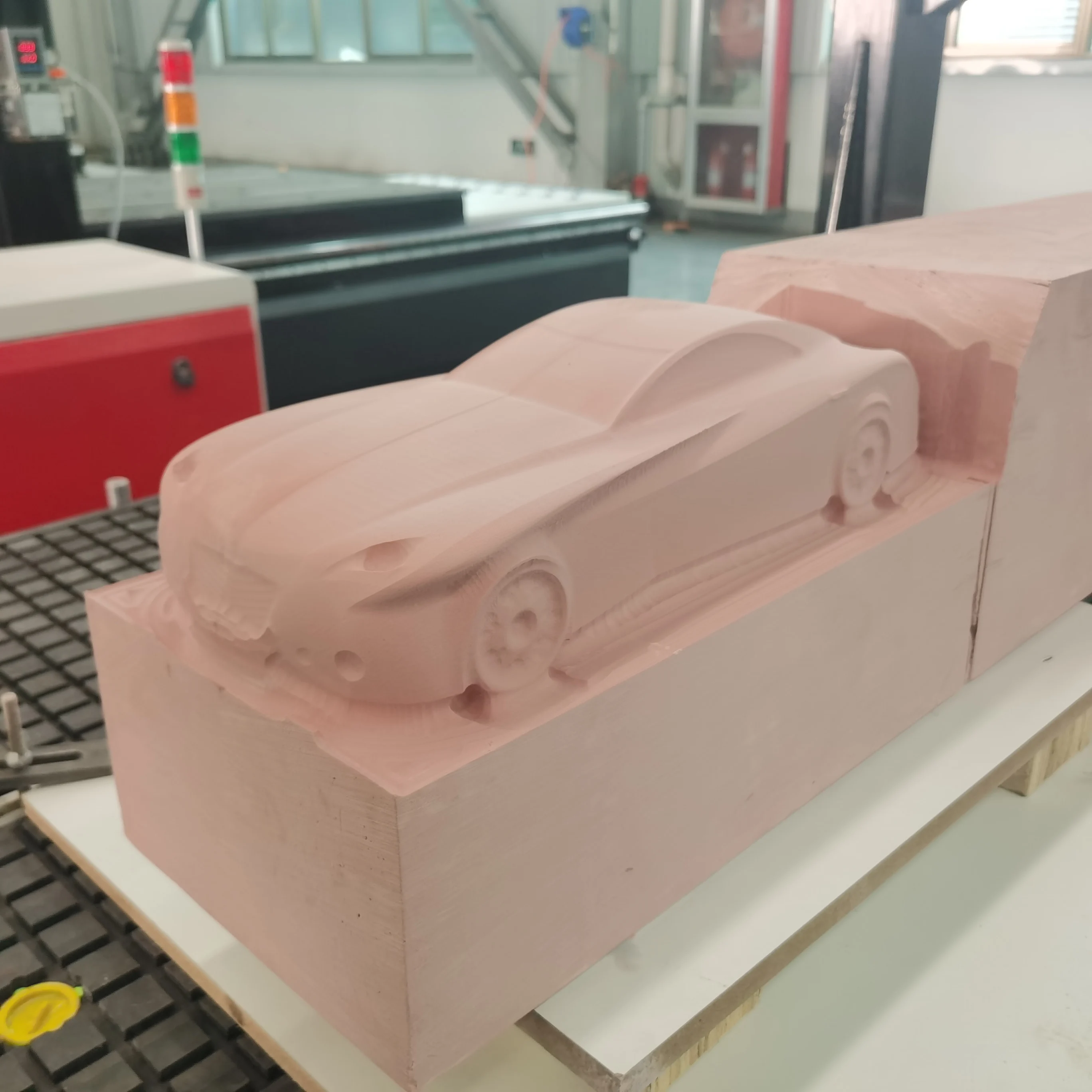

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Packaging Details 1325 atc 4 axis 3d wood cnc router atc cnc router with swing head:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
1 1years warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Our Advantages
1. service before sales: our salesman will try to know your requirement about our cnc router specificaiton and what kind of work you will do. then we will offer our best solution for your requirement. then it can confirm each customer can get their real needed machine.
2. service during production: we will send photos of machines during making. so customers can know more details about the procession of making their machines. and give their suggestions.
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will check when the machine arrive your sea port and estimated date of arrival. so customers can know when it will arrive and make enough preparation.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some customers have question about it. we will have professional technician to help them to install and teach how to use through skype ,calling, vedio or mail.
7. service of warranty: we offer 12 month warranty for whole machine. if any parts of our machine is broken. we will replace it for free.
8. service in longterm: we hope every customer can use our machine easliy and have a fun of it. if customers have any problems of machine in 3 or more years, they can contact us. we will always here waiting for you.
2. service during production: we will send photos of machines during making. so customers can know more details about the procession of making their machines. and give their suggestions.
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will check when the machine arrive your sea port and estimated date of arrival. so customers can know when it will arrive and make enough preparation.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some customers have question about it. we will have professional technician to help them to install and teach how to use through skype ,calling, vedio or mail.
7. service of warranty: we offer 12 month warranty for whole machine. if any parts of our machine is broken. we will replace it for free.
8. service in longterm: we hope every customer can use our machine easliy and have a fun of it. if customers have any problems of machine in 3 or more years, they can contact us. we will always here waiting for you.
Customer feedback
Company Profile
Shandong Youhao Energy Technology Co., Ltd as a professional CNC factory, is constantly devoted in research and development and manufacture of intelligent panel production line, intelligent drilling and cutting machine for customized wardrobes cabinets,Five-side drilling machine ,laser mode side drilling machine, assembled solid doors process center and wood cnc process center
our company obtained CE certification have established several branches and agencies and developed into the leading cnc company . in overseas , our cnc machine have been exported to USA , UK , France , Germany , Canada , Mexico , India , Southeast Asia , Middle East to worldwide in more than 18 countries and areas.
our company obtained CE certification have established several branches and agencies and developed into the leading cnc company . in overseas , our cnc machine have been exported to USA , UK , France , Germany , Canada , Mexico , India , Southeast Asia , Middle East to worldwide in more than 18 countries and areas.
FAQ
Q1: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q2: How to install and run the machine?
A: Our technician have installed and Full test before shipping. , we will send detail training video , user’s manual along with the machine. 95% customers can learn by themselves.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q2: How to install and run the machine?
A: Our technician have installed and Full test before shipping. , we will send detail training video , user’s manual along with the machine. 95% customers can learn by themselves.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
