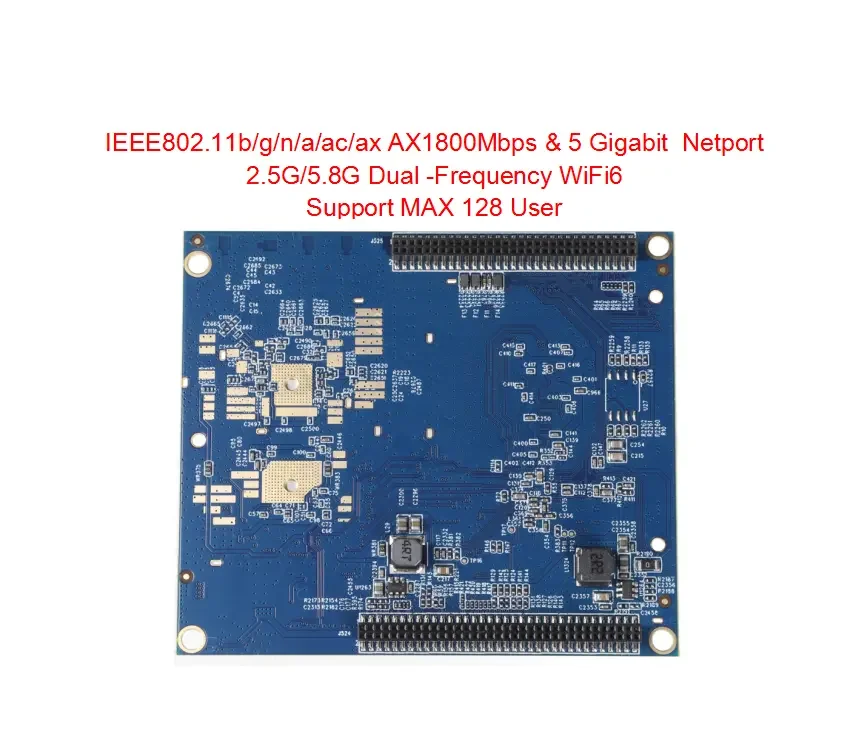

Gainstrong MT7621A AX1800 WiFi6 openwrt industrial router wifi mini pci e module router openwrt high power usb wifi module
- Category: >>>
- Supplier: Shenzhen Gainstrong Technology Co. Ltd.
Share on (1601210308646):
Product Overview
Description
Specification
Oolite V8.2 Module Characteristics:
CPU MT7621A Embedded MIPS1004Kc (880 MHz)
WLAN Chip MT7905DAN+MT7975DN（AX1800 WiFi6）
RAM: 128MByte(256/512MByte optional）
Flash:16MByte(32/64MByte optional)
5-port 10/100/1000Mbps SW/PHY
Support 802.11b/g/n/ax 2T2R 2.4GHz 600Mbps, 802.11ac/ax 2T2R 5.8GHz 1200Mbps
1x RGMII/MII interface
SPI, NAND Flash, SDXC, eMMC(4 bits)
1x USB 3.0, 1x USB 2.0, 1x PCIe host, I2C, SPI*2, UART lite*3, JTAG, MDC, MDIO, GPIO
HW storage accelerator
OpenWrt / Linux 5.15 SDK
VoIP support (I2S, PCM) , Audio interface (SPDIF-Tx, I2S, PCM)
Power supply voltage: 5-12V
Antenna: 2 x IPEX external Antenna(default combine ) or 4 x IPEX external Antenna
Size: 80.0mm x 70.0mm x 10.5mm
WLAN Chip MT7905DAN+MT7975DN（AX1800 WiFi6）
RAM: 128MByte(256/512MByte optional）
Flash:16MByte(32/64MByte optional)
5-port 10/100/1000Mbps SW/PHY
Support 802.11b/g/n/ax 2T2R 2.4GHz 600Mbps, 802.11ac/ax 2T2R 5.8GHz 1200Mbps
1x RGMII/MII interface
SPI, NAND Flash, SDXC, eMMC(4 bits)
1x USB 3.0, 1x USB 2.0, 1x PCIe host, I2C, SPI*2, UART lite*3, JTAG, MDC, MDIO, GPIO
HW storage accelerator
OpenWrt / Linux 5.15 SDK
VoIP support (I2S, PCM) , Audio interface (SPDIF-Tx, I2S, PCM)
Power supply voltage: 5-12V
Antenna: 2 x IPEX external Antenna(default combine ) or 4 x IPEX external Antenna
Size: 80.0mm x 70.0mm x 10.5mm
Product Description

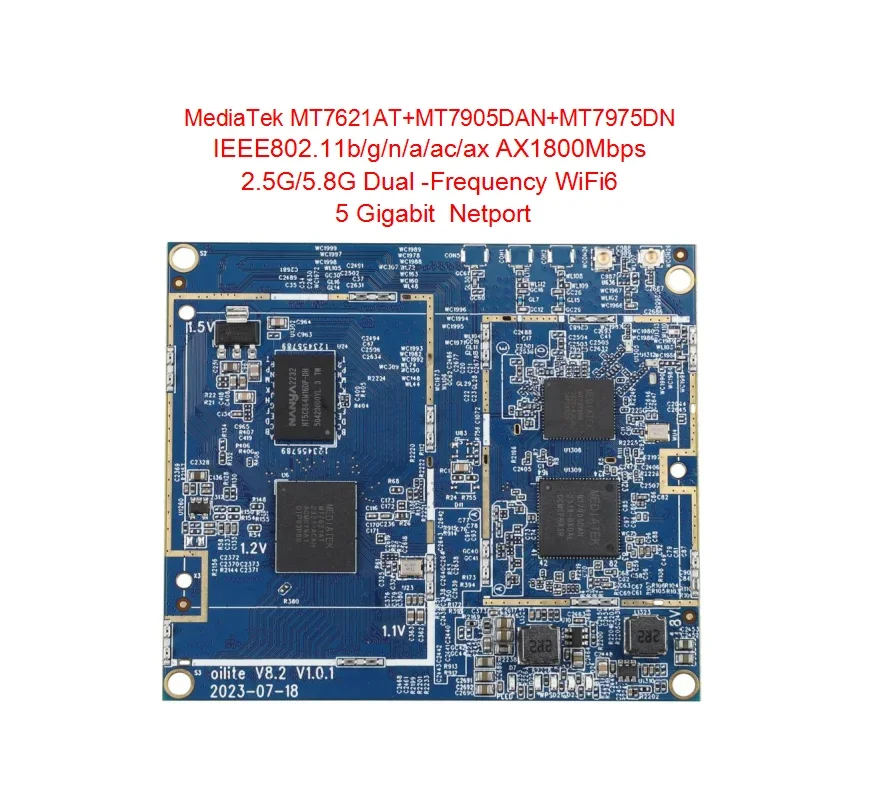

The Oolite V8.2 module use the MT7621A as main chip, MT7975DN and MT7905DAN WiFi 6 WLAN chip Composition of dual frequency WiFi 6 module solution.

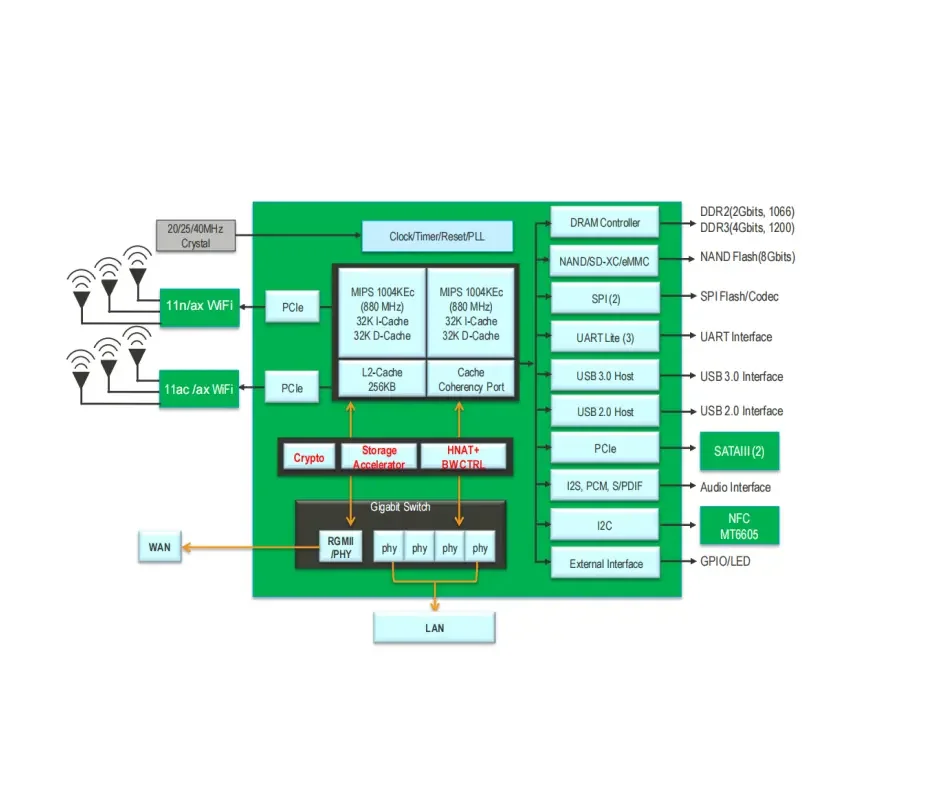

The MT7621A integrates a dual-core MIPS1004Kc (880MHz), HNAT/ HQoS/ Samba/ VPN accelerators, 5-port GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN, AC (Access Control). It can also connect to touch- panel, ZigBee/Z-Wave for Internet Service Router and Home Security Gateway.
The MT7975DN is an IEEE 802.11ax 2x2 A-band + 2x2 G-band MIMO and Wi-Fi/BT 2-in-1 chip which contains 2.4 GHz WI-Fi transceiver front-ends, 5 GHz Wi-Fi transceiver front-ends, and a Bluetooth transceiver front-end in a DRQFN package. Dedicated Dynamic Frequency Selection (DFS) and Spectrum Monitor (SM) receivers are included to support coexist with 5GHz radar or other 2.4G WIFI systems.
The MT7621A integrates a dual-core MIPS1004Kc (880MHz), HNAT/ HQoS/ Samba/ VPN accelerators, 5-port GbE switch, RGMII, USB3.0, USB2.0, 3xPCIe, SD-XC. The powerful CPU with rich portfolio is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN, AC (Access Control). It can also connect to touch- panel, ZigBee/Z-Wave for Internet Service Router and Home Security Gateway.
The MT7975DN is an IEEE 802.11ax 2x2 A-band + 2x2 G-band MIMO and Wi-Fi/BT 2-in-1 chip which contains 2.4 GHz WI-Fi transceiver front-ends, 5 GHz Wi-Fi transceiver front-ends, and a Bluetooth transceiver front-end in a DRQFN package. Dedicated Dynamic Frequency Selection (DFS) and Spectrum Monitor (SM) receivers are included to support coexist with 5GHz radar or other 2.4G WIFI systems.
Development Board Hardware Reference Design

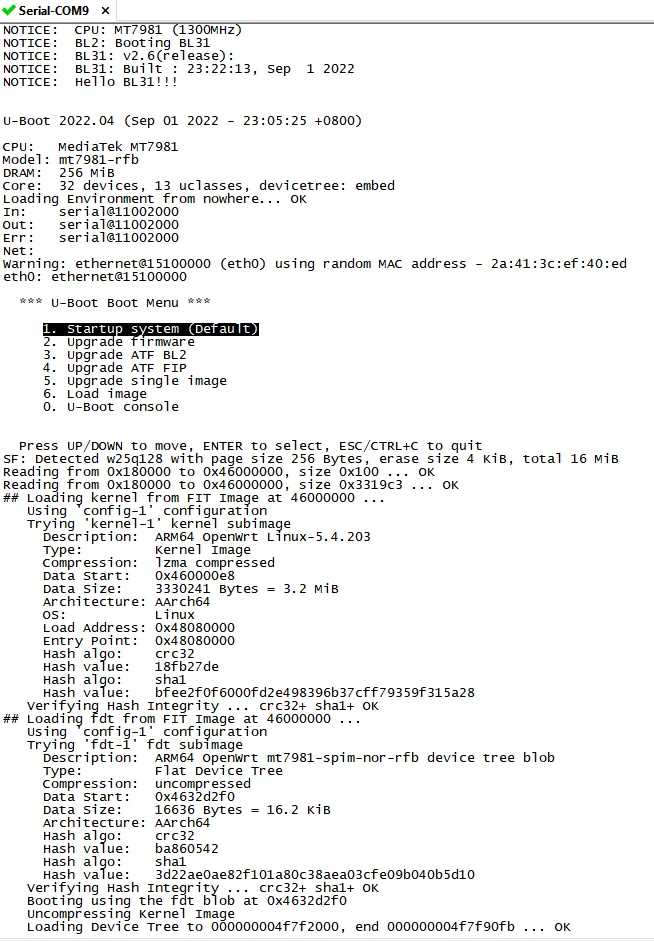

Oolite V8.2 Software SDK
