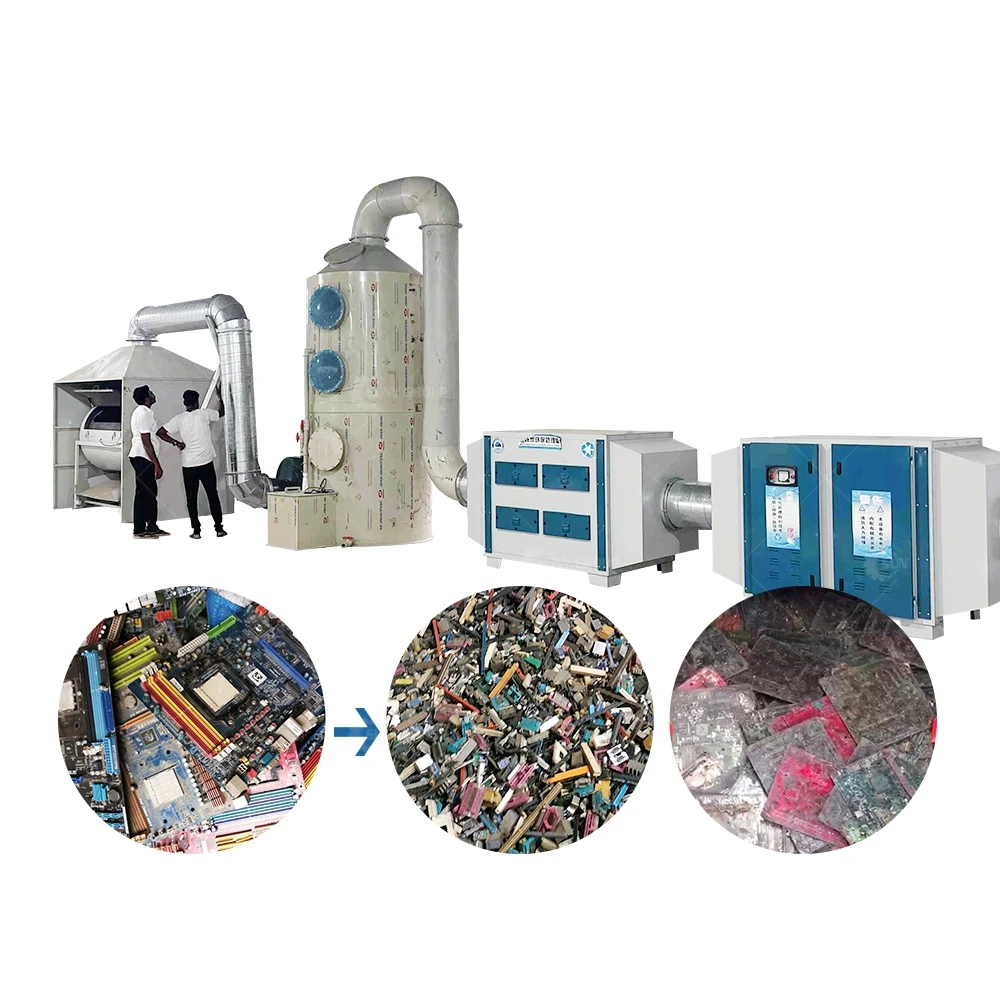

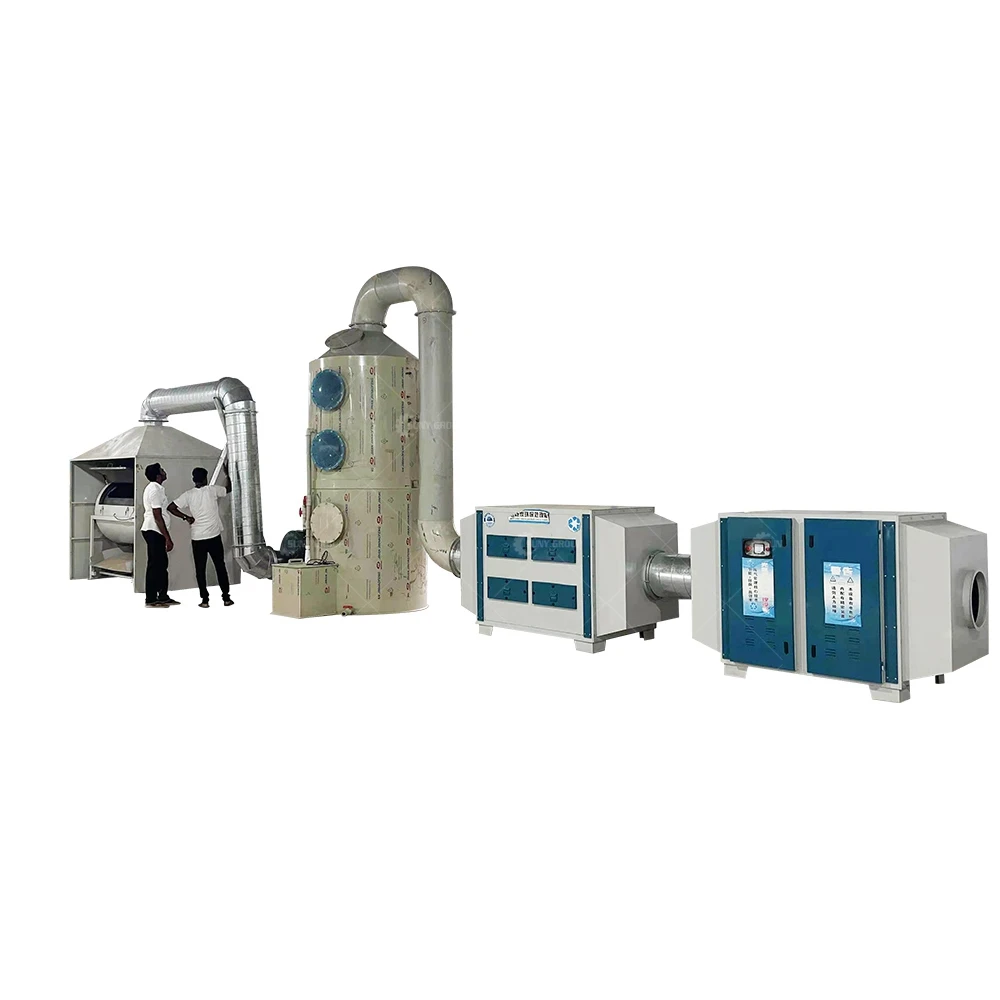

2023 Hot Selling Machine Electronic Components Separating machine
- Category: >>>
- Supplier: Henan Zhengyang Machinery Equipment Co. Ltd.
Share on (1601210317872):
Product Overview
Description

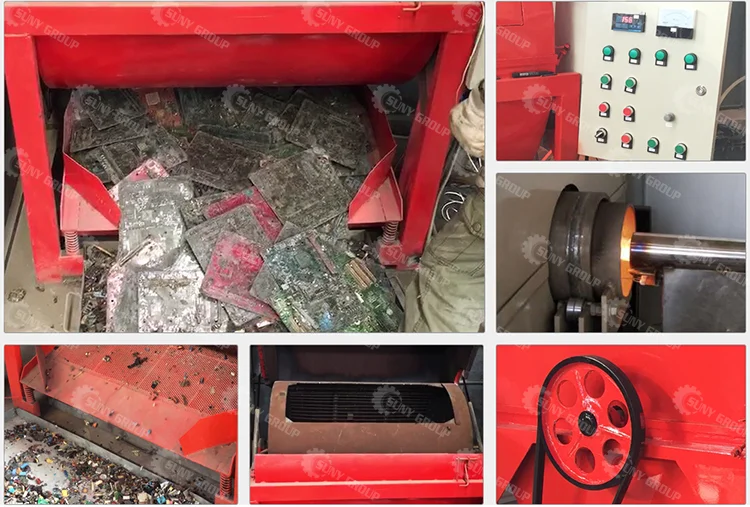

PCB COMPONENTS DISMANTLING MACHINE
PRODUCT DESCRIPTION
PCB Components Dismantling Machine is used to remove the electronic components on different PCB boards, The drumar made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability.
TECHNICAL PARAMETERS
Model | ZYCJ-200 | ZYCJ-300 | ZYCJ-500 |
Capacity | 200 Kg/H | 300 Kg/H | 500 Kg/H |
Power | 5 Kw | 7 Kw | 14 Kw |
Weight | 450 Kg | 700 Kg | 1100 Kg |
Dimension (m) | 1.67*0.97*1.4 | 1.85*1.2*1.52 | 2.1*1.27*1.74 |
NOTE:
Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed parameters and quotations, please contact us)
(If you want more detailed parameters and quotations, please contact us)
WORKING PRINCIPLE

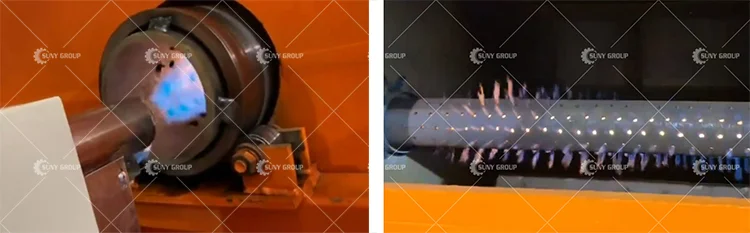

Use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works.
So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components screen and magnetic machine.
PROCESS DESCRIPTION

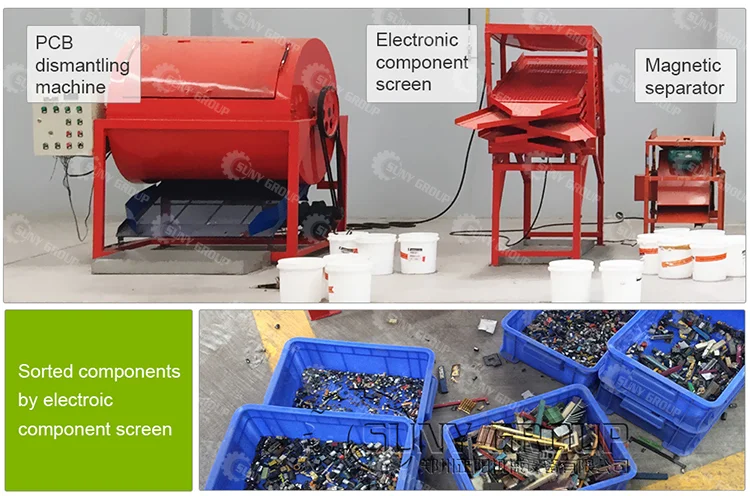

Dismantling machine body—Electronic Component screen —Magnetic Separator
1. PCB dismantling machine body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;
2. Electronic component screen: Classify the similar size electronic components in one side;
3. Magnetic separator: Further classify these components which include iron or not.

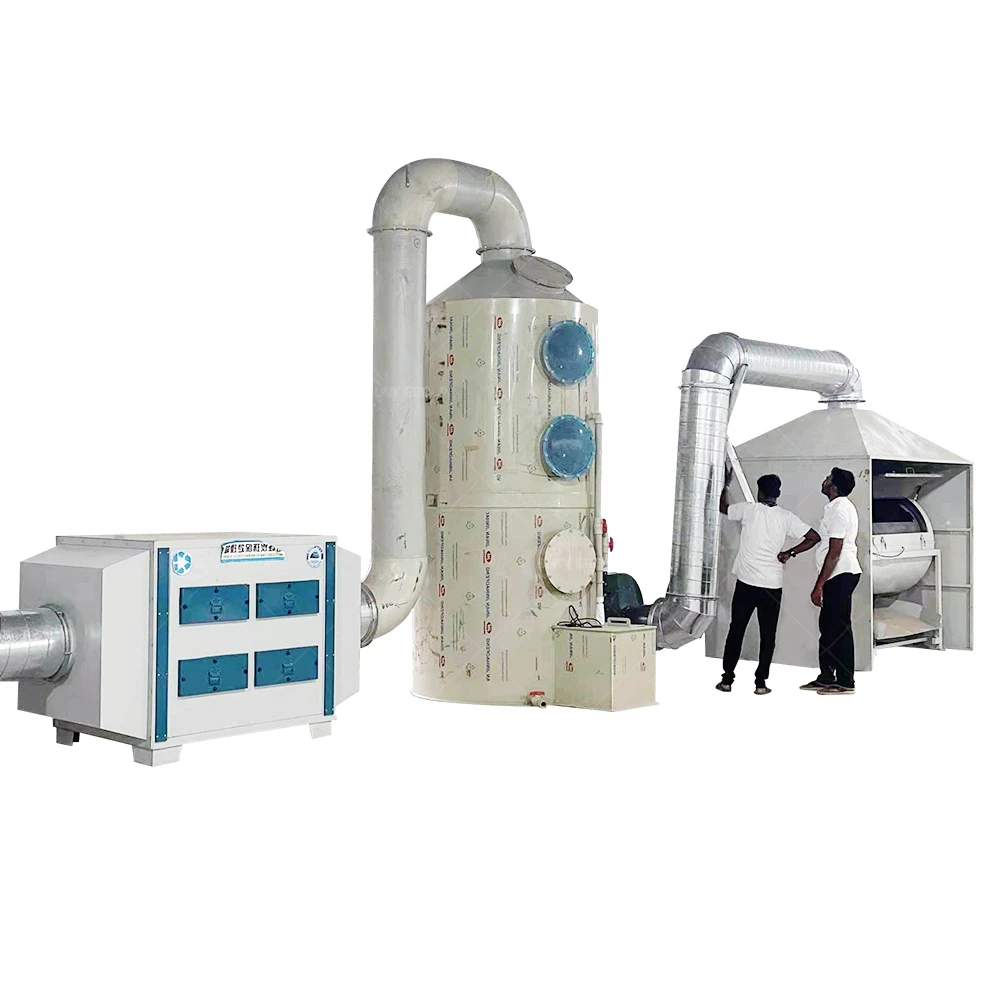

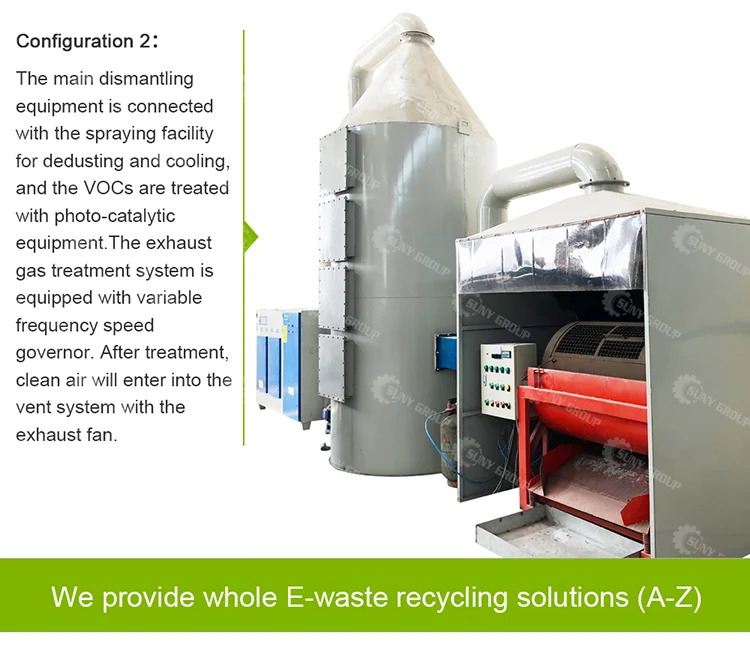

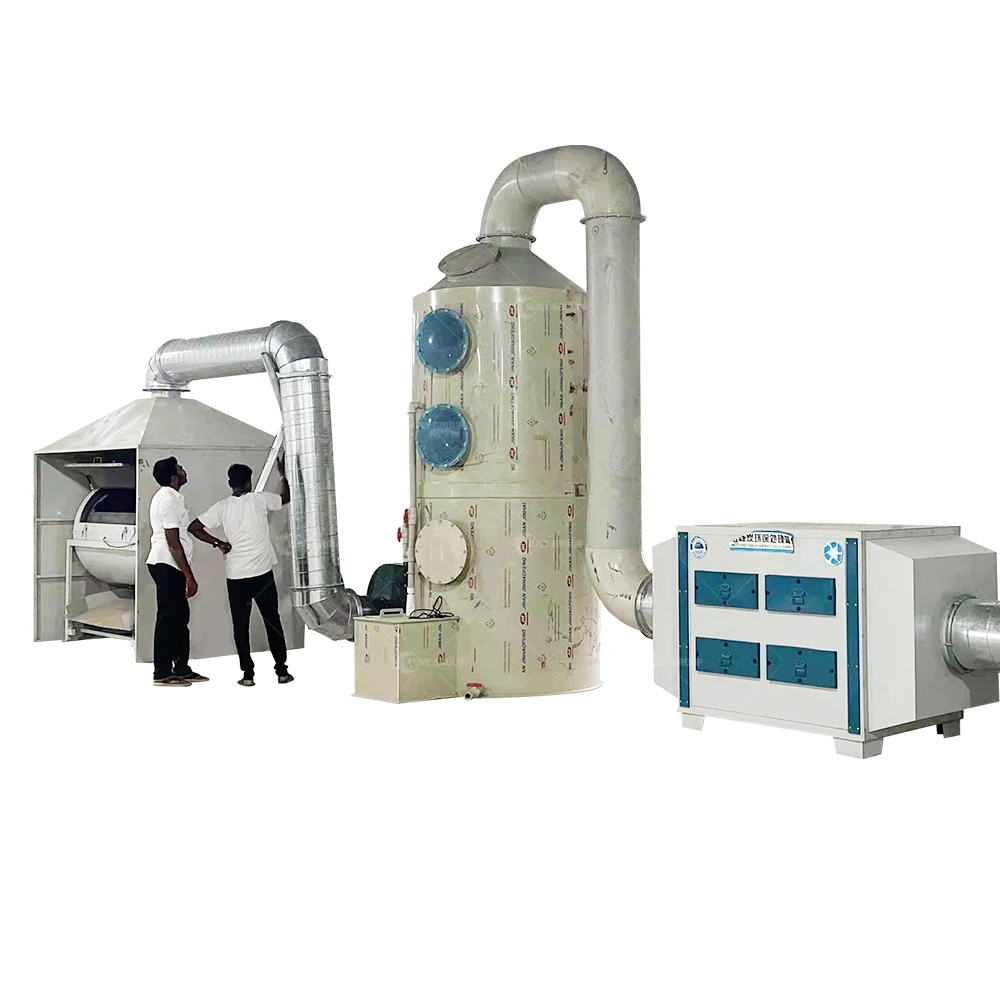

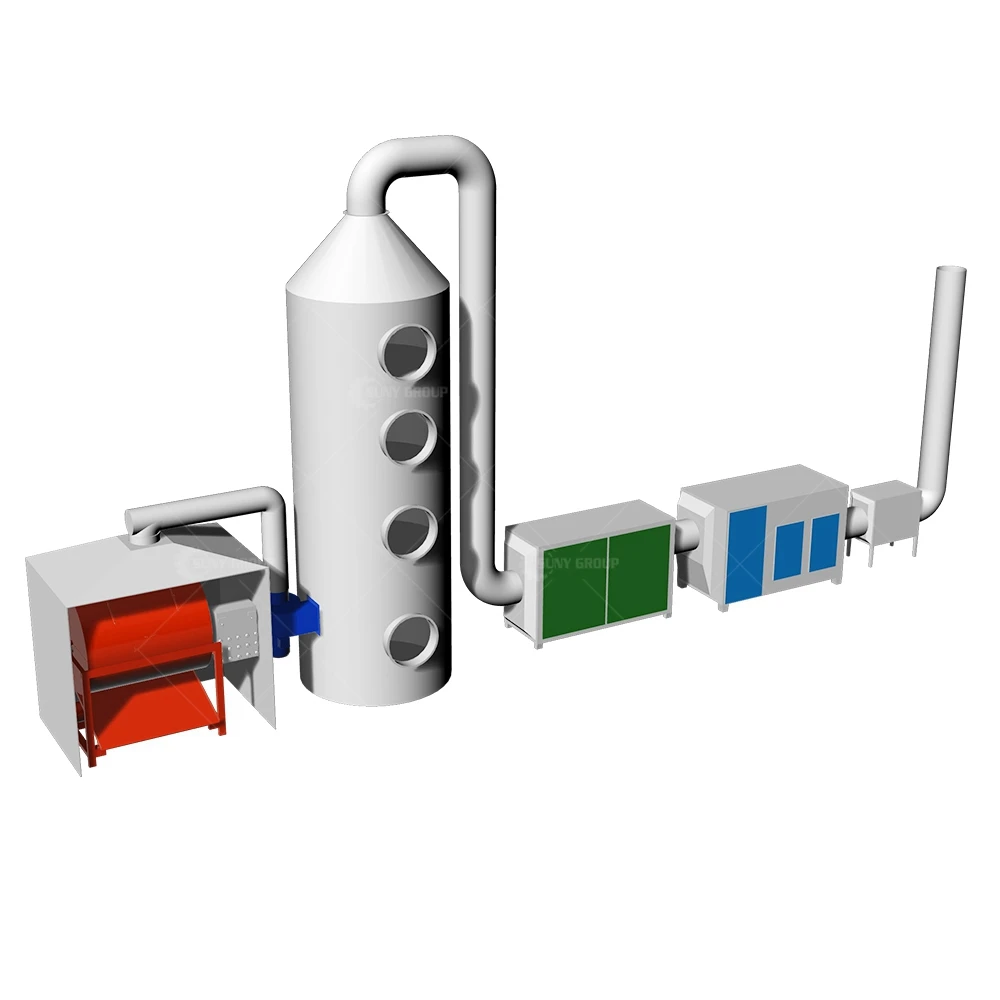

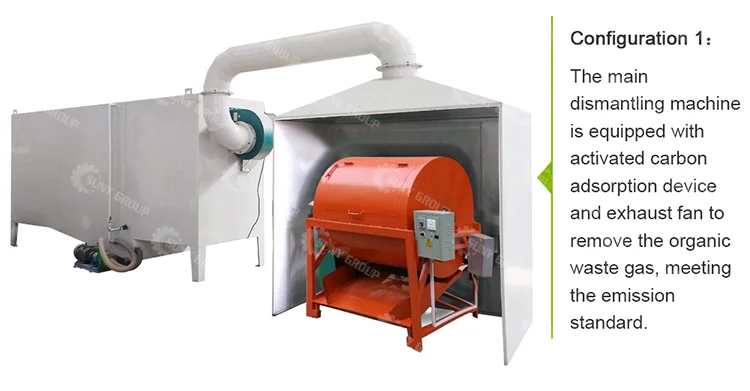

RELATED CONFIGURATION

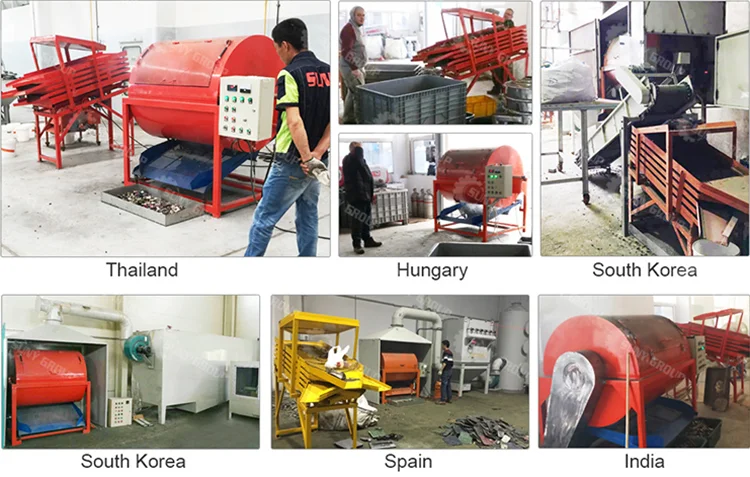

CUSTOMER SITE
CUSTOMER VISITING
