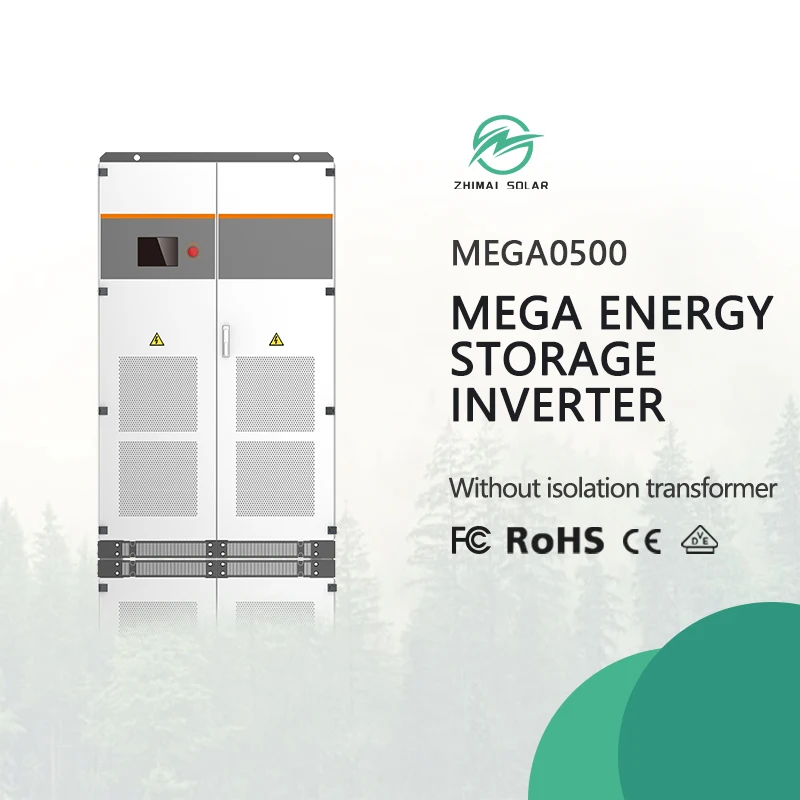

100kw 150kw 250kw 500kW 1MW Hybrid Inverter Power Conversion System Pcs For Solar Energy Storage System
- Category: >>>
- Supplier: Zhimai (shenzhen) New Energy Co. Ltd.
Share on (1601210349717):
Product Overview
Description
Product Description
KEY STRENGTHS

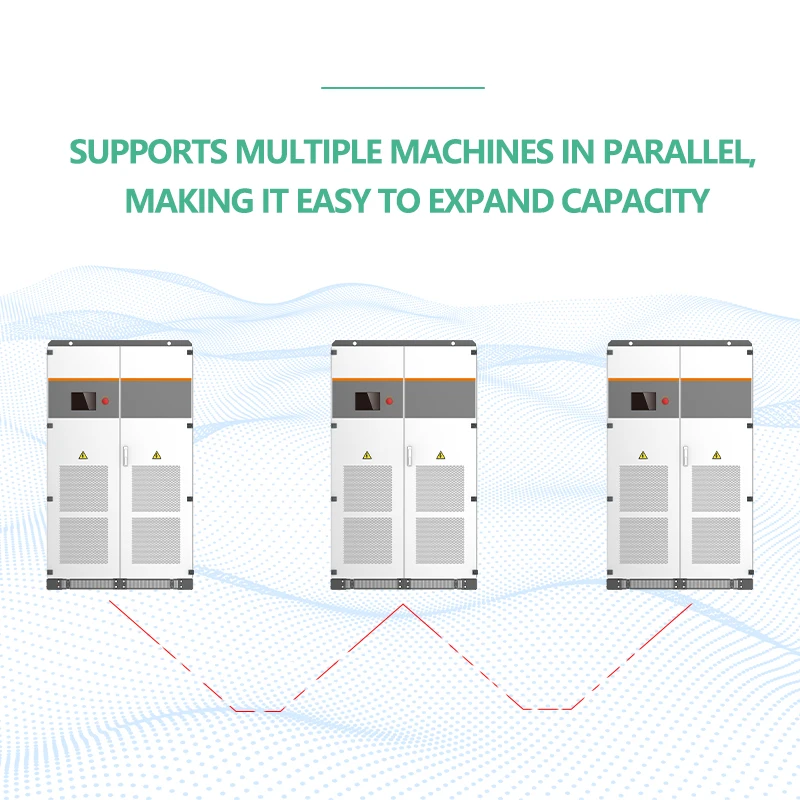

●Support multiple parallel connection, easy to expand capacity.●Transformerless design, high operating efficiency.
●Support constant voltage control and constant power control.
●Support Low & high voltage ride through function.
APPLICATIONS
巜PV charging station
巜Wind power storage
巜Grid-side storage
巜Combined thermal power FM
DC(battery) | ||||
0500 | 0630 | |||
Voltage range (V) | 600~900 | |||
Max. current (A) | 929 | 1170 | ||
AC(on-grid) | ||||
Max output power (kW) | 550 | 693 | ||
Rate output power (kW) | 500 | 630 | ||
Rated voltage (V) | 400 | |||
Voltage range (V) | 320~460 | |||
Rated current (A) | 722 | 909 | ||
Max. output current (A) | 800 | 1000 | ||
Rated frequency (Hz) | 50/60 | |||
Frequency range (Hz) | 45~55/55~65 | |||
THDi | <3% | |||
Power factor | 1lagging-1leading（Settable） | |||
AC connection | 3W+PE | |||
Display and communication | ||||
Display | LCD touch-screen | |||
BMS communication | RS485, CAN | |||
EMS communication | RS485, TCP/IP | |||
Certificates | IEC/EN62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, CGC | |||
