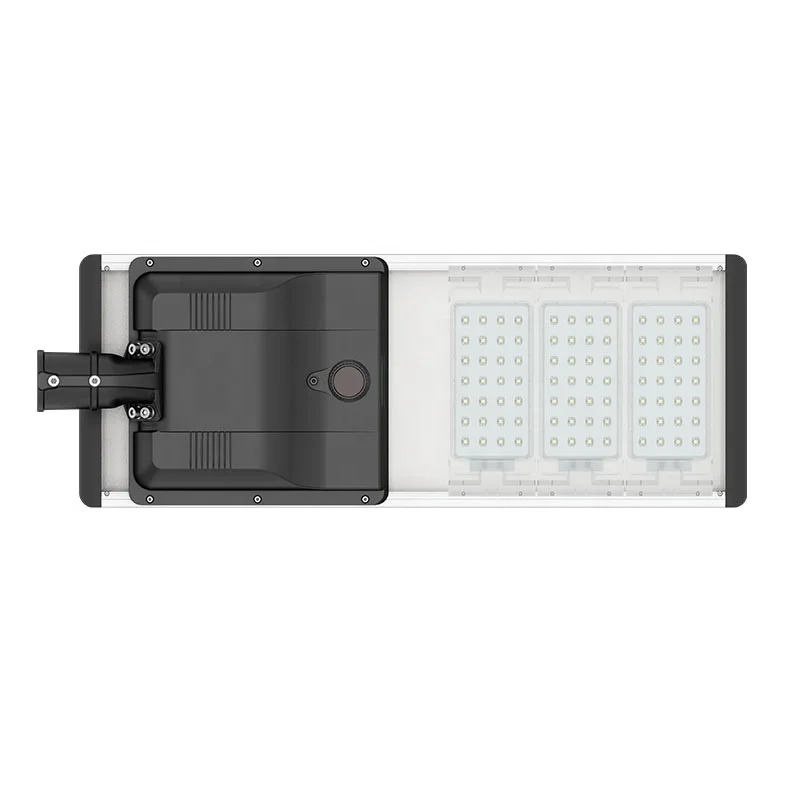

WIND RESISTANCE SOLAR LED GARDEN LANTERN 90W BRONZE FULL ALUMINUM CRI90 CHIP VERTICAL INSTALLATION FOR OPEN SPACES ILLUMINATION
- Category: >>>
- Supplier: Hangzhou Zgsm Technology Co. Ltd.
Share on (1601210403312):
Product Overview
Description
Specific Model
Name | PV5 Solar LED Street Light |
Power | 30-80 Watt |
Lumen | 6, 600~17, 600 lm |
Solar panel | Monocrystalline 55W~110W |
Battery | 18AH~54AH /12.8V LiFePO4 |
Warranty | 3 years |
Product Presentation

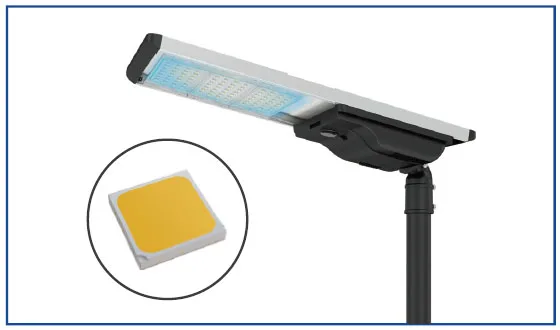

LED Chip
Bridgelux is the standard choice and Greater than 150lm/W high efficacy, illumination grade LED light source.

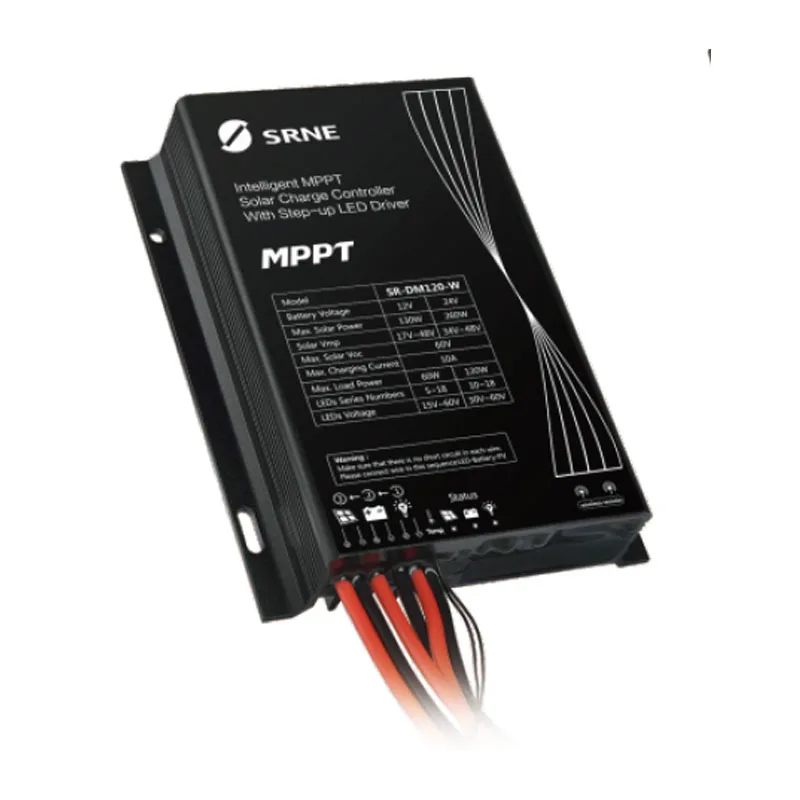

MPPT Controller
Using MovingTrack MPPT maximum power tracking technology, higher tracking efficiency and faster speed ◆Both lead-acid battery and lithium battery are applicable, operating parameters can be set by remote control

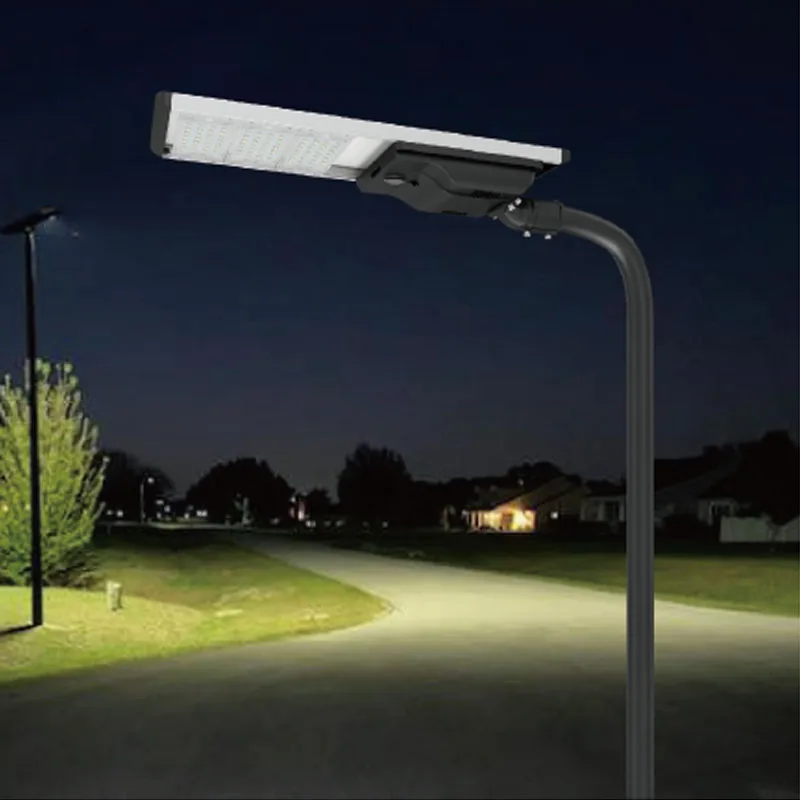

In this way of horizontal installation it would give more lights to the road side. The spigots or knuckle of the lamp arm is so strong to support the lamp.

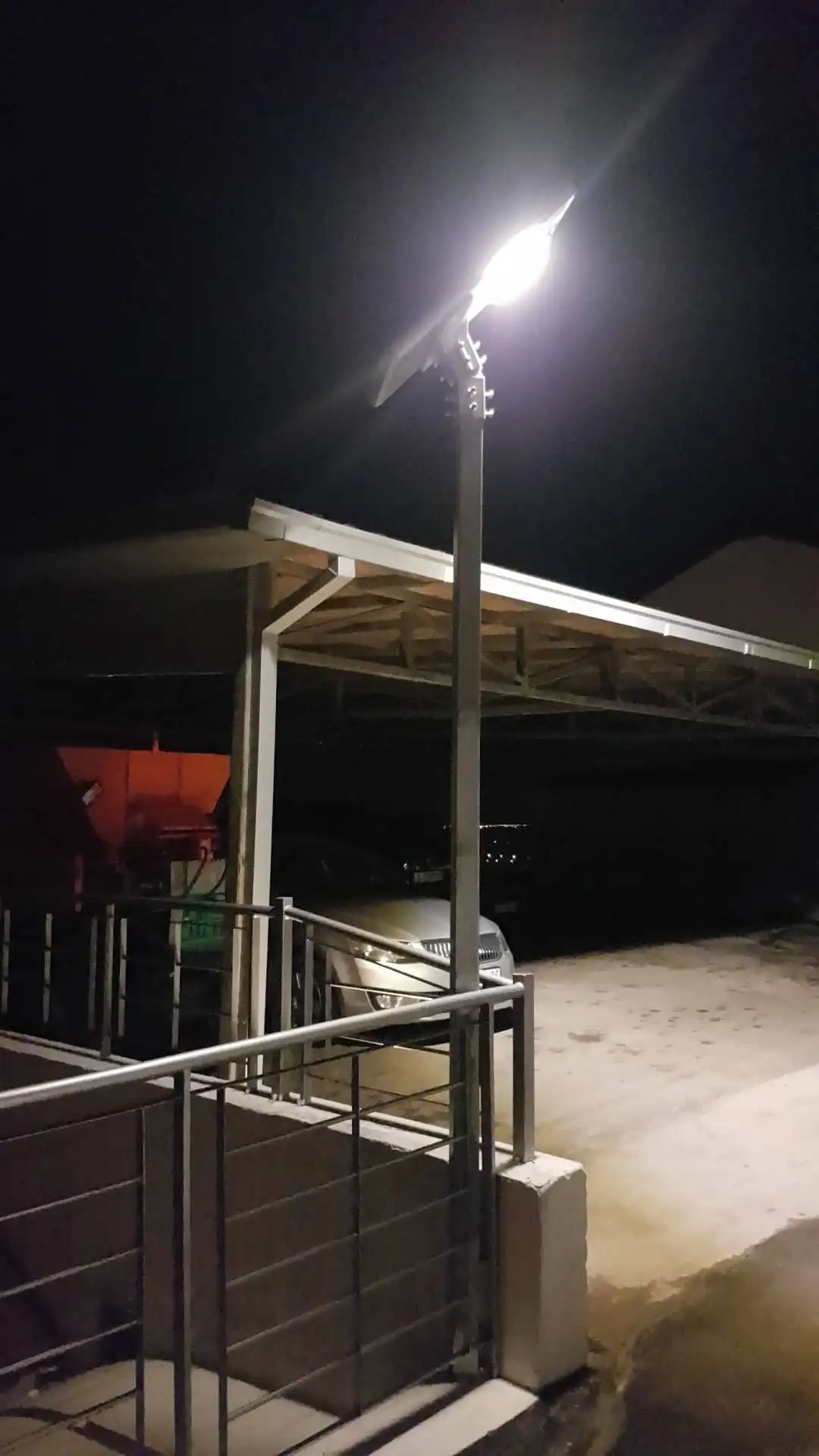

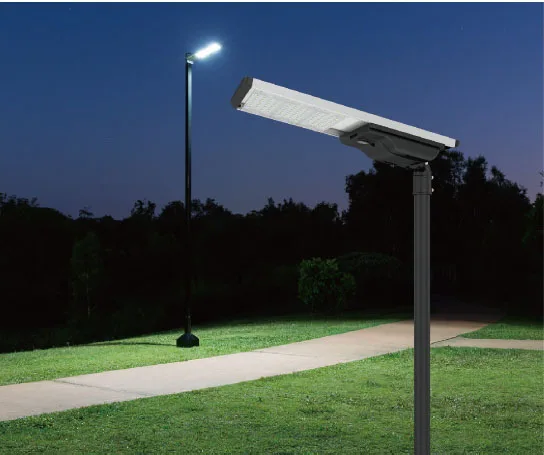

On a completely straight pole such a way of vertical installation is so suitable for the specific applications. It shows the arm flexibility.

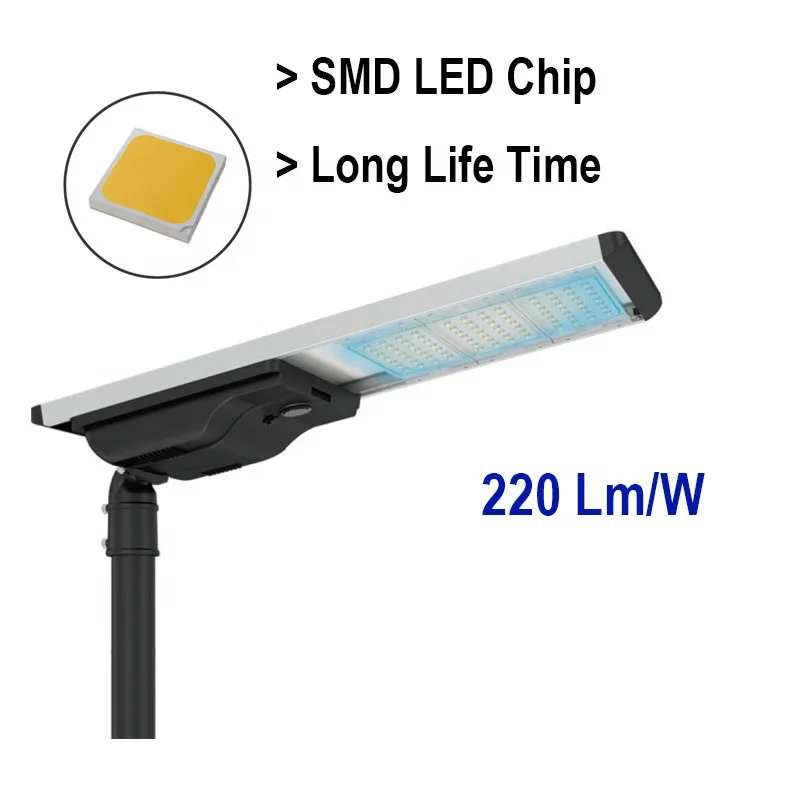

Using high-efficiency Bridgelux LED Chips,
the whole light efficiency is up to 220LM/W.
the whole light efficiency is up to 220LM/W.

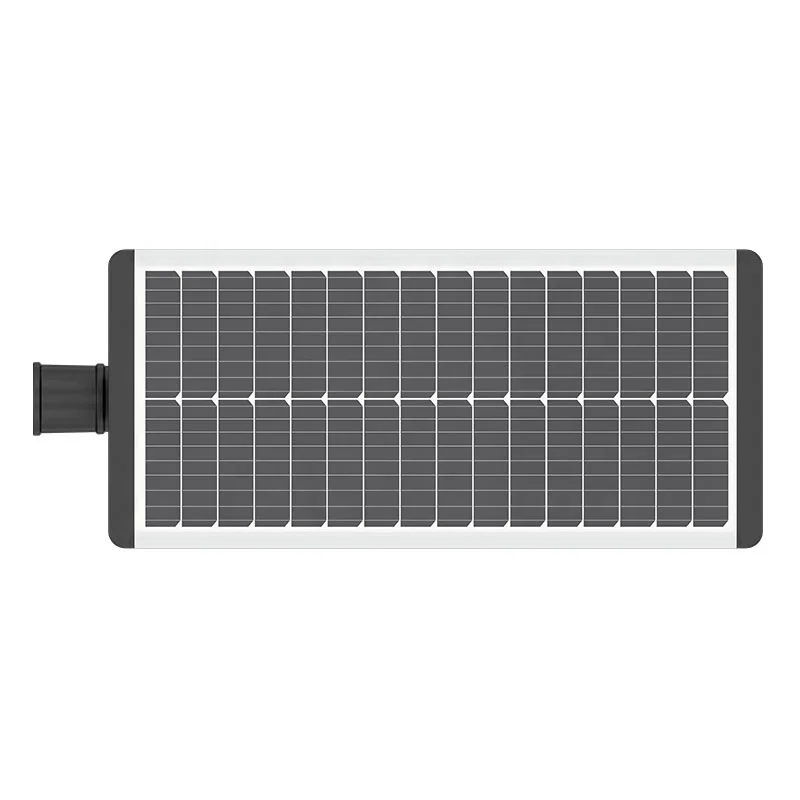

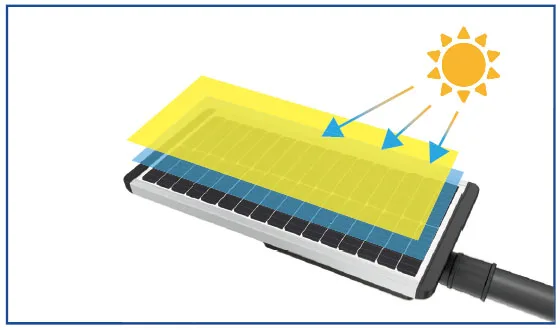

23% photoelectric conversion efficiency.

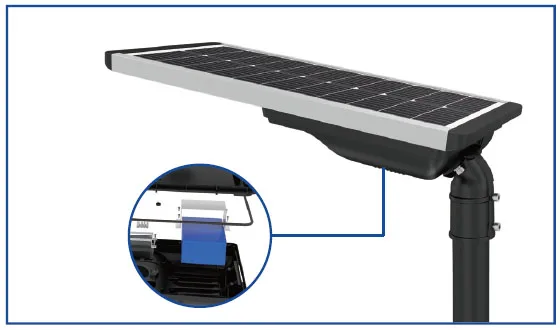

It adopts 100% new battery cell packaging
and is supported by high-quality and stable
protection boards to ensure the long life
of the battery pack.
and is supported by high-quality and stable
protection boards to ensure the long life
of the battery pack.

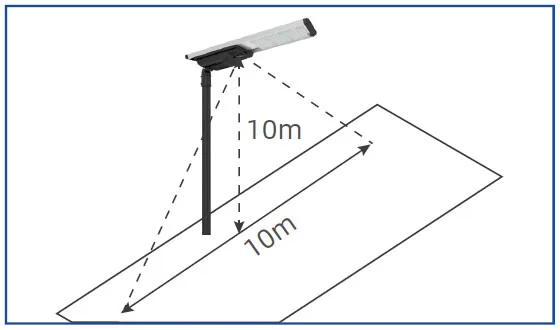

With microwave inductive sensor, Up to 10m
sensing distance and 10m sensing height.
sensing distance and 10m sensing height.
Product Paramenters
Model No | PV5-30 | PV5-40 | PV5-50 | PV5-60 | PV5-70 | PV5-80 | |||||
Lumen | 6600LM | 8800LM | 11000LM | 13200LM | 15400LM | 17600LM | |||||
PV module | Monocrystalline 55W | Monocrystalline 65W | Monocrystalline 65W | Monocrystalline 90W | Monocrystalline 110W | Monocrystalline 110W | |||||
LiFePo4 Battery | 18AH /12.8V (230WH) | 24AH /12.8V (307WH) | 30AH /12.8V (384WH) | 36AH /12.8V (461WH) | 48AH /12.8V (615WH) | 54AH /12.8V (691WH) | |||||
Charge Time | 4.2hours | 4.8hours | 5.9hours | 5.1hours | 5.6hours | 6.3hours | |||||
Installation Height | 6-7m | 6-8m | 6-8m | 8-9m | 8-10m | 9-11m | |||||
Installation Distance | 20-28m | 20-32m | 20-32m | 25-35m | 30-40m | 35-45m | |||||
LED Chip | High Bright Bridgelux | ||||||||||
CCT | 3000-6500K (can be customized) | ||||||||||
Life Span | L70>100, 000 hours | ||||||||||
Working Mode | Motion /PIR Sensor /Timer | ||||||||||
Working Time | 6-30 hours /5-7 days | ||||||||||
Charging Mode | MPPT | ||||||||||
Light Distributions | Asymmetrical | ||||||||||
Working Temperature | -15⁰C to +70⁰C | ||||||||||
Pole diameter | 70-76mm (suggestion) | ||||||||||
IP Rating | IP66 | ||||||||||
Warranty | 3 Years | ||||||||||

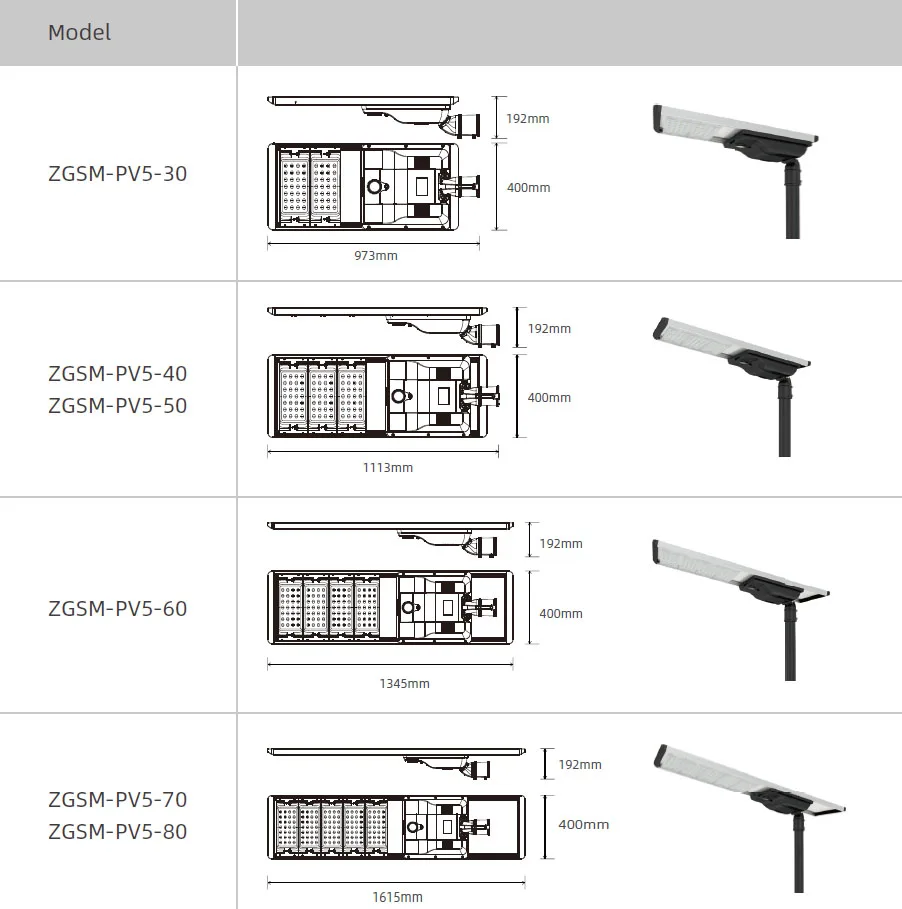

Dimension and Installation

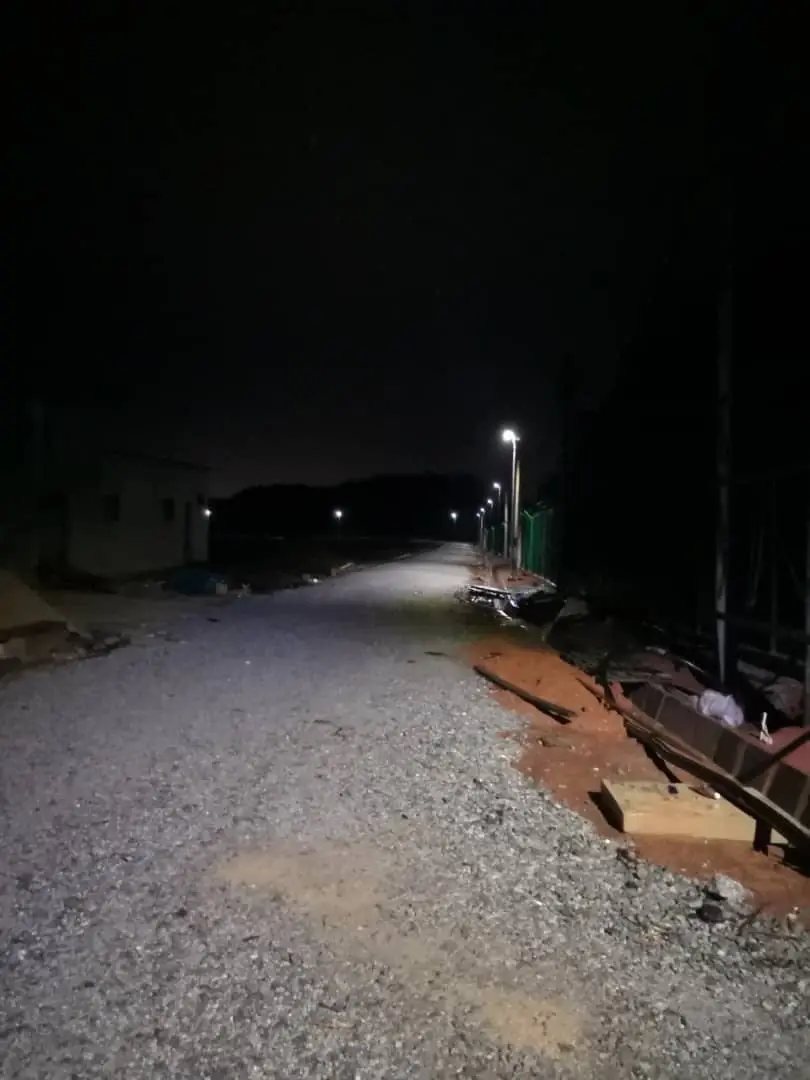

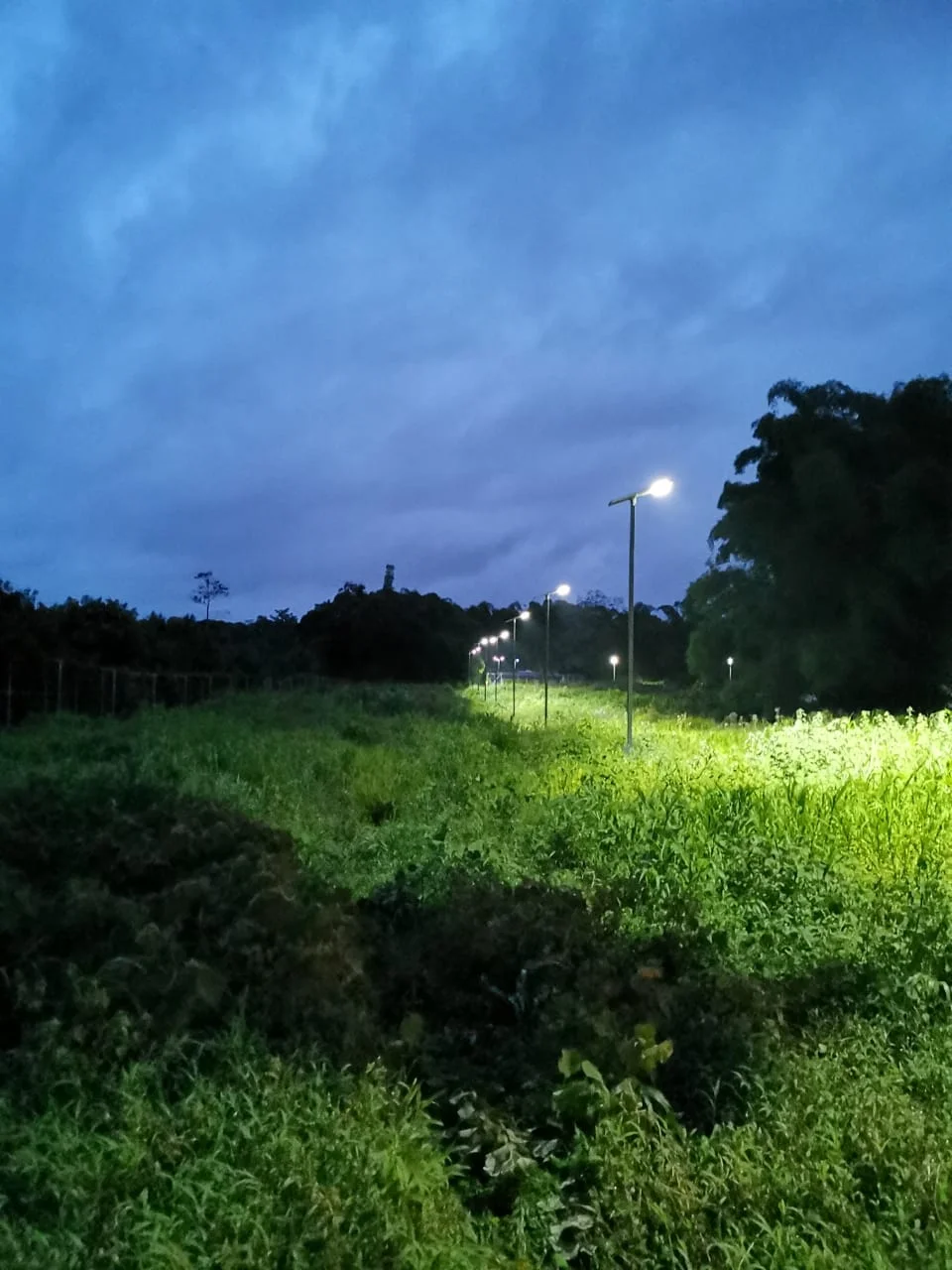

Project
