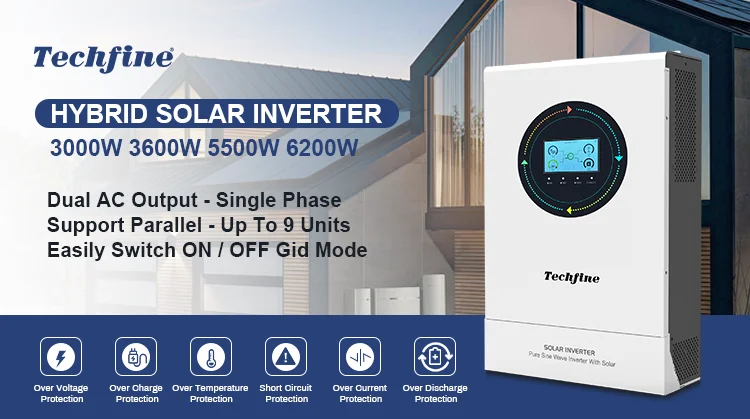

Techfine 3KW 3.6KW Dual Output On Off Grid Solar Inverter 24V 48V Pure Sine Wave Hybrid Solar Inverter With MPPT Controller
- Category: >>>
- Supplier: Guangdong Techfine Electronic Co. Ltd.
Share on (1601210410752):
Product Overview
Description
Products Details
Product Parameters
Model | GA3024SMH | GA3624SMH | GA5548SMH | GA6248SMH | |||||
Input Formation | L+N+PE | ||||||||
ACInput | 220/230/240VAC | ||||||||
Input VoltageRange | 90-280VAC±3V(Normal Mode)185-264VAC±3V(UPS Mode） | ||||||||
Frequency | 50/60Hz(Adaptive) | ||||||||
Rated Power | 3000W | 3600W | 5500W | 6200W | |||||
DualOutput Power | 3000W | 3600W | 5500W | 6200W | |||||
Second Load Cut Off Voltage | 22V | 44V | |||||||
Second Load Return Voltage | 26V | 52V | |||||||
Output Voltage(AC） | 208/220/230/240VAC±5% | ||||||||
Output Frequency | 50/60Hz±0.1% | ||||||||
Output Wave | Pure Sine Wave | ||||||||
Transfer Time(Adjustable） | 10ms for Computer Equipment, 20ms for Household Equipment | ||||||||
Peak Power | 6000VA | 7200VA | 11000VA | 12400VA | |||||
Overload Ability | Battery Mode : 21@102%~110% load 10s@110%-130% load 3s@130%-150% oad 400ms@>150% load | ||||||||
Grid connected peration | Output Voltage | 208/220/230/240VAC±5% （Feed-in Grid Voltage Range:195-253VAC） | |||||||
Grid Voltage Range | 195-253VAC | ||||||||
Grid Frequency Range | 50/60Hz±0.1% (Feed-in Grid Frequency Range:49-51+1Hz/59-61+1Hz） | ||||||||
Output Current | 13.6A | 16.3A | 23.9A | 26.9A | |||||
Power Factor Range | ＞0.99 | ||||||||
Peak Efficiency(Battery Model | ＞94% | ||||||||
Rated Voltage | 24VDC | 48VDC | |||||||
Constant Charging Voltage | 28.2VDC | 56.4VDC | |||||||
Float Charging Voltage | 27VDC | 54VDC | |||||||
PV Charging Method | MPPT | ||||||||
Max PVInput Power | 5000W | 5000W | 7500W | 7500W | |||||
PVInput Voltage Range | 60~500VDC | 60~500VDC | 60~500VDC | 60~500VDC | |||||
MAX PV Input Voltage | 500VDC | 500VDC | 500VDC | 500VDC | |||||
MAX PV Input Current | 18A | 18A | 27A | 27A | |||||
MAX PV Charge Current | 100A | 100A | 100A | 120A | |||||
MAX AC Charge Current | 60A | 80A | 60A | 100A | |||||
MAX Charge Current | 100A | 100A | 100A | 100A | |||||
LCD | Can display operating mode/load/input/output | ||||||||
RS232 | 5PIN/Pitch2.54mmBaud Rate 2400 | ||||||||
Expansion Slot communication Interface | Lithium Battery BMS Communication Card,WIFI2x5PIN/Pitch2.54mm | ||||||||

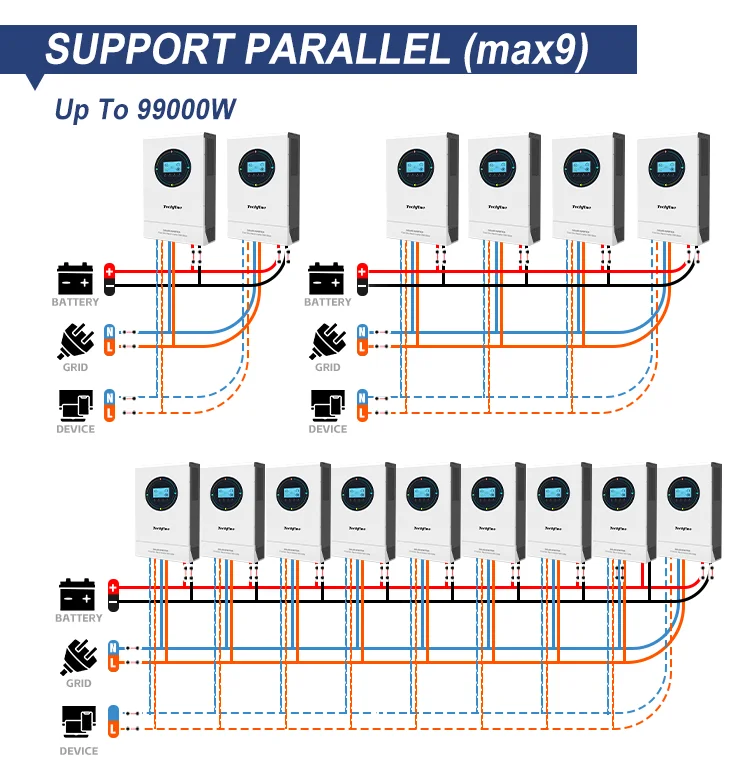

ParallelInterface | Not Support Parallel | Support Parallel | |||||||
Operating Temperature | 0℃~40℃ | ||||||||
StorageTemperature | -15℃~60℃ | ||||||||
Ork Altitude | No more than 1000m,lf1000m<,Rate power will lower,MAX 4000m, Refer | ||||||||
Operating Environment Humidity | Non condensing | ||||||||
Noise | ＜50dB | ||||||||
L*W*H(mm） | 495*312*125mm | ||||||||
