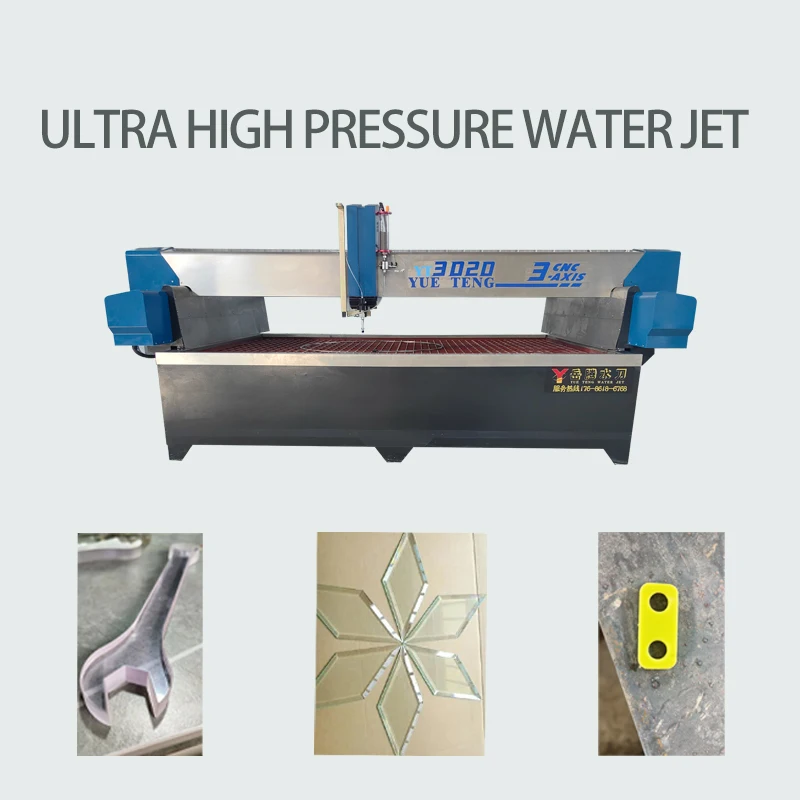

Glass water cutting machine with water knife for digging, punching, cutting and shaping blocks in one go to improve efficiency
- Category: >>>
- Supplier: Shandong Yueteng Technology Development Co. Ltd.
Share on (1601210458153):
Product Overview
Description
Product Description
Water jet cutting machine is a device that uses high-pressure water flow to cut materials, and its use is very extensive. Accurate and fast cutting processing can be performed on various materials, improving production efficiency and processing quality，used in Glass cutting、Ceramic and stone processing、Metal cutting、Plastic and rubber processing、Food processing、 Leather and textile processing、Composite material processing。

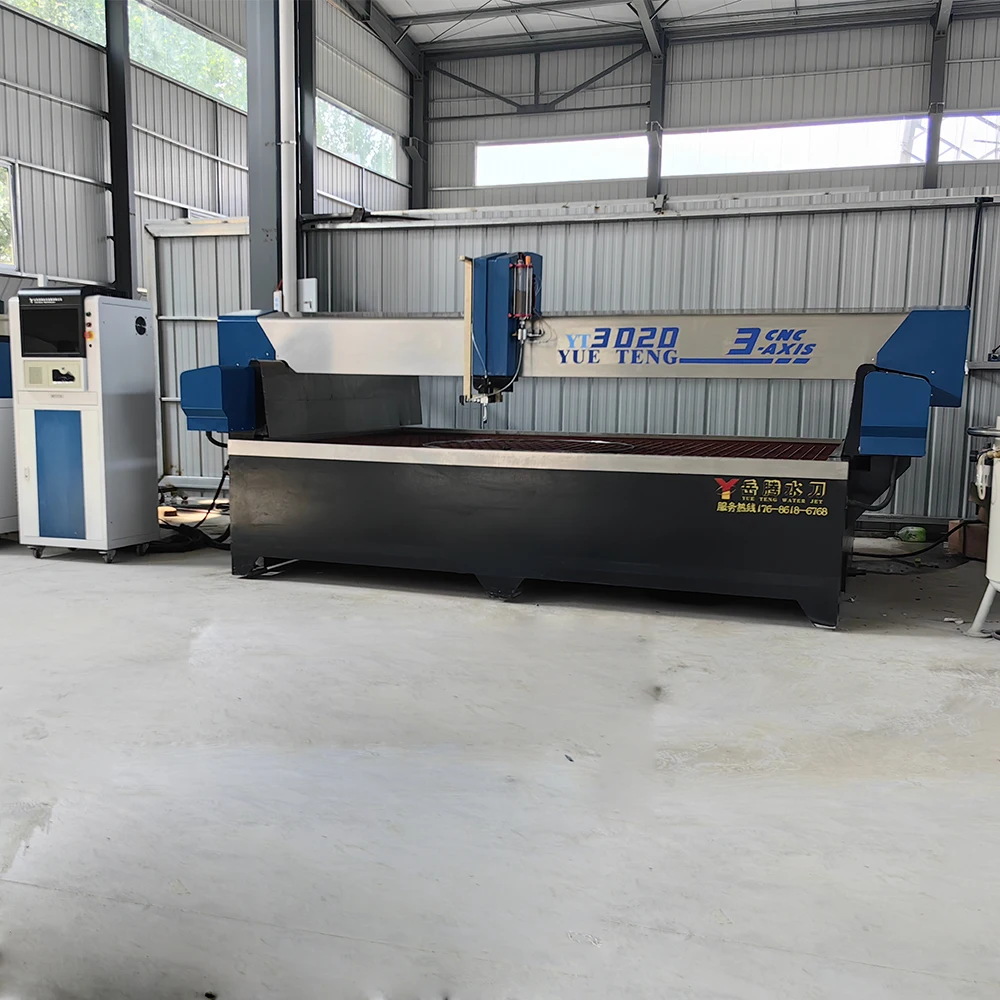

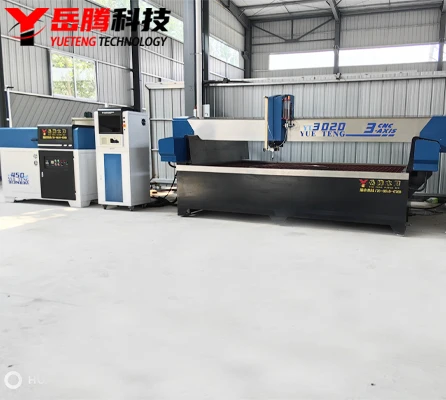

Product Show

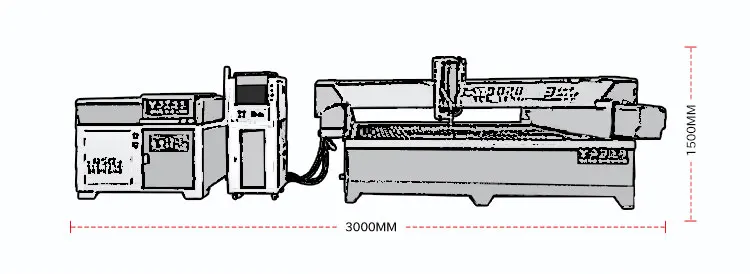

Model | YT2015 | YT2515 | YT3020 | YT4020 |
Table Size | 1500*2000mm | 1500*2500mm | 2000*3000mm | 2000*4000mm |
Processing Range | 1470*1950*150mm | 1470*2450*150mm | 1970*2950*150mm | 1970*3950*150mm |
Cutting Precision | 0.1mm | 0.1mm | 0.1mm | 0.1mm |
Voltage | 220/380/415V AC 50/60Hz | 220/380/415V AC 50/60Hz | 220/380/415V AC 50/60Hz | 220/380/415V AC 50/60Hz |
Motor Power | 30KW/37KW | 30KW/37KW | 30KW/37KW | 30KW/37KW |
Machine Power | 35KW/42KW | 35KW/42KW | 35KW/42KW | 35KW/42KW |
Repeat Position Accuracy | ±0.002mm | ±0.002mm | ±0.002mm | ±0.002mm |
Running Speed | 6000mm/min | 6000mm/min | 6000mm/min | 6000mm/min |
Pressure | 420Mpa/60000psi/4137bar | 420Mpa/60000psi/4137bar | 420Mpa/60000psi/4137bar | 420Mpa/60000psi/4137bar |
Control System | WEIHONG/XIELI | WEIHONG/XIELI | WEIHONG/XIELI | WEIHONG/XIELI |

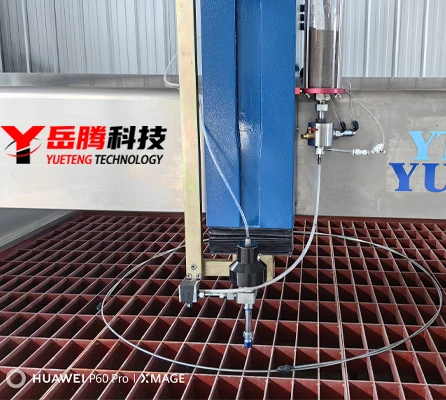

Product Details
Recognize CAD electronic drawings, automatically generate cutting paths and access parameters, and reduce manual coding and repeated operations.
3D cutting
The ultra-high pressure system is independently developed by our company based on the advantages of similar products both domestically and internationally. It has the effects of high energy, low consumption, long service life, long-term operation, higher efficiency, and multiple safety protection systems.

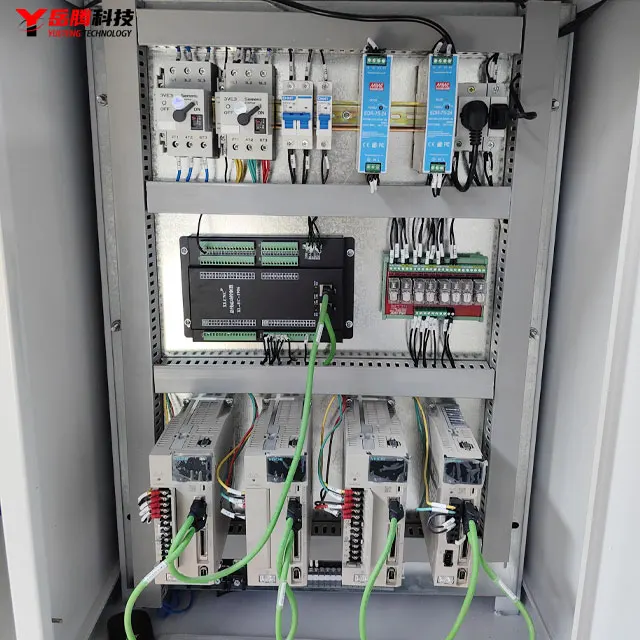

Fully automatic CNC system with bilingual settings in Chinese and English, powerful automatic transformation function of graphic trajectories, pre cutting path simulation, and power outage protection function, making it easier and more convenient to use
1.The structure is simple and practical, with tighter waterproofing and sand prevention, and more ingenious electrical wiring.
2. All parts are processed using high-precision machining centers imported from Japan to ensure machining accuracy.
3. Adopting high-end imported brand servo motors and servo drives for higher control accuracy.
4. Reasonable design, uniform force distribution, effectively improving the operating life and reliability of the three axis water jet.
2. All parts are processed using high-precision machining centers imported from Japan to ensure machining accuracy.
3. Adopting high-end imported brand servo motors and servo drives for higher control accuracy.
4. Reasonable design, uniform force distribution, effectively improving the operating life and reliability of the three axis water jet.

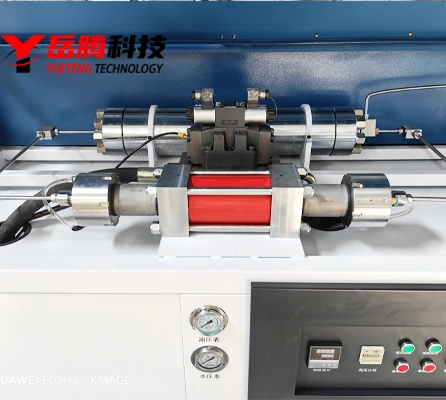

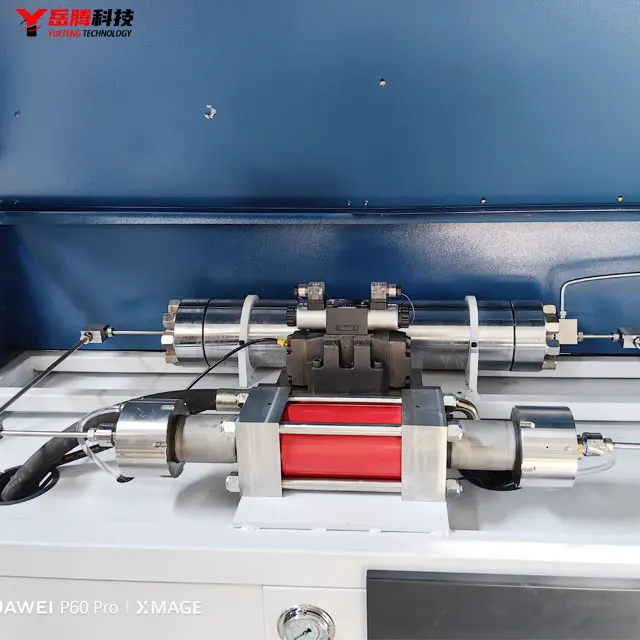

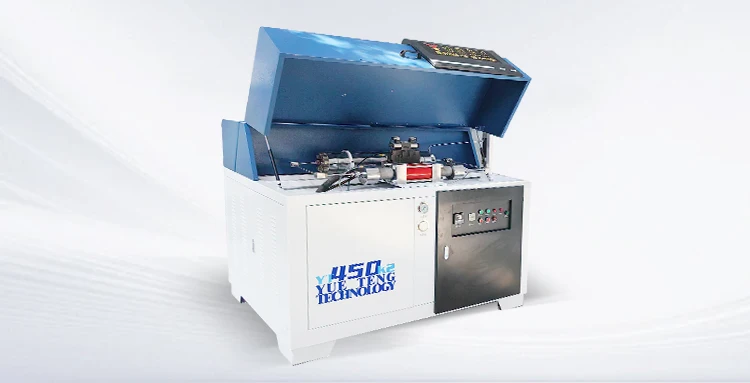

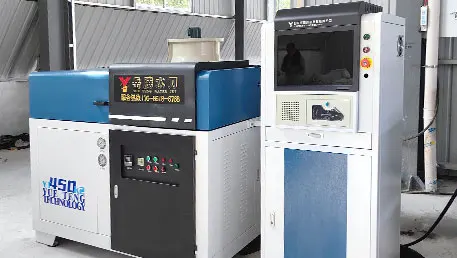

Ultra high pressure booster
ultra high pressure system enables our company to independently develop an ultra-high pressure generation system based on the advantages of similar foreign products, which has the characteristics of compact structure, reasonable layout,high energy and low consumption.long service life without reducing high pressure, and high comprehensive cost-effectiveness combined with cost-effectiveness; The key high-pressure components of the turbocharger are imported products ensuring long-term continuous operation.
Increase pressure machine; Adopting the imported American ACC brand, ensuring continuous 24-hour operation,increasing customer
production capacity, and reducing maintenance rates.
production capacity, and reducing maintenance rates.

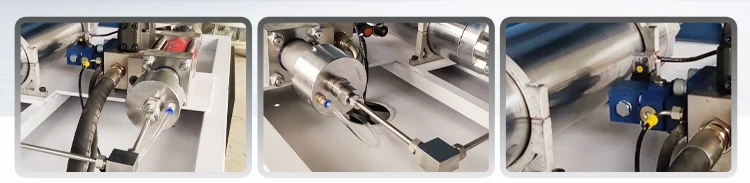

High pressure pipeline: Imported high pressure pipeline using right angle joints to reduce impact and increase service life. More
than 10 times the lifespan of other bend pipe manufacturers.
than 10 times the lifespan of other bend pipe manufacturers.
Energy storage device: independently developed maintenance free, with advantages such as high volume ratio,stable pressure, and
no water leakage.
no water leakage.
Product Application
Packing & Delivery

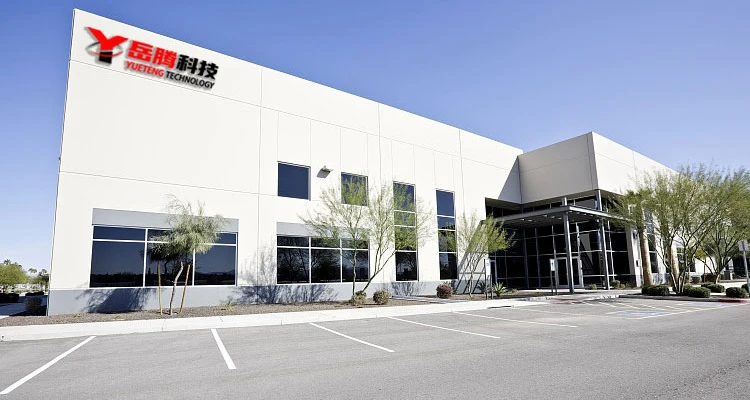

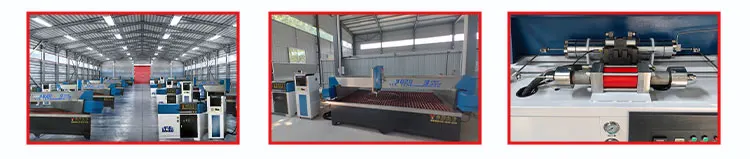

Company Information
Shandong Yueteng Technology Development Co., Ltd. is located in Jining, Shandong, known as the hometown of Confucius and Mencius and the land of etiquette. The factory covers an area of 10000 square meters. Yueteng Technology is an enterprise that focuses on the research and production of ultra-high pressure water jet technology. The company mainly produces CNC ultra-high pressure water jet cutting machines, commonly known as "water knives", which are currently a new cold cutting process in the world and have unparalleled advantages in the field of material cutting. Its unique cold cutting process and cutting function suitable for any texture material are widely used in industries such as architectural ceramics, stone, glass, metal processing, rubber and plastic industry, automotive, aerospace, military industry, petrochemical industry, and various special processing industries; With the rapid development of the demand for new manufacturing industries and the application of new materials, it has been applied in multiple industries.
With nearly 20 years of experience in technology application, Yueteng Technology has cultivated a team of high-tech talents, constantly innovating and breaking through. The company adopts high-quality imported components from the brand to ensure the stability of the equipment during use. While greatly improving product performance, it is also committed to rationalizing cost control and providing users with practical benefits. At present, the quality of our company's products has surpassed that of most similar products. With extremely high cost-effectiveness, high-quality service, and top-notch quality, as well as comprehensive pre-sales and after-sales services, we have won recognition from the business community and created a good reputation. This makes Yueteng Technology one of the large enterprises in China that master the core technology of water cutting.
Our aim is: "Exchange your trust and support with service and sincerity, mutual benefit, and create a win-win situation!"
Our company is willing to cooperate wholeheartedly with colleagues from all walks of life at home and abroad to create a better future together!
Our aim is: "Exchange your trust and support with service and sincerity, mutual benefit, and create a win-win situation!"
Our company is willing to cooperate wholeheartedly with colleagues from all walks of life at home and abroad to create a better future together!
FAQ
The conventional processing thickness is within 100mm. If you need to cut a larger thickness, please let me know in advance
2.What language does the system text support?
The system supports Chinese or English
3.What brand is used for water jet cutting software?
The software uses Weihong or Xieli
4.What materials can water knives cut？
Water knives can cut metal, stone, glass, rubber, sponge, ceramics, semiconductors, etc.
5.How long is the warranty for the equipment?
The warranty period for the equipment is one year
6.Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
7: How can l choose the most suitable machines ?A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
