MOPA M7 JPT RAYCUS Rotary Laser Marking Machines 20w 30w Fiber Laser Mark For Metal Card Mirror Stainless Cup
- Category: >>>
- Supplier: pt general purpose equipment indonesiapt indonesia
Share on (1601210486054):
Product Overview
Description
Products Description

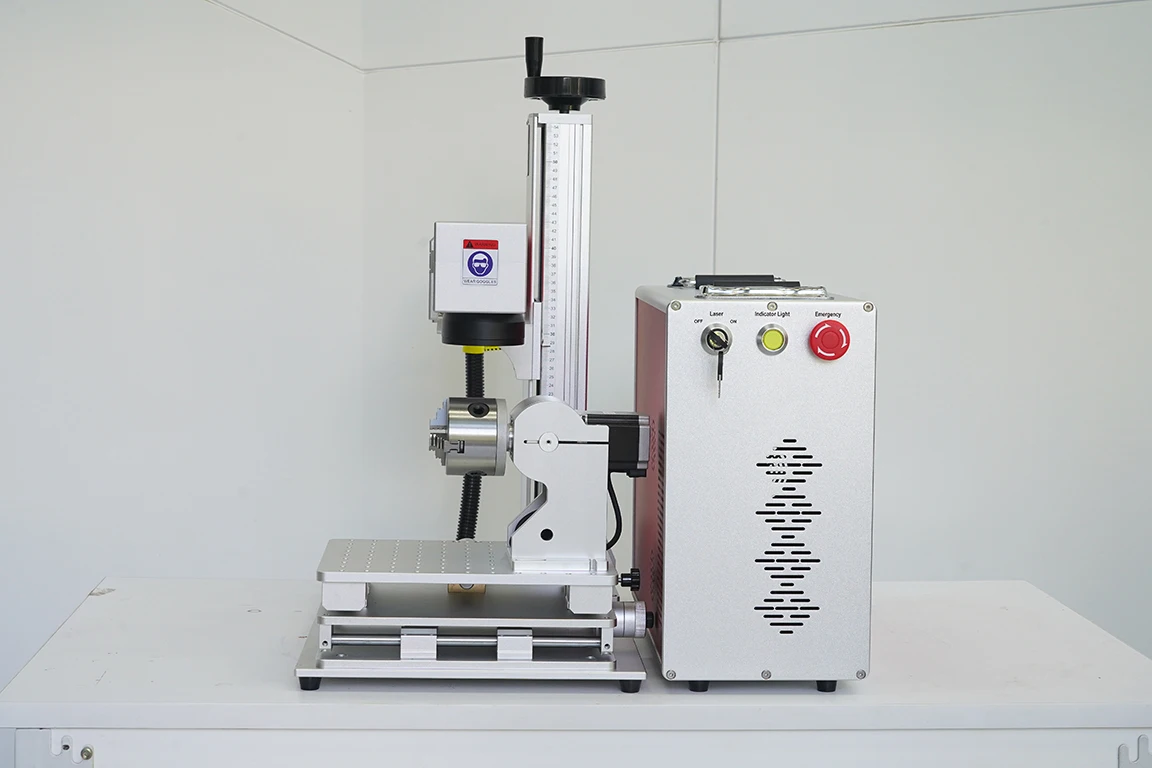

Multifunctional 20w 30w 50w 60w 80w 100w Portable Desktop Split 3D Fiber Laser Marking Machine For Metal Plastic Easy To Operate

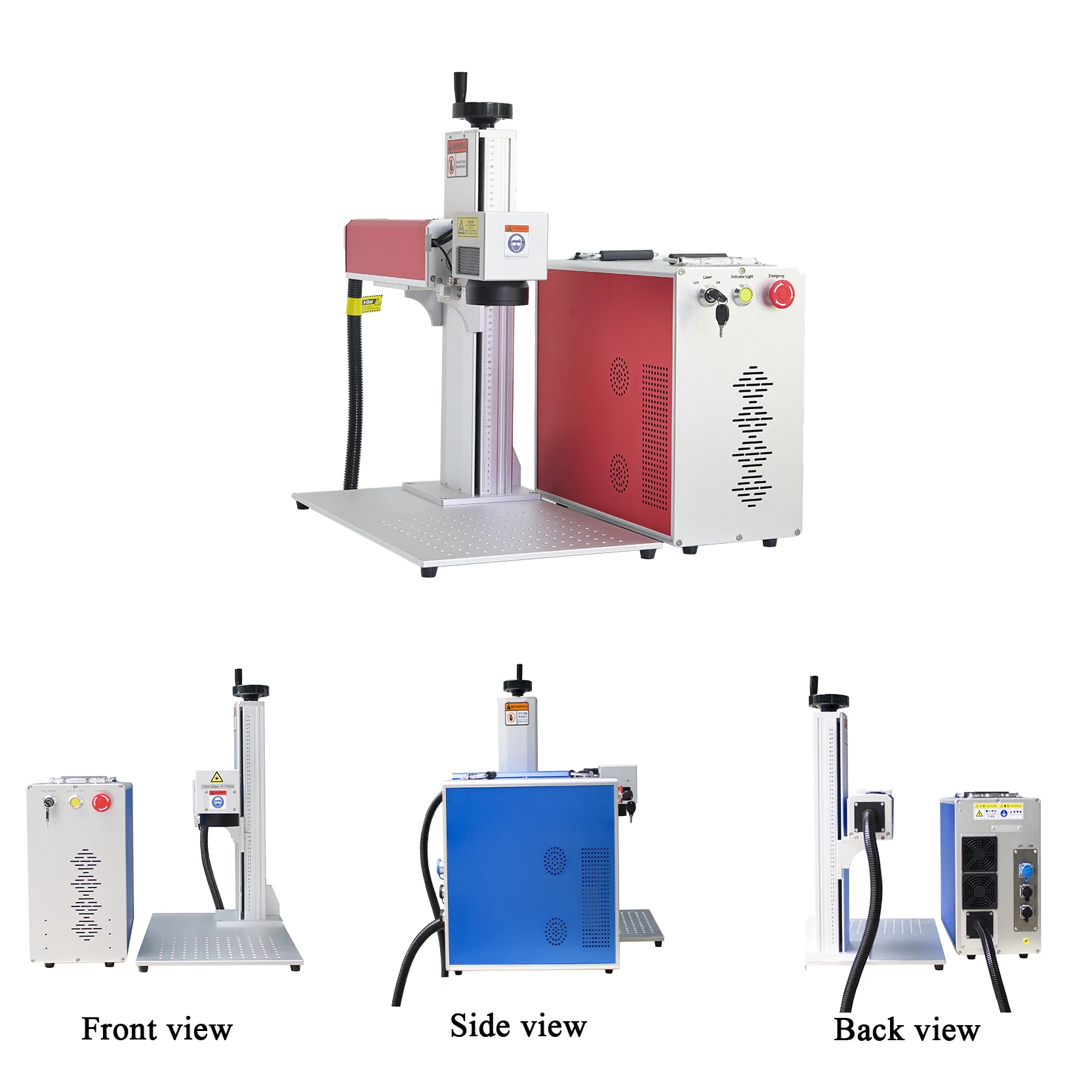

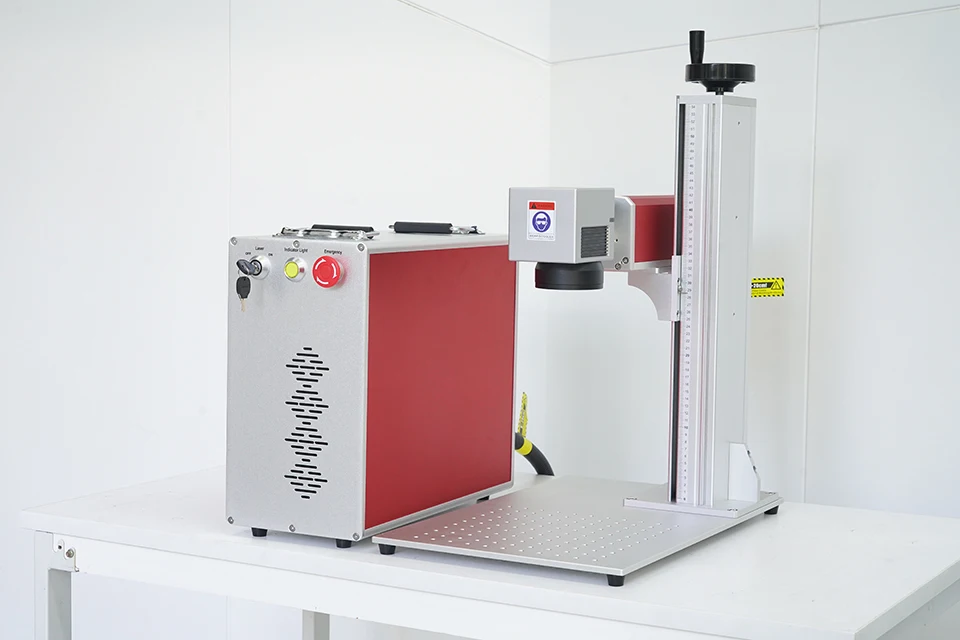

FIBER LASER MARKING MACHINE
Marking Principle：The fiber laser marking machine can expose the deeper material by evaporating the surface material, or cause physical changes in the surface material through light energy to make marks, or burn part of the material through light energy to reveal the required etching patterns, text, barcodes and other graphics.
Application：Fiber laser marking machines are widely used in a wide range of fields, including electronic components, integrated circuits, electrical appliances, mobile communications, hardware products, tool accessories, precision instruments, glasses and watches, jewelry, auto parts, etc. They are particularly suitable for fields with high requirements on depth, smoothness and precision, such as the mold industry and bitmap marking industry.
Advantages And Features：In addition, the fiber laser marking machine also has the characteristics of no water cooling device, small size, easy installation, maintenance-free, stable and reliable operation, no consumables, low power consumption, clear and beautiful marking, etc. It is suitable for laser marking on the surface of various materials.
Product Parameters
Product Name | Fiber Laser Marking Machine | Laser Source | RAYCUS/JPT/MAX |
Marking Speed | ≤7000mm/s | Minimum Line Width | 0.01mm |
Cooling Type | Air Cooling | Minimum Character | 0.2mm |
Laser Wavelength | 1064nm | Power | 20w 30w 50w 60w 100w |
Max Marking Area | 300mm*300mm | Control Software | EZCAD |
Electrical Requirements | 110V-240V/50Hz-60Hz | Optional Accessories | Rotary/2D 3D worktable/Cutting fixture |
Product Details
Fiber Laser Source
RAYCUS/IPG/JPT/MAX optional
High quality, low loss, long service life
High quality, low loss, long service life

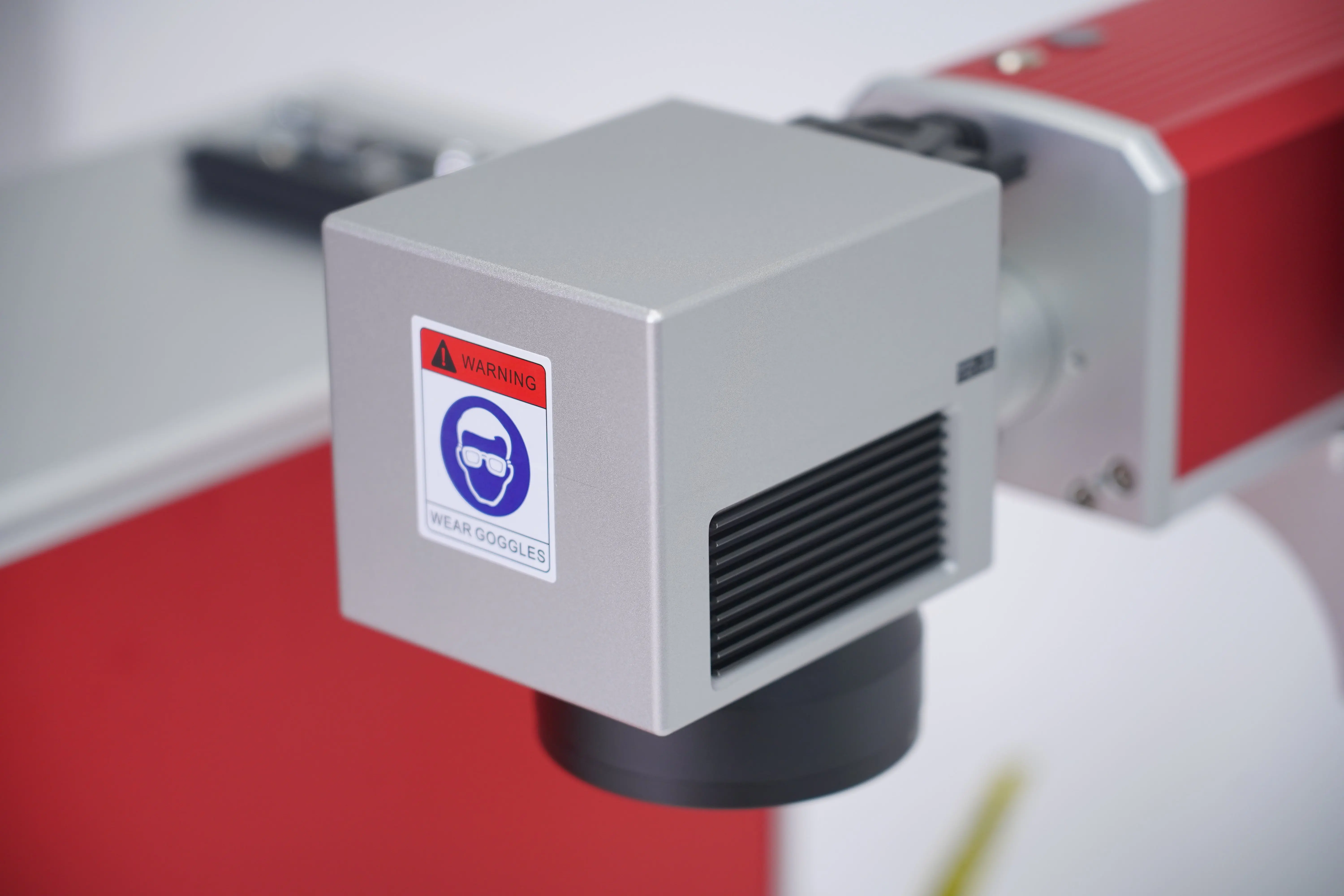

Galvo Head
Digital Galvanometer Scanning Head
Maximum speed: 7000mm/s
Maximum speed: 7000mm/s

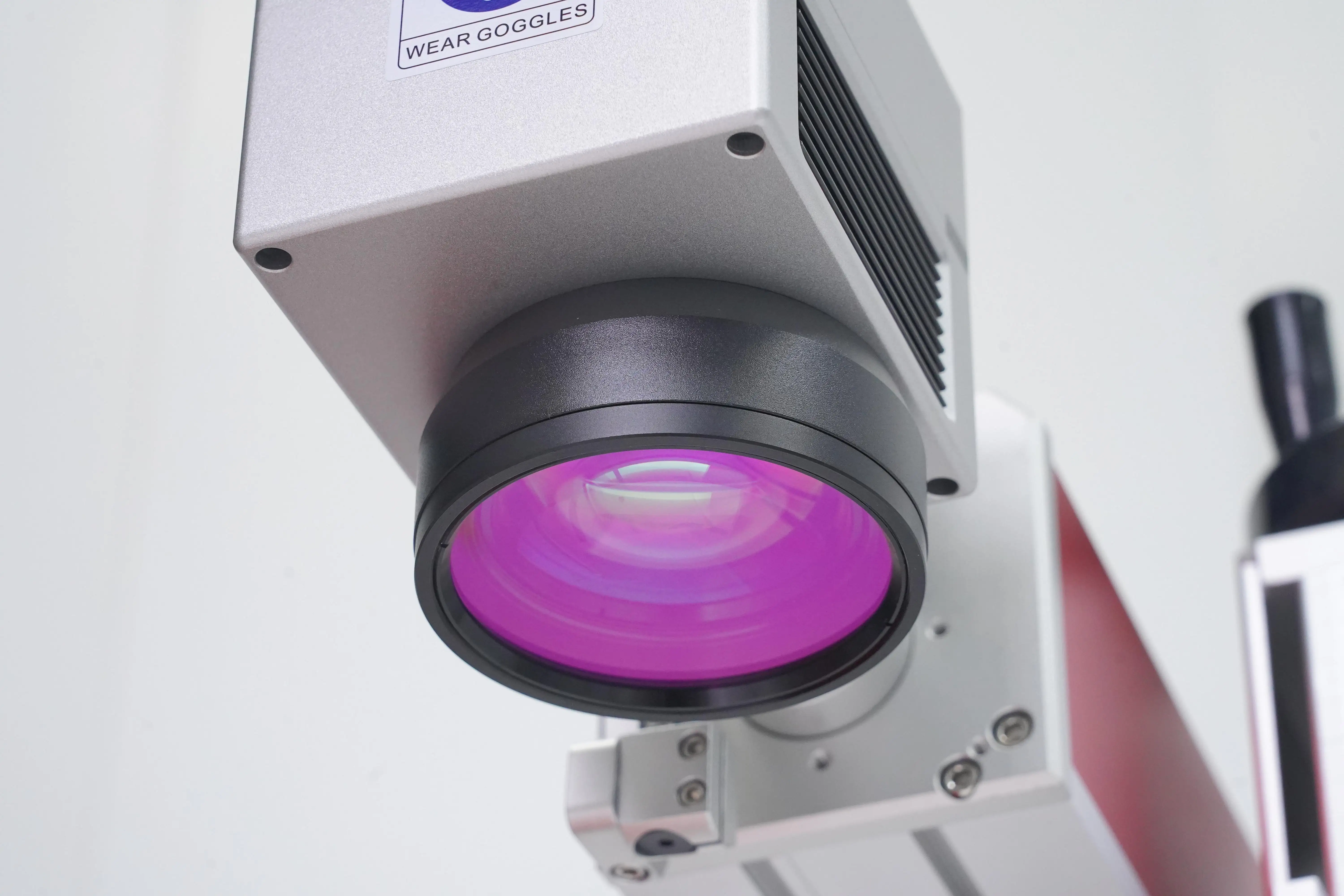

Lens
Working size：100*100mm、150*150mm
175*175mm、200*200mm
Choose according to different working areas
175*175mm、200*200mm
Choose according to different working areas

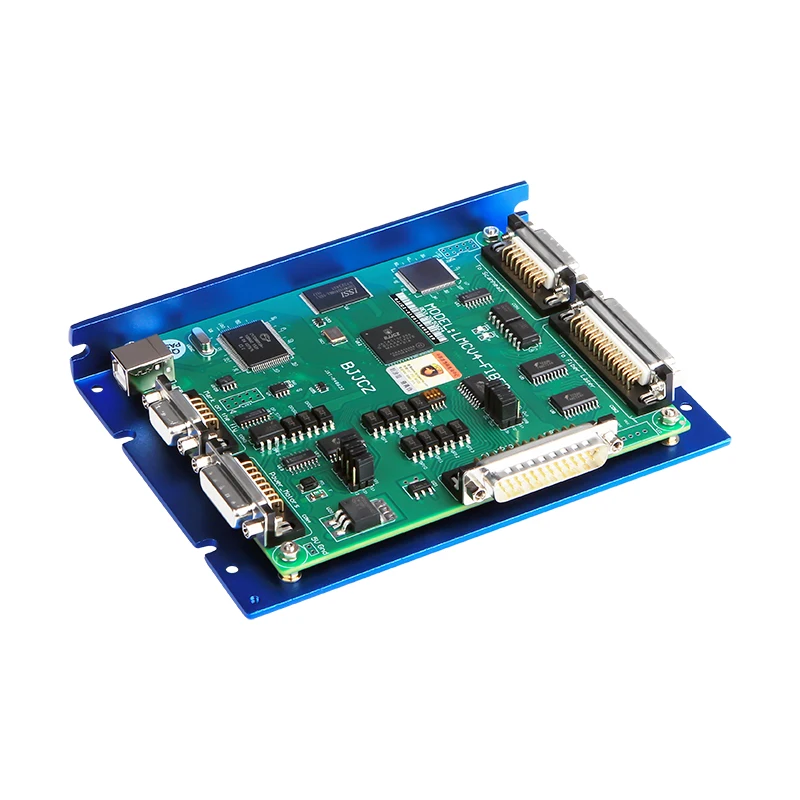

Control Card
Beijing JCZ Control Card
With EZCAD Software For Windows XP
Easy to operate
With EZCAD Software For Windows XP
Easy to operate

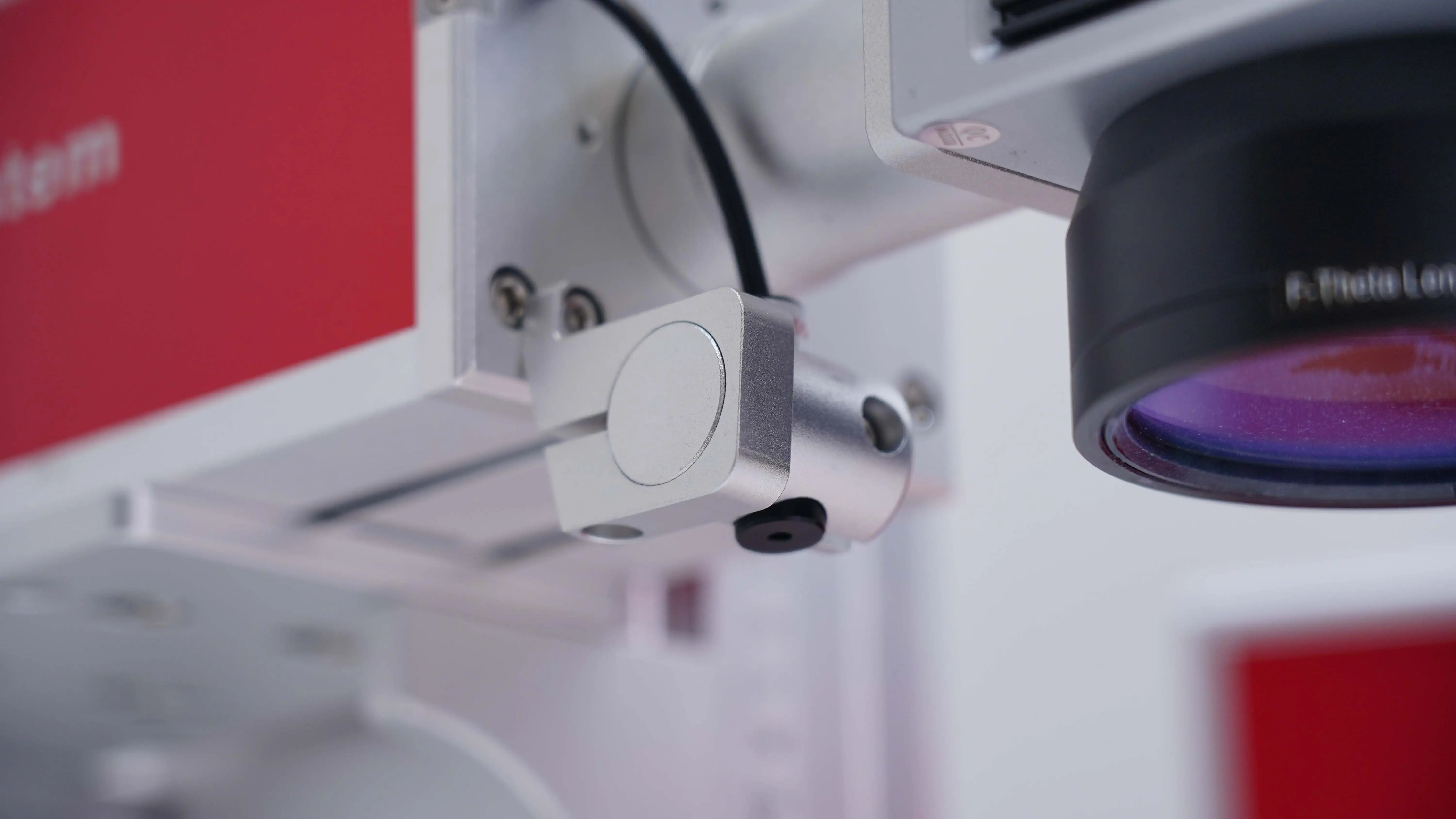

Red Light Indicator
Double red light indicator
With high precision positioning
With high precision positioning

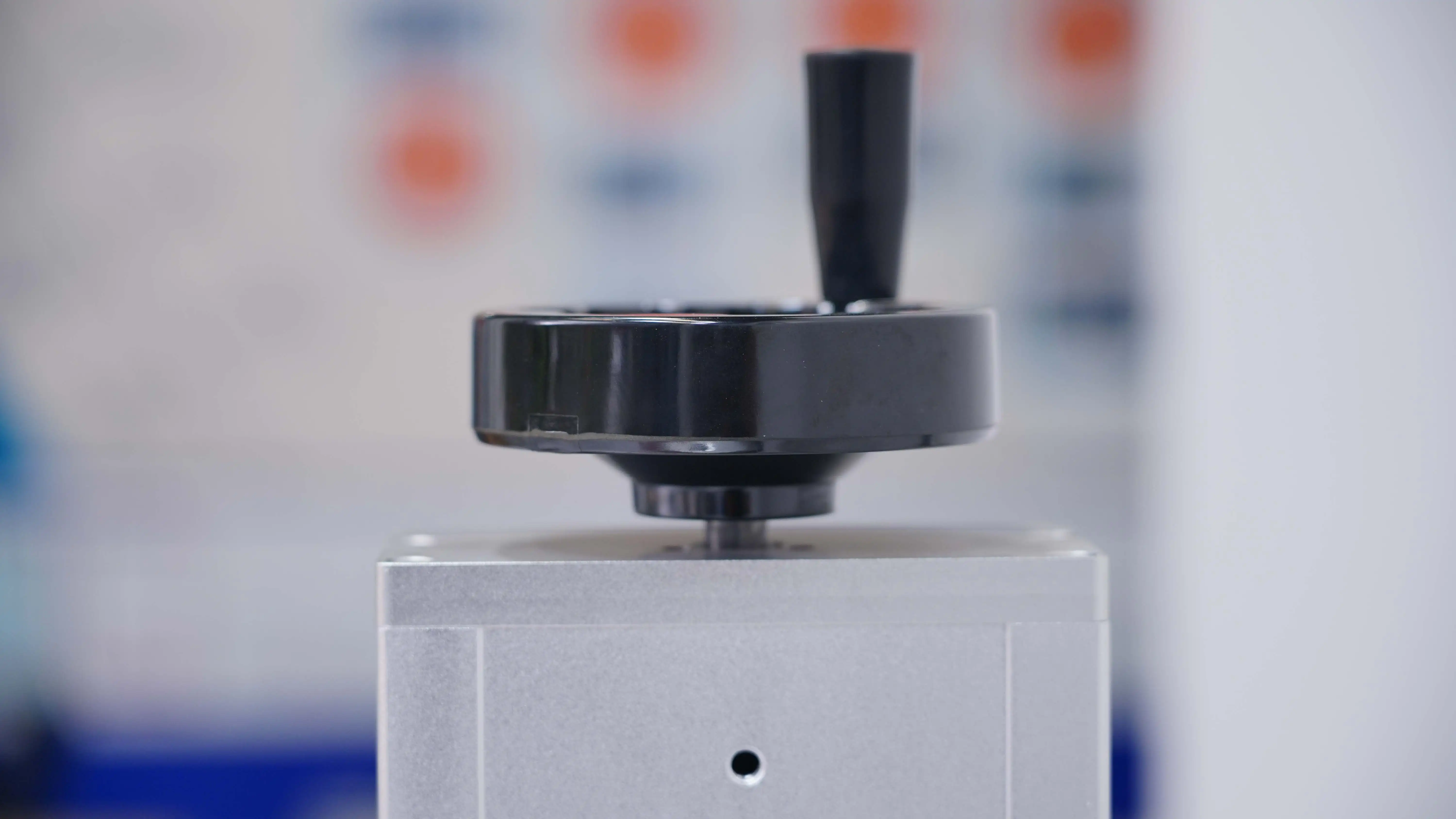

Column Handle
Can be used to adjust the focal length
Standard 500mm high
Can be adjusted higher if needed
Standard 500mm high
Can be adjusted higher if needed

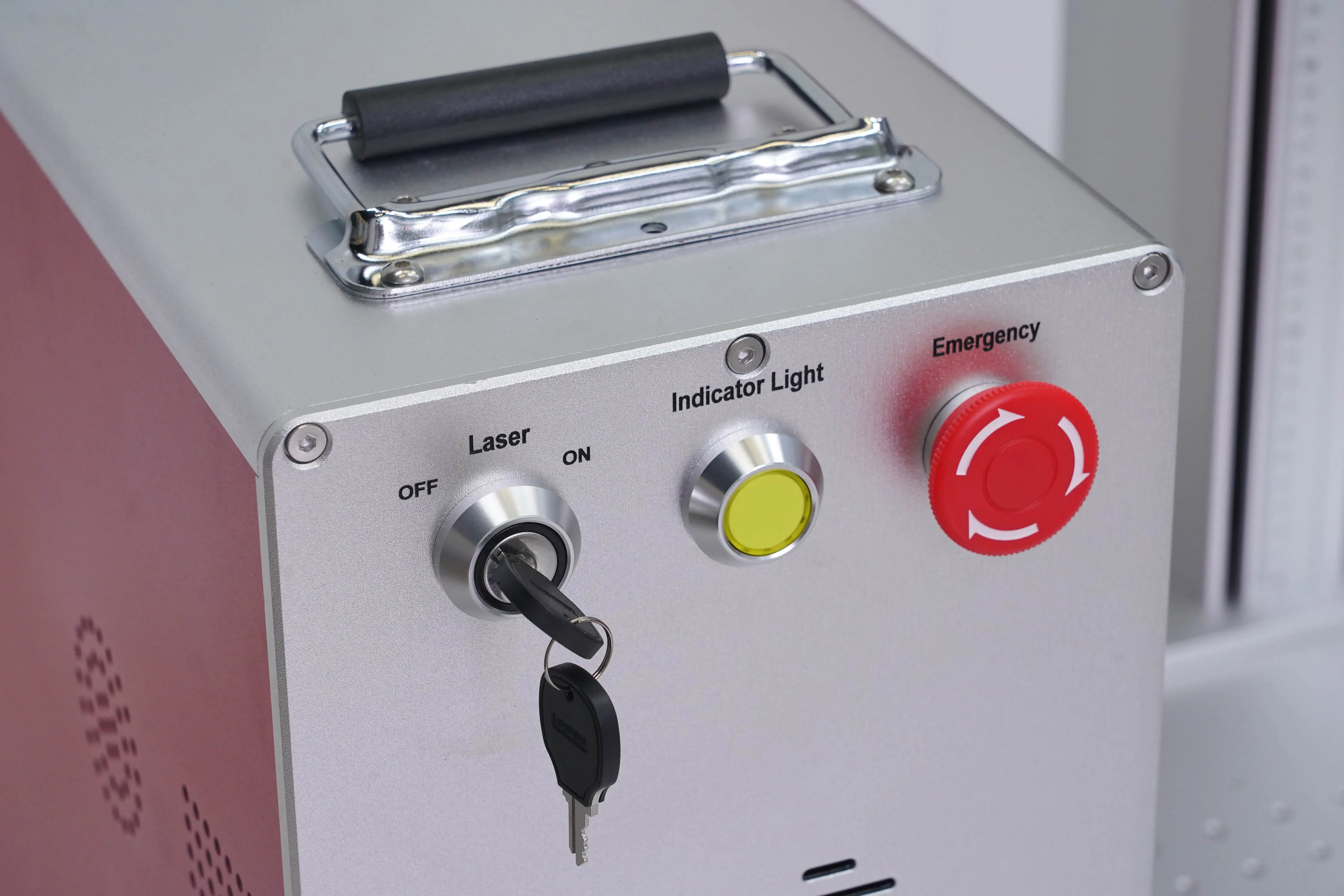

Control Switch
Key controlled power switch
Emergence：The machine encounters an error and stops immediately to reduce losses
Emergence：The machine encounters an error and stops immediately to reduce losses
Workbench
Aluminum plate with positioning holes
Sample Picture
Applicable to all metal materials and opaque hard non-metal materials
