Distributed and mobile methanol hydrogenation stations Hydrogen refueling stations
- Category: >>>
- Supplier: Wuxi Daze New Energy Development Co. Ltd.
Share on (1601210487240):
Product Overview
Description
Modular Menthanol Hydrogen Production and Refueling System

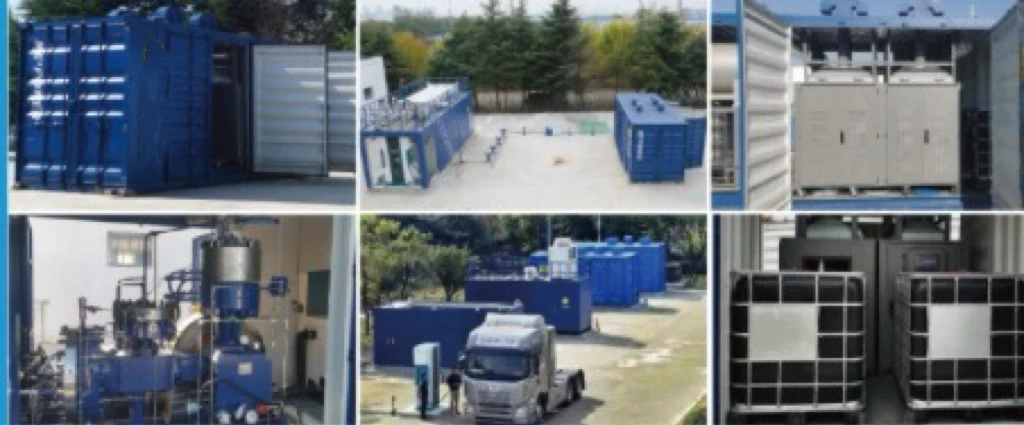

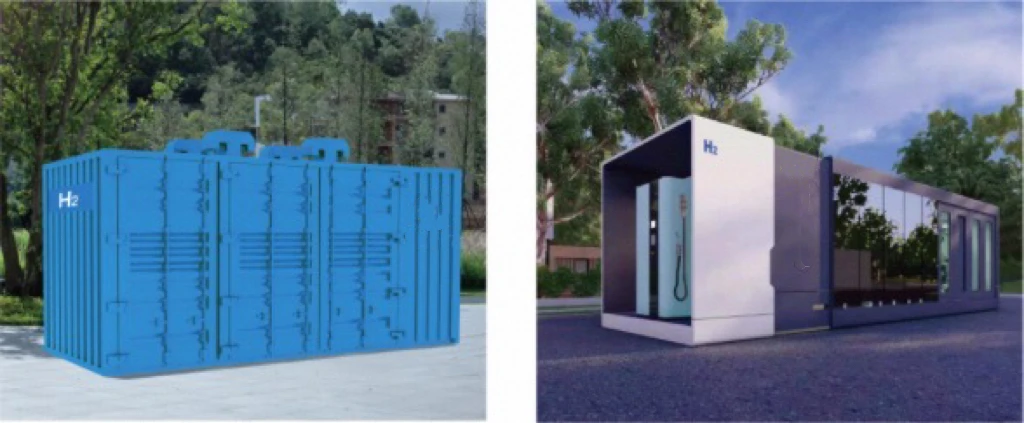

The distributed hydrogen refueling station, including hydrogen production, pressurization and filling two parts, adopts the standard 20-foot container modular, skid mounted design.
Hydrogen production and use, dynamic zero hydrogen storage, safe and stable, effectively reduce the cost of hydrogen.
Hydrogen production and use, dynamic zero hydrogen storage, safe and stable, effectively reduce the cost of hydrogen.
| Technical Specifications | |
| Hydrogen production flow | 100-500m3/h |
| hydrogen generator working pressure | 2.0Mpa |
| refueling pressure | 35Mpa/70Mpa |
| Daily hydrogenation capacity | 200 or 600 or1000 kg |
Technological advantage
Characteristics of integrated hydrogen production technology
The hydrogen production equipment is modular, the equipment is highly integrated, and the field installation workload is less.
It covers a small area, and it is feasible to convert the original CNG filling station into one processing and processing station.
Different from the traditional factory type hydrogen production device, the overall equipment height is low.
High degree of equipment automation, low requirements for personnel intervention.
Independently developed "a wide temperature chromium-free water-gas conversion catalyst", low activation temperature, good activity; Chromium-free formula, environmentally friendly; Applicable temperature range of 220~450℃; The catalyst production process does not contain sulfur, and the product hydrogen is more likely to meet the requirements of hydrogen used in fuel trams.
Technical characteristics of compression equipment
Diaphragm compressor, no pollution of hydrogen, high purity hydrogen, meet the requirements of fuel cells;
The diaphragm compressor has a high applicable pressure ratio, and the two-stage compression can meet the demand of high-pressure hydrogen storage and hydrogenation in hydrogenation stations. Compression model is simple;
Compression model is simple, easy to pry, easy to install on site;
A number of domestic diaphragm compressors are available to promote the sound development of relevant domestic industries.
Technical characteristics of hydrogen storage equipment
The use of domestic high-quality high-pressure hydrogen storage cylinder group to store hydrogen, single tube volume 1~2m3, large hydrogen storage capacity, high reliability;
Multistage hydrogen storage is adopted, which can be divided into 3~4 stages according to demand, and the volume utilization rate of hydrogen storage cylinder group is high.
Technical characteristics of hydrogenation and cooling system
Using domestic mature manufacturers of hydrogenation equipment, accurate measurement, automatic control of hydrogenation speed, high safety, simple hydrogenation operation;
Chiller skid mounted, covers a small area, cold water temperature -30~10℃ adjustable, wide range of application.
System characteristics
Container skid design, high integration, small footprint.
Unified intelligent control system, high degree of automation.
Operation flexibility, hydrogen production can be standby.
Using the existing natural gas filling station to rebuild and expand, easy to promote.
Related products
Complete equipment for emergency hydrogenation
Using compressed air or nitrogen as the driving force, it can work without electrical facilities;
Strong pressure boosting ability, with a maximum hydrogen pressure boosting of up to 600BAR;
Suitable for workplaces with explosion-proof requirements (ATEX94/9EG) - small size, light weight, suitable for mobile hydrogenation and experimental applications.
Company Profile
Wuxi Daze New Energy Development Co., Ltd..
Develop and distribute various products in the hydrogen energy industry chain, including but not limited to Hydrogen production, hydrogen storage transportation, hydrogen refueling and refueling station projects, fuel cells and systems, hydrogen power applications (automobiles, forklifts, heavy trucks, sanitation vehicles, drones, hydrogen bicycles, etc.), backup power sources, hydrogen power generation station systems, etc.
We have an experienced professional technical research and development team that can provide professional services from product selection and matching, system design, product customization and development, to technical support. Our products and packaging services have rich experience and are highly welcomed by customers both domestically and internationally.
FAQ
1) How is the product quality?
Our products are produced in accordance with international standards, and the production process has strict quality control and inspection procedures, and all products are qualified products.
2) Do the products have relevant certification?
In accordance with international requirements, our products have passed relevant international certifications, such as: CE, DOT, UL, etc.
3) Can it be customized according to customer requirements?
Yes,we can produce according to customized requirements.
4) Do the products have a warranty?
Yes, all our products have a certain warranty period, and different products have different warranty
5) Is there any discount on the product?
Yes, we are committed to providing the best price with different discounts for different quantities.
6) What are the shipping methods of the product?
We can provide you with sea, air or land transportation services according to clients' needs.
