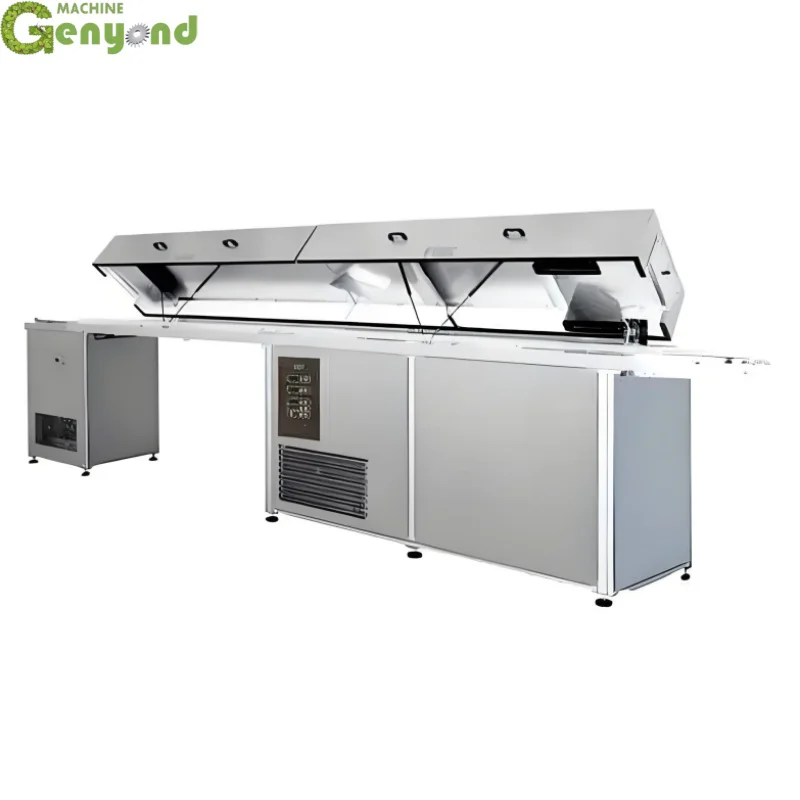

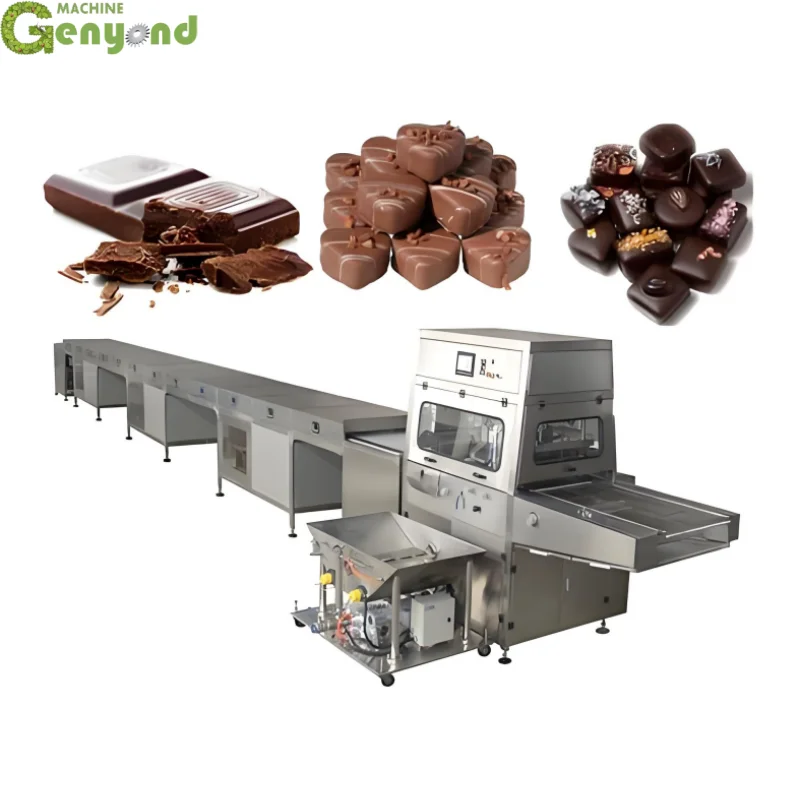

Shanghai Genyond Chocolate Panning Machine Coating Equipment Chocolate Small Enrober Cooling Tunnel

1.The frame is made of rectangle stainless steel tube. The dimension of the tube is 75*45*2.5mm. The front shelf, back shelf, connecting shelf and evaporator shelf can be disassembled and connected.
2.The sealing plate for heat insulation is made of sandwich stainless steel plate of 30mm thick.

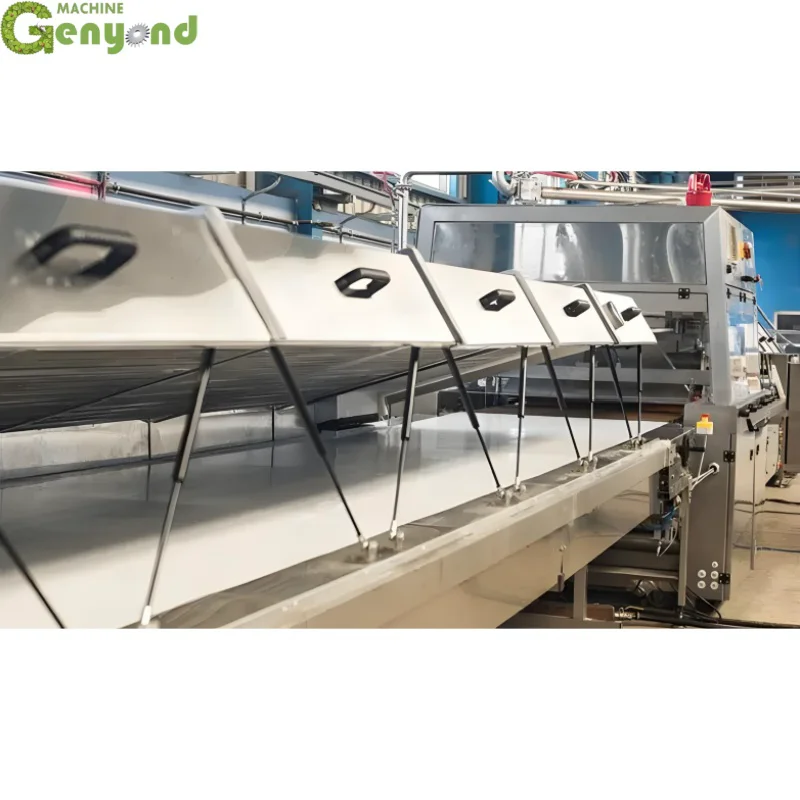

3.The external part of the cover is made of stainless steel(split type welding technology). The internal part is made of foam board.
4.There are 3 pcs of evaporators(40㎡/pc) and 3 sets of refrigerating unit(5hp/pc).
5.It is equipped with temperature sensor. The temperature is controlled by the sensor.
6.The front and back shelf are equipped with pneumatic rectifying device.
7.The power of the conveyor motor is 1.5kw(frequency conversion).
8.The speed of the conveyor belt is 2m/min to 7m/min. It is made of PU. The width is 900mm and thickness is 0.8mm.
9.The total power of the refrigerating units is 3.75kw*3=11.25kw.
10.The power of the air cooler is 1.5kw.

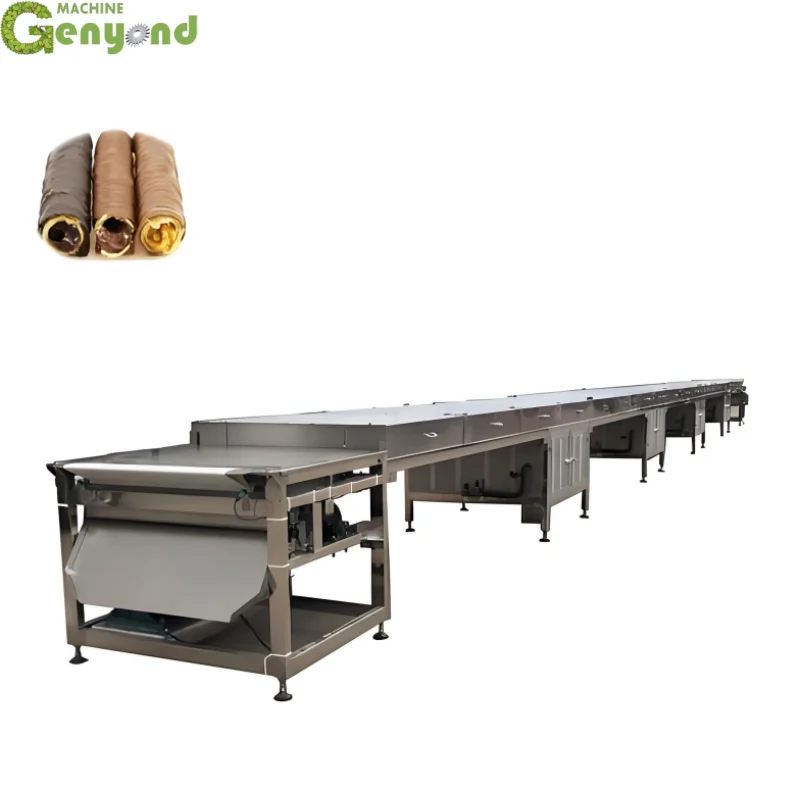

Hot sale cheap chocolate cooler chocolate cooling tunnel is used to cool chocolate,biscuits,wafer,etc.

Refrigeration effect is very good,moreover,this production line can be customized as customer’s personal requirement.

 There are following special devices for optional also:

1.magazine feed :to simplify the feeding of biscuits or wafers etc to the enrobing wire mesh.

2.granular sprinkler:to sprinkler sesame or peanut granule on the enrobing products.

3.decorator:to decorate zigzags or stripes of different color on the surface of enrobing products.

This chocolate cooling machine is mainly used for the cooling and molding chocolate moulds with big piece.

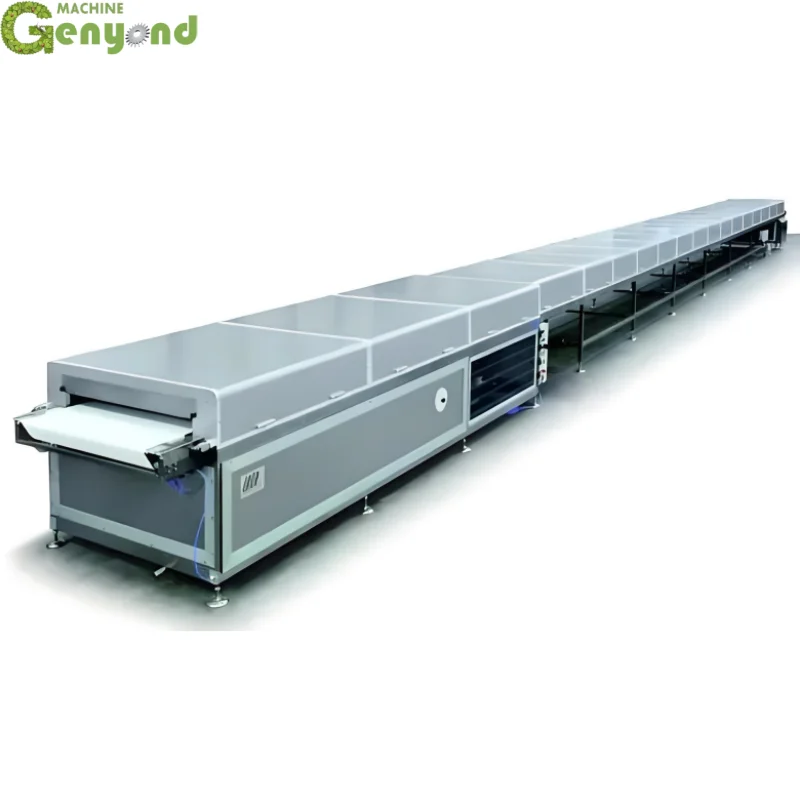

It is a new design continuous chocolate cooling tunnel, designed and manufactured according to the characteristics of chocolate production.

cooling tunnel adopts electromagnetic clutch driving and chain-type conveying structure, the whole machine has stable quality, it save electric power, easy operated, fast repair and maintain.
