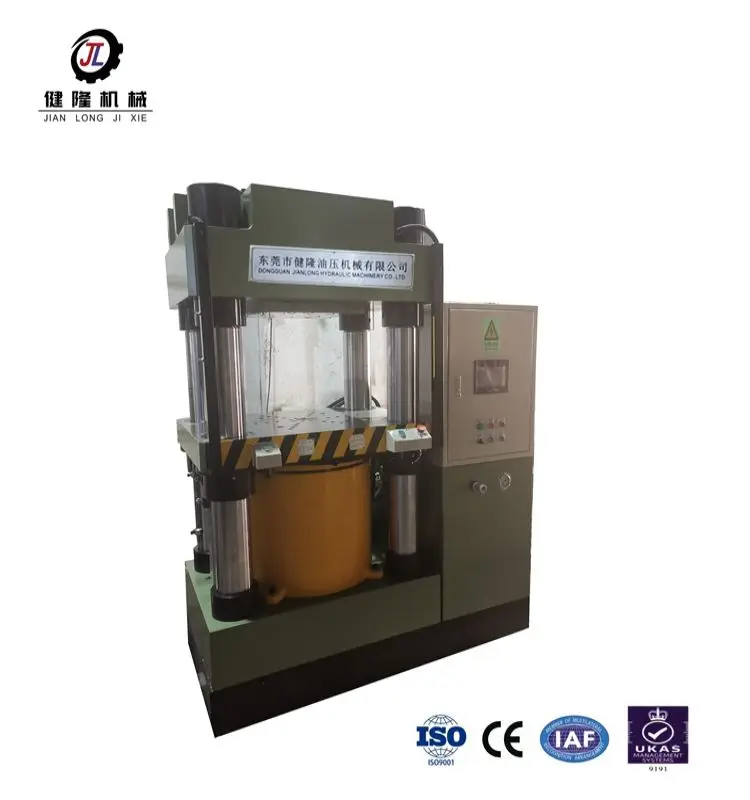

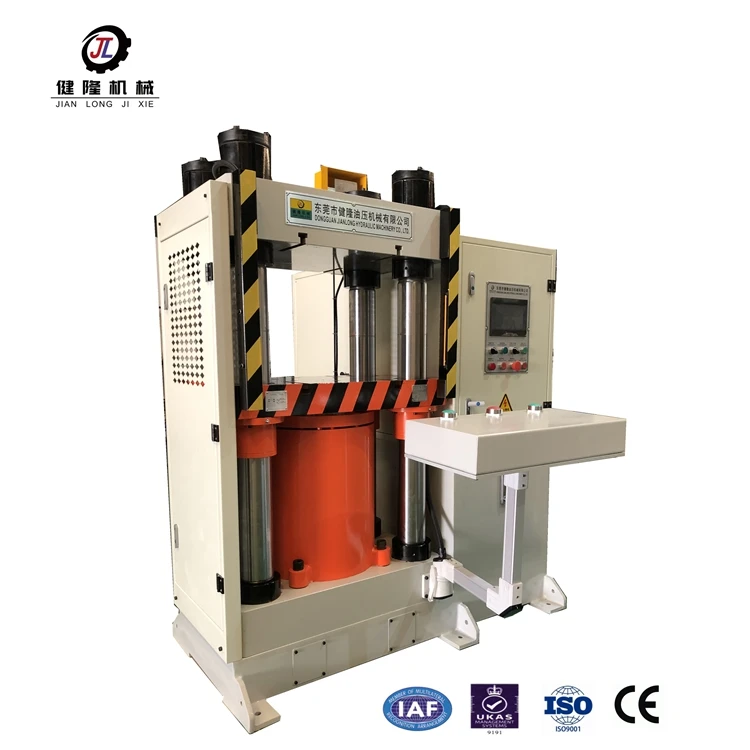

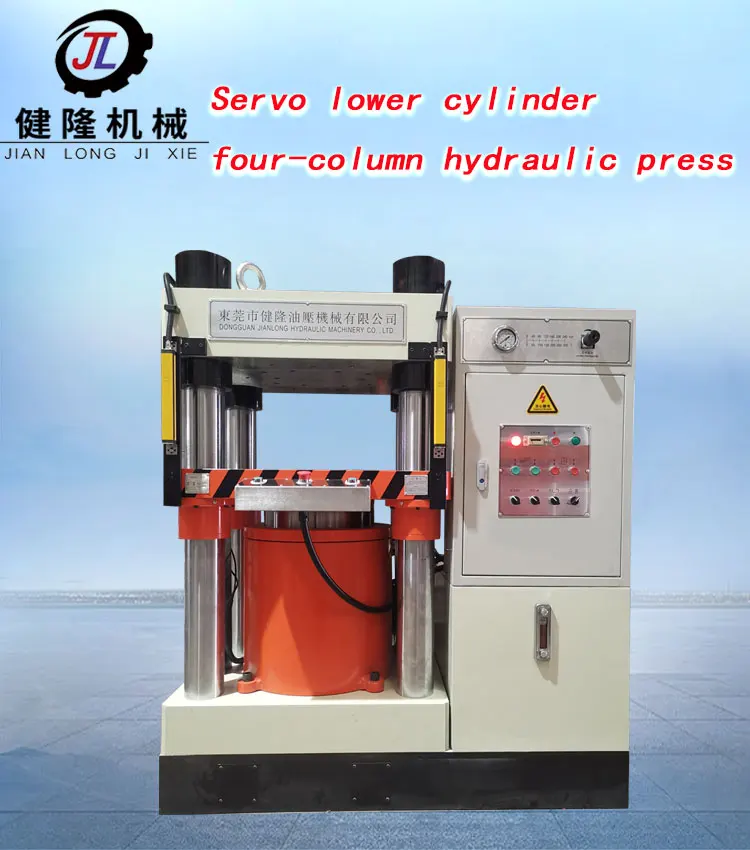

High sales volumelower cylinder type four column hydraulic press badges and Medals Hardware parts mirror frame and photo fram
- Category: >>>
- Supplier: Dongguan Jianlong Hydraulic Machinery Co. Ltd.
Share on (1601210522465):
Product Overview
Description
Our factory

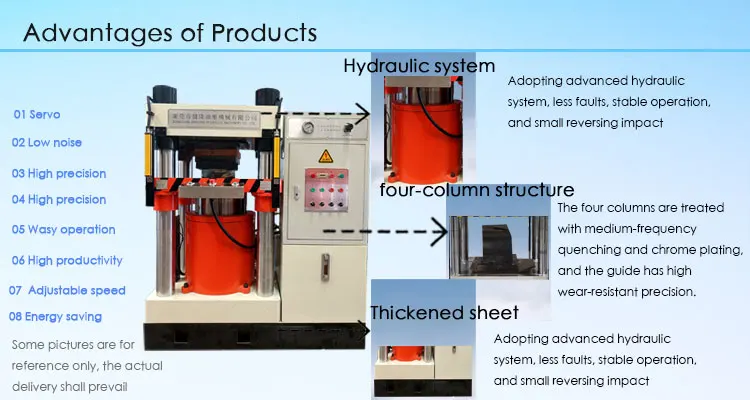

Product introduction
1. The frame and movable workbench have high precision, good rigidityand strong resistance to lateral force, especially suitable for productswith high pressing precision and asymmetry;
2. Adopting imported servo motor and hydraulic control system, themovable workbench is fast and the production efficiency is high;
3. The oil cylinder adopts integral forging and precision grinding, whichhas high reliability under high pressure;
4. The four pillars are made of high-strength alloy steel, and the surfaceis plated with hard chrome, which has good wear resistance,
5. The working stroke, pressing time and pressure can be adjusted,
6. The upper (lower) oil cylinder is equipped with safety electronic eyesand safety shields, and the multiple protection safety factor is higher.
2. Adopting imported servo motor and hydraulic control system, themovable workbench is fast and the production efficiency is high;
3. The oil cylinder adopts integral forging and precision grinding, whichhas high reliability under high pressure;
4. The four pillars are made of high-strength alloy steel, and the surfaceis plated with hard chrome, which has good wear resistance,
5. The working stroke, pressing time and pressure can be adjusted,
6. The upper (lower) oil cylinder is equipped with safety electronic eyesand safety shields, and the multiple protection safety factor is higher.
Product parameter specification sheet
Jianlong hydraulic Press has 15 years of experience in customization of large hydraulic presses, in addition to parameter tables, we can also customize hydraulic presses according to your needs
item | Unit | Product specifications | ||||||||||||||||
JLH5-150TS | JLH5-200TS | JLH5-300TS | JLH5-500TS | JLH5-800TS | JLH5-1000TS | JLH5-1500TS | ||||||||||||
Main cylinder pressure | ton | 150 | 200 | 300 | 500 | 800 | 1000 | 1500 | ||||||||||
System pressure（Max） | ton | 22 | 22 | 24 | 25 | 25 | 25 | 25 | ||||||||||
Main cylinder stroke | mm | 150 | 150 | 150 | 150 | 150 | 150 | 160 | ||||||||||
Open height | mm | 350 | 400 | 400 | 450 | 550 | 600 | 650 | ||||||||||
Approaching speed of working table | mm/s | 260 | 250 | 235 | 230 | 220 | 200 | 180 | ||||||||||
Returning speed of working table | mm/s | 230 | 225 | 220 | 210 | 200 | 180 | 165 | ||||||||||
Working table size | L.R | mm | 450 | 450 | 550 | 650 | 750 | 900 | 1100 | |||||||||
F.B | mm | 480 | 550 | 650 | 750 | 850 | 950 | 1100 | ||||||||||
Overall dimension | L.R | mm | 1200 | 1320 | 1460 | 1630 | 1850 | 2450 | 1680 | |||||||||
F.B | mm | 1140 | 1340 | 1340 | 1510 | 1700 | 1700 | 1400 | ||||||||||
H | mm | 1540 | 1630 | 1725 | 1990 | 2410 | 2670 | 3100 | ||||||||||
Motor power | kw | 11 | 15 | 18.5 | 20 | 26 | 37 | 45 | ||||||||||
Note: the above parameters are for reference only, order according to the contract. | ||||||||||||||||||

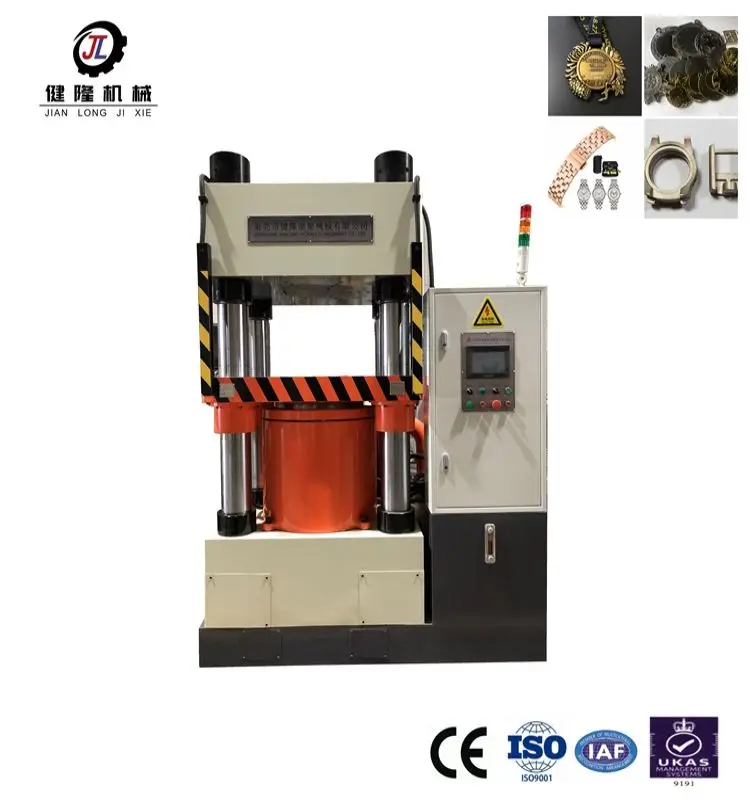

Scope of application
1. Punching, riveting, forming, composite materials and release materials punching, punching, punching and embossing processes for
hardware and electronic products; 2. Embossing, forming, shallow drawing, shaping, overmolding and trimming of metal or non-metal
parts; 3. Typical products that can be pressed include badges, medals, watch cases, watch straps, glasses, frames and parts, photo
frames, tableware, signs, locks, hardware parts, etc.
hardware and electronic products; 2. Embossing, forming, shallow drawing, shaping, overmolding and trimming of metal or non-metal
parts; 3. Typical products that can be pressed include badges, medals, watch cases, watch straps, glasses, frames and parts, photo
frames, tableware, signs, locks, hardware parts, etc.
Company profile
Our company
Dongguan Jianlong Hydraulic Machinery Co., Ltd. is located in Dongguan, a famous manufacturing city. Be based in
Liaobu Town, Dongguan City, the company has set up international business division, Guangxi, Shanghai, Hubei office
Our products are exported to the United States, Mexico, Australia, Japan, South Korea, Vietnam,
Singapore and many other countries. Jianlong Hydraulic Machinery Co., Ltd. has more than 10 years of hydraulic press research and development, Design, manufacturing experience, with a number of patented products, always adhering to the "customer first, spirit Enterprising "service concept, for our customers to provide fast and rofessional service!
The company is proficient in all kinds of hydraulic machinery design, manufacturing, sales and other services, the main production Products are: servo multi - direction (3D) forging press, servo four - column double - action tension hydraulic press, wait Serve jigsaw oil press, servo four-column oil press, servo cold forging machine, servo hot press, wait Die casting edge cutter, servo frame type oil press, servo sheet metal shaping oil press, servo Bow (C) shape machine, hydraulic punch and other hydraulic equipment.
The company has passed ISO9001:2015 international quality, integrity management, after-sales service,
CE and other system certification, with a complete and scientific quality system. The company in good faith, strength
And product quality to win the industry recognition, welcome friends from all walks of life to visit Jianlong hydraulic
technology, Guidance and business negotiation.
Liaobu Town, Dongguan City, the company has set up international business division, Guangxi, Shanghai, Hubei office
Our products are exported to the United States, Mexico, Australia, Japan, South Korea, Vietnam,
Singapore and many other countries. Jianlong Hydraulic Machinery Co., Ltd. has more than 10 years of hydraulic press research and development, Design, manufacturing experience, with a number of patented products, always adhering to the "customer first, spirit Enterprising "service concept, for our customers to provide fast and rofessional service!
The company is proficient in all kinds of hydraulic machinery design, manufacturing, sales and other services, the main production Products are: servo multi - direction (3D) forging press, servo four - column double - action tension hydraulic press, wait Serve jigsaw oil press, servo four-column oil press, servo cold forging machine, servo hot press, wait Die casting edge cutter, servo frame type oil press, servo sheet metal shaping oil press, servo Bow (C) shape machine, hydraulic punch and other hydraulic equipment.
The company has passed ISO9001:2015 international quality, integrity management, after-sales service,
CE and other system certification, with a complete and scientific quality system. The company in good faith, strength
And product quality to win the industry recognition, welcome friends from all walks of life to visit Jianlong hydraulic
technology, Guidance and business negotiation.

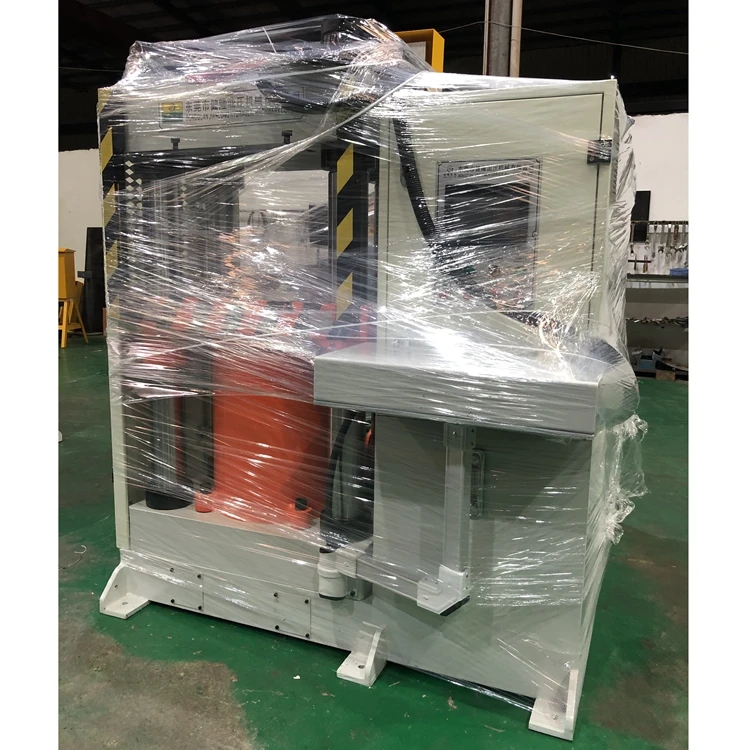

Product packaging
Why Choose Us
Our workshop.
The company has 3000 square meters of hydraulic press production base, can manufacture more than 100 sets of hydraulic press at the same time, and has offices in Guangdong, Shanghai, Guangxi and Hubei.
Our Exhibition.
Our Certificate.
Jianlong hydraulic Press has passed ISO9001:2015 international quality, integrity management, after-sales service, CE and other system certification and a number of patent certification products, with a complete and scientific mechanical quality management system.
Create more value for customers
Focus on hydraulic machinery for 18 years, a number of listed companies to provide services.
Business recommend
FAQ
1. How much pressure can you provide for hydraulic machines?We can supply machines of different tonnage from 5-5000 tons.
2.0ur machine requirements are different from yours. Can we adjustthe specifications?
Yes, all the specifications of our hydraulic presses can be customized according to customer's requirements.
3. What can your hydraulic machine do?
We have many different machines to handle different forging (coldand warm forging),deep drawing,stamping, molding, etc.
Yes, all the specifications of our hydraulic presses can be customized according to customer's requirements.
3. What can your hydraulic machine do?
We have many different machines to handle different forging (coldand warm forging),deep drawing,stamping, molding, etc.
4. Can your hydraulic press be connected to robots or other automaticlines?
Yes, our machine can connect robot and automatic line, if you havethis requirement, please inform us in advance to reserve the port.
Yes, our machine can connect robot and automatic line, if you havethis requirement, please inform us in advance to reserve the port.
5. if we have some special requirements, such as machine slidingtable, machine heating, long time to maintain pressure, multi-layer,etc., is it ok?
Yes, all these requirements can be provided, if you have other re-quirements, please also contact us. Custom made machines are welcome.
Yes, all these requirements can be provided, if you have other re-quirements, please also contact us. Custom made machines are welcome.
6. What type of hydraulic press can you provide?Four column/frame guide rail /C frame/horizontal structure/servosystem/multi direction forging, we can provide these machines.
