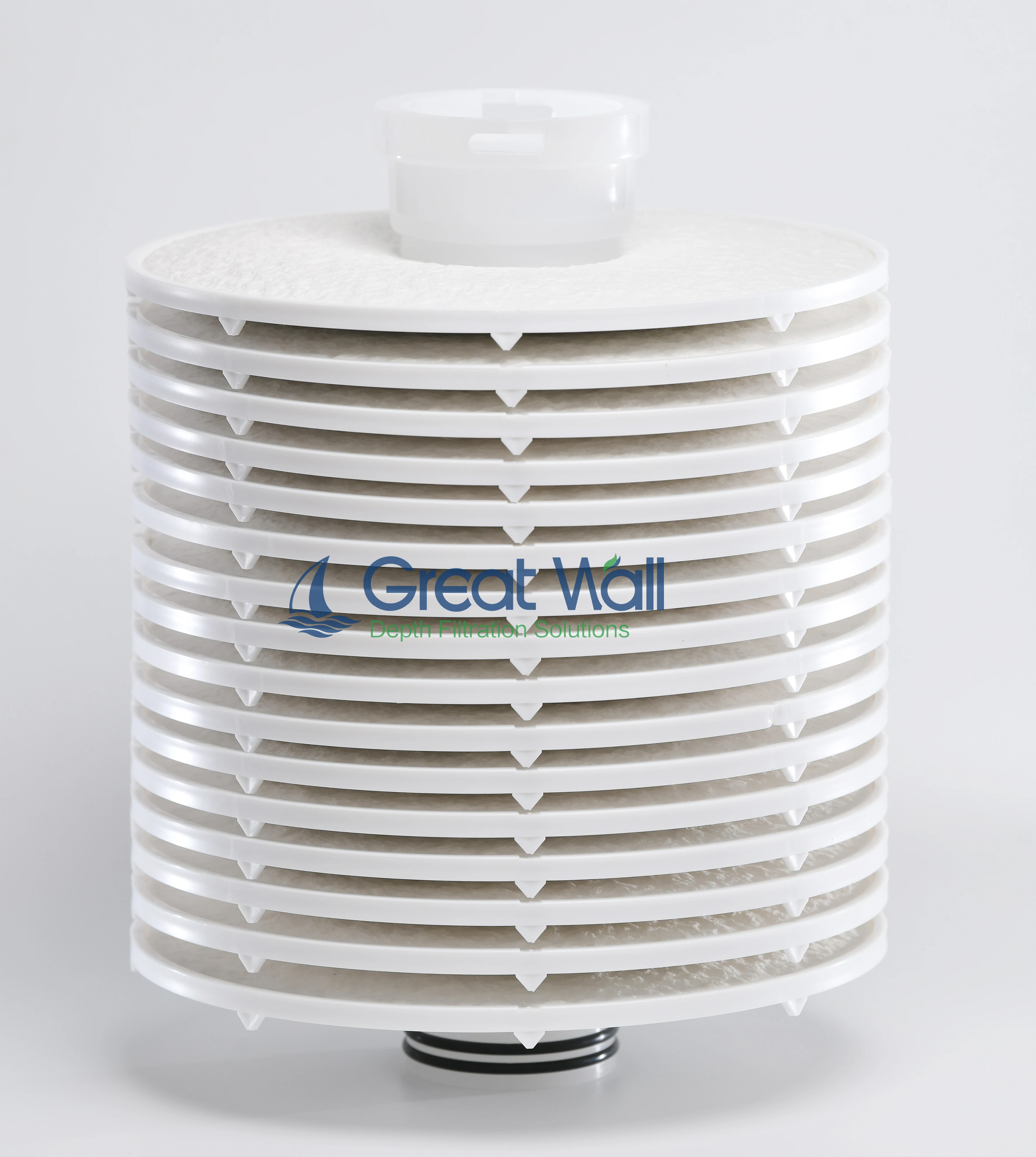

Depth filter oil grape wine lenticular filter for wine filtration
- Category: >>>
- Supplier: Shenyang Great Wall Filtration Co. Ltd.
Share on (1601210821334):
Product Overview
Description
Product description

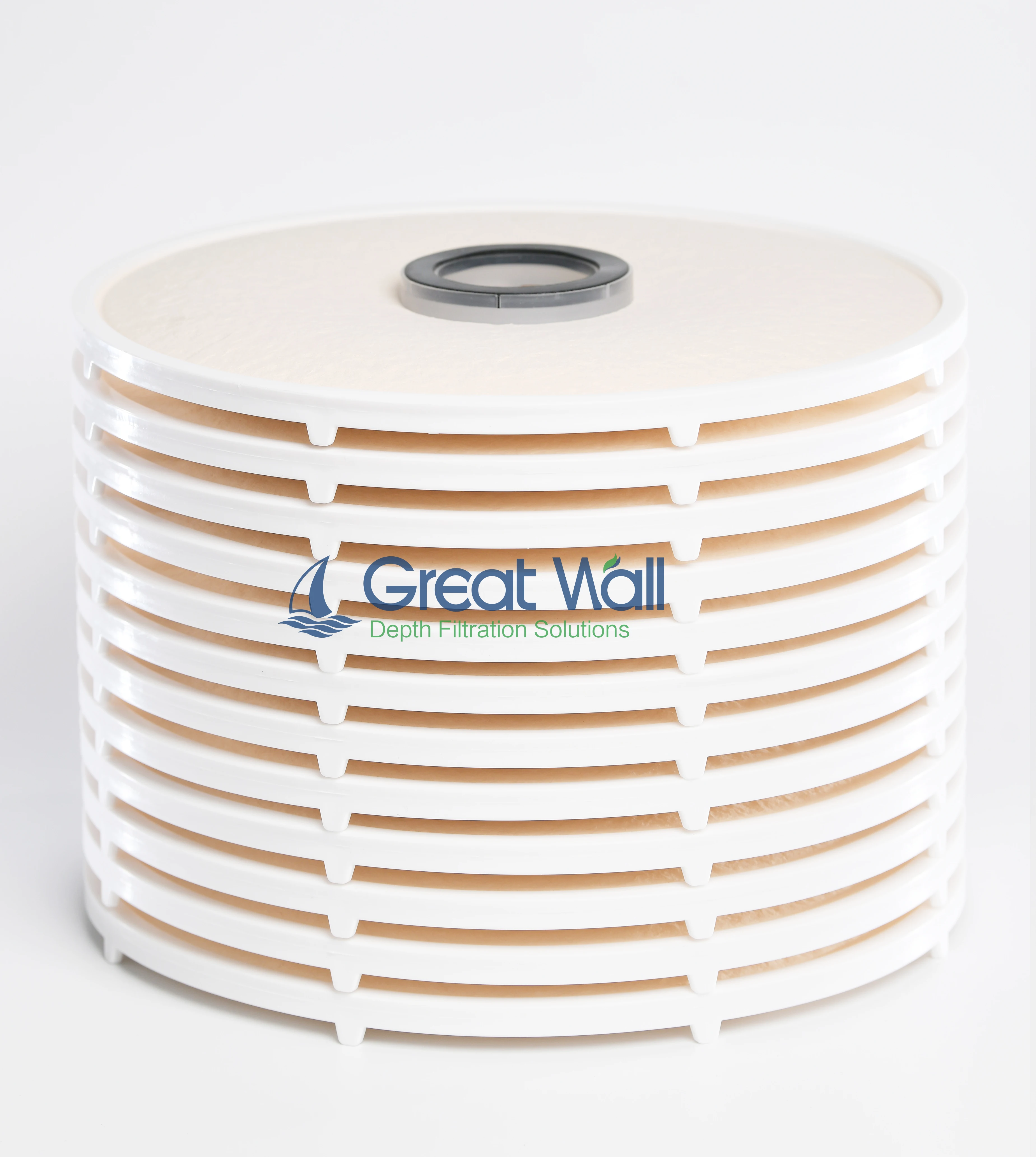

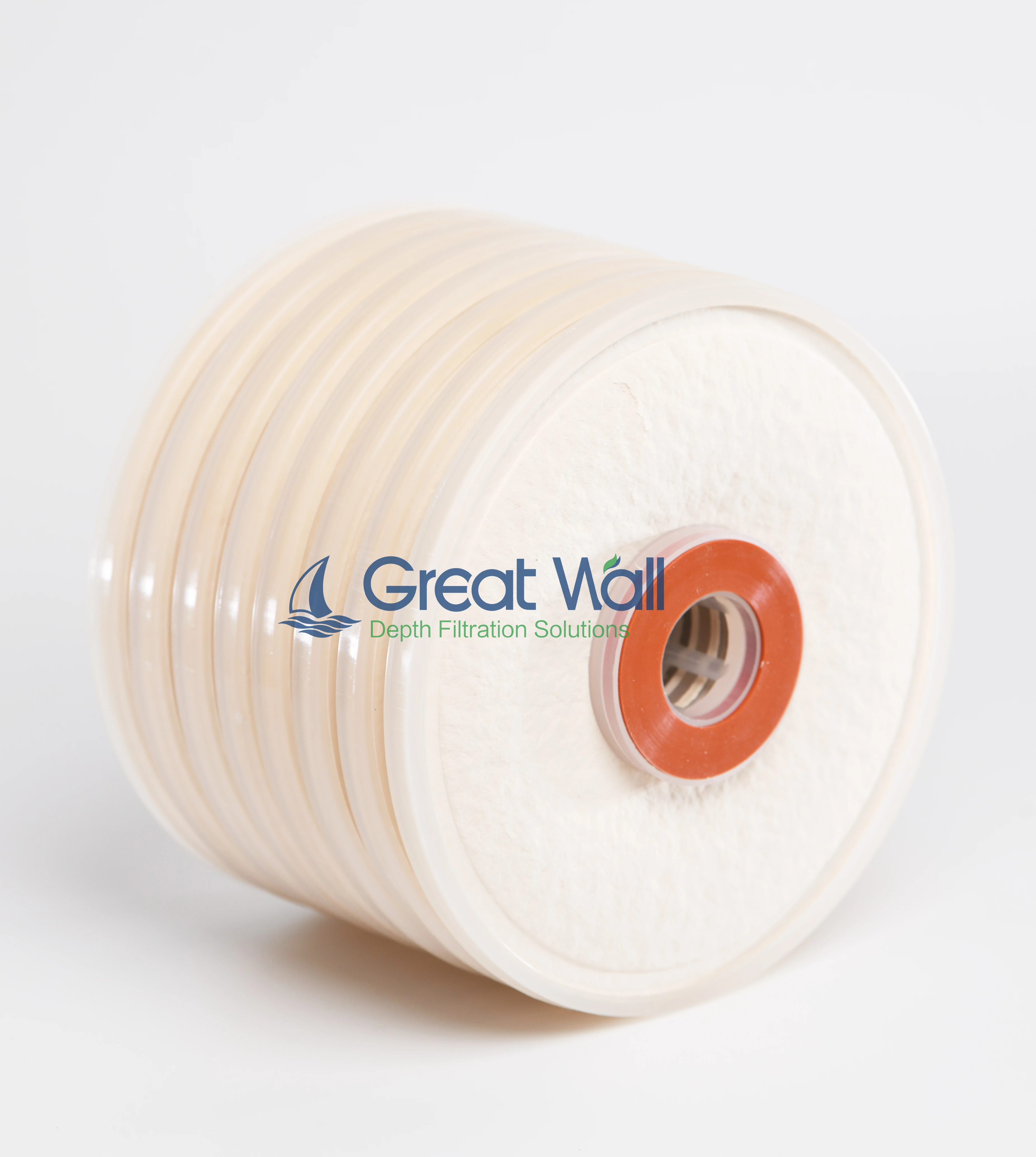

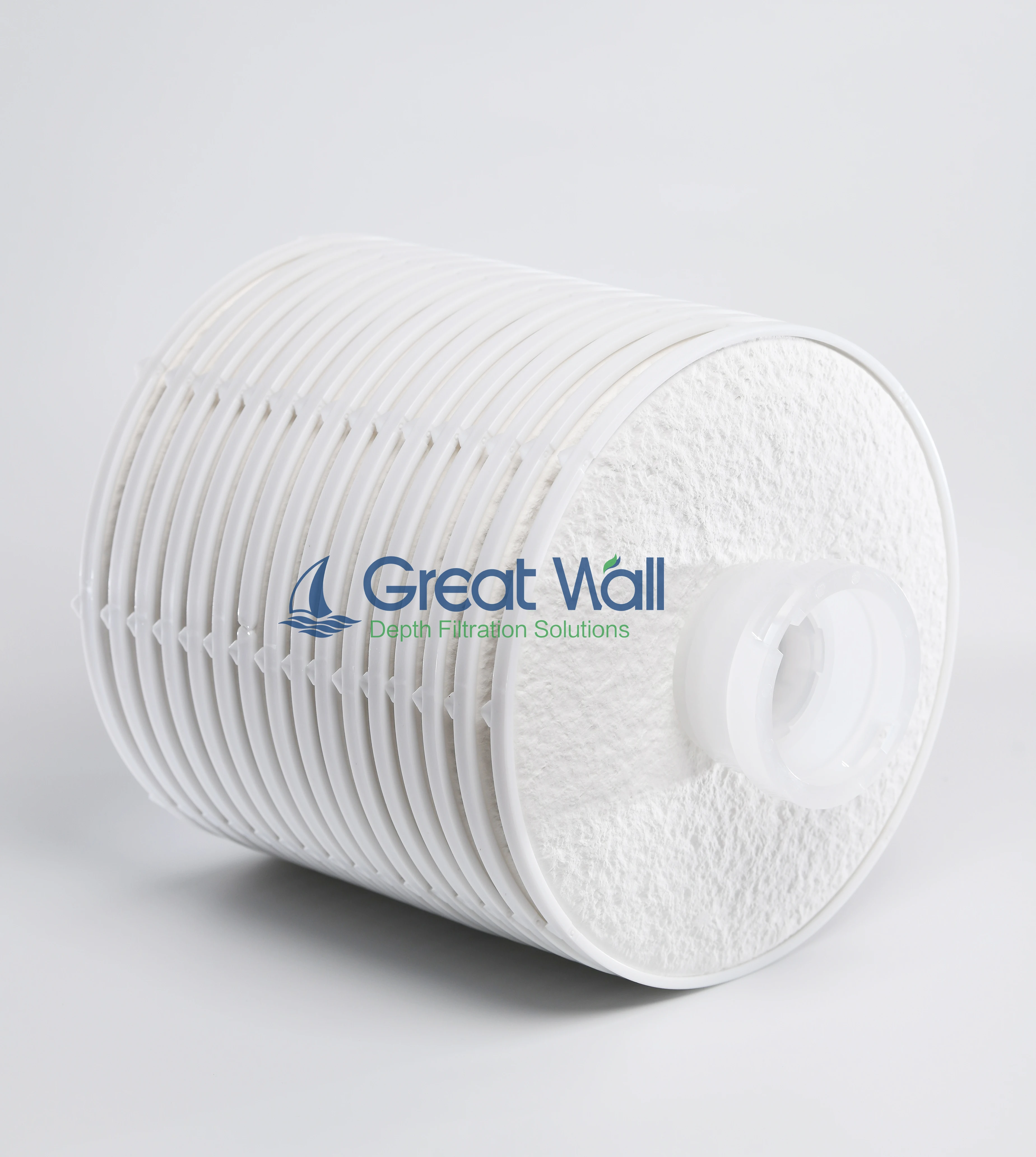

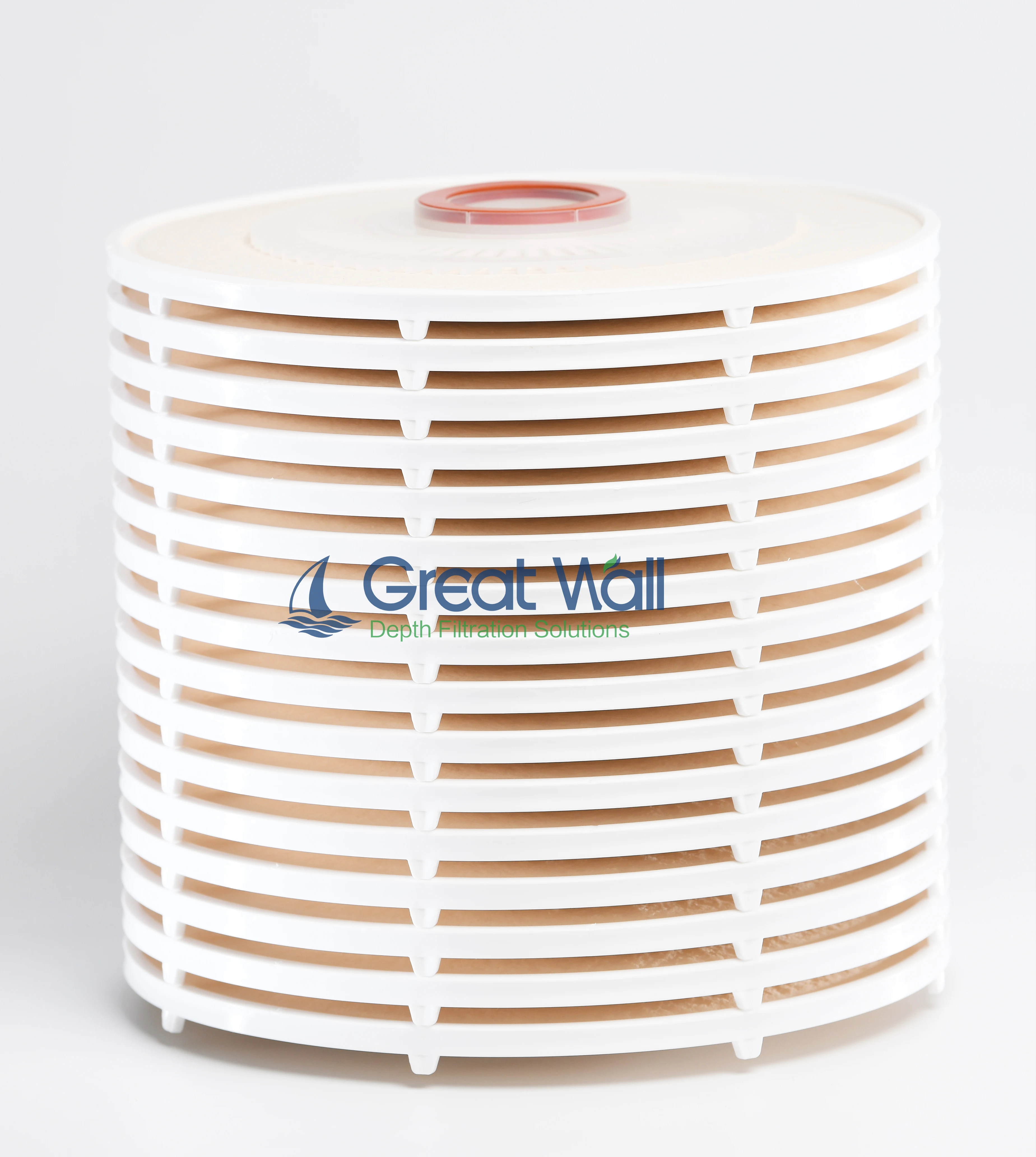

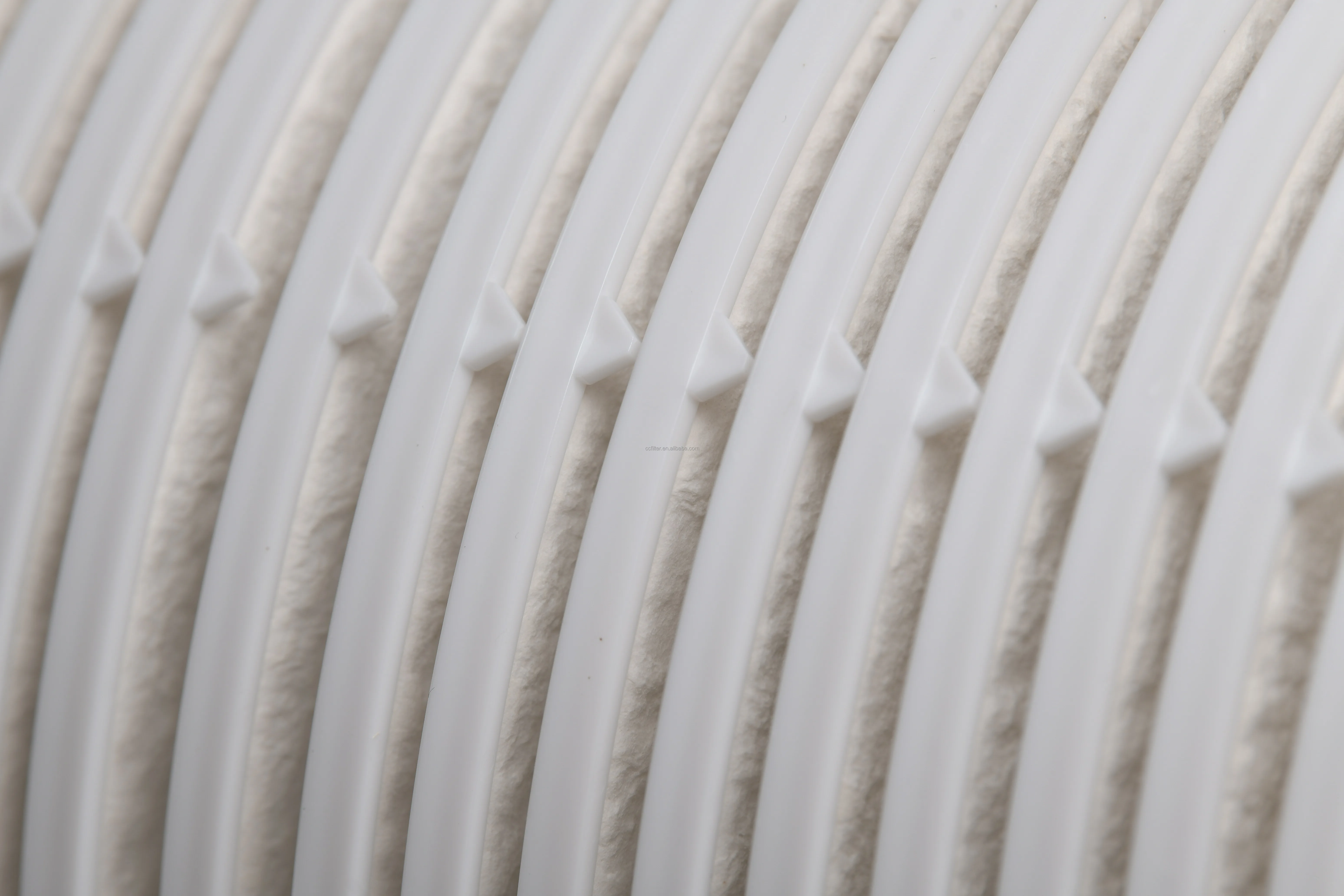

Lenticular Depth Filters
Great Wall Depth-Stack Filter Cartridges are available inmulti-material filter sheets, which are widely used in and food & beverage industries. The filter sheets aremade from cellulose fibers and inorganic filter aids (Diatoma-ceous earth etc., it has three functions of surface filtration,depth filtration and electrostatic adsorption.
KKS series adopt domestic filter sheets, the unique bucklingconnection allows for stack-to-stack usage and it is easy to beinstalled and dismantled.
BDS series adopt domestic filter sheets, which shows excel-lent high throughout and cost-effective performance. General-ly, larger particles in feed liquids are mechanically interceptedthrough three-dimensional and porous structure, while smallerparticles and microorganisms are intercepted by positivelycharged electrostatic adsorption.
PDS series adopt imported filter sheets, which has excellentfeatures as like low density, high porosity， large particleremoval capacity and long service life etc. The product ismainly suitable for filtration of viscous materials, colloidparticles or coarse dispersed materials with low differentiapressure.
KKS series adopt domestic filter sheets, the unique bucklingconnection allows for stack-to-stack usage and it is easy to beinstalled and dismantled.
Specific Advantages
● High flux filtration in food & beverageindustries
●Thermal filtration fluid has no adverse influence to depthfilter sheets
●Protection for subsequent sterile filters as well as chroma-tography columns
●Permeability and absorbability of filter sheets improving dueto charged resins
●High dirt holding capacity combined with low protein adsorption
●Long service life and high economic efficiencyEasy to operate, available in multiple grades and sizes

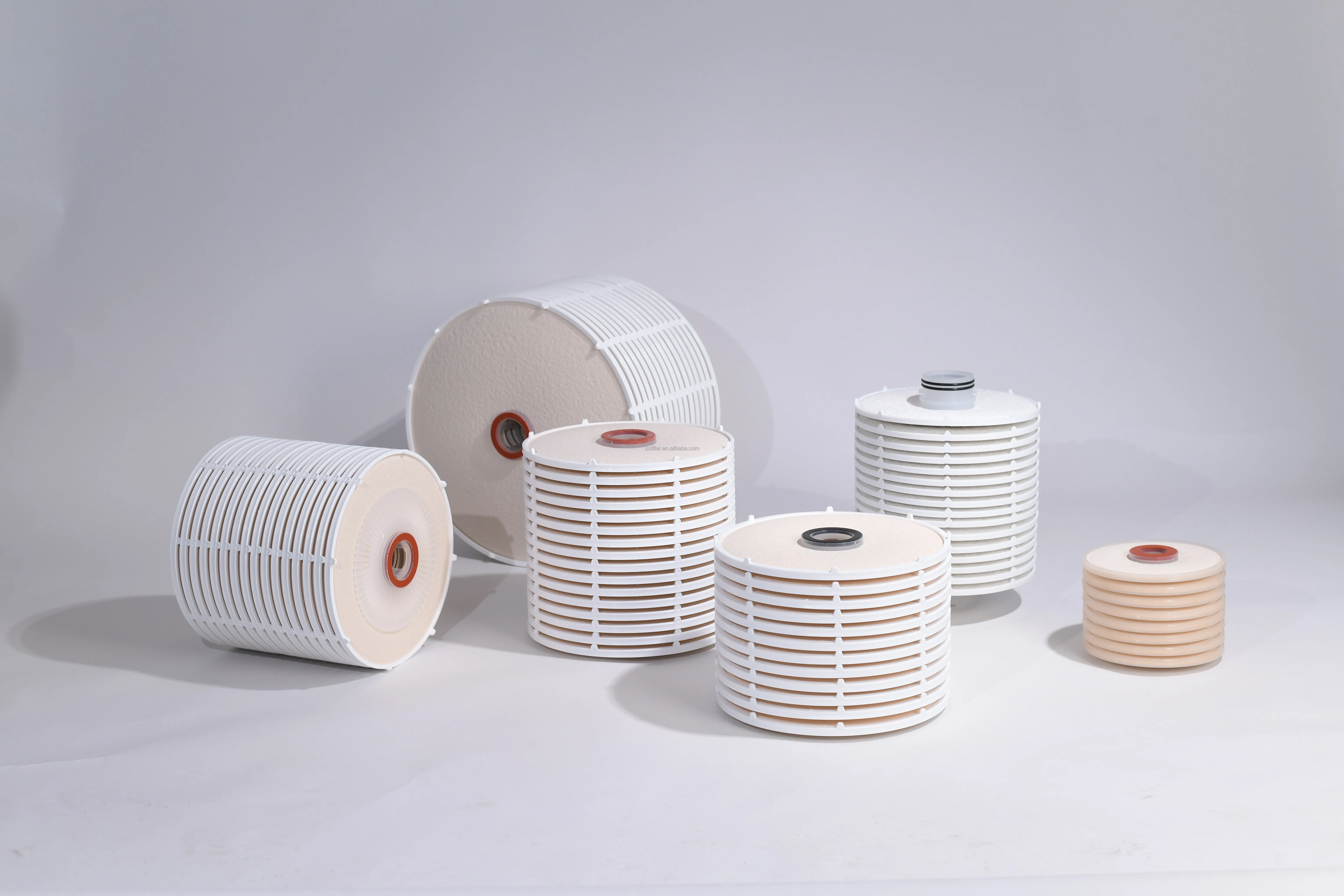

Lenticular Filter Size
Lenticular Filters Cells | 8 cells / 9 cells / 12 cells / 15 cells / 16 cells |
Lenticular Filters Outer Diameter | 8”, 10", 12”,16” |
Lenticular Filters Filtration Area | 0.36m2(∮8”,8cells) / 1.44m2 (∮10”,16cells) 1.08m2(∮12”,9cells) / 1.44m2 (∮12”,12cells) 1.8m2 (∮12”,15cells) / 1.92m2 (∮12”,16cells) 2.34m2 (∮16”,9cells) / 3.12m2 (∮16”,12cells) 3.9m2 (∮16”,15cells) / 4.16m2 (∮16”,16cells) |
Material of Constructions | ||
Media | Cellulose/Diatomaceous earth/ Resins etc. | |
Support/Diversion | Polypropylene | |

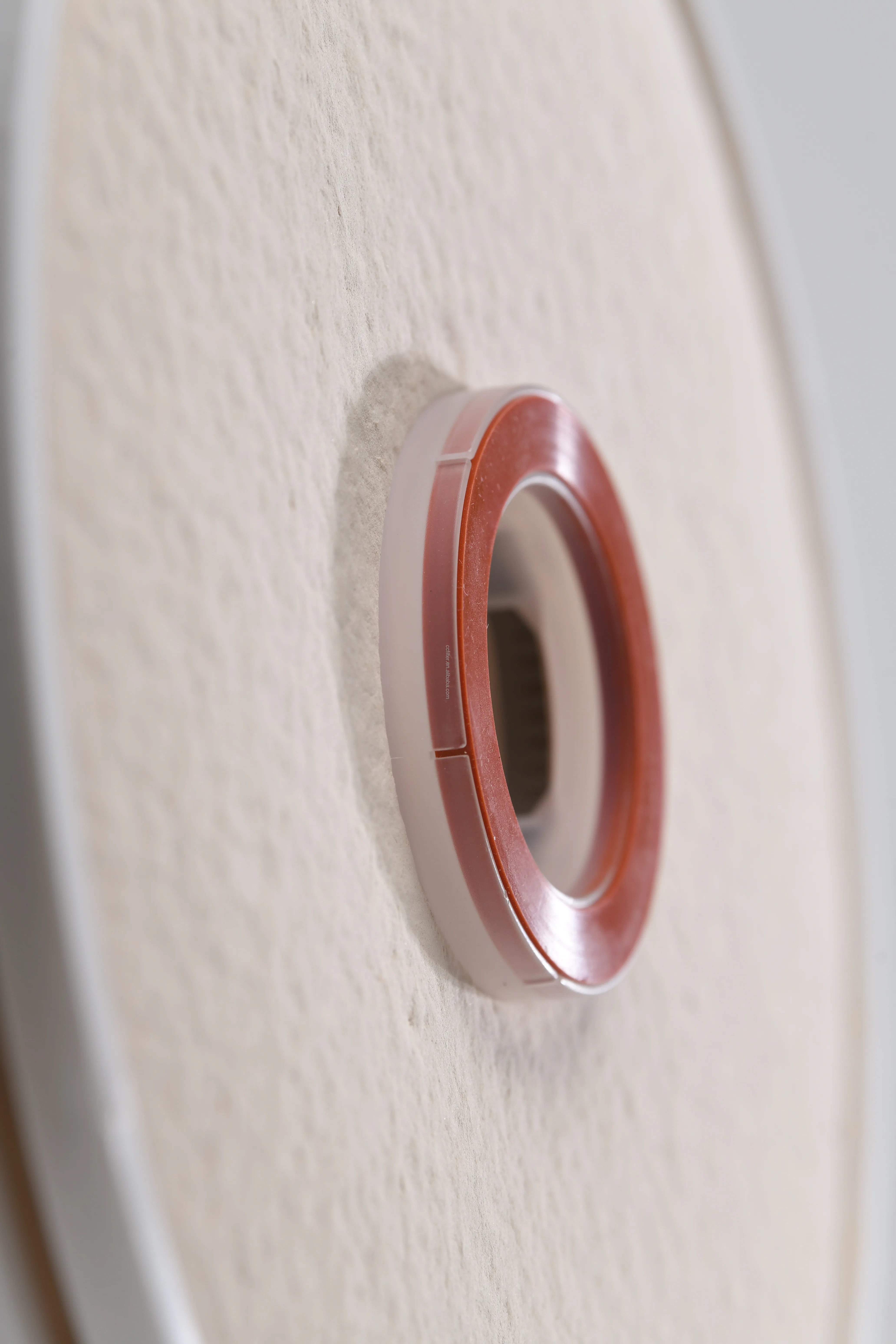

Seal Material | Silicone, EPDM,NBR, FKM | |
Performance | ||
Max. Operating Temperature | 80°c | |
Max. Operating DP | 2Bar@25°C 1Bar@80°C | |
Lenticular Depth Filters Application
● Clarification of API liquids
●Filtration of vaccine production
●Blood plasma fractionation process
●Filtration of sugar syrups
Company Profile

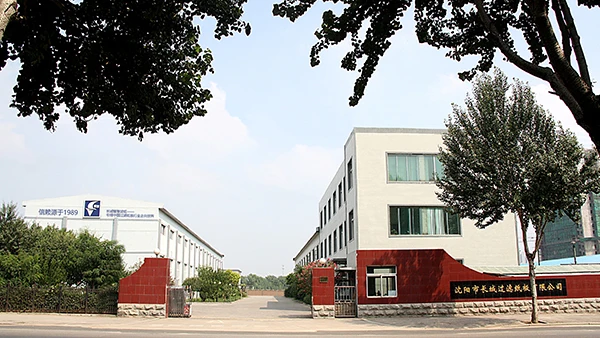

Shenyang Great Wall Filtration Co.,Ltd was established in 1989, it is manufacturer specializing in the production of Filter paper and Filter sheets. The product is used for filtration in the food and beverage industry, Oil industry, chemical industry and food additives and other industries
We have production workshop and Research and Development department, and have the ability to develop new product series with customers.Also, our company is the drafting unit of China's filter paper industry board standard and the first brand of China's filter paperboard.
At present, our company cooperates with many well-known domestic and foreign corporate brands such as: beverages Pepsi and Coca-Cola, beer Budweiser InBev and Tsingtao Brewery, WACKER chemical industry, etc.,
Our company has professional technicians who are very experienced in filtration; we can provide your company with technical support for filter paper at any time.
We have production workshop and Research and Development department, and have the ability to develop new product series with customers.Also, our company is the drafting unit of China's filter paper industry board standard and the first brand of China's filter paperboard.
At present, our company cooperates with many well-known domestic and foreign corporate brands such as: beverages Pepsi and Coca-Cola, beer Budweiser InBev and Tsingtao Brewery, WACKER chemical industry, etc.,
Our company has professional technicians who are very experienced in filtration; we can provide your company with technical support for filter paper at any time.
Packing & Delivery
Our customer
FAQ
1.Q: Are you a factory or a trading company?
A: We are a professional manufacturing factory of Filter sheets, we are able to supply you with top quality and perfect
workmanship. OEM and ODM products.
2.Q: What is your Product material?
A: Our products are made up from high quality wood pulp, cotton pulp, cellulose, diatomaceous earth and so on.
3. Q:What’s you sample policy?
A: We can provide some samples free for your test, freight will be paid by your side.
4.Q: Can you do any size?
A: Yes, we can do any size according to your request.
5.Q: What are your manufacturing and shipping time?
A: About 15-25 days after confirming the details.
6.Q: What certification do you have?
A: 1).Quality Management System ISO 9001 and Environmental Management System ISO 14001.
2). Food contact certificates
3). Meet testing Lab requirements
The products are pure natural raw materials, and can be tested according to customer requirements, including calcium and magnesiumion and heavy metal detection
A: We are a professional manufacturing factory of Filter sheets, we are able to supply you with top quality and perfect
workmanship. OEM and ODM products.
2.Q: What is your Product material?
A: Our products are made up from high quality wood pulp, cotton pulp, cellulose, diatomaceous earth and so on.
3. Q:What’s you sample policy?
A: We can provide some samples free for your test, freight will be paid by your side.
4.Q: Can you do any size?
A: Yes, we can do any size according to your request.
5.Q: What are your manufacturing and shipping time?
A: About 15-25 days after confirming the details.
6.Q: What certification do you have?
A: 1).Quality Management System ISO 9001 and Environmental Management System ISO 14001.
2). Food contact certificates
3). Meet testing Lab requirements
The products are pure natural raw materials, and can be tested according to customer requirements, including calcium and magnesiumion and heavy metal detection
