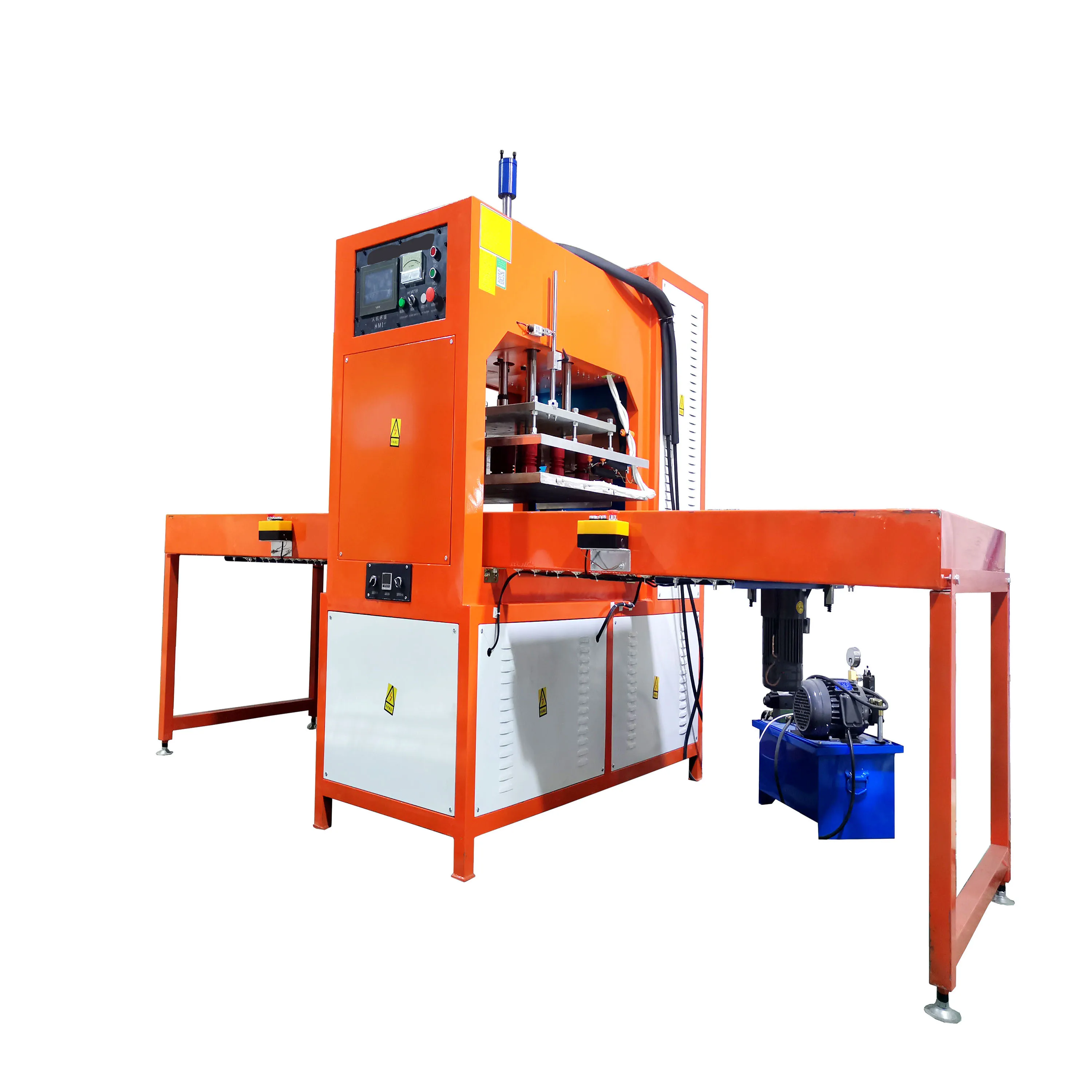

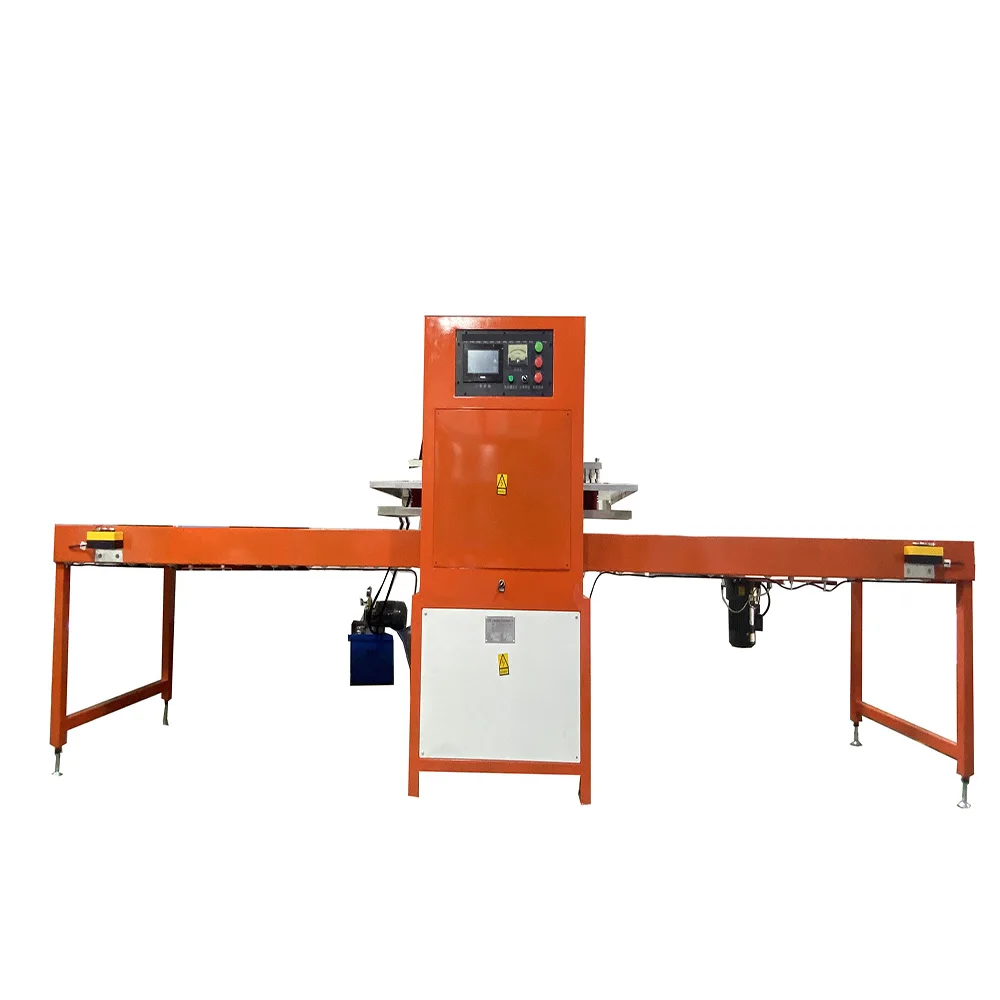

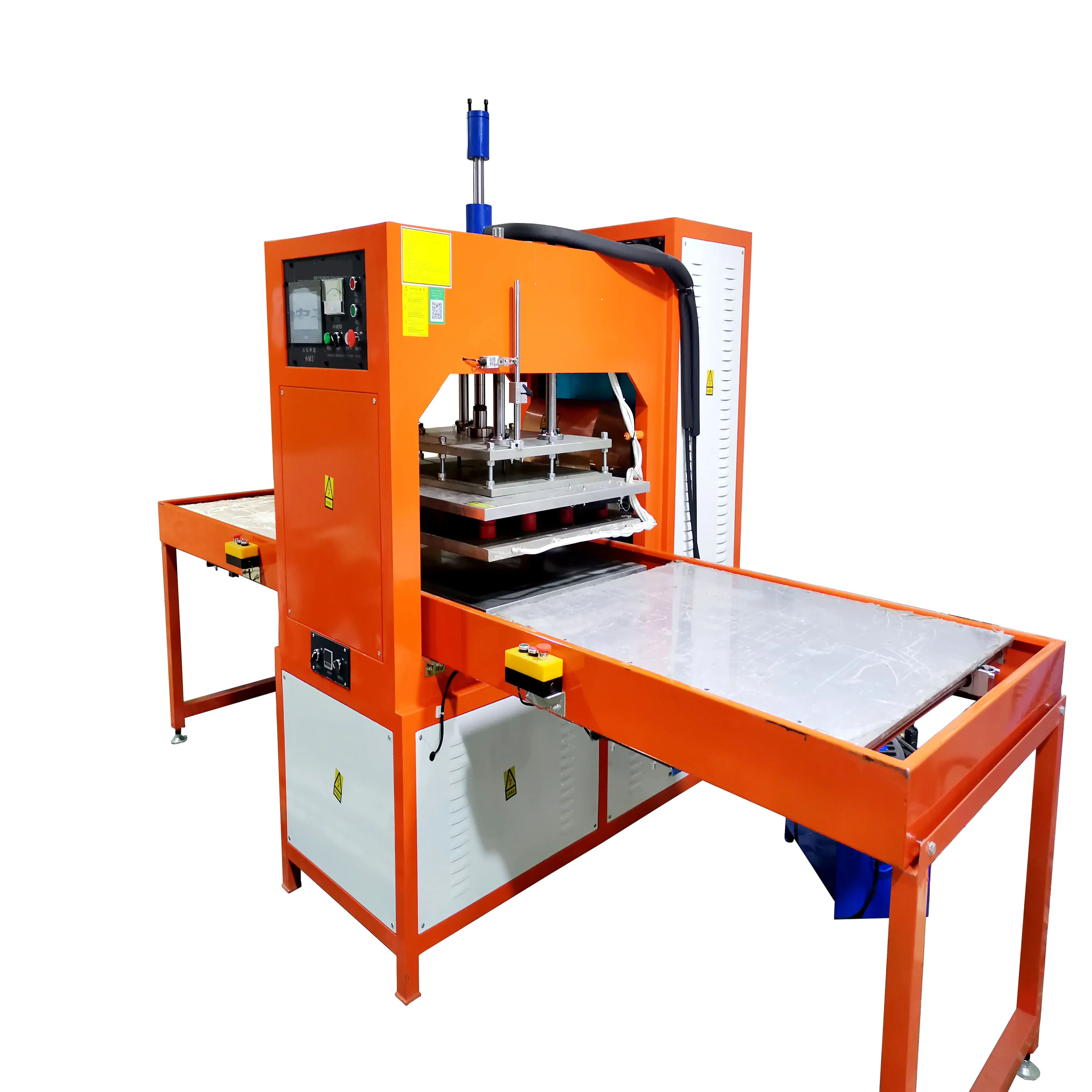

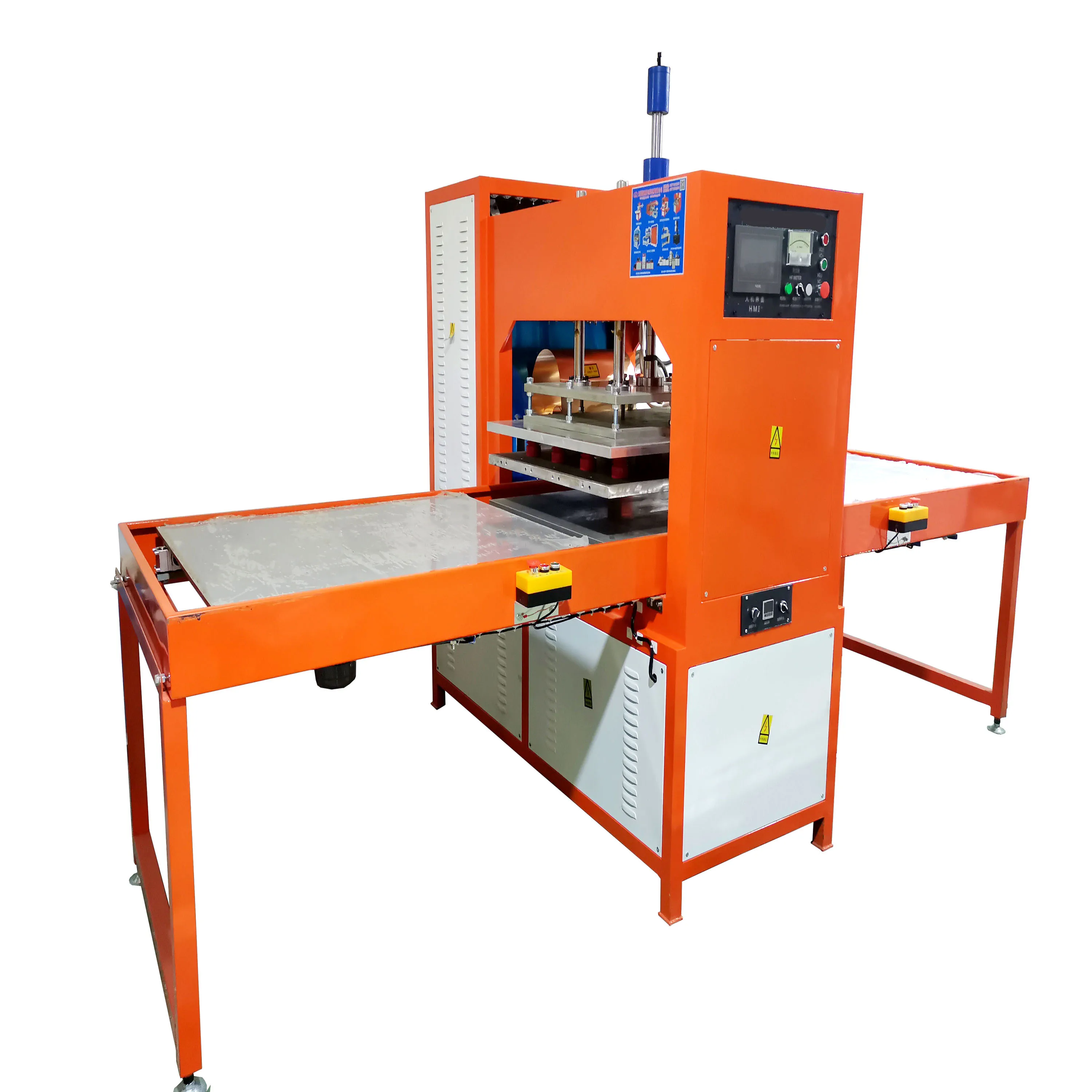

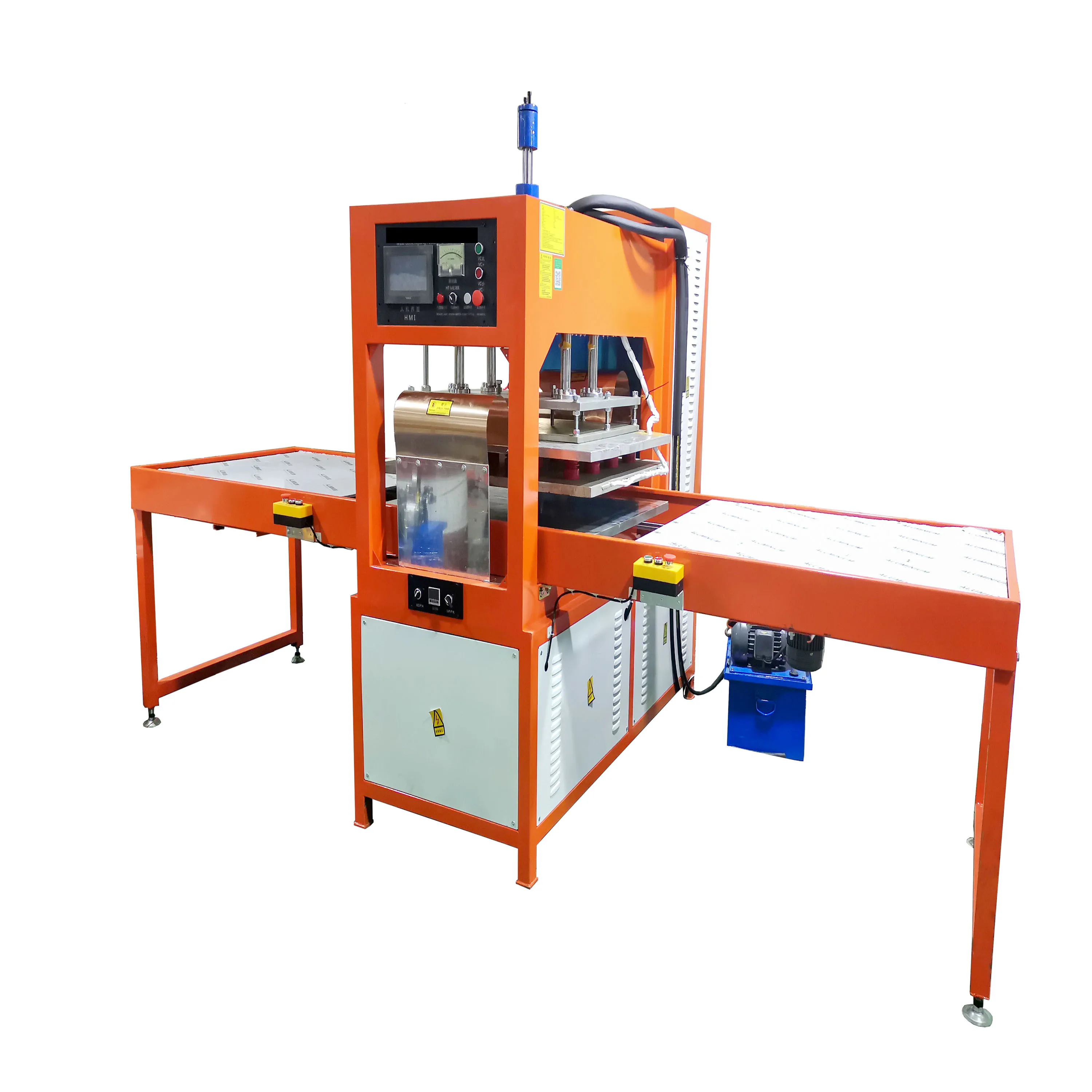

High Frequency Inflated Kayaks Boat Toy Welding Making Machine
- Category: >>>
- Supplier: Changzhou Wujin Dongnan Machinery & Electrical Appliance Co. Ltd.
Share on (1601210925872):
Product Overview
Description
Products Details
Feature
The machine double station shuttle HF welders with 12, 15, 25kW stable controlled HF power outputs are designed for various industrial HF welding and heat sealing applications requiring precision flat surface for product positioning and complex shape welds. HF welder can be easily converted to a standard Heat Sealer for applications where HF welding is not necessary or impossible (eg: PP or PE materials). Machine is equipped with quick change 4 point electrode holder. Custom built tooling and electrodes are available upon request.
Overview
* High sensitivity spark protection circuit, which can effectively cut off cause of the sparks.
* Pneumatic devices, saving time, duplex, consistent and easy to operate.
* Square-sype level adjustment, time-saving and easy transfer mode.
* Dual working station, turntable alternative working.
* 27.12 Mhz standard frequency, no radiation.
* Fully imported pneumatic components, stable welding.
* The machine meet with CE requirement.
* Machine can be installing two molds, seperated operation.
* Pneumatic devices, saving time, duplex, consistent and easy to operate.
* Square-sype level adjustment, time-saving and easy transfer mode.
* Dual working station, turntable alternative working.
* 27.12 Mhz standard frequency, no radiation.
* Fully imported pneumatic components, stable welding.
* The machine meet with CE requirement.
* Machine can be installing two molds, seperated operation.
Parameter
Voltage | AC220/380/400/415/440V 50/60HZ(Customized) | ||||
Output Power | 12KW | 15KW | 25KW | ||
Input Power | 15KVA | 18KVA | 28KVA | ||
HF Frequency | 27.12MHZ ±0.6% | ||||
Oscillation Tube | 8T85RB | 8T85RB | 8T85RB | ||
Anti-spark Tube | NL-5557 | NL-5557 | NL-5557 | ||
Gap of Electrode | 200mm | 200mm | 200mm | ||
Size of upper electrode | 600×800mm | 800×1000mm | 900×1200mm | ||
Machine Size | 3700×1950×1950 | 3700×1950×1950 | 3700×1950×1950 | ||
Machine Weight | 800KG | 800KG | 800KG | ||
