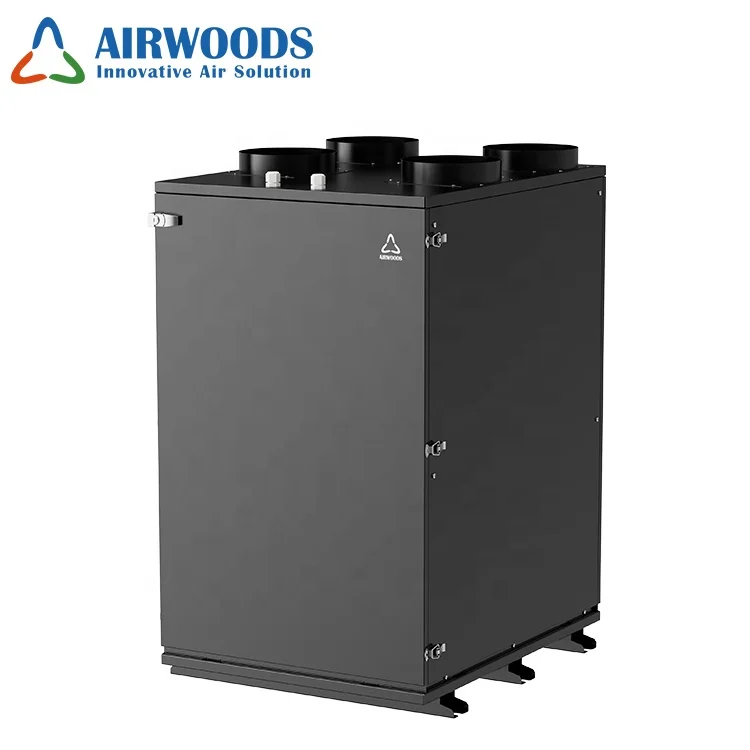

Recuperator erv Hrv Air Ventilation System inverter heat pump with counter flow total air to air heat exchanger
- Category: >>>
- Supplier: Guangzhou Airwoods Environment Technology Co. Ltd.
Share on (1601211010271):
Product Overview
Description
Product Description

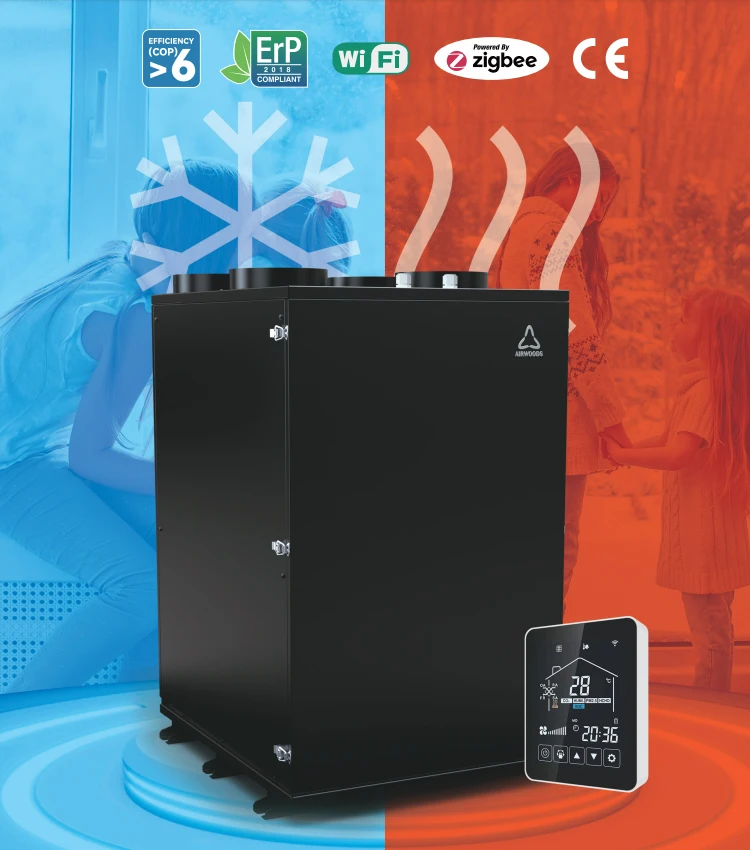

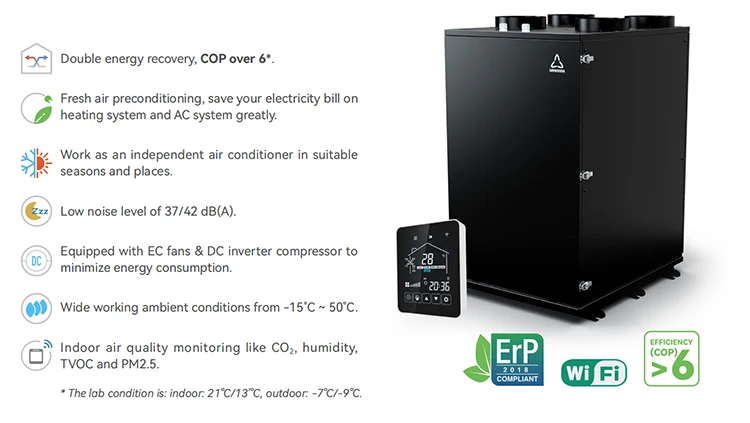

A constant supply of fresh air in the indoor spaces in which we spend more than 70% of our time is vital to our health. Airwoods heat pump energy recovery ventilator (HPERV) is an innovative product that combines fresh air purification, heating/cooling, heat recovery, and dehumidification in one machine. It can provide you with comfortable and healthy indoor air while saving energy and money. It provides the ideal
solution for air tight buildings in which the windows often remain closed due to noise, dust particles and energy loss.
solution for air tight buildings in which the windows often remain closed due to noise, dust particles and energy loss.

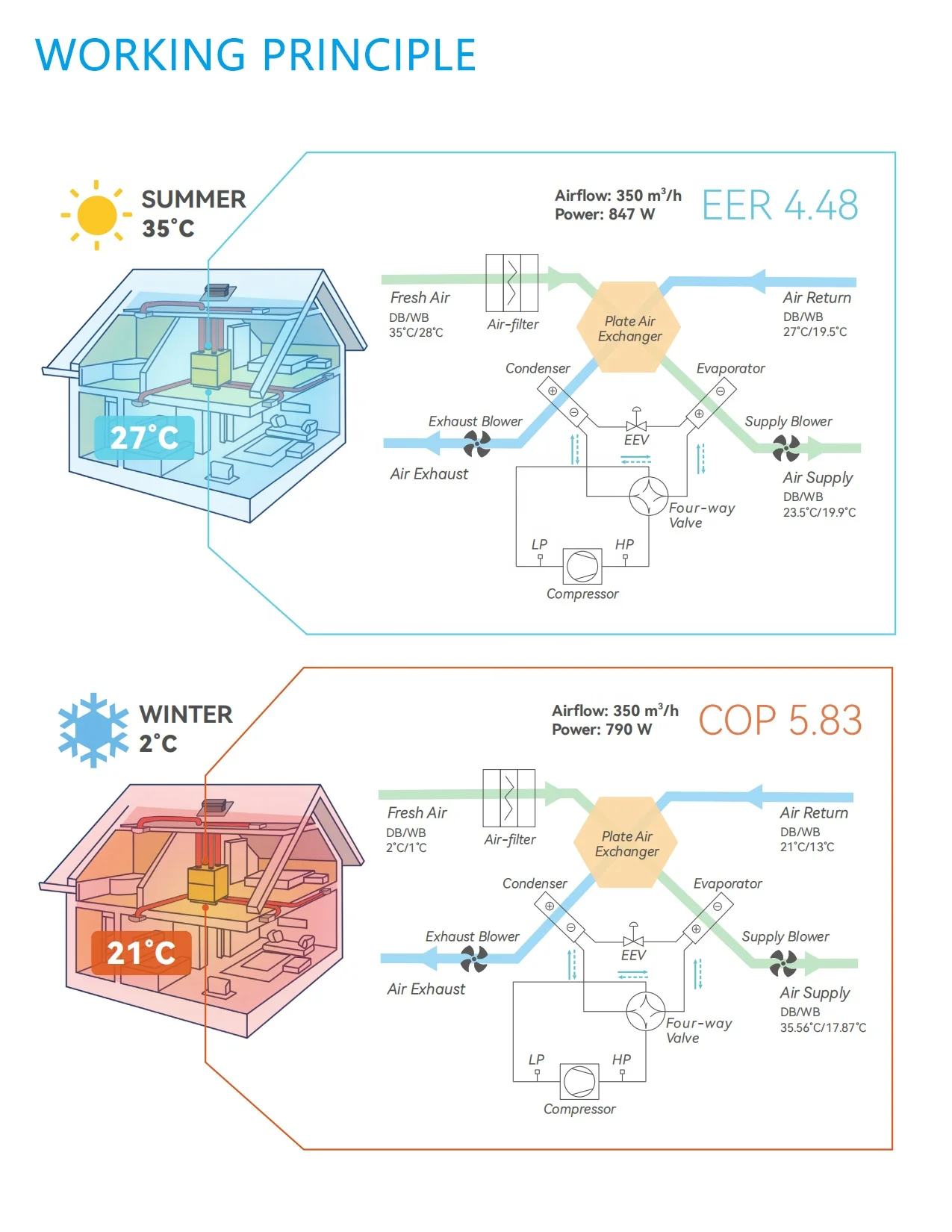

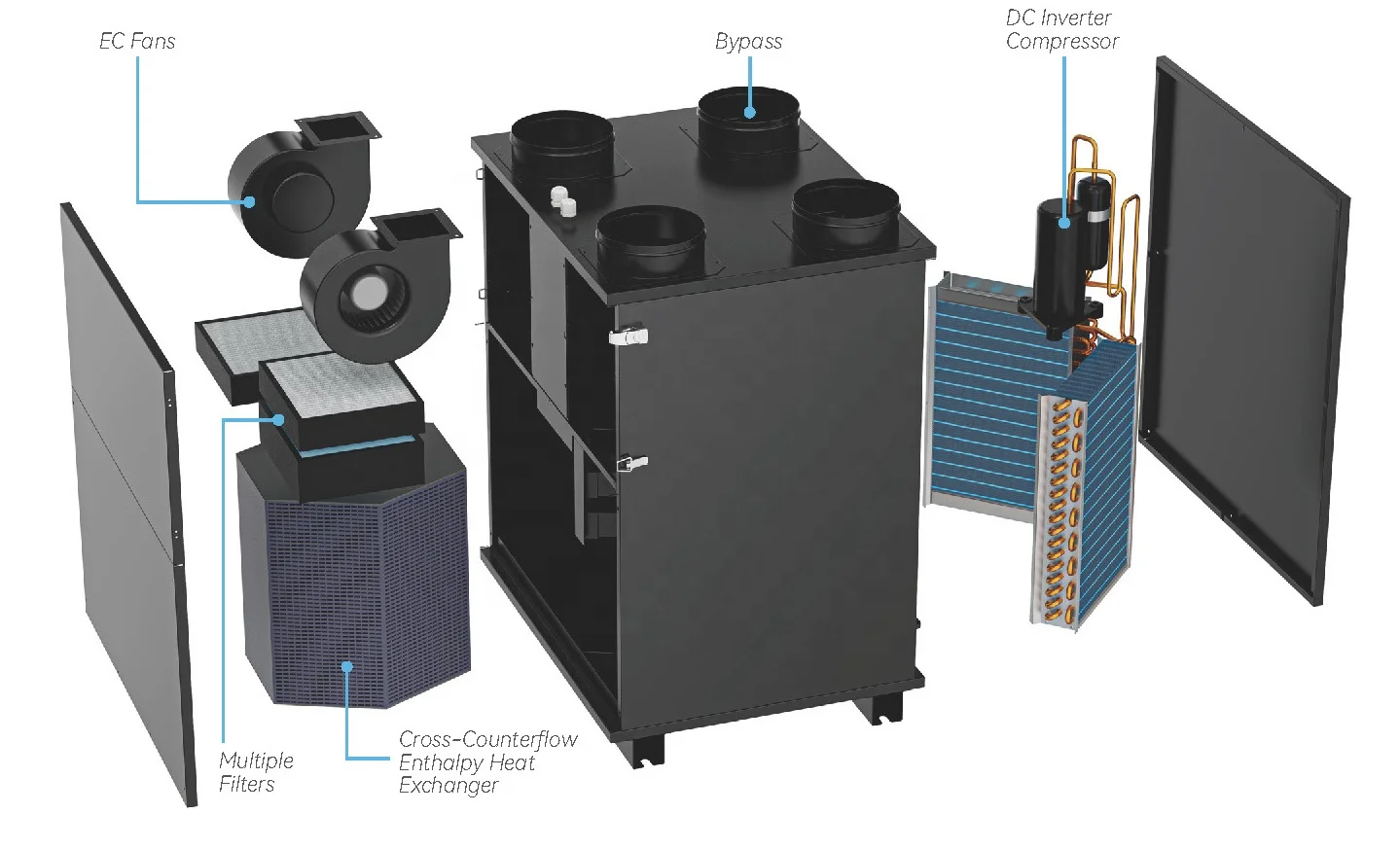

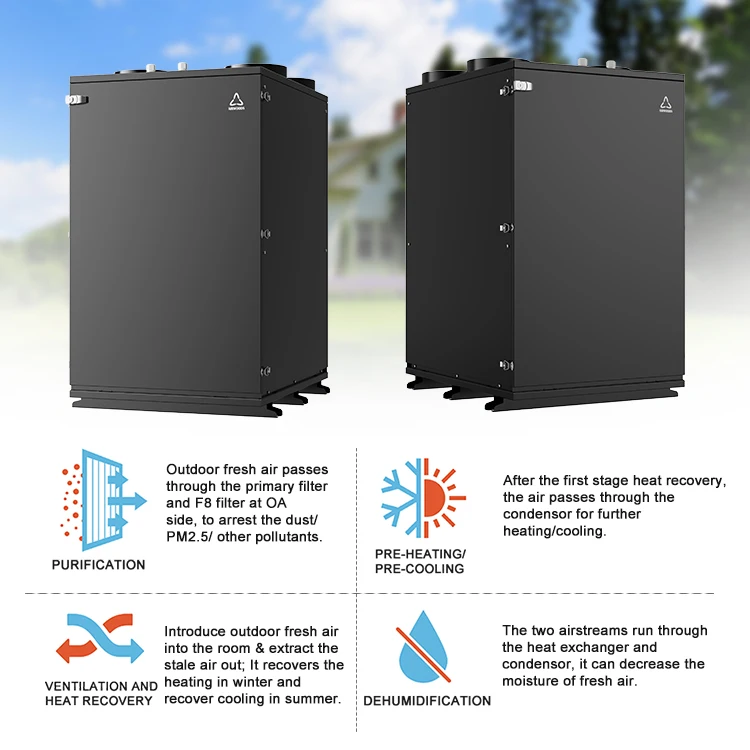

With a heatexchanger and heat pump system inside, Airwoods HPERV delivers clean and fresh air in a double energy recovery system. For example, 35˚C fresh air in summer time can be cooled to 23.5˚C, while
2˚C fresh air in the winter time can be heated to 35.5˚C. It can work as air conditioner in Autumn/ Spring or at night, when outdoor is 10-28˚C.
Besides, it can remove the excess humidity, prevent furniture mold build up and keep the indoor air at comfortable temperature and humidity.
2˚C fresh air in the winter time can be heated to 35.5˚C. It can work as air conditioner in Autumn/ Spring or at night, when outdoor is 10-28˚C.
Besides, it can remove the excess humidity, prevent furniture mold build up and keep the indoor air at comfortable temperature and humidity.
Specification
Model | AV-HTPF35/EI32 | ||
Rated airflow | 350CMH | ||
Exhaust airflow (ventilation mode) | 350CMH | ||
Exhaust airflow (heating/cooling mode) | 350CMH | ||
External static pressure | 100Pa | ||
Noise | 37/42 | ||
Power | 220V 1P 50/60Hz | ||
Dimension (L×W×H) | 760×600×1000mm | ||
Air inlet/outlet diameter | 188mm | ||
Air inlet/outlet height | 60mm | ||
Machine base height | 61.5mm | ||
Drainage pipe | 1/2" inch | ||
Refrigerant | R32 | ||
Operation temperature | -15~50℃ | ||
Ventilation mode | Temperature Effi. (heating) | 76.5% | |
Temperature Effi. (cooling) | 72% | ||
Enthalpy Effi. (heating) | 72.6% | ||
Enthalpy Effi. (cooling) | 69.4% | ||
Input power | 185W | ||
Input current | 1.08A | ||
Cooling/Heatin | Norminal cooling capacity | 3798W | |
Max cooling capacity | 4173W | ||
Input power (cooling) | 847W | ||
Operation current (cooling) | 4.42A | ||
Norminal heating capacity | 4604W | ||
Max heating capacity | 4981W | ||
Input power (heating) | 790W | ||
Operation current (heating) | 3.82A | ||
Product Details
Advantages Compared with Standard ERV | ||||||
SUMMER CONDITIONS | ||||||
No | Description | Temperature | Relative Humidity | |||
1 | Outside Temperature OA | 35˚C | 59.10% | |||
2 | Inside Temperature RA | 27˚C | 49.80% | |||
3 | Fresh Air (Standard Heat Recovery Units) SA | 29.24˚C | 55.48% | |||
4 | Fresh Air (Heat Pump Heat Recovery Units) SA | 23.5˚C | 72.11% | |||
WINTER CONDITIONS | ||||||
No | Description | Temperature | Relative Humidity | |||
1 | Outside Temperature OA | 2˚C | 83.84% | |||
2 | Inside Temperature RA | 21˚C | 39.16% | |||
3 | Fresh Air (Standard Heat Recovery Units) SA | 15.68˚C 73.57% | 73.57% | |||
4 | Fresh Air (Heat Pump Heat Recovery Units) SA | 35.56˚C | 17.87% | |||

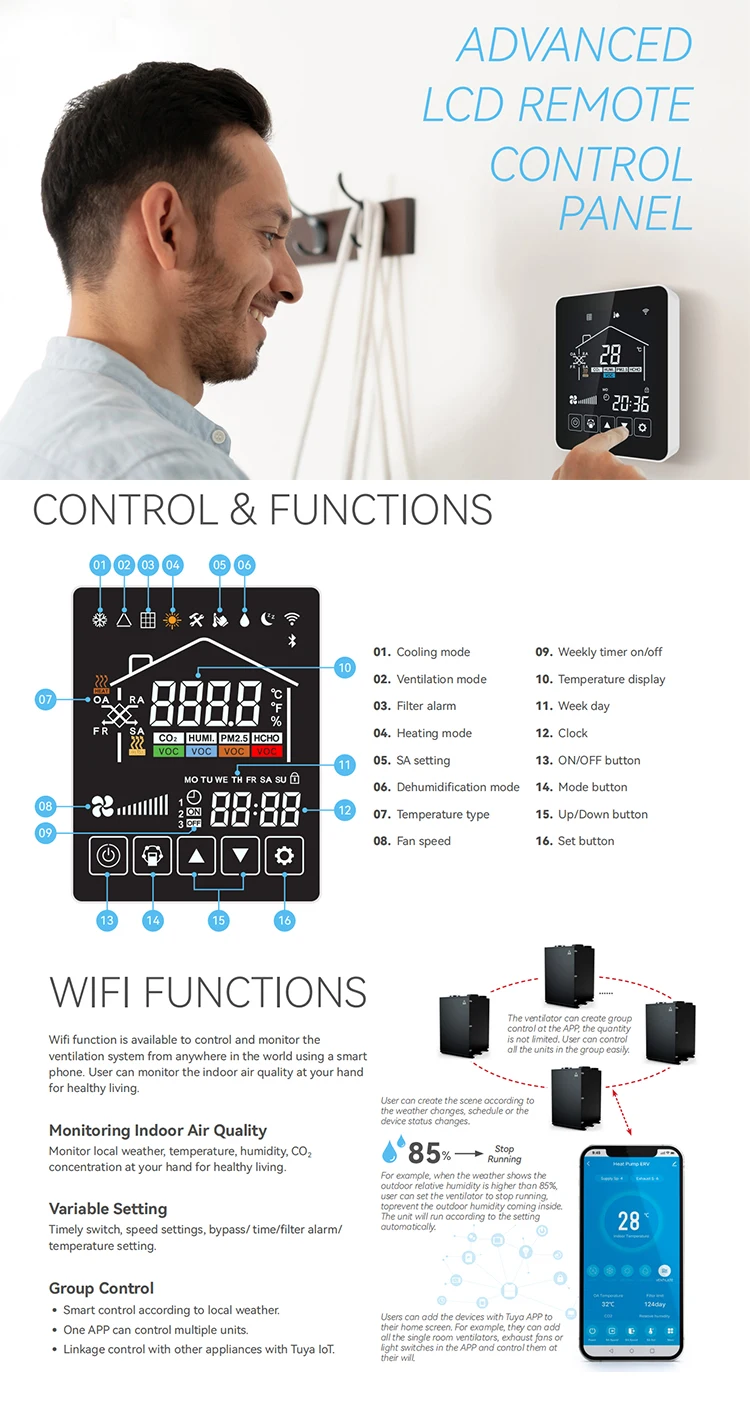

LCD Remote Control Panel

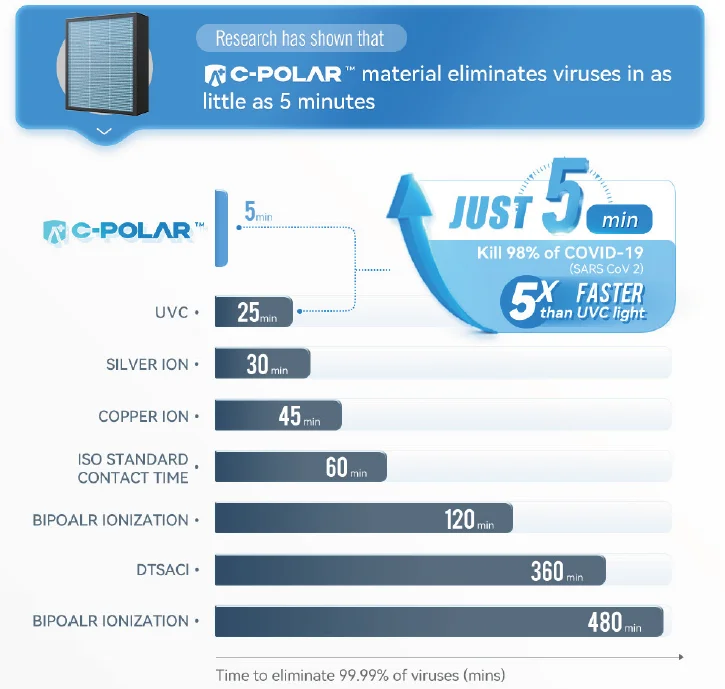

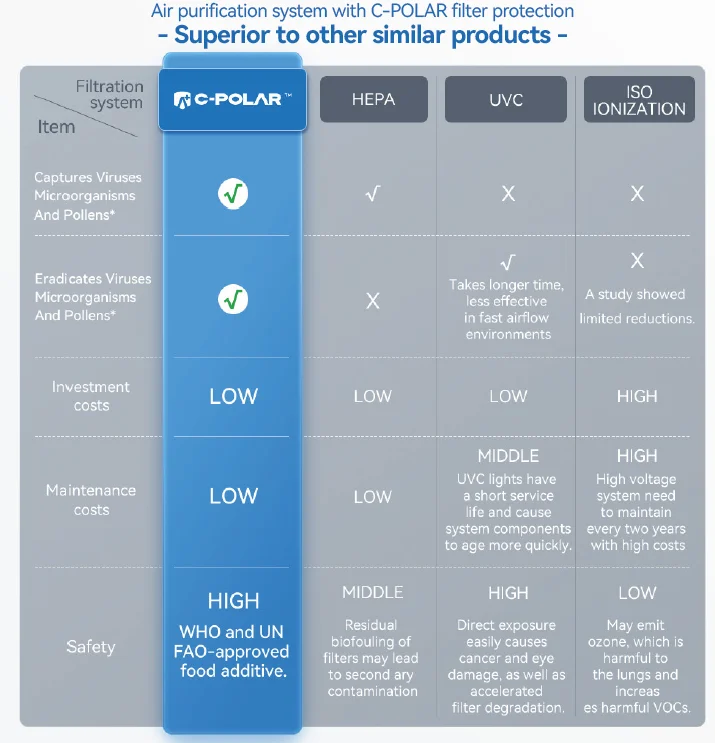

Optional C-POLAR Disinfection Filter

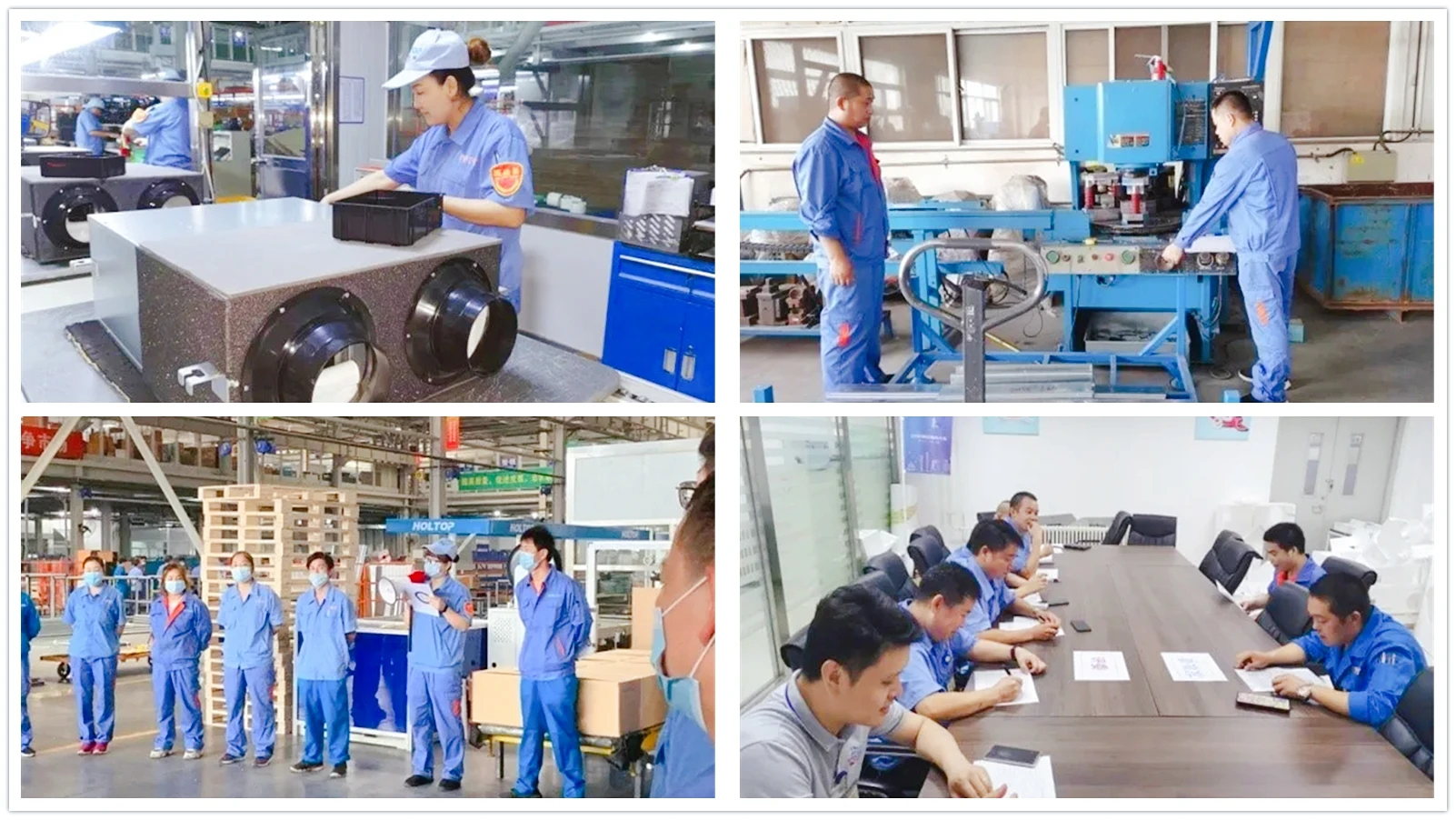

Factory
Certifications
Why Choose Us
Since 2007, Airwoods dedicated to provide comprehensive building air quality solutions for various applications. Its a brand for better air quality and better life products. AIRWOODS brand mainly focus on the marketing, sales and product development to meet different market demand. The main products include air purifier, air disinfection system, fresh air ventilator, energy recovery ventilator, heat pump type heat recovery ventilator, air heat exchanger, air handling unit, water chiller, heat pump, etc. Our products have exported to more than 100 countries, certified by SGS CE, CB, EPCS, etc. and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services. We aim to deliver good building air quality to the world with energy efficient products, optimized solutions, cost-effective prices and great services to our customers.
