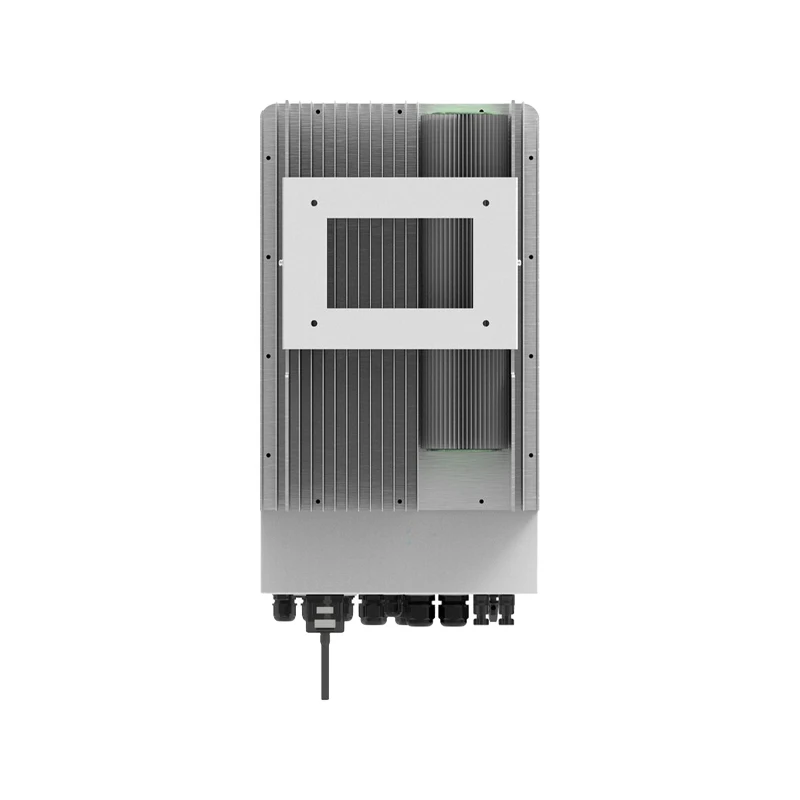

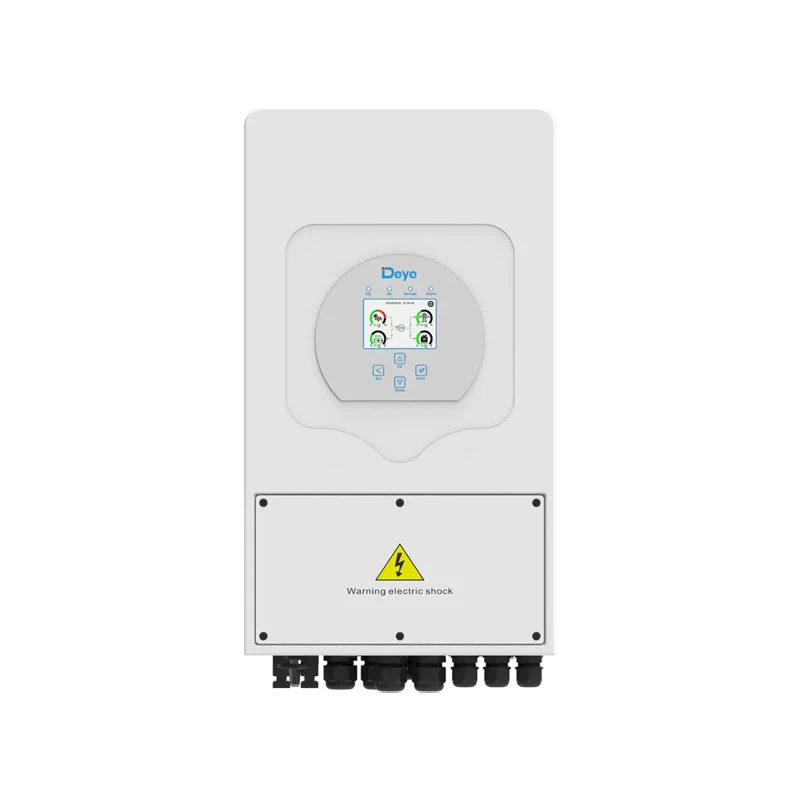

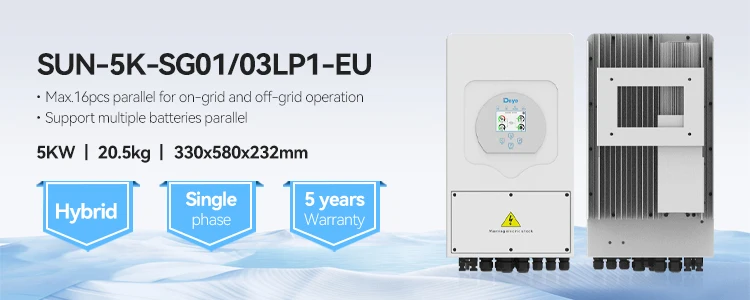

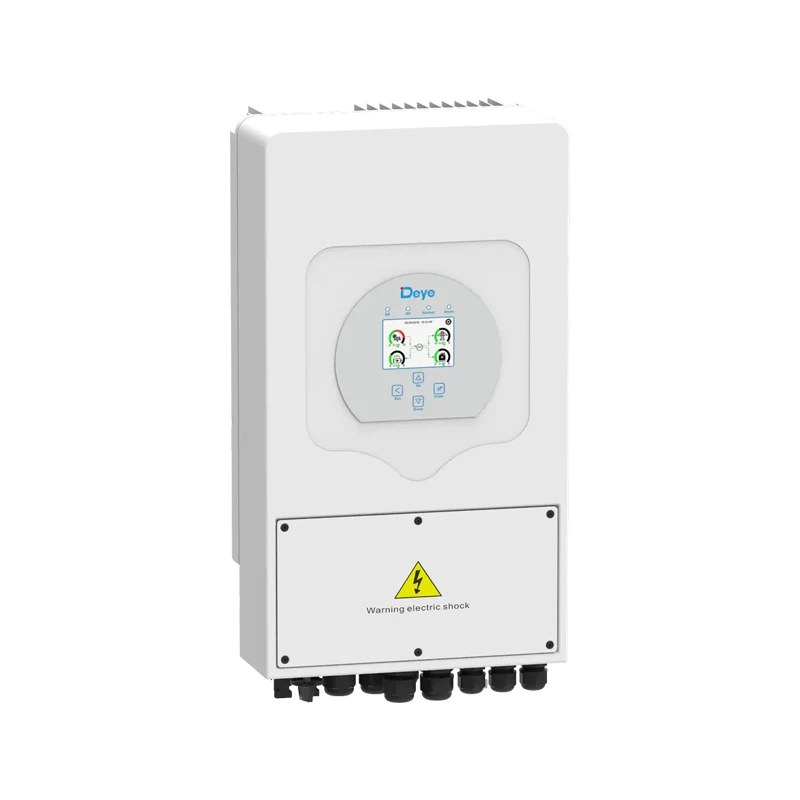

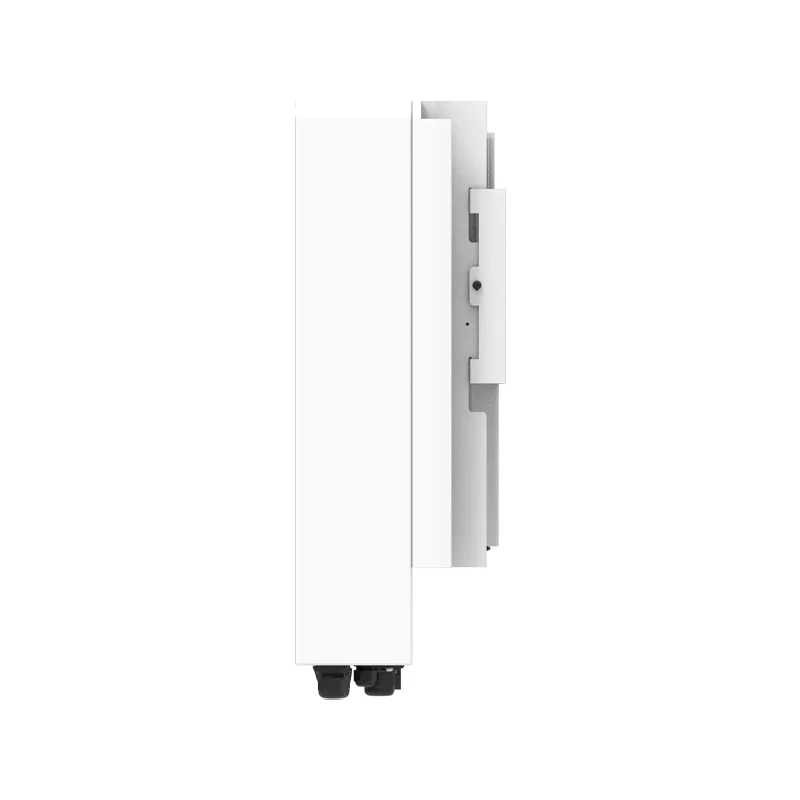

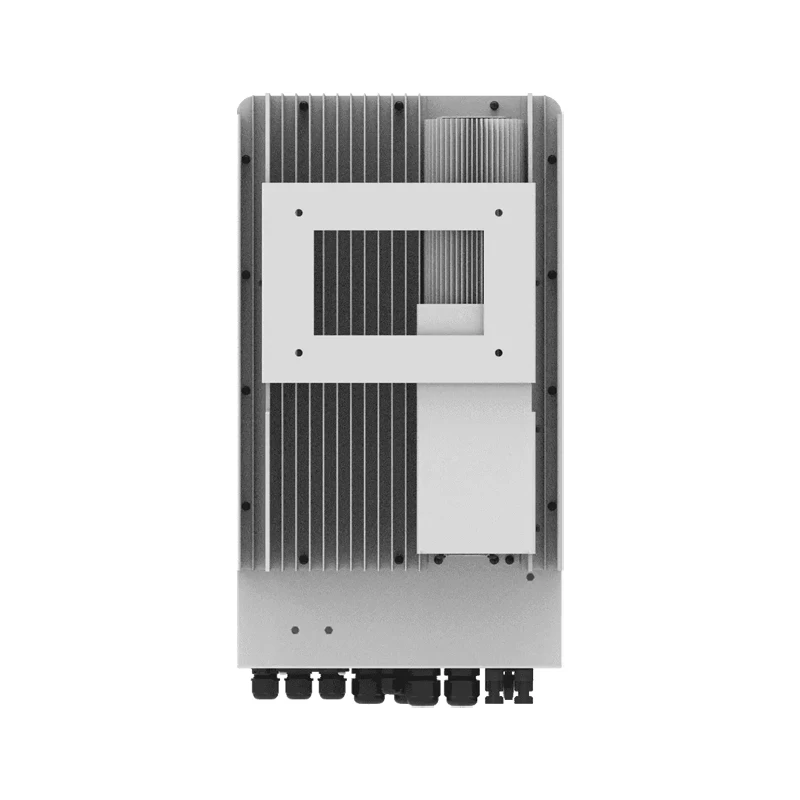

Top 1 Deye SUN 3.6/5/6/7/7.6/8K SG05LP1 EU 3.6kw 5kw 6kw 7kw 7.6kw 8kw Single Phase Hybrid Inverter In Stock
- Category: >>>
- Supplier: Anhui Sun D.ta New Energy Co. Ltd.
Share on (1601211028602):
Product Overview
Description
Product Paramenters
Model | SUN-5K-SG03LP1-EU | |
Battery Input Data | ||
Battery Type | Lead-acid or Li-Ion | |
Battery Voltage Range(V) | 40-60V | |
Max.Charging Current(A) | 120A | |
Max.Discharging Current(A) | 120A | |
External Temperature Sensor | Yes | |
Charging Curve | 3 Stages/Equalization | |
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |
PV String Input Data | ||
Max.DC Input Power(W) | 6500W | |
Rated PV Input Voltage(V) | 370V(125-500V) | |
Start-up Voltage(V) | 125V | |
MPPT Voltage Range(V) | 150V-425V | |
Full Load DC Voltage Range(V) | 300V-425V | |
PV Input Current(A) | 13+13 | |
Max.PV Isc(A) | 17+17 | |
No.of MPPT Trackers | 2 | |
No.of Strings per MPP Tracker | 1 | |
AC Output Data | ||
Rated AC Output and UPS Power(W) | 5000W | |
Max.AC Output Power(W) | 5500W | |
AC Output Rated Current(A) | 22.7/21.7A | |
Max.AC Current(A) | 25/23.9A | |
Max.Continuous AC Passthrough(A) | 35A | |
Peak Power(off grid) | 2 time of rated power,10S | |
Power Factor | 0.8 leading to 0.8 lagging | |
Output Frequency and Voltage | 50/60Hz;L/N/PE 220/230Vac(single phase) | |
Grid Type | Single Phase | |
DC injection current(mA) | THD﹤3%（Linear load﹤1.5%) | |
Efficiency | ||
Max.Efficiency | 97.60% | |
Euro Efficiency | 96.5% | |
MPPT Efficiency | 99.90% | |
Protection | ||
Integrated | PV Input Lighting Protection,Anti-islanding Protection,PV String Input Revers Polarity Protection,Insulation Resistor Detection,Residual Current Monitoring Unit,Output Over Current Protection,Output Shorted Protection,Surge Protection | |
Output Over Voltage Protection | DC Type II/AC Type III | |
Certifications and Standards | ||
Grid Regulation | CEI 0-21,VDE-AR-N 4105,NRS 097,IEC 62116,IEC 61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11 | |
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | |
General Data | ||
Operating Temperature Range(℃) | -40℃-60℃，﹥45℃ derating | |
Cooling | Natural cooling | |
Noise(dB) | ﹤30 dB | |
Communication with BMS | RS485;CAN | |
Weight(kg) | 20.5kg | |
Size(mm) | 330Wx580Hx232D | |
Protection Degree | IP65 | |
Installation Style | Wall-mounted | |
Warranty | 5 years | |

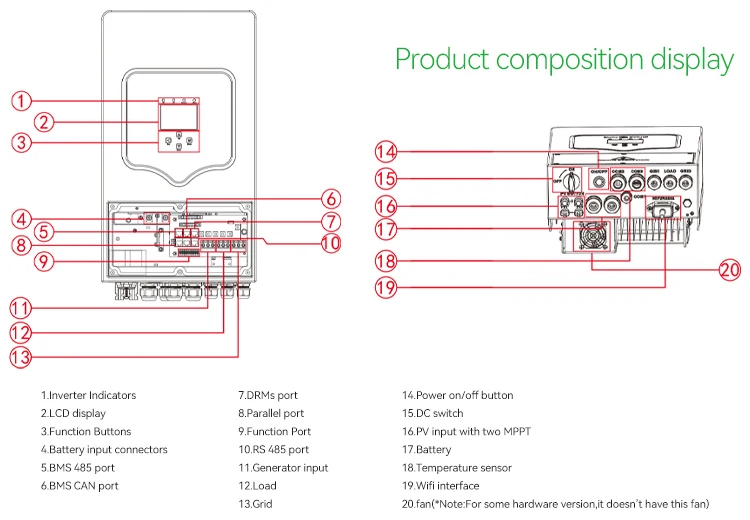

Details Images
Item | Model | Description | Description | |||
1 | Solar Panel | Half cut mono sliver frame 565w solar panel | 8-10 pcs | |||
2 | Combiner Box | CUSTOM | optional | |||
3 | Lithium Battery | 51.2V 100AH Rack Mounted Battery | 2PCS | |||
4 | Hybrid Inverter | 5KW | 1pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 100 M | |||
7 | Connector | Solar Connector | 10 pairs | |||
If you want to know more details, welcome to contact us at any time! | ||||||

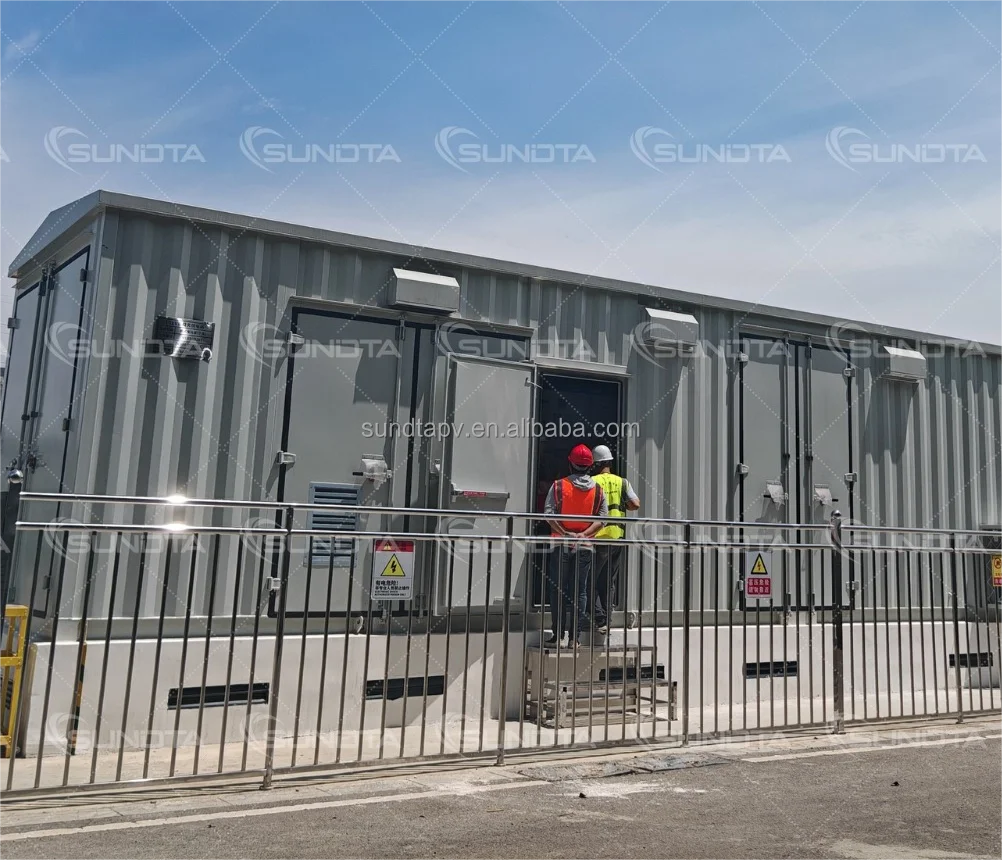

Our Projects

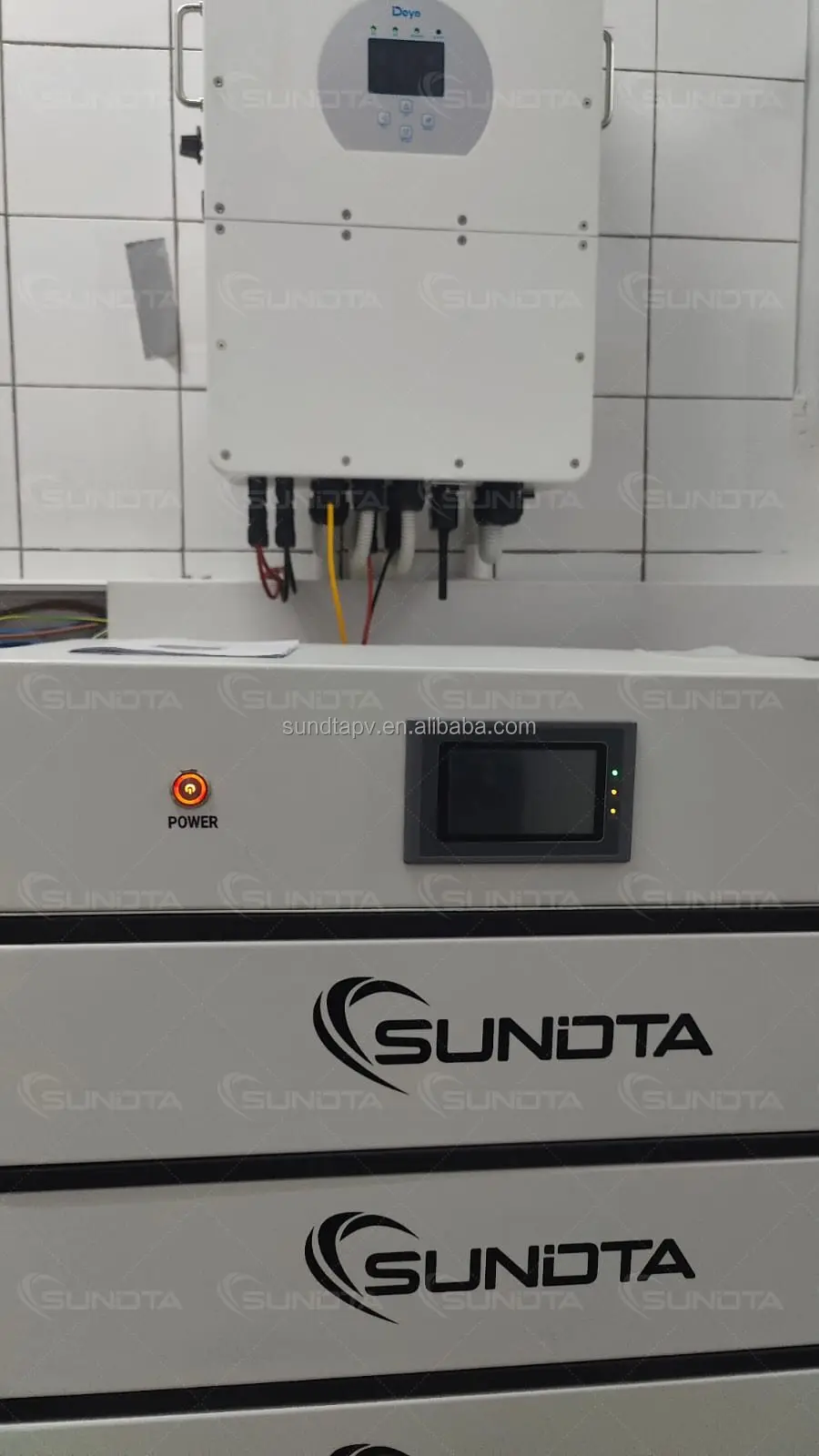

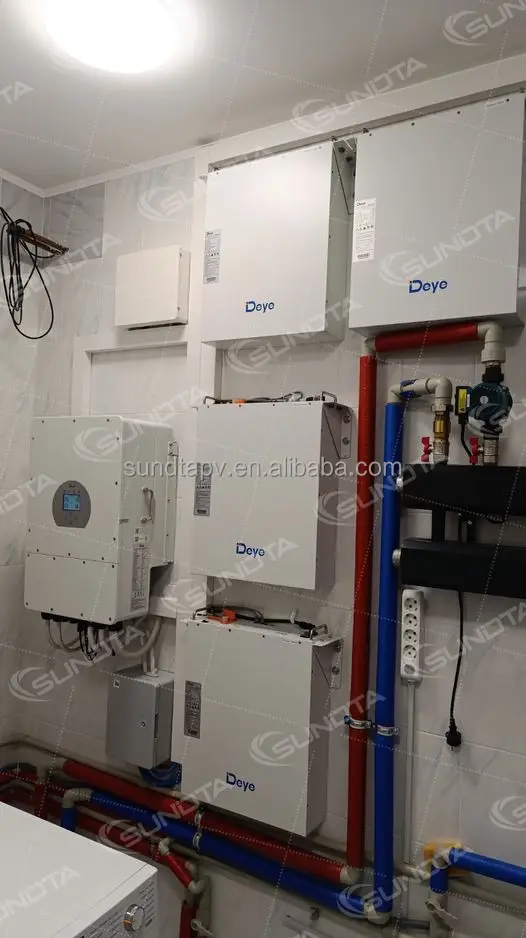

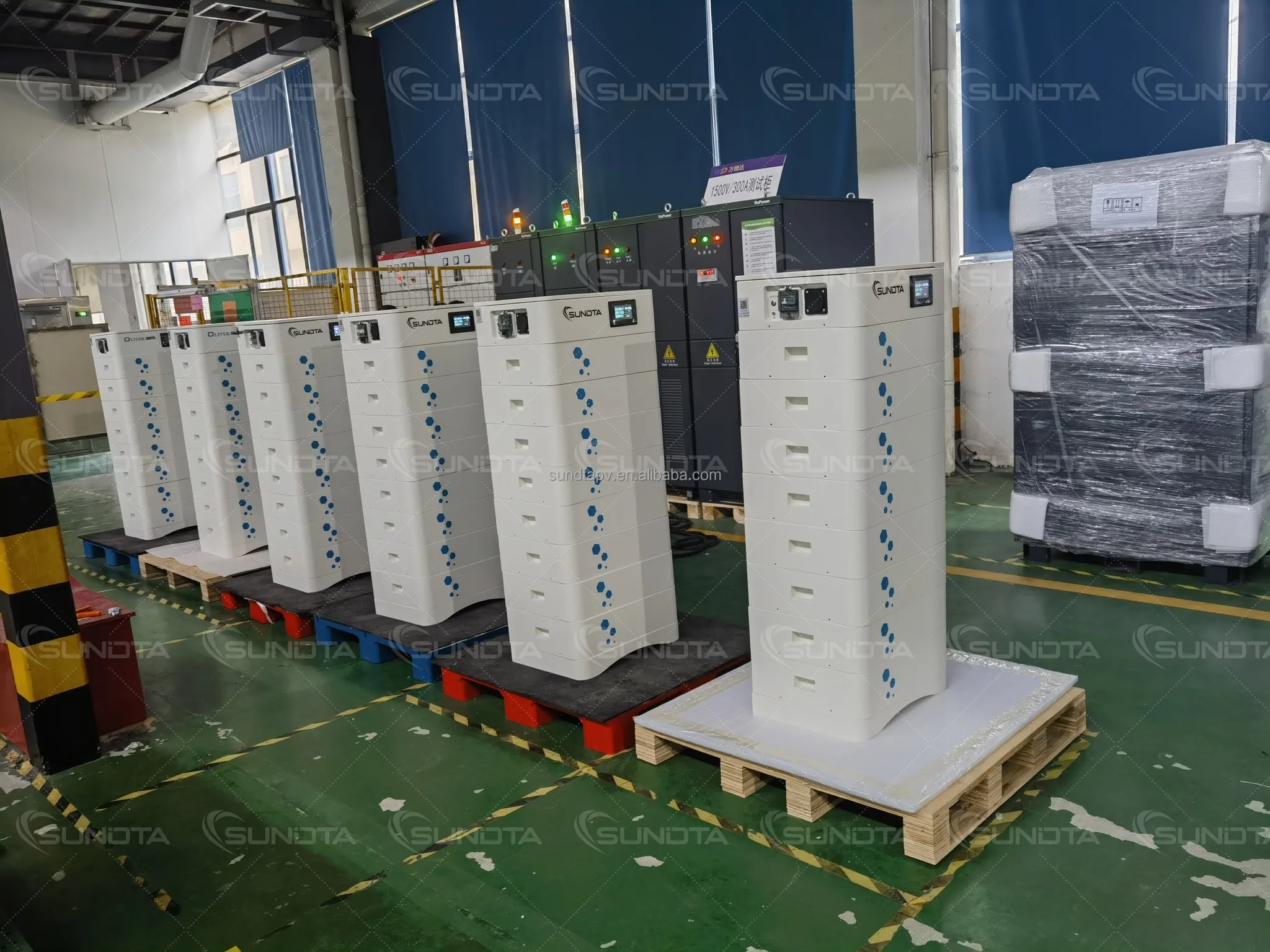

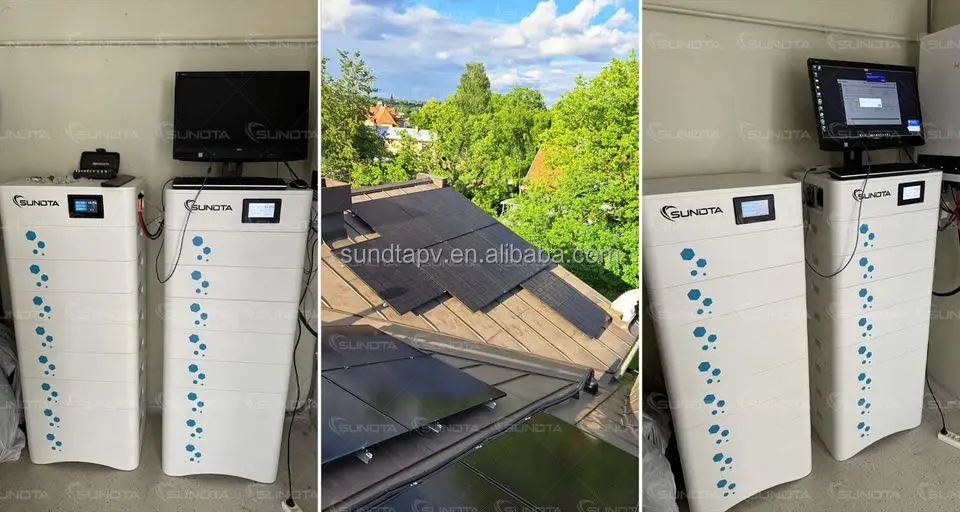

our valued customer in Ukraine has successfully installed energy storages ystems, boasting capacities of 30kw/80kwh
the production and packaging of Iran's 2.5MW grid-connected solar system has been successfully completed
Estonian customers for completing the installation of a 30kw/65kwh
Cyprus customer completed the installation of a 30kw/40kwh

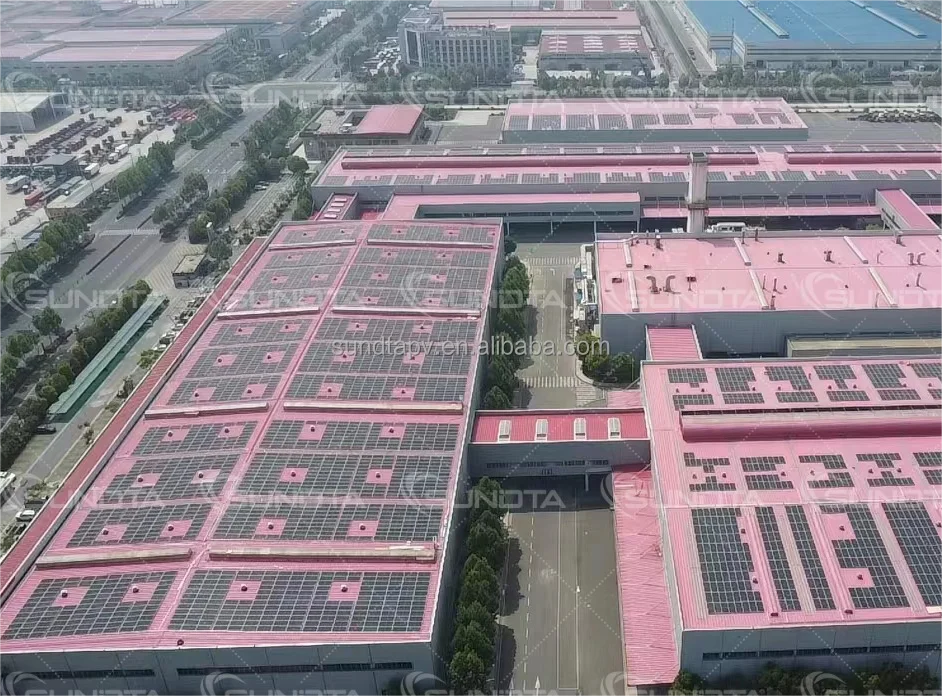

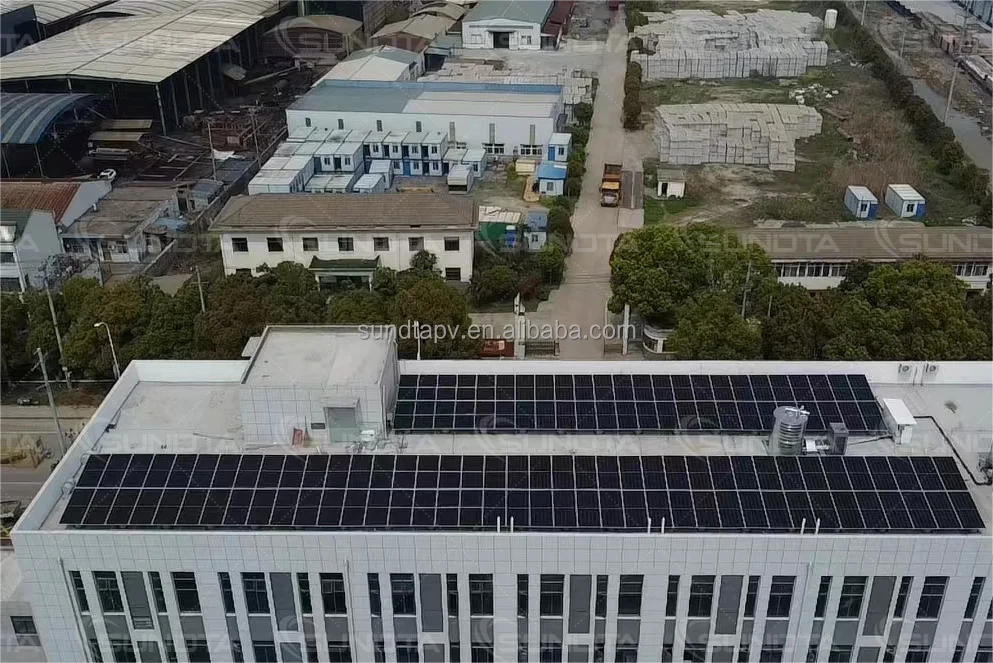

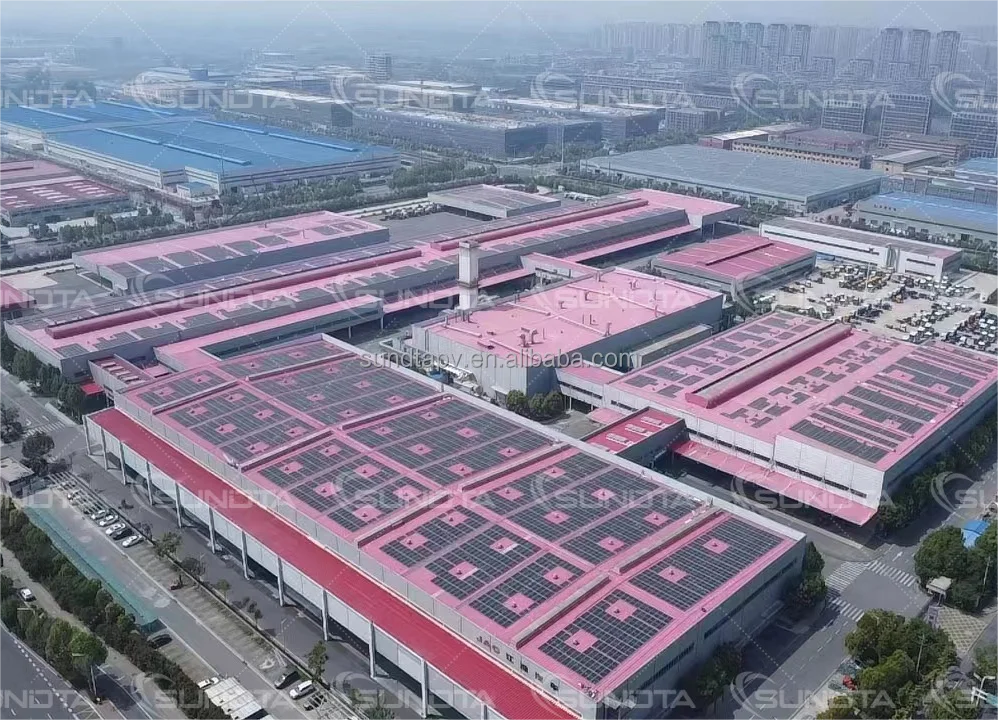

SUNDTA 5.87MW rooftop photovoltaic project has been successfully connected to the grid!
The project uses a total of 10,342 SUNDTA 580W solar panles
The project uses a total of 10,342 SUNDTA 580W solar panles

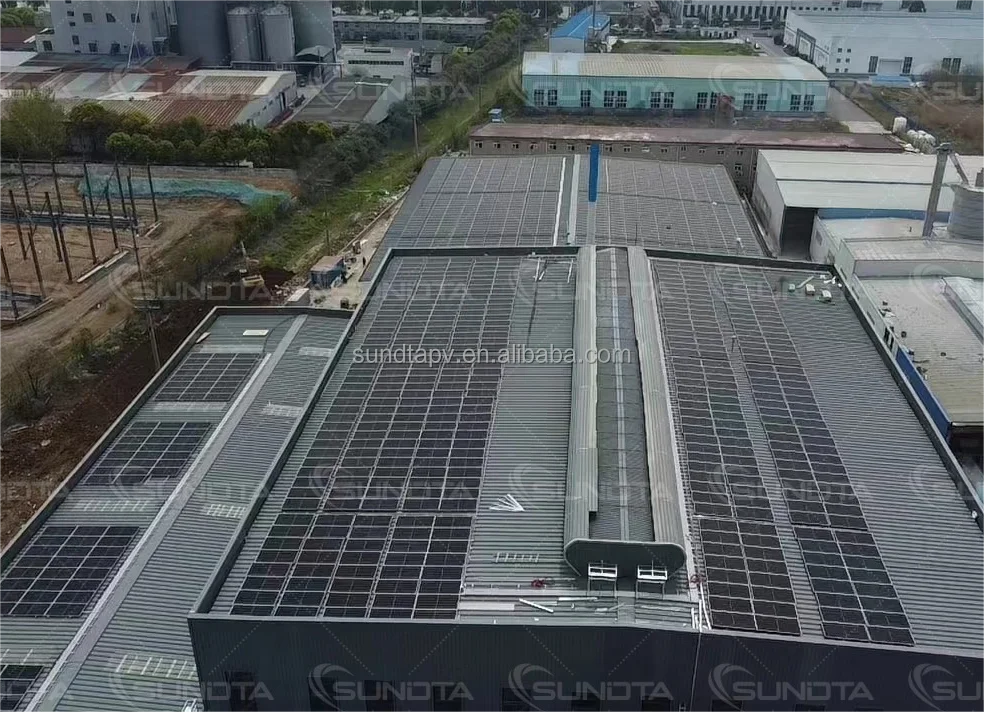

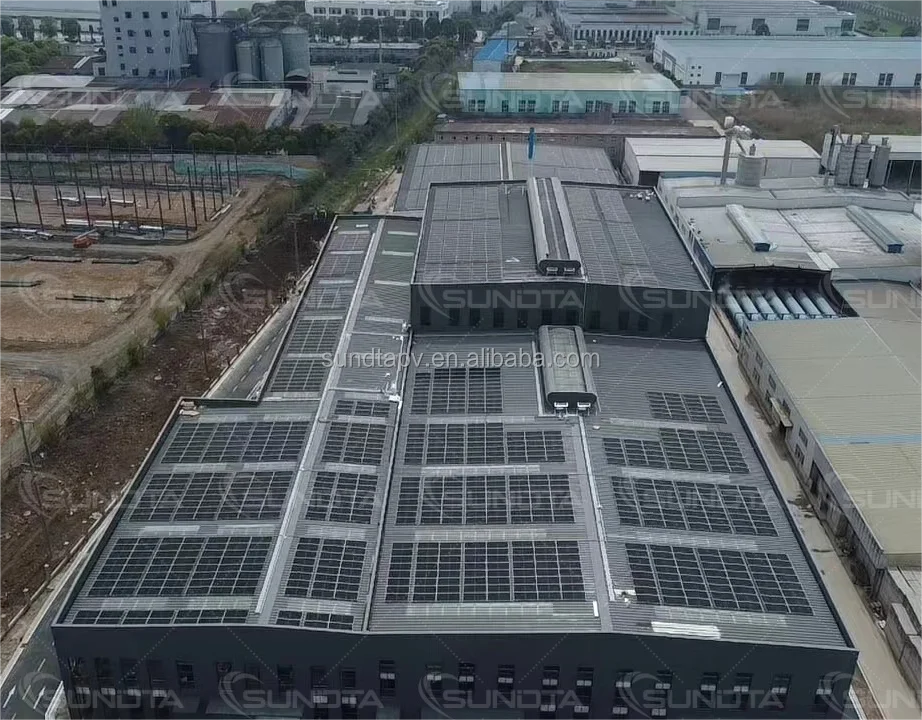

SUNDTA's 1334kwp rooftop photovoltaic project was successfully connected to the grid to generate electricity on April 30, 2024.
The project uses TOPCon N-type 580w solar panels, with a total of 23,000 panels in the overall project.
The project uses TOPCon N-type 580w solar panels, with a total of 23,000 panels in the overall project.

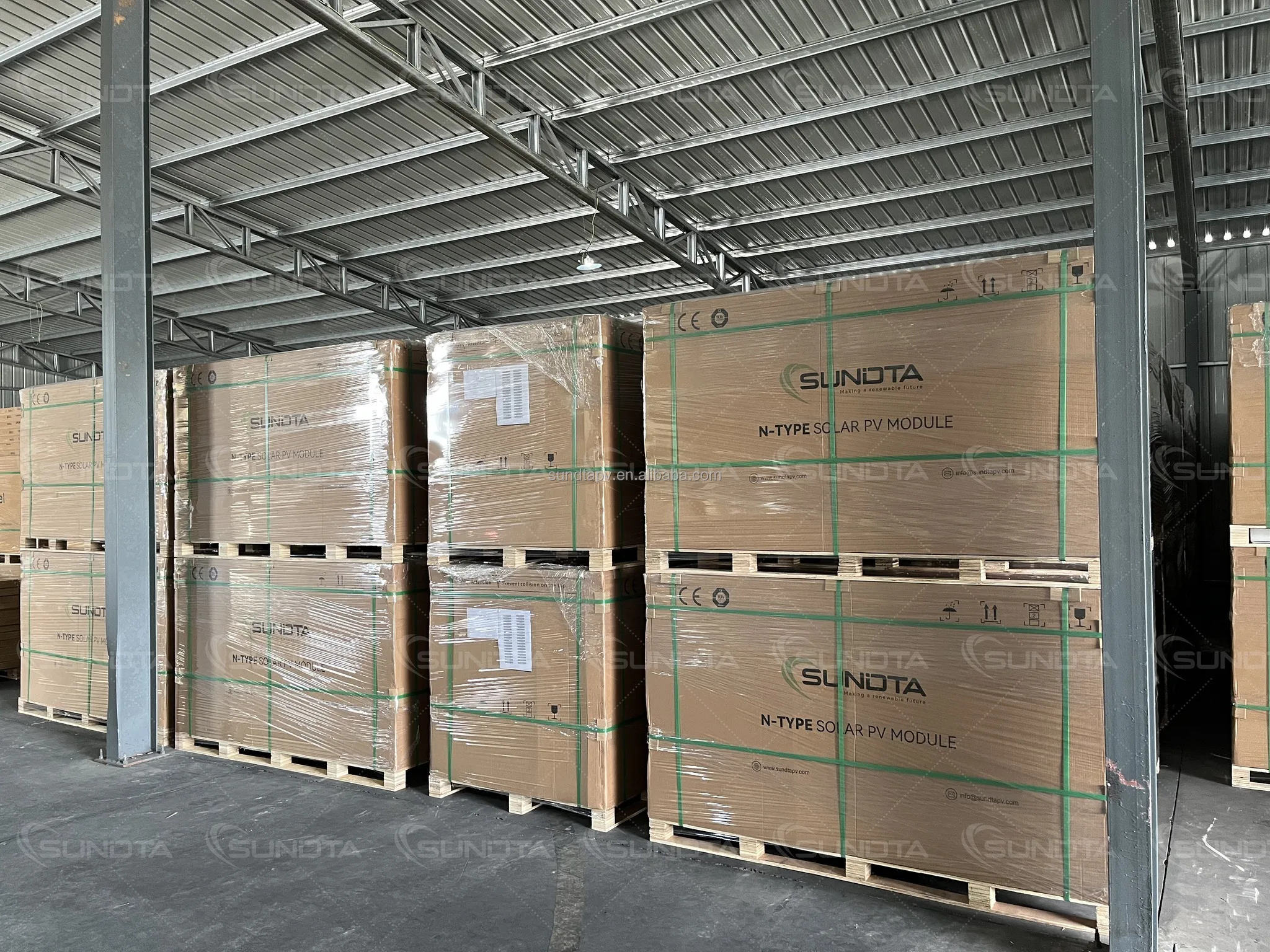

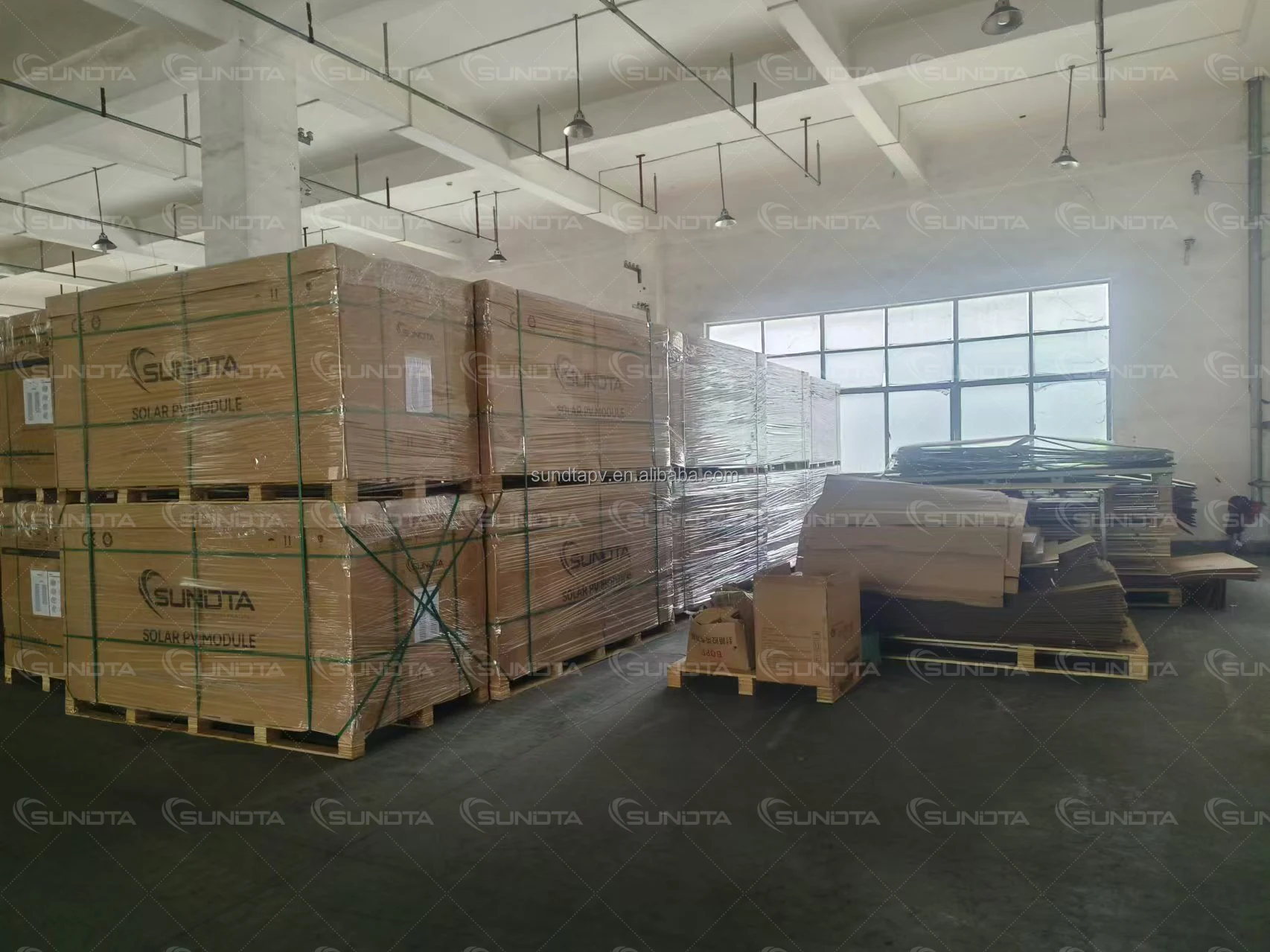

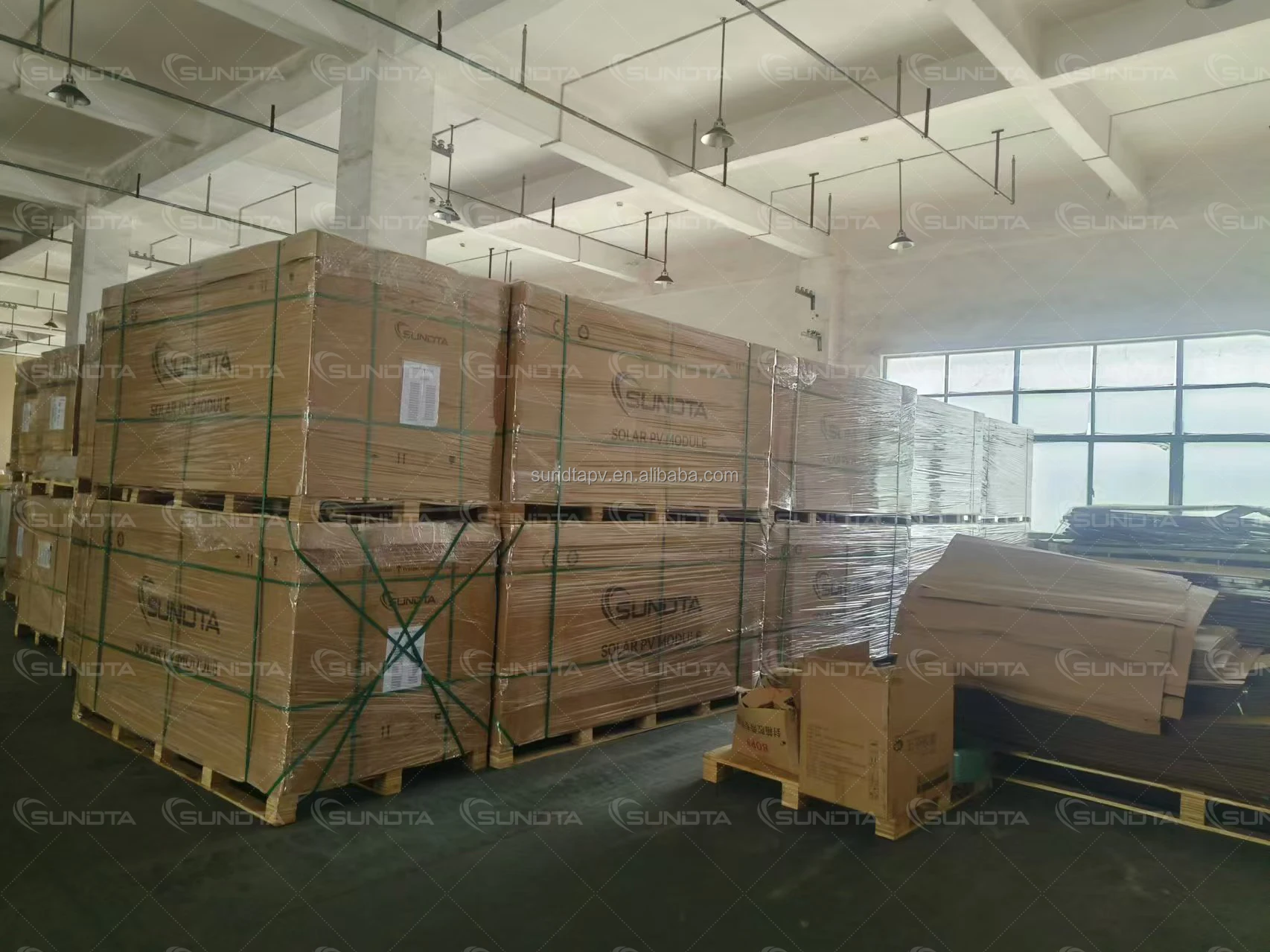

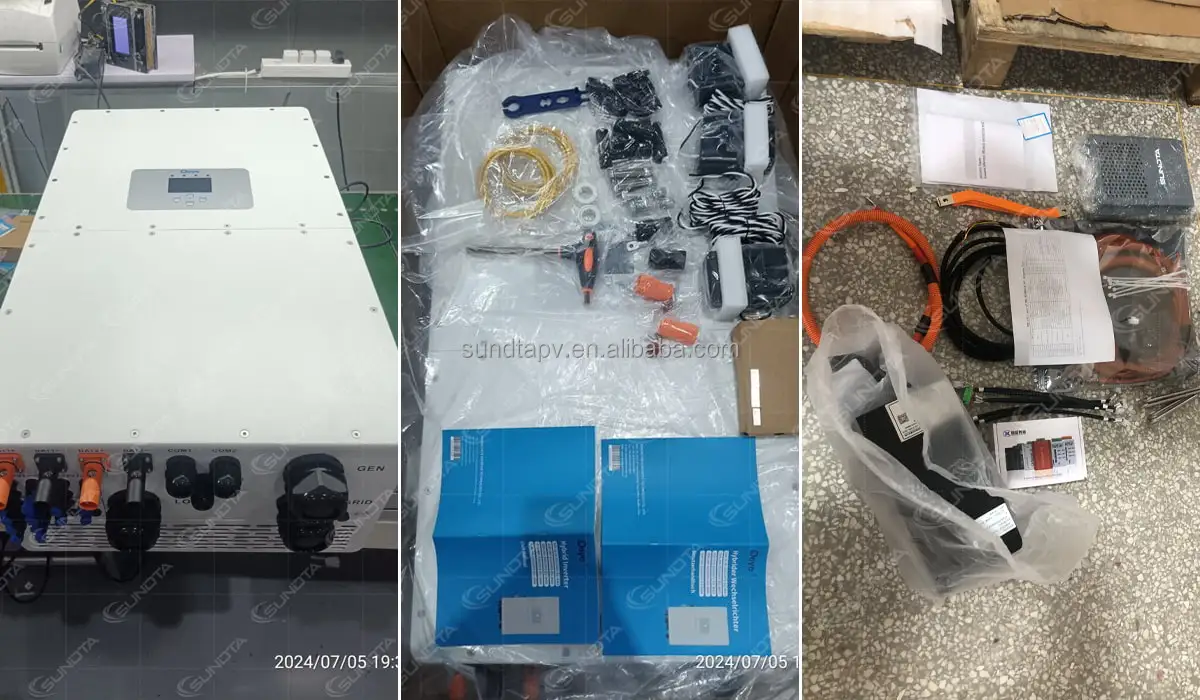

Product Packaging
SUNDTA 550W solar panels have successfully passed all rigorous factory testing. Shipping has been confirmed, and these powerful panels are now on their way to Jamaica

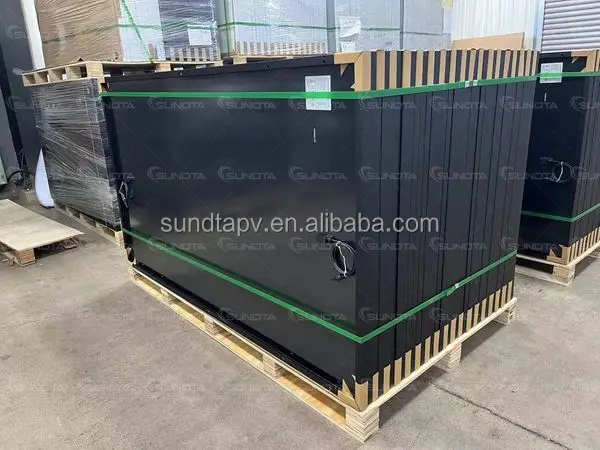

SUNDTA 480W all black N-type solar panels have completed factory inspection and acceptance, have been packed and boxed,and 3 containers will be shipped to Switzerland.
