Road Rescue Recovery Tow Truck 50 Tons 60 Ton Rotator Tow Truck
$76,000.00-78,000.00
Hot sale Shacman X3000 Wrecker Truck 60t Lifting All Rotation Towing Truck rescue towing equipement truck
- Category: >>>
- Supplier: Chusheng Vehicle Group Co. ltd
Share on (1601211055029):
Product Overview
Description
Product Description

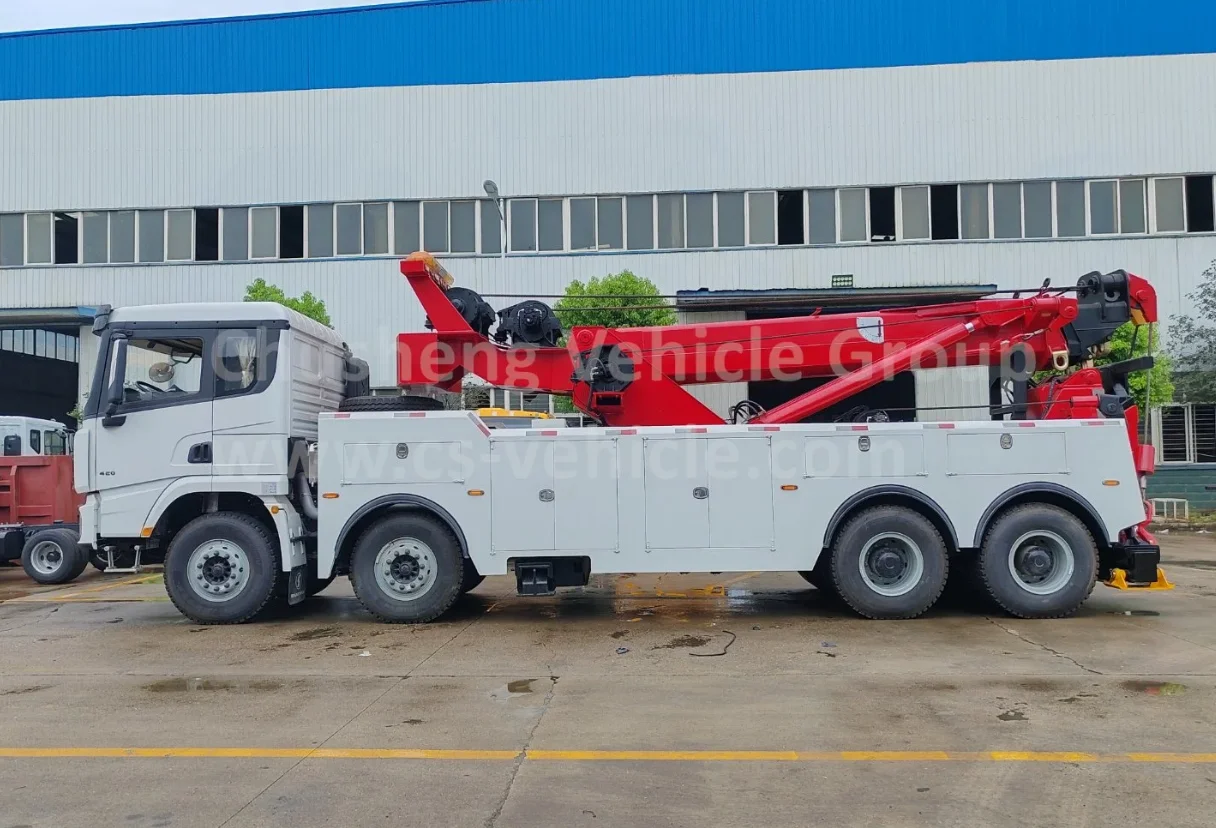

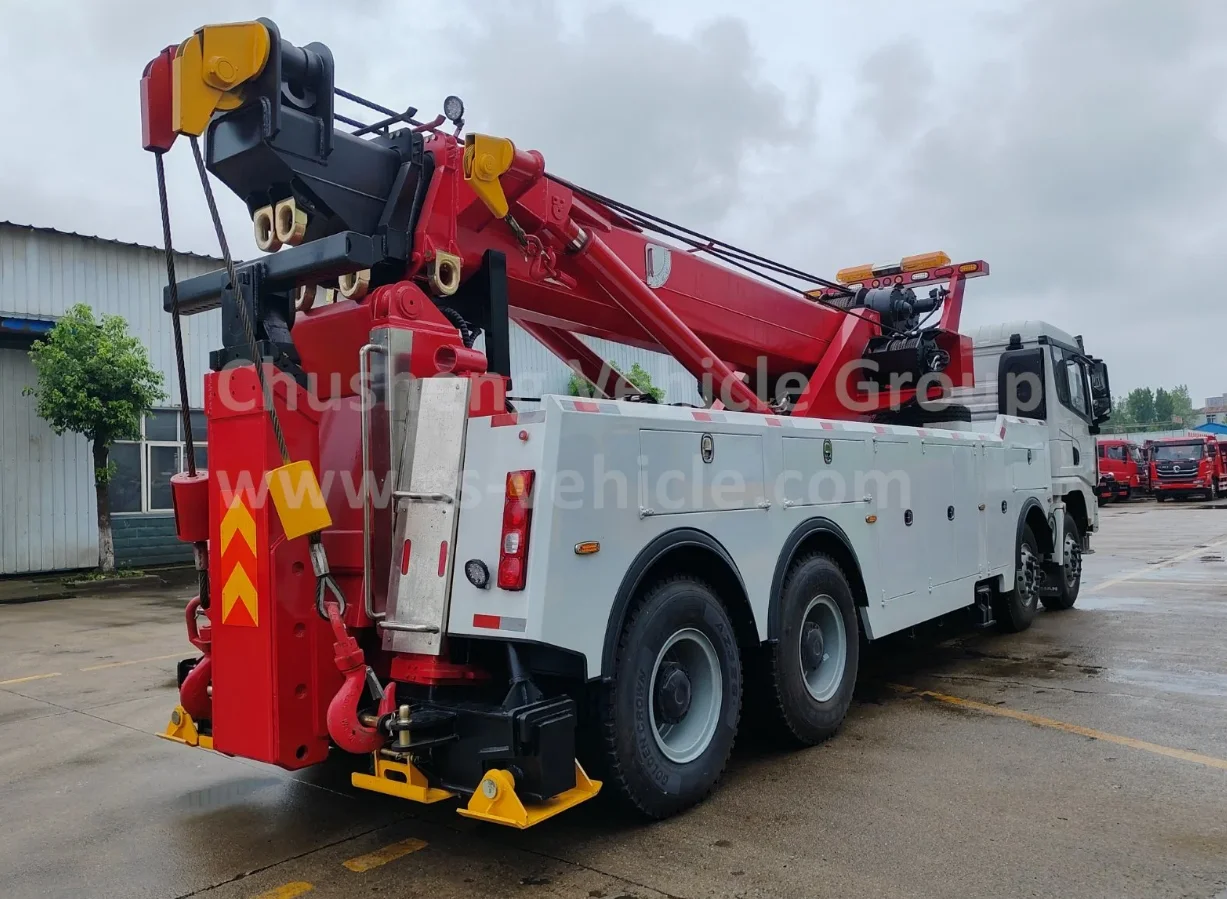

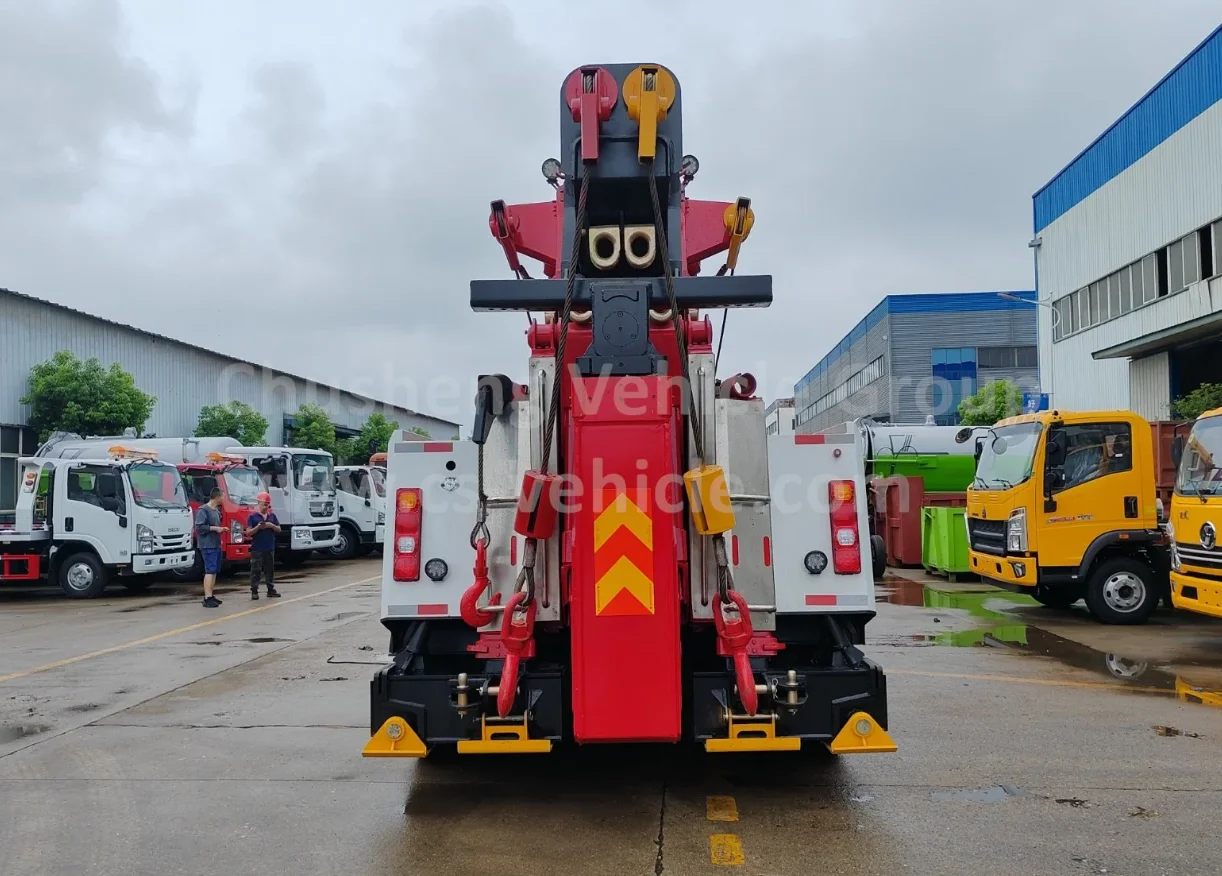

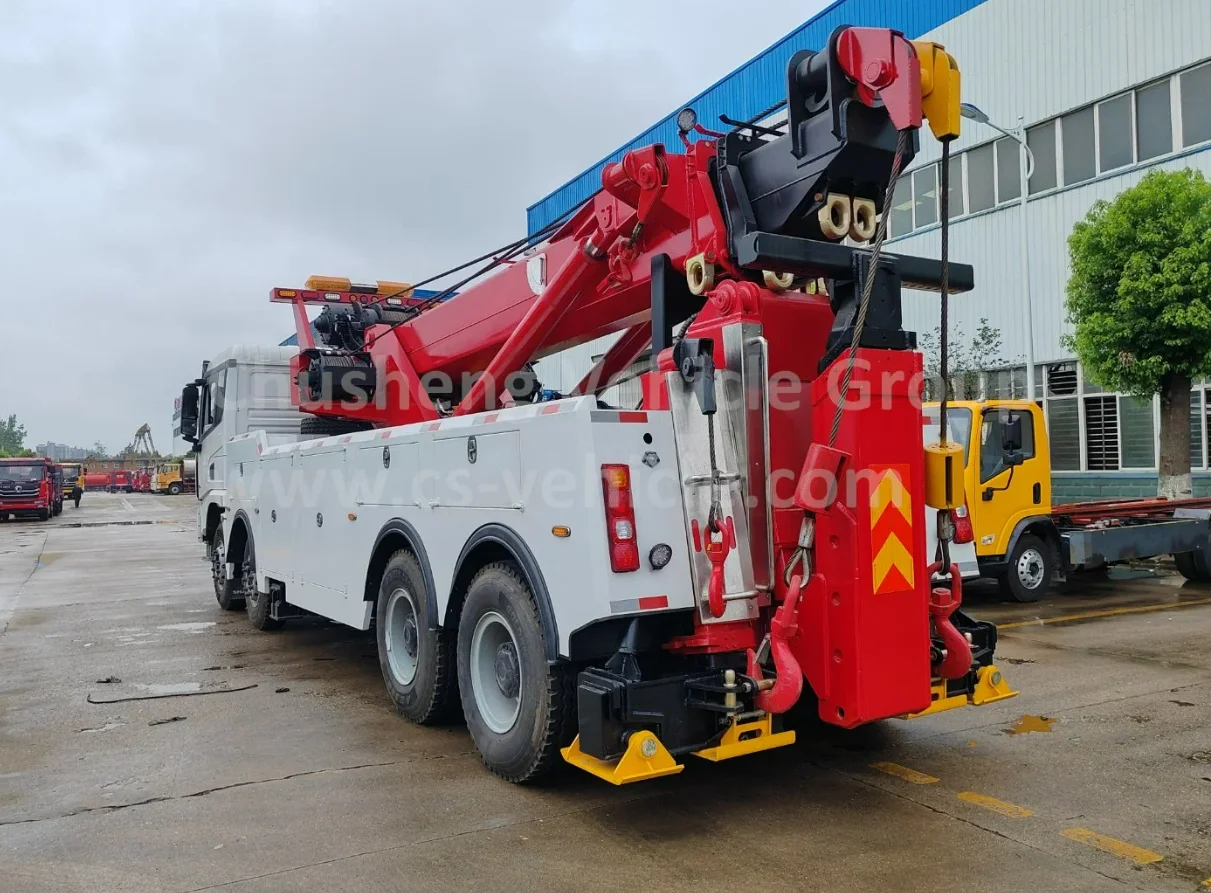

Above Shacman 8*4 wrecker towing truck is produced for Zambia road rescue company.
It has 30tons lifting capacity with 2*15tons winches, equipped with both manual and remote control switch.
Our factory have rich export experience for wrecker trucks in African and South American countries, such as Zambia, Zimbabwe, Mozambique, Nigeria, Chile, Guyana...
Specification
| Cabin | Driving type 8x4 | |||||||
| HW76 Cab, with A/C and one sleeper, 70°hydraulically tillable to the front.Right hand driven. | ||||||||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 12000×2500×3700 | ||||||
| Wheel base (mm) | 1800+4600+1350 | |||||||
| Wheel track (front/rear) (mm) | 2022/1830 | |||||||
| Weight in KGS | Tare Weight(KGS) | 26000 | ||||||
| Front axles loading capacity(KGS) | 2x7000 | |||||||
| Rear axles loading capacity(KGS) | 2x16000 | |||||||
| Max. driving speed(km/h) | 95 | |||||||
| Engine | Brand | SINOTRUK | ||||||
| Model | WD615.47 | |||||||
| Type | 4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||||||
| Horse Power(HP) | 371HP | |||||||
| Emission standard | Euro II | |||||||
| Gearbox | Hw19710, 10 speed forward and 2 reverse gear | |||||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |||||||
| Steering | ZF8098 | |||||||
| Oil tank | 400 liters | |||||||
| Tire | 12R22.5 tubeless tyre | |||||||
| Special Device For Wrecker System | ||||||||
| Hoisting Organ | Rated under-pulling capacity | 50000 | ||||||
| Max Under-hoisting Capacity (kg) | 25000 | |||||||
| Max Under-hoist length (mm) | 1850 | |||||||
| Under hoisting work angle | -10~85° | |||||||
| Lifting Organ | Max lifting capacity(kg) | 40000 | ||||||
| Max lifting high(mm) | 12000 | |||||||
| Telescope length(mm) | 6000 | |||||||
| Winch | 20KN×2 | |||||||
| Steel rope | 50M,Φ30 | |||||||
| Crane luffing angle | 5°~ 60° | |||||||
| Crane rotation angle | 360°All Rotation | |||||||
| Distance between front legs(mm) | 7000 | |||||||
| Landing Leg | Distance between rear legs(mm) | 4300 | ||||||
Company Information
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest
manufacturer with very professional experience in special automobile field for more than 15 years in China.
We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated
Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck,
Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation
Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
