Sulfide Gold Ore Sf Flotation Machine For Gold Mining Mini Flotation Machine Flotation Machine Lab
- Category: >>>
- Supplier: Jiangxi Province County Mining Machinery Factory
Share on (1601211166734):
Product Overview
Description
Products Description
◆ Introduction
Flotation machine, in the ore dressing, mainly used for separating copper, zinc, lead, nickel, gold and other Non-ferrous metal, can also be used for Ferrous, non-metallic crude and selected.
After mixing the crushed ore with water and flotation reagent, the ore is mixed into a slurry tank, which is filled with air to form a large number of air bubbles. Some mineral particles which are not easily wet by water attach to the air bubbles and float to the surface of the pulp together with the air bubbles The formation of mineralized bubble layer, some easy to be water wet, hydrophilic mineral particles not attached to the bubble, and stay in the pulp, will contain specific minerals mineralized bubble discharge, so as to achieve the goal of mineral processing.
◆ Features
1. High flotation efficiency and low energy consumption.
2. Long Service Life of wearing parts.
3. The flotation machine is equipped with high self-configuration, and has the functions of suction, Pulp Suction, and flotation, and does not need any auxiliary equipment.
4. Mechanical Mixing, easy to operate and adjust.
5. It can combine with other mineral equipment, sand making machine, sand washing machine to separate ore, the effect is better.
2. Long Service Life of wearing parts.
3. The flotation machine is equipped with high self-configuration, and has the functions of suction, Pulp Suction, and flotation, and does not need any auxiliary equipment.
4. Mechanical Mixing, easy to operate and adjust.
5. It can combine with other mineral equipment, sand making machine, sand washing machine to separate ore, the effect is better.
◆ Working principle
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.
◆ Product Structure
The metallurgist flotation mainly made up of slurry-supporting Trough, mixing device, aeration device, mineralized bubble discharging device and motor. Flotation cell is mainly used to select nonferrous metals such as copper, zinc, lead, nickel, gold, etc., and also be used for coarse selection and selection of black metal and nonmetal.
With the poor, fine, hybridized primary mineral resources and the increasing complexity of mineral processing technology, energy consumption and production costs, it is necessary to strengthen the research of flotation equipment in the following aspects. JXSC, focus on the mineral equipment business since 1985, CE, SGS certified.
With the poor, fine, hybridized primary mineral resources and the increasing complexity of mineral processing technology, energy consumption and production costs, it is necessary to strengthen the research of flotation equipment in the following aspects. JXSC, focus on the mineral equipment business since 1985, CE, SGS certified.
Product Paramenters
we can choose the model according processing capacity and mineral particle size. The best feeding size is 200 mesh account for 80% or more.
Model | Volume | Cell size | Impeller Dia. | Impeller speed | Capacity | Power | Singe cell weight |
Unit | m3 | mm | mm | r/min | m3/min | kw | kg |
XJK-3A | 0.35 | 700×700×700 | 300 | 483 | 0.18-0.4 | 2.2/0.55 | 430 |
XJK-4A | 0.62 | 820×900×850 | 350 | 400 | 0.3-0.9 | 3/1.1 | 755 |
XJK-5A | 1.1 | 1100×1100×1000 | 500 | 330 | 0.6-1.6 | 5.5/1.1 | 1416 |
XJK-6A | 2.8 | 1750×1600×1100 | 600 | 280 | 1.5-3.5 | 11/1.1 | 2113 |
XJK-7A | 5.8 | 2200×2200×1200 | 750 | 240 | 3–7 | 22/1.5 | 3400 |
SF-0.37 | 0.37 | 700×700×750 | 296 | 386 | 0.2-0.4 | 1.5/0.55 | 468 |
SF-0.7 | 0.7 | 820×900×950 | 350 | 400 | 0.3-0.9 | 3/1.1 | 805 |
SF-1.2 | 1.2 | 1100×1100×1100 | 450 | 312 | 0.6-1.2 | 5.5/1.1 | 1373 |
SF-2.8 | 2.8 | 1700×1600×1150 | 550 | 268 | 1.5-3.5 | 11/1.5 | 2138 |
SF-4 | 4 | 1850×2050×1200 | 650 | 220 | 2–4 | 15/1.5 | 2582 |
SF-8 | 8 | 2200×2900×1400 | 760 | 191 | 4–8 | 30/1.5 | 4129 |
SF-10 | 10 | 2200×2900×1700 | 760 | 191 | 5–10 | 30/1.5 | 4486 |
SF-16 | 16 | 2850×3800×1700 | 760 | 191 | 5–16 | 30×2/1.5 | 8320 |
SF-20 | 20 | 2850×3800×2000 | 760 | 191 | 5–20 | 30×2/1.5 | 9828 |

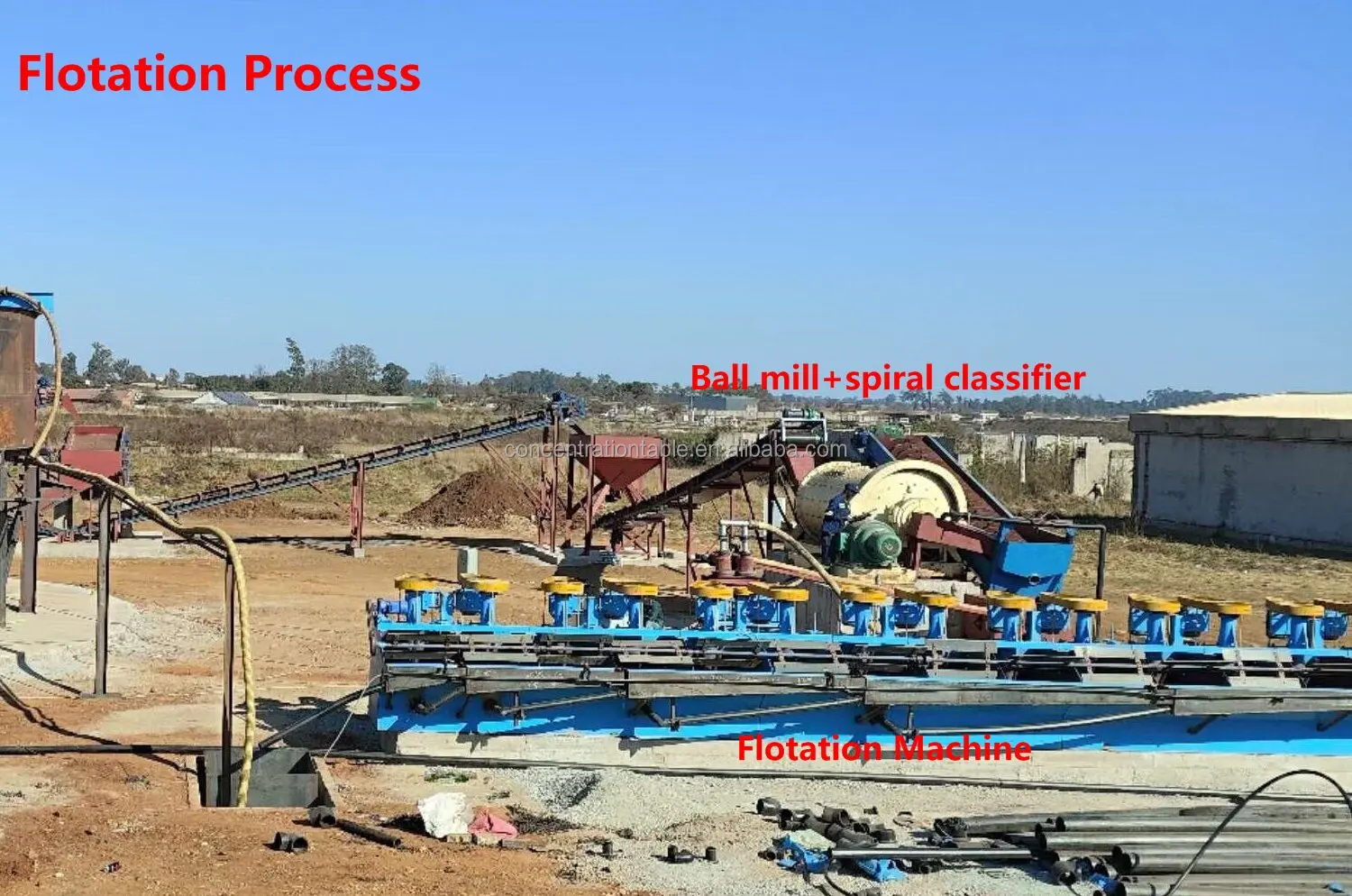

Successful Project

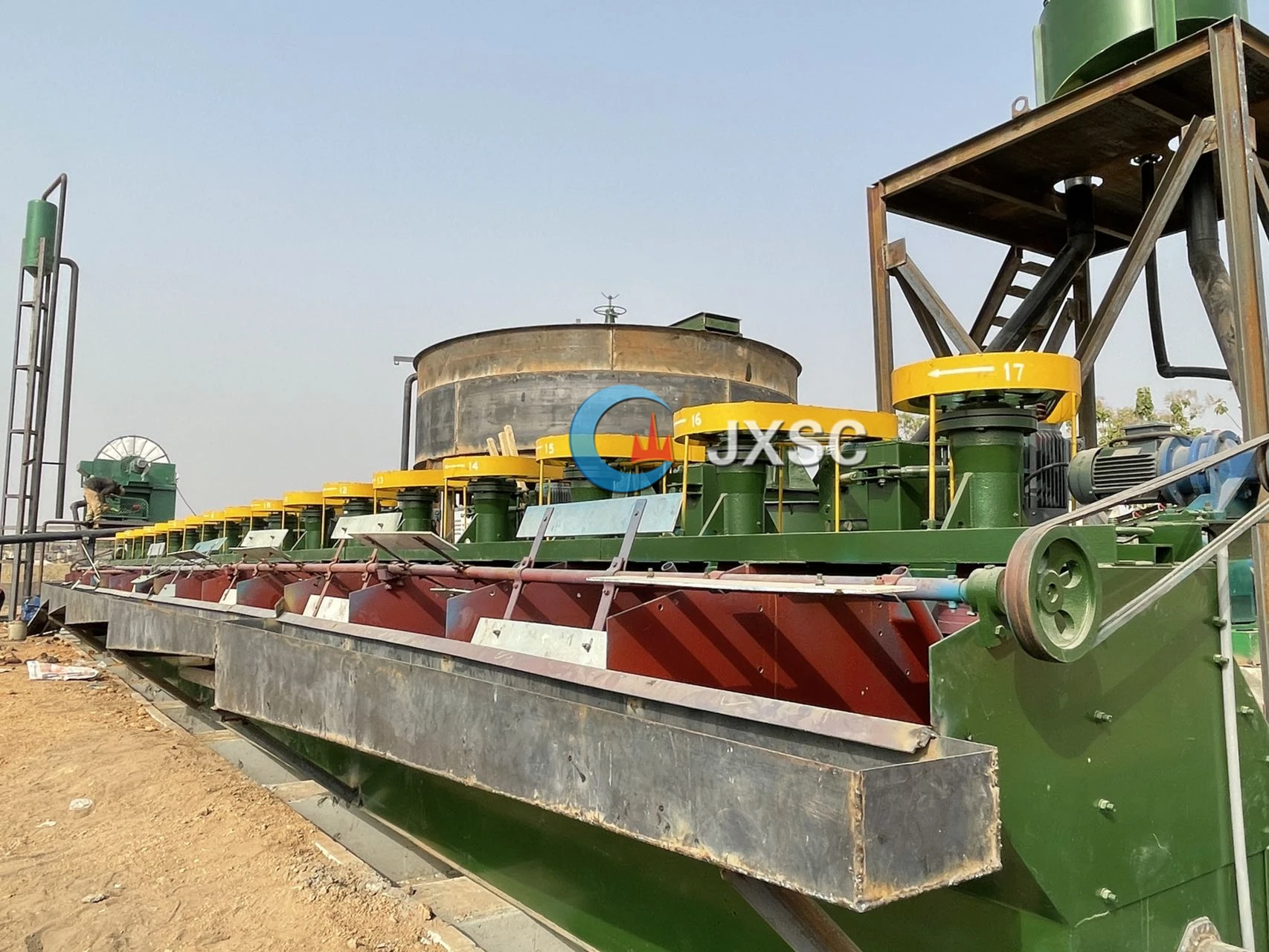

◆ JXSC Flotation Machine Application - 120TPD Lithium/Copper Processing Project
1) JXSC designed the flowchart and plants layout drawing for this customer.
2) JXSC supplied full sets of equipment for the whole processing line,including flotation machine,crusher, grinding machine etc.
3) JXSC dispatched our Engineer for guiding installation at customer's project site.
◆ JXSC Flotation Machine Application - 120TPD Lithium Processing Project
1) JXSC designed the flowchart and plants layout drawing for this customer.
2) JXSC supplied full sets of equipment for the whole processing line,including flotation machine,crushing, grinding ,feeding etc
3) JXSC dispatched our Engineer guiding installation at customer's project site.

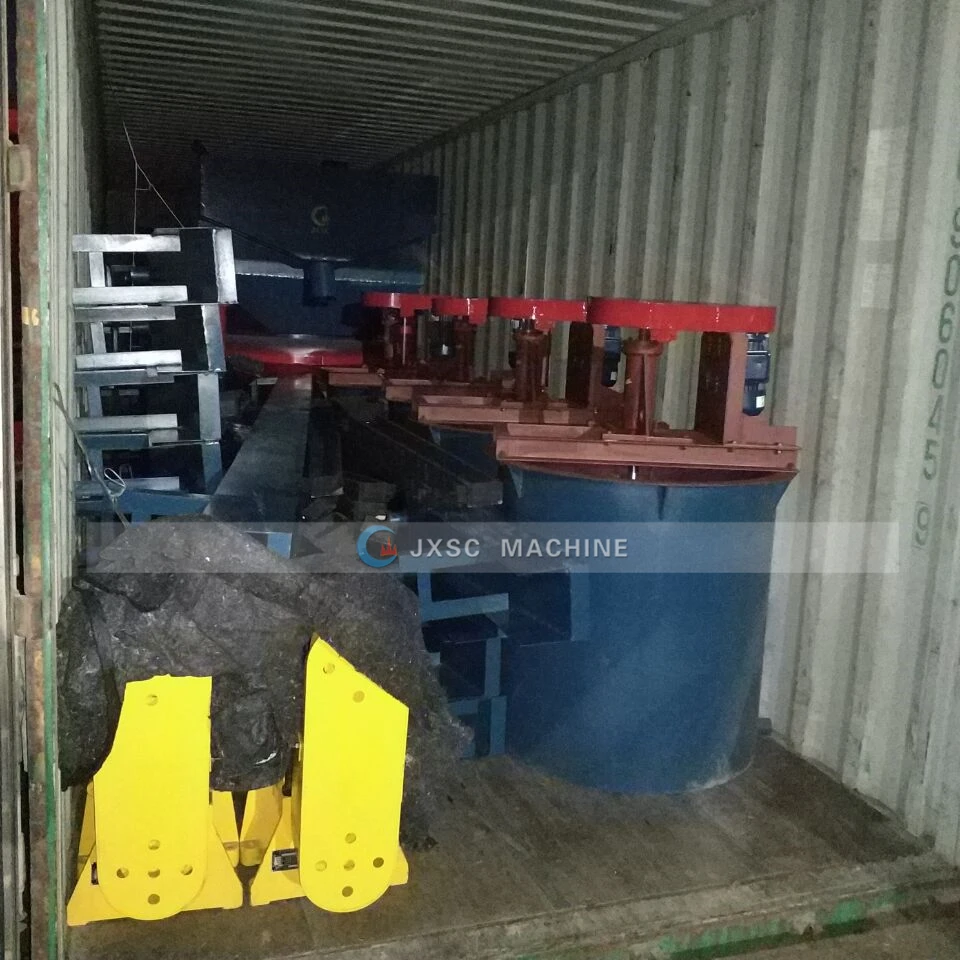

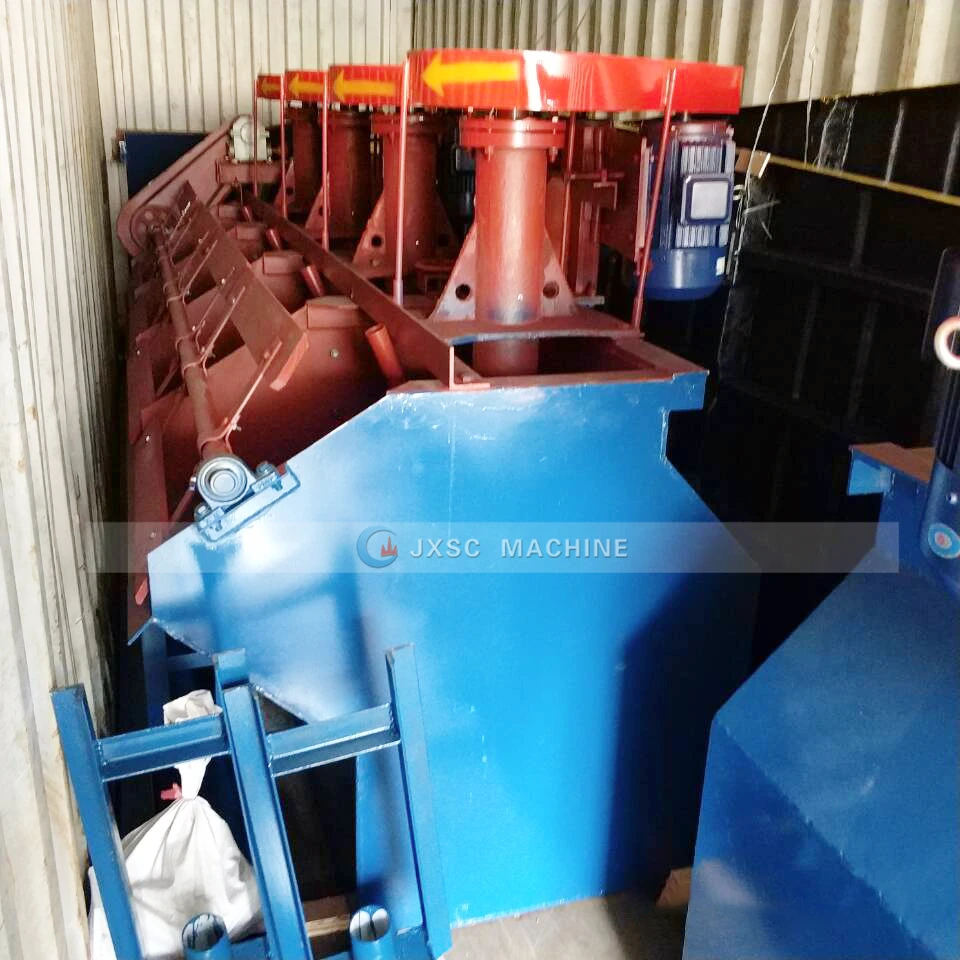

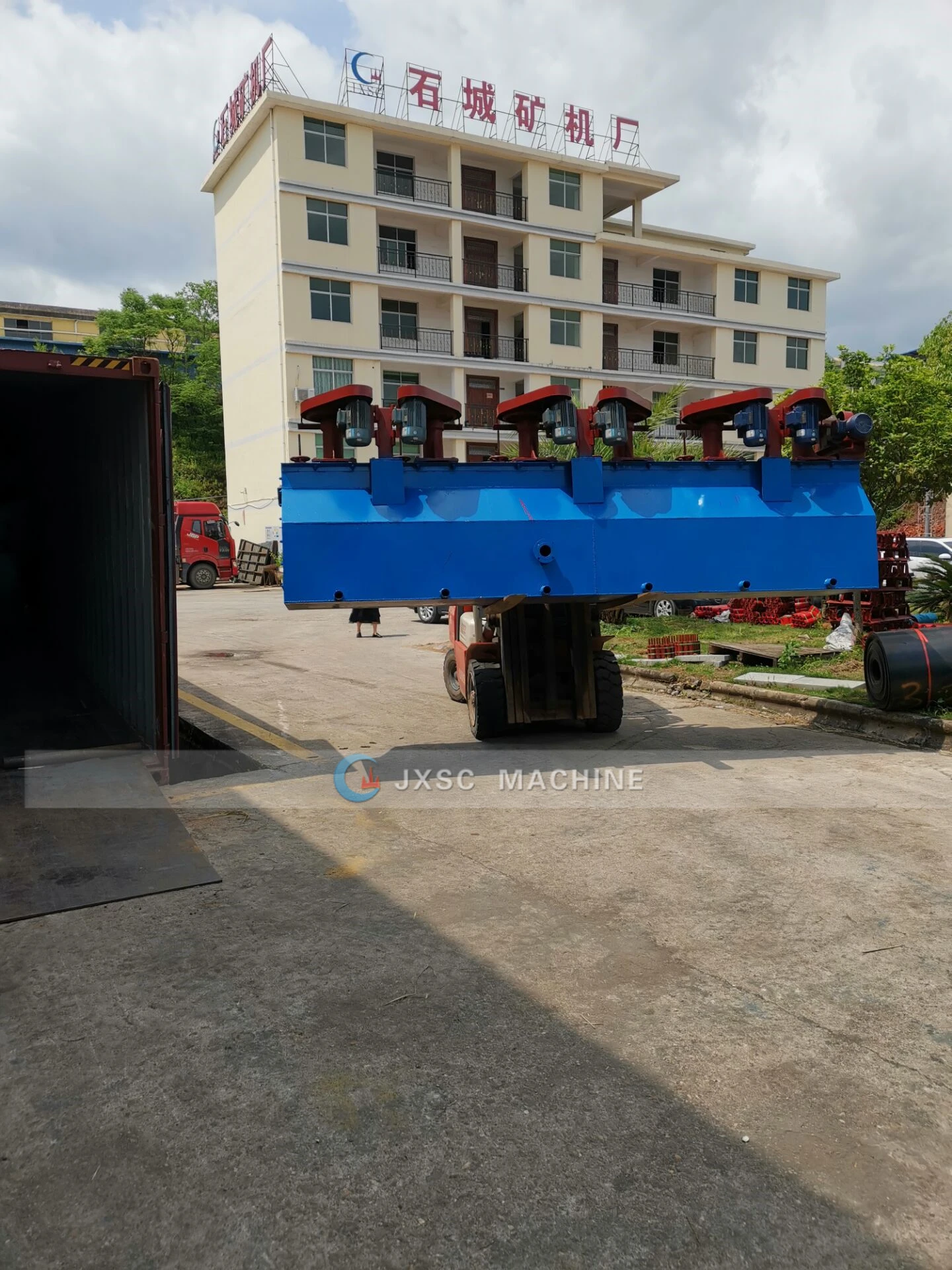

Packing and Delivery
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.

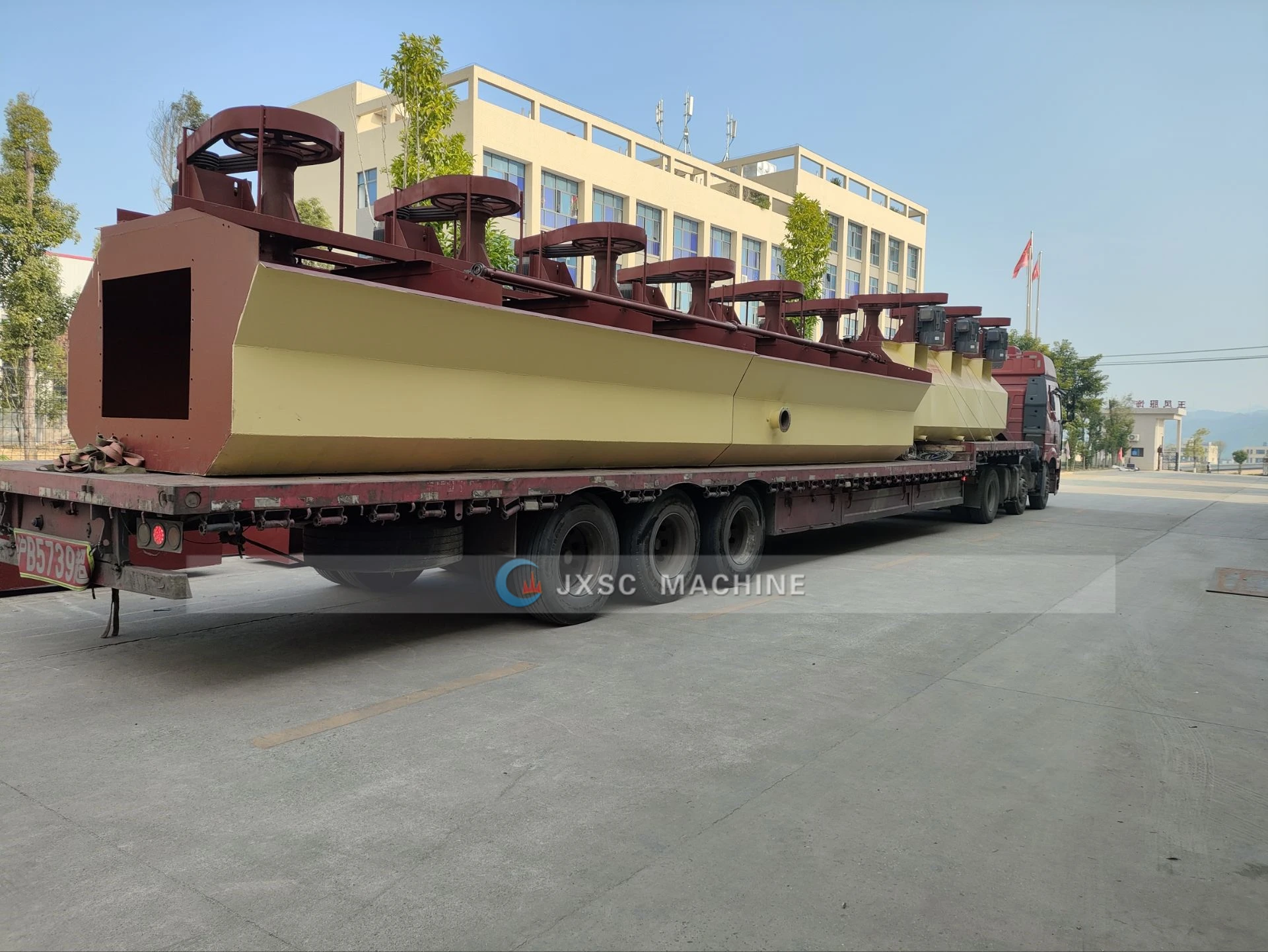

● Shiping by sea/air freight
or any way the customer requires.
Who We Are
Jiangxi Province County Mining Machinery Factory is a leading mining machinery manufacturer with over 39 years experiences, providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore /Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore/Cobalt ore/Antimony ore, ect. As well as complete set small laboratory mining machines.
Main product including: trommel screen, trommel scrubber, shaker table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, jaw crusher, hammer crusher ,ball mill, flotation machine, spiral classifier, as well complete set small laboratory mining equipment.
*Inquiry and consulting support
*Ore sample testing support
*View our Factory
*Design Flowchart
*Ore sample testing support
*View our Factory
*Design Flowchart
* Training how to instal the machine, training how to use the machine.
* 1 year warranty
* Engineers available to service machinery overseas.
* 1 year warranty
* Engineers available to service machinery overseas.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we
made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our
price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice;Finished product pictures will be provided to customers before delivery.
