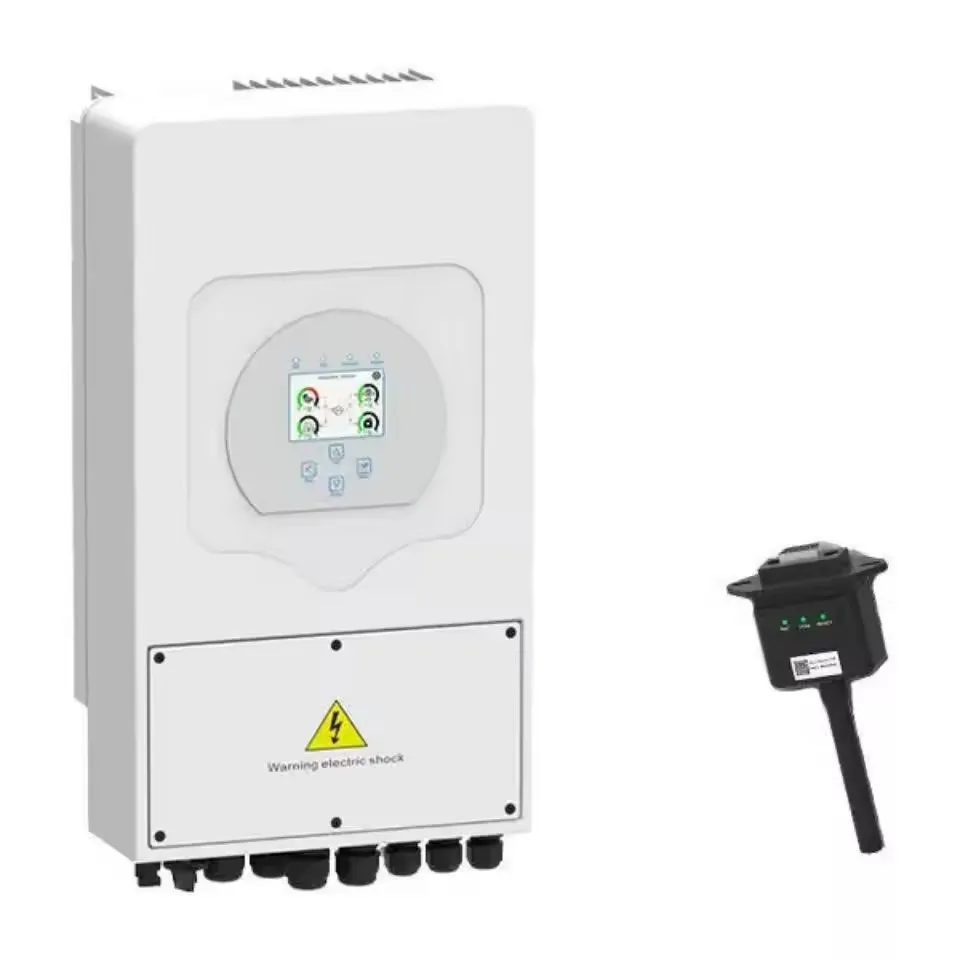

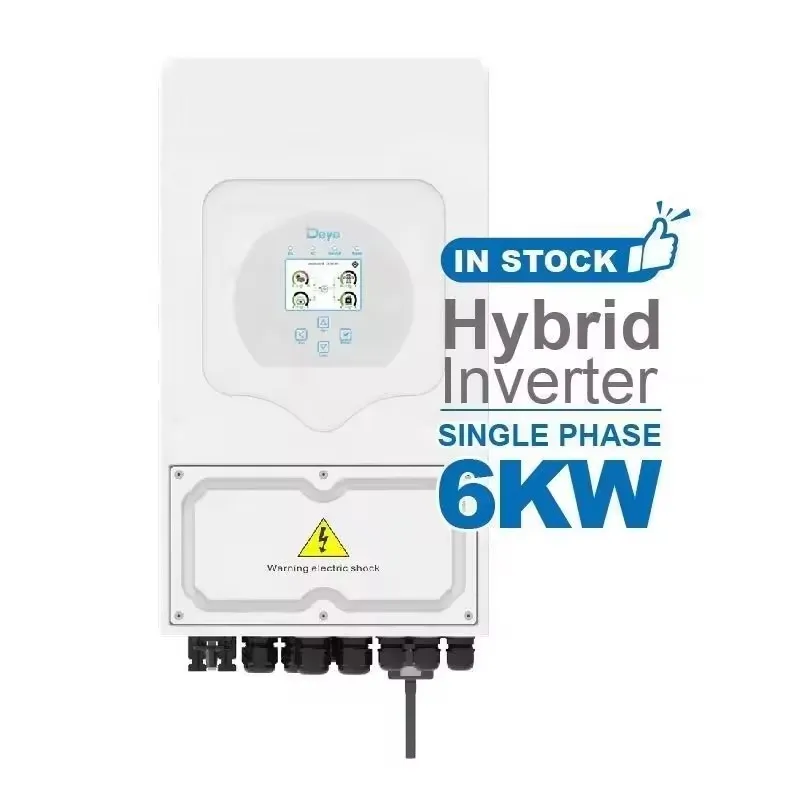

Single phase hybrid inverter Deye SUN 6K SG05LP1 EU 40 60v LV Battery supported Hybrid Solar Inverter Deye 3.6kw 5kw 6Kw 7kw 8kw
- Category: >>>
- Supplier: Sunpro Energy Tech Co. Ltd.
Share on (1601211182914):
Product Overview
Description
Model | SUN-3.6K -SG05LP1-EU | SUN-5K -SG05LP1-EU | SUN-6K -SG05LP1-EU | SUN-7.6K-SG05LP1-EU | SUN-8K-SG05LP1-EU | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 40-60 | |||||||||
Max. Charging Current (A) | 90 | 120 | 135 | 190 | 190 | |||||
Max. Discharging Current (A) | 90 | 120 | 135 | 190 | 190 | |||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||||||
Number of Battery Input | 1 | |||||||||
PV String Input Data | ||||||||||
Max. PV Input Power (W) | 4680 | 6500 | 7800 | 9880 | 10400 | |||||
Max. PV Input Voltage (V) | 500 | |||||||||
Start-up Voltage (V) | 125 | |||||||||
MPPT Voltage Range (V) | 150-425 | |||||||||
Rated PV Input Voltage (V) | 370 | |||||||||
Max. Operating PV Input Current (A) | 13+13 | 26+26 | ||||||||
Max. Input Short-Circuit Current (A) | 17+17 | 34+34 | ||||||||
No. of MPP Trackers/ No. of Strings per MPP Tracker | 2/1+1 | 2/2+2 | ||||||||
Communication Interface | RS485/RS232/CAN | |||||||||
General Data | ||||||||||
Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||||||||
Cabinet Size (WxHxD mm)(Excluding Connectors and Brackets) | 330×580×232 | |||||||||
Weight (kg) | 24.9 | |||||||||
Permissible Altitude | 2000m | |||||||||
Noise (dB) | <30 | |||||||||
SOLAR MAN

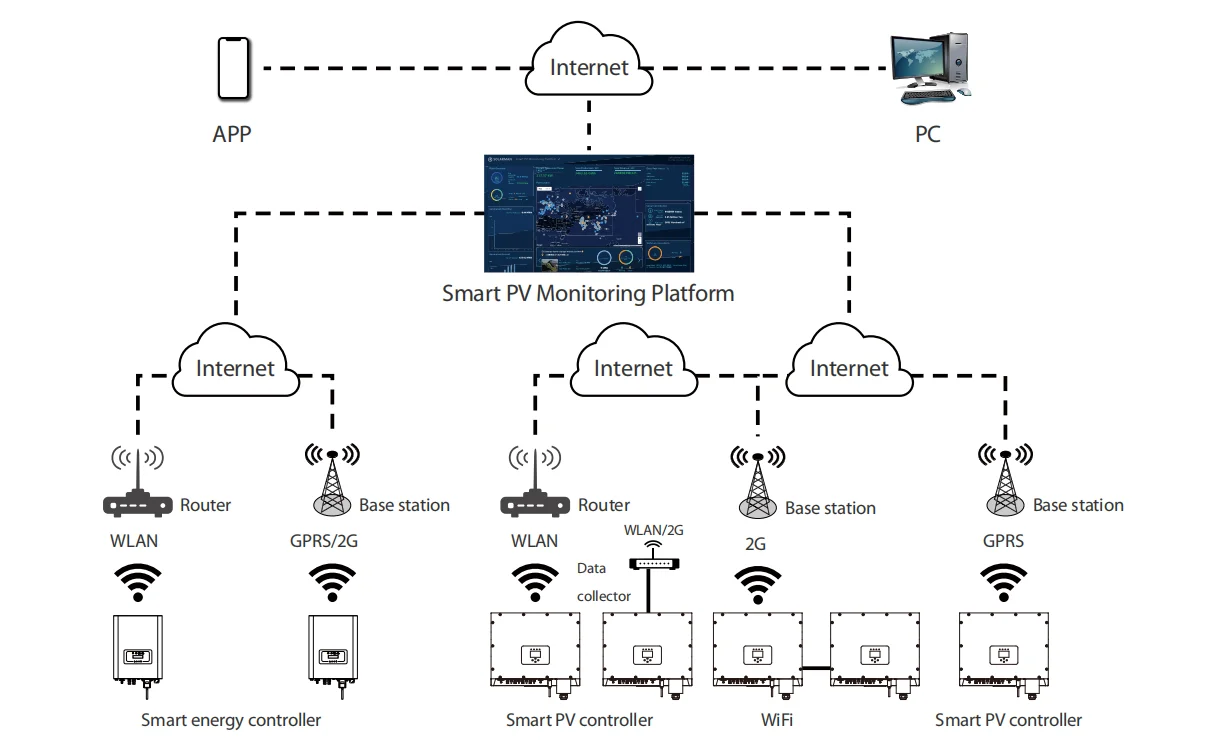

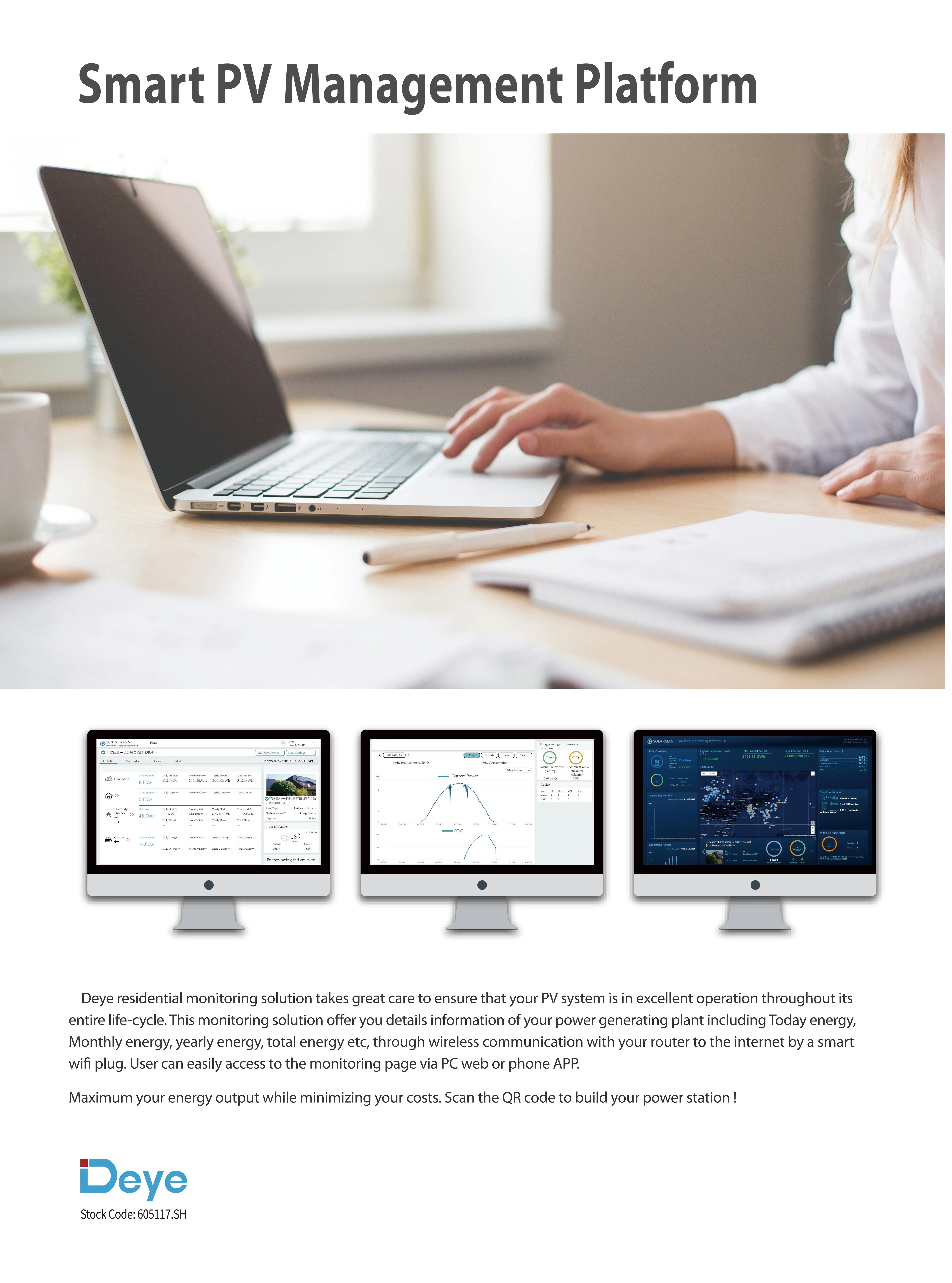

Deye residential monitoring solution takes great care to ensure that your PV system is in excellent operation throughout its entire life-cycle. This monitoring solution offer you details information of your power generating plant including Today energy, Monthly energy, yearly energy, total energy etc, through wireless communication with your router to the internet by a smart wifi plug. User can easily access to the monitoring page via PC web or phone APP.
Maximum your energy output while minimizing your costs. Scan the QR code to build your power station !
Maximum your energy output while minimizing your costs. Scan the QR code to build your power station !
1. What is your pricing strategy?
For overseas markets, we will offer competitive prices to support a strong distributor in every area, and gradually establish overseas service agency, as a good opportunity, some long-term cooperation partners will cooperate with us to sign the annual cooperation agreement (including execution price).
2. How about quality control?
OS9002 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links efectively , so we can provide competitive price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available and welcome

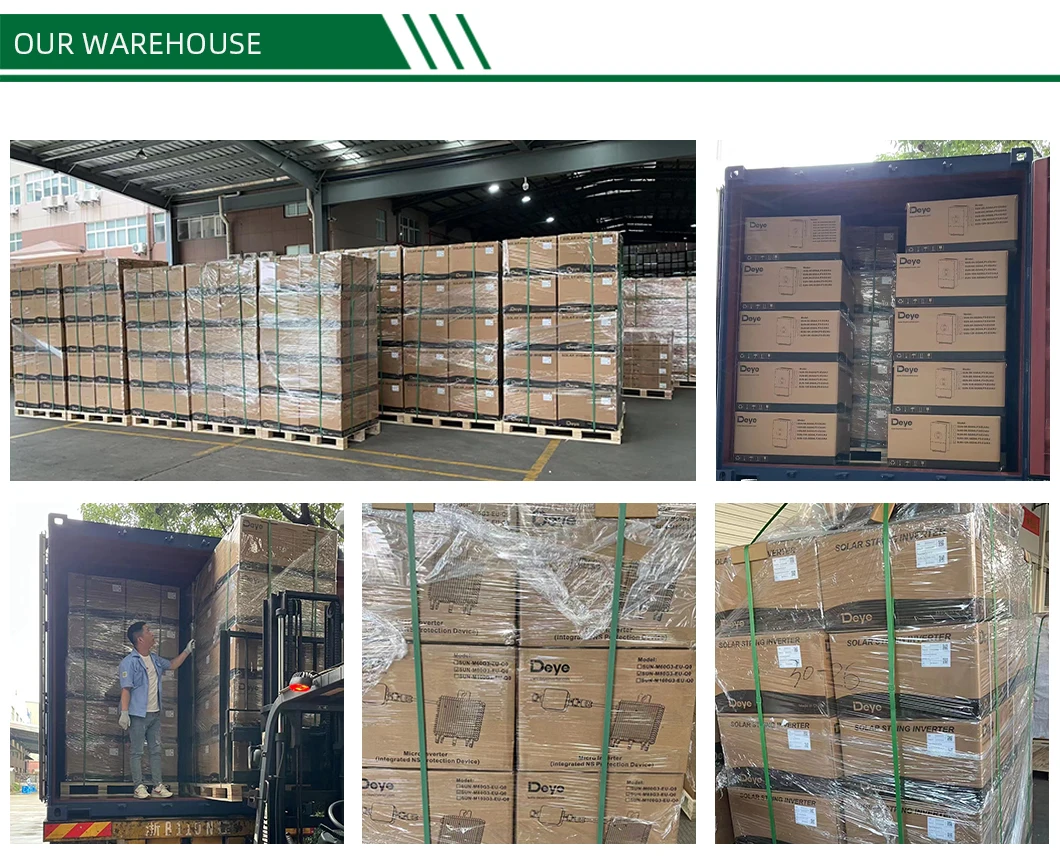

3. How to deliver?
We can make delivery by air or by sea, you are suggest to choose delivery by sea to reduce cost for order over 10 sets
