 Graphite ore process plant

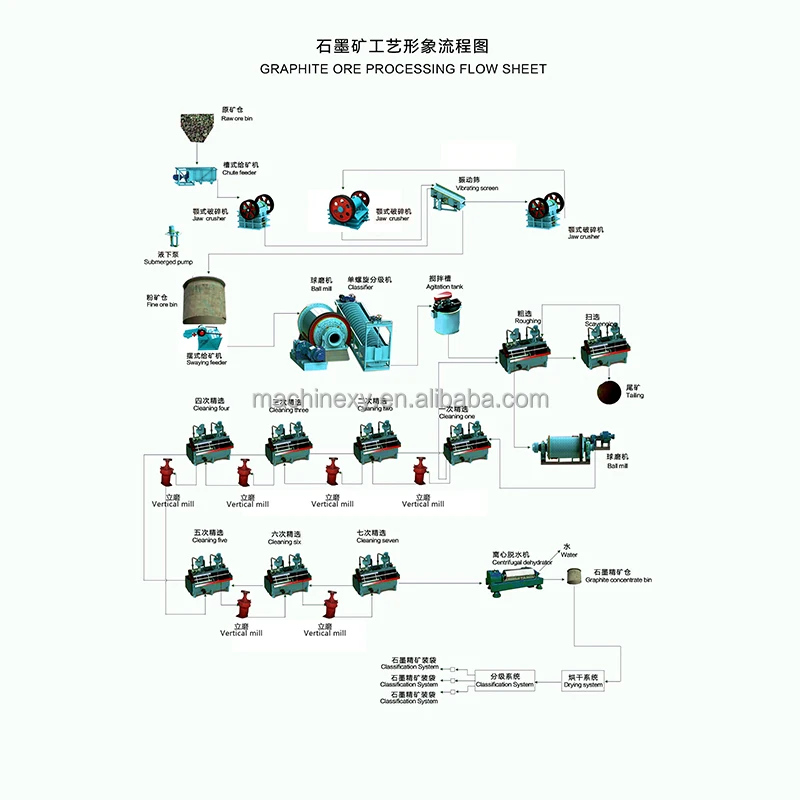

Graphite ore flotation machine process production line:



It mainly contains 4 parts of the beneficiation stage:



1) crushing stage



2) grinding and separating stage



3) mixing and flotation stage



4) filtering and drying.



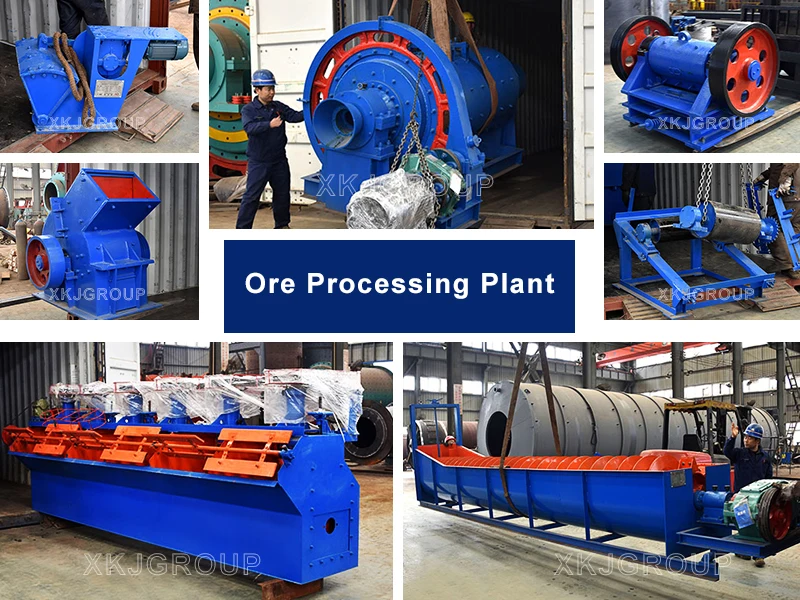

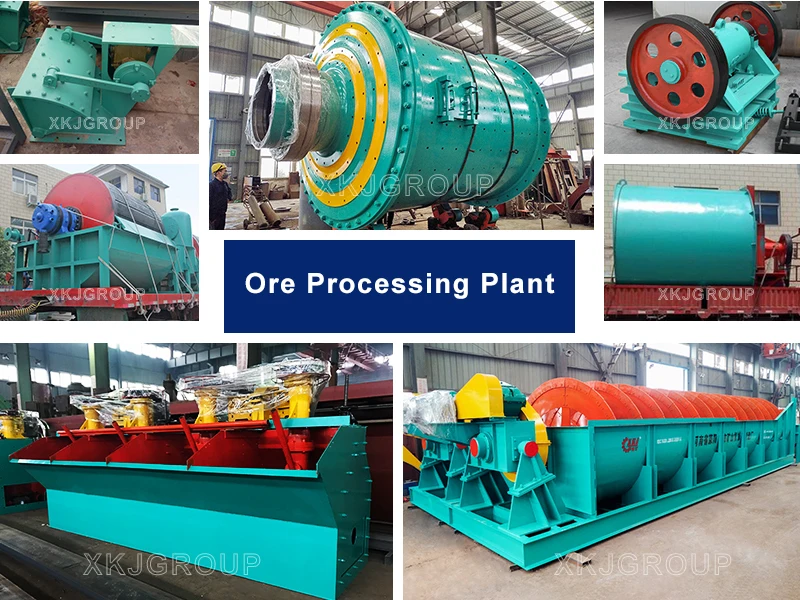

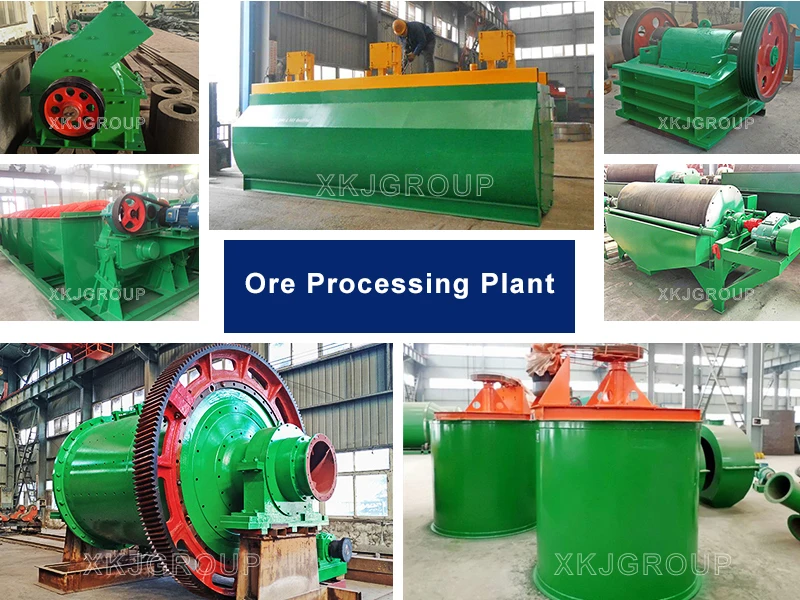

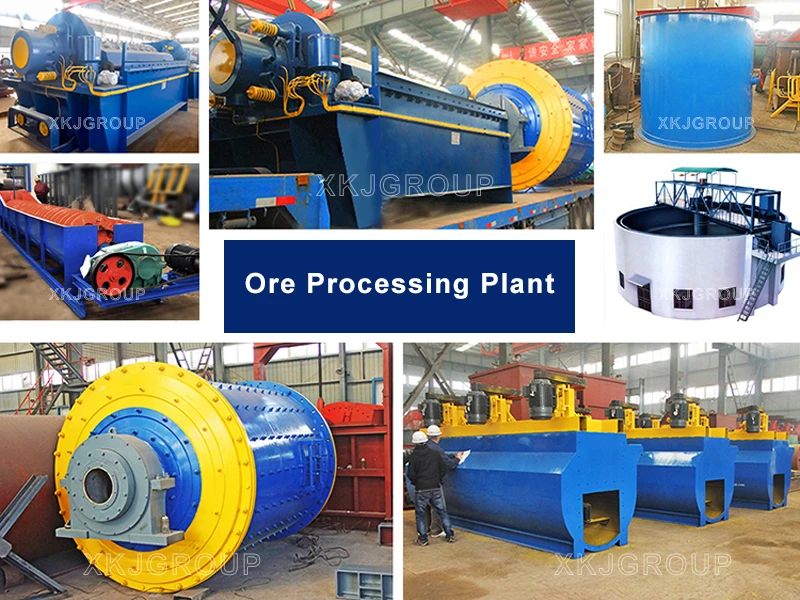

1. Chute feeder  2. Jaw crusher  3. Fine crushr or cone crusher  4. belt conveyor  5. iron remover  6. vibrating screen  7. fine ore bin----swaying feeder  8. ball mill  9. spiral classifier or hydrocyclone  10. agitation tank  11. flotation cell  12 thickener  13 filter press 14.rotary dryer  15.Pakcing machine



25TPD ore Graphite ore processing plant







300TPD Graphite ore processing plant





 500TPD  Graphite ore processing plant





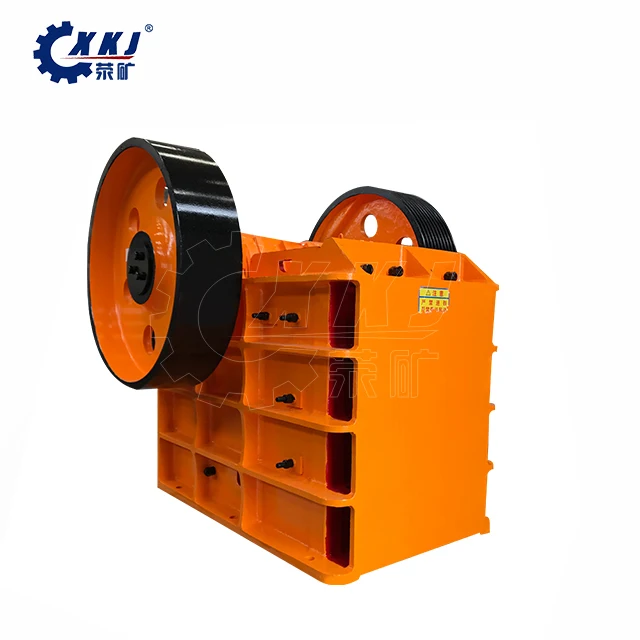

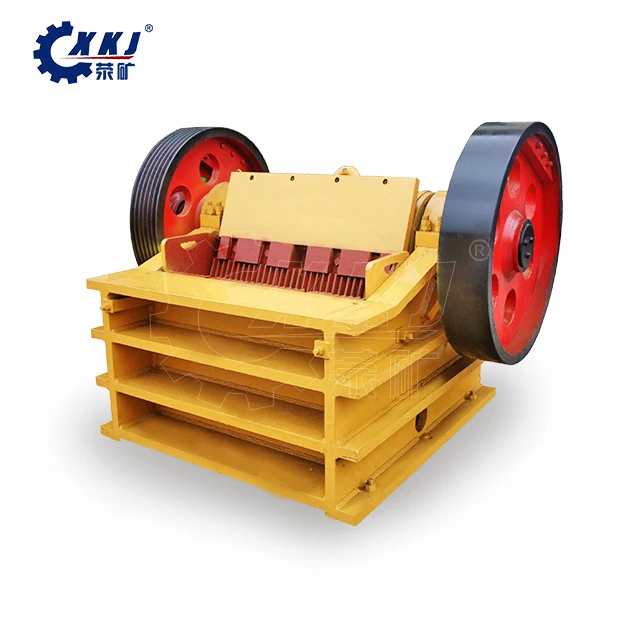

PE series crusher to crush the run-ore into small block, working at 8-10 hours one day. The crushed material is transported by belt conveyor to next stage, usually the ore store in storage for grinding. We hold the more crush less grinding to prolong the service time of the Ball mill. Also the capacity will extend the design ability.

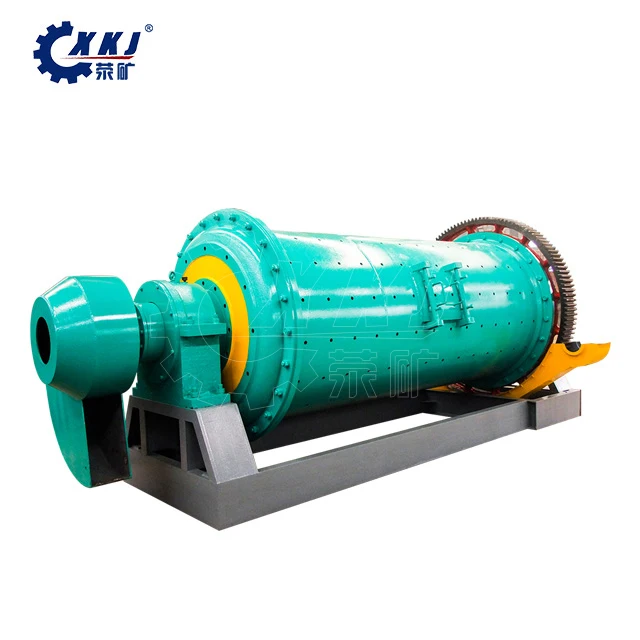

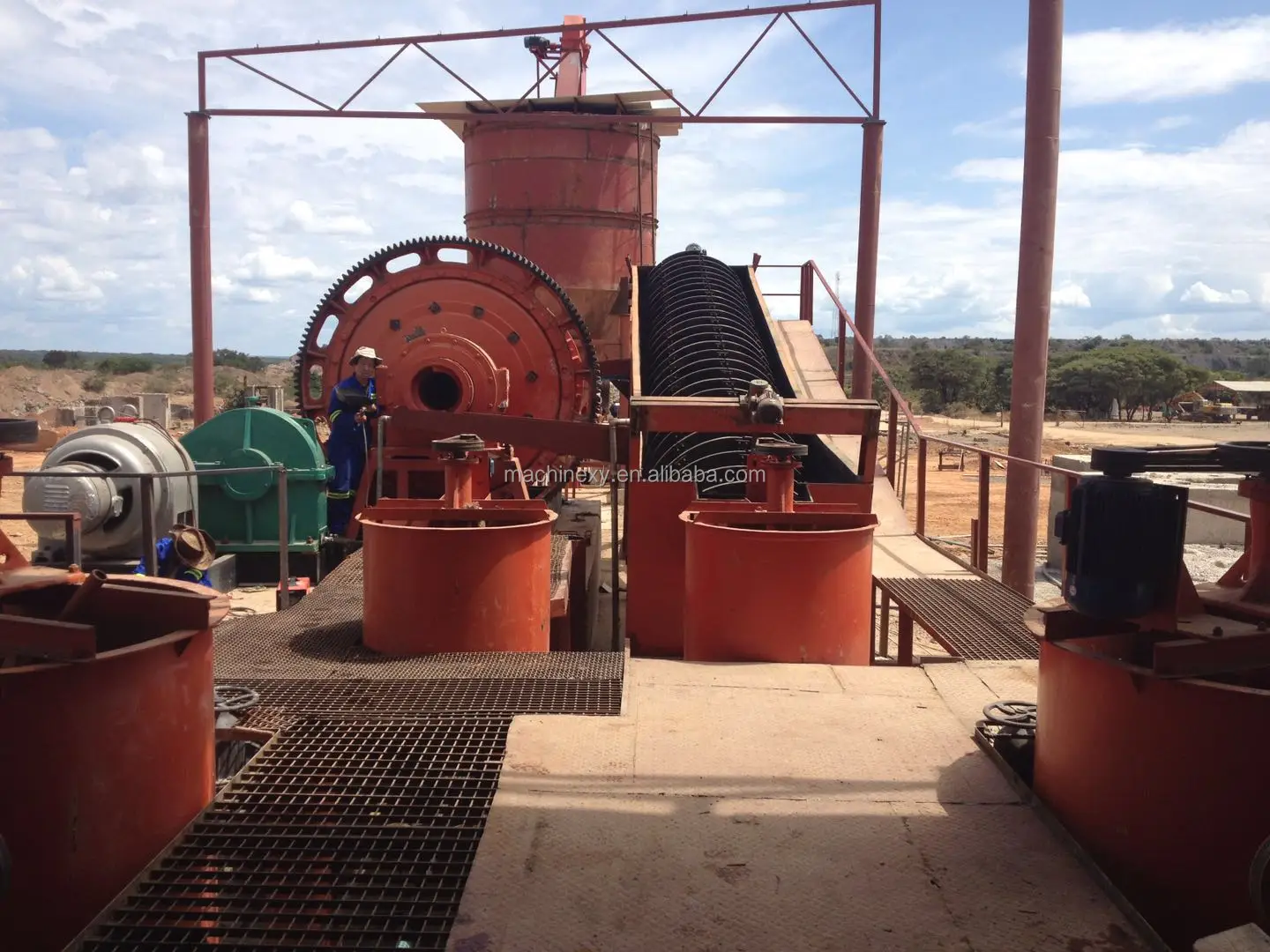

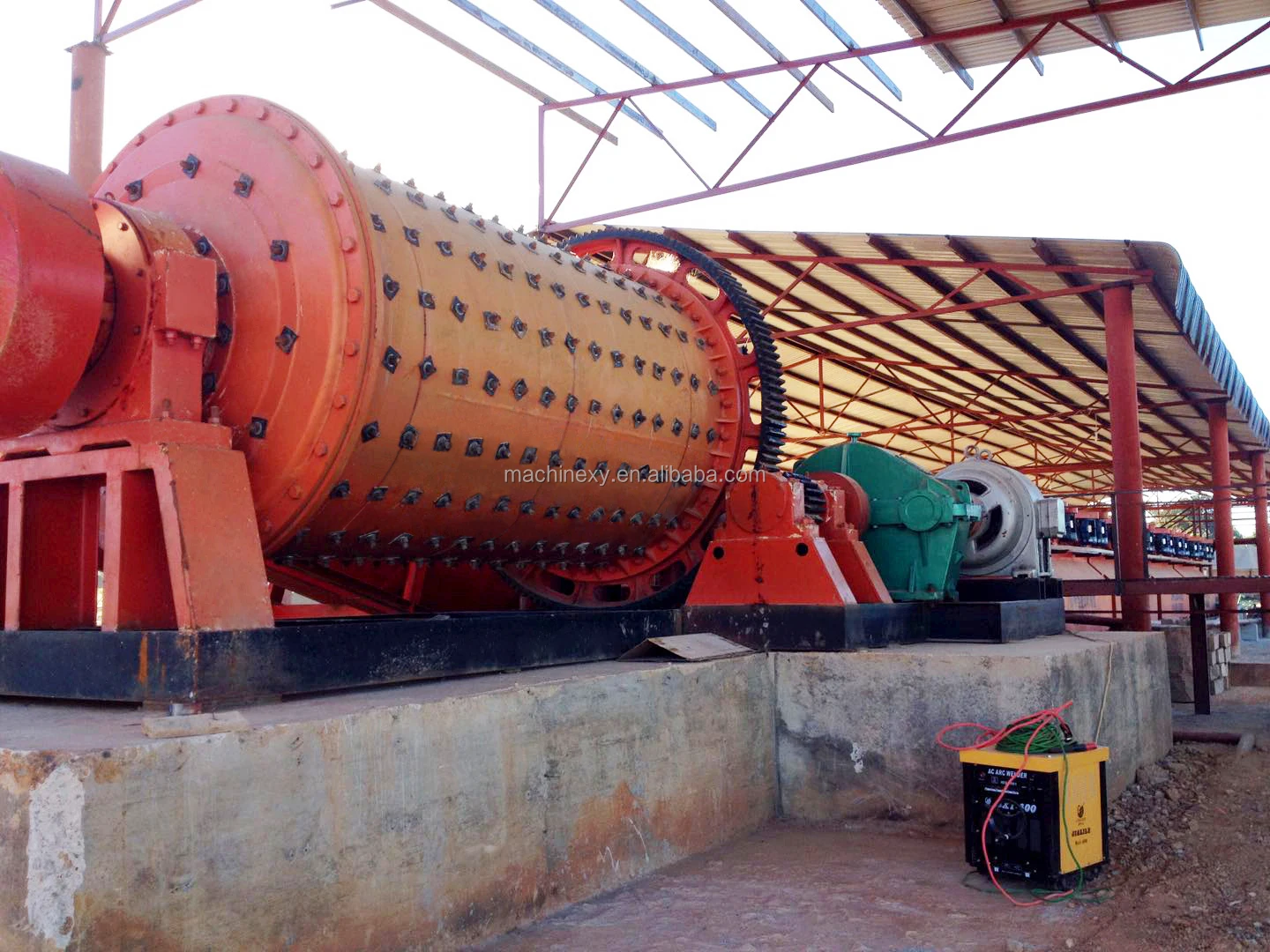

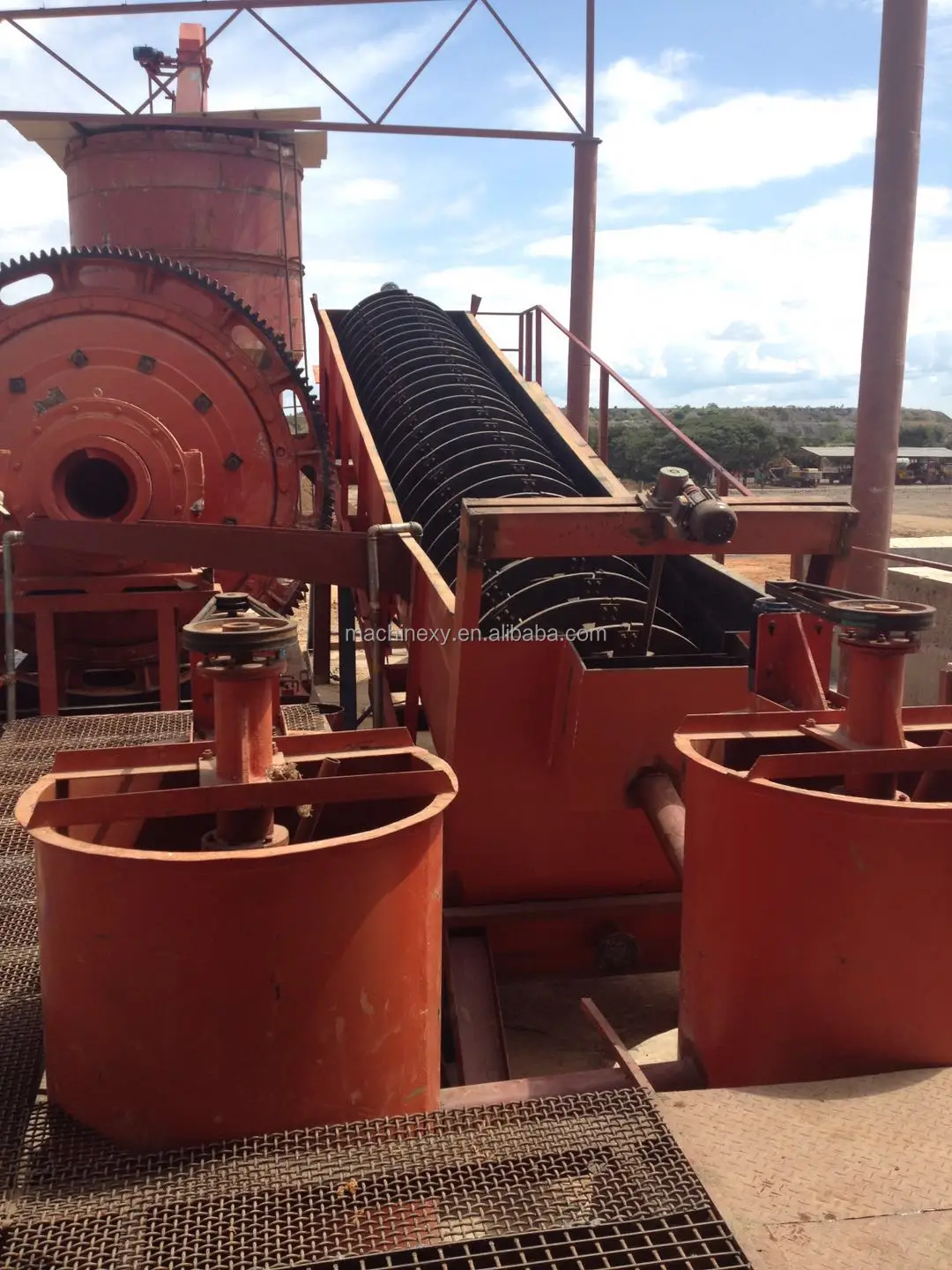

The Ball mill’s working atmosphere is wet, the water and crushed material will be grinded in the Ball mill, the spiral classifier with Ball mill makes a closed circuit, after spiral classifier’s classifying, the relatively big granularity will flow back to Ball mill, and standard size (120 mesh) will go to agitation tank and flotation machine for separating. This stage works for 24 hours in three shifts. The spiral classifier can be replaced by cyclone. The spiral classifier is more durable. The graphite ore materail, it need more stage grinding and flotation .





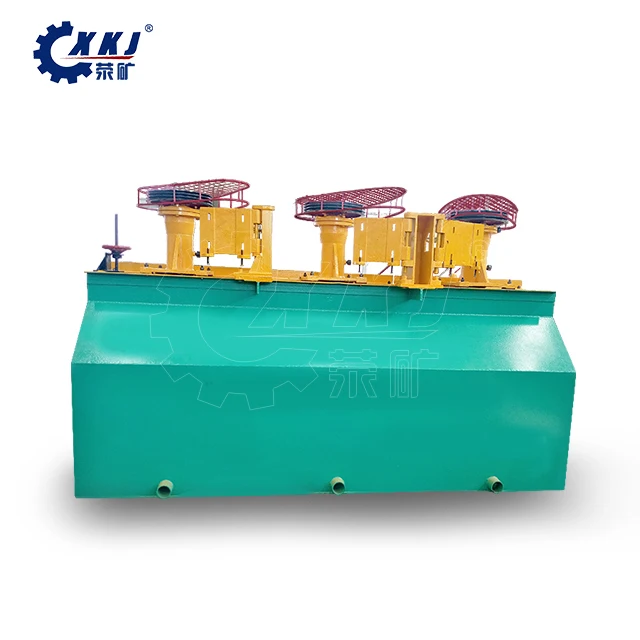

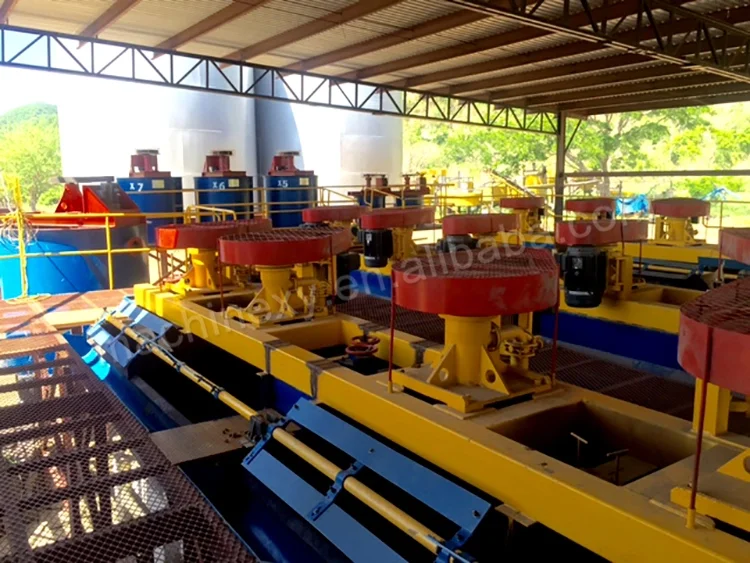

The slurry after treatment will go to the flotation machine for further separating. The slurry flow to the agitation tank to mix the chemicals and the in the flotation machine, the metal will attach on the bubbles, and bring by the scraper. It works for 24 hours in three shifts.

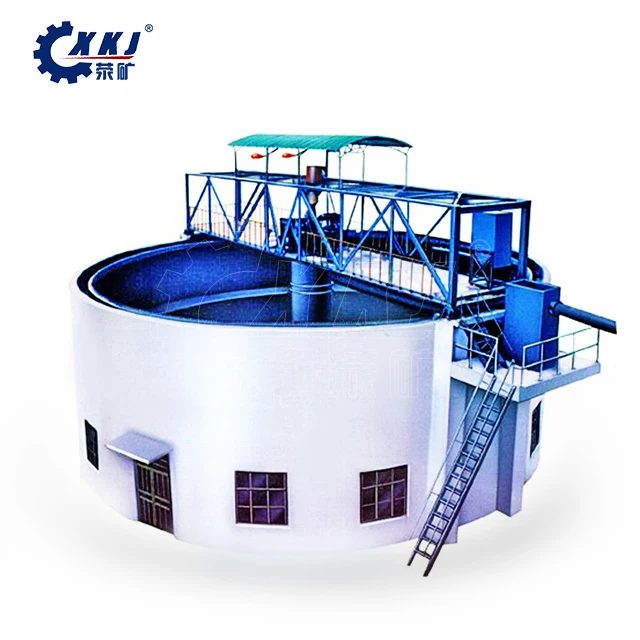

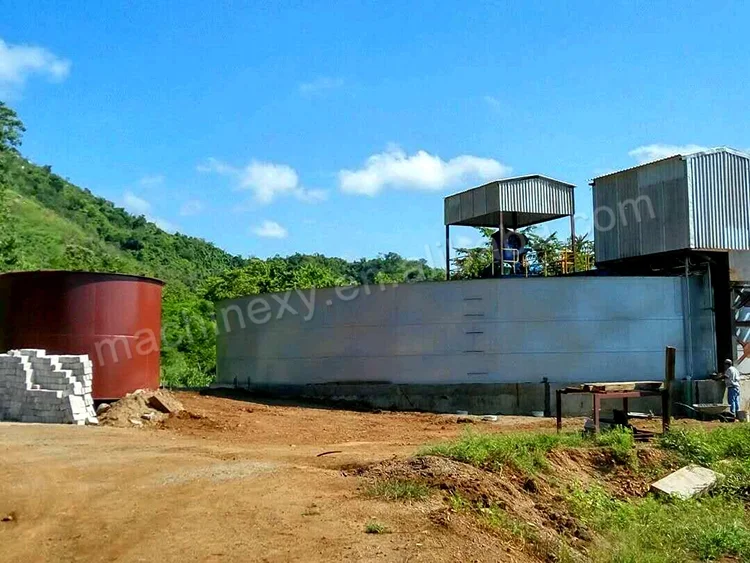

After flotation machine, the concentrate slurry send to the thickener, and then the filter. After filter the moisture is about 30%, and then use the rotary dryer to remove the moisture.
