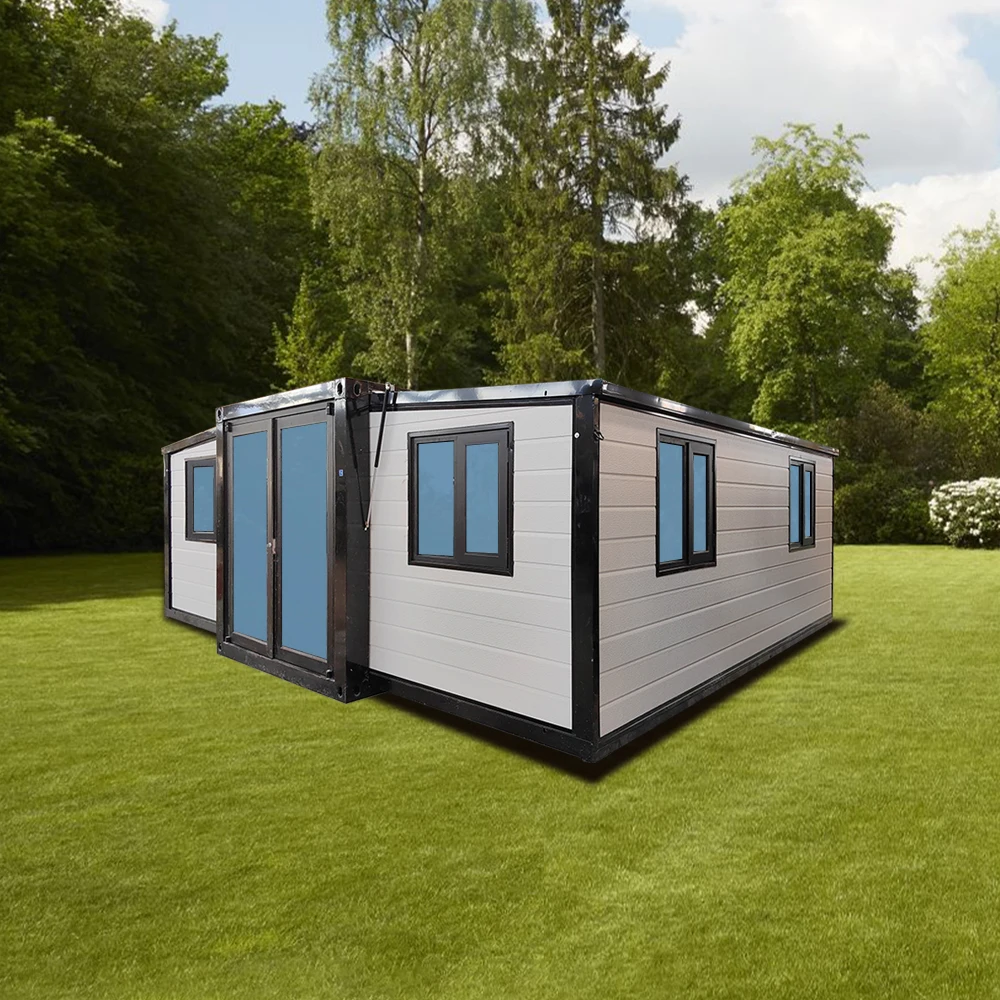

Luxury Villa Expandable Container House With Balcony And Pitched Roof Beautiful And Cosy 2 Bedroom Bathroom Kitchen Equipped
- Category: >>>
- Supplier: Tianjin Nanxiang Steel Strip Processing Co. Ltd.
Share on (1601211300241):
Product Overview
Description
Product descriptions from the supplier
Overview
Product Information
20ft expandable container house | ||||||
Dimensions | MM | |||||
Externel | Length | 5900 | ||||
Width | 6300 | |||||
Height | 2480 | |||||
Interior | Length | 5460 | ||||
Width | 6140 | |||||
Height | 2240 | |||||
Folding Size | L5900*W2200*H2480 | |||||

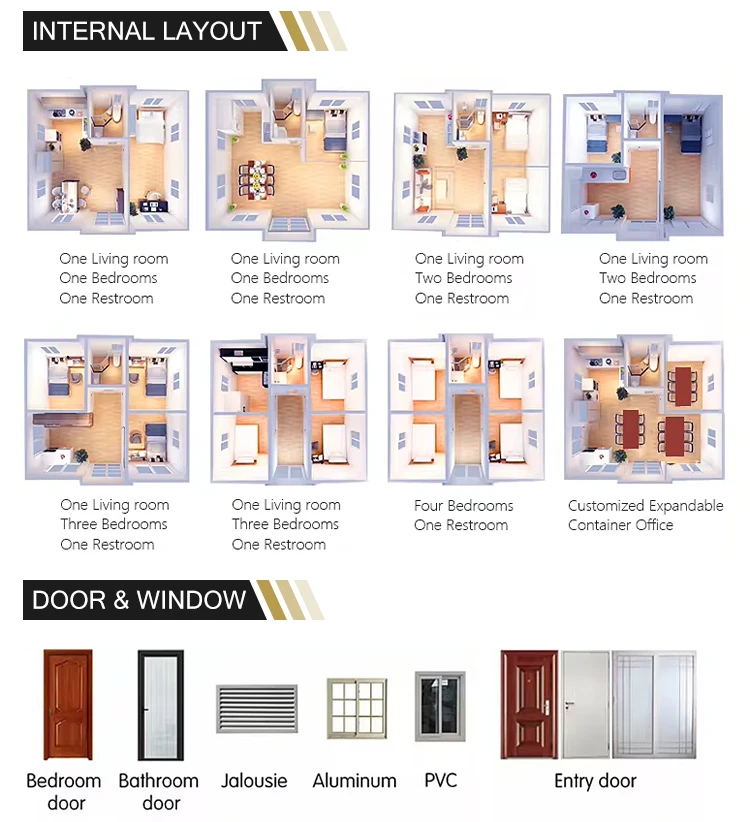

House Type | Two bedrooms, one living room, one kitchen and one bathroom(Can be customized) | |||||
Frame Structure | ||||||
Name | Details | Specifications | ||||
Main Frame (fully-galvanized) | Top Side Beam | 80*100*2.5mm Square tube | ||||
Top Beam | Bended workpiece 2.5mm | |||||
Bottom Side Beam | 80*100*2.5mm Square tube | |||||
Bottom Beam | Bended workpiece 2.5mm | |||||
Galvanized Hanger | Galvanized hanger210*150*160 | |||||
Steel Column | Bended workpiece 2.5mm | |||||
Side Wing Frame (fully-galvanized) | Top Frame | 40*80*1.5mm P Shape pipe | ||||
40*80*1.5mm Square tube | ||||||
Folding Hinge | 60*80*2.0mm Square tube | |||||
Folding Hinge | 13mm Galvanized hinge | |||||
Overall Frame Protection Paint | Spraying | Electrostatic spray/Plain plastic powder | ||||

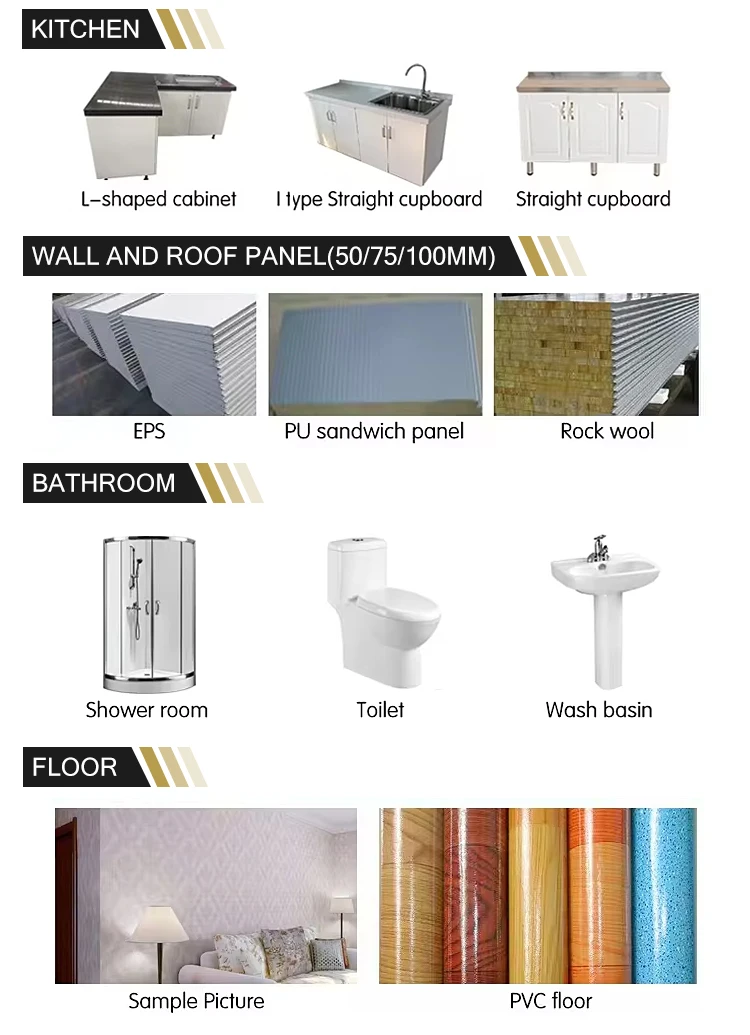

Roof | External top panel | t50mm EPS Colored foam board | ||||
Internal ceiling panel | 200Type ceiling board | |||||
Wallboard | Side wall, front and back | t75mm EPS foam board | ||||
Inner partition panel | t50mm EPS foam board | |||||
Floor | Main Frame | Fireproof glass magnesium floor 18mm thickness | ||||
Both Wings | Wood plywood 18mm thickness | |||||
Other | Can be customized. | |||||
Exterior color | Color customization | |||||
Internal wall and specification | Thermal Insulation material/Rock wool sandwich panel | |||||
specification:3cm、4cm、5cm、6cm、8cm、9cm | ||||||
Floor | PVC/Wood Plastic Panel | |||||
Door/Window | Double sliding hollow tempered glass door/tempered bulletproof (A louver window can be installed.) | |||||
Voltage Standard | Customize By Local Voltage Standard | |||||

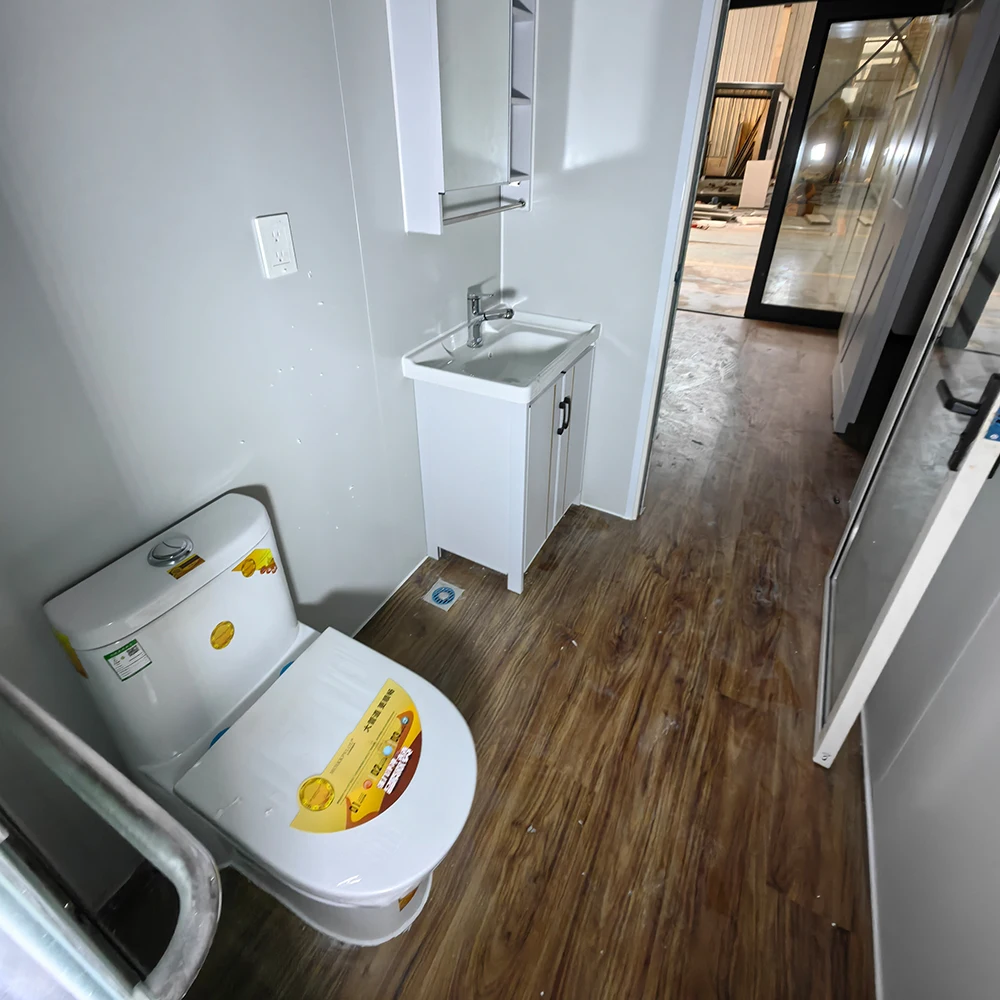

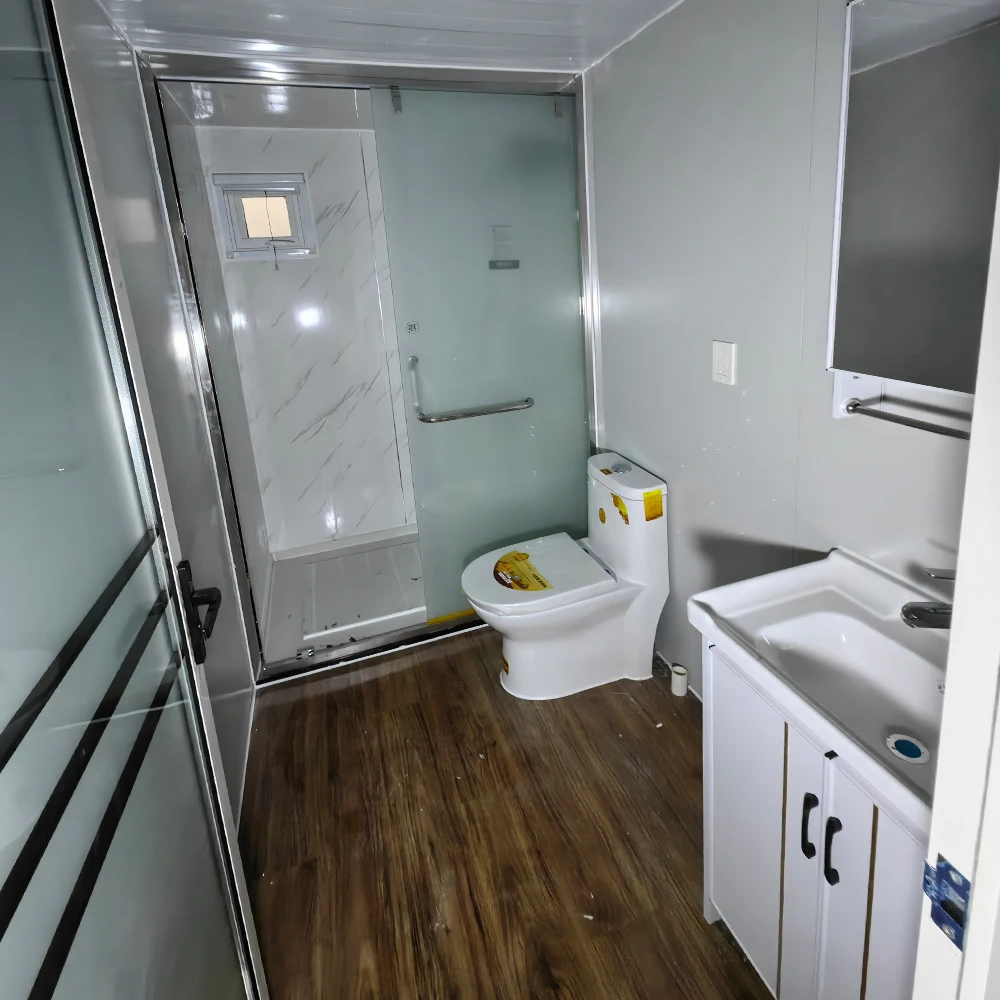

Prefab Bathroom Unit | Toliet,Sink,Shower,Exhaust fan | |||||
Furniture(optional) | Bed(normal bed, folding bed), table, stool, air conditioner, refrigerator, solar energy, etc . | |||||
Lighting system/scoket | Customize By Local Voltage Standard | |||||
Internal layout | One bedroom, one bathroom | |||||
material Standard | American Standard, Australian Standard, EU, IOS Certification, etc. | |||||
Installation | Manual Capstan | |||||
FAQ
Q1 : Do I have to assemble my prefab home by myself?
Q2: How many units can you fit in a 40HQ？
A2: For the expandable container house，one 40HQ can hold 2 units.
A1: We offer several options here. The living house just need two people to install, ten minutes finish.
Q2: How many units can you fit in a 40HQ？
A2: For the expandable container house，one 40HQ can hold 2 units.
1
Q3: How long a new prefab house last?
A3: This is a great question. With it mobile performances, can be folded for over 100 times. With proper care and maintenance, a new prefab house can last just as long as standard construction.
Q3: How long a new prefab house last?
A3: This is a great question. With it mobile performances, can be folded for over 100 times. With proper care and maintenance, a new prefab house can last just as long as standard construction.
1
Q4: Is the structure of the block house painted with anti-rust paint?
A4: Do not worry about that. The folded house with the capability of water, wind and fire proof, resistance for cold weather.
Q4: Is the structure of the block house painted with anti-rust paint?
A4: Do not worry about that. The folded house with the capability of water, wind and fire proof, resistance for cold weather.
1
Q5: Which country have you exported this module house product to?
A5: We have shipped the house more than 100 countries. Like USA, CANADA, AUSTRALIA, NEW ZEALAND, PERU,BRAZIL,MALAYSIA,PHILIPPINE, INDIA and so on.
Q5: Which country have you exported this module house product to?
A5: We have shipped the house more than 100 countries. Like USA, CANADA, AUSTRALIA, NEW ZEALAND, PERU,BRAZIL,MALAYSIA,PHILIPPINE, INDIA and so on.
1
