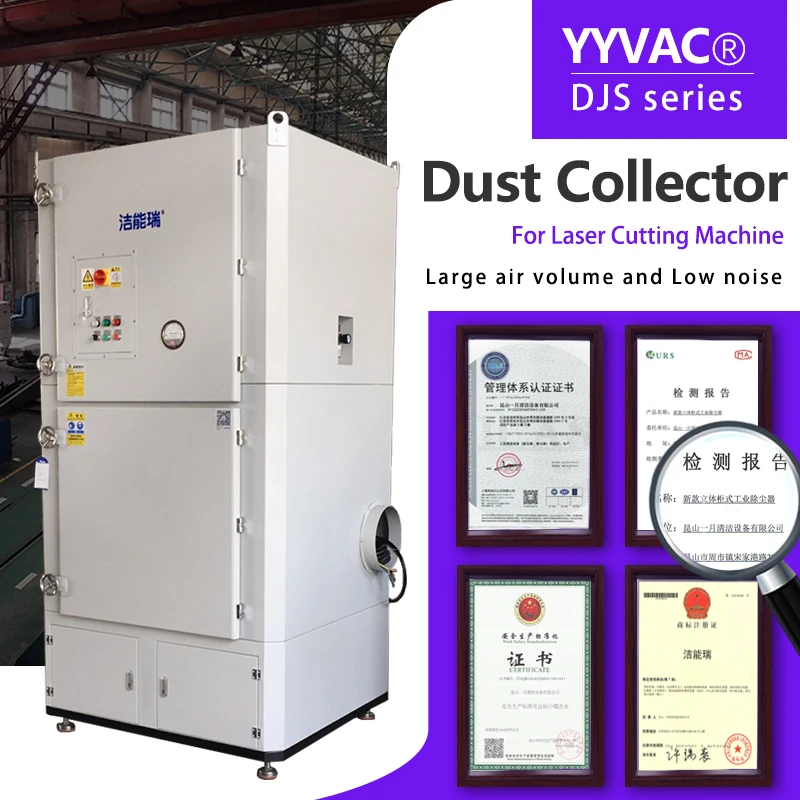

Laser Cutting Machine smoke and dust purification equipment industrial dust collector system laser
- Category: >>>
- Supplier: Kunshan Yiyue Cleaning Equipment Co. Ltd.
Share on (1601211340445):
Product Overview
Description
Packaging Information
Product Introduction
Category: Industrial Dust Collector
Model: DJS550 | DJS750
Brand: 洁能瑞/YYVAC
Installation: Indoor, Outdoor
Suitable for combustible dust: No (customizable)
Function: Used as an online system for collecting high volume process-generated dust or impurities from the source point on acontinuous basis to enhance the air quality.

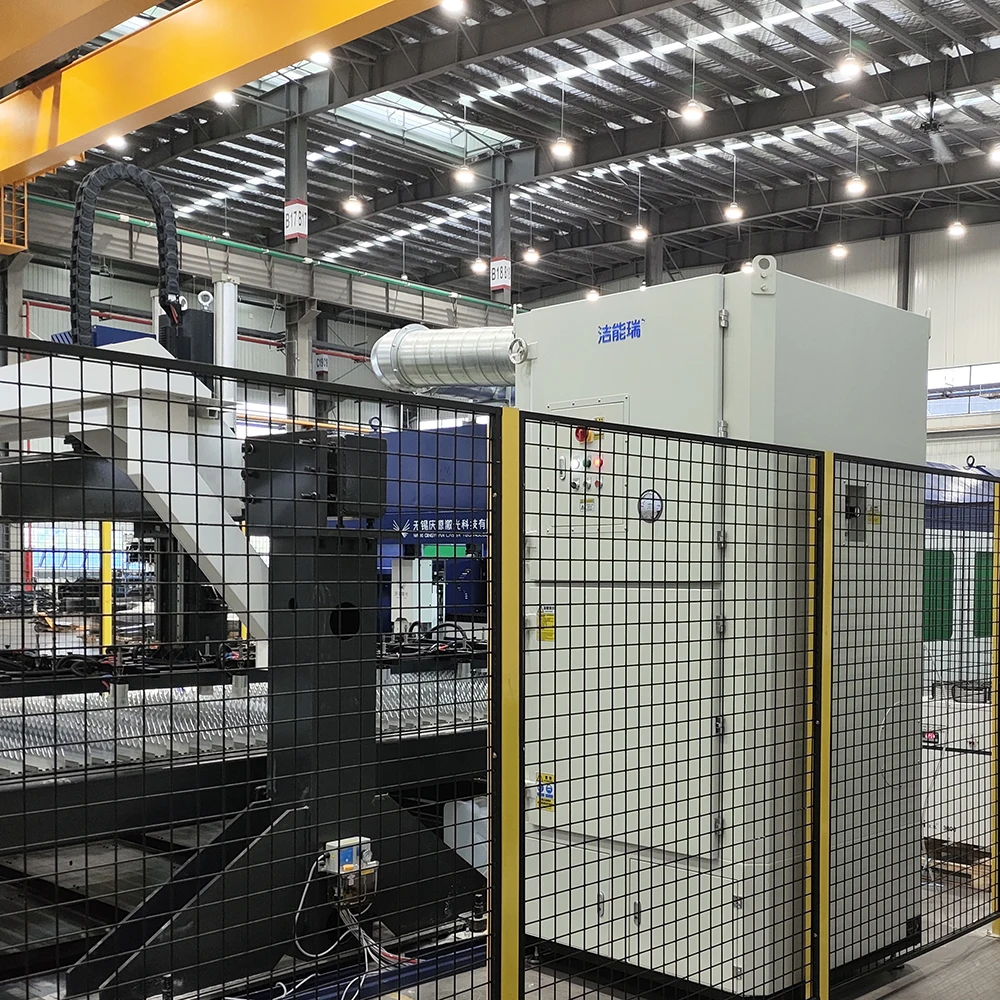

Application: Dust, Fumes Welding robot workstation dust control, large laser cutting machine, plasma laser cutting machine dust removal, etc.
Model: DJS550 | DJS750
Brand: 洁能瑞/YYVAC
Installation: Indoor, Outdoor
Suitable for combustible dust: No (customizable)
Function: Used as an online system for collecting high volume process-generated dust or impurities from the source point on acontinuous basis to enhance the air quality.
Application: Dust, Fumes Welding robot workstation dust control, large laser cutting machine, plasma laser cutting machine dust removal, etc.
Product Paramenters
Description | Unit | DJS550 | DJS750 | |
Current type | Ph - V - Hz | 3 - 380 - 50/60 | ||

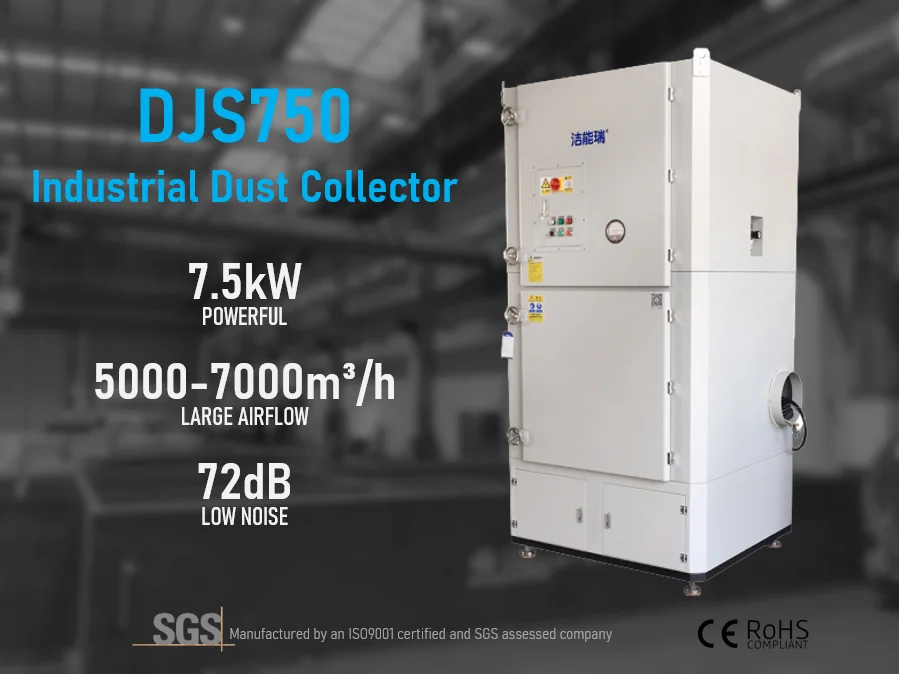

Power | kW / HP | 5.5 / 7.4 | 7.5 / 10 | |
Airflow | m³/h / CFM | 4000-5700 / 2354-3355 | 5000-7000 / 2943-4120 | |
Vacuum | kPa / inH2O | 2.1-2.9 / 8.4-11.6 | 2.5-3.3 / 10-13.3 | |
Sound pressure level | dB(A) | 72 | 74 | |
Container capacity | l / gal | 50 / 13.2 | ||
Filter area | m2 / ft2 | 72 / 775 | ||
Filter efficiency | μm | 0.1-0.3 | ||
Filter type | 15 HEPA filters | |||
Filter cleaning system | Automatic Pulse Jet | |||
Explosion-proof Configuration | No (customizable if required) | |||
Switch control mode | Local + Remote | |||
Inlet diameter | mm / in | 150|500 / 5.9|19.7 | ||
Cable length | m / ft | 8 / 26.2 | ||
Dimensions (L × W × H) | mm | 1280*1200*2600 | ||

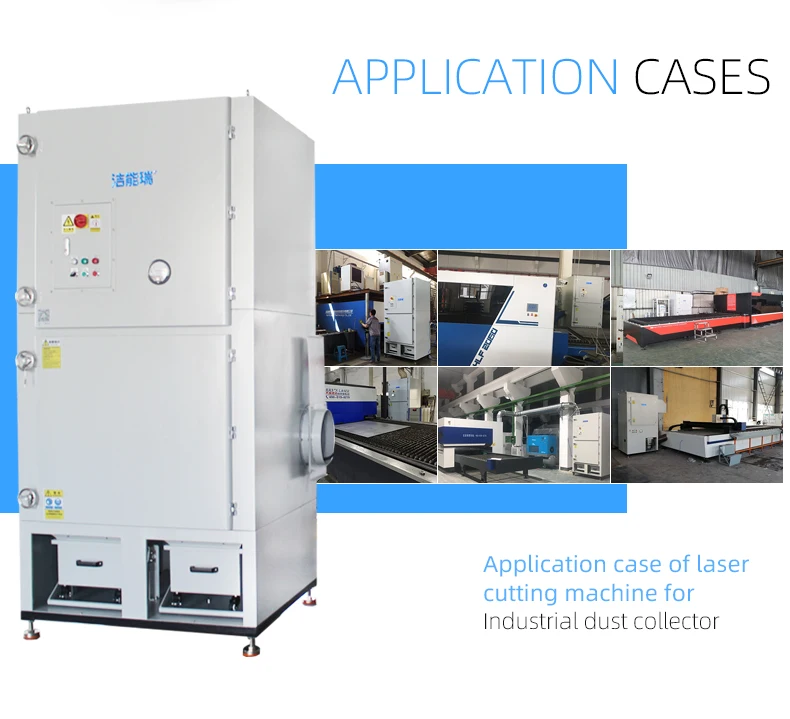

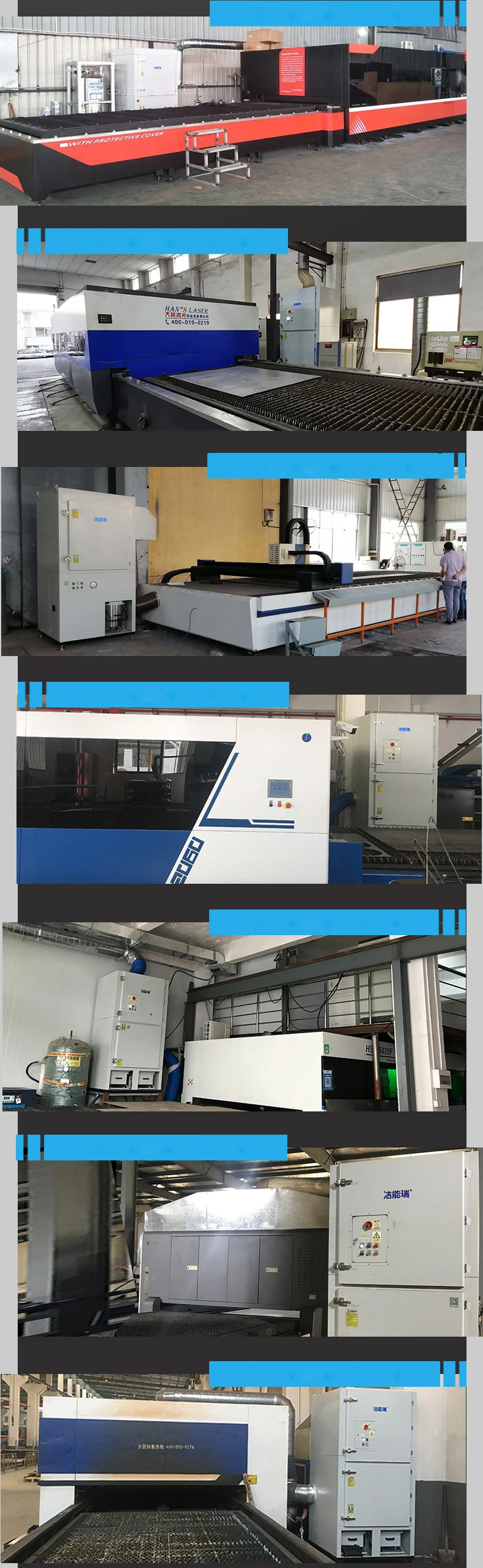

Application Area
Volume, suction power and durability
This is it! When professional industrial dust collector is needed.

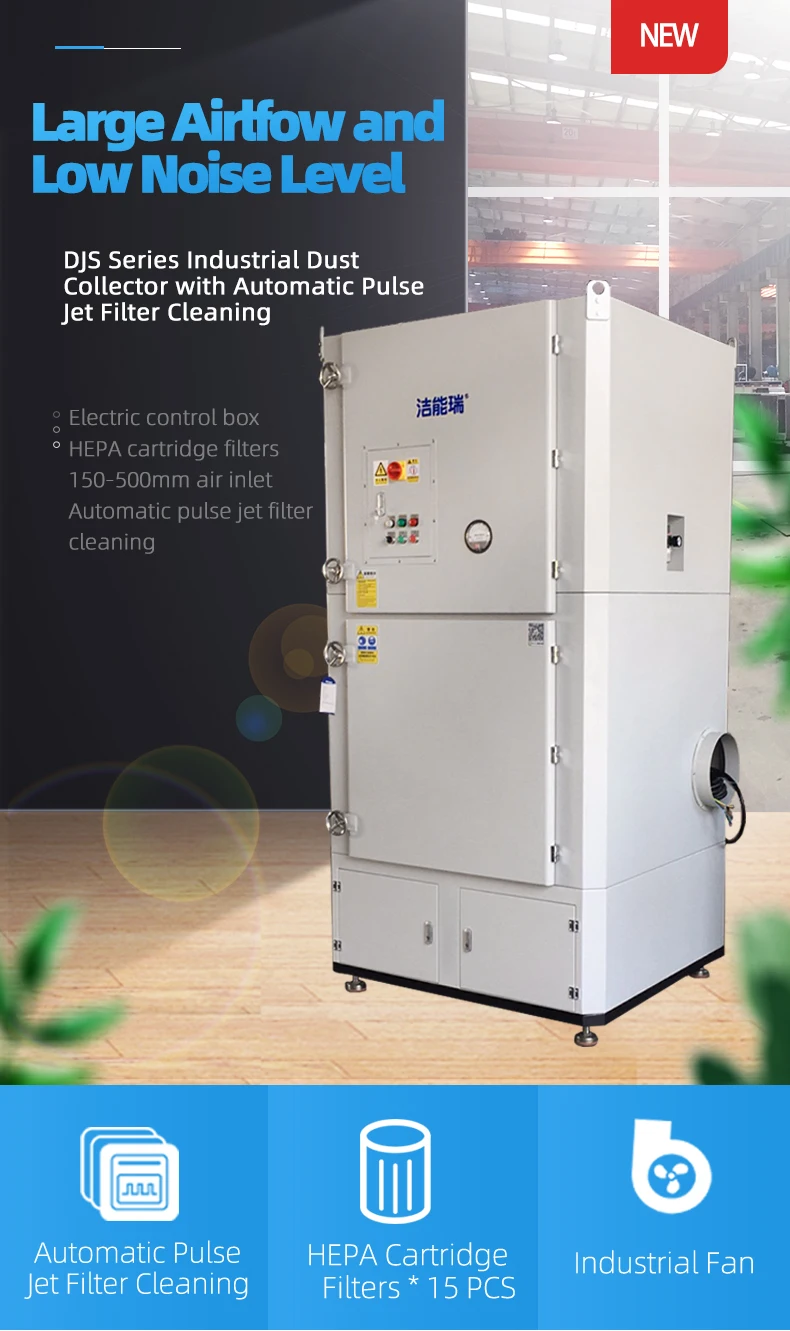

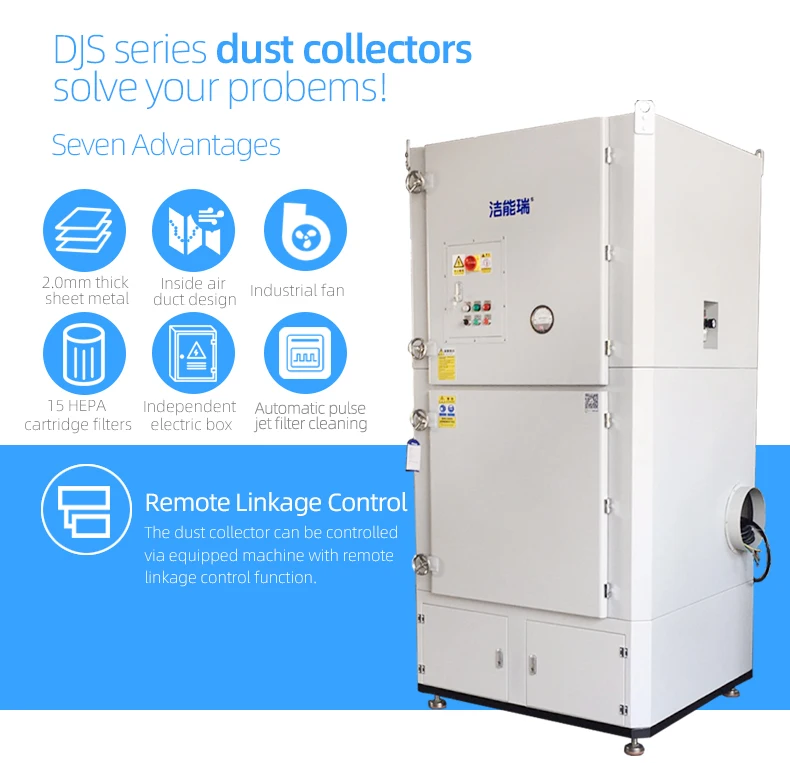

The DJS series fume and dust collector provides a compact, fully-assembled and prewired solution for capturing fume and particulates generated during processing operations like grinding, mixing, thermal cutting from the source, helping reducing workers exposure to fumes and protecting the expensive machinery.

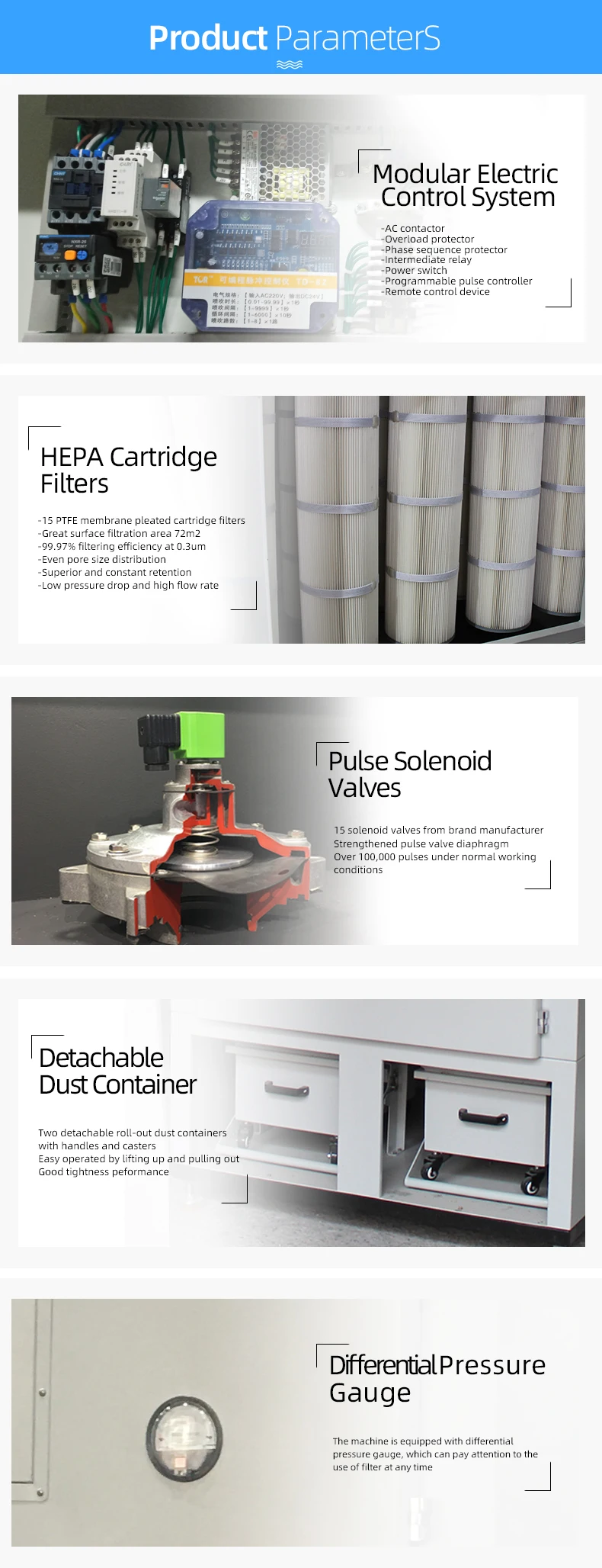

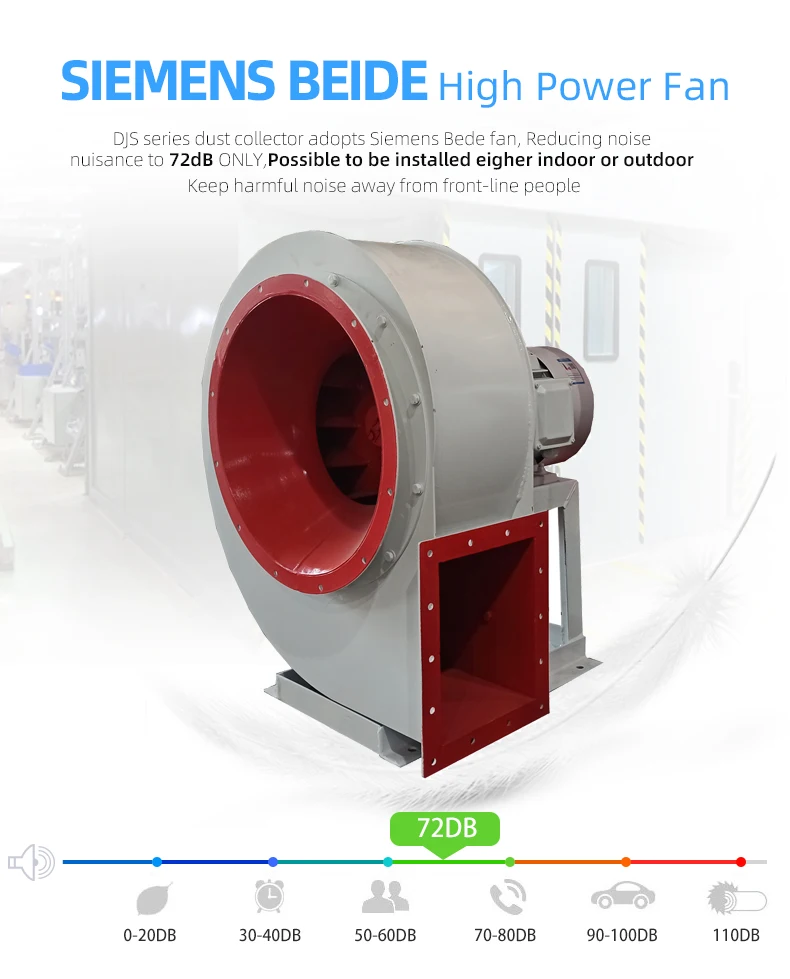

- Equipped with a centrifugal fan that can work continuously 24 hours per day with large air volume, low noise level and stable performance.
- Modular designed with small equipment footprint - open up valuable manufacturing floor space.
- Schneider electric components improve overall safety and stability, with function of phase sequence, overheating and overload protection.
- 15 pcs PTFE-membrane HEPA cartridge filters totaling 72m2 treat fine dust at 0.1- 0.3 microns efficiently.
- Automatic filter cleaning system with adjustable pulse time interval.
- Configured with two operation modes: Local & Remote. The remote linkage function can be applied to start and stop the equipment with other machine.
- Airflow management - Inlet with velocity reducer and inside airduct for decreased filter loading.
DJS series 304 material explosion-proof model
DJS series equipped with cyclone bucket
The DJS series standard model is equipped with a pre cyclone drum, which can be matched with automation equipment and CNC machining machines to centrally clean the dust during the processing. It is suitable for working conditions with a large amount of dust debris. The pre cyclone drum is used for pre-treatment and dust recovery of inhaled dust；
DJS series custom colors
Details Images
Product packaging
Delivering | By LCL or by container |
Packing material | The regular package isWooden frame, fumigated wooden box packing for optional, we will customize the pallet size according to the models DJS, load more quantities to save space when shipped by container. |
Machine dimensions | 1280（L）*1200（W）*2600（W） |
Weight | ≈550Kg/Unit |
Volume | ≈3.99M³/Unit |
Type of shipping | Ocean shipping |
Company Profile
VR
Kunshan YiYue Cleaning Equipment Co., Ltd.
Since 2009, Kunshan YiYue Cleaning Equipment Co., Ltd. has been offering environmental products and solutions using vacuum technology, from design, fabrication to maintenance. YiYue aims to reduce environmental impact from industrial production and creating safe and clean working surroundings for people whilst boosting productivity for customers.
YiYue main products consist of single-phase and three-phase industrial vacuum cleaners, pneumatic vacuum cleaners, industrial dust collectors and air purification equipment. Customization is also accepted. All our product models have passed CE and RoHS testing. Some are specially tested for safe operation in hazardous locations with ATEX or CNEX certification. With our experience in vacuum technology and expertise in engineering solutions for various industrial applications, more and more customers choose to cooperate with us from both the domestic and overseas markets. Our products are widely used in welding & thermal cutting, woodworking, composite machining, metalworking, material handling & recycling, process industry & energy etc.
YiYue is an ISO9001 and SGS verified company, an assurance to always focus on meeting our customer expectations and delivering customer satisfaction.
We are customer-oriented and passionate about our business in developing and producing industrial vacuum cleaners and dust collectors to help our customers meet their goals. We would like to share our business development with customers from all over the world. We are ready! How about you?
YiYue is an ISO9001 and SGS verified company, an assurance to always focus on meeting our customer expectations and delivering customer satisfaction.
We are customer-oriented and passionate about our business in developing and producing industrial vacuum cleaners and dust collectors to help our customers meet their goals. We would like to share our business development with customers from all over the world. We are ready! How about you?
Product packaging
Linda Wang | Global Sales Manager
Mobile | WhatsApp | WeChat | Skype: +86 158 5030 7597Email: Lindawang@yiyueqingjie.com
Kunshan YiYue Cleaning Equipment Co., Ltd.
Address: 380 Songjiagang Road, Kunshan, Jiangsu, China
www.YYVAC.com
Address: 380 Songjiagang Road, Kunshan, Jiangsu, China
www.YYVAC.com
vacuum.mystrikingly.com
FAQ
Q1: Are you a factory or trading company?
A1: We are a professional manufacturer of industrial vacuum cleaner and dust collector in China for over 10 years. You may review our website for more information at www.yiyueqingjie.com or webpage vacuum.mystrikingly.com.
Q2: What certificates do you have for your products?
A2: We have CE(EMC, LVD), RoHs and ATEX certificates.
Q3: Do you accept order through OEM/ODM business?
A3: Yes, it includes the customer logo & customer package printing design, but need annual buying quantity 500pcs and each order MOQ 100pcs.
Q4: What's your Minimum Order Quantity?
A4: Normally 5pcs for the vacuum cleaners. Smaller quantity even one piece is also available.
Q5: What's your lead-time and payment term?
A5: Normally, our lead-time is 7-30 days. The actual lead time depends on your order quantity and request.
Payment can be made by PayPal or T/T or through Alibaba trade assurance.
Q6:How about the shipping?
A6: We provide international Express door-to-door, Airline and sea freight.
Q7: What's your warranty for this product?
A7: Normally one year for the whole machine except the consumables or man-made damage. After the warranty, we still provide our customers with free online technical service.
A1: We are a professional manufacturer of industrial vacuum cleaner and dust collector in China for over 10 years. You may review our website for more information at www.yiyueqingjie.com or webpage vacuum.mystrikingly.com.
Q2: What certificates do you have for your products?
A2: We have CE(EMC, LVD), RoHs and ATEX certificates.
Q3: Do you accept order through OEM/ODM business?
A3: Yes, it includes the customer logo & customer package printing design, but need annual buying quantity 500pcs and each order MOQ 100pcs.
Q4: What's your Minimum Order Quantity?
A4: Normally 5pcs for the vacuum cleaners. Smaller quantity even one piece is also available.
Q5: What's your lead-time and payment term?
A5: Normally, our lead-time is 7-30 days. The actual lead time depends on your order quantity and request.
Payment can be made by PayPal or T/T or through Alibaba trade assurance.
Q6:How about the shipping?
A6: We provide international Express door-to-door, Airline and sea freight.
Q7: What's your warranty for this product?
A7: Normally one year for the whole machine except the consumables or man-made damage. After the warranty, we still provide our customers with free online technical service.
