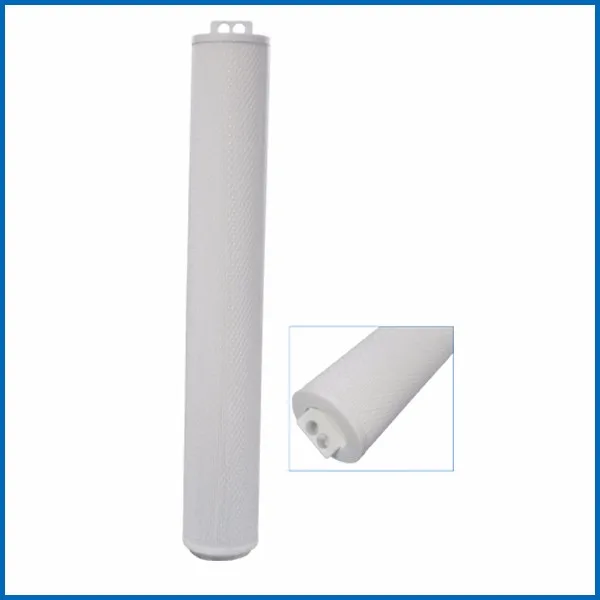

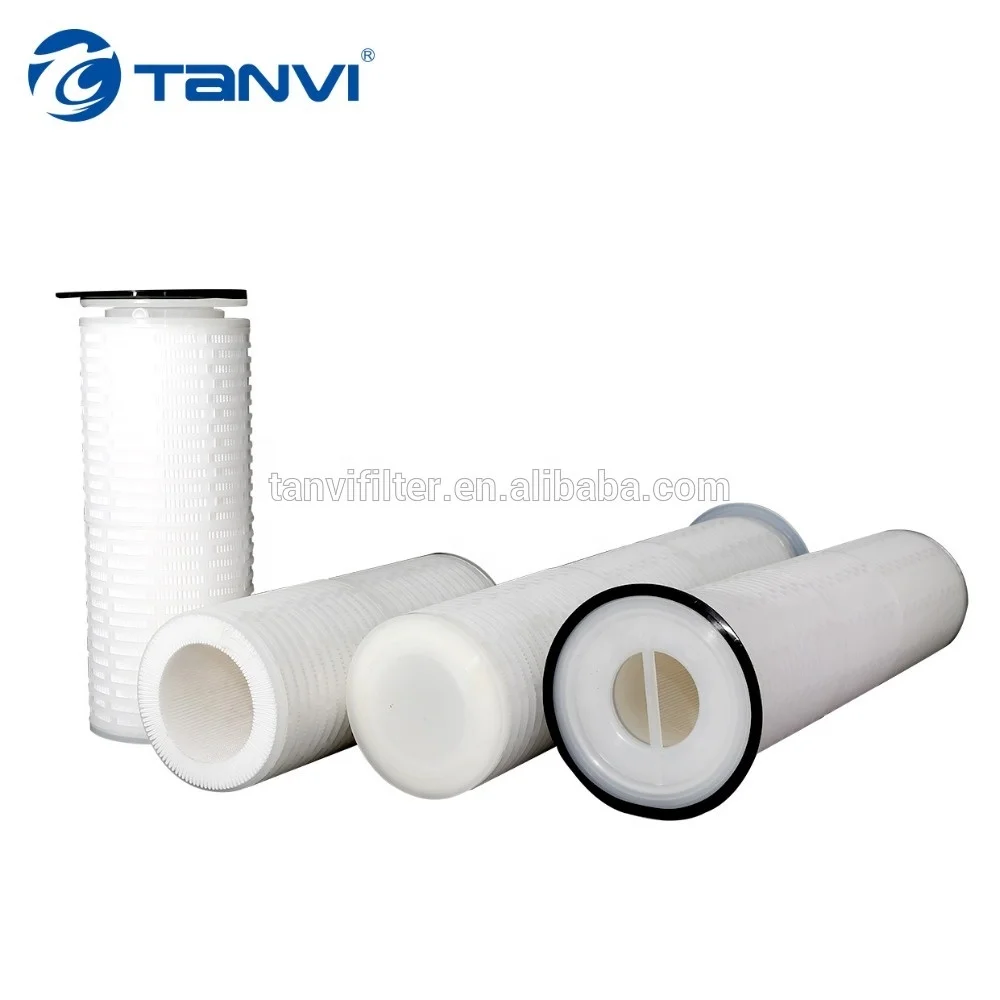

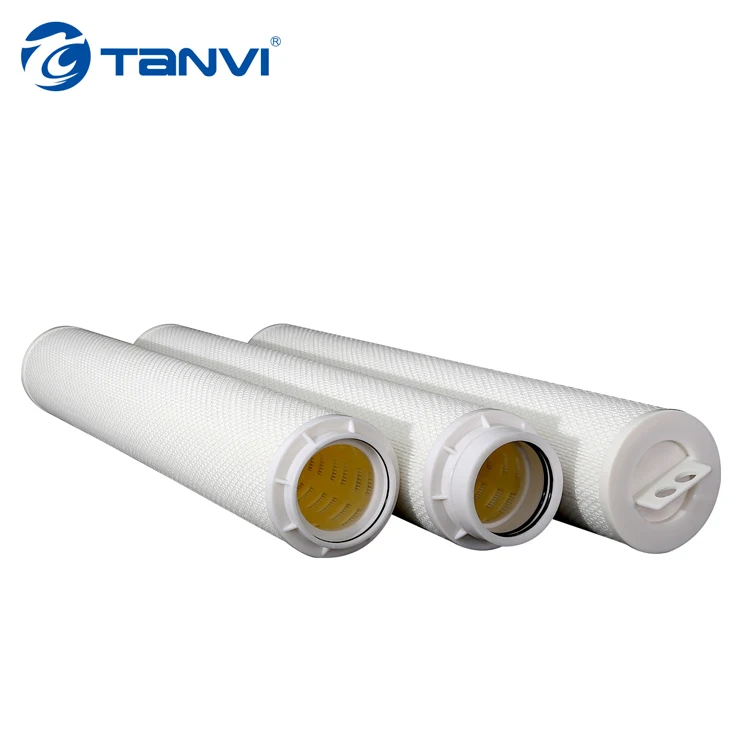

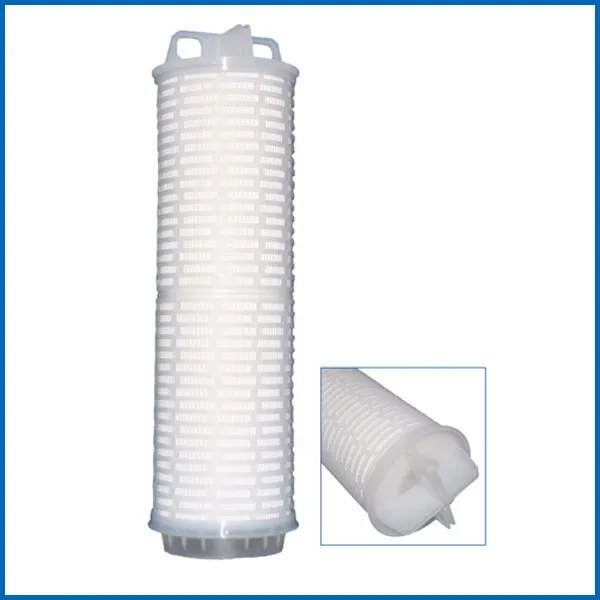

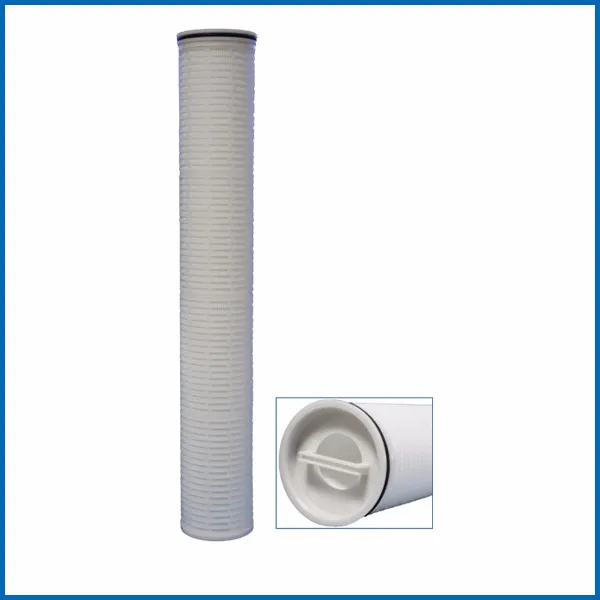

60 Inches PP/GF/ACF Membrane High Flow Filter Cartridge Large Filtering Area
- Category: >>>
- Supplier: Hangzhou Tanvi Filtering Equipment Co. Ltd.
Share on (1601211363393):
Product Overview
Description
Products Description

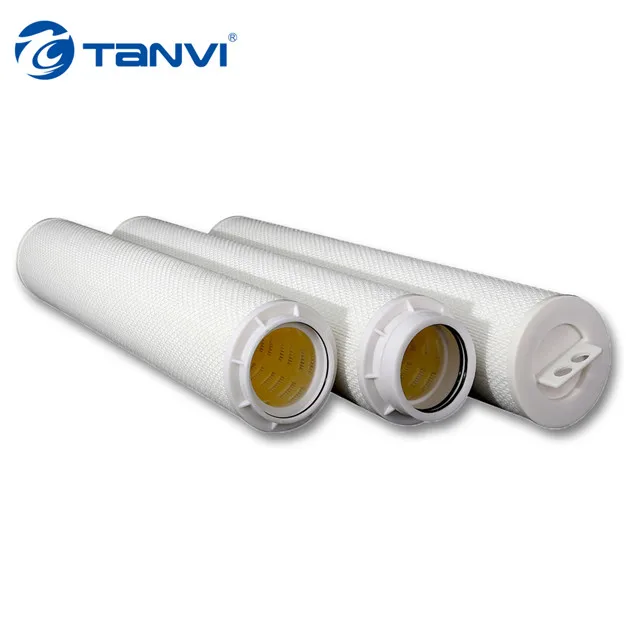

The PLM series high-flow filter element is pleated filter element with high effective filtering area in-side. Its large filtering area greatly improves the liquid flux, prolongs the service life and reduces the use cost. The compact structure reduces the space required for use. In addition, the filter car-tridge is easy to install and operate no need any tools. Compared with traditional small filter ele-ments under same flow , the number of filter ele-ments is less, which reduces the workload required for installation and maintenance and saves operat-ing time. At the same time, the risk of bypass due to poor sealing of the filter element is significantly reduced. The main material is polypropylene and has good chemical compatibility. It can be used for a variety of liquids.
Features& Benefits
●Large filtration area
●High flow rate
●High retention rate
●High flow rate
●High retention rate
●Long service life
●Easy installation and replacement
●Many pore sizes are available for option
Applications
●Bottled water, high Fructose, edible oil, softdrinks, and milk, beer and wine.
●API, solvents, and water filtration in Bio-pharma market
●Paints and coatings, Petrochemical, Refineries
●Paints and coatings, Petrochemical, Refineries
●Prefiltration of RO, Pretreatment ofsea water desalination
●Condensate water filtration, hot waterrecovery in power generation
●Microelectronics, film, fiber and resin
Specifications
Filtration Media | Polypropylene/Fiber Glass/ACF |
Media Support | PP non-woven |
Cage | PP material |
Core | PP material or pp stainless liner |
Out Diameter | 165mm (6.5”) |
Inner Diameter | 3.5"(89mm) |
20Length | 10", 20", 40", 60" |
O-Ring | Silicone, EPDM, Nitrile,Viton ,Viton encapsulated PTFE |
Retention rating | 0.5, 1.0, 3.0, 5.0, 10.0, 20.0, 40.0, 70.0, 100.0μm |
Effective filtering area | ≥4.9m² |
PH value | 1~14 |
Normal operating temperature | ≤55℃ |
Max. operating temperature | 80℃,pressure differential ≤0.10Mpa |
Max. differential pressure | 25℃,forward direction 0.42Mpa,reverse direction 0.21MPa |
Certifications
Ordering Guide
Related Products
Company Information
Hangzhou Tanvi Filtering Equipment Co., Ltd is a manufacturer of micro-filtration products. We offer a broad selection of
high-performance filtration products for pharmaceutical, microelectronics, food and beverage, fine chemicals and water. As 11-year development, we are experienced in micro-filtration field. Not only manufacturing micro-filtration products, but also providing designing and solution to our worldwide customers.
Tanvi is located in a beautiful east city of China-Hangzhou, our factory covers 5000 squares meters, including production
workshop, washing workshop, testing workshop, packing workshop and laboratory. All of our production and test facility are up-to-date. Besides, we have experienced technical team to provide solutions, installation direction and operating service,after-sales service according to the requirement of the customers.
Our goal is to deliver stable quality products on time while responding to the needs of customers with premier customer service and provide customers cost-effective products with reasonable prices.
high-performance filtration products for pharmaceutical, microelectronics, food and beverage, fine chemicals and water. As 11-year development, we are experienced in micro-filtration field. Not only manufacturing micro-filtration products, but also providing designing and solution to our worldwide customers.
Tanvi is located in a beautiful east city of China-Hangzhou, our factory covers 5000 squares meters, including production
workshop, washing workshop, testing workshop, packing workshop and laboratory. All of our production and test facility are up-to-date. Besides, we have experienced technical team to provide solutions, installation direction and operating service,after-sales service according to the requirement of the customers.
Our goal is to deliver stable quality products on time while responding to the needs of customers with premier customer service and provide customers cost-effective products with reasonable prices.

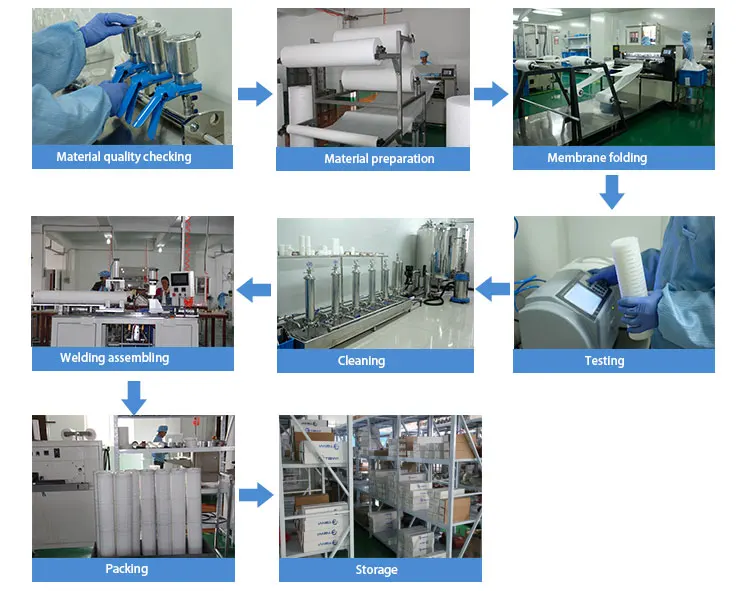

Production
