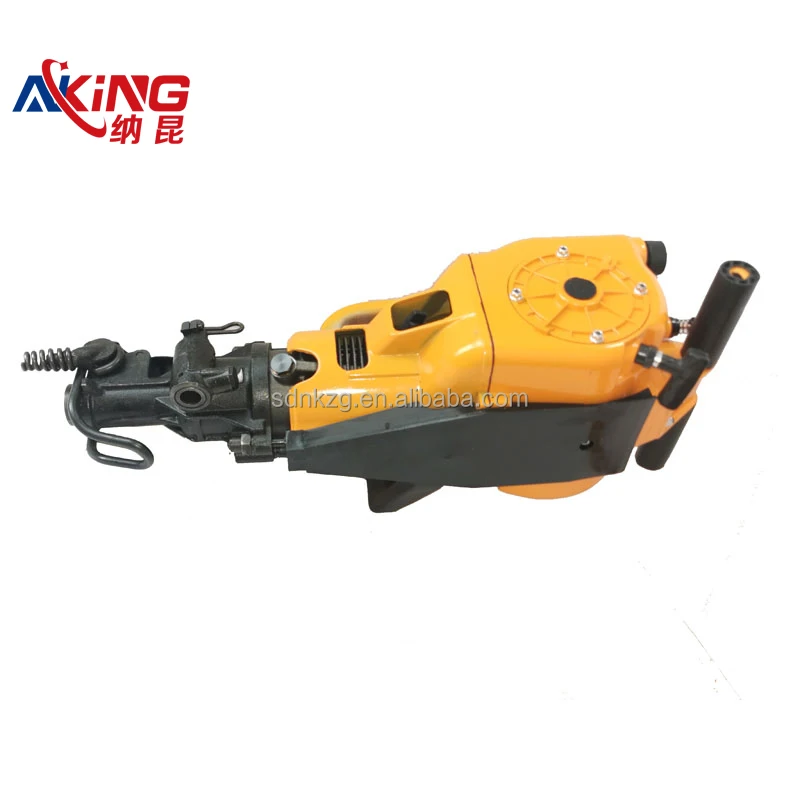

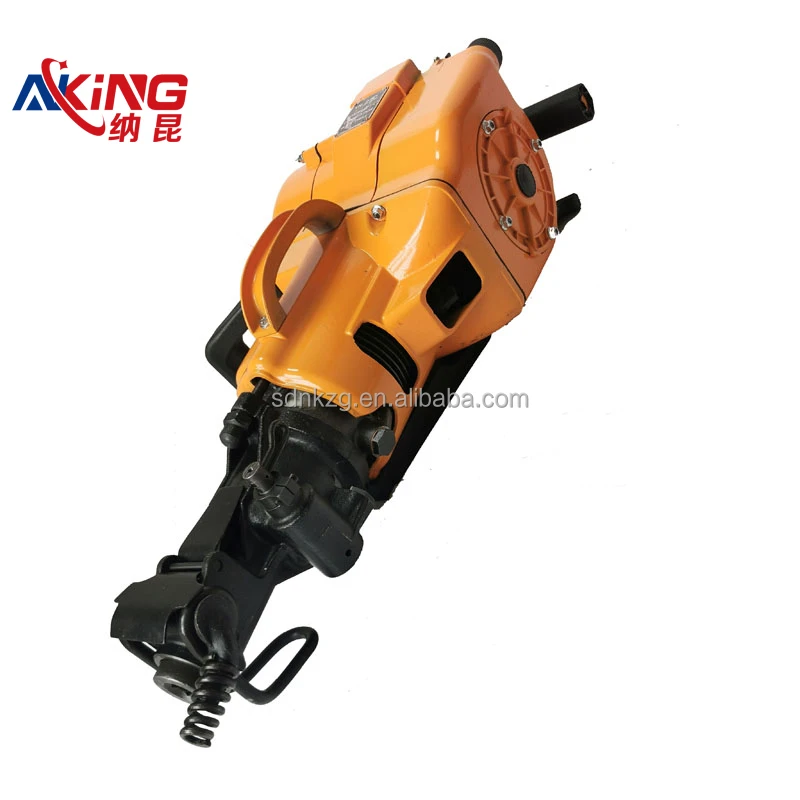

Handheld Gasoline Powered Concrete Crusher rock Drill
- Category: >>>
- Supplier: Shandong Naking Heavy Industry Co. Ltd.
Share on (1601211401099):
Product Overview
Description
Product Overview

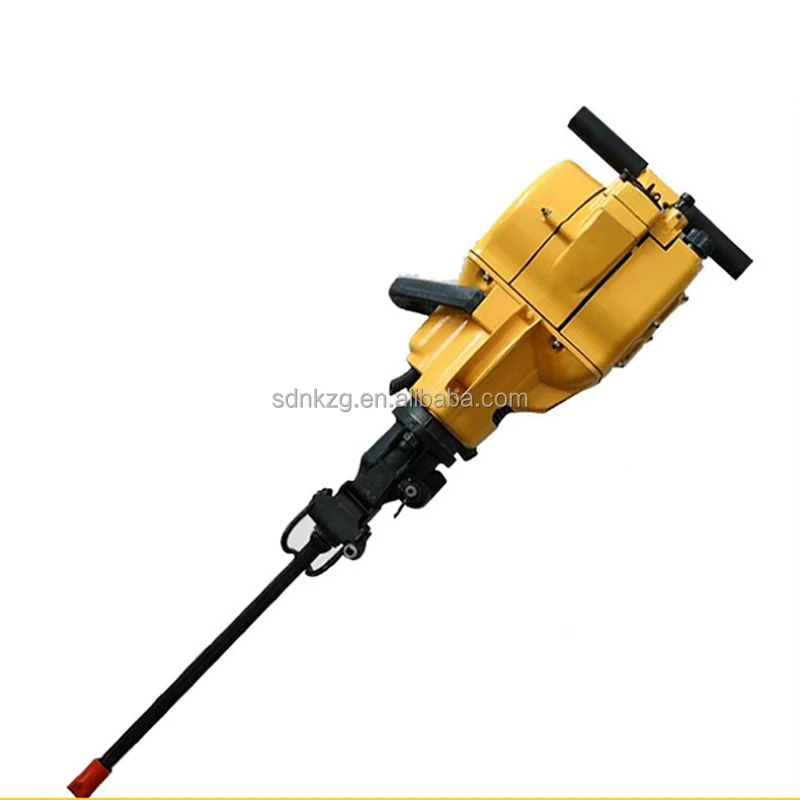

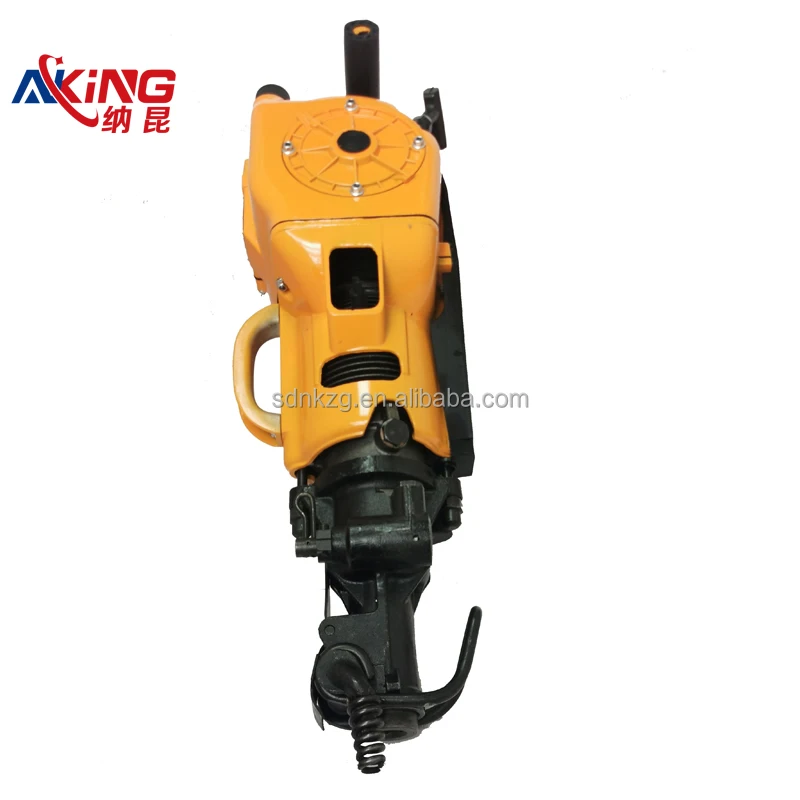

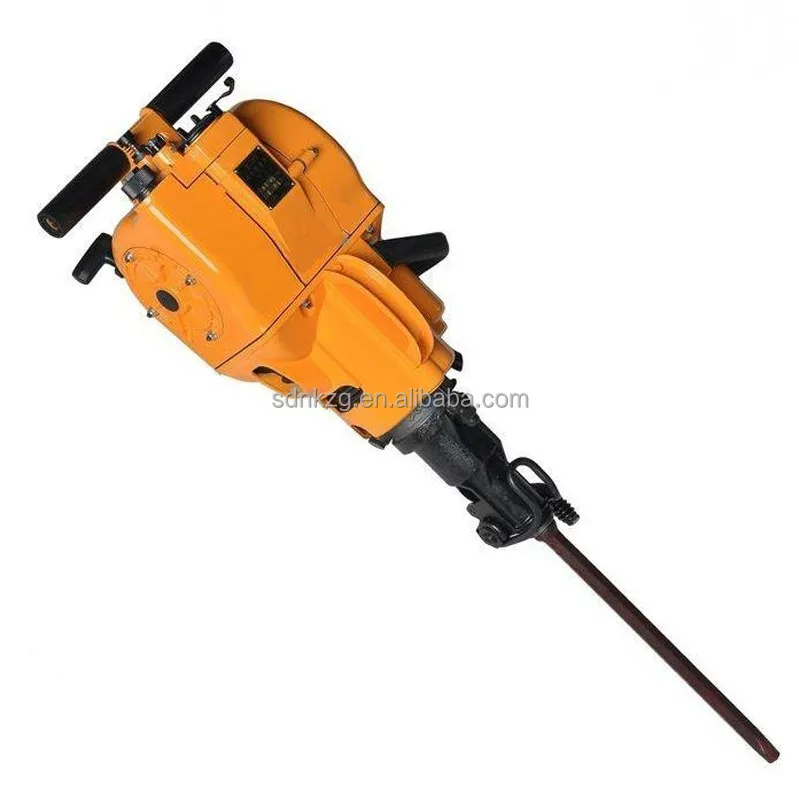

Congratulation on you chooses our YN27C Internal combustion rock drill !!
Please contact the sales staff for more parameters and model information!
Please contact the sales staff for more parameters and model information!
Products Description
The YN27C internal combustion rock drill has various functions such as drilling holes for mining, building construction, geological exploration, cement pavement, asphalt pavement and other functions such as splitting, crushing, compacting and shovel.
It is widely used in mining, road construction, quarrying, construction, geological survey, fire rescue, national defense
engineering, etc.
It is widely used in mining, road construction, quarrying, construction, geological survey, fire rescue, national defense
engineering, etc.
Product Specifications
Model | YN27C |
Weight | 27kg |
overall dimension | 746*315*229mm |
engine | single cylinder, air cooled two strokes |
Cylinder diameter*stroke piston | 58*70mm |
Rotating speed of engine | more than 2450r/min |
displacement of engine | 185cm^3 |
carburetor | hand needle valve, no floating type |
Ignition system | controllable silicon contactless system |
Drilling speed | more than 2450r/min |
Max drilling depth | 6m |
Fuel consumption | 0.12L/min |
Tank capacity | more than 1:14L |
mixing ratio of gasoline and lubrication oil | 12:01 |
end of drill rod dimensions | hexagonal 22*108mm |
Rotating speed of drill rod | more than 200r/min |
Clearance of spark plug | 0.5-0.7mm |
Product Feature
The machine has reached the first-class level of the same kind of products, and can be completely interchangeable with the parts of the same kind of international products. Machine weight 27kg, easy to take, suitable for high mountains, no power supply, no wind pressure equipment areas and greater
mobility of temporary works is particularly suitable.
mobility of temporary works is particularly suitable.
Drill hole on the rock, can be vertical, horizontal down up less than 45 °. The deepest vertical down hole is six meters. No matter in the mountains, the ground, no matter in the heat of 40 ° or minus 40 ° cold region all can work, this machine has
extensive adaptability.
extensive adaptability.

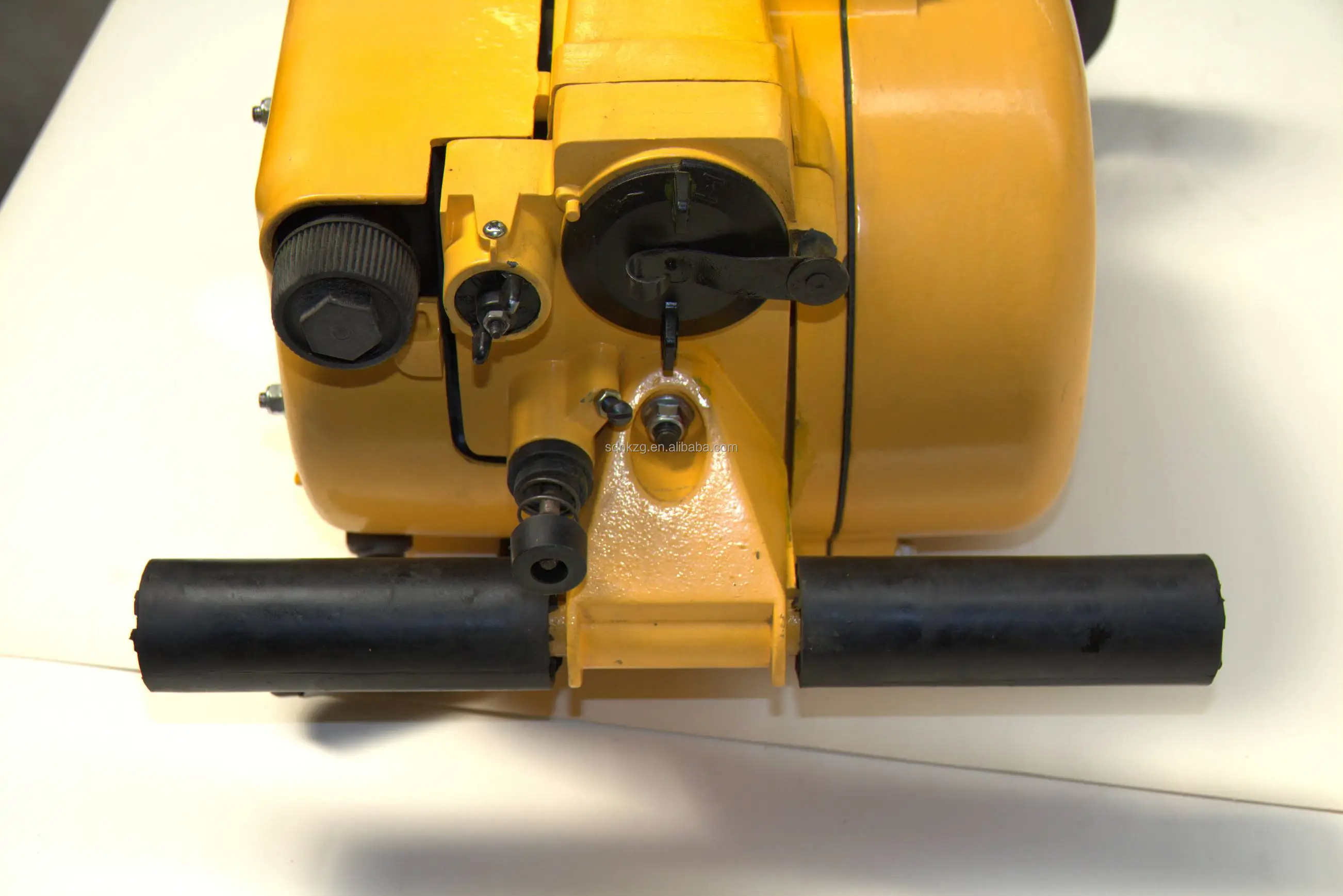

No need to replace the internal parts of the machine head, only need to move the handle as required. Easy to operate, saves time and labor, fast drilling speed and high efficiency.

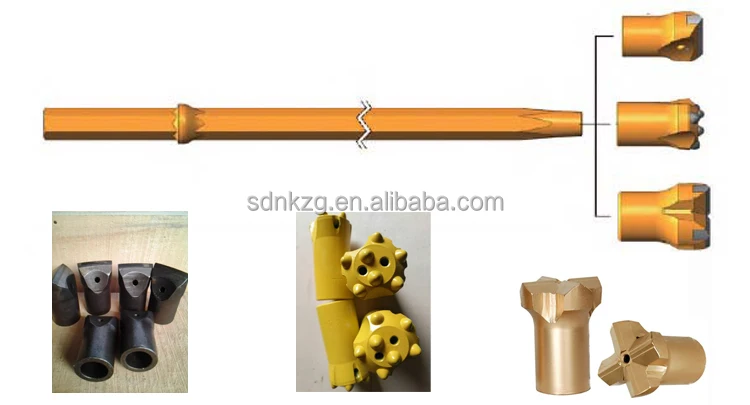

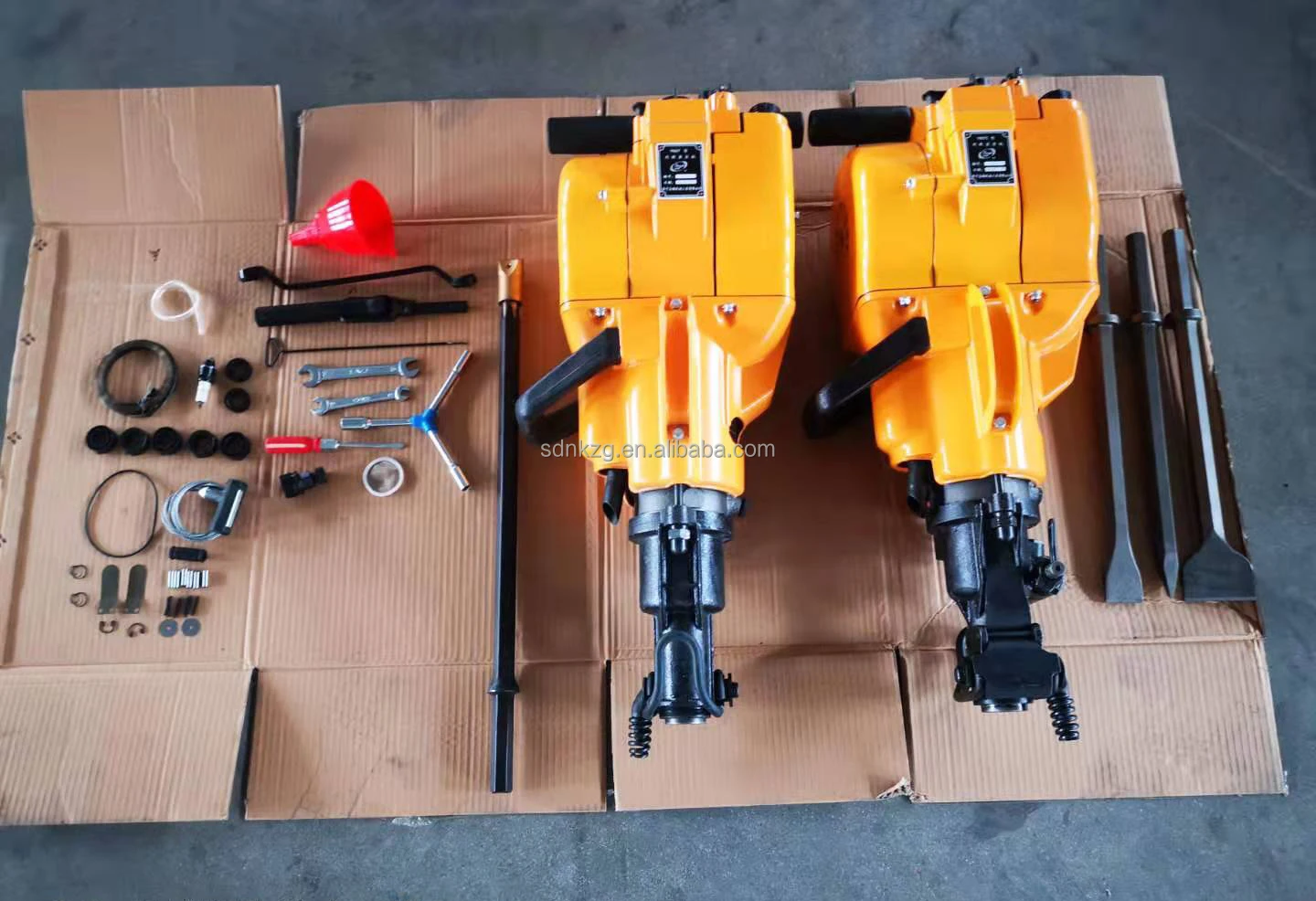

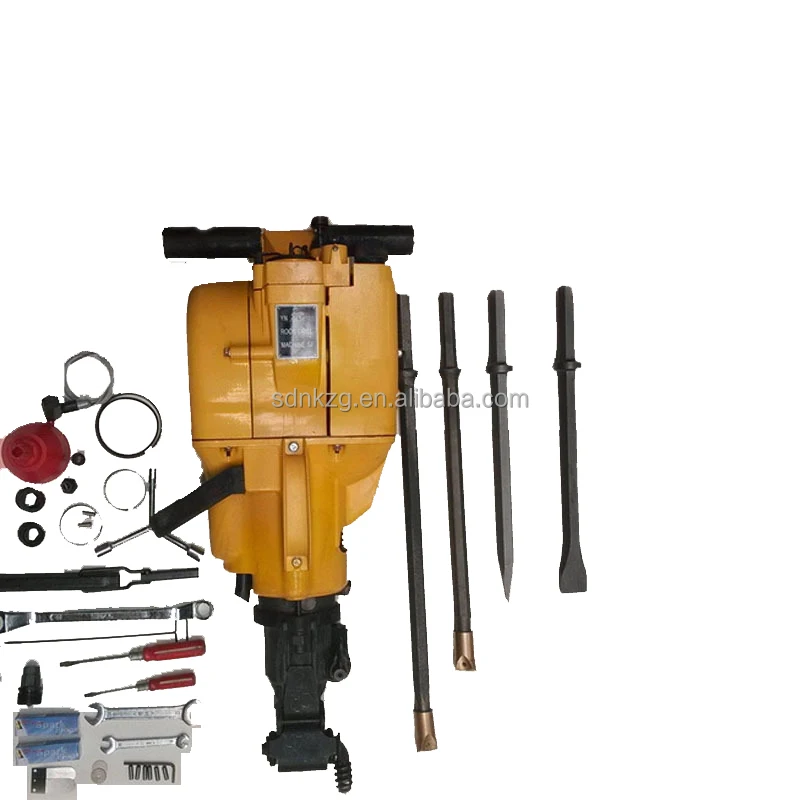

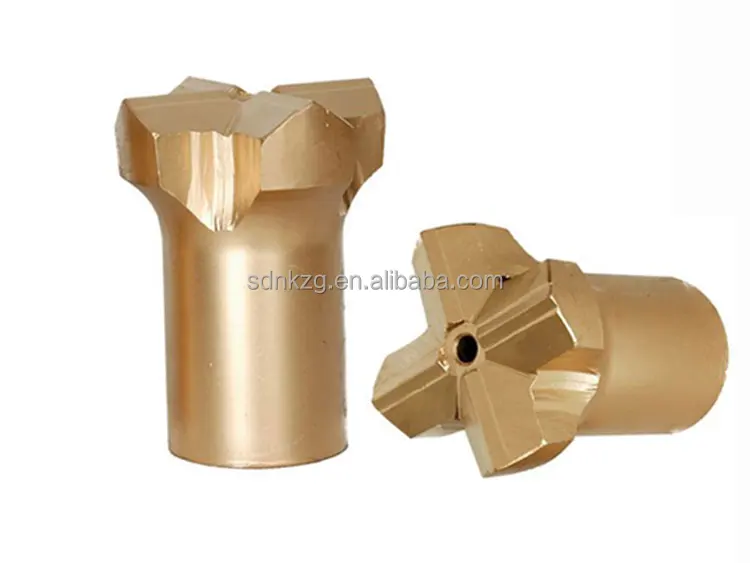

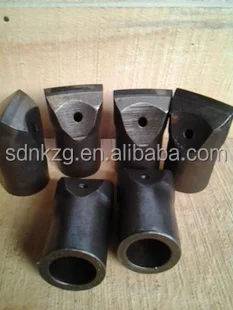

Product Acessories

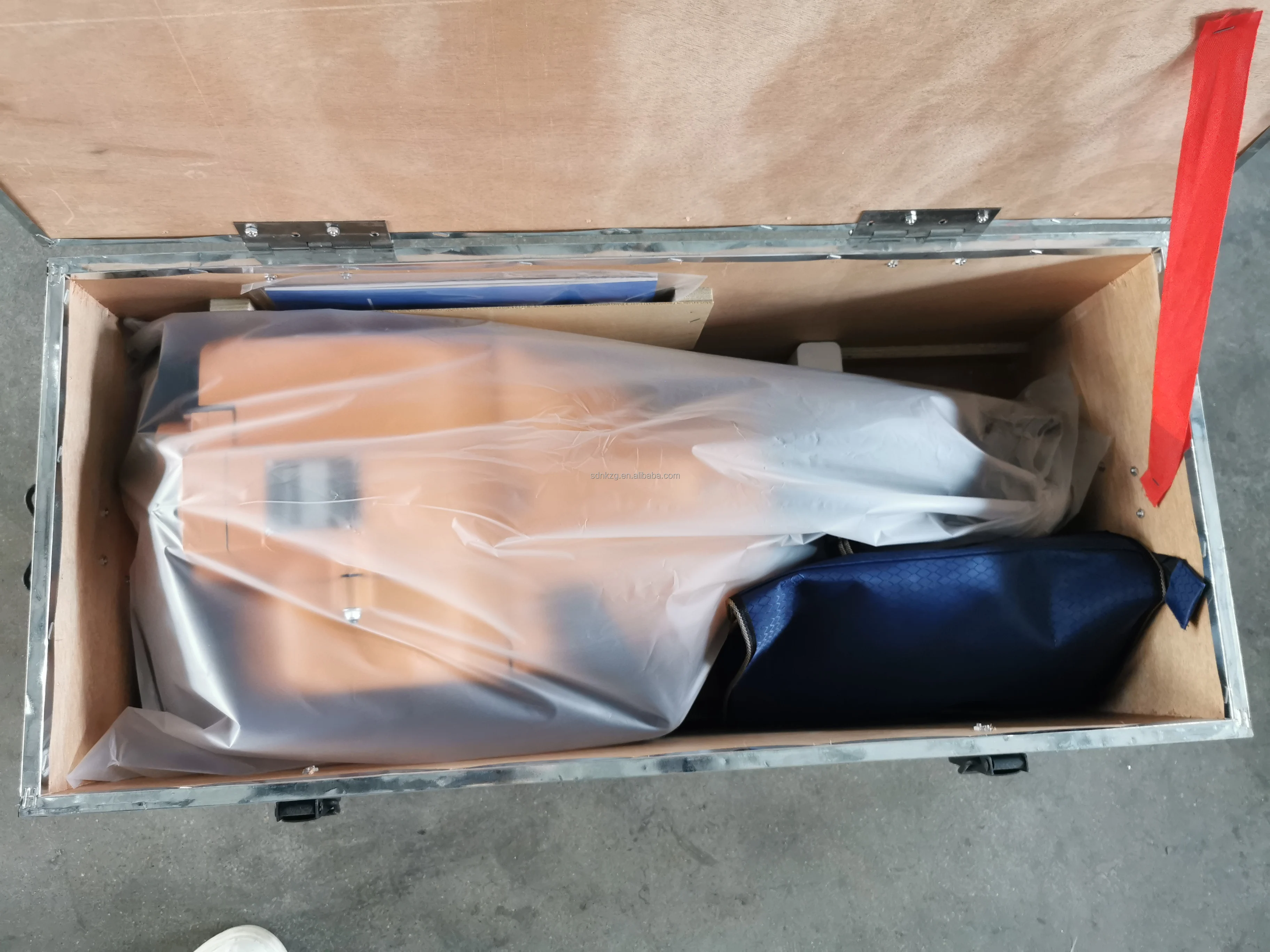

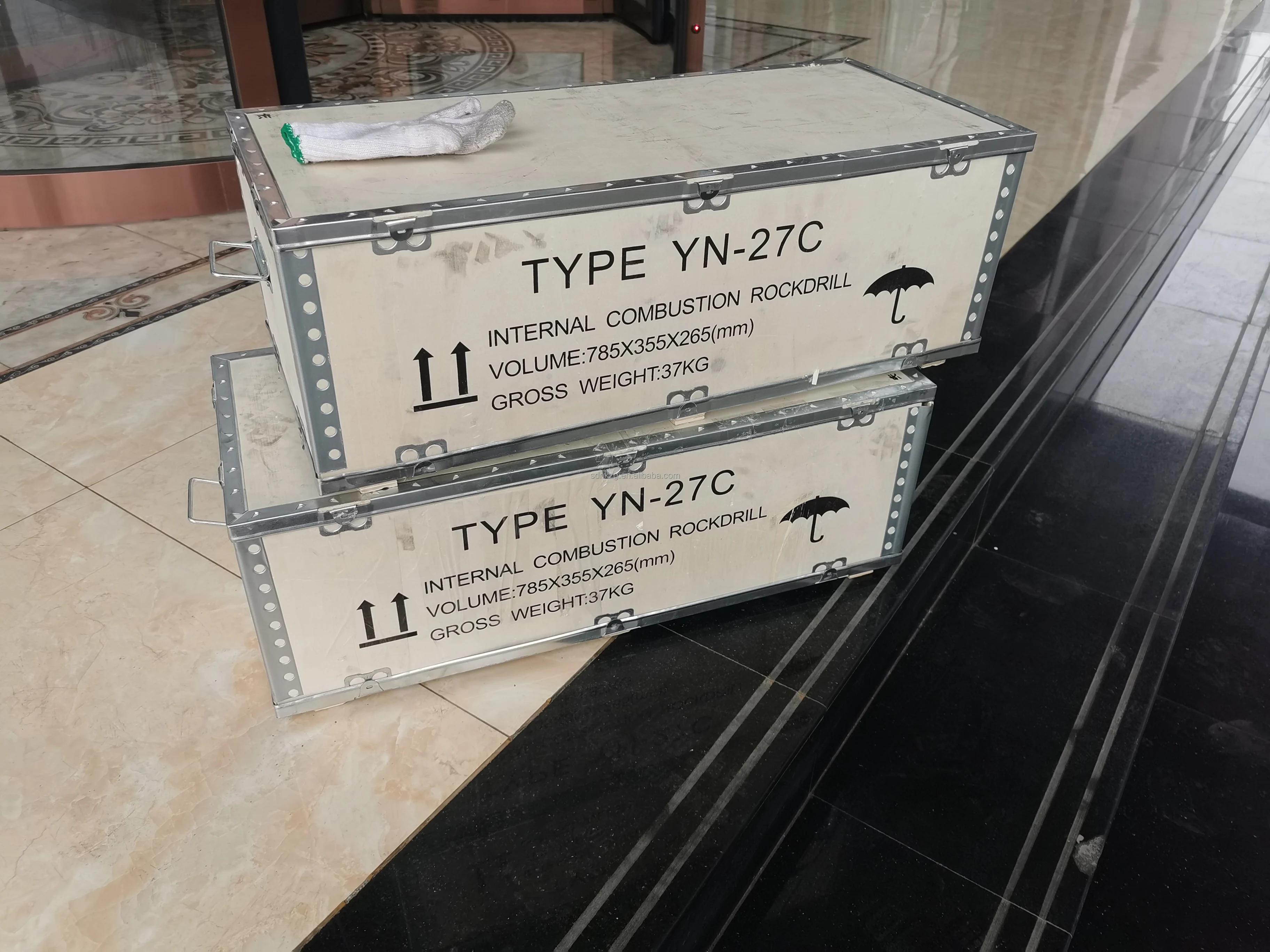

Product Packaging
Our products are shipped from China, this machine is packaged for export and all indicators meet the export standards. This product is exempt from inspection and does not require commodity inspection for export. It arrives quickly via UPS/USPS/FEDEX and other logistics. If you have any questions, please contact us and we will reply to your message within 24 hours.
Company Information
Shandong Naking Heavy Industry Co.,Ltd is a committed construction machine, road machine, building machine and agriculture machine
with a passion to assist our customer base with our products, knowledge, and support. We progressively train our employees and our
customers on the leading technologies in our industry to deliver the highest value with integrity at our highest ability.
with a passion to assist our customer base with our products, knowledge, and support. We progressively train our employees and our
customers on the leading technologies in our industry to deliver the highest value with integrity at our highest ability.

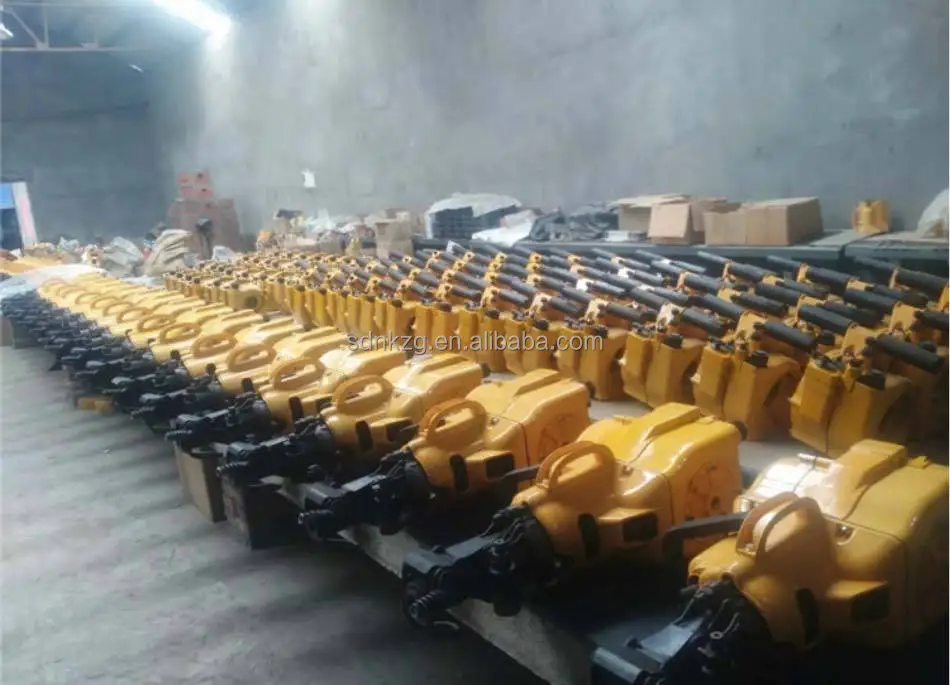

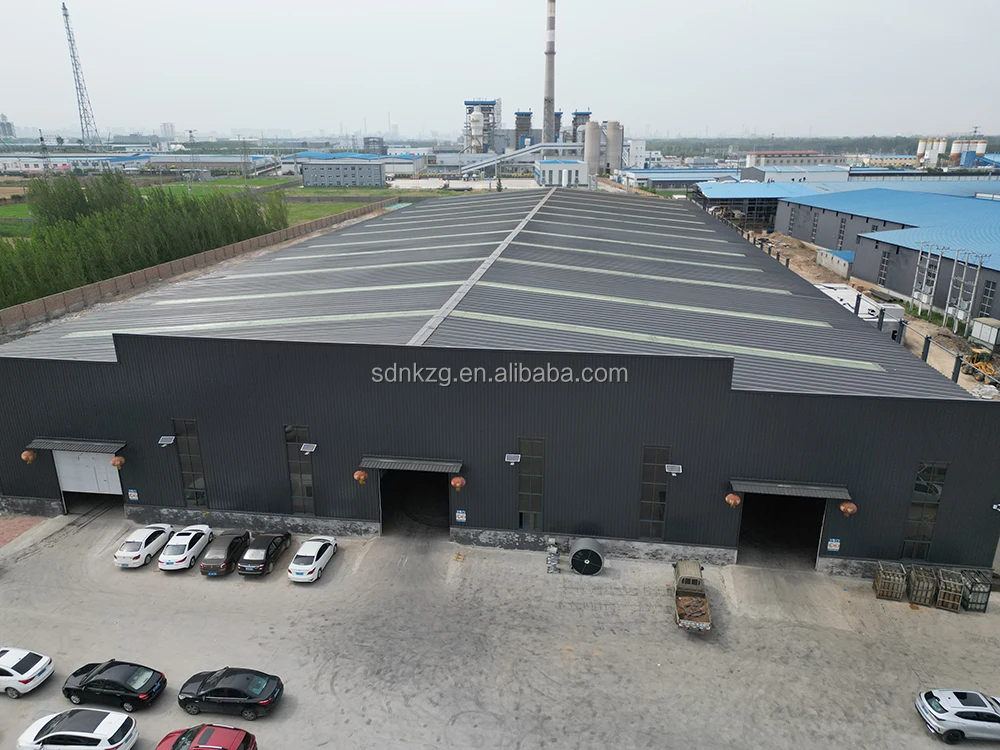

The factory covers an area of 20800 square meters, and the building area is 8000 square meters. Currently, we have 100 experienced technical staffs, 5 technicians ,30sales and Service personnel.
Our export revenue increases constantly every year, and our products have already entered 118 countries across the continents of Africa, Middle East, South America, Oceania, Middle Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you.
Our export revenue increases constantly every year, and our products have already entered 118 countries across the continents of Africa, Middle East, South America, Oceania, Middle Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you.
