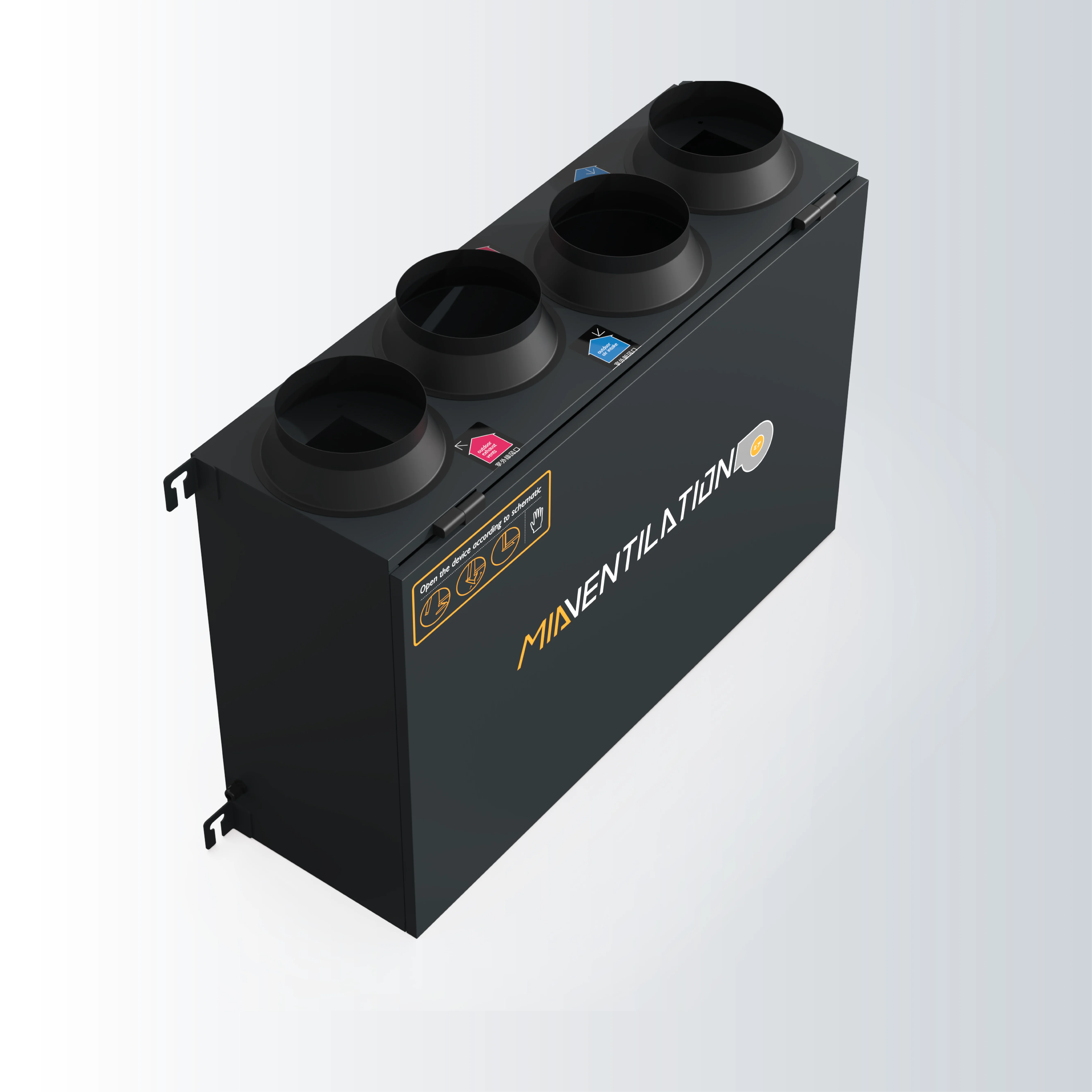

MIA Ceiling Mounted Integrated Air Distribution Box Erv Energy Recovery Ventilation Recuperator Ventilator
- Category: >>>
- Supplier: Suzhou Mia Intelligent Technology Co. Ltd.
Share on (1601211419442):
Product Overview
Description
Note:
The page only displays EXW prices and distribution prices, Please contact with us to confirm the total payment(Transportation costs and other expenses) before you putting the order!
The page only displays EXW prices and distribution prices, Please contact with us to confirm the total payment(Transportation costs and other expenses) before you putting the order!
Contacts: Anne Wang
Email: anne.miavent@miachina.net
Mob/Whatsapp: 0086 117761909290
Website: www.miachina.net
Product Description

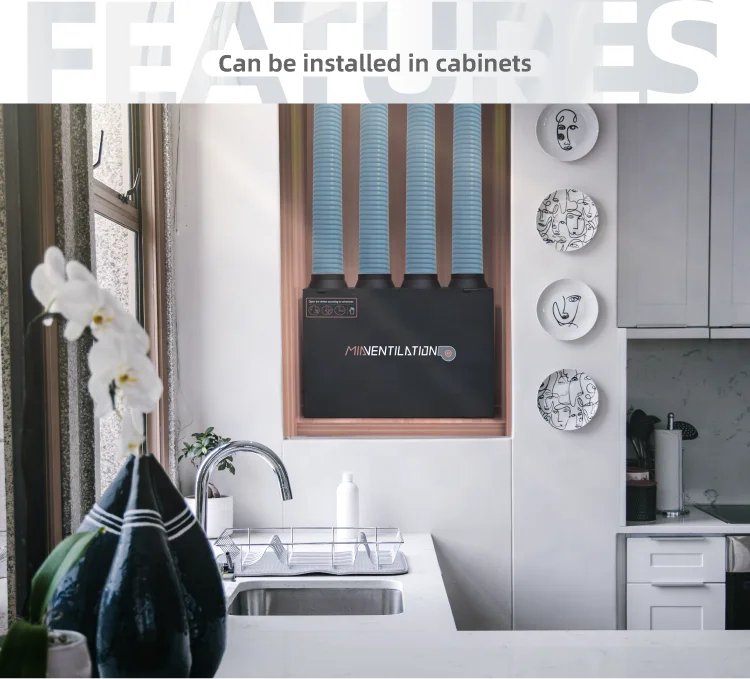

Vertical/Cabinet Type ERV Ventilation System

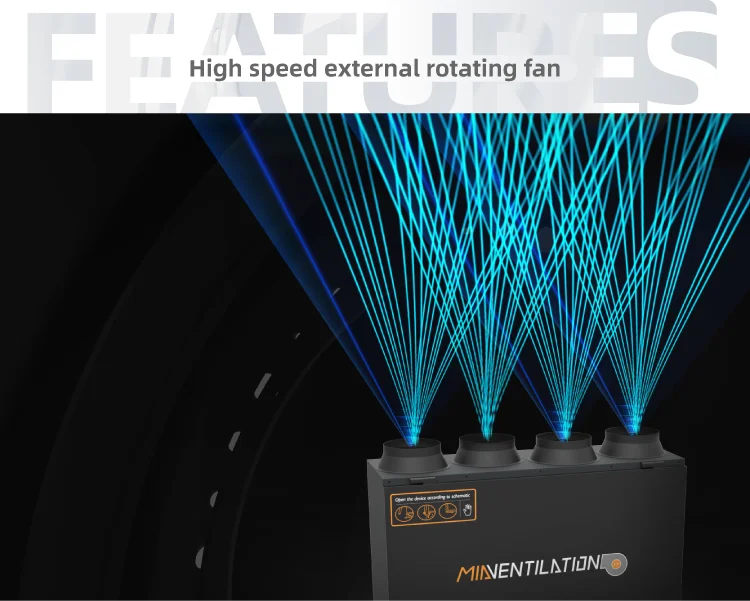

(AC outer rotor fan/DC brushless fan)
MIA-CGL/MIA-CGJD
1.Primary activated carbon two in one filter: filter dust particles, remove odor, formaldehyde.
2.European standard H13 high efficiency filter: PM2.5 purification rate is ≥99.97%.
3. PSY high thermal conductivity molecular materials, ultra-high heat recovery efficiency, while exchanging heat energy through the water molecules, consumables can be soaked with clean water, effectively prevent mildew and bacteria.
4. 87648 hours long warranty period!
Details Show

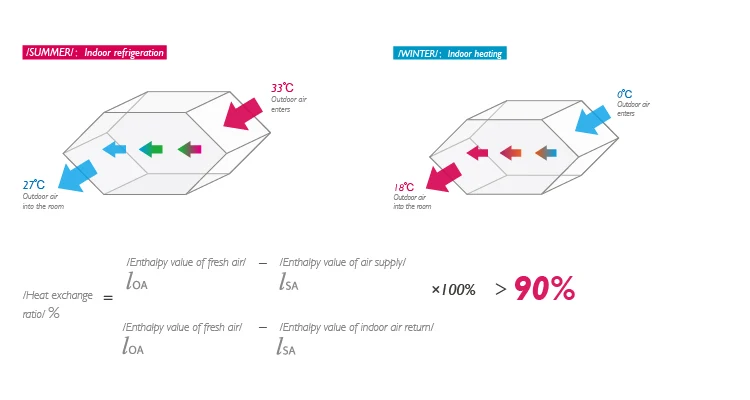

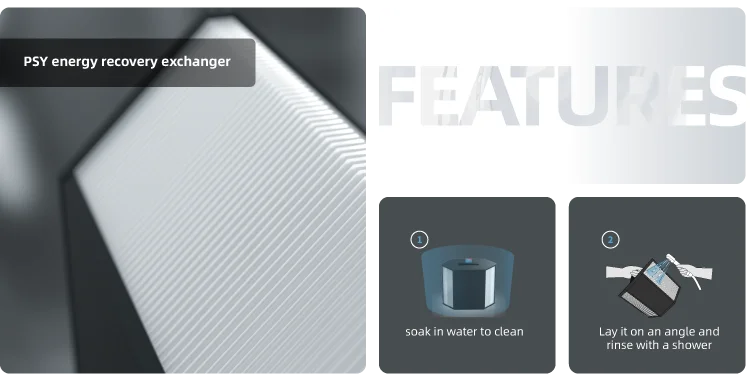

PSY Energy Recovery Exchanger
The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange, with the washable material, also can avoid the problem of bacteria and molds production.
Early Effect Activated Carbon Filter
The sealing property is far more than the paper border with using the plastic margin. The Filter with composite fiber, sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon powder can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.
HEPA H13 Filter
The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard- H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

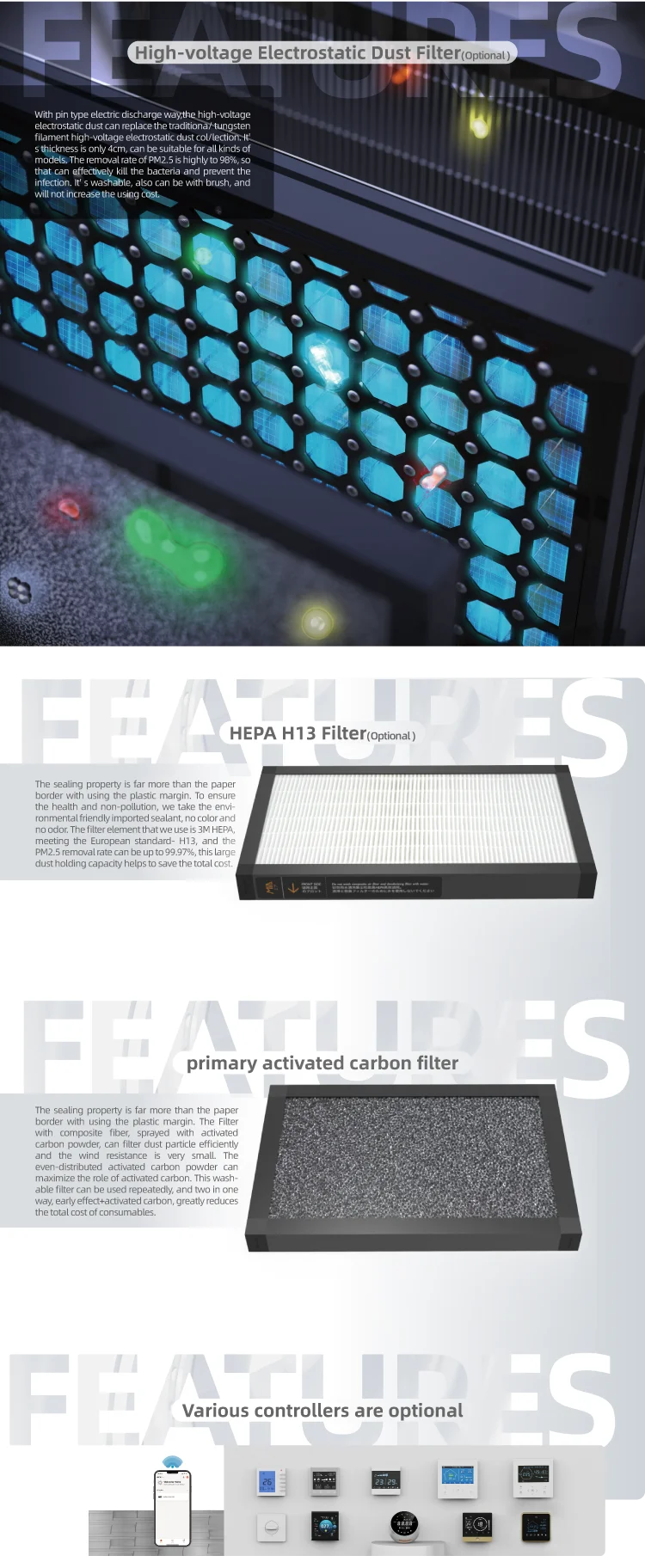

High-voltage Electrostatic Dust Filter
With pin type electric discharge way,the high-voltage electrostatic dust can replace the traditiona/ tungsten filament
high-voltage electrostatic dust col/lection. It' s thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It' s washable, also can be with brush, and will not increase the using cost.
high-voltage electrostatic dust col/lection. It' s thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It' s washable, also can be with brush, and will not increase the using cost.

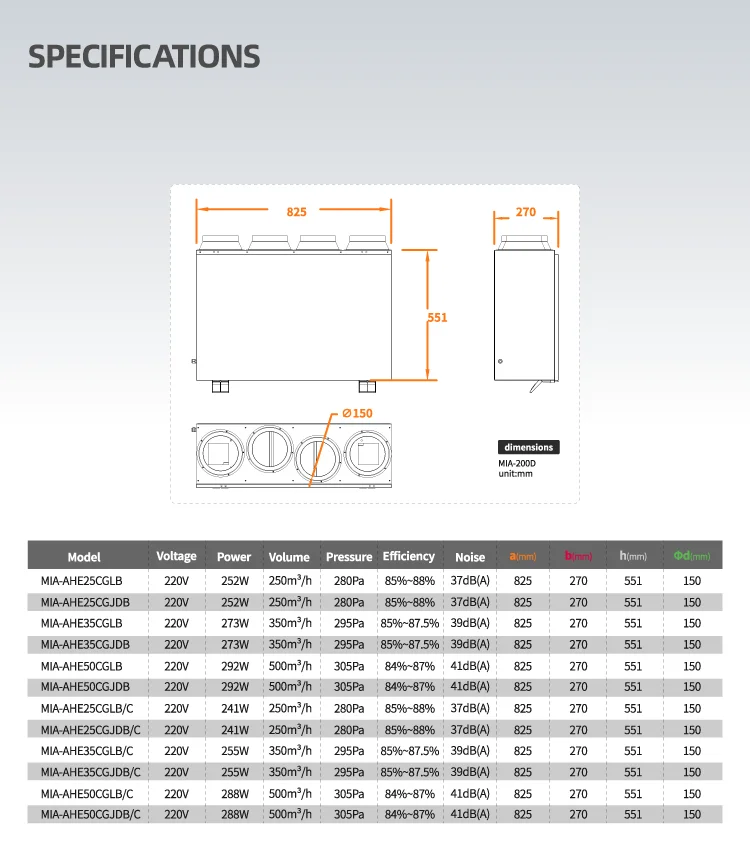

Technical Parameters
How to choose the air volume and filters?

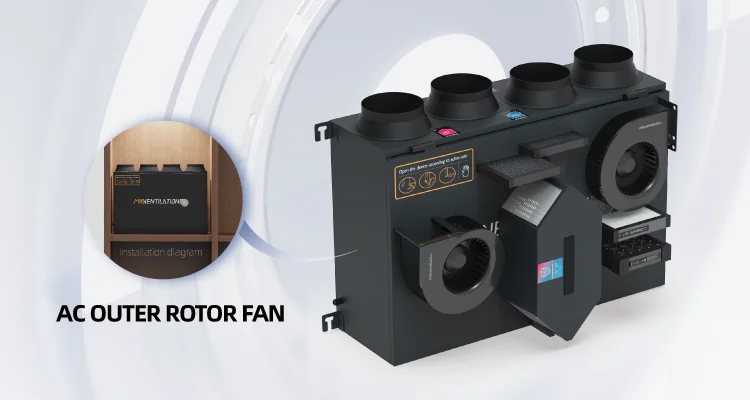

AC outer motor fan:
MIA-AHE.CGLB: Cabinet type heat recovery ventilator with Activated Carbon Filter and HEPA H13 Filter
MIA-AHE.CGJDB: Cabinet type heat recovery ventilator with Activated Carbon Filter, HEPA H13 Filter and High-voltage Electrostatic Dust Filter
DC brushless fan:
MIA-AHE.CGLB/C: Cabinet type recovery ventilator with Activated Carbon Filter and HEPA H13 Filter
DC brushless fan:
MIA-AHE.CGLB/C: Cabinet type recovery ventilator with Activated Carbon Filter and HEPA H13 Filter
MIA-AHE.CGJDB/C: Cabinet type heat recovery ventilator with Activated Carbon Filter, HEPA H13 Filter and High-voltage Electrostatic Dust Filter
Model | Voltage | Power (W) | Volume (m³/h) | Pressure (Pa) | Noise dB(A) | Efficiency | Filter (pcs) | Motor |
MIA-AHE25CGLB | 220 | 173 | 250 | 280 | 31~32 | 85%~88% | 2 | AC |
MIA-AHE25CGJDB | 220 | 173 | 250 | 280 | 31~32 | 85%~88% | 3 | AC |
MIA-AHE25CGLB/C | 220 | 173 | 250 | 280 | 31~32 | 85%~88% | 2 | DC |
MIA-AHE25CGJDB/C | 220 | 173 | 250 | 280 | 31~32 | 85%~88% | 3 | DC |
MIA-AHE35CGLB | 220 | 230 | 350 | 325 | 31~33 | 85%~87.5% | 2 | AC |
MIA-AHE35CGJDB | 220 | 230 | 350 | 325 | 31~33 | 85%~87.5% | 3 | AC |
MIA-AHE35CGLB/C | 220 | 230 | 350 | 325 | 31~33 | 85%~87.5% | 2 | DC |
MIA-AHE35CGJDB/C | 220 | 230 | 350 | 325 | 31~33 | 85%~87.5% | 3 | DC |
MIA-AHE50CGLB | 220 | 368 | 500 | 365 | 32~36 | 84%~87% | 2 | AC |
MIA-AHE50CGJDB | 220 | 368 | 500 | 365 | 32~36 | 84%~87% | 3 | AC |
MIA-AHE50CGLB/C | 220 | 368 | 500 | 365 | 32~36 | 84%~87% | 2 | DC |
MIA-AHE50CGJDB/C | 220 | 368 | 500 | 365 | 32~36 | 84%~87% | 3 | DC |

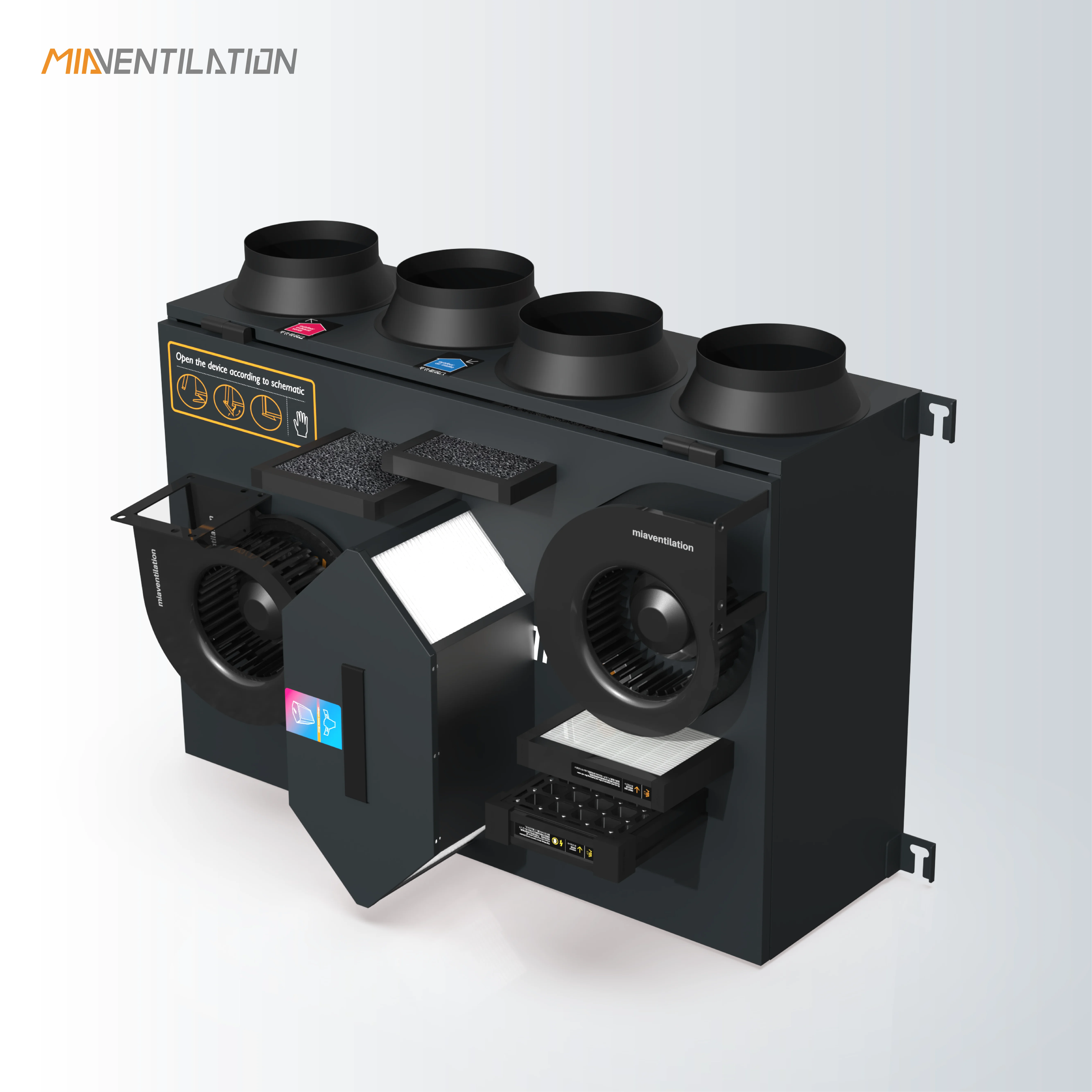

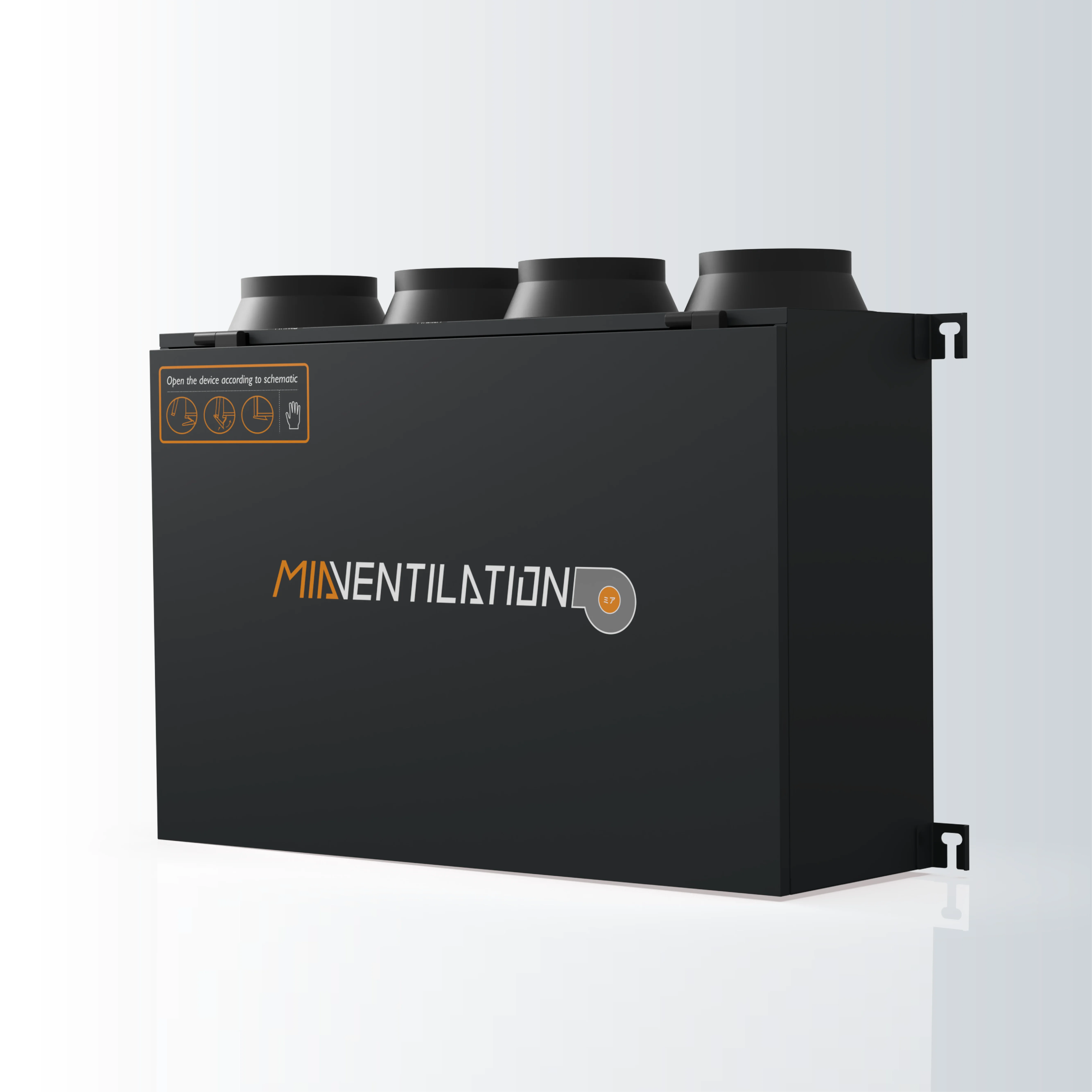

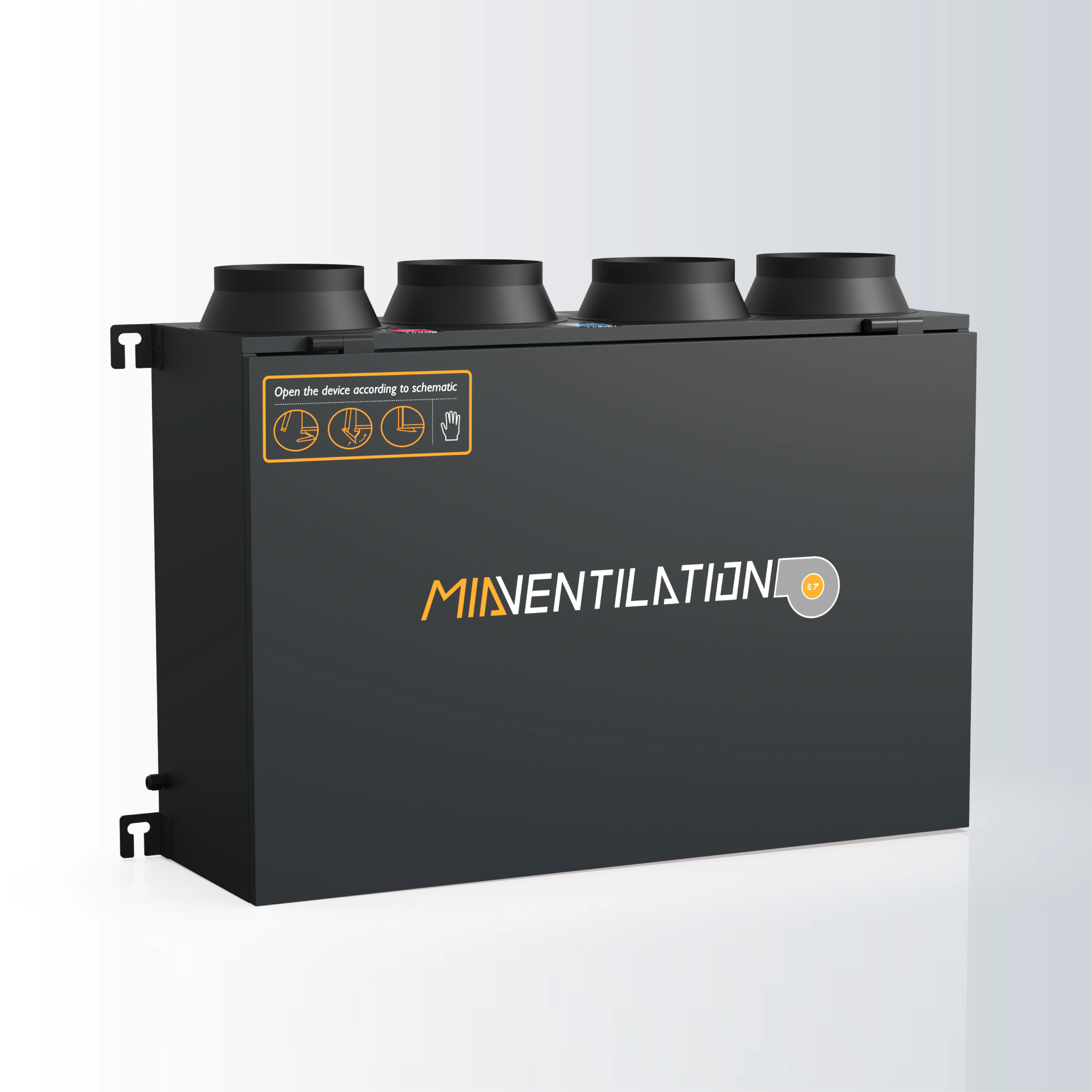

Product Display
Pls contact us
Contacts: Anne Wang
Email: anne.miavent@miachina.net
Mob/Whatsapp: 0086 117761909290
Website: www.miachina.net
Email: anne.miavent@miachina.net
Mob/Whatsapp: 0086 117761909290
Website: www.miachina.net
Company Profile
MIA Ventilation has established more than 70 sales centers and business agencies in the world. Recently set up in Suzhou. MIA China is mainly responsible for the sales of MIA air ventilation products. MIA China is drectly administeres by MIA Co.,Ltd Japan while retaining it`s own dependent finacial accounting.
