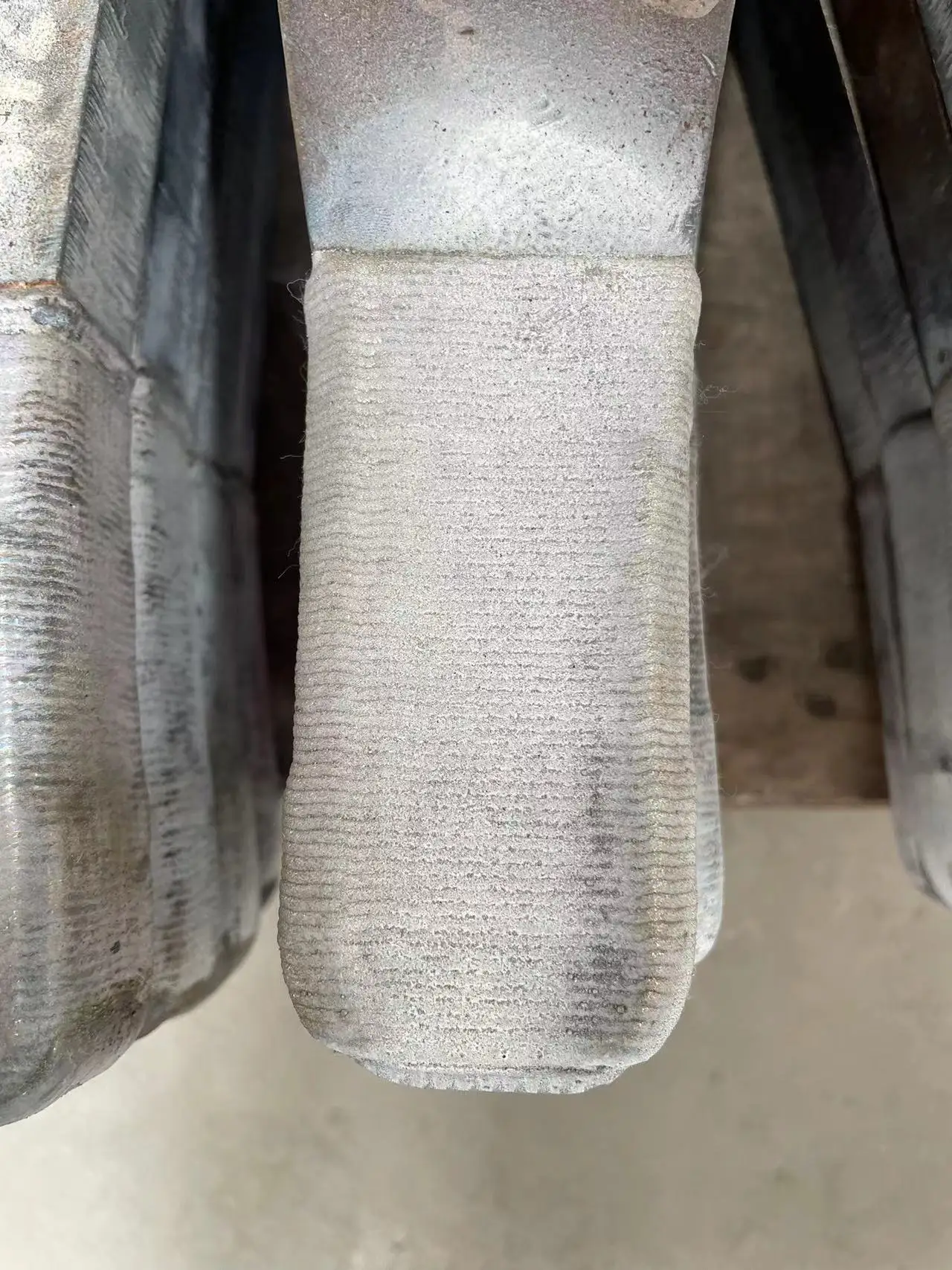

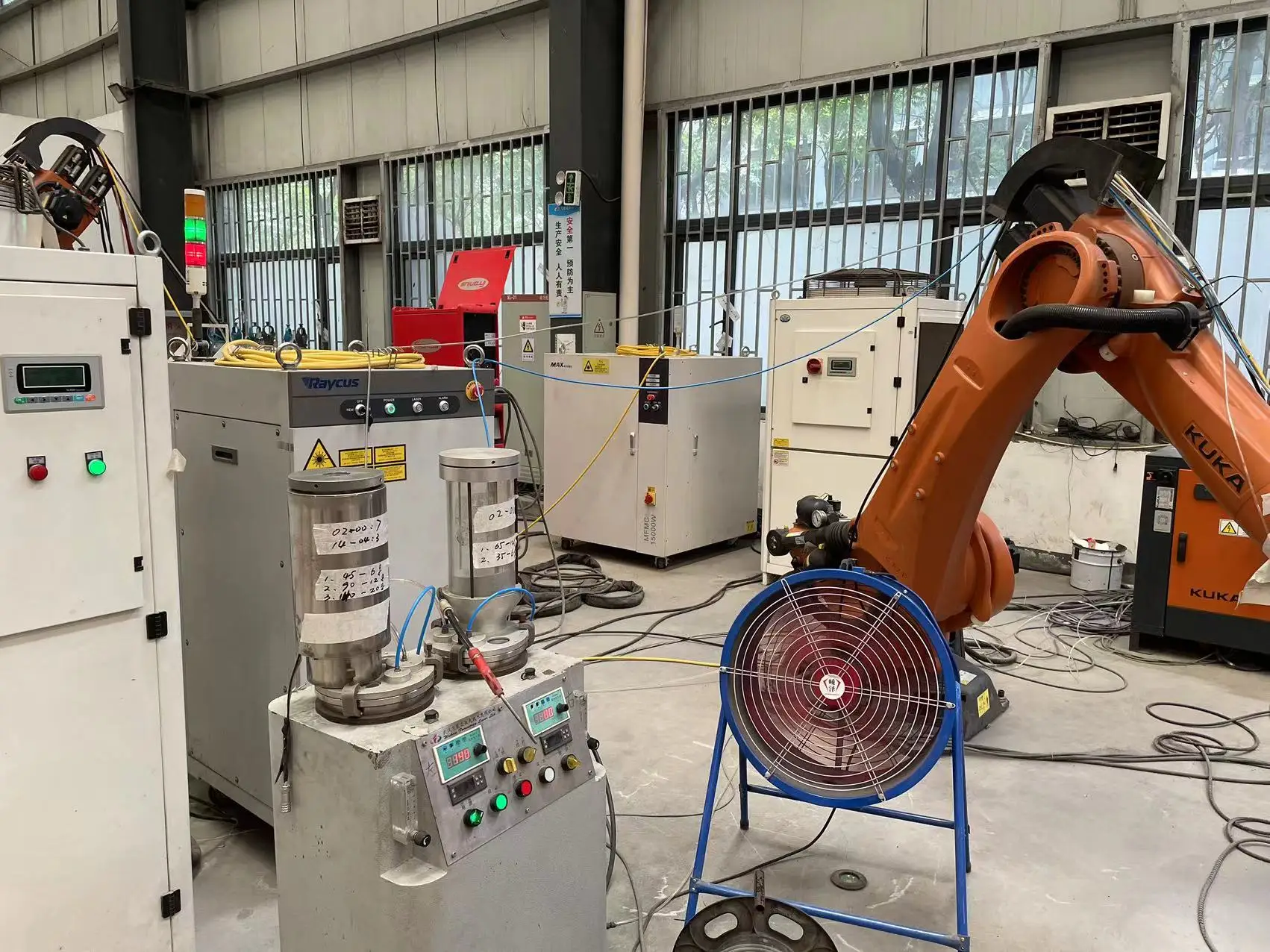

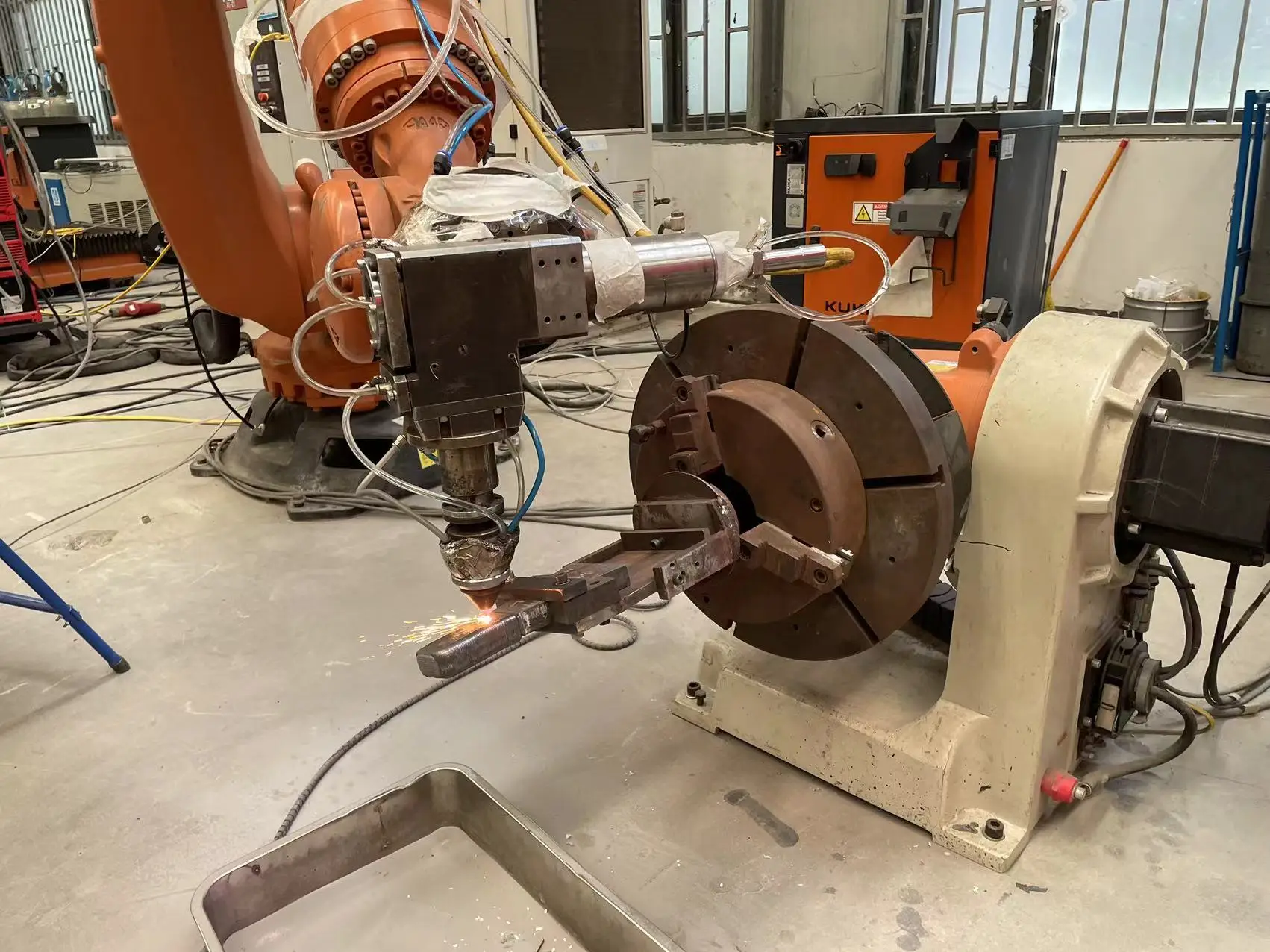

FED 6000W fiber laser coating for irregular mental workpieces with Kuka 6 Axis Robot Arm Laser cladding equipment
- Category: >>>
- Supplier: Wuhan Xinruida Laser Engineering Co. Ltd.
Share on (1601211423293):
Product Overview
Description
Products Description

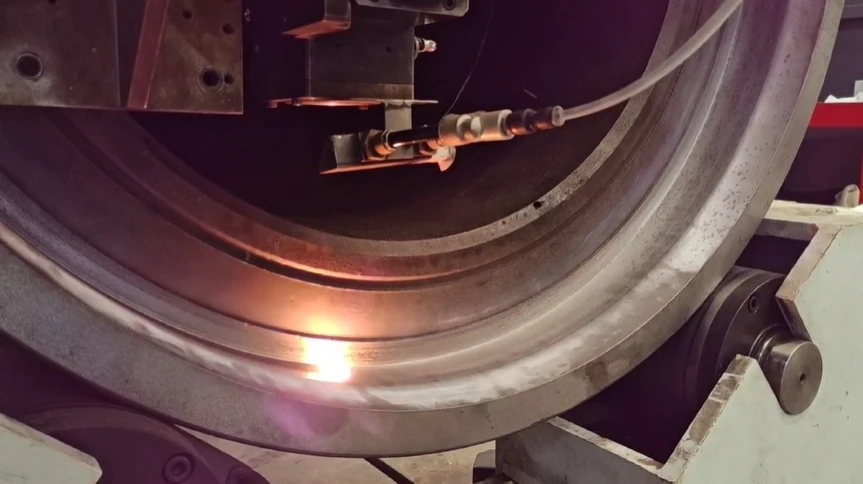

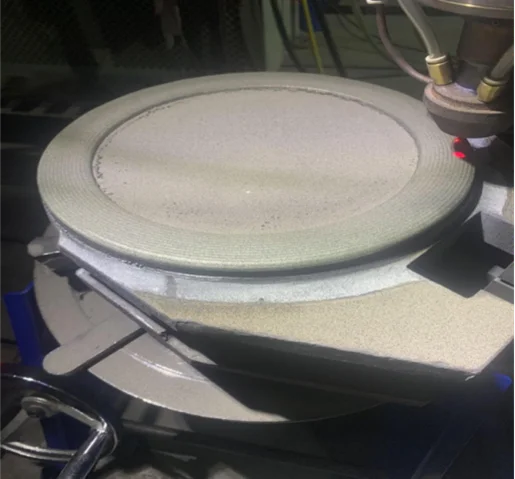

Laser cladding
1. The robot is selected from well-known domestic and foreign brands, with an arm span of 1m-2.5m and a load capacity of 7-70kg;
2. The maximum precision of motion repetitive positioning can reach ± 0.03mm, and the laser power is 2000-12000W;
3. The software and hardware systems have good openness and operability, making it easy to upgrade and expand new functions;
4. Equipped with a laser head, nozzle, and powder feeder independently developed by FED laser, it can accurately control the
powder feeding flow rate and spot size, meeting the efficient repair and forming needs of high-precision parts;

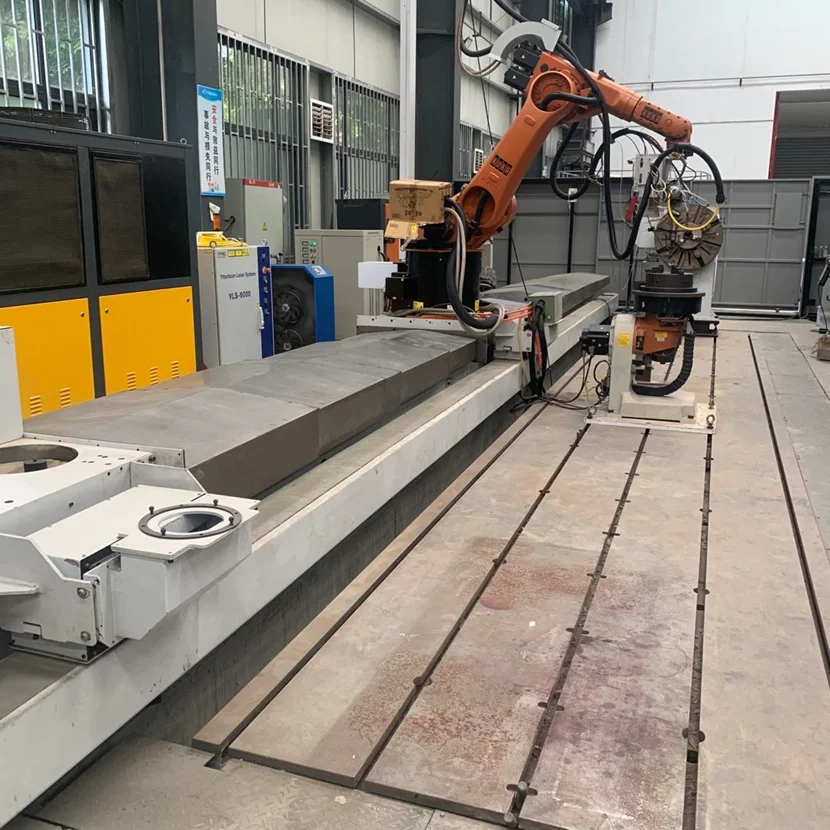

5. Configure slide, turntable, or cradle type displacement machines to achieve eight axis synchronous linkage and high-precision
positioning with robots, which can meet the repair or forming of complex parts;
2. The maximum precision of motion repetitive positioning can reach ± 0.03mm, and the laser power is 2000-12000W;
3. The software and hardware systems have good openness and operability, making it easy to upgrade and expand new functions;
4. Equipped with a laser head, nozzle, and powder feeder independently developed by FED laser, it can accurately control the
powder feeding flow rate and spot size, meeting the efficient repair and forming needs of high-precision parts;
5. Configure slide, turntable, or cradle type displacement machines to achieve eight axis synchronous linkage and high-precision
positioning with robots, which can meet the repair or forming of complex parts;
Description | Laser Cladding Equipment | ||||
Type | FED-LC-6000R | ||||
Supply Valtage | 3 Phase 380VAC，50/60Hz | Carring Weight | 200kg（Customizable） | ||
Laser Power | 6000W | Spot Size | 2×12mm (Rectangle or circular optional, Size Customizable) | ||
Spindle Speed | 0.1-10.0rpm | Repetitive Positioning Accuracy | ±0.1mm | ||
Effective Length of Workpiece | 500mm | Realizable Layer Thickness | 2mm | ||
Effective Diameter of workpiece | φ500mm | Sedimentary Efficiency | 8cm³/min | ||
Maximum Turning iameter | φ500mm | Dilution Rate of Substrate | ≤8% | ||
Powder Utilization Rate | ≥85% | ||||
Company Profile
WUHAN FOCUNERGY LASER CO.,LTD
WUHAN FOCUNERGY LASER CO.,LTD (here in after "the Company" ) was first established in 2009.
The Company is located in Optics Valley Joint Science&Technology Town, Gedian Economic&Development Zone, Hubei Province and has occupied more than 5400 square meter.
There is about 100 working staff in the Company, among which, 40% of the staffs own bachelor degree and above, more than 20 engineers own doctor or master degree.
The Company is a high-tech enterprise whic is dedicated on providing laser application complete solution for client.Base on the R&D strength of Wuhan opto-electronics National Research Center of Huazhong University of Science and Technology and long-term technology accumulation in the laser manufacture fields, the Company has built a high quality group constituting by experience experts and senior engineers of Laser Engineering, Material Processing, Machinery Manufacturing, Optical Design, Automatic Control, Software Engineering etc.
There are more than 30 Patents involved with laser application fields in domestic and aboard.
The business of the Company is researching & developing,manufacturing,selling laser processing equipment, the main product is conclude Laser surface quenching/cladding equipment, Laser cleaning equipment, Laser welding/laser-arc hybrid welding equipment, Laser precision processing equipment.
Exhibition
Certifications
Product packaging
FAQ
Q1: I don’t know which one is suitable for me?
A1:Please tell me your
1) Your materials
2) Max size of your material
3) Max weld thickness
4) Popular weld thickness
Q2: It's not convenient for me to go to China, but I want to see the condition of themachine in the factory. What should I do?
A2:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work.
Q3: Do you have CE document and other documents for customs clearance?
A3:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q4: I don’t know how to use after I receive Or I have problem during use,how to do?
A4:
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use, please contact your sales sunny or our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with camera till all of your problems finished.We can also provide Door service if you need.
2) If have any problem during use, please contact your sales sunny or our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with camera till all of your problems finished.We can also provide Door service if you need.
Q5: Why does the machine price not include fiber sources and tube components?
A5:Because you can customize the generator, rotary and other configurations, the price is the base bed price.
The price showed refers to the machine price, not include shipping cost.
The price showed refers to the machine price, not include shipping cost.
