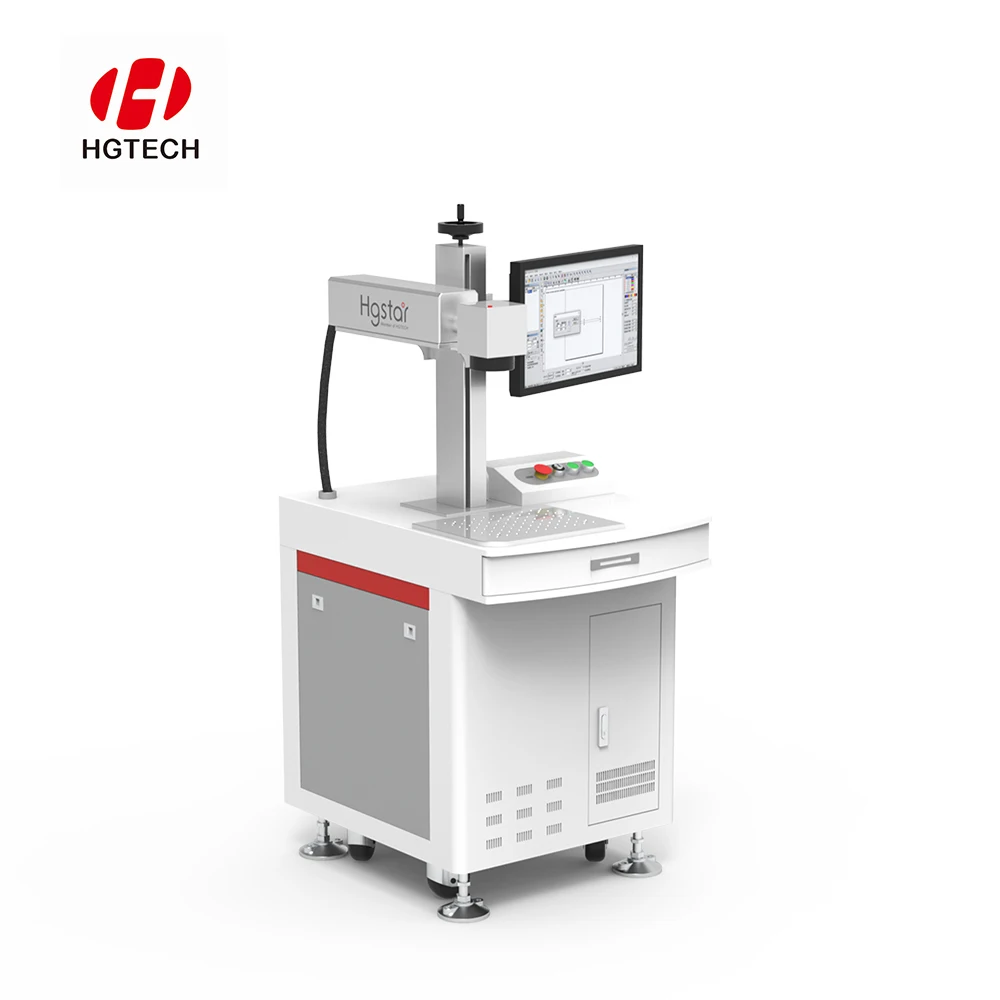

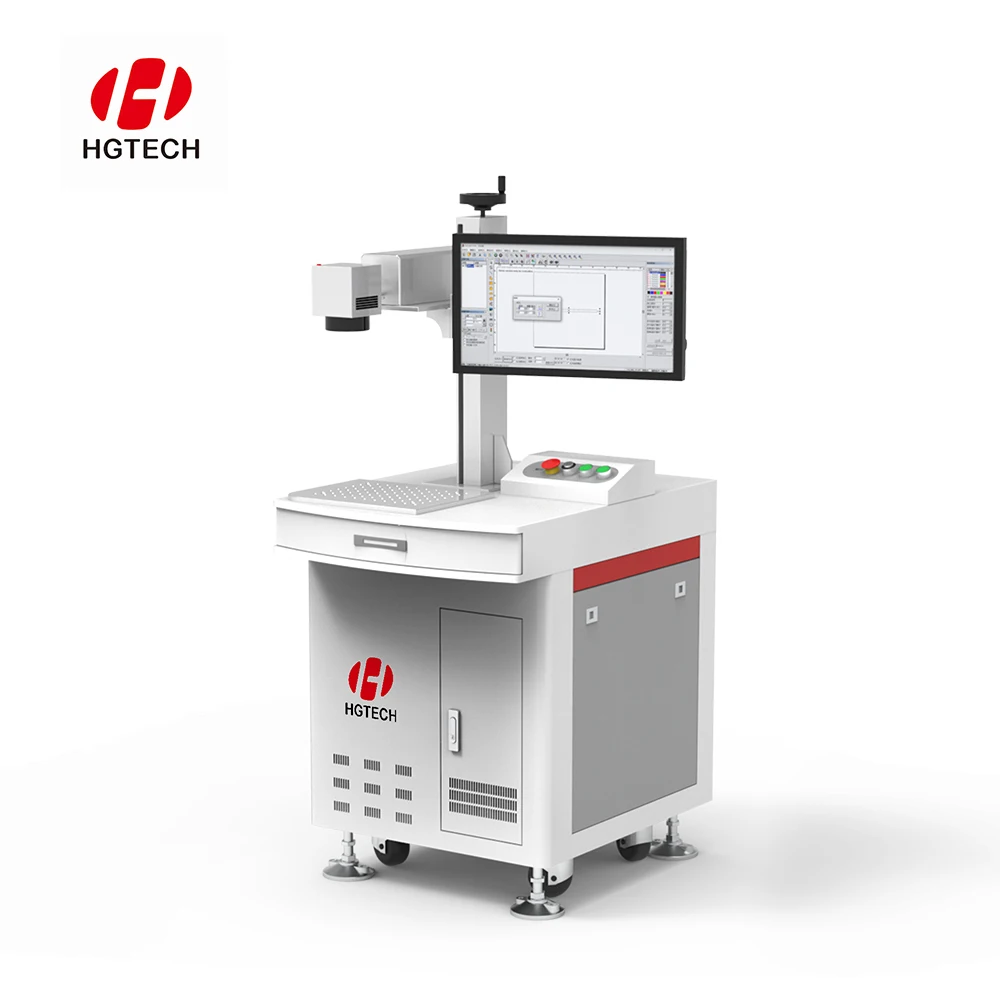

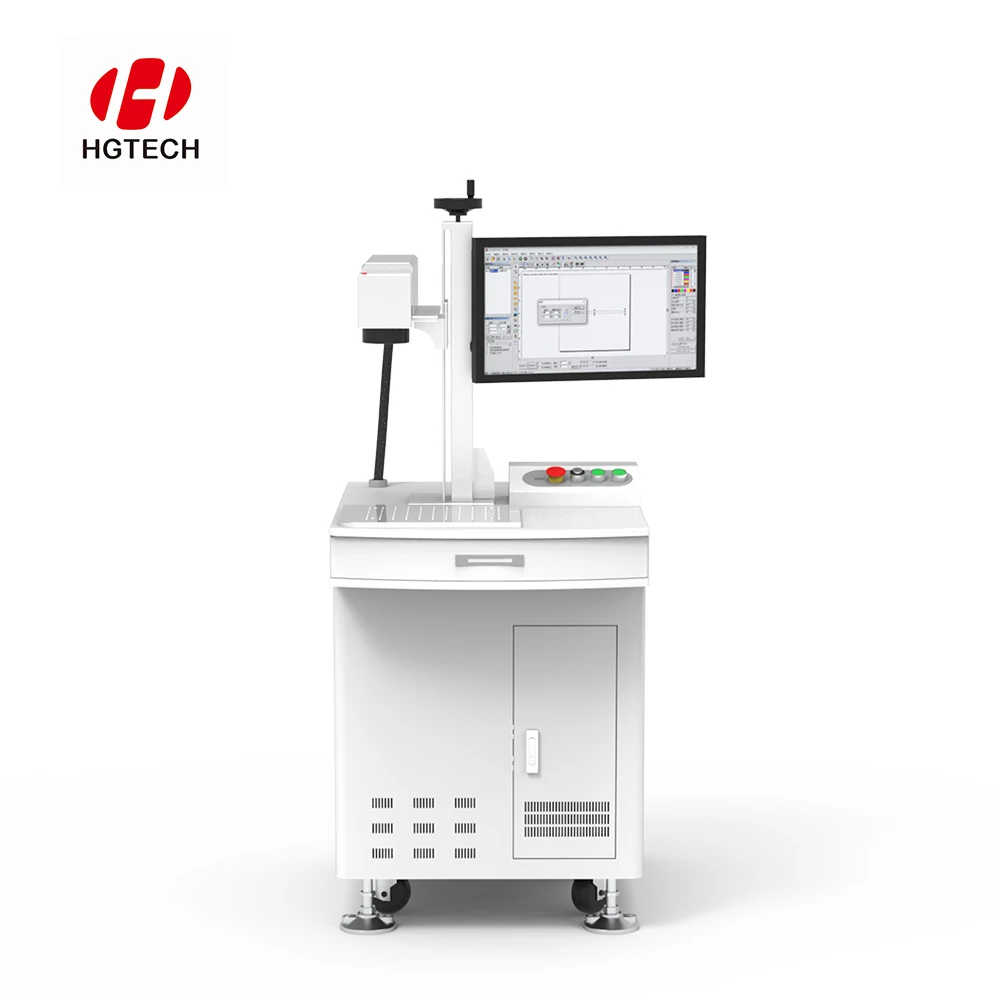

HGTECH Portable 3d Fiber Lazer Marker Portable CO2 UV 20w 200w Metal Bottle Cap Plastic Laser Engraving Marking Machine
- Category: >>>
- Supplier: Hg Star Technology Co. Ltd.
Share on (1601211600835):
Product Overview
Description
HGTECH Portable 3d Fiber Lazer Marker Portable CO2 UV 20w-200w Metal Bottle Cap Plastic Laser Engraving Marking Machine
Product Description
What is the difference between OV Laser 2D 2.5D 3D machines?
2D laser with 2D galvo scanning head and EZCAD2 control card, EZCAD2.1 4.11 version software. It can mark flat metal and some nonmetal surface , deep engraving metal and cutting some thin metals.
2.5D laser means 2D laser + motorized Z axis + EZCAD3 software. Based on the common 2D laser, the latest 2.5D machine is composed by the motorized Z axis and EZCAD3 software, mainly used for STL file metal mold coin relief engraving etc + All features of 2D machines.
3D laser is the most comprehensive machine, which also have the motorized Z axis and EZCAD3 control card, plus a 3D Dynamic focus scanning head , it can be used for curved surface (
app 120 degree) marking without rotary, can be used for metal mold and coin relief engraving, what's more, it can be used for big format like 300*300mm metal deep engraving. (for 2D and 2.5D laser, the max deep engraving area is app 110*110MM)
| Laser Source | JPT/Max/ Reci/ Raycus |
| Max Power | 20w/30w/50w/100w/200W |
| Marking Range | 110*110m,150*150mm,175*175mm,200*200mm,300*300mm working area option |
| Minimum Line Width | 0.01mm |
| Minimum Character | 0.1mm |
| Marking Speed | 10000mm/s |
| Marking Depth | 0-1.5mm |
| Engraving Line Speed | ≤7000mm/s |
| Repeatability Accuracy | ±0.001mm |
| Graphic Format Supported | BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, ETC. |
| Working Environment | Clean and dust free or dust less |
| Matching system | Win7,Win8,Win9,Win10 |
| Product packing Size | 75cm* 47cm* 85cm |
| Product packing Weight | 68KG |
| Laser Module Life | >100000 hours |
What's the advantage of Forsun Laser Marking Machine ?
1.Controller | EZCAD software with stable perfomance and high reliability,Compatible with Windows XP/Vista/7/8/9/10; Supporting file types AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP; Support language English, Spanish, Arabic, Korean, Japanese |
2.Laser Source | We use Chinese best brand Raycus laser generator with best cost performance.Optional:CAS/MAX/IPG/JPT color marking laser source |
3.Field Lens | high system resolution and good light perception,Famous“Wavelength" brand, fast speed,high transparent rate. |
4.Galvo Head | High speed galvanometer scan head ,using digital signal,high precision. |
5.Reducer | Japan Shimpo Reducer -The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable |
6.Rotary | Which can aslo add rotary and rotary table , suitable for ring ,pens and other ring items |
Applicable Materials:
Most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc,
Many non-metal materials,such as ABS, Some non-metallic materials & Special surface treatment:silicon wafer,ceramics,plastic,rubber,epoxy resin,ABS,Nylon, PES, PVC, Makrolon.Printing ink, Plating, Spraying, Coating film.
Alloy and metal oxides: Anodized Aluminum
Applicable Industry:
They are widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.
Company Information
ABOUT HGTECH
Founded in 1999, HGTECH was launched to the public in Shenzhen Stock Exchange in 2000. It was the first laser based high-tech company to be introduced in China, also a leader in the laser industry and one of the top 100 electronic information companies domestically. With laser technology and applications in mind as its main business, in light of the growing global trend of remanufacturing, the company is pooling premium resources in order to develop smart manufacturing products and solutions based on shaping industrial planning of laser manufacturing equipment, optical communication devices, 3D laser counterfeiting and sensors Tracking information.
HGTECH owns several technology companies such as HGLASER, HG-FARLEY, HGGAOLI, HGIMAGE,HGSTAR and HGCYBER with a large share in the Chinese market. HGTECH is committed to providing the highest quality and cost-effective products and services to our customers around the world, and since 1977, HGFARLEY Laboratories has devoted research to laser technology. The latest laser cutting machines offer 12000 watts of power, achieving 1256 holes per minute, which means 21 holes per second with Raycus Laser source with
a 5-year warranty. And our company has established good cooperative relationships with many top 500 companies in the world such as Samsung, Microsoft, Carrier, Alcatel-Lucent, Tesla, IBM, APPLE and many more.
FAQ
Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials. Metal/Acrylic/Plywood/MDF?
)You want to engrave or marking? If cut,could you tell me your marking material? Because different material needs different laser sorace power and laser power supplier.
Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone,email or skype.
Q3. How long is the delivery time?
For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to client's specific requirements, it would be 7 to 30 days.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before leaving out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 60 Countries.
Q5. Do you arrange shipment for the machines?
Yes. For FOB or CIF price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
