SENFENG hot sale open type fiber laser sheet metal and tube cutting machine SF3015C with 6m tube cutting
- Category: >>>
- Supplier: Jinan Senfeng Laser Technology Co. Ltd.
Share on (1601211755034):
Product Overview
Description

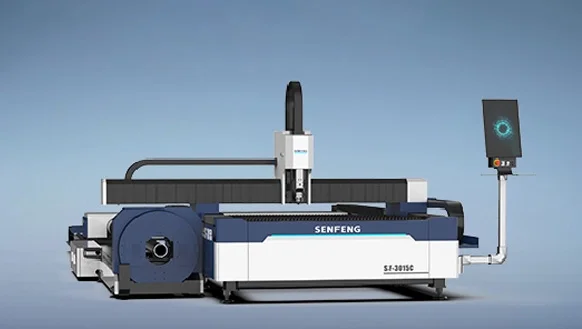

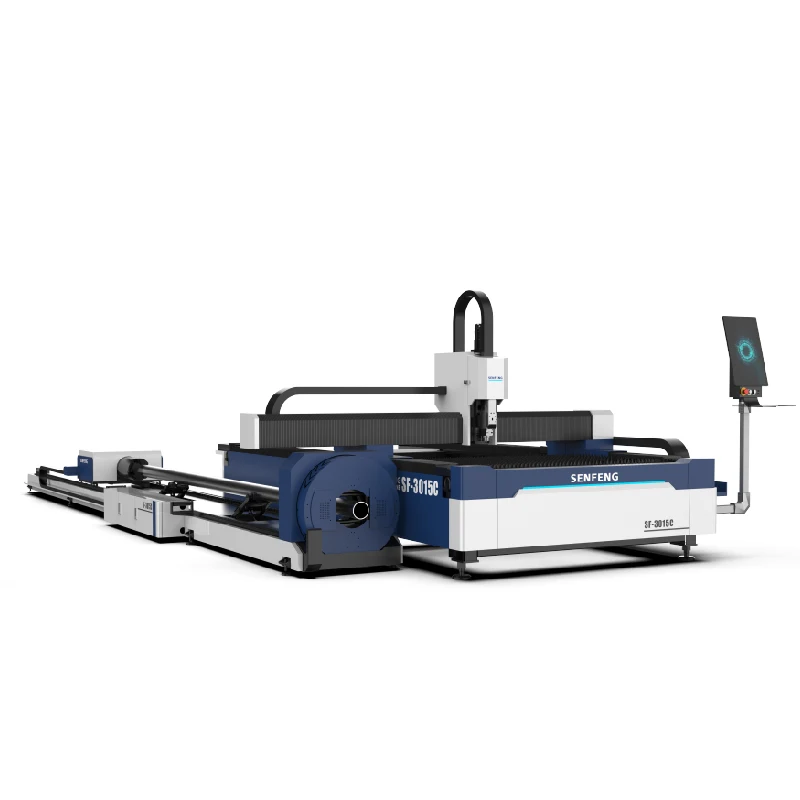

SENFENG hot sale open type fiber laser sheet metal and tube cutting machine SF3015C with 6m tube cutting
Product Description

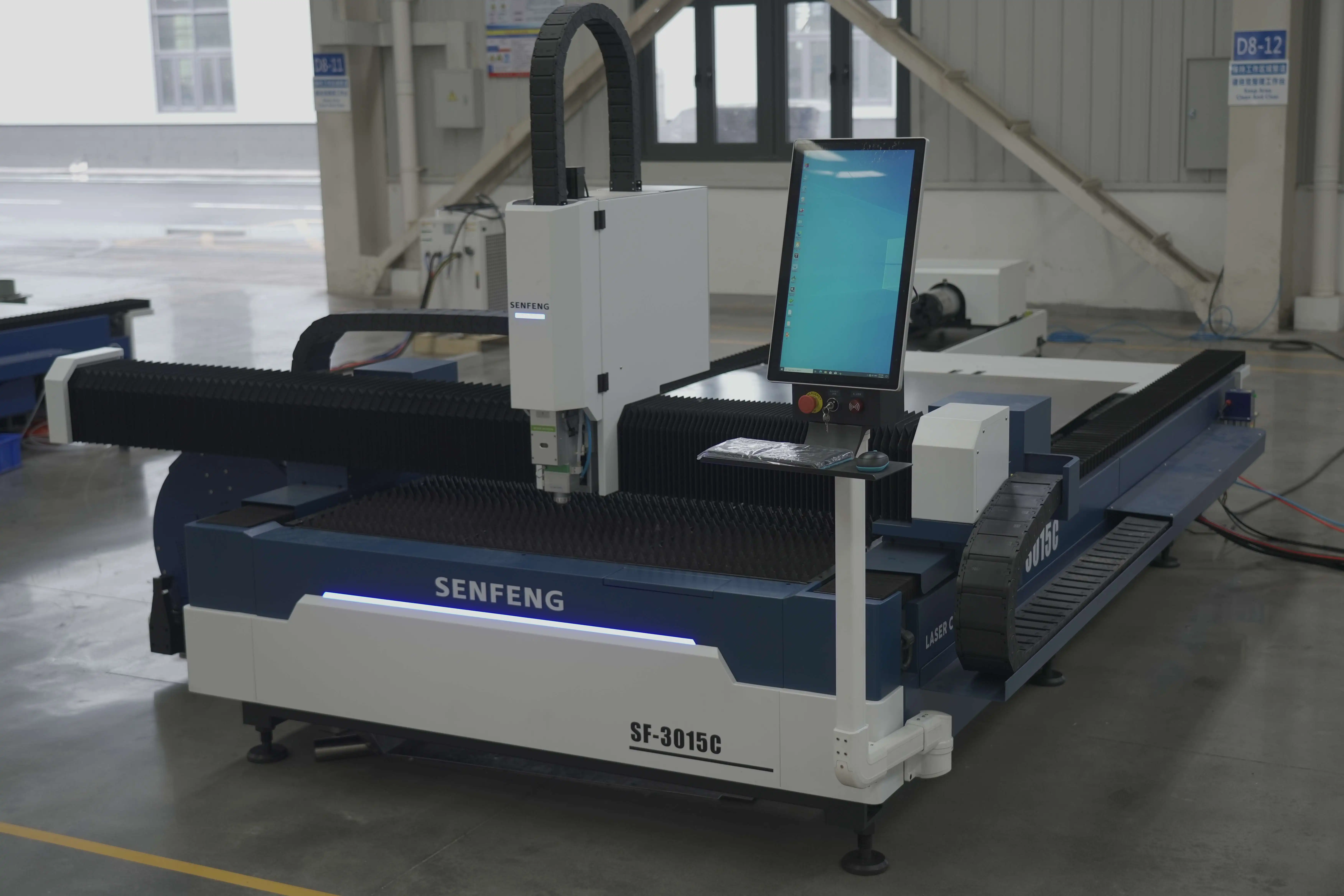

The SF3015C tube and sheet fiber laser cutting machine is an affordable model designed with a single platform and compact-style structure, making it ideal for businesses with limited space. Its relatively small footprint requires much less upfront investment, making it an excellent choice for start-ups and small enterprises. The SF3015C offers precise and efficient cutting capabilities for both tube and sheet materials, providing versatility and high performance in a cost-effective package. This machine is perfect for those looking to maximize productivity while minimizing initial costs.
Items | Parameters | ||||||||
1.5kW | 2kW | 3kW | 4kW | 6kW | |||||
Work area (Length X Width) | 3000*1500mm | ||||||||
X-axis travel | 1530mm | ||||||||
Y-axis travel | 3050mm | ||||||||
Z-axis travel | 360mm | ||||||||
Tube length | 500~6000mm | ||||||||
Tube diameter | 20~220mm | ||||||||
X/Y-axis positioning accuracy | ±0.05mm | ||||||||
X/Y-axis repeated positioning accuracy | ±0.02mm | ||||||||
Maximum speed | 100m/min | ||||||||
Maximum acceleration | 1.0G | ||||||||
Dimensions (length x width x height) | 8500*3740*2100mm | ||||||||
Maximum load | 700KG | ||||||||
Total weight | 2900 | 2960 | 3000 | 3050 | 3140 | ||||
Phase | Three-phase | ||||||||
Rated voltage of power supply | 380V | ||||||||
Frequency | 50Hz | ||||||||
Power supply protection grade | IP54 | ||||||||
Specification

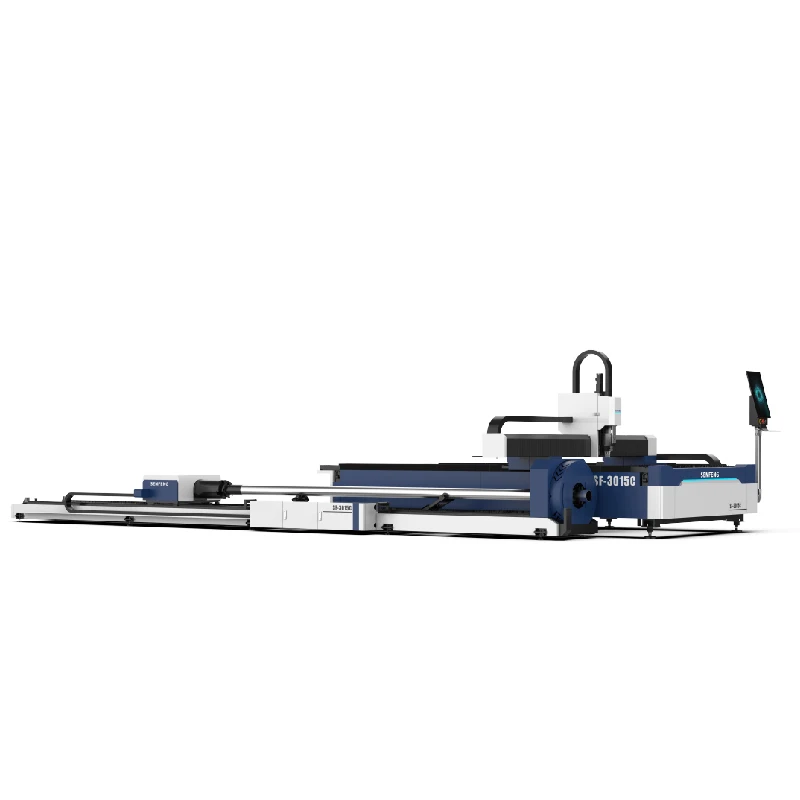

One Machine with Two Functions
As a dual-purpose machine, it can cut both sheet and tube, requiring much less space and early investment. Start-ups with
insufficient economic power or small workshop can also afford it.
* Need 50%+ less footprint
* Purchase costs halved at least
insufficient economic power or small workshop can also afford it.
* Need 50%+ less footprint
* Purchase costs halved at least

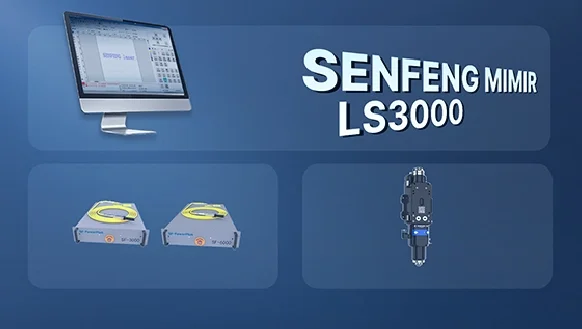

Three Self-developed Core Components
Its core components below are self-developed by us. Thanks to their superior interconnection, you will surely face low failure
rate and user-friendly maintenance.
* SF-Mimir LT
Intelligent control system
* SF-PowerPlus
Small-sized laser generator
* SF-TYRFING
Autofocus laser cutting head
rate and user-friendly maintenance.
* SF-Mimir LT
Intelligent control system
* SF-PowerPlus
Small-sized laser generator
* SF-TYRFING
Autofocus laser cutting head

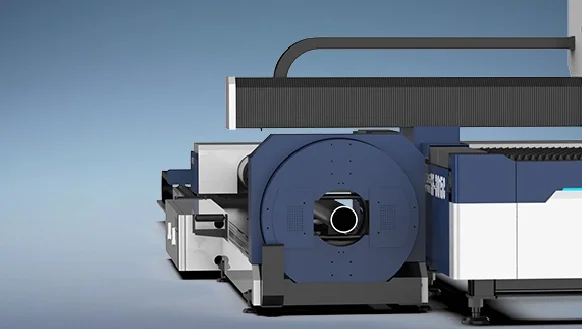

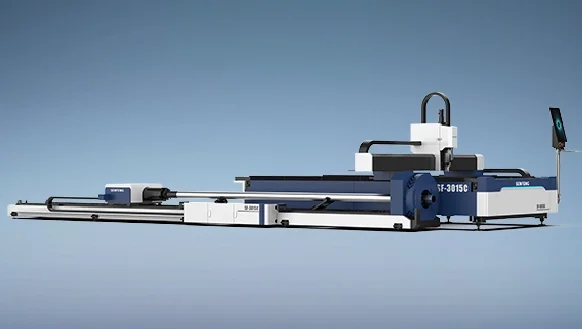

Make the Utmost of Raw Materials
With pneumatic self-centering chuck, tubes of different shapes are usually clamped tightly at high precision. Short tailing is
made possible.
* Max diameter of tube: 220mm
* Max length of tube: 6000mm
made possible.
* Max diameter of tube: 220mm
* Max length of tube: 6000mm

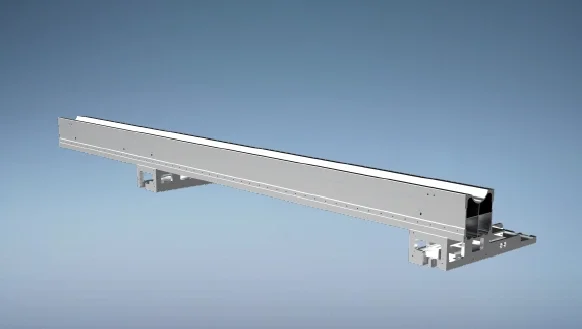

Superior Dynamic Performance
Its AL alloy beam is featured by high strength, light weight and superior dynamic performance. After stress relieving by annealing, secondary vibration aging and finish machining, we are sure of its work stability and service life.
* Max no-load speed: 100m/min
* Max acceleration: 1G
* Max no-load speed: 100m/min
* Max acceleration: 1G

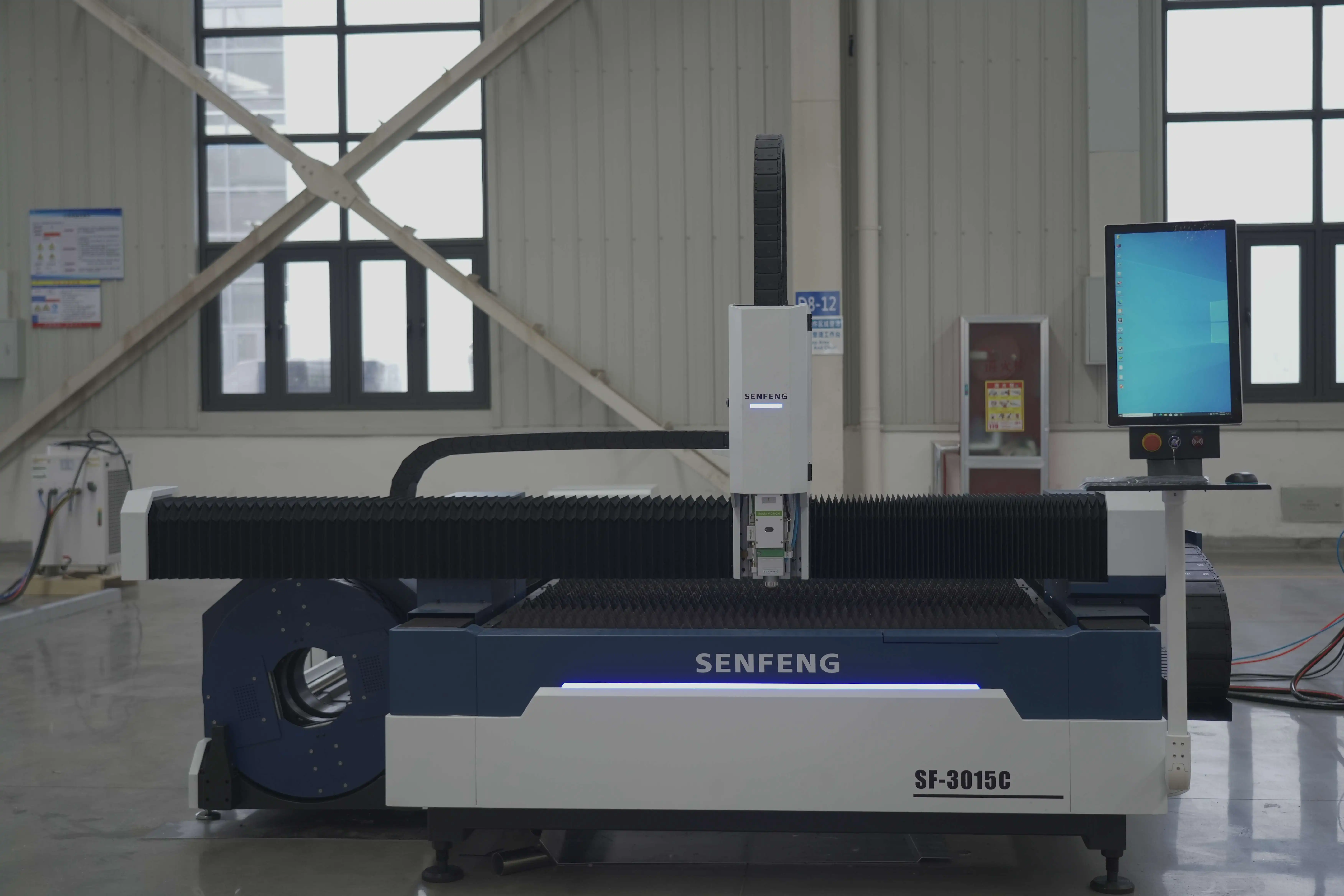

Open-style Structure
The machine is convenient to load and unload sheet and tube from front, rear and both sides. For users, they will get a whole picture of cutting process and solve possible faults in time. No unwanted downtime anymore.
Application
3015C is ideally fit to cut thin sheet (≤20mm) and small tube (max diameter: 220mm). We recommend it to household appliances, kitchenware and sanitary wares, chassis cabinet, billboards, elevator manufacturing, etc.
Recommend Products
Packing & Delivery
Company Profile
FAQ
1. Why choose Senfeng?
Senfeng, as a leading integrated manufacturer of fiber laser machines for cutting, welding, cleaning, cladding as well as electric bending machine, provides various solutions in the field of fabricating machinery with cutting-edge technology.
We also establish cooperative relations with as many as 160 countries worldwide, with training and services provided abroad, to provide the best after-sales service.
Senfeng, as a leading integrated manufacturer of fiber laser machines for cutting, welding, cleaning, cladding as well as electric bending machine, provides various solutions in the field of fabricating machinery with cutting-edge technology.
We also establish cooperative relations with as many as 160 countries worldwide, with training and services provided abroad, to provide the best after-sales service.
2. Where is the sales service center?
Senfeng has established 2 subsidiaries in the United States, and Germany and 5 service centers in India, Pakistan, Serbia, Vietnam and Jordan.
3. What certification does the machine have?
Senfeng has passed CE from TÜV, ROHS, ETL certificates, which is in line with European and American standards.
4. How to choose the right machine for me?
Very easy to choose. Tell us what you want to do with a fiber laser, and we'll match you with the perfect solution and advice.
5. What materials can our machine cut？
A fiber laser cutting machine is extremely useful in cutting sheet metal including carbon steel, stainless steel, copper, brass, aluminum, and titanium.
6. How long is the warranty time?
The whole machine is guaranteed for 2 years.
7. Payment terms?
Alibaba trade assurance/TT/West Union/Paypal/LC/Cash and so on.
8. Machine delivery time？
The delivery time of equipment is usually more than 30 days.
9. It's not convenient for me to go to China, but I want to see the condition of the machines in the factory. What should I do？
If it’s not convenient to come to China, our sales manager can take you to know the factory by online video conference.
10. What does the customer need to prepare before dispatching technicians?
It is necessary for the customer to confirm in advance that the machine is placed in the proper position, and to prepare the
factory power supply, distilled water, auxiliary gas and the metal sheets to be cut and debugged. Additionally, the client needs to book hotels for our technicians.
Senfeng has established 2 subsidiaries in the United States, and Germany and 5 service centers in India, Pakistan, Serbia, Vietnam and Jordan.
3. What certification does the machine have?
Senfeng has passed CE from TÜV, ROHS, ETL certificates, which is in line with European and American standards.
4. How to choose the right machine for me?
Very easy to choose. Tell us what you want to do with a fiber laser, and we'll match you with the perfect solution and advice.
5. What materials can our machine cut？
A fiber laser cutting machine is extremely useful in cutting sheet metal including carbon steel, stainless steel, copper, brass, aluminum, and titanium.
6. How long is the warranty time?
The whole machine is guaranteed for 2 years.
7. Payment terms?
Alibaba trade assurance/TT/West Union/Paypal/LC/Cash and so on.
8. Machine delivery time？
The delivery time of equipment is usually more than 30 days.
9. It's not convenient for me to go to China, but I want to see the condition of the machines in the factory. What should I do？
If it’s not convenient to come to China, our sales manager can take you to know the factory by online video conference.
10. What does the customer need to prepare before dispatching technicians?
It is necessary for the customer to confirm in advance that the machine is placed in the proper position, and to prepare the
factory power supply, distilled water, auxiliary gas and the metal sheets to be cut and debugged. Additionally, the client needs to book hotels for our technicians.
