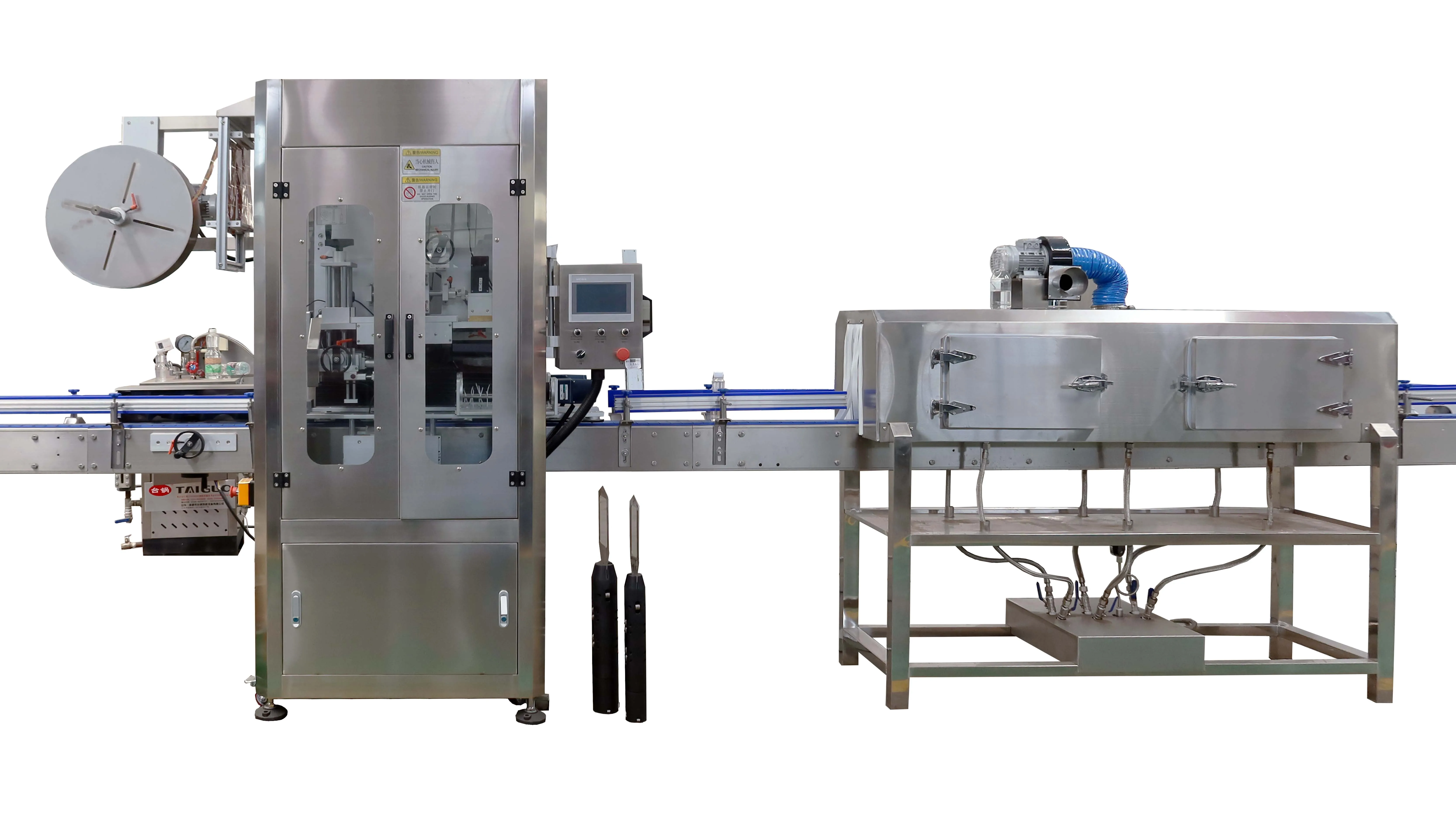

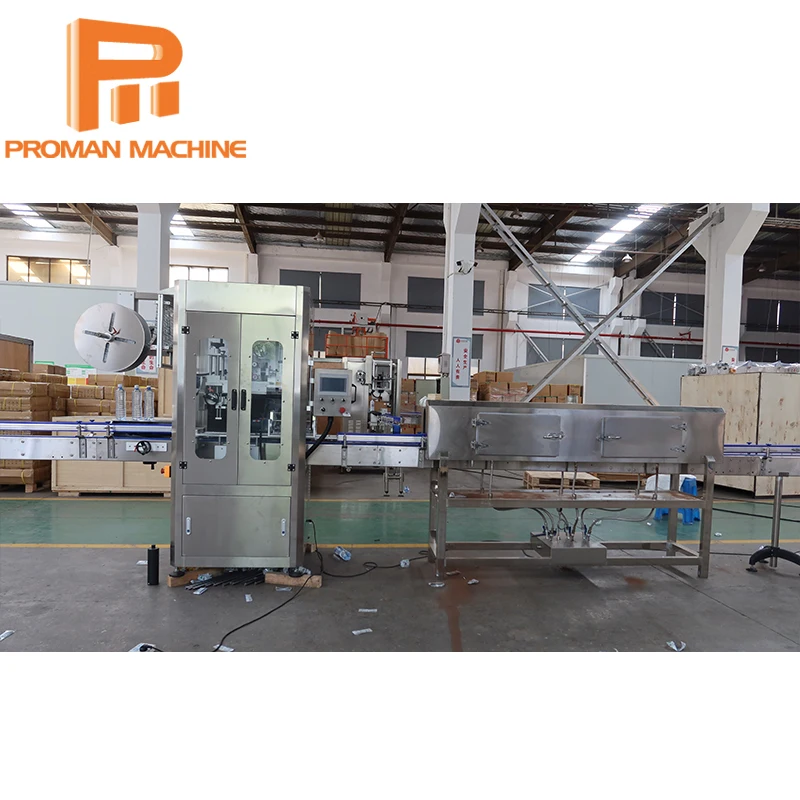

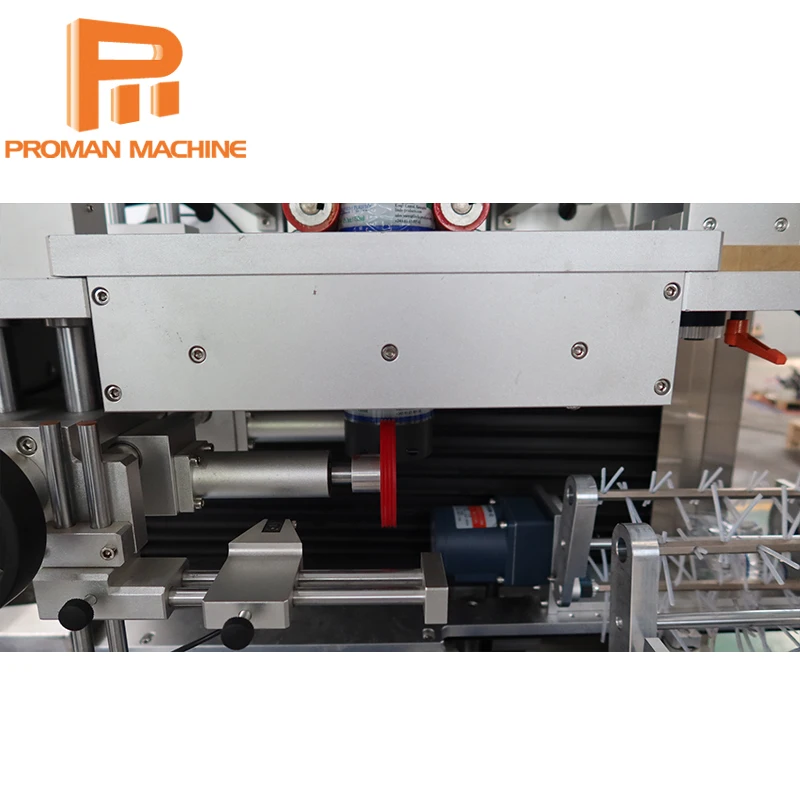

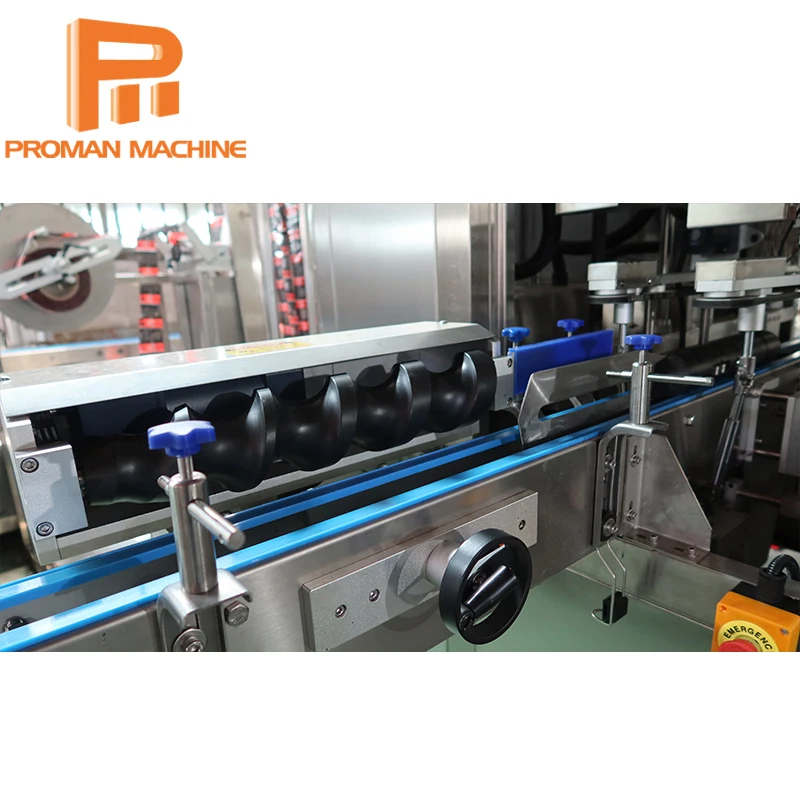

High Speed Fast Round Bottle Label Shrink Sleeve Wrap Sleeve Labeling Machine With Steam/Electric Shrinking Tunnel
- Category: >>>
- Supplier: Zhangjiagang Proman Machine Co. Ltd.
Share on (1601211802443):
Product Overview
Description
Products Description
Full Automatic Shrink Sleeve Bottle Labeling Machine for PVC Neck Body Sleeve Labeling PET Label
Automatic Shrink Sleeve Applicator is suitable for label sleeving in the fields of drinking,health-care pproducts,
cosmetics,washing articles for use, pharmaceuticals and petroleum and so on. RHY Series Shrinking Label Sleeving Machines are easy to control, to change bottles and labels smoothly , ande easy for cleaning and maintenance. This series machines also have a high degree of automation.
cosmetics,washing articles for use, pharmaceuticals and petroleum and so on. RHY Series Shrinking Label Sleeving Machines are easy to control, to change bottles and labels smoothly , ande easy for cleaning and maintenance. This series machines also have a high degree of automation.
Technical parameter
model | SPC-150 | SPC-250 | SPC-350 | ||
main engine size(L*W*H) | 2000×1000×2000 | 2000×1000×2000 | 2000×1300×2000 | ||
production rate | limitation:200 bottles/min | limitation:250 bottles/min | limitation:300 bottles/min | ||
host power supply | φ220V/φ380V | φ220Vφ380Vφ220V | φ220V/φ380V/φ220V | ||
main engine power | 1.5-2kw | 1.5-2kw | 1.5-2kw | ||
shrink power | 12kw | 12kw | 12kw | ||
label length | 40mm-180mm | 40mm-180mm | 40mm-180mm | ||
label thickness | 0.03mm-0.13mm | 0.03mm-0.13mm | 0.03mm-0.13mm | ||
label material | PVP.PET.PS | PVP.PET.PS | PVP.PET.PS | ||
bottle/can height | 30mm-280mm | 30mm-280mm | 30mm-280mm | ||
bottle/can diameter | φ50mm-φ125mm | φ50mm-φ125mm | φ50mm-φ125mm | ||
bottle/can shape | round,square,eliptic,rectangular | ||||
\t\t\t\t\t\t\t\t\tProduct Details \t\t\t\t\t\t\t
Working principles of sleeve labeling machine
A sleeving machine shoots heat shrinkable plastic sleeves over bottles as they pass by on a conveyor. The sleeves are supplied as lay flats on reels, printed with label information. The fascinating part of a sleeving machine is how it opens the lay flat into a cylinder and then cuts the labels to the correct length at high speed.
Shrink labeling is a two-step process. First, a heat-shrinkable plastic sleeve is dropped over a bottle as it moves by on a
conveyor. Second, the sleeved bottle is conveyed through a heat tunnel that shrinks the label to a snug wrinkle-free fit. A shrink tunnel must subject the bottle to the correct amount of heat for the right length of time. Shrink labeling systems can achieve speeds in the range of 150-400 bottles per minute depending on the sleeving machine model purchased.
Shrink labeling is a two-step process. First, a heat-shrinkable plastic sleeve is dropped over a bottle as it moves by on a
conveyor. Second, the sleeved bottle is conveyed through a heat tunnel that shrinks the label to a snug wrinkle-free fit. A shrink tunnel must subject the bottle to the correct amount of heat for the right length of time. Shrink labeling systems can achieve speeds in the range of 150-400 bottles per minute depending on the sleeving machine model purchased.

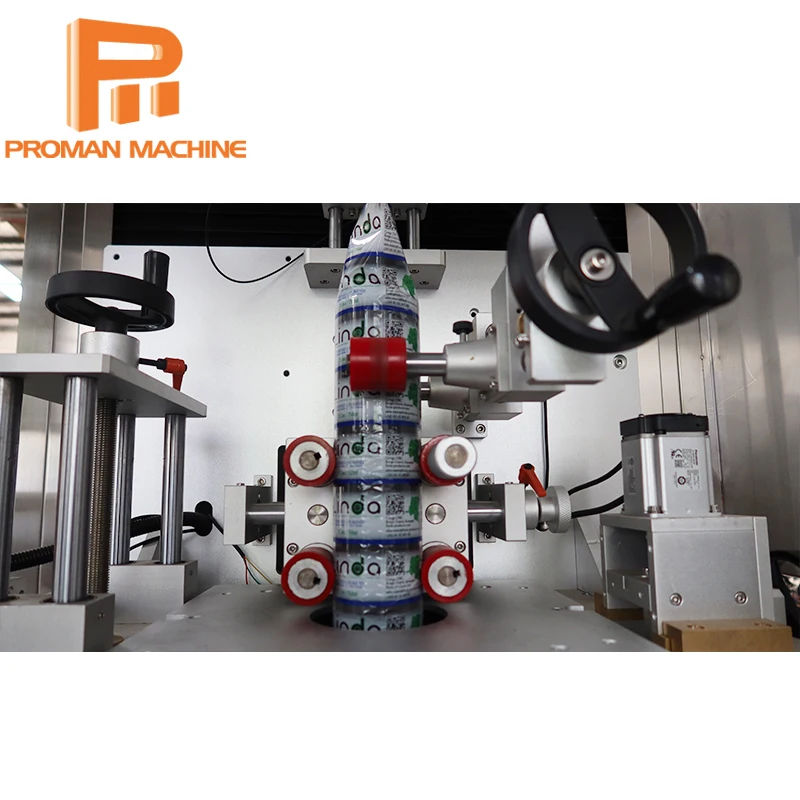

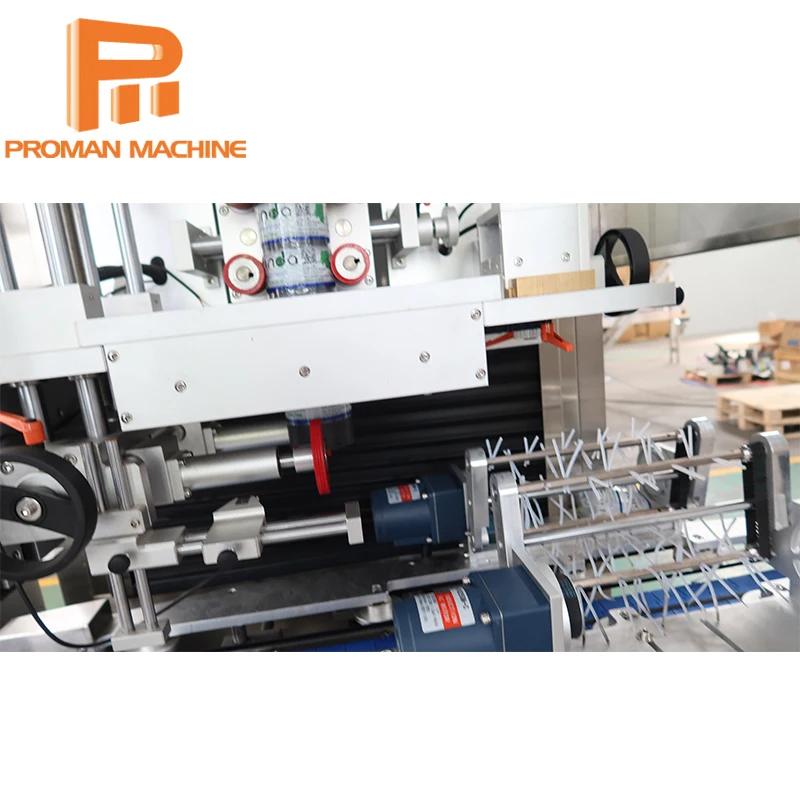

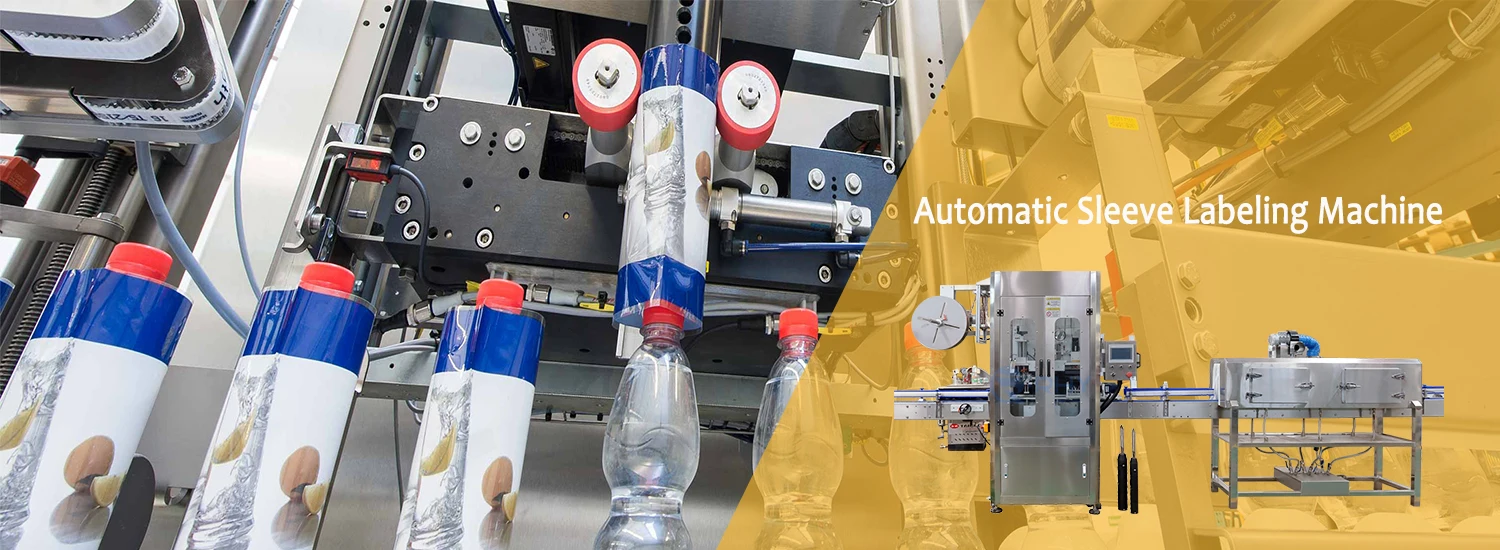

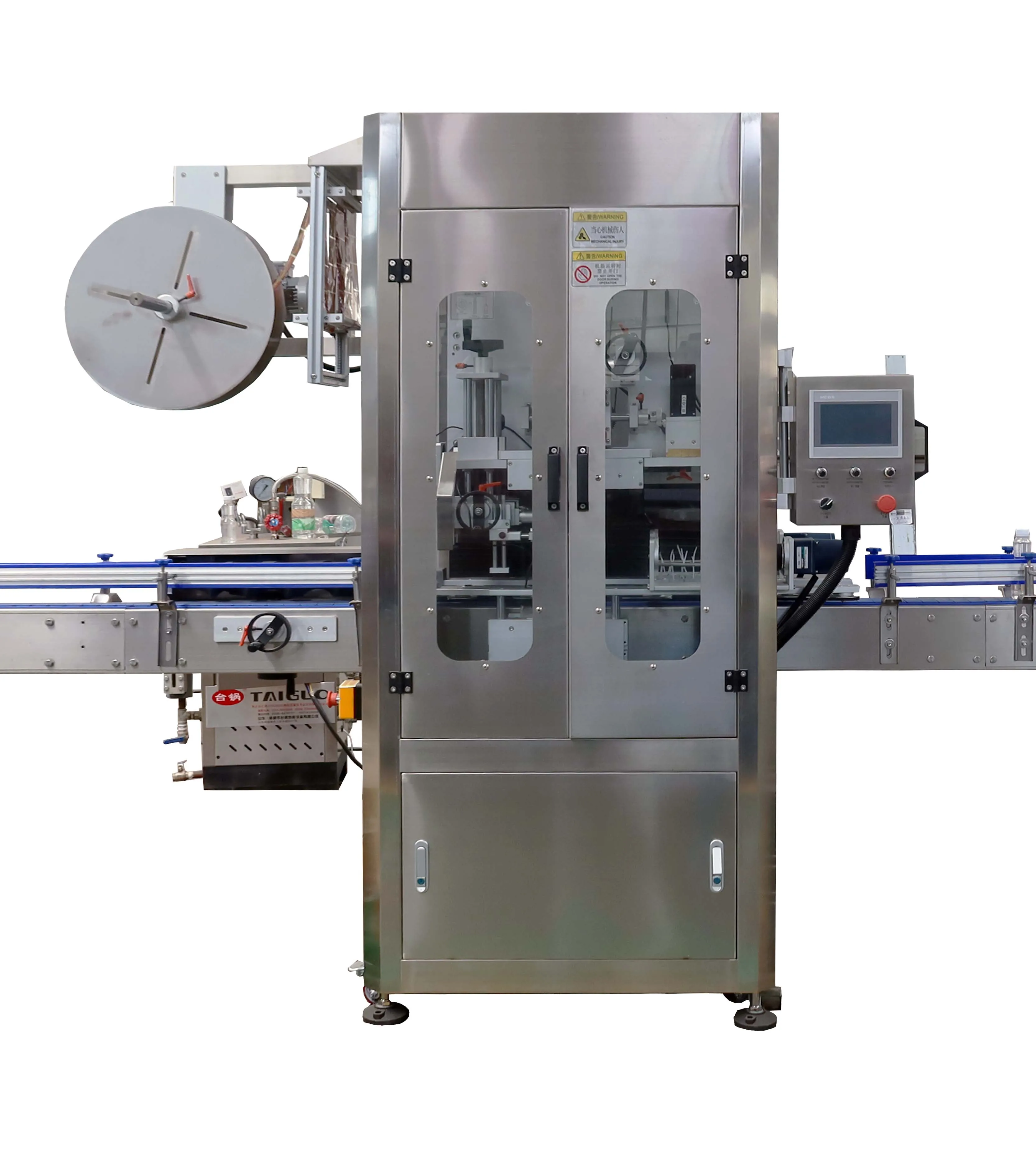

Sleeve Applicator
To sleeve the label on the bottles.

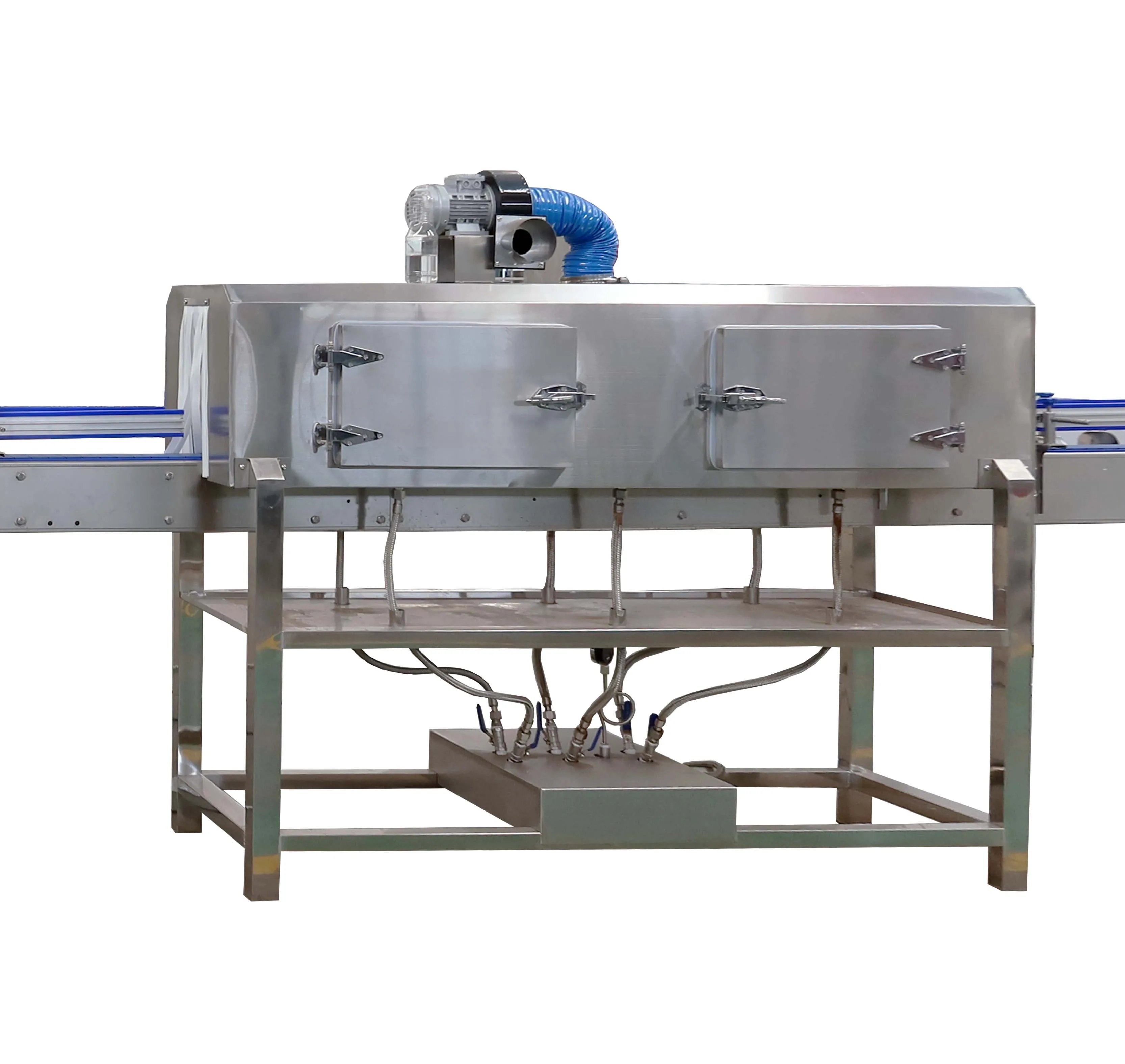

Shrink Tunnel
To shrink labels on the bottle

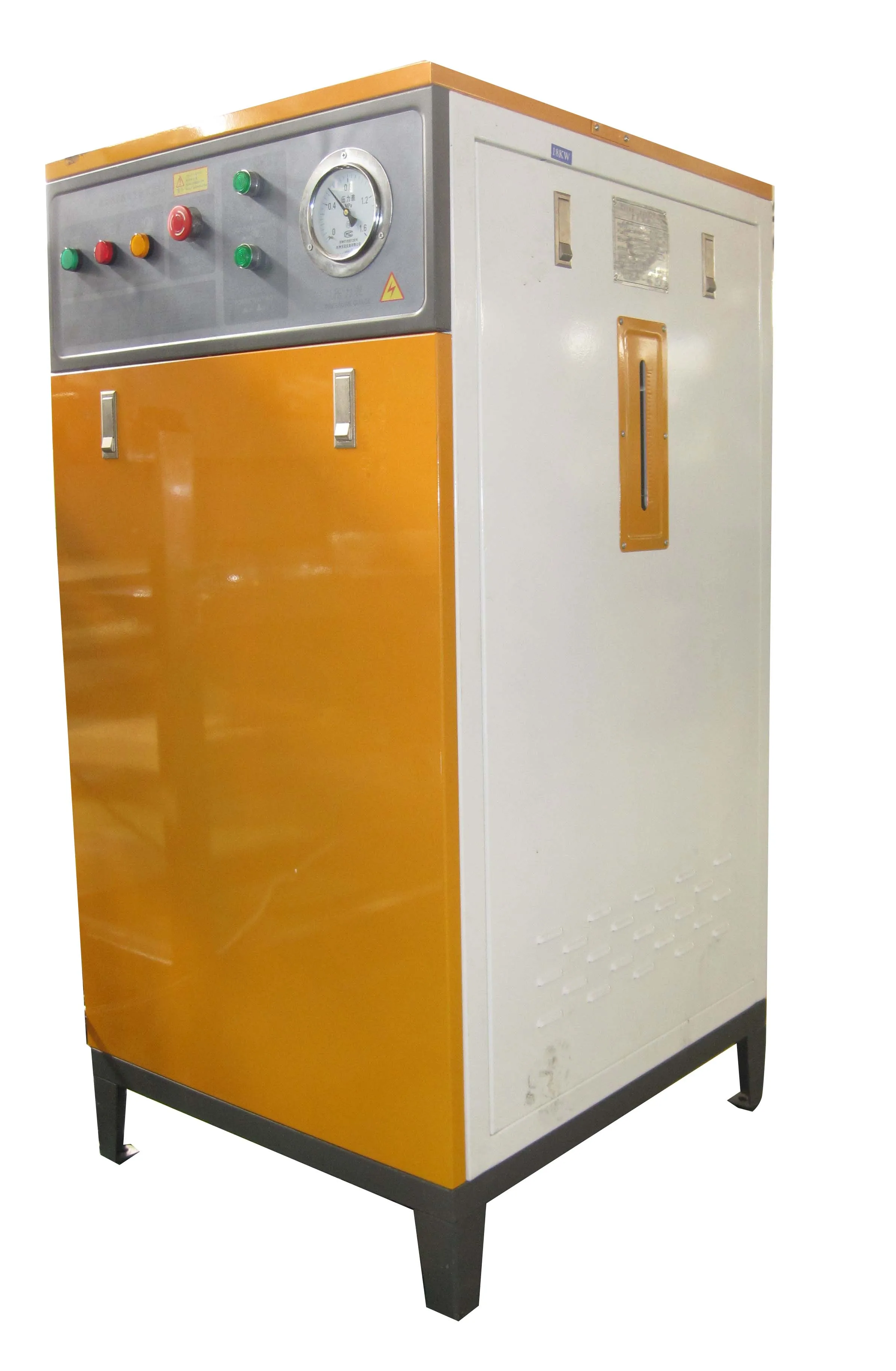

Steam Generator
To make steam
