YT27 YT28 YT29A PNEUMATIC PORTABLE DRILLING MACHINE /MINING ROCK BOREHOLE HAND HELD ROCK DRILL/JACK HAMMER WITH AIR LEG
- Category: >>>
- Supplier: Fuzhou Deckwell Machine Co. Ltd.
Share on (1601211851913):
Product Overview
Description
Products

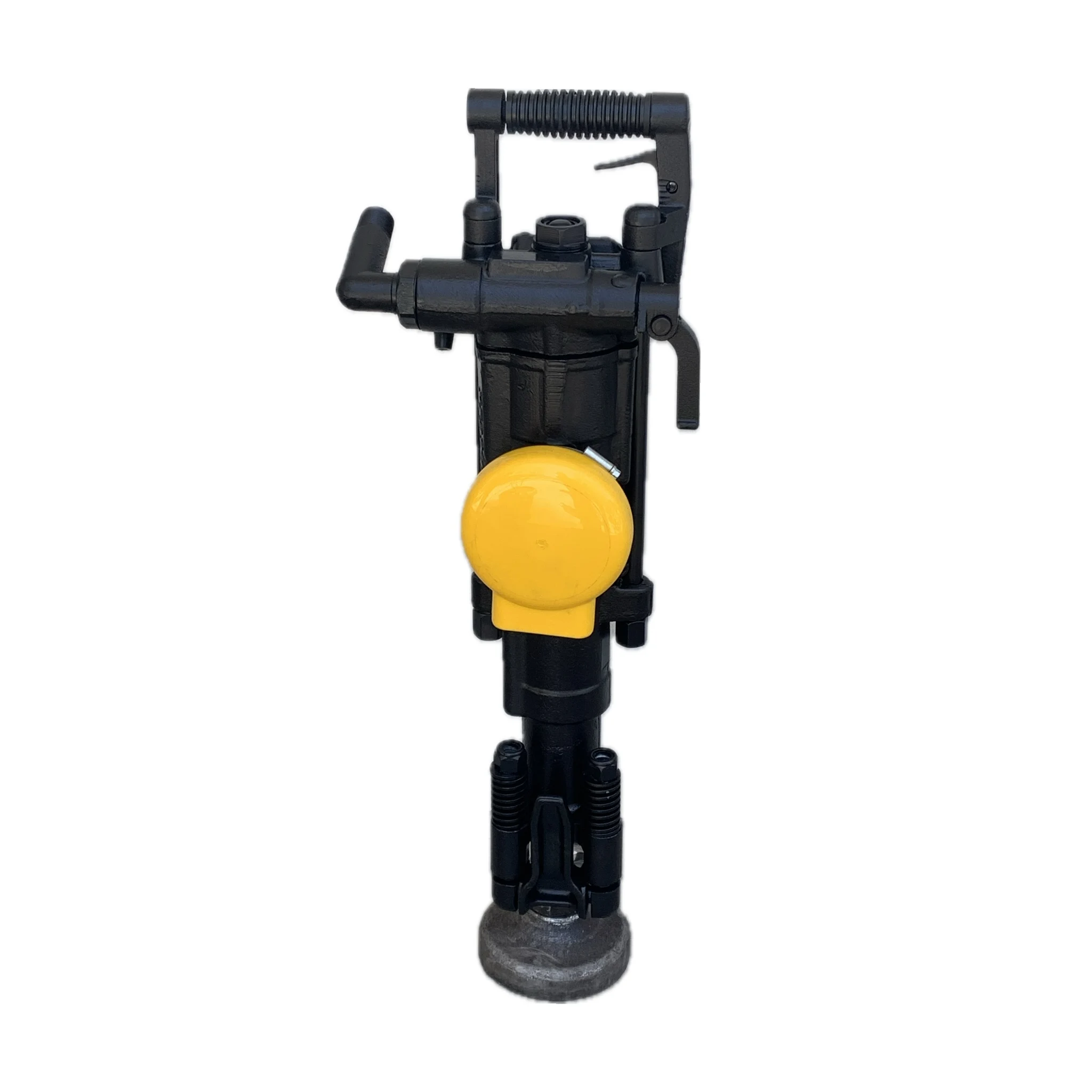

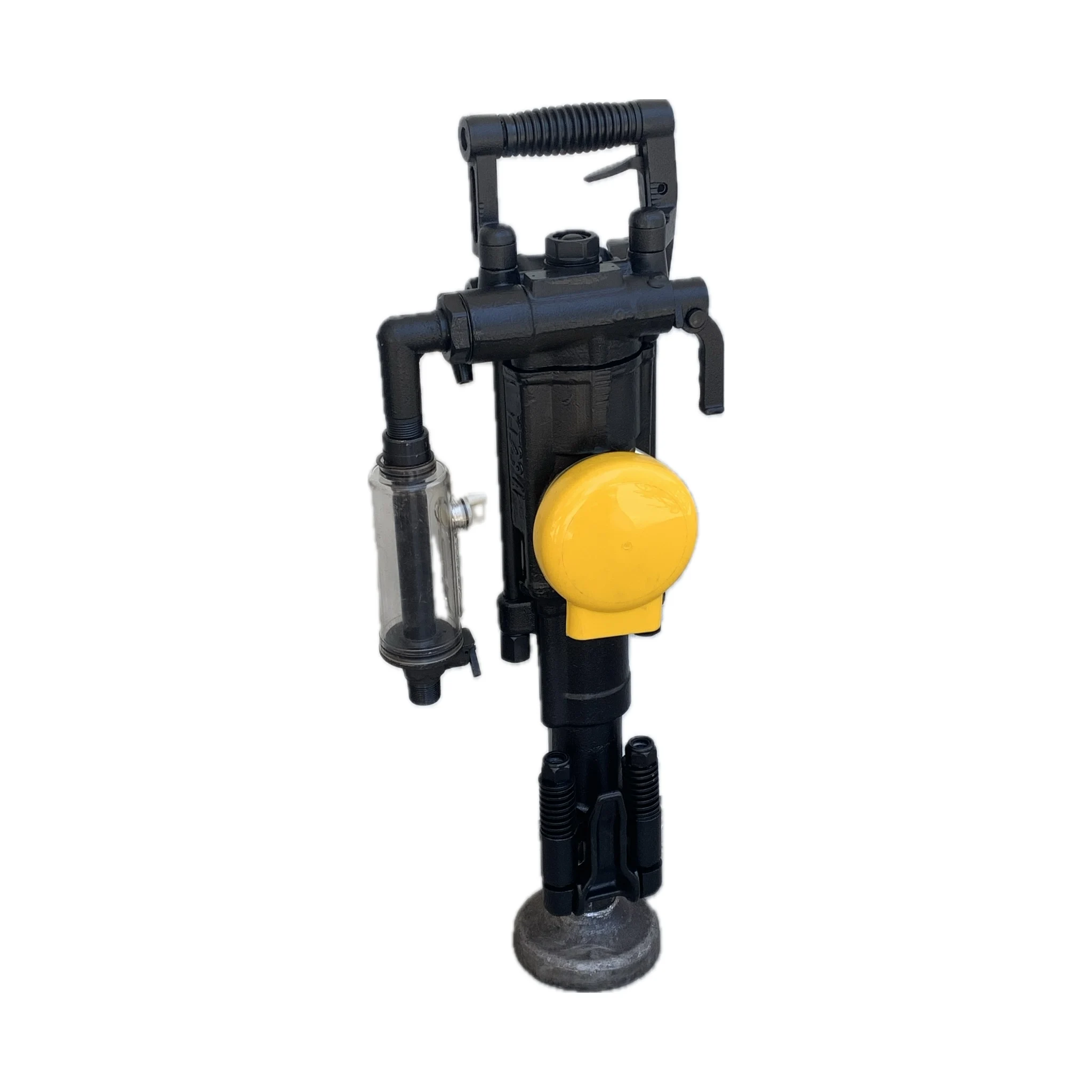

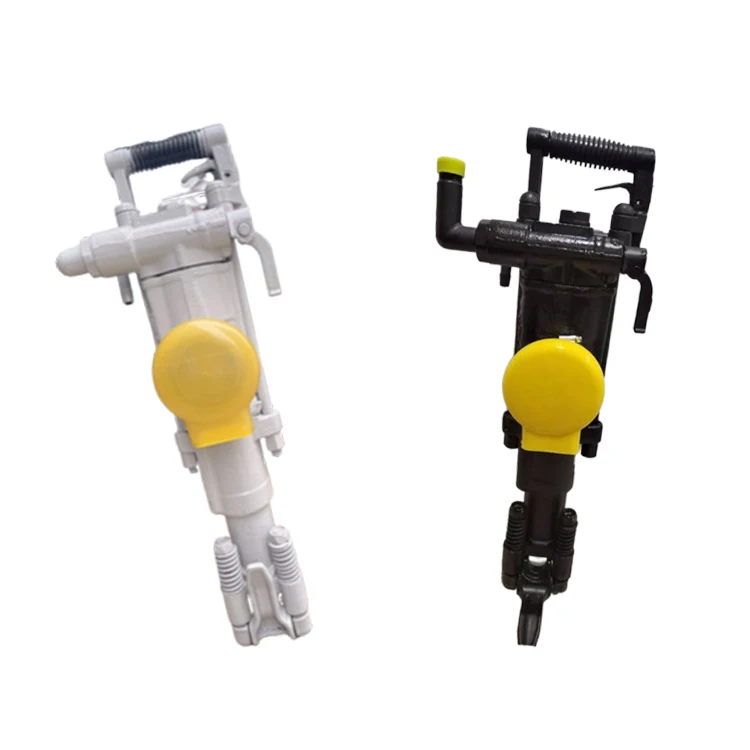

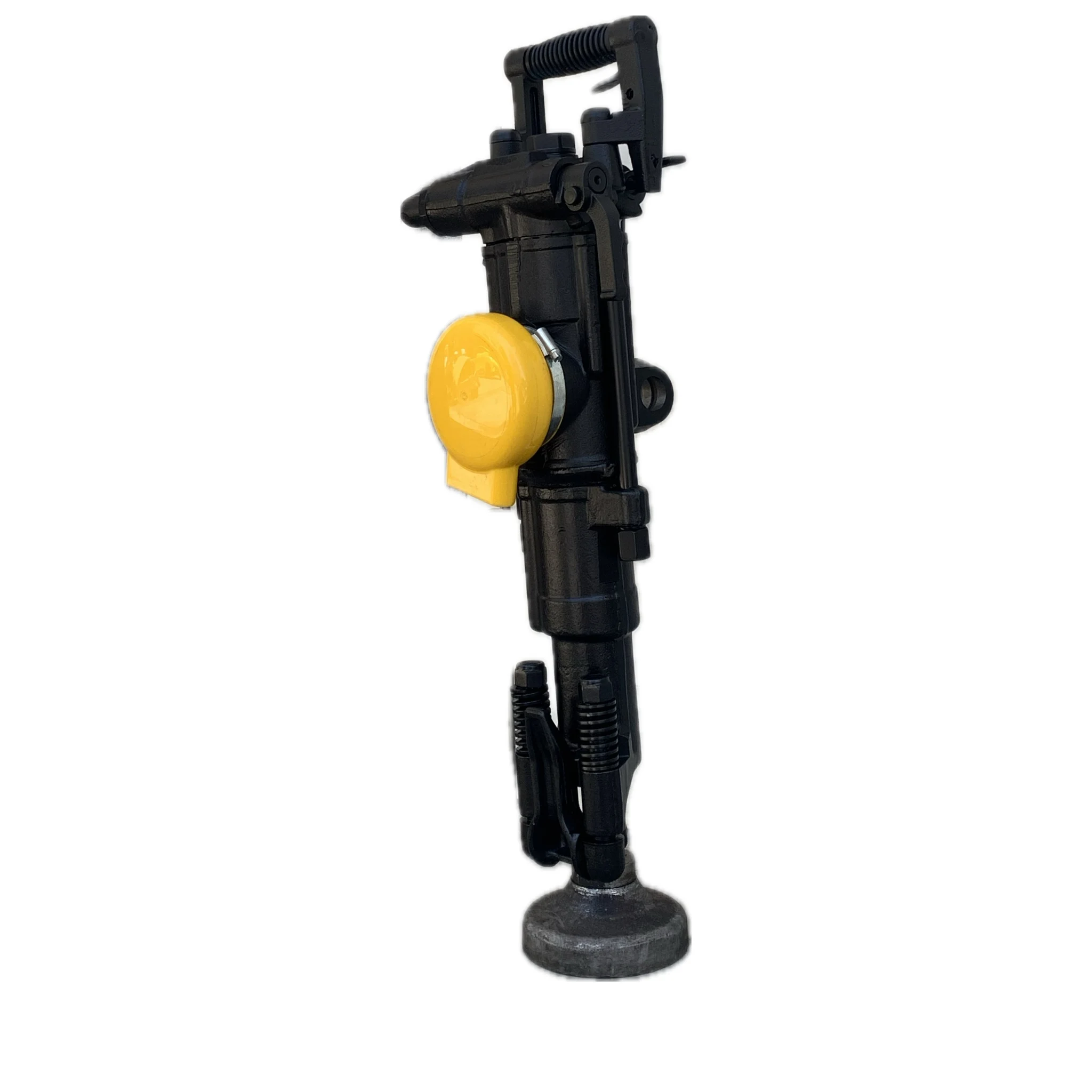

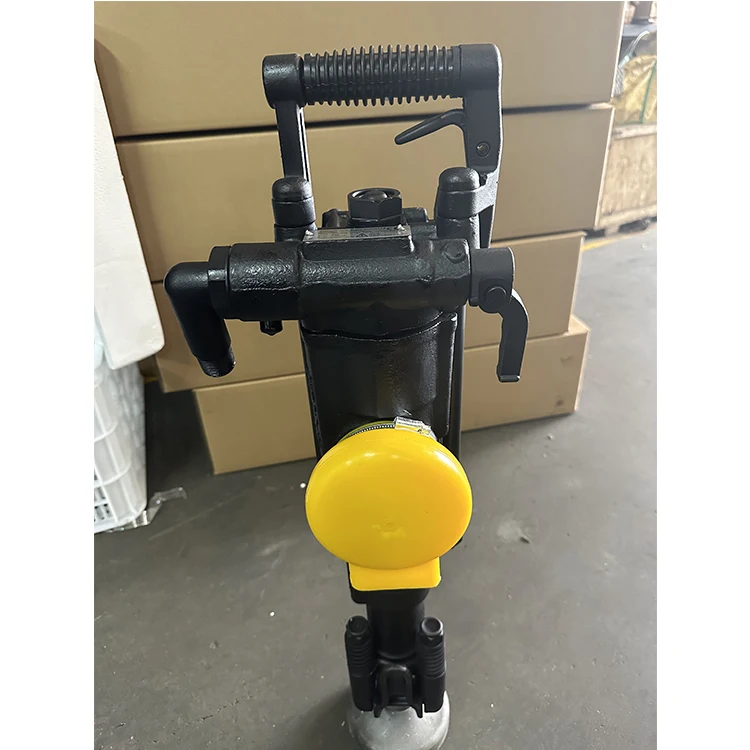

YT27/28/29A Pneumatic Air Leg Drill
YT27/28/29A is an air hammer drill. It is made in China and designed for heavy duty user. It is ideal for concrete and hard rock
drill at construction site.
drill at construction site.
Features
* Alloy steel forged parts provide maximum durability.
* Forged latch retainer for quick chisel change.
* Air leg for easy operate to different directions.
* Forged latch retainer for quick chisel change.
* Air leg for easy operate to different directions.
Specification
Model | YT27 | YT28 | YT29A |
Weight | 27KG | 26KG | 27KG |
Length | 668*248*202MM | 661MM | 659*248*205MM |
Cylinder diameter | 80MM | 80MM | 82MM |
Piston Stroke | 60MM | 60MM | 60MM |
Working Pressure | 0.5-0.63Mpa | 0.4-0.63Mpa | 0.40-0.63Mpa |
Impact Frequency | ≥36.7(0.63Mpa)HZ | ≥36(0.63Mpa)HZ | ≥39(0.63Mpa)HZ |
Air Consumption | ≤83.3(0.63Mpa)L/S | ≤82(0.63Mpa)L/S | ≤88(0.63Mpa)L/S |
Rock drill hole diameter | 34-45MM | 34-45MM | 34-45MM |
Drilling Depth | 5M | 5M | 5M |
Working temperature | -30~45℃ | -30~45℃ | -30~45℃ |
Shank Size | H22*108MM | H22*108MM | H22*108MM |
Company Display
Exhibition
FAQ
Q1: where is Deckwell factory located?
A1: Deckwell factory is located at Fuzhou cityFujian Province.Our factory was built in 2003
and we started to do export from 2008.
Q2: What is our main application?
A2: 1.Hydraulic power unit and tools 60%.
2.Pneumatic tools 40%.
Q3: What is the payments term ?
A3: 1.T/T
(1)Payment<=5000USD100% in advance. (2)Payment>=5000USD,30% T/Tin advance balance befor shippment.
2. L/C at sight.
3.Western Union.
Q4: What is the delivery time?
A4: Generally 5-15 days.It will need 30 days if the order is big amount as USD100 000.
Q5: Can I Mark My Own brand on the machine?
A5: Yes, But you have to provide your authority of brand to us.
and we started to do export from 2008.
Q2: What is our main application?
A2: 1.Hydraulic power unit and tools 60%.
2.Pneumatic tools 40%.
Q3: What is the payments term ?
A3: 1.T/T
(1)Payment<=5000USD100% in advance. (2)Payment>=5000USD,30% T/Tin advance balance befor shippment.
2. L/C at sight.
3.Western Union.
Q4: What is the delivery time?
A4: Generally 5-15 days.It will need 30 days if the order is big amount as USD100 000.
Q5: Can I Mark My Own brand on the machine?
A5: Yes, But you have to provide your authority of brand to us.
