Price:$485.00 - $595.00

Quantity:


Product Overview

Description

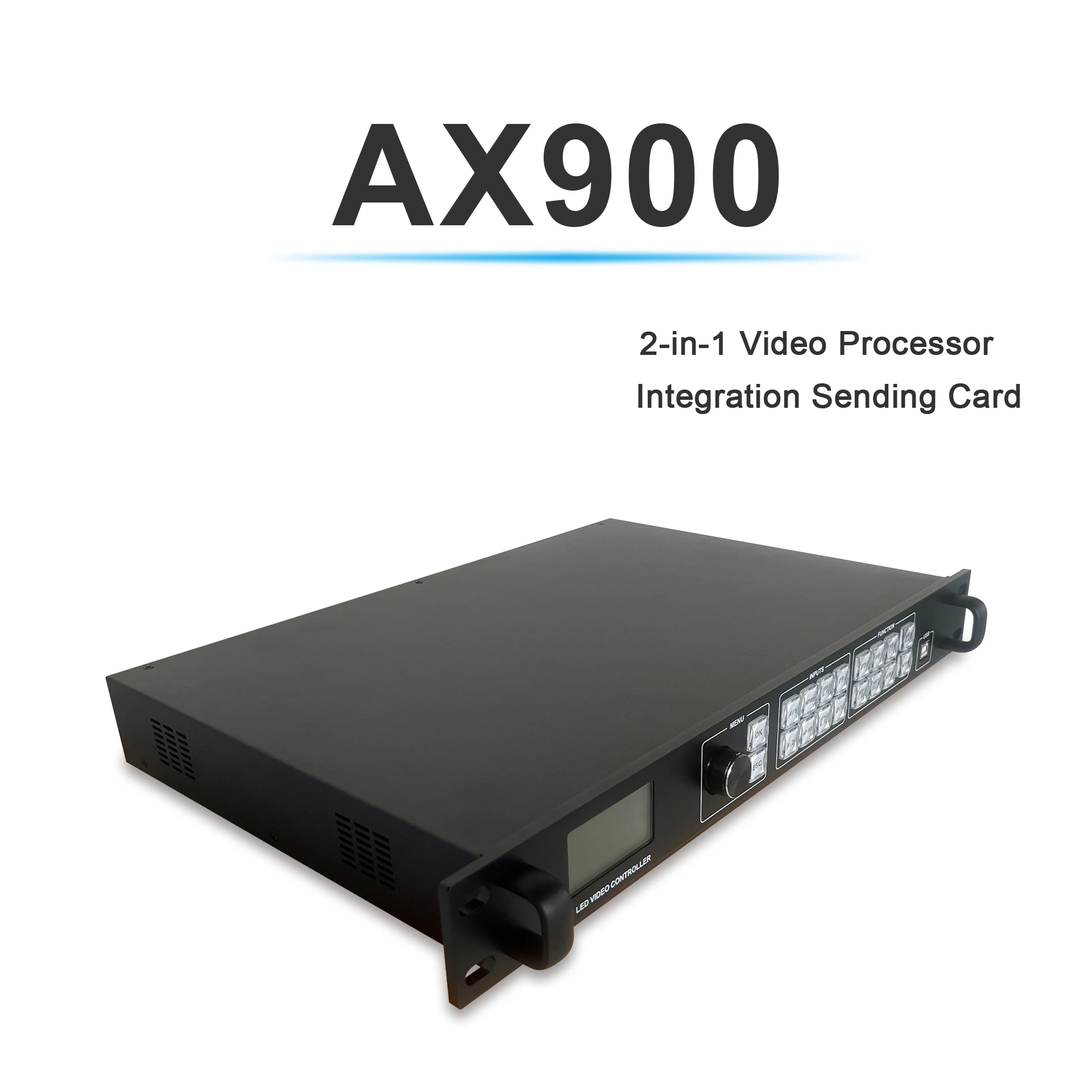

AX900 2 In 1 video controller has been integrated sending card from 100% Novastar (built-in 1PCS MSD600)





With maximum width of 3840 and detailed image processing / seamless switching of any channel AX900 has the similar function compare to VX400 as a flexible, versatile LED video controller














Performance Parameters






































































Video Input




Quality / Signal Type



2 Composite Video


PAL 、NTSC、PAL-M/N、SECAM


2VGA Input


VESA Standard、MAX 1920*1080@60Hz


1 DVI Input


VESA Standard、MAX 1920*1080@60Hz


2 HD Input


480i/p 576i/p 720p 1080i/p Color Depth 8/10/12


1 DP


8.864Gbps

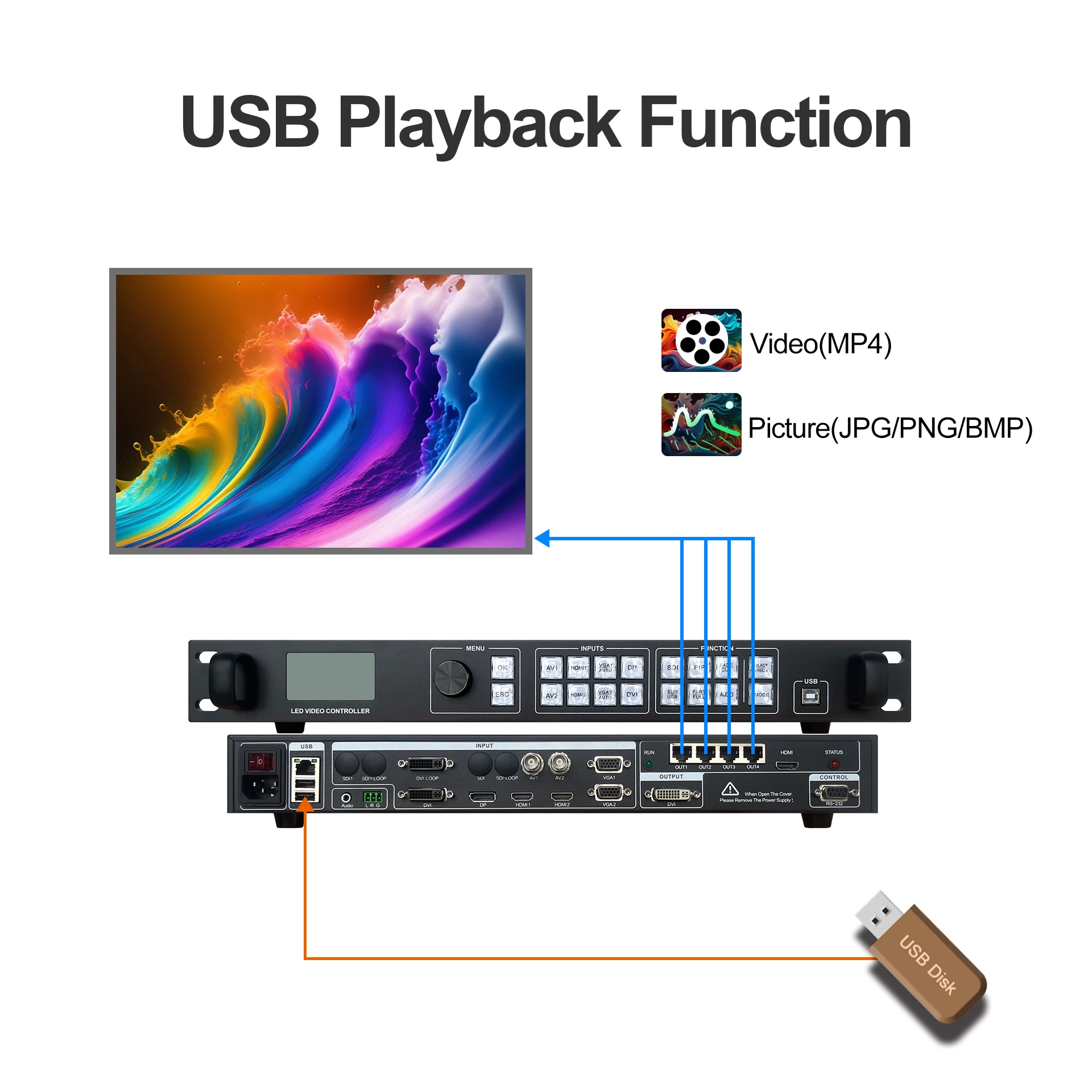

1 USB(Optional)


2.0( 480 Mbit/s )


2SDI(Optional)


1080p 60/50/30/25/24/25(PsF)/24(PsF) 720p 60/50/25/24，1080i/1035i,625/525 line

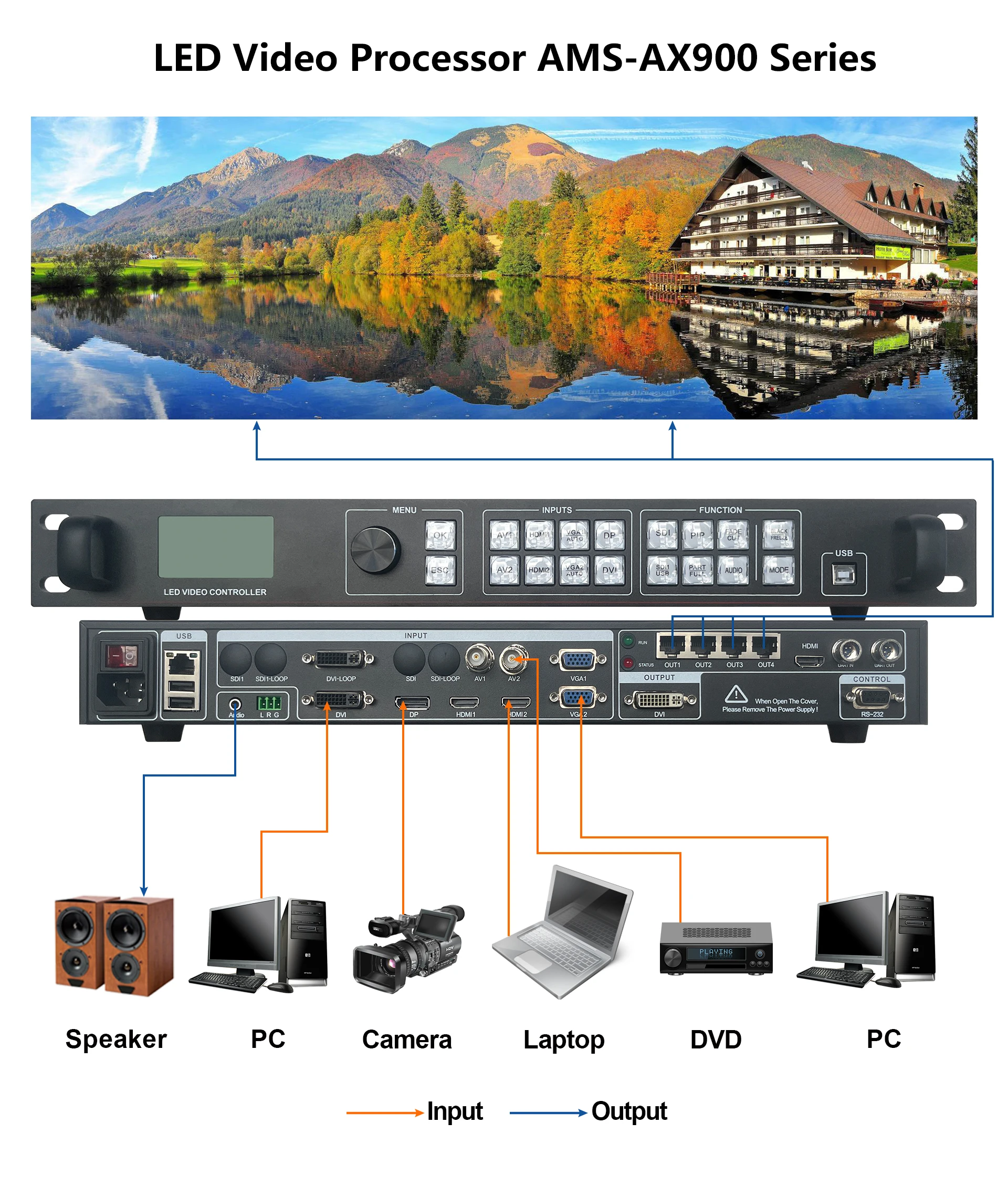

Connector



2   15-pin HD Socket


RGB Input


1    DVI-Socket


DVI Input


2    HD Socket


HD Input


2 BNC Socket


Composite Video Input


1 USB Socket


USB Input





































Video Processing



Analog Sampling


12 Bit Per Color; 13.5 MHz Standard (Video)


Digital Pixel Data Bit Depth


8/10/12 Bit Per Channel;  3GHZ Standard (SDI)

































































Video Output



Quantity / Signal Tyep


1DVI


VESA DVI Signal


SDI-LOOP(Optional)


SDI Signal


Connector


1 DVI-I Socket


DVI VESA Standard Ouput


Ouput Resolution


BNC Sockets


SDI-LOOP Output


Output Resolution


1280*1024@60Hz


1536*1536@60Hz


3840*640@60Hz


1600*1200@60Hz


2048*640@60Hz


............


























































General Specifications



Powe Supply


Built In 100~240V   AC, 50/60Hz


Package Weight


7.0  KG


Warranty


1 Year


Model


Description



Product Number



AMS-AX900


Standard Model



PN9002206











Extensions

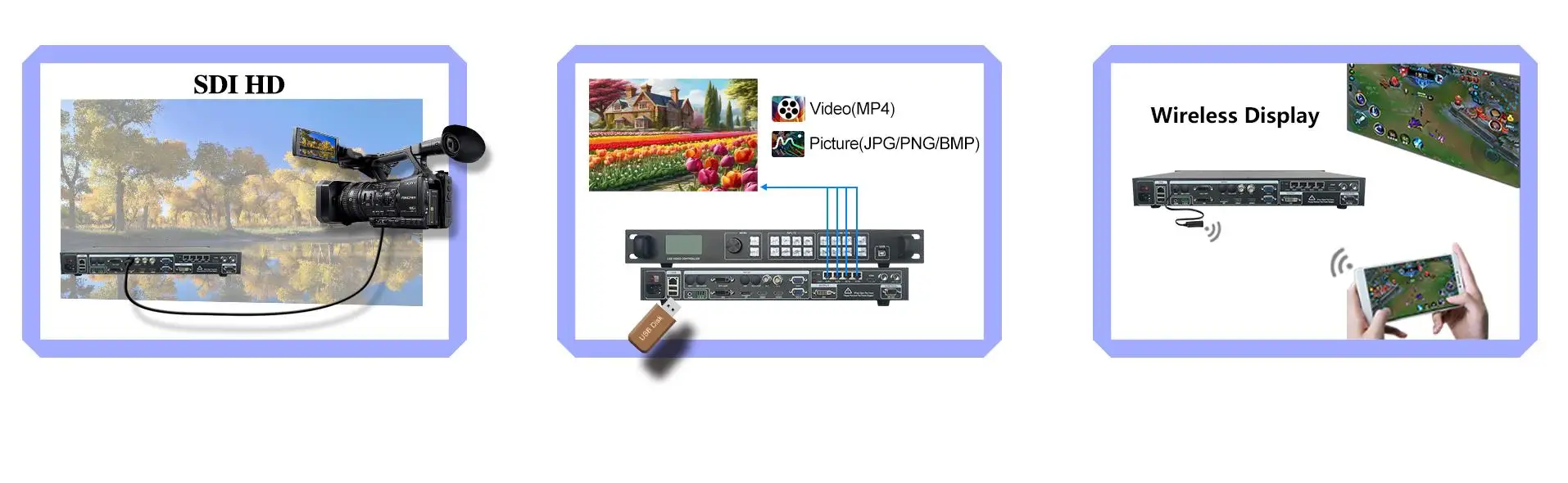

Click on the picture to learn AX900 series with SDI/WIFI/USB extensions

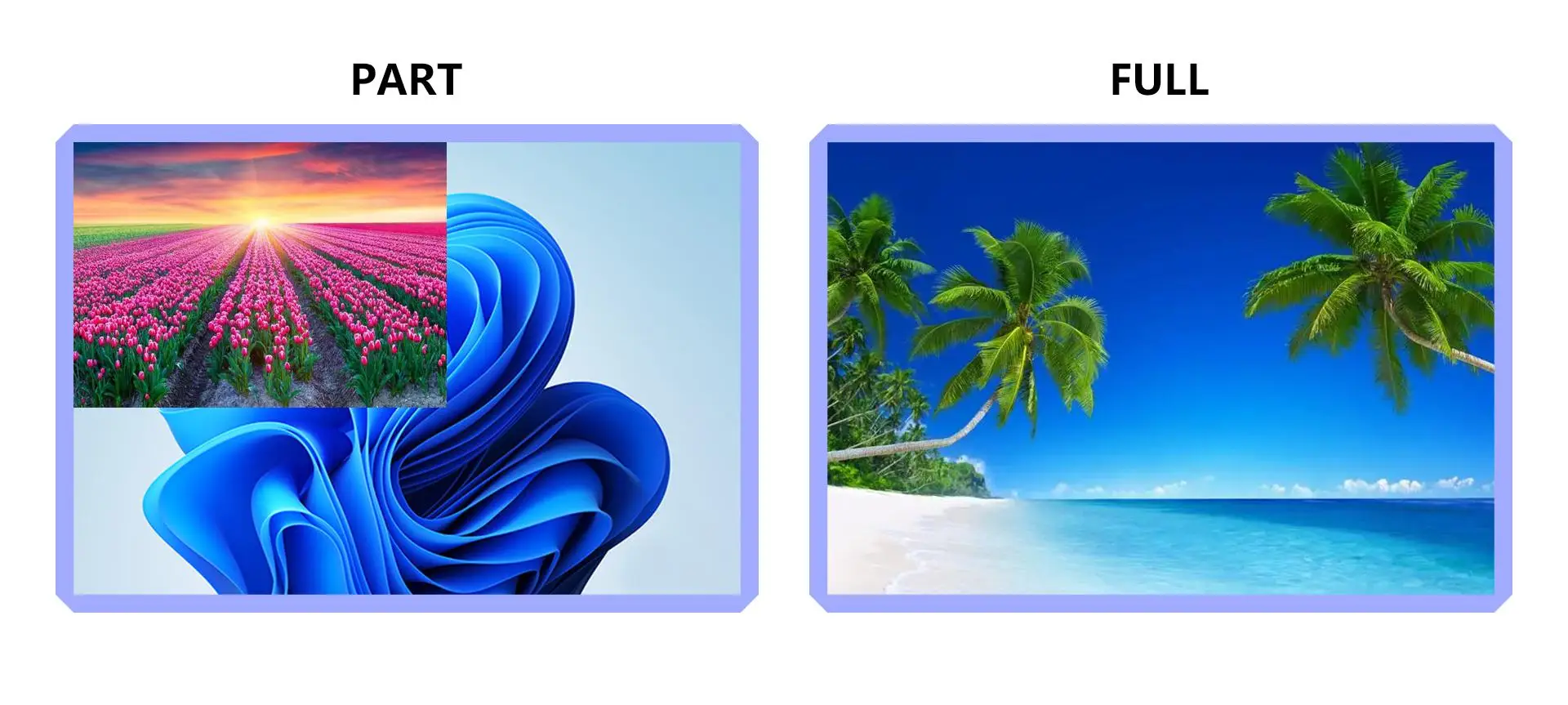

Image Scaling

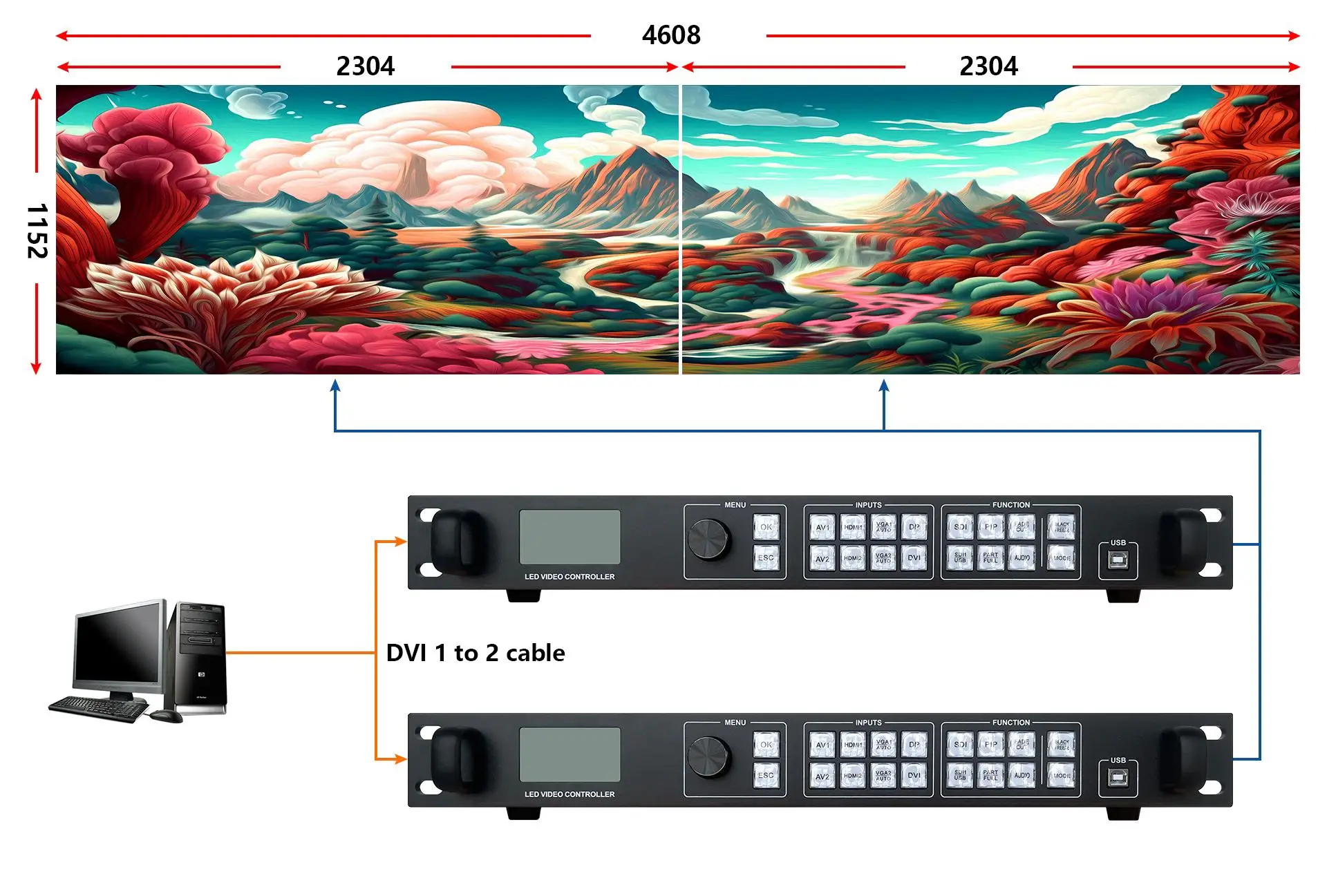

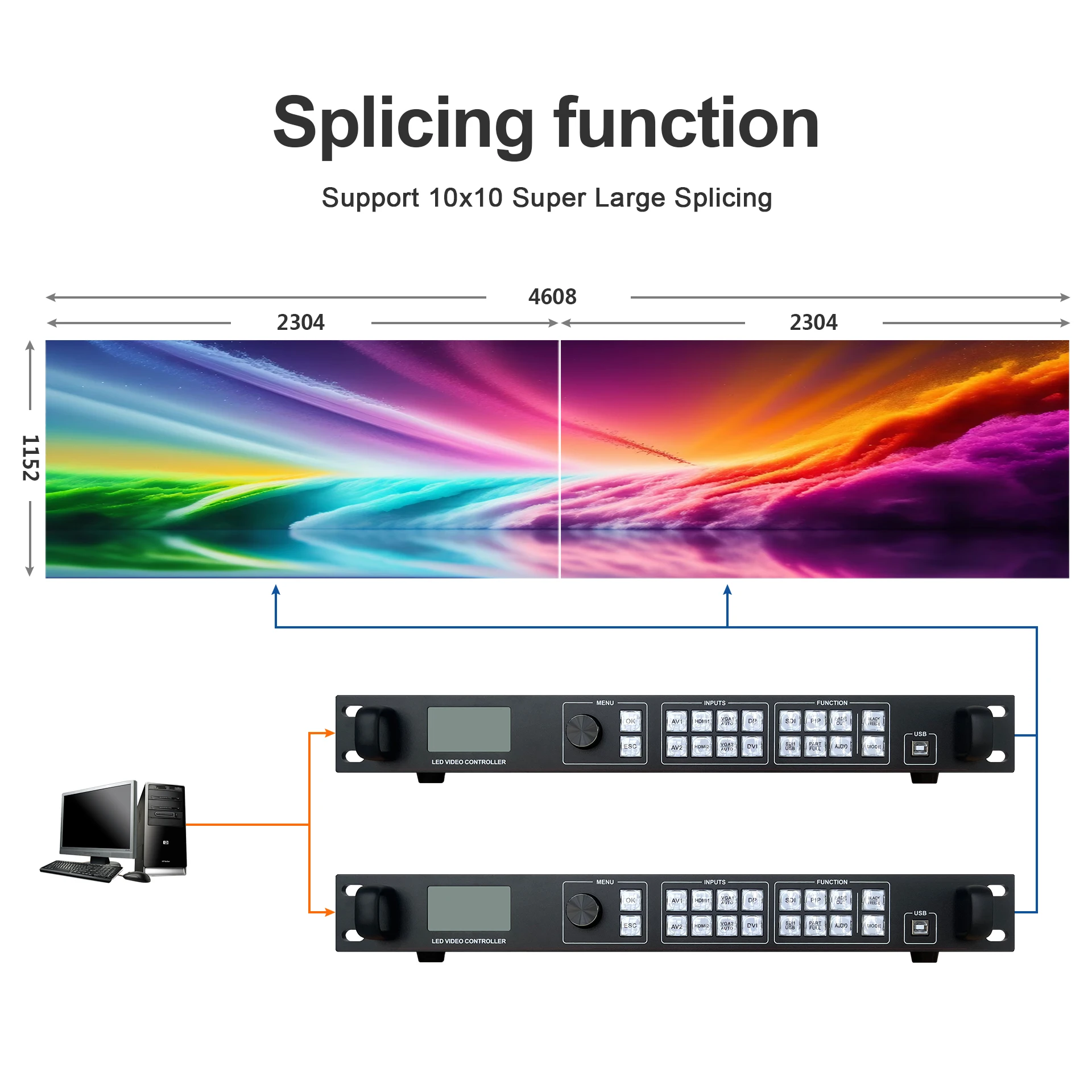

Video Processor Splicing

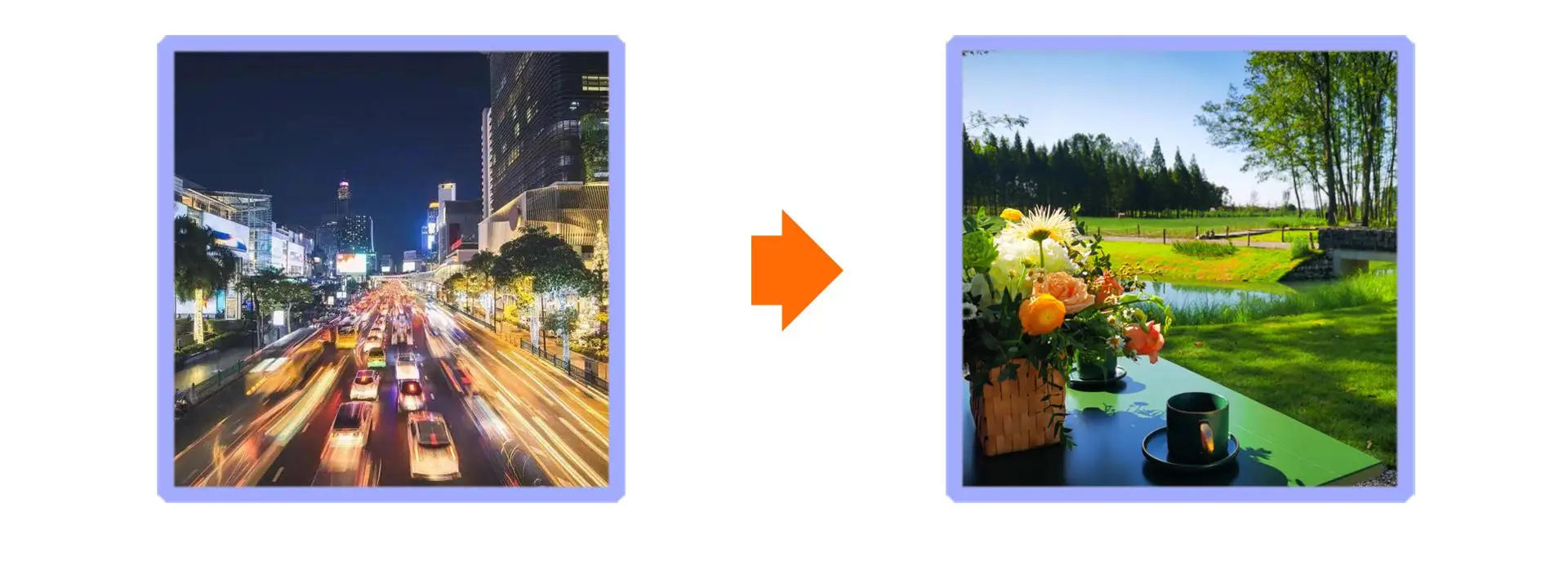

seamess switching Of Any channel

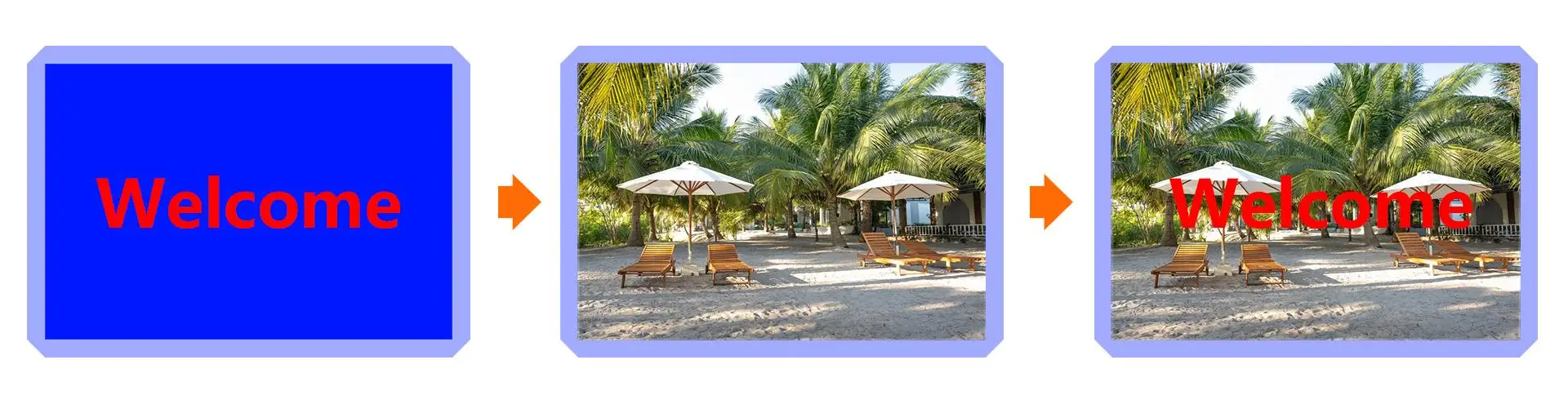

Color Matting Function










Support matting black red blue green whole colored background

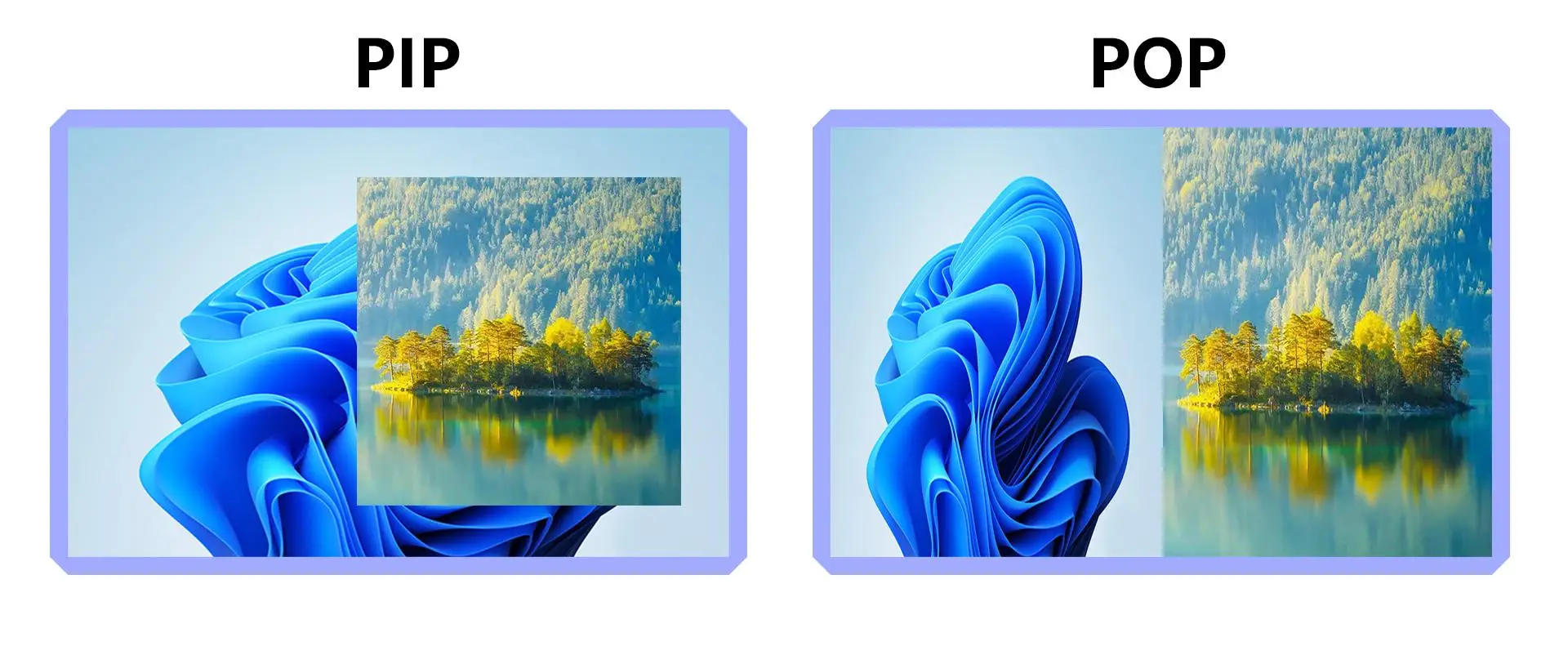

Support multiple video signal to achieve the PIP and POP

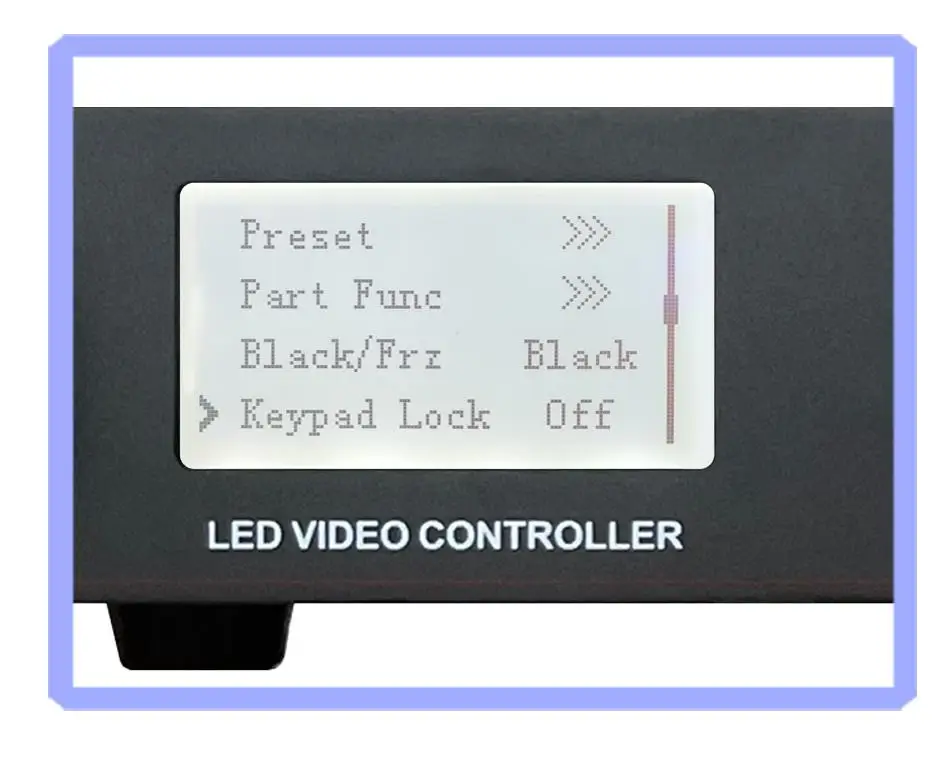

Keypad Lock






Open Keypad Lock,during use


can effectively prevent misuse

and other situations,provides a favorable guarantee for the use Signal Detection

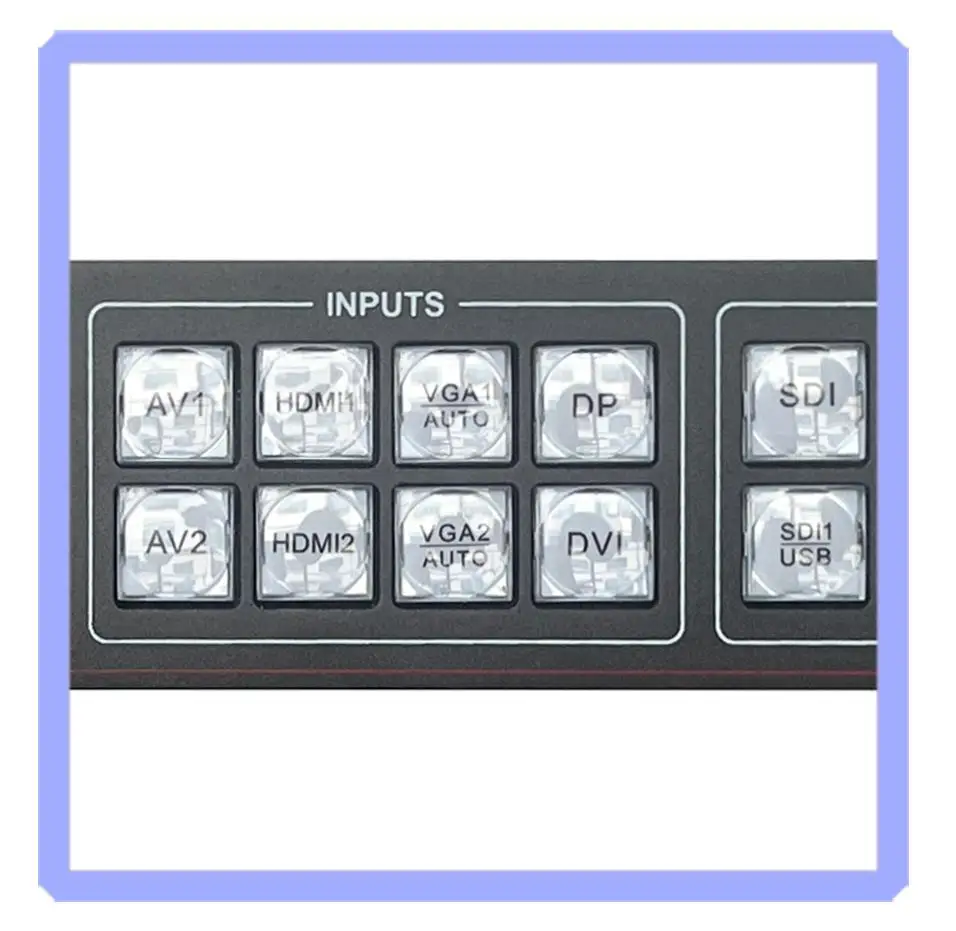

Signal Detection


Select the input signal source when the input signal is normal,the channel button light is on; When there is no signal input the channel button light flashes;

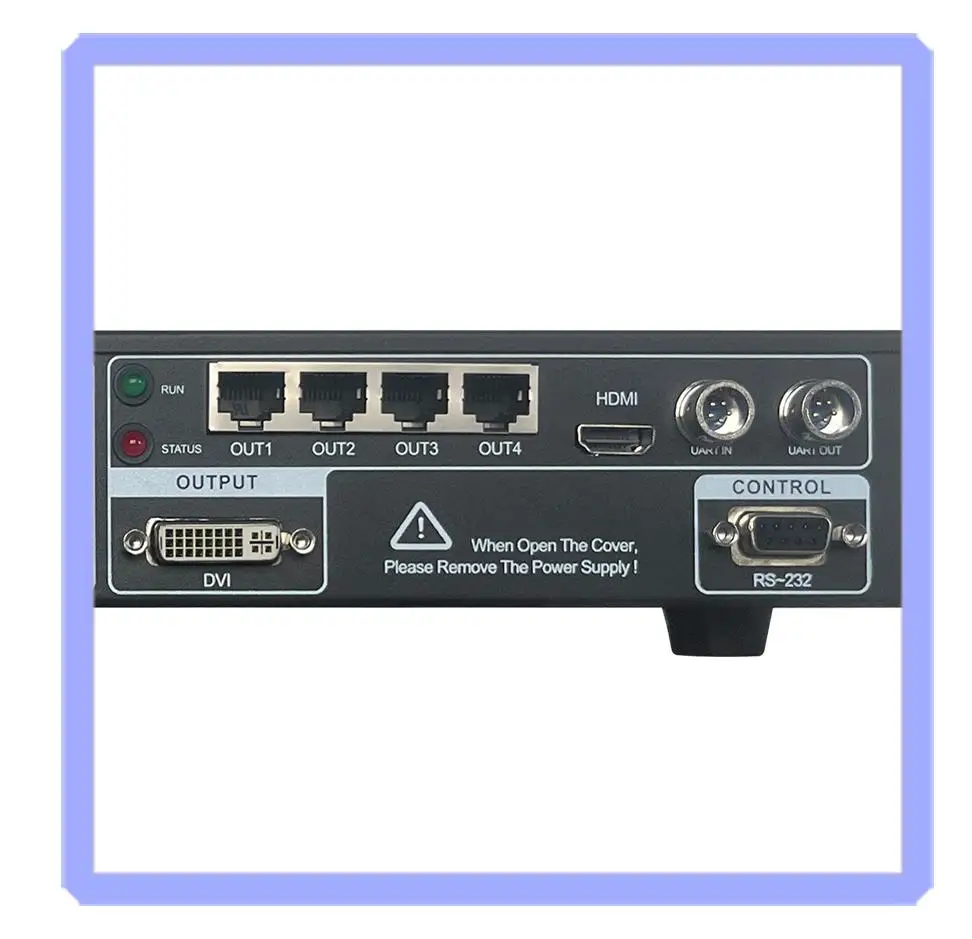

Integration Sending Card (2.65 Million Pixels)
