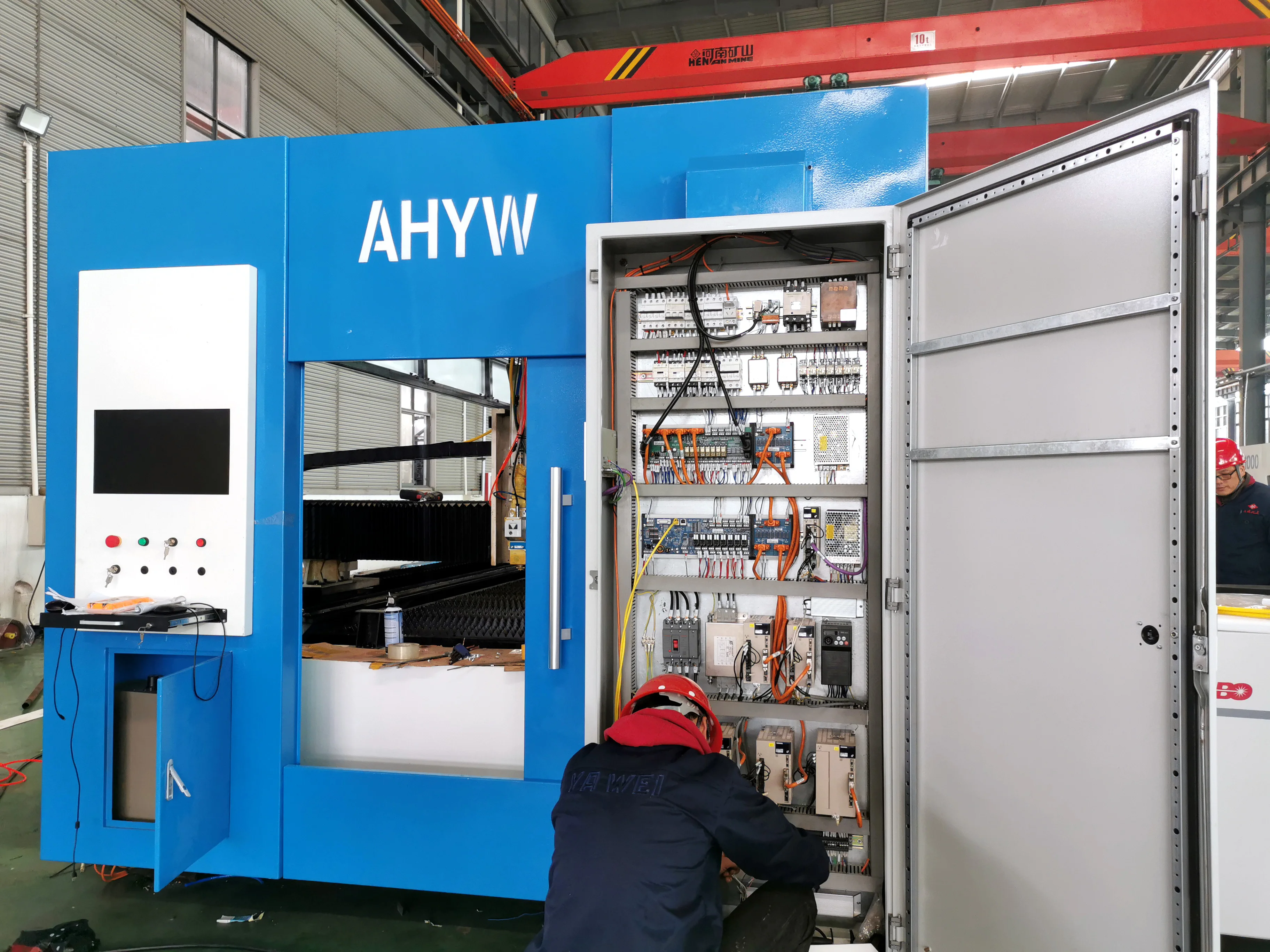

AHYW High Precision Full Cover Fiber Laser Cutting Machine YWFL 4020 3000W for Metal Processing
- Category: >>>
- Supplier: Anhui Yawei Machine Tool Manufacturing Co. Ltd.
Share on (1601211897433):
Product Overview
Description
Products Description

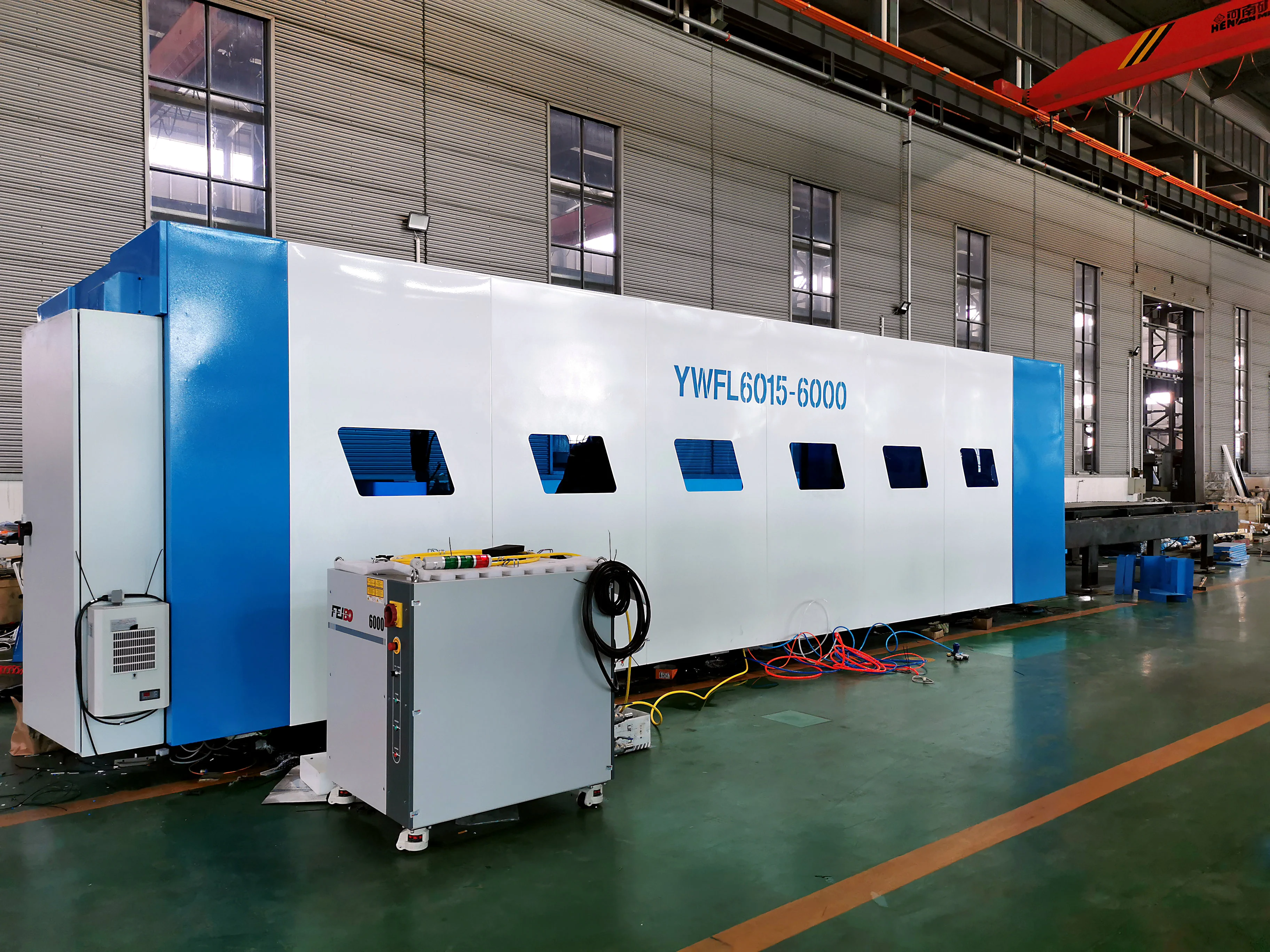

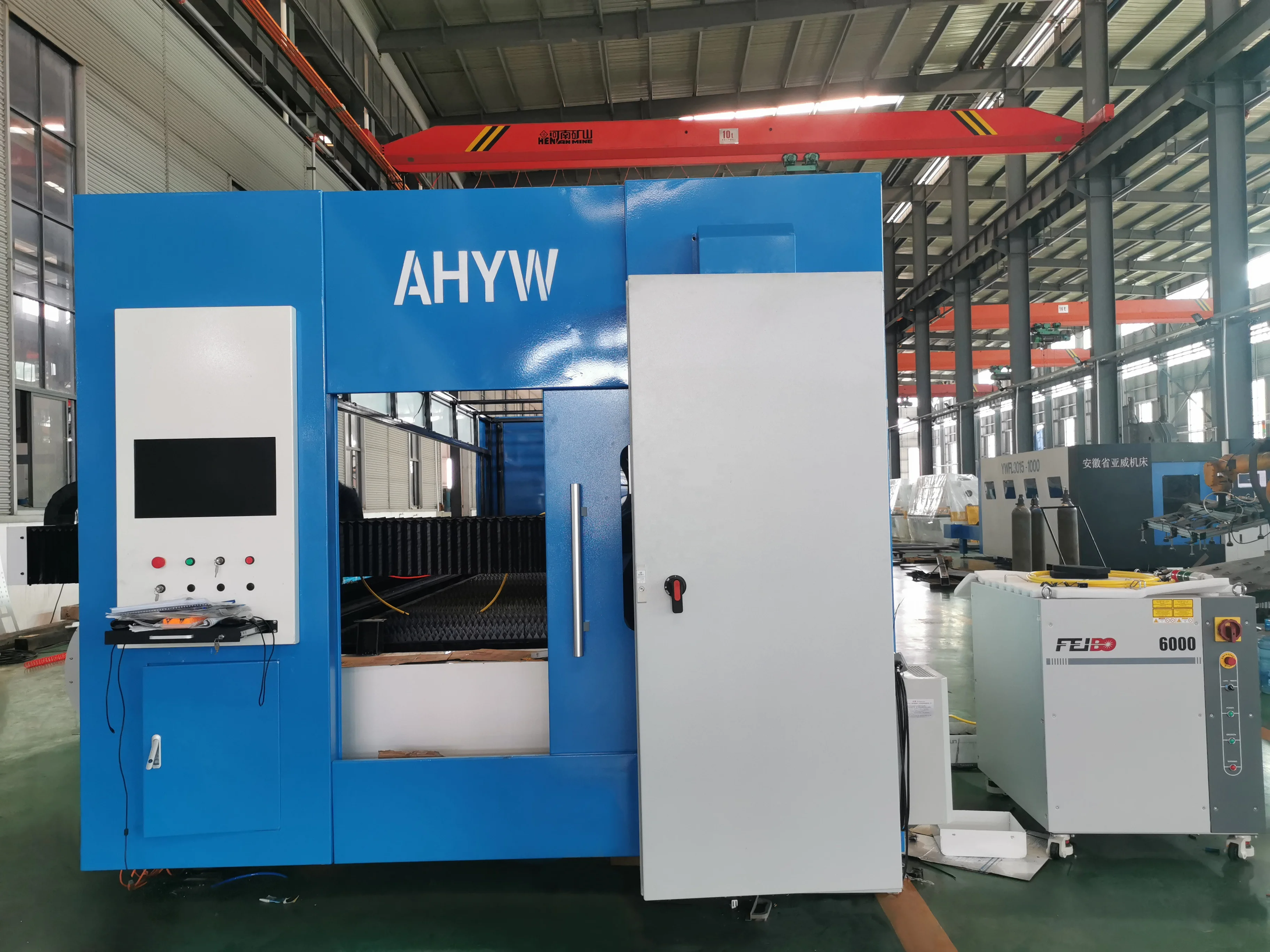

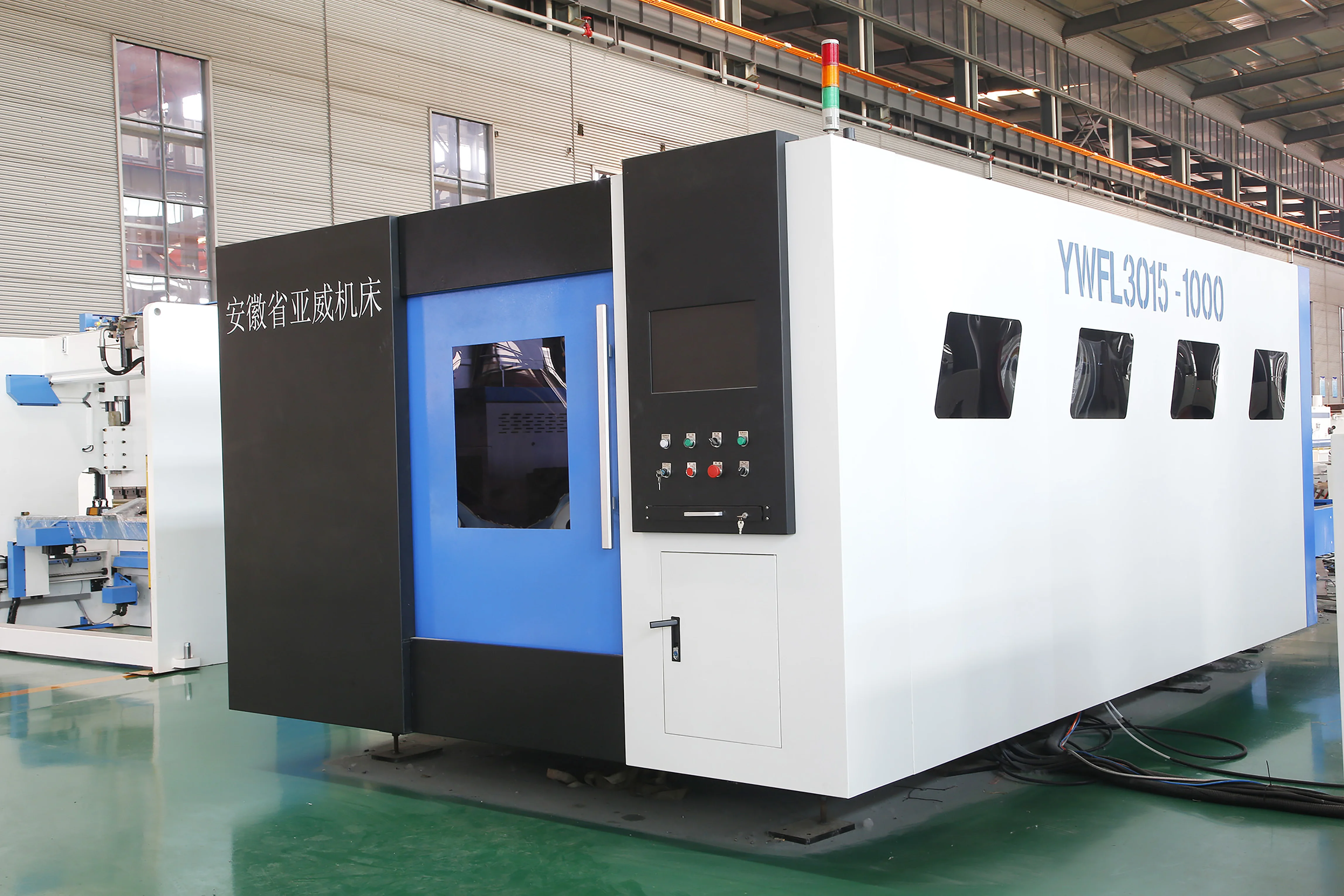

AHYW Sheet & Pipe Fiber Laser Cutting Machine With Shuttle Table And Cover
YWFL Series Metal Sheet and Pipe Combination Laser Cutting Machine is a perfect laser machine with pallet changer and protective cover. You gain the best of both with the most up-to-date technology.
It adopts China famous Raycus laser device(option: IPG or nLIGHT brand). Equipped with efficient transmission system by Taiwan gear rack after grinding process and high-precision linear guide. Advanced automatic CNC system, group into high precised CNC fiber laser cutting machine.
Mainly applicable for carbon steel, stainless steel and aluminum alloy etc such metals’ cutting and molding.With advantage of High speed, High precision, High efficiency and High cost performance.
Applicable | sheet metal and pipe/tube cutting |
Cutting size | 3000*1500, 4000*2000mm, 6000*1500, 6000*2000mm |
Laser power | 1000W—8000W |
Loading | 40 flat rack |
Weight | 16T |
Unique features | unique shuttle table, machine bed structure and extrusion aluminum gantry, optimized control. |
Sheet and Pipe Laser Cutting Machine Exclusive Features:
1.Unique leading climbing pallets ,synchronous exchanging tables and at same height. faster and better for cutting accuracy.
2.Fully enclosed cutting table with powerful blowser and Smart control exhaust system that create cleaner jobshop.
3.Thick sheet metal welded industrial grade machine tool bed ,true heat-treatment ,annealing machine bed, time aging, vibration residule stress relief ,unique"W"beams strengthened.
4.Aviation grade extruding aluminium beam, no any pinhole allowed.lighter in weight but more tough.
5.For high-power laser machine, exclusively using graphite sheet as dunnage to protect machine bed in case of heat damage.
2.Fully enclosed cutting table with powerful blowser and Smart control exhaust system that create cleaner jobshop.
3.Thick sheet metal welded industrial grade machine tool bed ,true heat-treatment ,annealing machine bed, time aging, vibration residule stress relief ,unique"W"beams strengthened.
4.Aviation grade extruding aluminium beam, no any pinhole allowed.lighter in weight but more tough.
5.For high-power laser machine, exclusively using graphite sheet as dunnage to protect machine bed in case of heat damage.

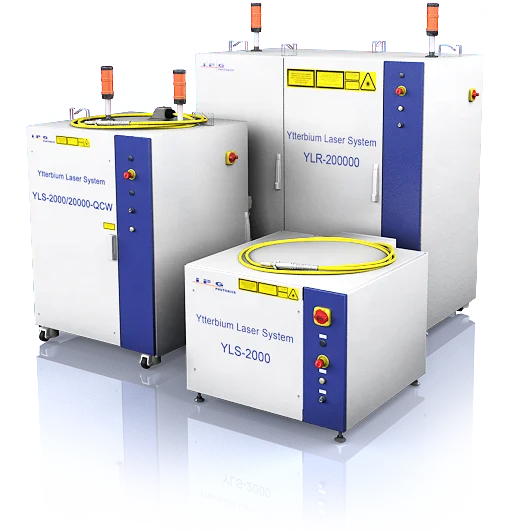

LASER SOURCE OPTIONS

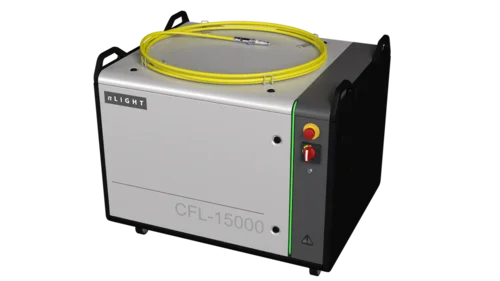

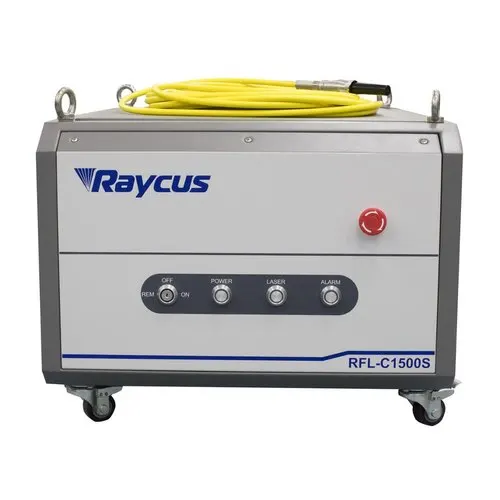

Raycus Max nLIGHT IPG
WORKING CAPACITY
Anhui Yawei sheet metal fiber laser cutting machines included many models according to your material requirements, available in working sizes 3015, 4020, 6020, up to 12m and with laser powers ranging from 500W to 8000W Fiber Laser.
CONTROL SYSTEM

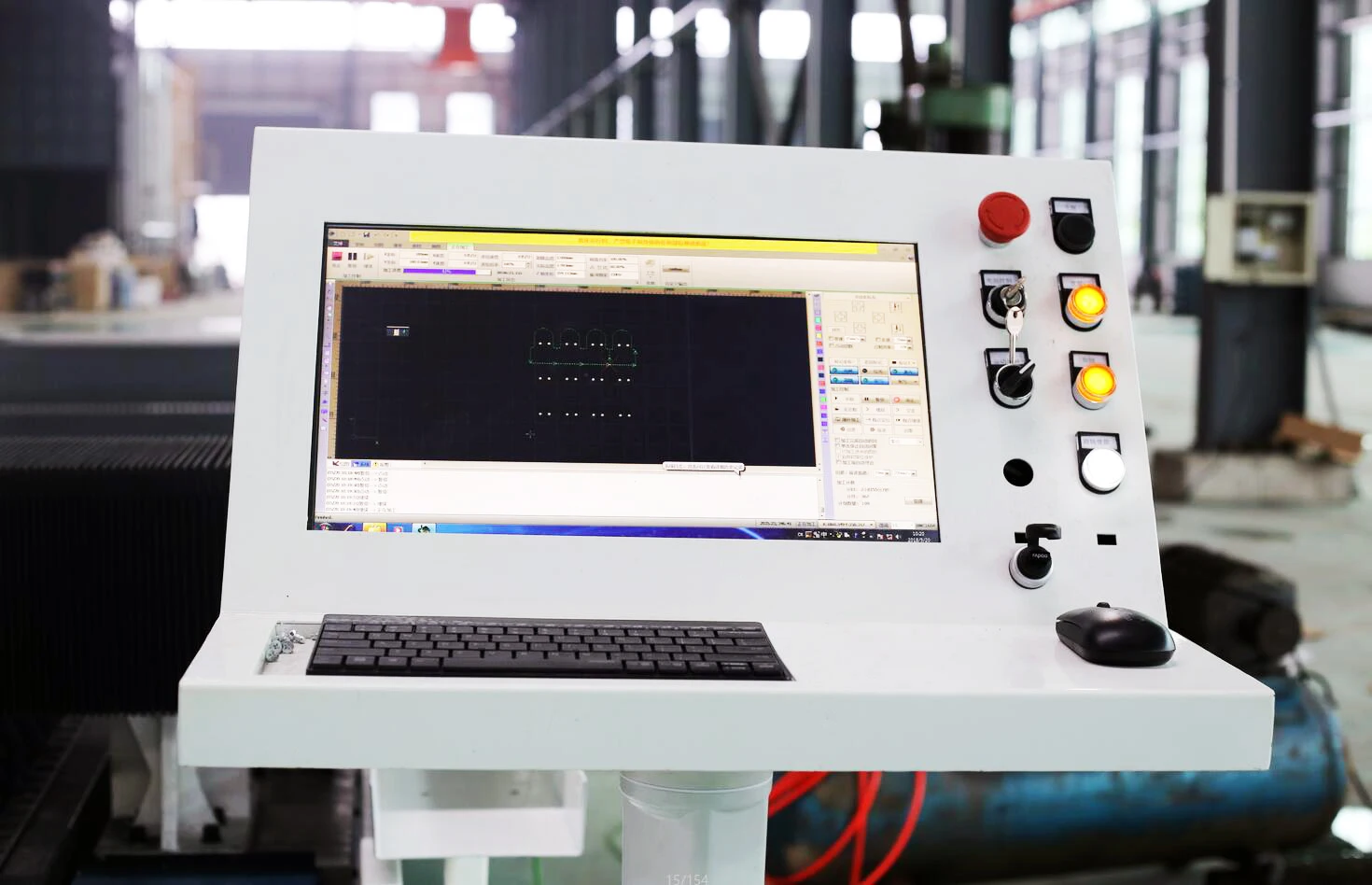

With Bochu Control system and software with English language, applicable insert files with DXF. Or AI format. Drawing in the software is also okay. Software with fly cutting mode for cutting same products for save time. With Nesting function, autonomic compose type for saving materials by saving spaces.

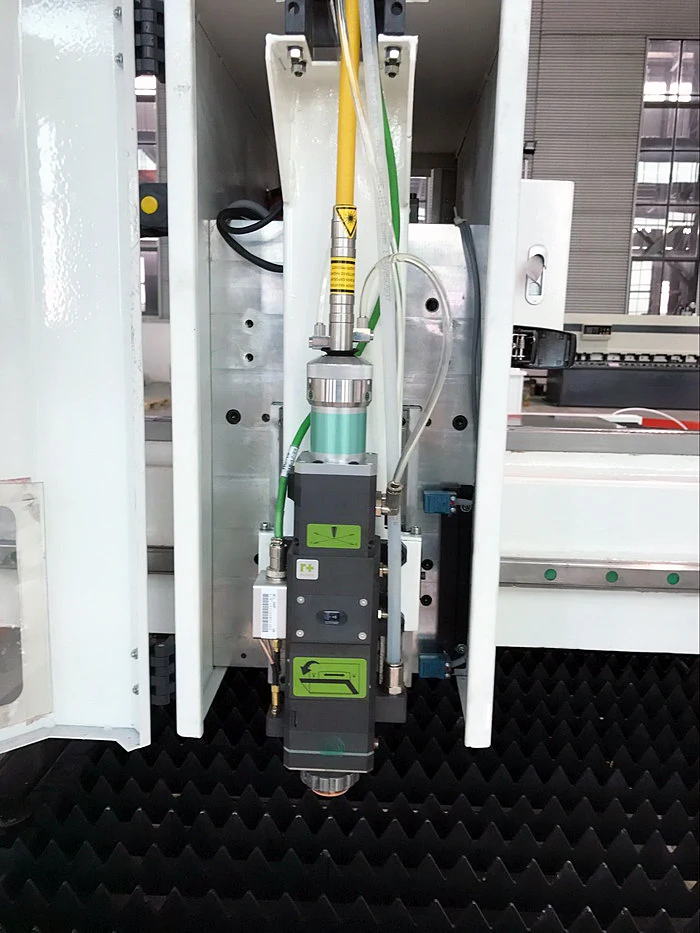

CUTTING HEAD
Quickly change the focusing mirror of different focal lengths, adapt to a variety of power processing, to meet the cutting of different thickness plates.
Quickly and accurately focus work more
time-saving and better.
Quickly and accurately focus work more
time-saving and better.

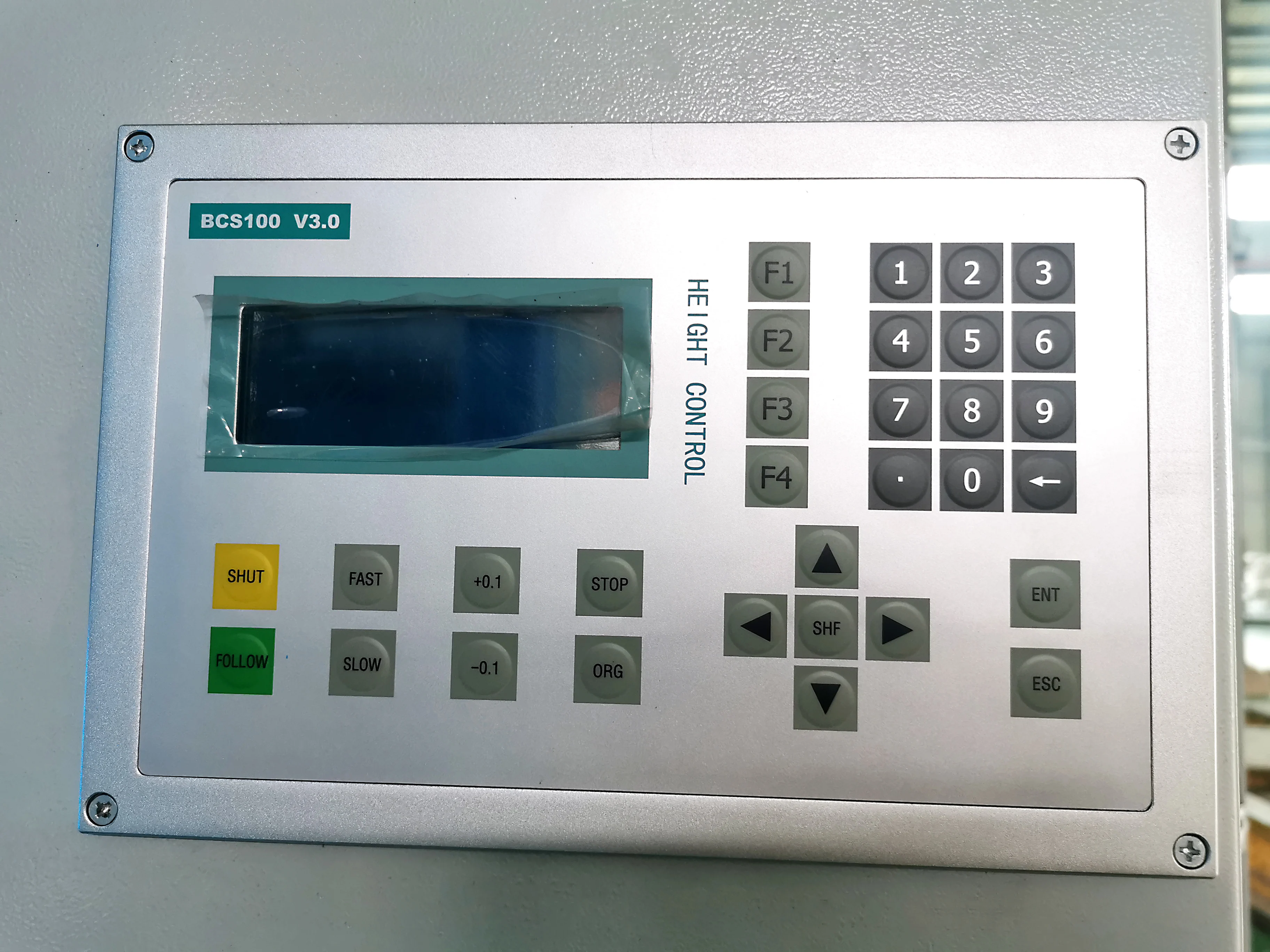

HEIGHT CONTROLLER - BCS100 V3.0
BCS100 capacitive height controller is a
high-performance control device which uses closed-loop control method.
Adapt to any cutting head and nozzle.
Support alarm while hitting the board and
beyond the edge.
Support leapfrogs and segmented piercing,
Edge Seek function.
Support functions to detect the head height
in real time.
high-performance control device which uses closed-loop control method.
Adapt to any cutting head and nozzle.
Support alarm while hitting the board and
beyond the edge.
Support leapfrogs and segmented piercing,
Edge Seek function.
Support functions to detect the head height
in real time.
COOLING SYSTEM
When laser head cut metals, there will produce some hot energy in laser head and laser device. Water chiller is for cooling this two parts. Laser head part, mainly cooling the mirrors. Temperature in the water chiller is auto adjustment, mainly set up with 25 degree around.
Water in chiller should be pure water.
DRIVING SYSTEM
Panasonic/Yaskawa Servo Motors & Drives.
Match-able with the transmission system, improve cutting speed and precision.
Match-able with the transmission system, improve cutting speed and precision.
ATLANTA RACK & PINION
The grinding rack with brand new precision level meets the demand of energy conservation because of less friction loss.
It has smaller total pitch error per meter, therefore the reduction of total pitch error in whole axis improves the accuracy of the entire device.
It has smaller total pitch error per meter, therefore the reduction of total pitch error in whole axis improves the accuracy of the entire device.
MACHINE STRUCTURE
X-axis beam is Casting aluminum alloy structure, machine bed is casting structure, it can make sure long time machine bed not out of shape. Work stable is very important for the machine performance after long time using.A heavier frame means less vibration and better accuracy. Auto changing pallet system allows over 1800kg loading weight.
SHUTTLE TABLE
Automatic shuttle table for faster loading materials and offload finished parts, dramatically save overall cycle time without a laser sitting idle for prolonged periods, no need to wait for operators to load sheets and unload parts.
PNEUMATIC CLAMPING CHUCKS

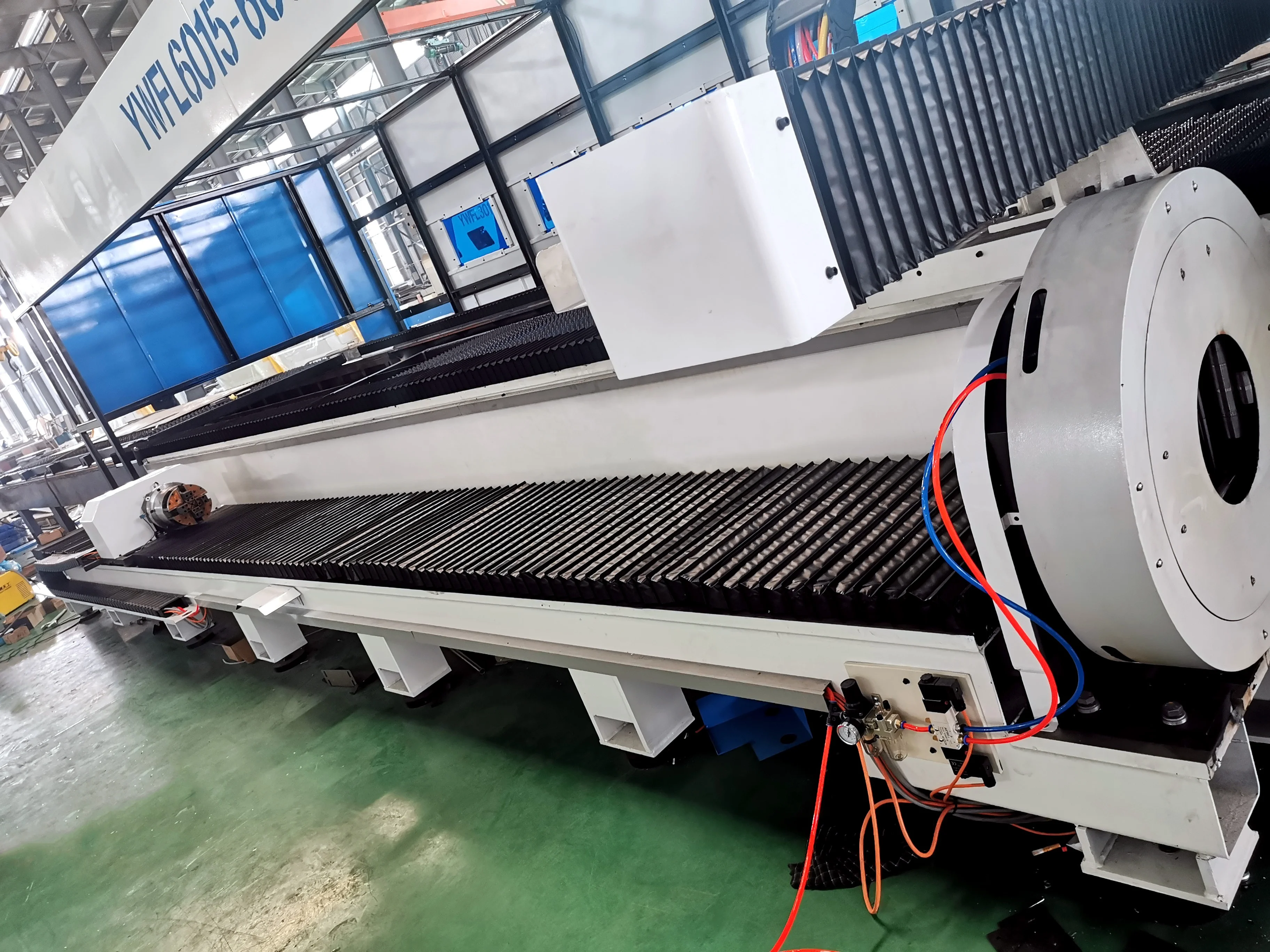

The pipe cutting unit has two automatic pneumatic chucks with strong clamping claws, and two tube supports to guarantee long tube cutting accuracy. When tube fabricators need to cut special-shaped tubular product, customized fixture tool is needed.
Applications

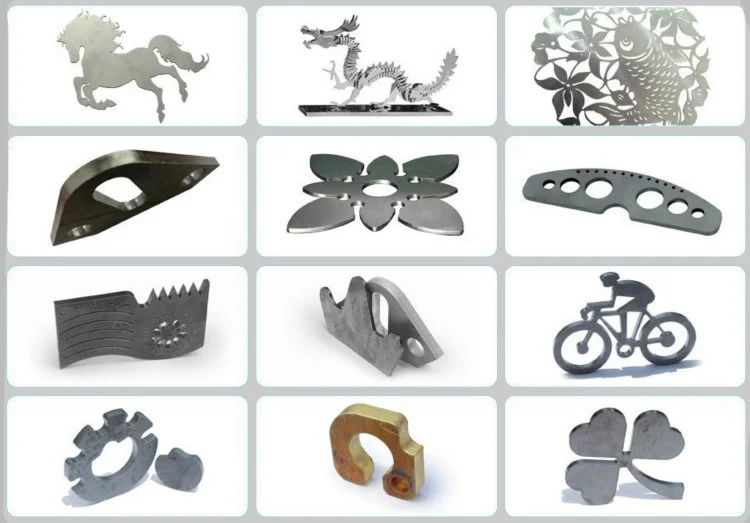

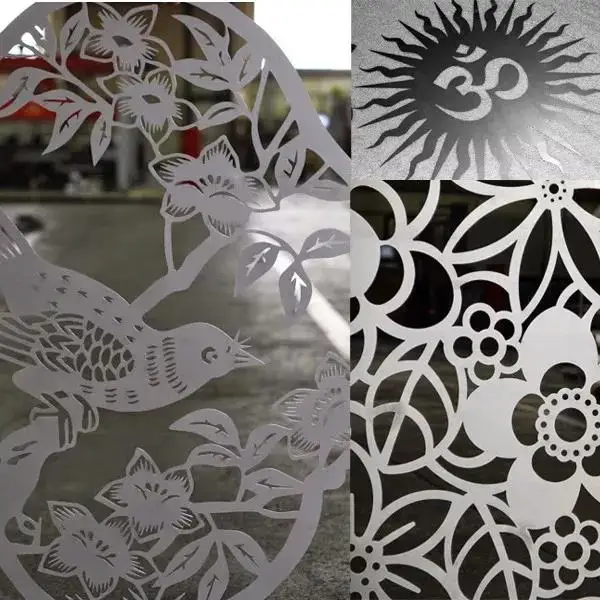

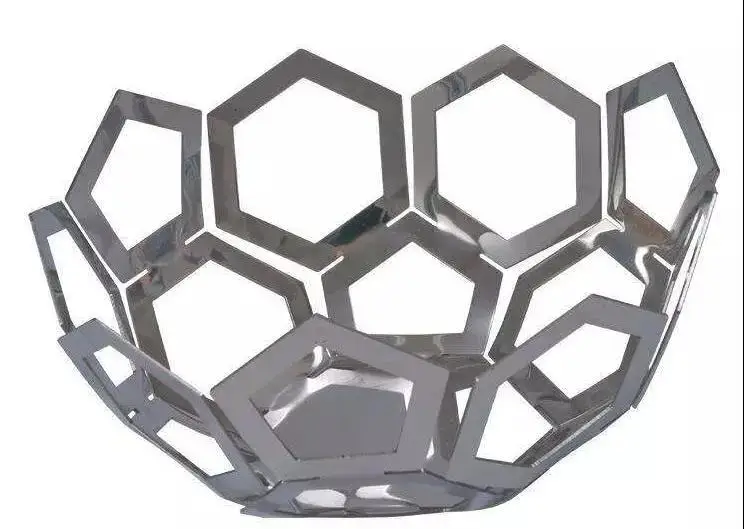

Application Material
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube), Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube), Galvanized Sheet, Aluminum Plate(tube), Copper Sheet(tube), Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries
Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Technical Parameters
Machine model | YWFL-4020 |
Laser wavelength | 1064-1090nm |
Beam quality | M2〈1.3, TEM00 |
Laser average power | 10-750W |
Water chiller power | 3.8kW |
X and Y axis working area | 1500 x 3000 |
Consumption parts | Water, lens,auxiliary gas(N2/O2/compressed air) |
Z axis movement length | 100mm |
X and Y location accuracy | +/-0.02mm |
X and Y axis repeat location accuracy | +/-0.02mm |
X and Y axis moving speed | 23m/min |
X and Y max cutting speed | 15m/min |
Min cutting width | 0.05mm |
Guider | Red pointer |
Shielding gas form | coaxial |
Control system | Bochu Fiber laser cuttings sysem |
File format | DXF/PLT/AI |
Driver | Controlled by servo motor |
Continuously working time | suggest≤16H（available working 24 hours） |
Max cutting speed（common steel） | depends on material type&thickness |
Applicable cutting materials | Stainless steel, carbon steel and galvanized Sheet/Pipe |
Machine occupy space（L*H*W） | 10.0×5.0×1.8(m) |
Voltage needed | Specific according to final user |
Production Process
Packing&Shipping
SHIPPING | ||
Means | by sea, by rail | |
Container | 20' GP 40 'GP 40' HQ or OT RT | |
Shipping Details | According to the size and weight of machines, we will provide our customers with optimized shipping solution. | |
Company Profile
Facilities & Equipment
Customer Photos
Certification
FAQ
Q1. Are you a factory or a trading company?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 40 years of manufacturing experience, and our products were exported to more than 100 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. If we are interested in your machine, how to choose proper power?
A: Please inform us the detailed information of your workpiece to be cut, then we will recommend you a suitable power.
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 40 years of manufacturing experience, and our products were exported to more than 100 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. If we are interested in your machine, how to choose proper power?
A: Please inform us the detailed information of your workpiece to be cut, then we will recommend you a suitable power.
Q4. Where are you located? How do I get there?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai. You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai. You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.
We warmly invite you to visit our factory!
