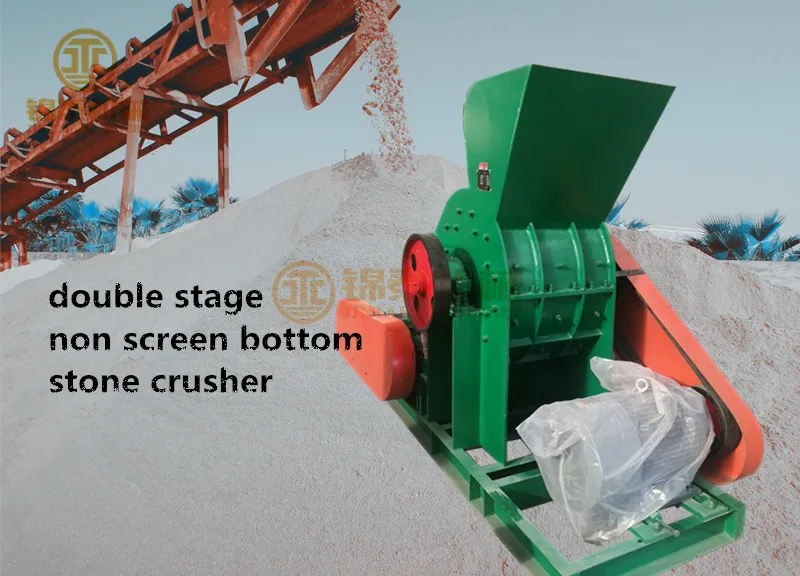

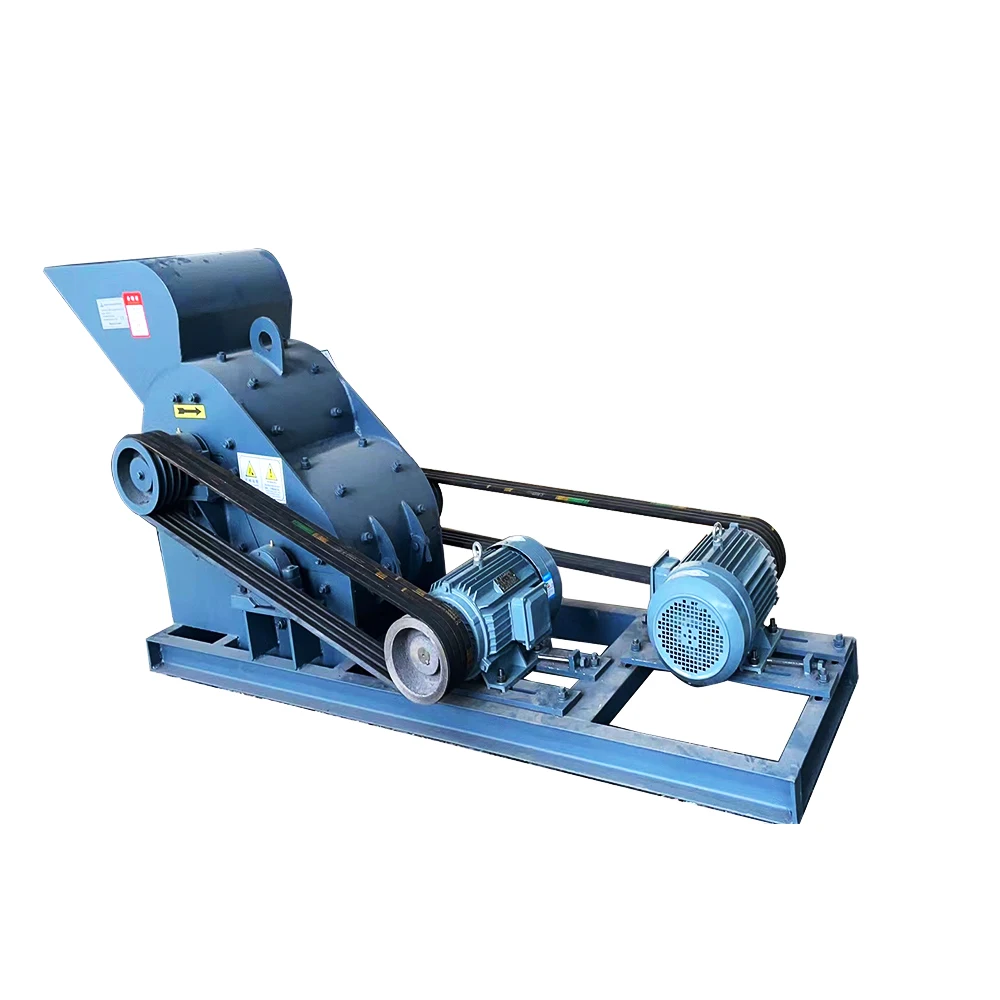

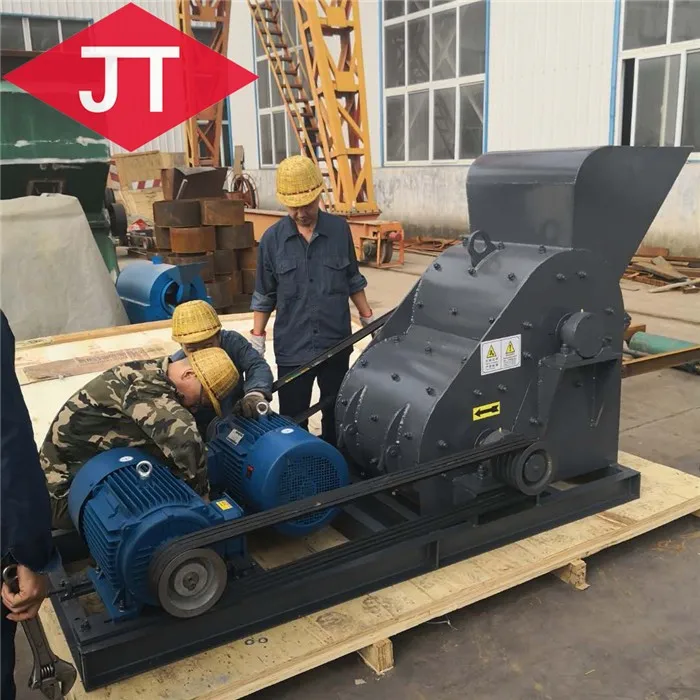

Mobile motor powered PC800*600 double stage crusher, pebble ore shale slag cinder construction waste crusher
- Category: >>>
- Supplier: Gongyi Jintai Industrial Co. Ltd.
Share on (1601211898521):
Product Overview
Description

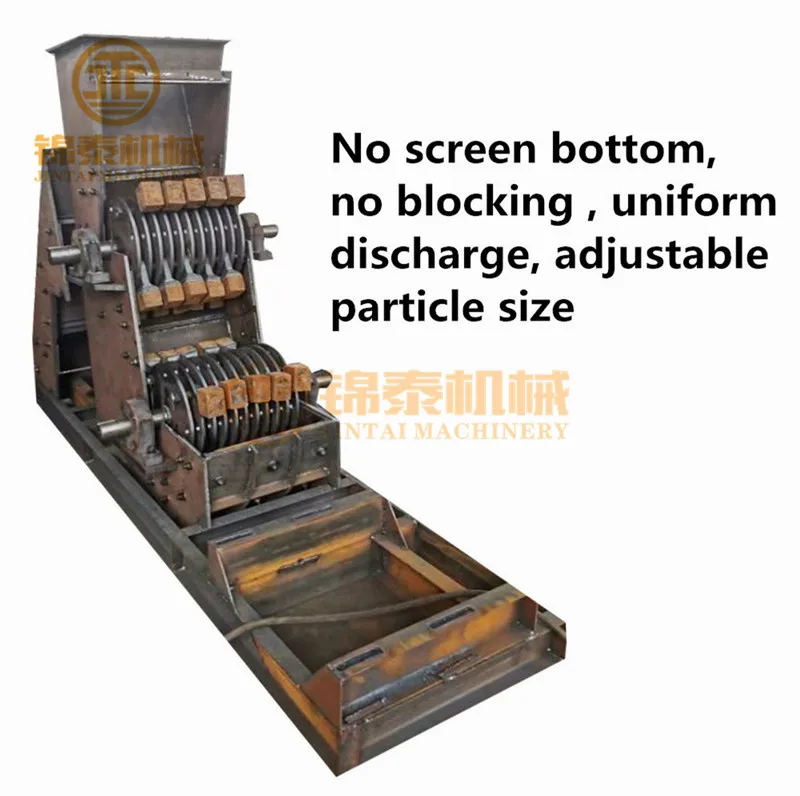

Advantages of two-stage screenless crusher
Technical advantage 1, the upper and lower rotors work simultaneously, the upper and lower rotors rotate at the same time, the crushing rate is high, equivalent to two hammer crushers
Technical advantage 2, hydraulic unpacking device, convenient maintenance
Technical advantage 3, the discharge particle size is uniform and adjustable, and the size of the discharge particle size can be controlled
Technical advantage 4, there is no screen bottom, there is no high requirement for the humidity of the material, it does not block the raw materials, and the effect of crushing wet materials is obvious
Technical advantage 5, it can crush multiple raw materials at the same time, and one device can crush various stones!
Technical advantage 2, hydraulic unpacking device, convenient maintenance
Technical advantage 3, the discharge particle size is uniform and adjustable, and the size of the discharge particle size can be controlled
Technical advantage 4, there is no screen bottom, there is no high requirement for the humidity of the material, it does not block the raw materials, and the effect of crushing wet materials is obvious
Technical advantage 5, it can crush multiple raw materials at the same time, and one device can crush various stones!
Product Introduction
Advantage
1.Good quality and durable :It is made of high quality material, with strong compressive and wear resistance and long service life.
2.Easy to operate: Its structure is very simple and easy to use.It is easy for consumers to understand and learn.
3. Factory direct selling,High cost performance: the hammer head is made of wrought manganese steelwide range of crushing, high efficiency.
4. Mature crushing process:Adopt mature crushing technology, use advanced processing equipment, internal structure is precise.
5.Widely used in various industries: It can be used in quarries, coal mining, sand and stone yards, building materials, highways,railway, urban facilities, water supply, etc.

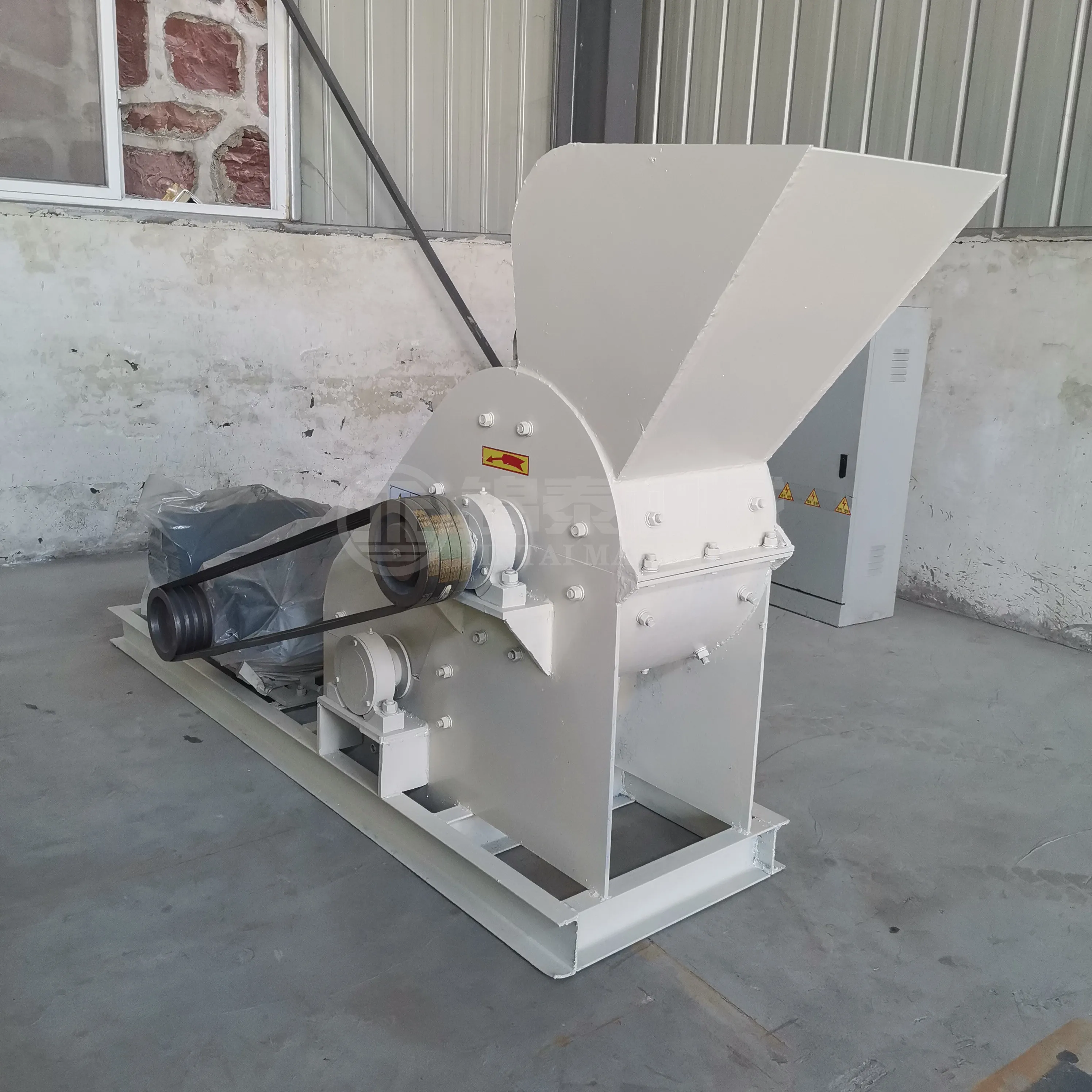

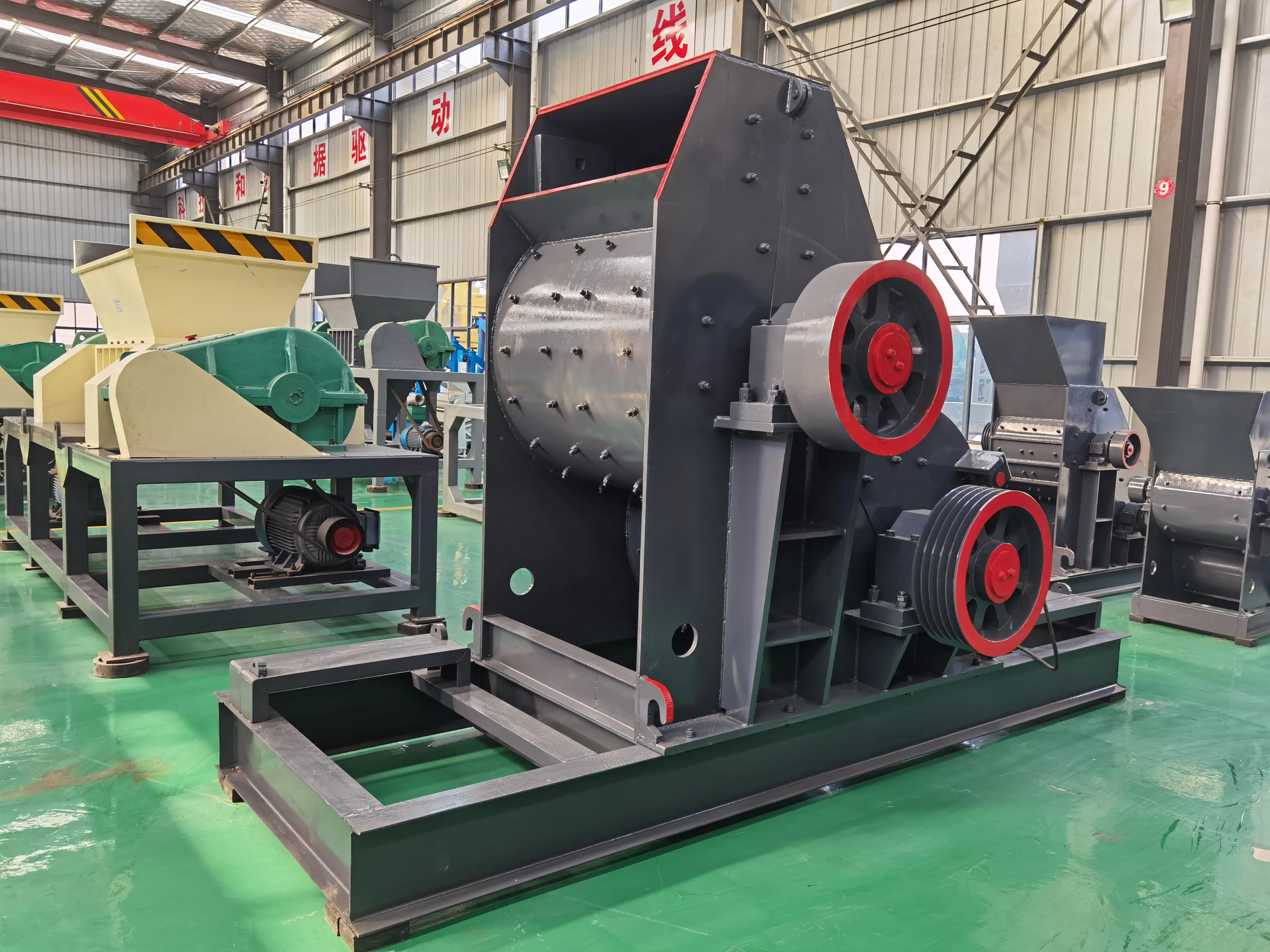

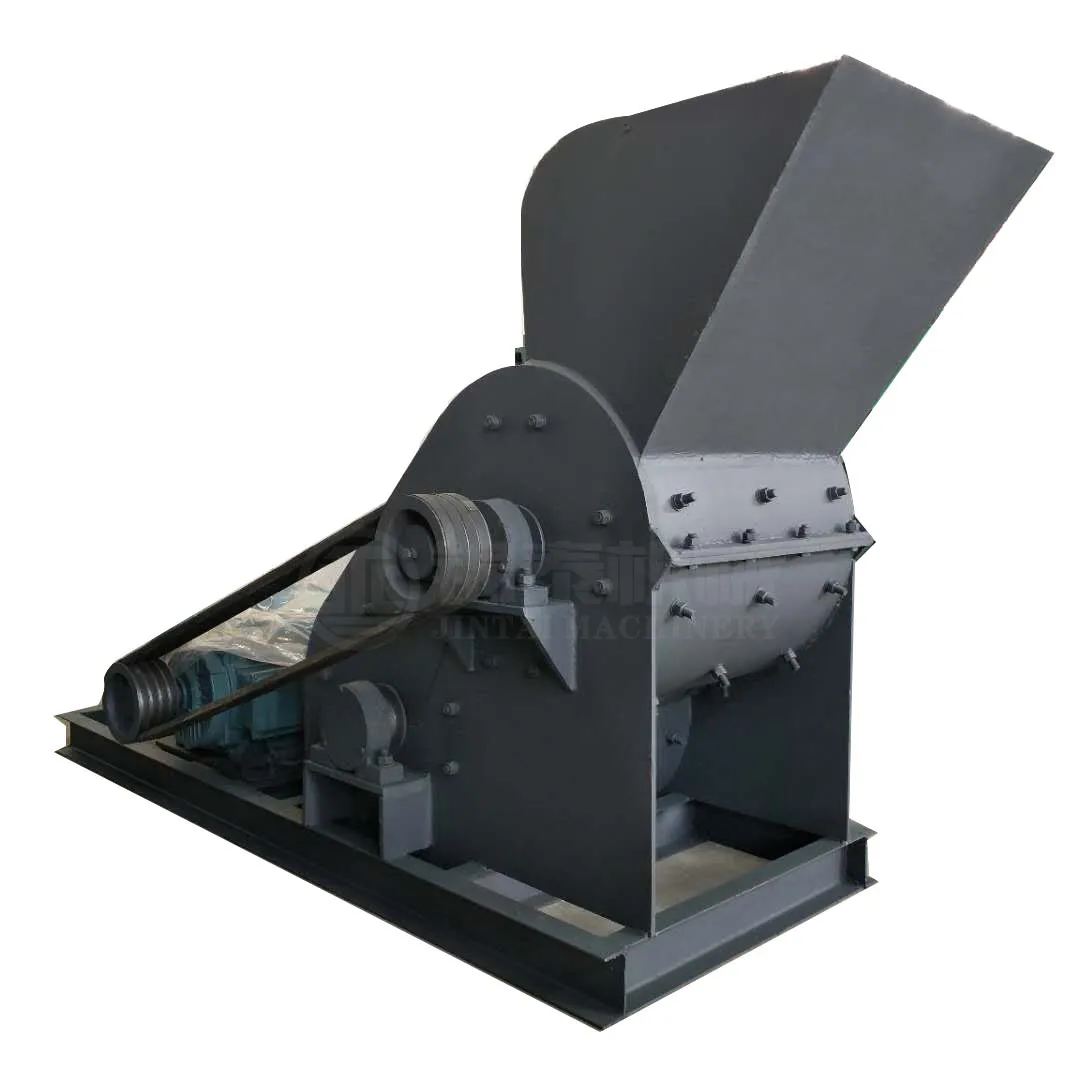

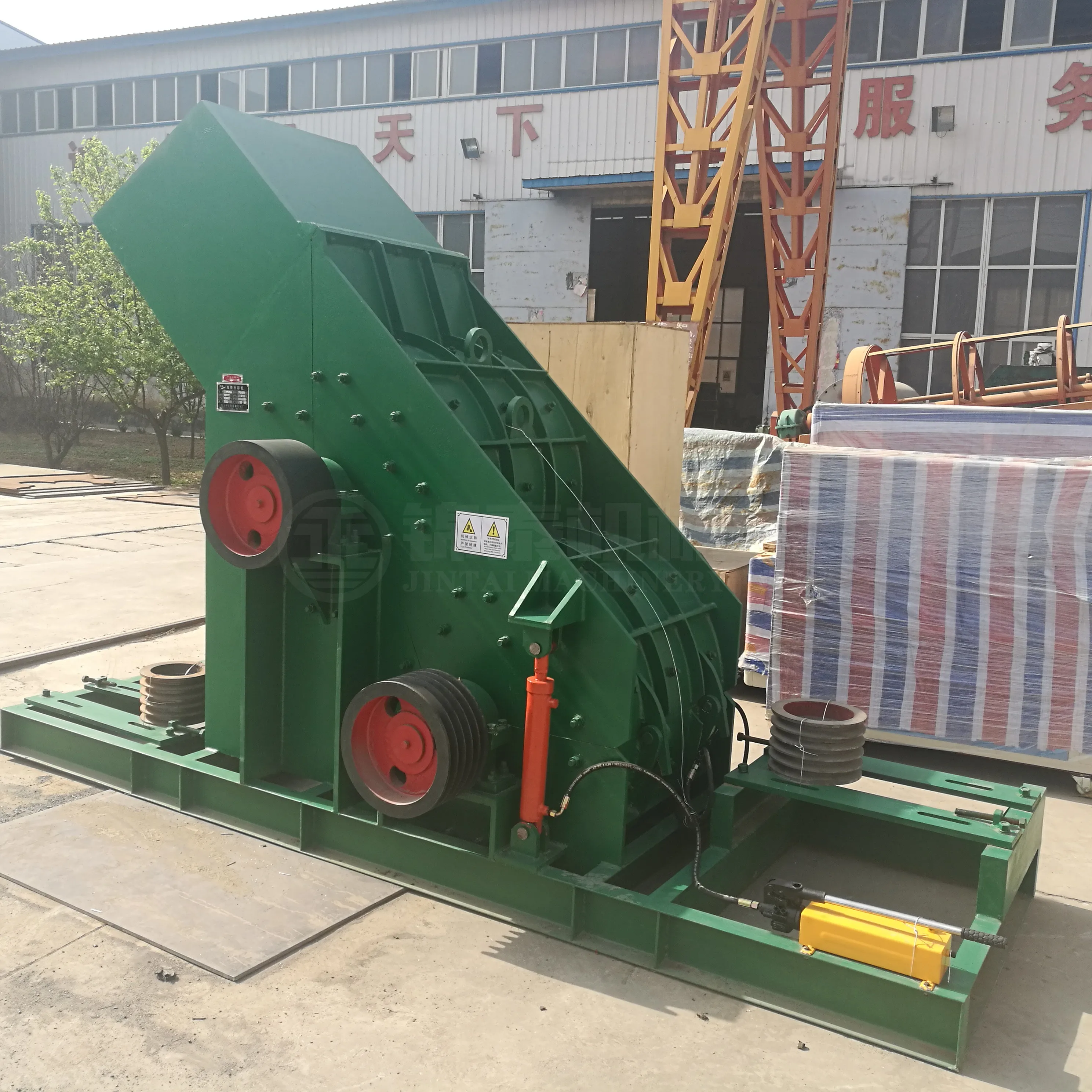

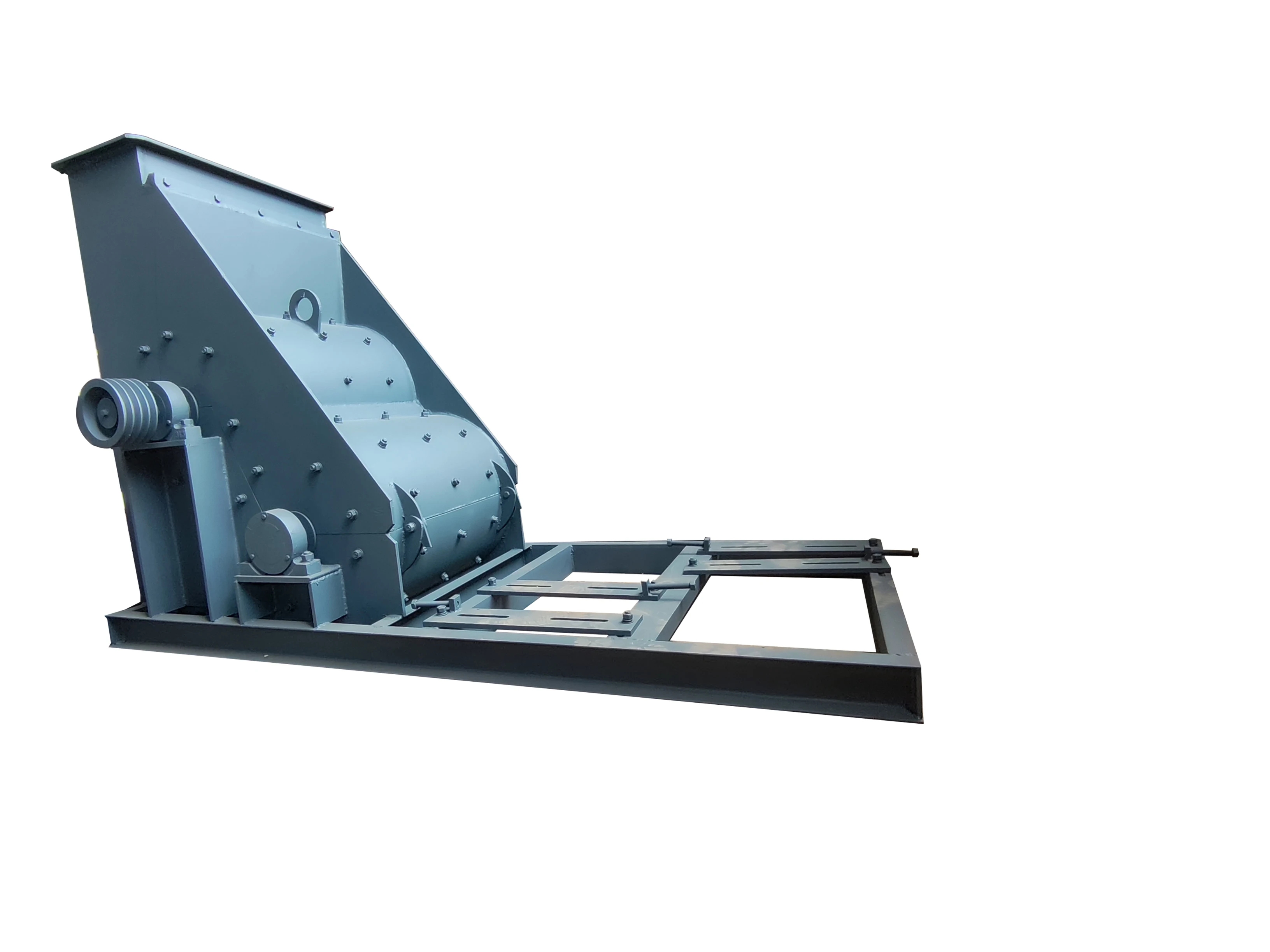

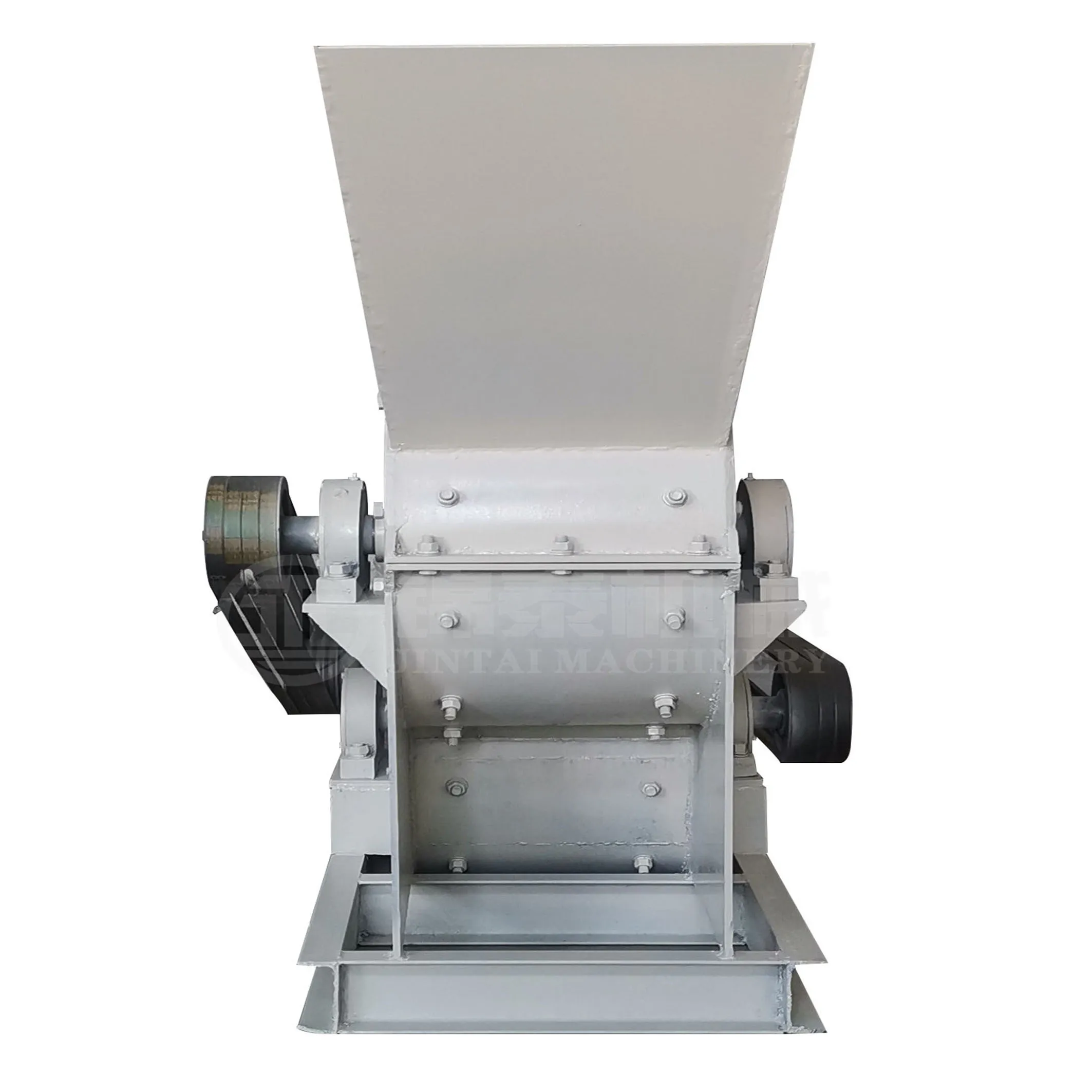

Models show
150tph small mobile brick stone hydraulic diesel crusher machine price bangladesh zimbabwe
configuration
Double stage Crusher
configuration

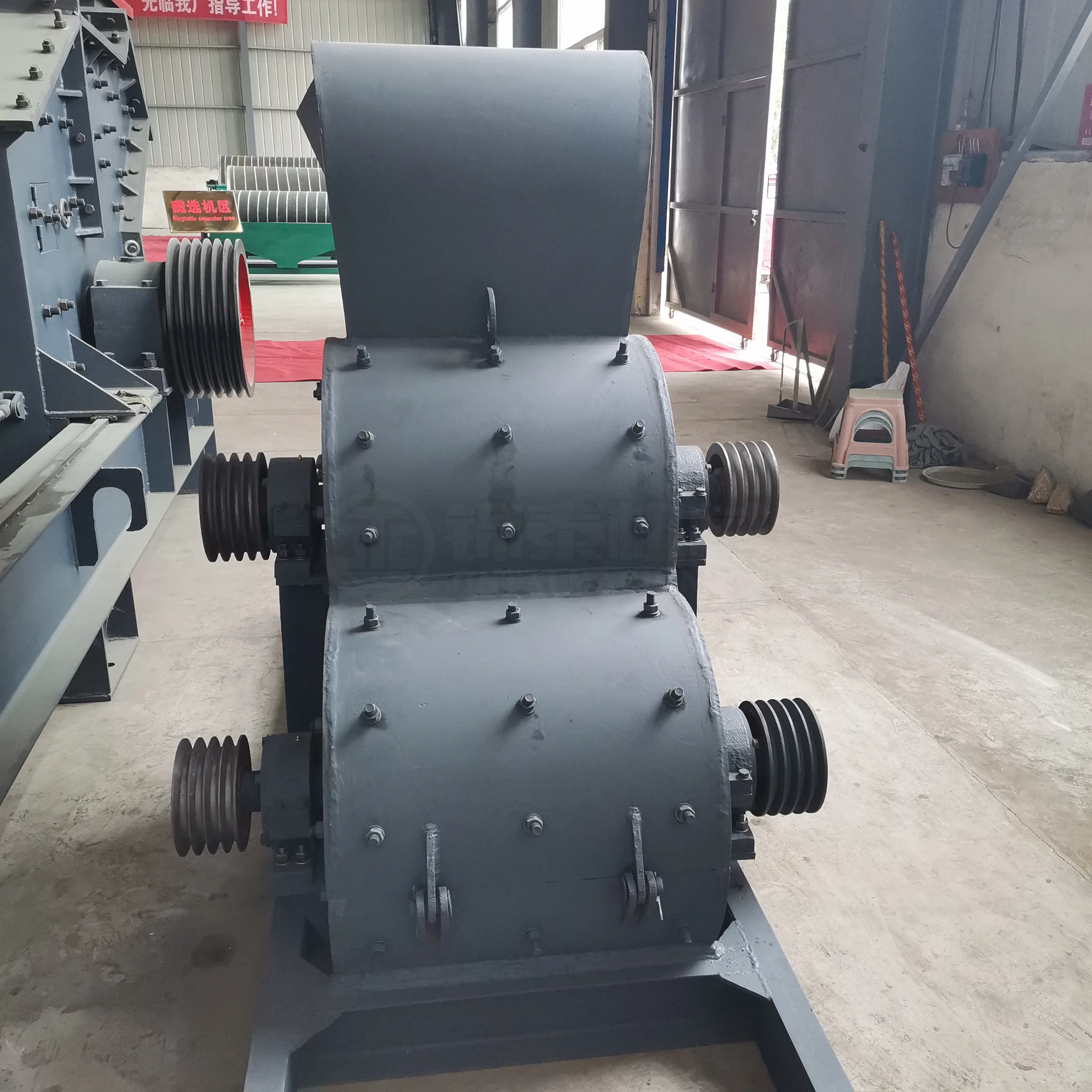

Double stage Crusher The motor cover
configuration
Double stage Crusher Frame
configuration
Mobile pulverizer
Material crushing effect display
150tph small mobile brick stone hydraulic diesel crusher machine price bangladesh zimbabwe

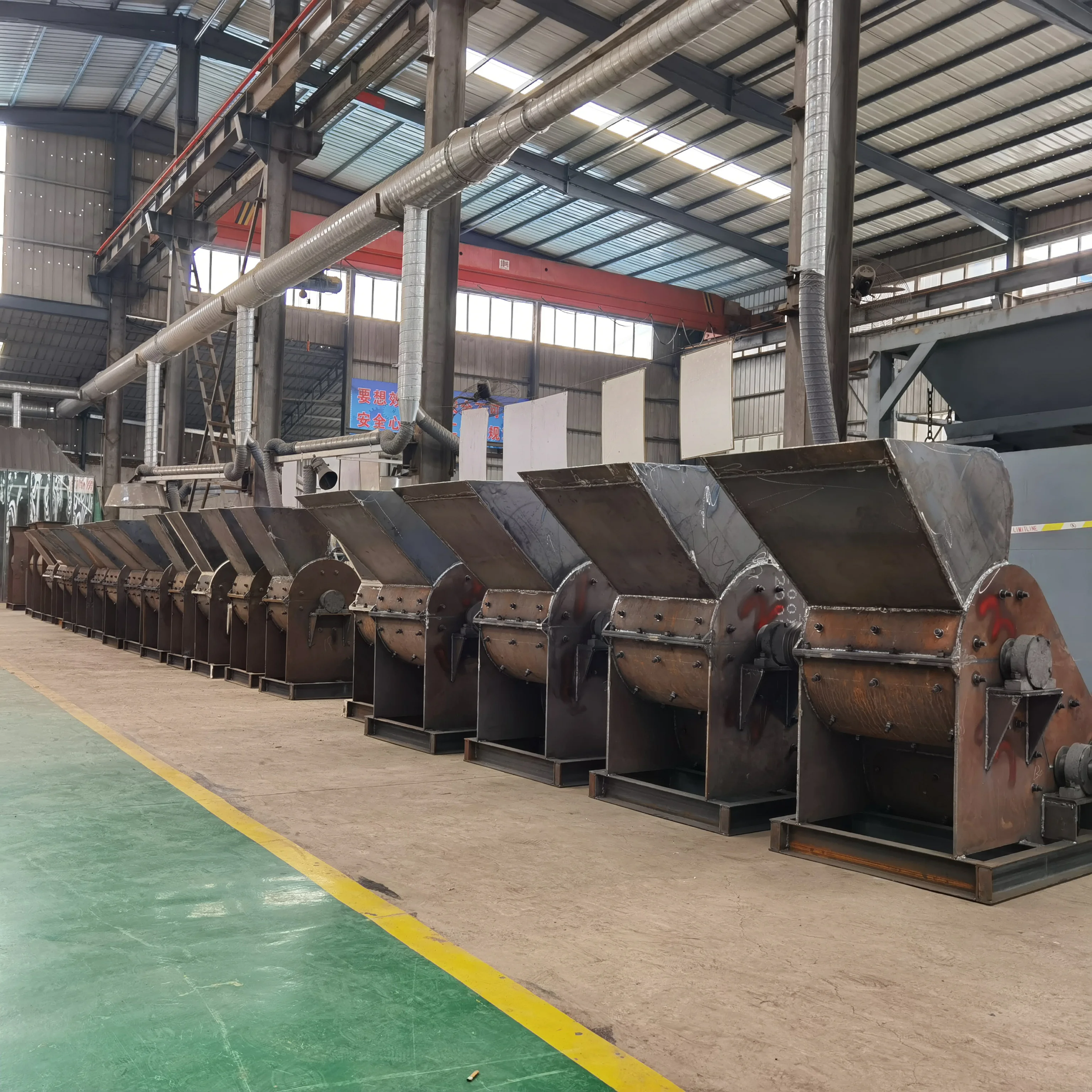

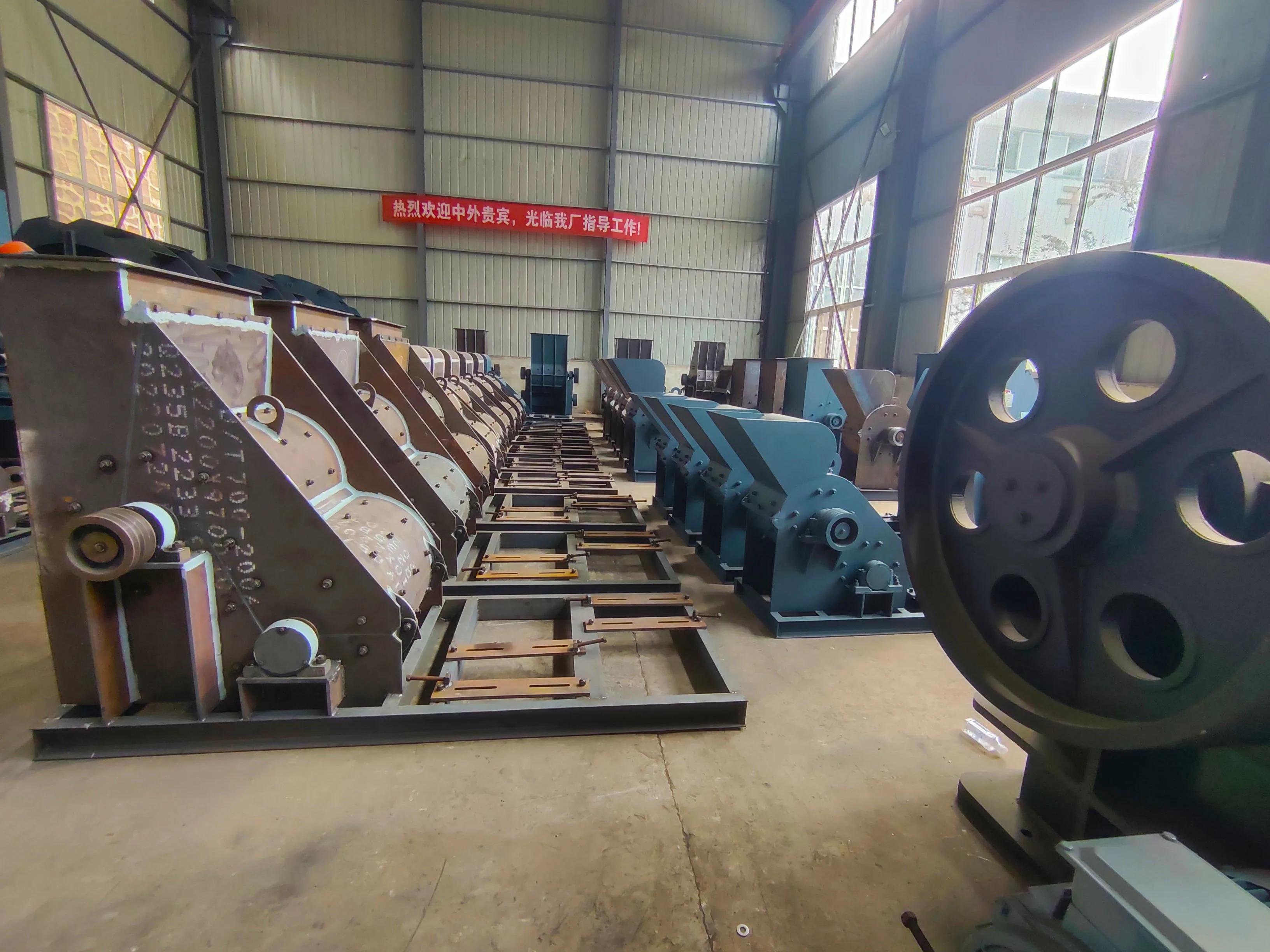

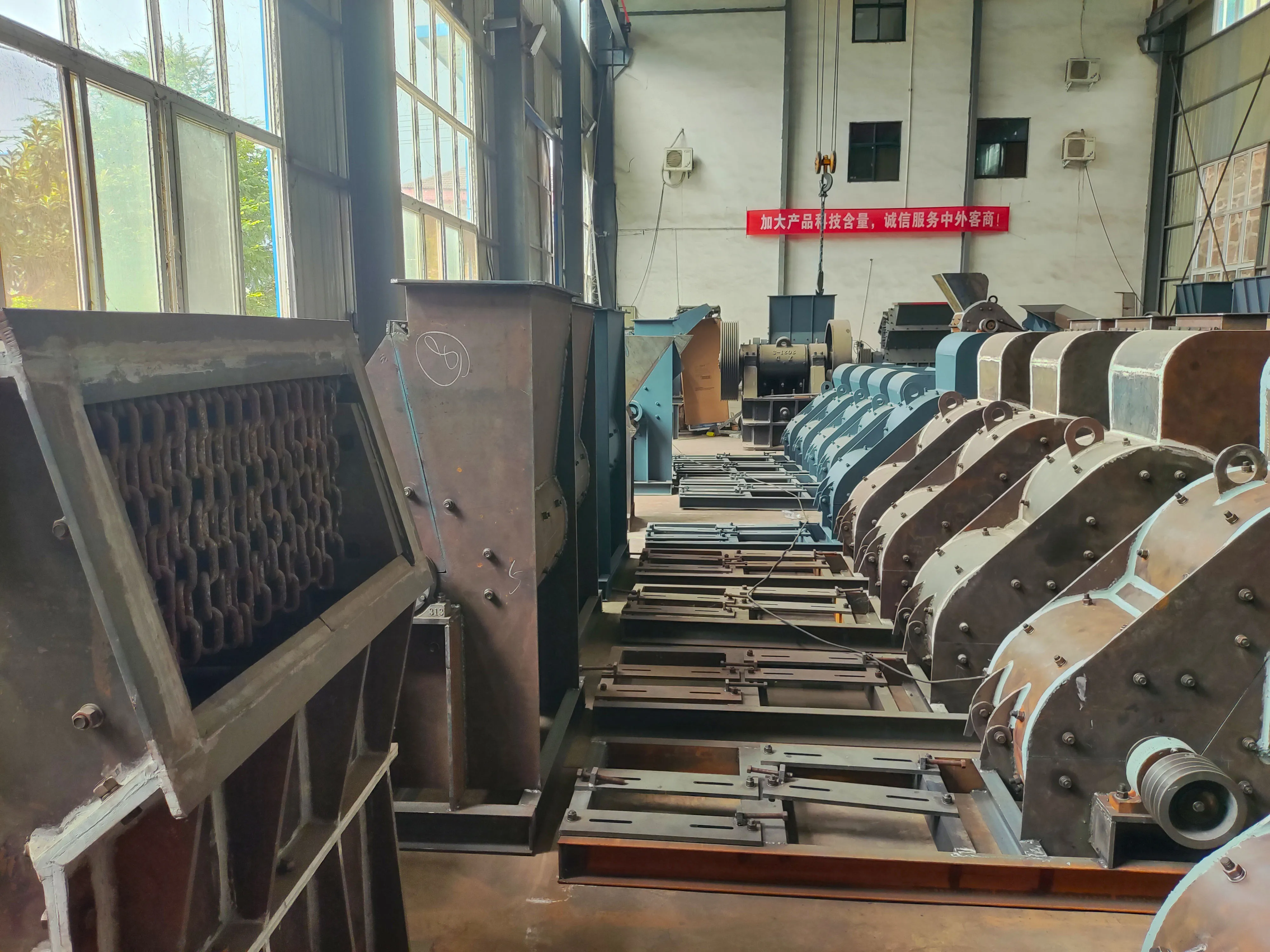

Factory warehouse
150tph small mobile brick stone hydraulic diesel crusher machine price bangladesh zimbabwe
Characteristics of the equipment
1.The output particle size below 3 mm and below 2 mm accounts for more than 90%. Uniform particle adjustable, especially suitable
for the production of porous brick, thin-walled brick.2.Double - rotor two - stage grinding, not grate mesh, wet material does not plug.
3.Hammer head, liner bidirectional clearance, at any time to control the size of the discharge.
4.Double shaft and double flying wheel, stable operation, high inertia, power saving more than 20%.
5.With its own hydraulic lifting device, the replacement of hammerhead maintenance saves time and effort.
for the production of porous brick, thin-walled brick.2.Double - rotor two - stage grinding, not grate mesh, wet material does not plug.
3.Hammer head, liner bidirectional clearance, at any time to control the size of the discharge.
4.Double shaft and double flying wheel, stable operation, high inertia, power saving more than 20%.
5.With its own hydraulic lifting device, the replacement of hammerhead maintenance saves time and effort.
Product specification and display
Type specification | Weight(T) | Output(t/h) | The number of hammerhead(PCS) | The hammerhead weight(KG/PC) | Motor type(KW) | Disharging granularity(mm) |
2PC-600*400 | 1 | 10-15 | 24 | 3.5 | 18.5+18.5 | 2-3 |
2PC-600*600 | 1.3 | 15-20 | 40 | 3.5 | 22+22 | 2-3 |
2PC-600*800 | 1.8 | 20-30 | 48 | 3.5 | 30+22 | 2-3 |
2PC-800*600 | 3 | 30-40 | 40 | 7 | 45+37 | 2-3 |
2PC-800*800 | 3.5 | 40-50 | 48 | 7 | 55+45 | 2-3 |
2PC-1000*800 | 5.5 | 50-60 | 48 | 8 | 55+75 | 2-3 |
2PC-1000*1000 | 7 | 60-90 | 52 | 8 | 90+75 | 2-3 |
2PC-1000*1200 | 8 | 70-90 | 56 | 8 | 110+90 | 2-3 |
2PC-1000*1400 | 8.5 | 100-120 | 60 | 10 | 110+132 | 2-3 |
2PC-1200*1400 | 9 | 120-130 | 60 | 12 | 132+160 | 2-3 |
2PC-1400*1600 | 13 | 130-180 | 72 | 20 | 160+200 | 2-3 |
The rotor disc
the rotor
Motor wheel and counterweight wheel
lining plate
bearing box

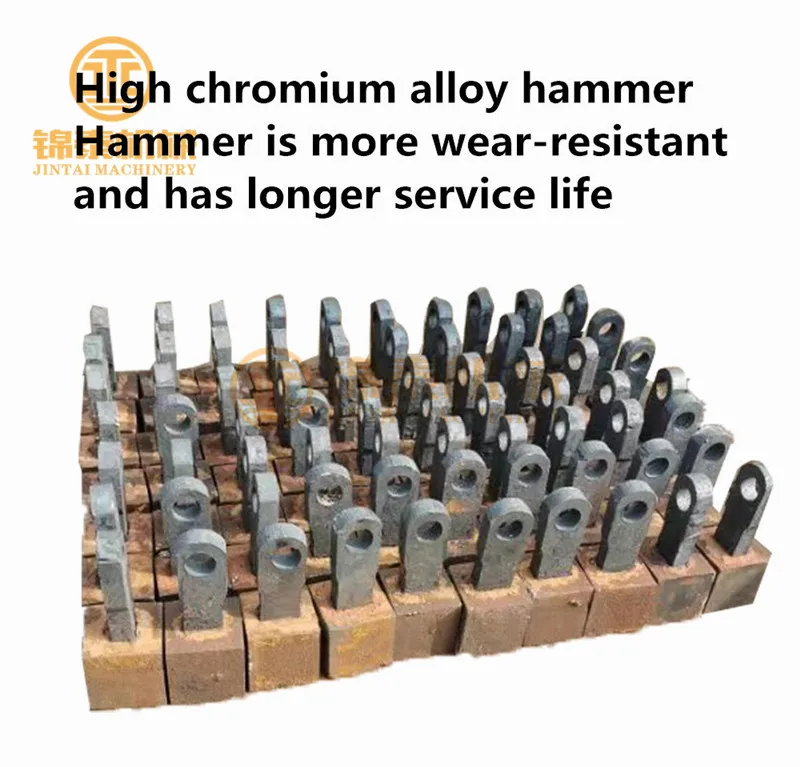

hammerhead
mainshaft bearing
integral construction
Counterattack plate
Product advantages and application fields
Company introduction and certificate display
Introduction
Gongyi Jintai Trading Co., Ltd was established on August 6, 2001. It is specialized in producing and manufacturing various types of automatic oil presses, hydraulic oil presses, ore crushers, metal crushers, shredders, magnetic separators, and counter rolls. Crusher, professional manufacturer of brick making machine, the company has export rights and has a professional R & D team and technical assurance department. Every Gongyi Jintai Trading Co., Ltd equipment is tested by the test machine. The quality warranty is one year. Welcome new and old customers to order machinery equipment! We will win your recognition with the best quality!
Customer feedback display
Packaging and logistics display
FAQ
What about the quality of your products? What is it made of?
The quality of our products is very good. The product is made of manganese steel forging material.It's very strong and durable.
Can the factory send special technicians to the site to guide the installation?
Yes, we can.
Do you have a factory of your own?
Yes, we have our own factory, which is a direct selling factory. And the price is relatively cheaper.
Does your factory sell parts for your products?
Yes, we do.
How long is the warranty period?
The warranty period is generally 1 year.
