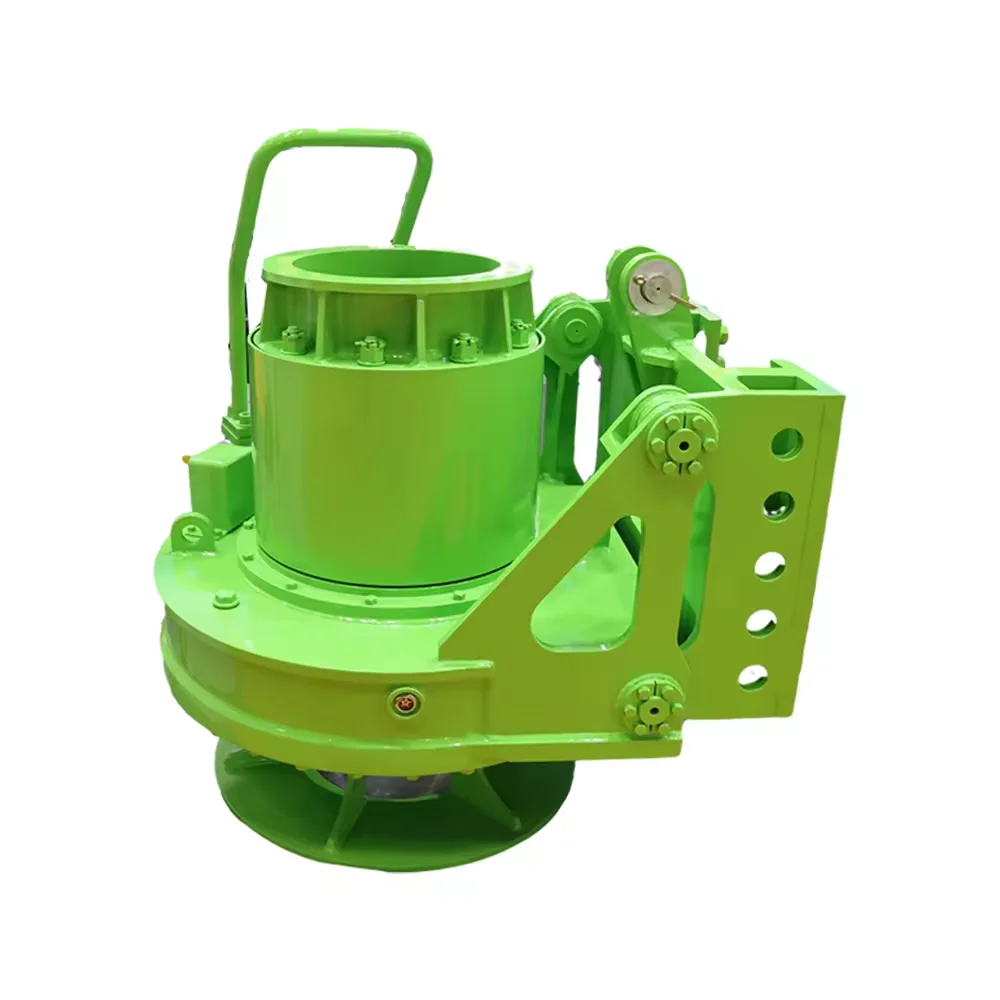

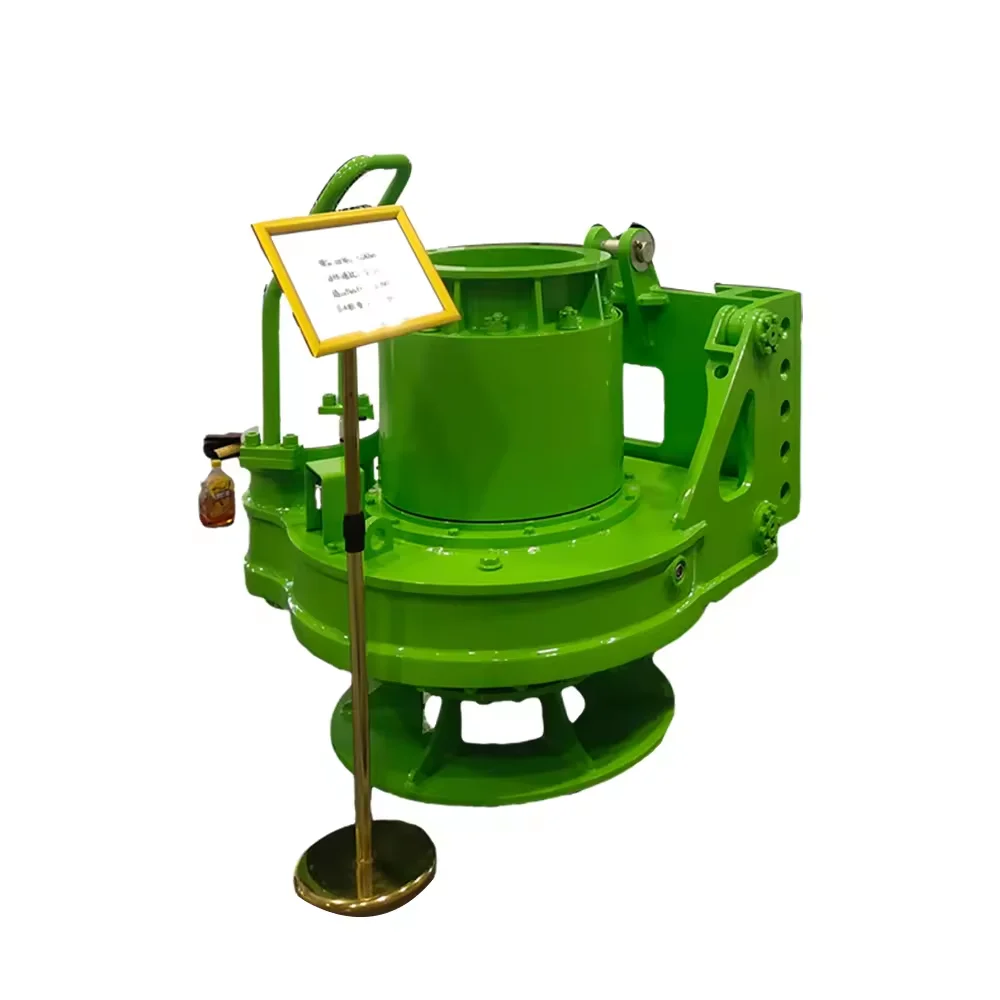

Hydraulic Top Drive Drilling Rig Power Head with High Quality from TYSIM
- Category: >>>
- Supplier: TYSIM PILIING EQUIPMENT CO. LTD
Share on (1601211946054):
Product Overview
Description
Max torque: kNm 60
Max Pull-up and/or Pull-down force is 65 kN
Max hydraulic pressure is : 350 Mpa
Max flow is : 260 liter/minute

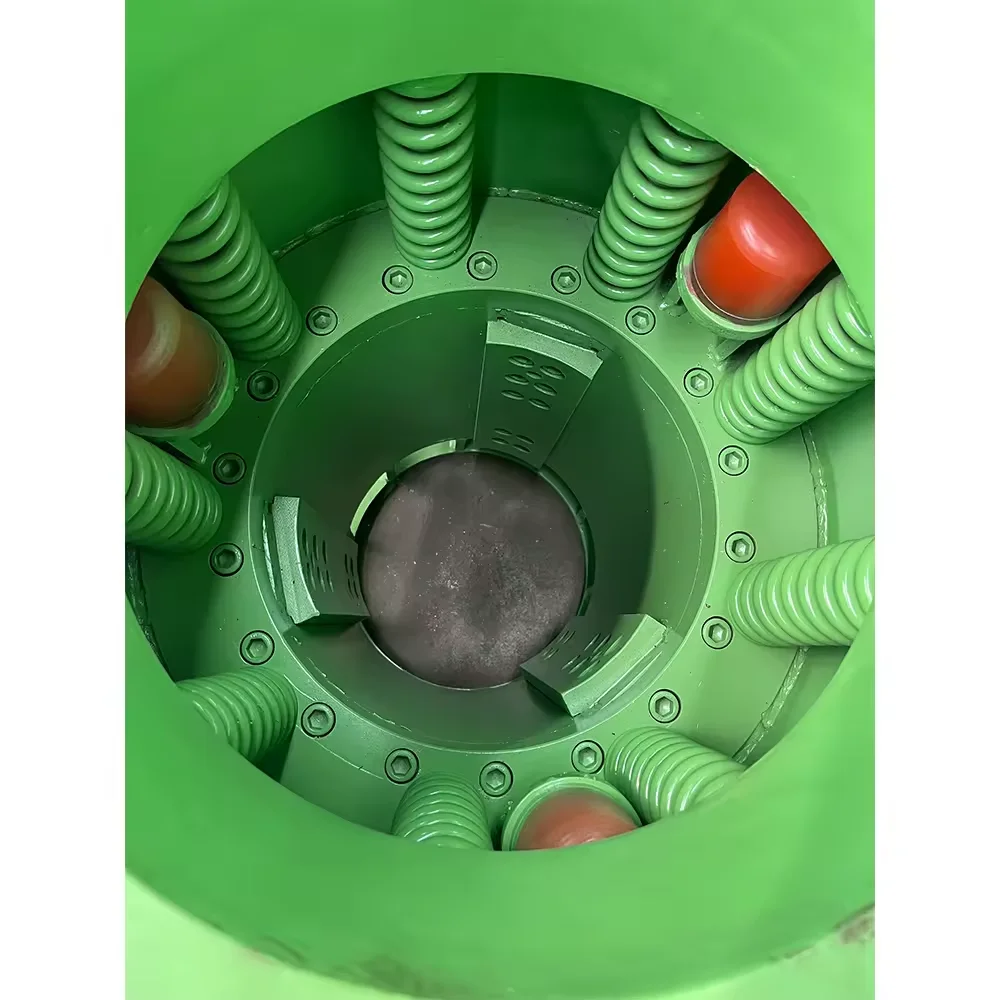

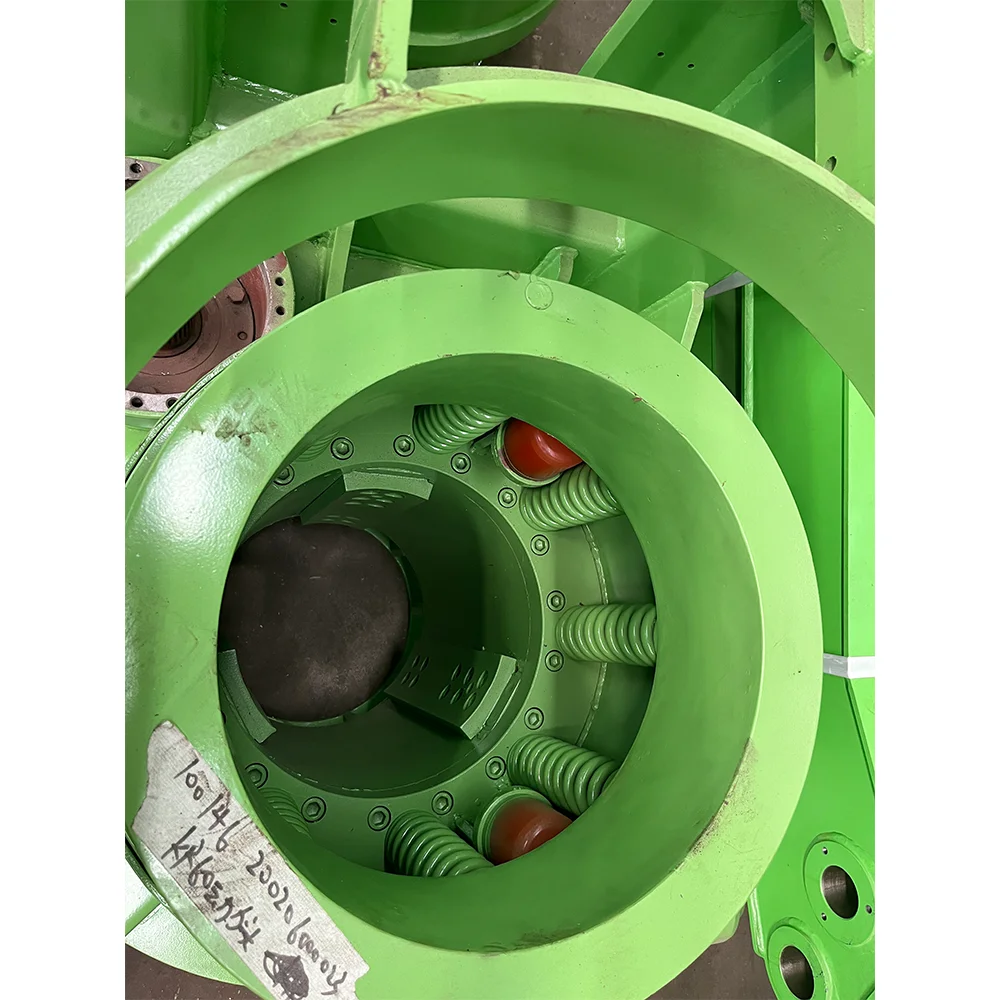

Internal diameter between inserts so the available internal diameter is Ø 325 mm
Weight is working conditions: +/- 2000 Kg ( including hydraulic motor / reducer / leader guiding etc.)
Max Pull-up and/or Pull-down force is 65 kN
Max hydraulic pressure is : 350 Mpa
Max flow is : 260 liter/minute
Internal diameter between inserts so the available internal diameter is Ø 325 mm
Weight is working conditions: +/- 2000 Kg ( including hydraulic motor / reducer / leader guiding etc.)
Power head safety instructions
1)Fill lubricating oil to the middle line or on the upper side of the oil label, and do not fill the display window of the oil
label
2) Mud accumulation thickness shall not exceed the power box plane 30mm, must be cleaned in time
3) When the power device produces abnormal noise, it must be stopped for inspection and handled in time.
4) When welding the power plant for maintenance, the nearby iron should be laid, and it is strictly prohibited to lay iron welding
across parts
5) The temperature of the elastic element at the pin of the sliding frame shall not exceed 80°
6) Power device drive key bar belongs to wear parts, must be checked every 200 hours.
1)Fill lubricating oil to the middle line or on the upper side of the oil label, and do not fill the display window of the oil
label
2) Mud accumulation thickness shall not exceed the power box plane 30mm, must be cleaned in time
3) When the power device produces abnormal noise, it must be stopped for inspection and handled in time.
4) When welding the power plant for maintenance, the nearby iron should be laid, and it is strictly prohibited to lay iron welding
across parts
5) The temperature of the elastic element at the pin of the sliding frame shall not exceed 80°
6) Power device drive key bar belongs to wear parts, must be checked every 200 hours.
