25m3 35m3 50m3 60m3 75m3 90m3 120m3 180m3 240m3 Factory Direct Sale Stantionary Concrete Batching Plant
- Category: >>>
- Supplier: Yili Engineering Machinery Henan Co. Ltd.Yili Ltd.
Share on (1601211963019):
Product Overview
Description
Product Paramenters
Main | YILI Plant Model | HZS25 | HZS35 | HZS50 | HZS75 | ||||
Theo. Mixing Capacity | 25m3/h | 35m3/h | 50m3/h | 75m3/h | |||||
Concrete Discharge Height | 3.8m | 3.8m | 3.8m | 4.1m | |||||
Raw Material Feeding | Skip Hopper | Skip Hopper | Skip Hopper | Skip Hopper | |||||
Max. Aggregates Size | 60mm | 80mm | 80mm | 80mm | |||||
Mixing Time per Batch | 60-72s | 60-72s | 60-72s | 60-72s | |||||
Batching Machine | Model | PLD800 | PLD1200 | PLD1600 | PLD2400 | ||||
Aggregates Feed Height | 2.4m | 2.6m | 3m | 3.4m | |||||

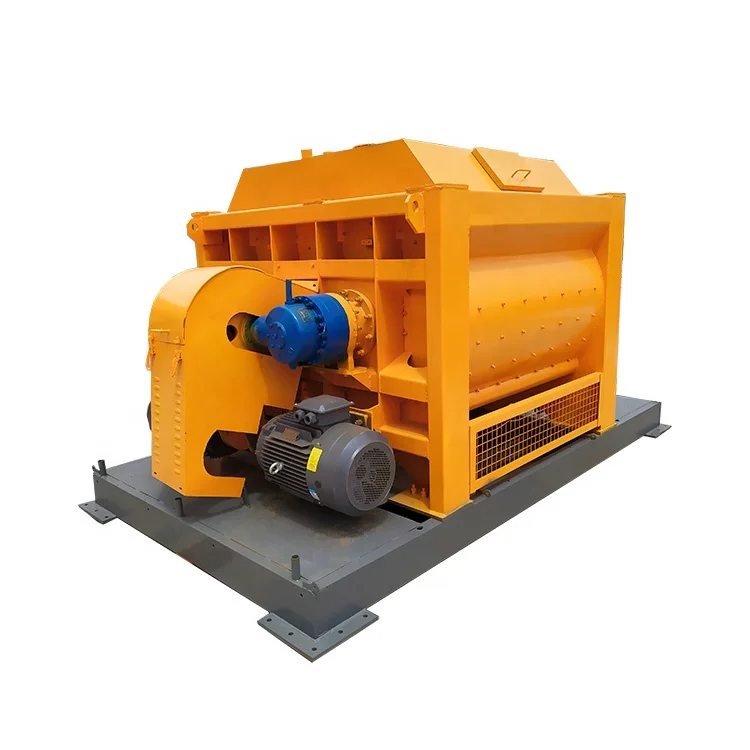

Twin Shaft Concrete Mixer | Model | JS500 | JS750 | JS1000 | JS1500 | ||||
Raw Material Feeding | Skip Hopper | Skip Hopper | Skip Hopper | Skip Hopper | |||||
Mixing Motor | 18.5kw*1 | 30kw*1 | 22kw*2 | 30kw*2 | |||||
Feeding Motor | 5.5kw | 7.5kw | 11kw | 13kw | |||||
Weighing | Cement Weighing | Yes | Yes | Yes | Yes | ||||
Water Weighing | Yes | Yes | Yes | Yes | |||||
Additive Weighing | Optional | Yes | Yes | Yes | |||||
Screw Conveyor | Model | 219-6 | 219-6 | 219-8 | 219-8 | ||||
Conveying Distance | 6m | 6m | 8m | 8m | |||||
Motor Power | 7.5kw | 7.5kw | 11kw | 11kw | |||||
Cement Silo | Type | Vertical Bolted | Vertical Bolted | Vertical Bolted | Vertical Bolted | ||||
Storage Capacity | 50/100t | 50/100t | 100t*2 | 100t*2 | |||||

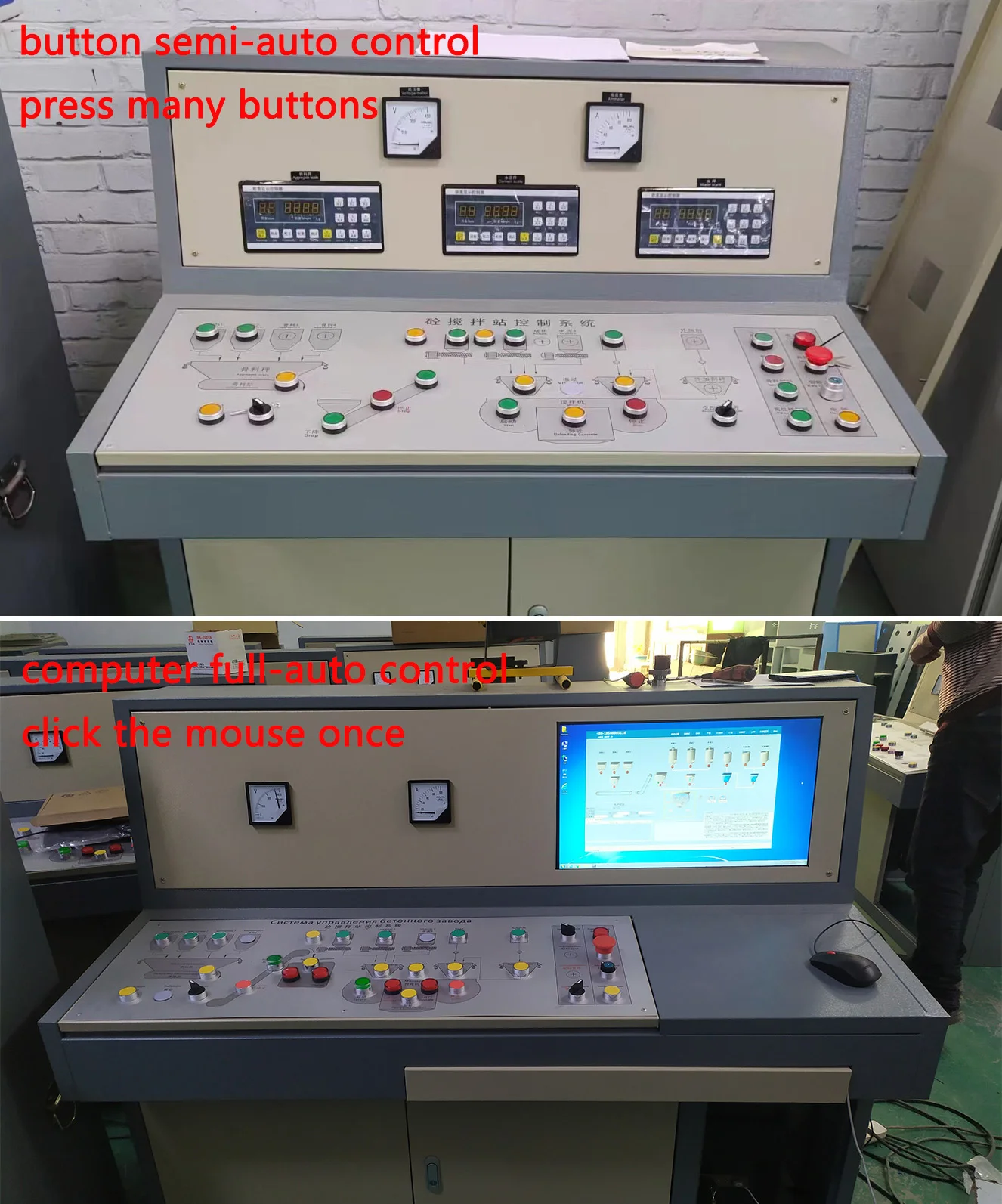

Control System | Model | Both computer type full-auto control and button type semi-auto control are available, depending on the customers' needs. | |||||||
Control Room | Yes | Yes | Yes | Yes | |||||
Noted | We also offer 90m3 120m3 180m3 concrete batching plant with belt conveyor, contact us please! | ||||||||
* We can customize the solution according to your requirements! Contact Us For A Quote!!!
Discharging: 500L-3000L available
Hight Efficienty:50-72s/per batch
With high accuracy weighing system for cement, water and liquid admixture.
Simple structure, easy operation, Safe and stable.
With high accuracy weighing system for cement, water and liquid admixture.
Simple structure, easy operation, Safe and stable.

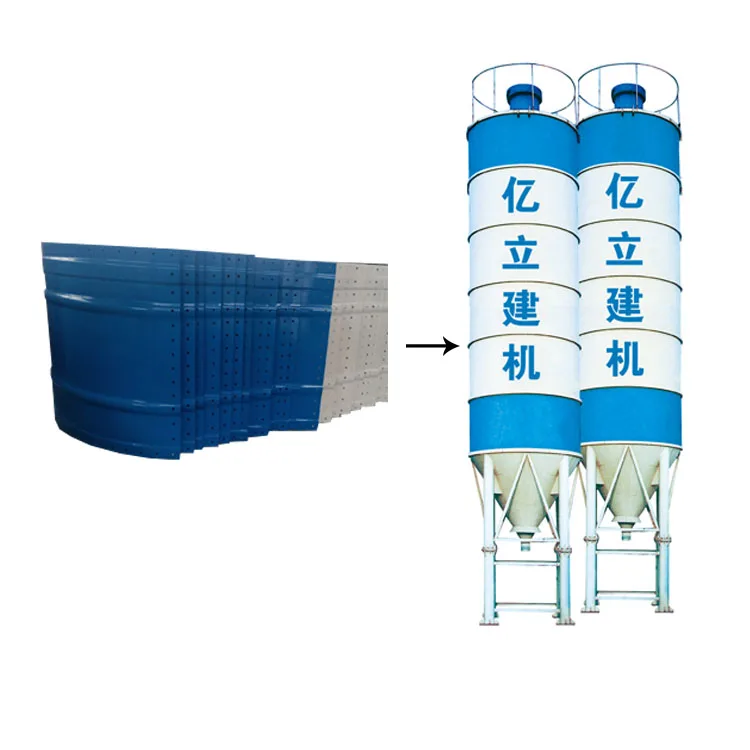

Vertical Bolted Type Cement Silo
50t, 100t,150t, 200t,500t and customized
Splice type assembly, easy to transport,
save purchase cost
Concrete Batching Machine
Aggregates number: 2-6 available

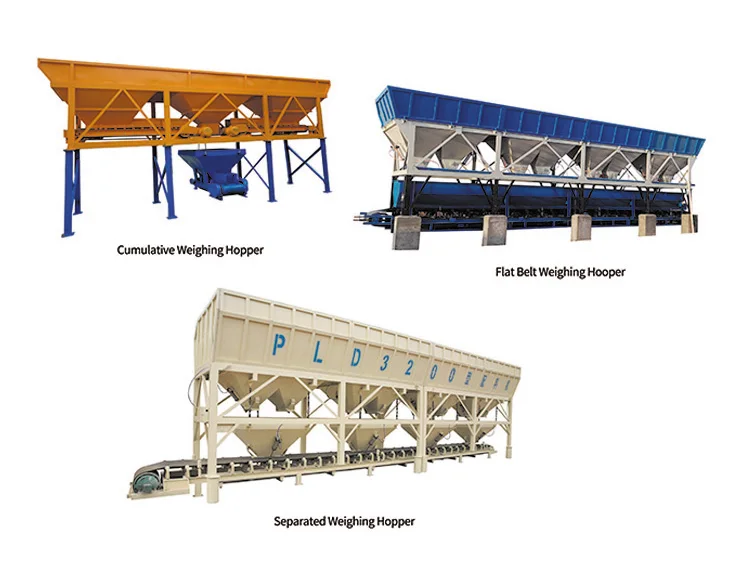

Weighing hopper: 600-3200L availableWeighing system: cumulative, flat belt and separated weighing hopper are available.With high accuracy weighing system- Tension sensor or pressure sensor

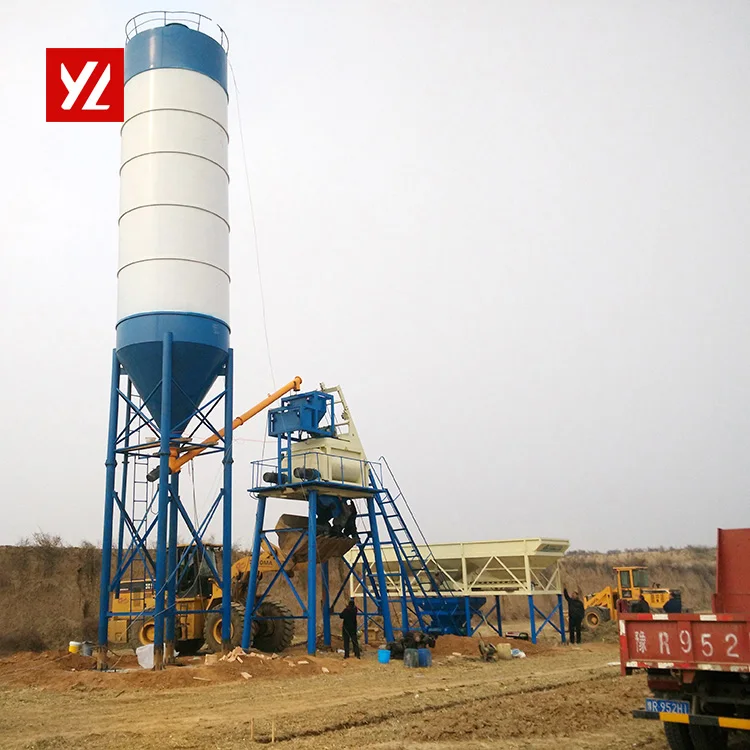

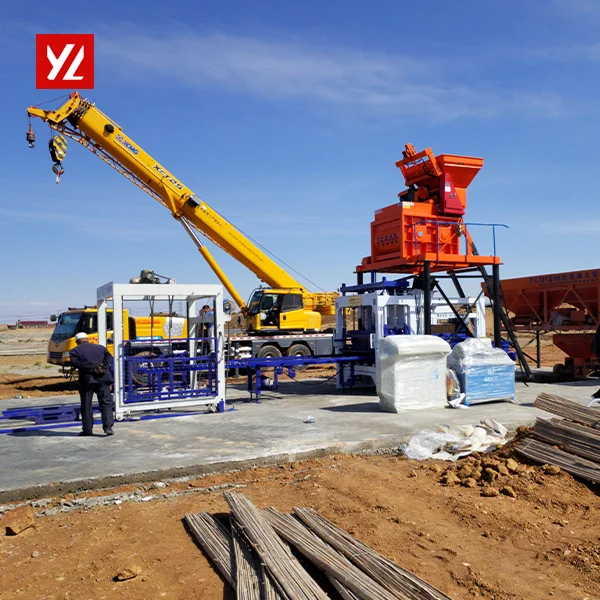

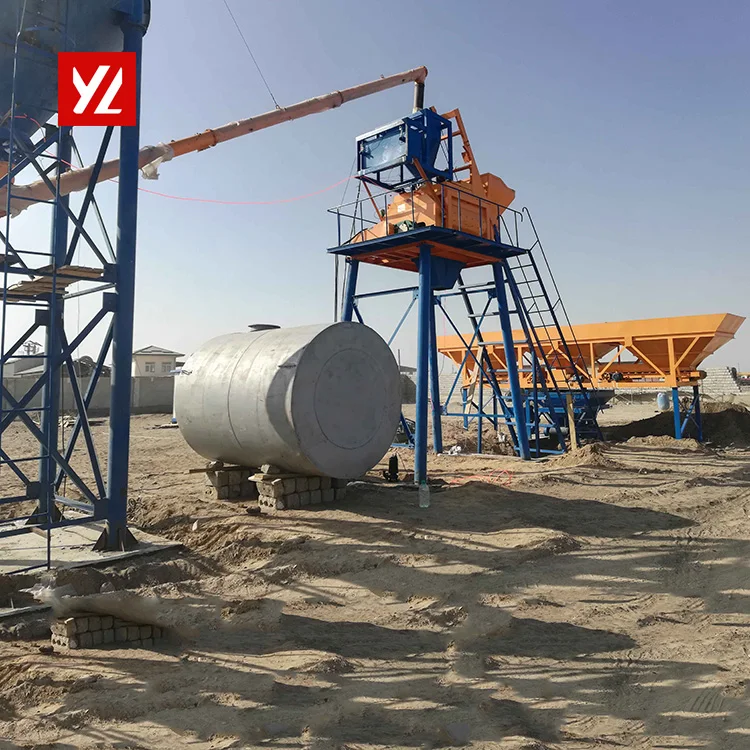

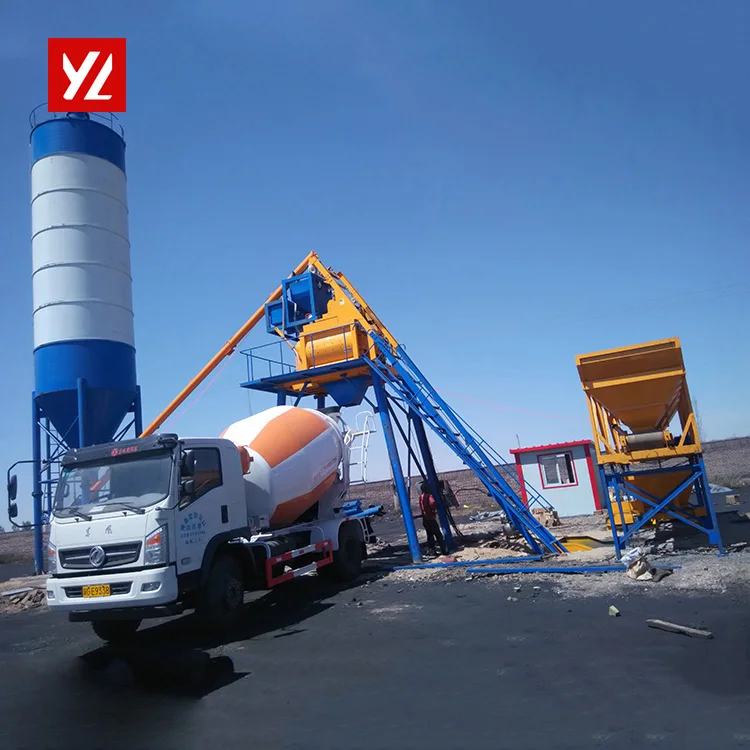

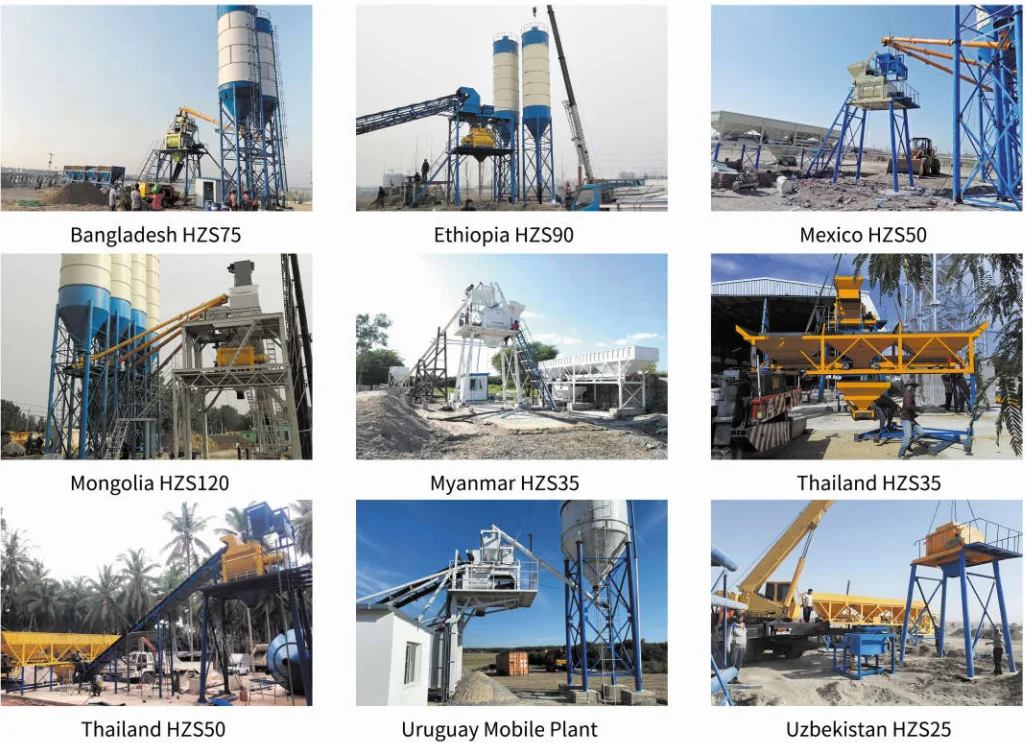

Project

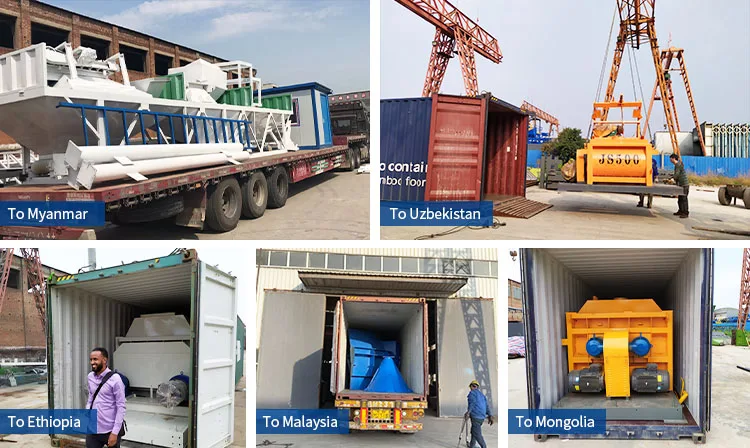

Delivery

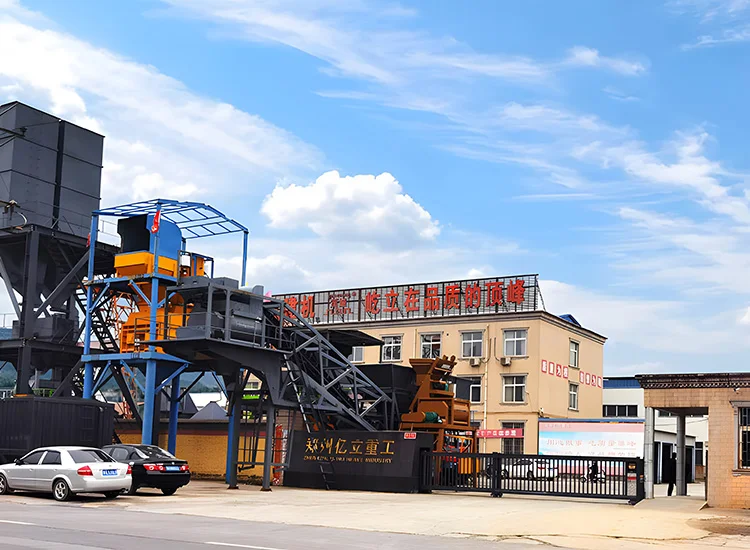

Company Profile
Yili Engineering Machinery Henan Co., Ltd. is a professional factory specializing in manufacture, design and service for concrete mixing machines such as concrete batching plant, concrete mixer, dry powder mortar mixing plant, stabilized soil mixing plant, concrete batching machine, concrete truck, cement silo, screw conveyor etc.
We have 20 years experiences and our products are sold to most areas in China and other regions such as South-east Asia,Middle Asia, Middle East, Africa, European and American countries. The high-quality products earn very good praises from our customers.
We believe our products can meet your demands and we welcome friends all of the worlds to visit us!

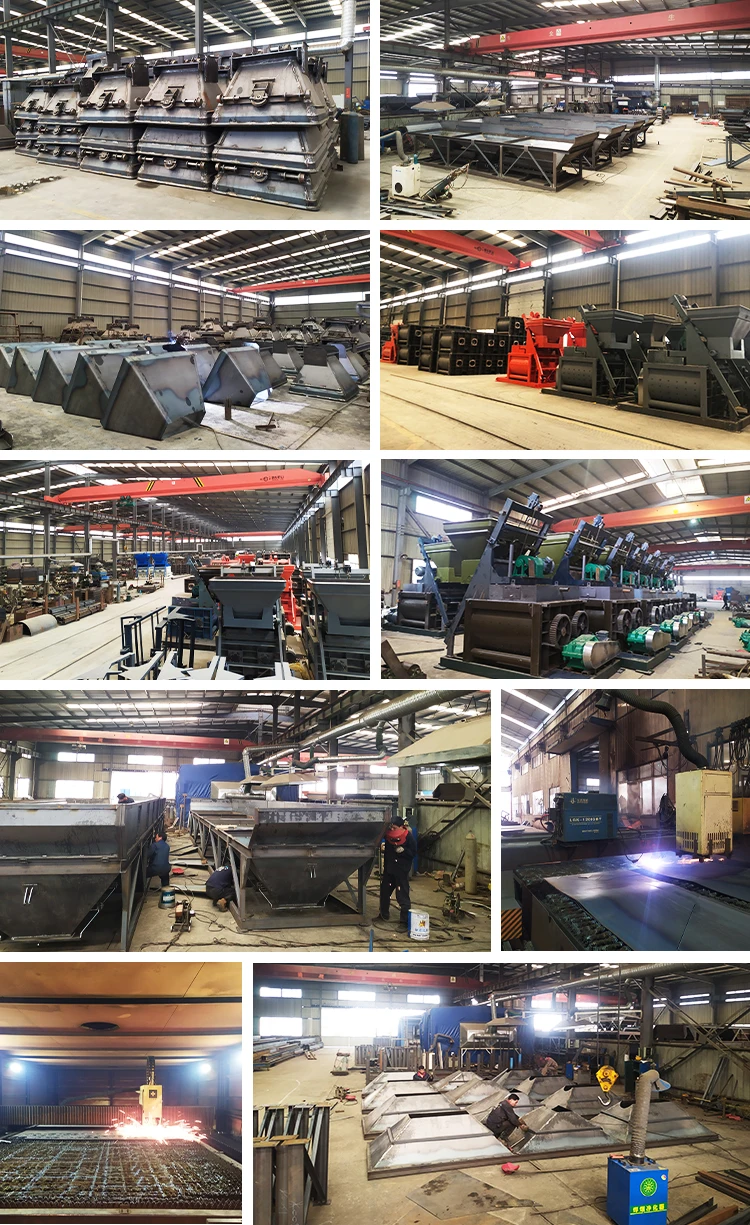

Manufacturing Technique
Yili has many high-tech production machines, such as computer numerical control (CNC) plate cutter, CNC plate bender, Germany imported high-accuracy laser cutter and sand blasting machine for painting. Combined with our skilled workers, we can proudly guarantee that we provide the high-quality machines for you.
Exhibition

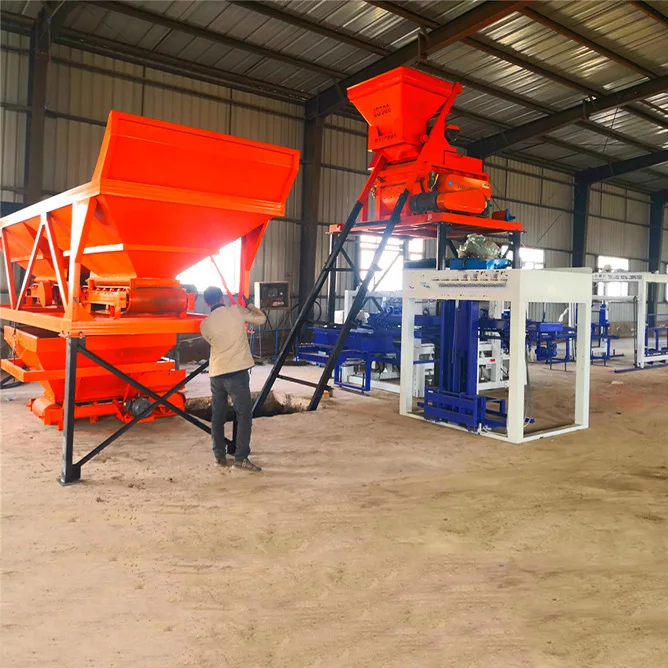

Customer Visit
FAQ
Q: What kind of products do you have?

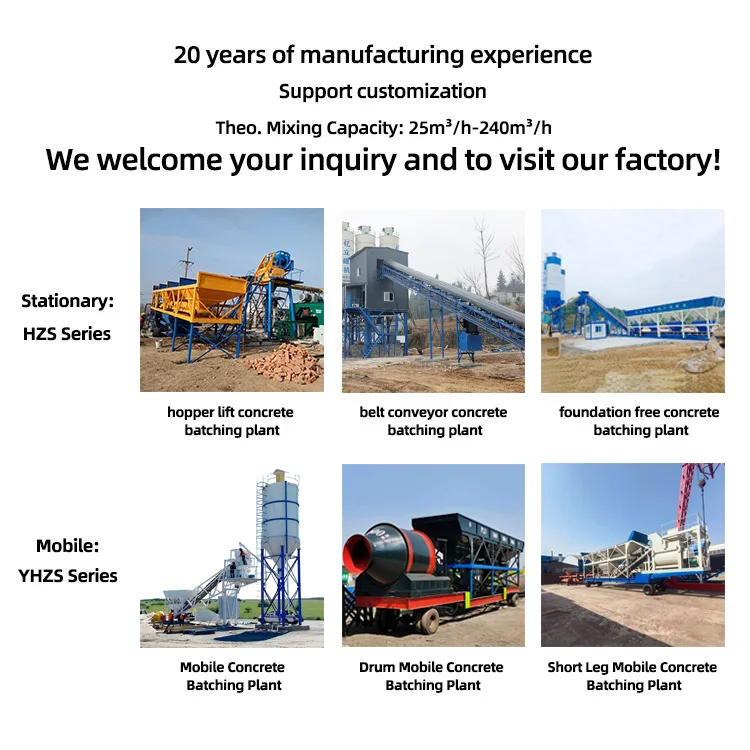

1. Stationary concrete batching plant arranges from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Concrete mixer truck.
5. Spare parts including screw conveyor and bolted cement silo.
Q: Are you trading company or manufacturer?
A: We are factory. Yili is a real factory with 20 years history. We can design and manufacturer products with our patent. Welcome to visit us to check it!
Q: What’s your after-sale service?
A: 1 years warranty from the day when the goods arrive at your port, or 13 months after departing from China port. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well.
Q: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us, and our service line is available 24/7, and then we will feedback you immediately. Also on-site technician service available as request.
Q: How can we install the plant?
A:Our engineer will make installation drawing before we send the machine, and our engineer will go oversea to guide and train the installation after everything is already set in customer's construction site.
Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
1. Stationary concrete batching plant arranges from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Concrete mixer truck.
5. Spare parts including screw conveyor and bolted cement silo.
Q: Are you trading company or manufacturer?
A: We are factory. Yili is a real factory with 20 years history. We can design and manufacturer products with our patent. Welcome to visit us to check it!
Q: What’s your after-sale service?
A: 1 years warranty from the day when the goods arrive at your port, or 13 months after departing from China port. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well.
Q: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us, and our service line is available 24/7, and then we will feedback you immediately. Also on-site technician service available as request.
Q: How can we install the plant?
A:Our engineer will make installation drawing before we send the machine, and our engineer will go oversea to guide and train the installation after everything is already set in customer's construction site.
Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
