AEGIRSAFE Factory cleanroom use ESD sticky/tacky 24X36inch 30 layers blue sticky mats
- Category: >>>
- Supplier: Shanghai Ruichong Rubber Plastic Co. Ltd.
Share on (1601212019010):
Product Overview
Description
Products Display
Specification | Sticky Mat | ||||||||
Single layer thickness | 0.040mm±0.005mm | ||||||||
Size | 18"*36", ±0.5mm | ||||||||
Layer | 30 | ||||||||
Thickness | 1.2mm, ±0.1mm | ||||||||
Colour | Blue,white | ||||||||
Tag | 1-30 | ||||||||
Appearance | No serious deformation, smooth without obvious particles,the color is uniformity and no obvious color difference | ||||||||
Packing quantity | The product must meet the requirements above,half tag of the quantityof the products mouth of the bag,convenient for customer to check | ||||||||
ESD Sticky Mat

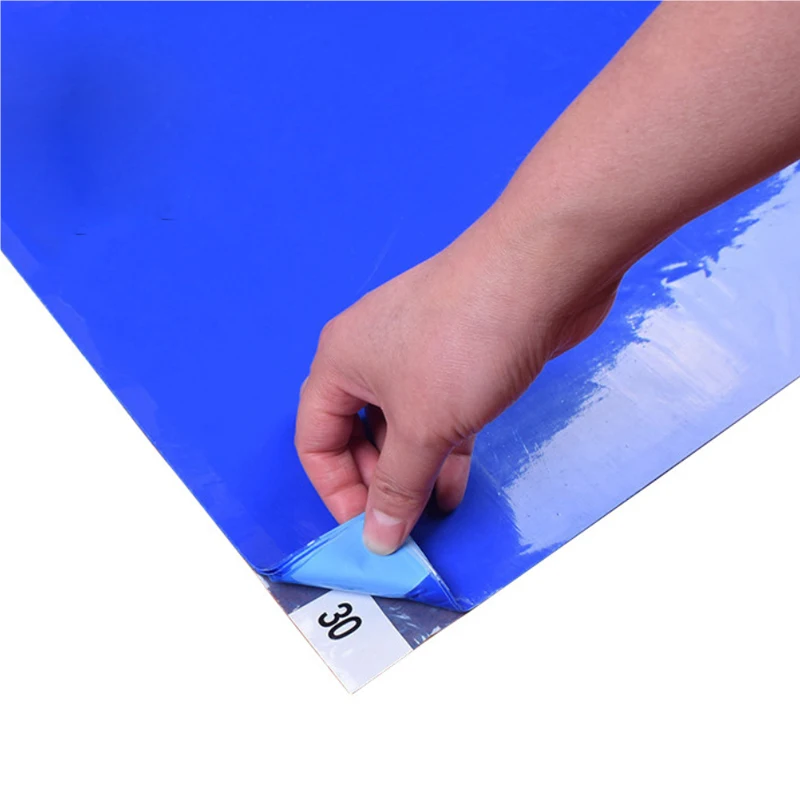

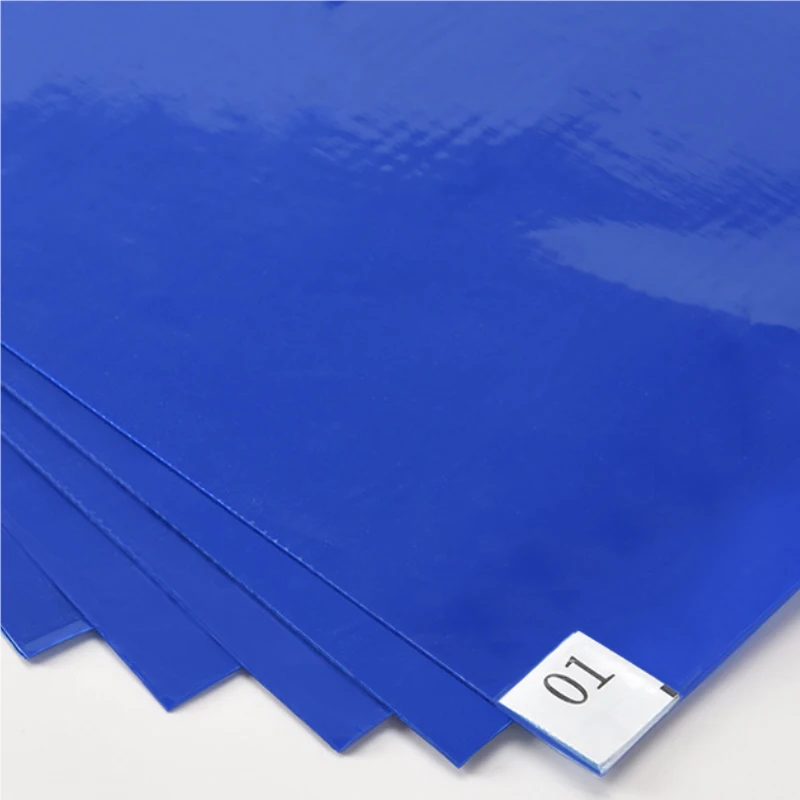

♣Sticky mat actually have a 30 second, on the first and the last layer is transparent, the above is not glue, the remaining 30 each layer above is purchasing the environmentally friendly water-soluble glue, and a certain number are marked on the edge, convenient for our customers in this layer glue dusty, timely to remove and use of the next layer

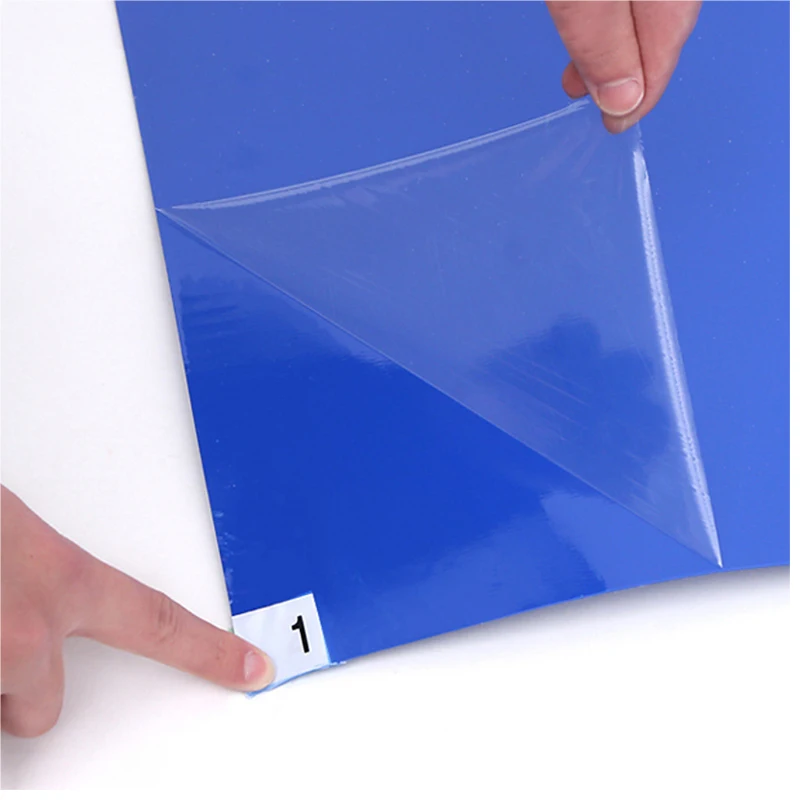

♣Sticky mat adhesive ability is strong, good flexibility, to a certain extent, can help our workers with electrostatic adsorption, make work more secure. Use method is simple and convenient, our users will clean the ground after the sticky mat paving compaction on the ground, and then peel off the surface of a layer of transparent protective film can be used. Method is simple and quick, keep the new, and ensure that the sticky mat adhesive force.
NO | inspection items | test standard | inspection result |
1 | longitudinal tensile strength (MPA) | ≥10 | 20 |
2 | transverse tensile strength (MPA) | ≥8 | 17 |
3 | longitudinal elongation at break (%) | ≥150 | 210 |
4 | horizontal elongation at break (%) | ≥200 | 255 |
5 | State of glue | Light evenly | |
6 | thickness | Plus or minus 0.005 | 0.035MM |
7 | Early viscous force (G/IN2) | LOOPTACK | 500 |
8 | 180 degrees peel strength (SS. G / 25 mm) | GB2792-81 | 380 |
9 | The viscosity (MIN) | GB4851-98 | 1440 |
10 | Resistance to high temperature and high humidity test | Q/DT1-2004 | 80 degrees |
11 | Heat resistant experiment | Q/DT1-2004 | |
12 | Aging performance | Q/DT1-2004 | eight months |
Main Products

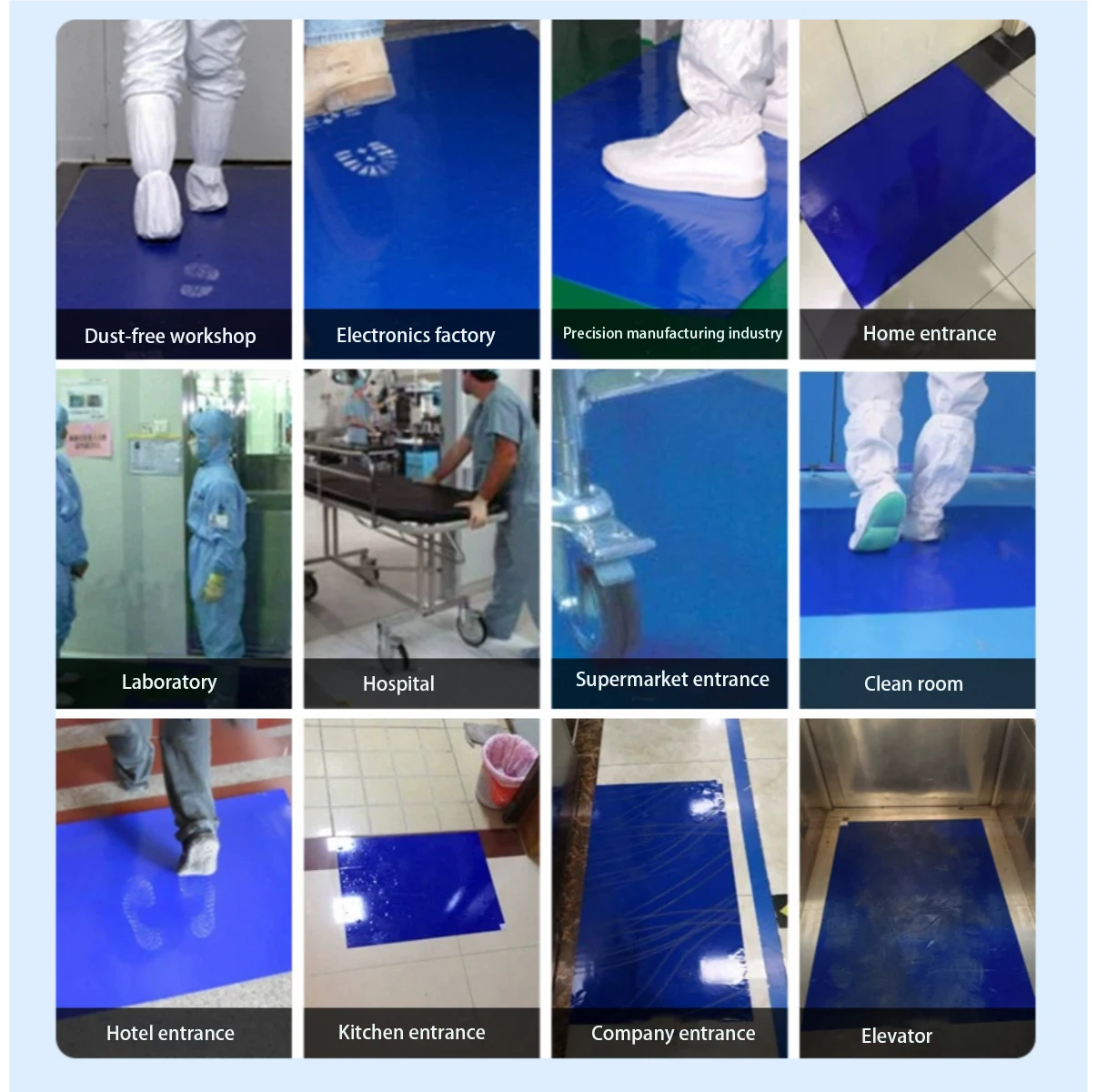

Product Application
Company Profile

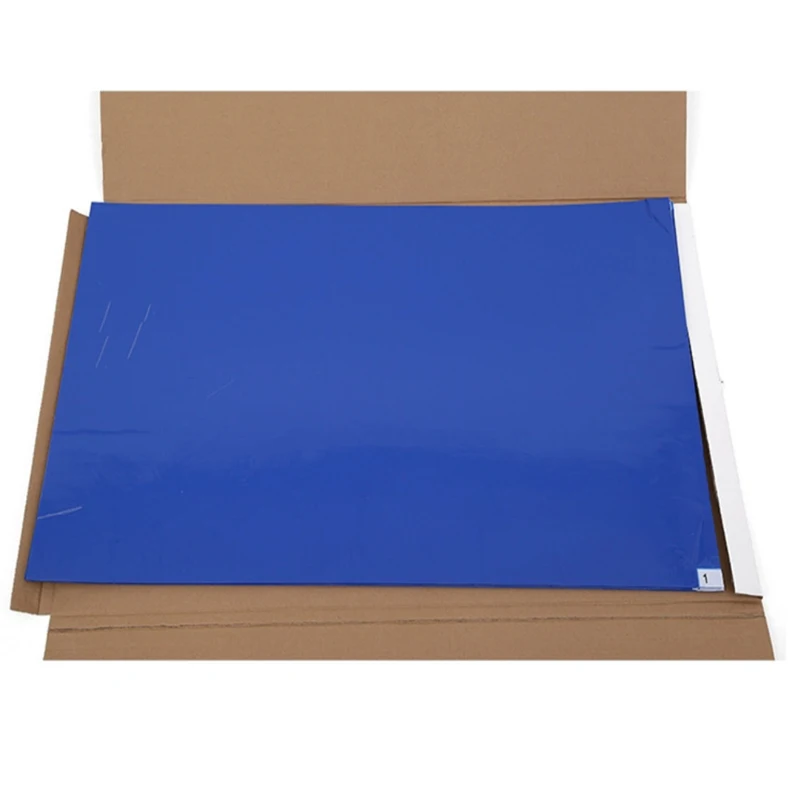

Packing&Shipping
FAQ
Q: Are you a factory ?
A: Yes,we are a factory,over 16 years specialized in anti-fatigue mats.We can supply a real factory price.
A: Yes,we are a factory,over 16 years specialized in anti-fatigue mats.We can supply a real factory price.
Q :What information should we supply if we want a quotation?
A: Quantity,color and size normally.
Q: Can you do OEM and ODM ?
A: Customized logo, packaging or product is always part of our service.
A: Customized logo, packaging or product is always part of our service.
Q：What is your delievery time?
A:For standard size and color,we can ship goods within 2days.If you need customized size and color,we can ship goods within 5days.
Q:Can I get free samples?
A:We can offer free samples for you,you only need pay the freight cost.
