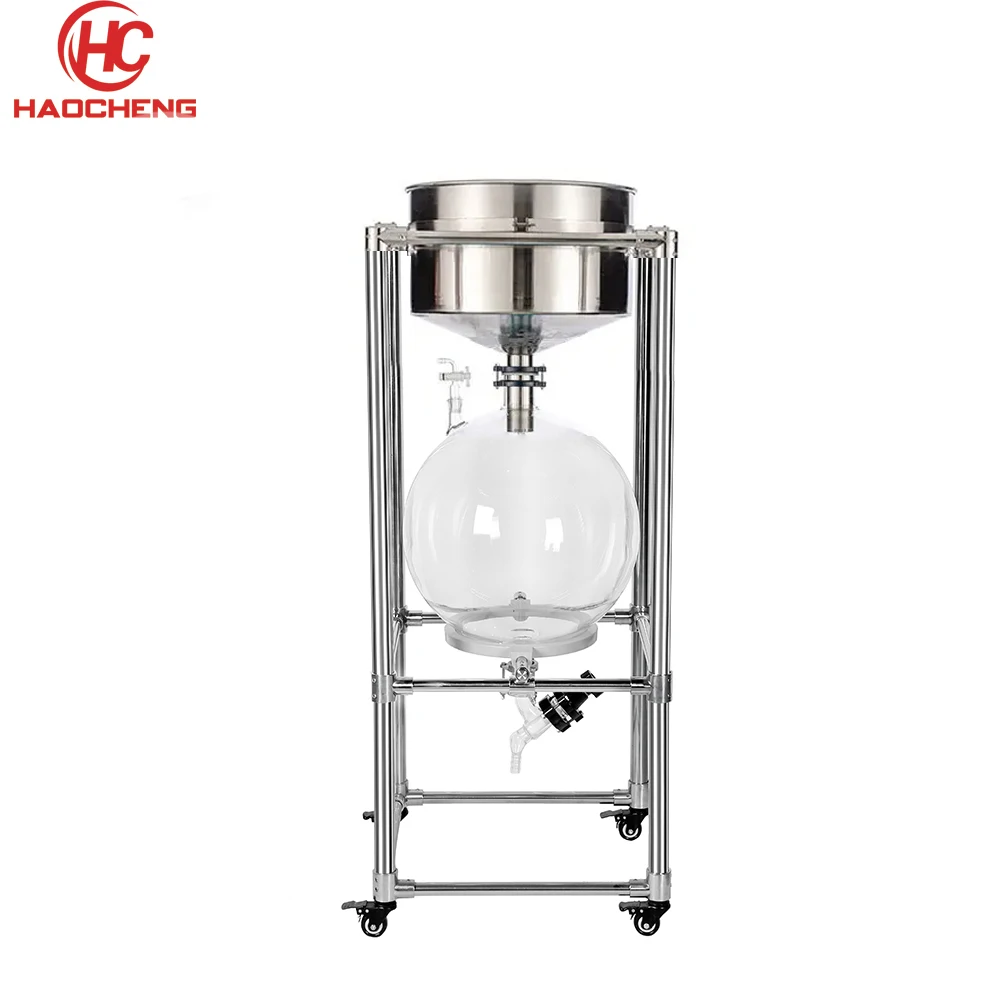

Stainless Steel Buchner Funnel Vacuum Filter with 50L flask
Introduction
HVF Vacuum filter is a special filter for laboratory. It is equipped with microporous membranes of different pore sizes,
and then adopts vacuum filtration. It can be used for scientific research chemical analysis, instrument analysis, health
inspection,industry and agricultural machinery, automobiles, and construction machinery. Liquid filtration to detect and remove particles and bacteria in liquids, such as: sterility test, sterilization filtration of culture medium, cleaning of medium and small power internal combustion engines, jet fuel and hydraulic system solid particle pollutants, etc. gravimetric determination, such as distribution The grid film is also suitable for the counting method determination of hydraulic oil, aviation kerosene, high-purity reagents and water quality.
Features
High quality Borosilicate glass 3.3 with excellent physical and chemical properties for glass parts.
Perfect sealing property and no dead corner design for charging solution or power more easily.
One vacuum valve for connecting vacuum pump for processing vacuum filtration.
Cost-saving modular design and can be customized by clients’ requirements.
Safe in operation, easy to move around with lockable casters.
Model | HVF-10L | HVF -20L | HVF -30L | HVF -50L | HVF -100L |
Funnel Size | Φ350*220H(mm) 21L | Φ350*220H(mm) 21L | Φ450*250H(mm) 39L | Φ450*250H(mm) 39L | Φ550*320H(mm) 76L |
Funnel Material | Stainless steel 304 | ||||
Frame Material | Stainless steel 304 | ||||
Glass Material | GG-17 | ||||

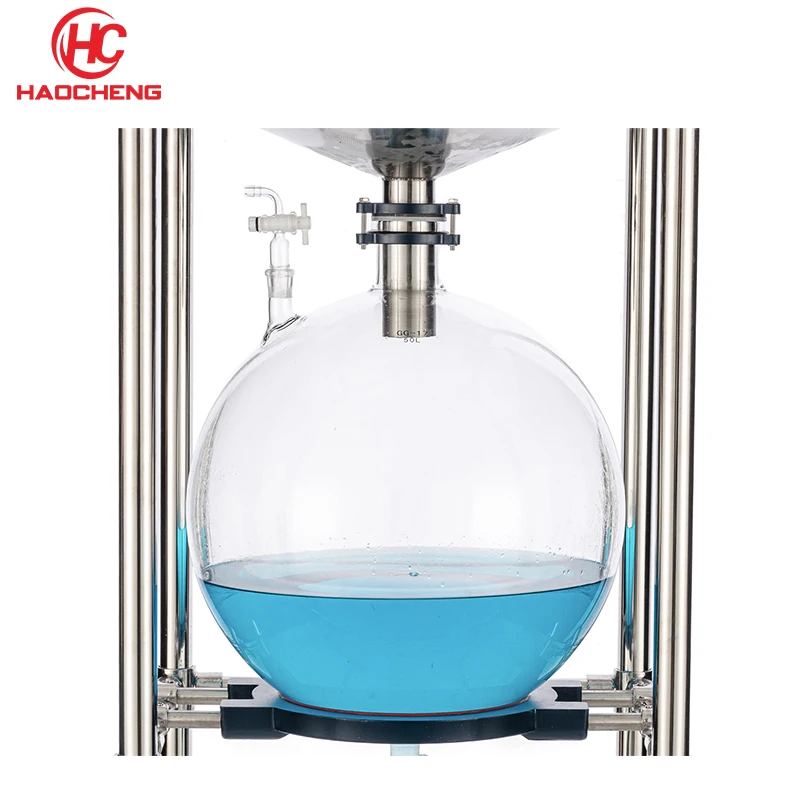

Suction Filter Bottle | 10L Ball | 20L Ball | 30L Ball | 50L Ball | 100L Ball |
Max Vacuum | 0.098 Mpa | ||||
Unloading Method | Glass discharge valve, flange port | ||||
Mobile Way | Swivel casters with brake | ||||
Dimensions (WxHxD) | 1330*580*660mm | 1400*580*660mm | 1490*640*720mm | 1490*660*750mm | 1850*640*880mm |
Weight | 54KG | 58KG | 66KG | 66KG | 96KG |
1. Are you a factory or trading company ?
A : We are a factory.
2 .Where is your company location ? How can i visit there ?
A :Our factory is in shenzhen city ,henan province , China , near BAOAN INTERNATIONAL AIRPORT , you can fly to ZHENGZHOU AIRPORT to us , welcome to visit us !
3.What the material of your products ?
A: superfine ceramic for top plate for all of our stirrers ,metal shells , can be customized as your requests
4. How can i get some sample ?
A. We are honored to offer sample for your evaluation
