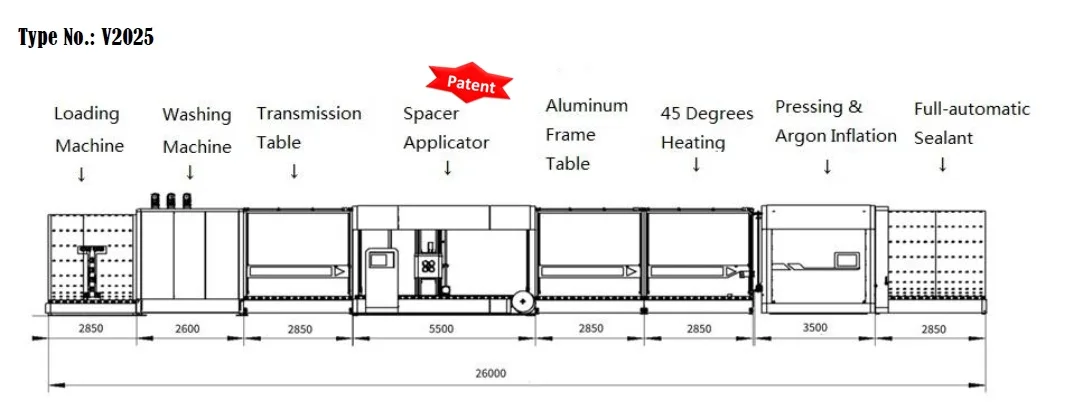

V2025 MBS Vertical Insulating Glass Production Line

The MBS is a two way uses IG production line developed by Xinghua, with self-owned intellectual property right, it can produce insulating glass with flexible warm edge or aluminum spacer. This MBS line is a fully automatic, there will be no manual touches to glass after washer and only need 2-3 operators, it will increase output in a small footprint for low cost. MBS will ensure the butyl spacers applicated in same position and well-distributed in finished double or triple glaze glass with high productivity and provide an ergonomic work environment for all operators.




Features of our MBS vertical insulating glass production line:
1. This production line is an independent intellectual property rights that we independently developed.
2. All procedures, from washing to sealant, they are fully automatic. Completely controlled by the PLC system, simple operation, and humanization.
3. Two purposes on one machine, which can automatically produce flexible warm-edge hollow glass, on the other hand, it can meet the production of traditional groove aluminum hollow glass.

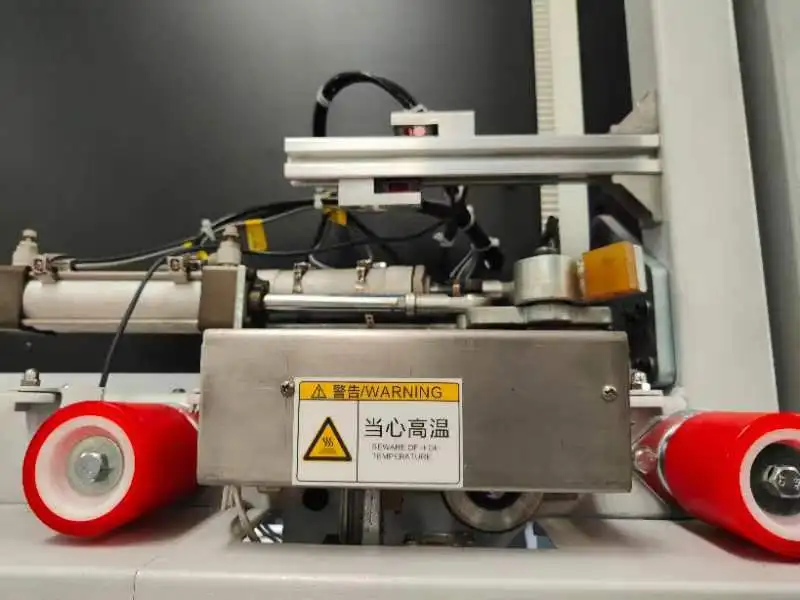

4. The patented Spacer Applicator, which uses a servo multi-axis linkage, and the glass rotation method quickly and accurately realizes the automatic upper entry. Improve product accuracy while improving production efficiency. To achieve the purpose of less labor and higher production capacity.
5. Consistent loading to ensure that the three or multilayered glass are in same position, same speed.
6. Washing inverter controls the brush to rotate, so that it can protect LOW-E glass.
7. Intelligent automatic spacer heating equipment, it only heat the spacer separately, automatically heat and the light is on when the glass come in to achieve efficient energy saving.
8. The multi-cavity insulating glass can be automatically pressed and inflated according to the set number of glass layers.
9. The semi-finished glass section can be automatically sealed online in the last procedure. By using our MBS (Multi-layered Butyl Spacer), finished glass does not need twice sealant.


PRODUCT SPECIFICATIONS




PRODUCT CONFIGURATION


CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor


SALES AND SERVICE NETWORK




Successful Project


Project in Thailand
Project in India
Project in Russia
