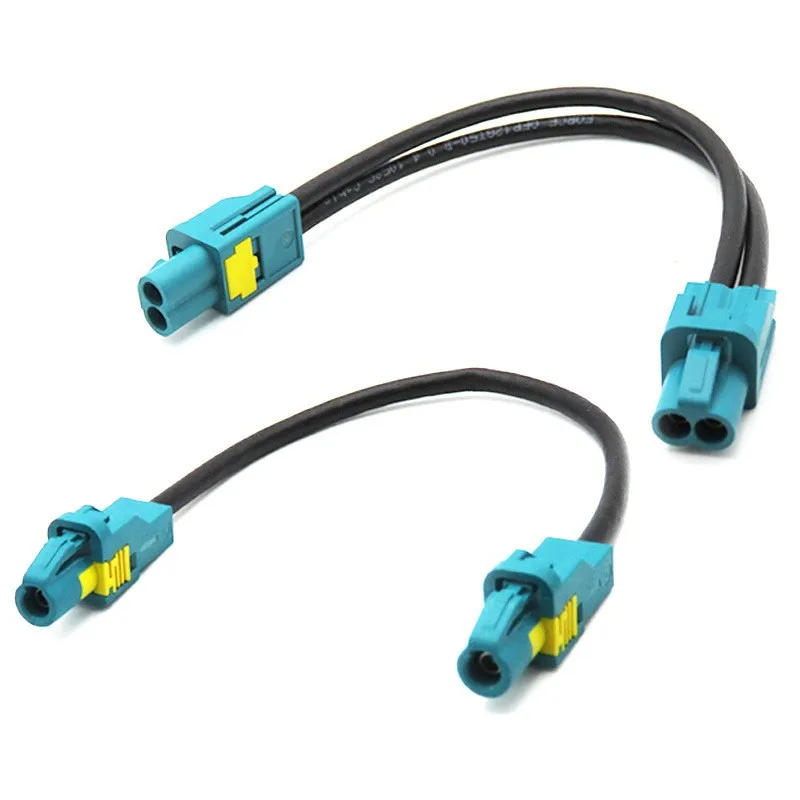

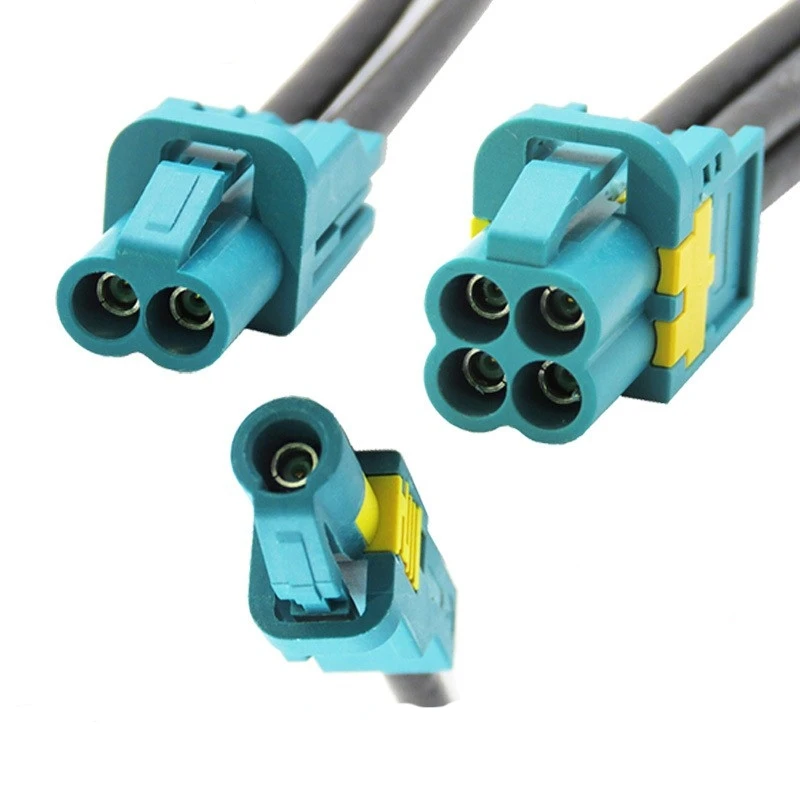

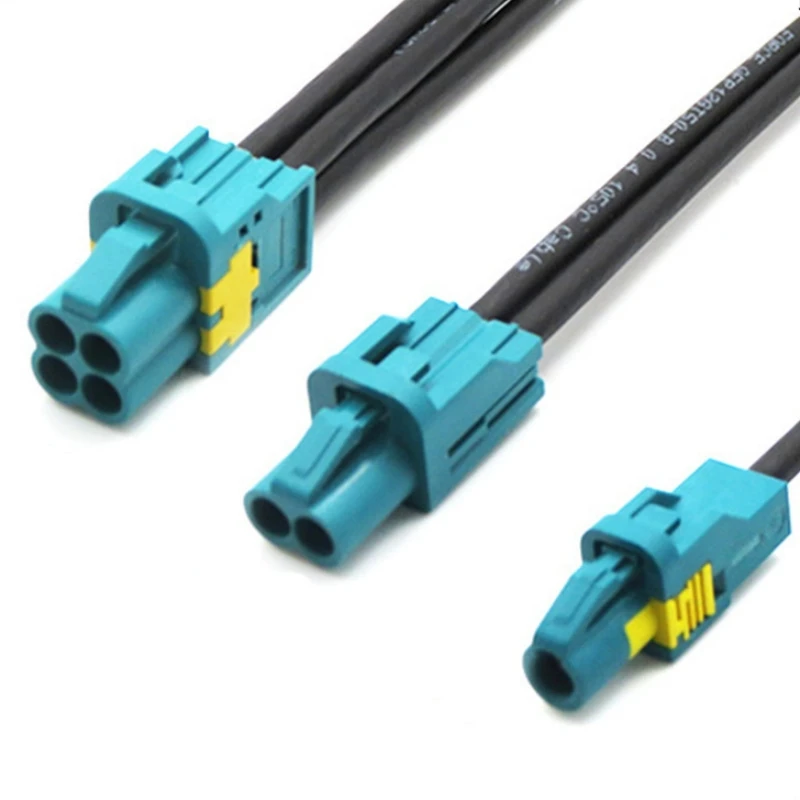

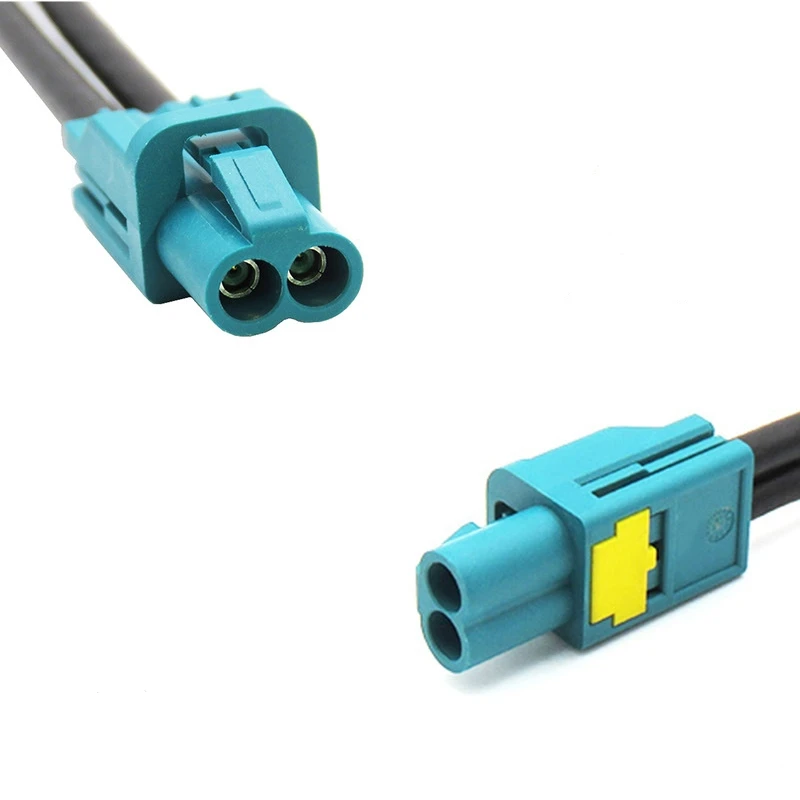

Customized RG174 Mini Fakra 2way 4way male to female extension cable for car
- Category: >>>
- Supplier: Changzhou Hitec Electronics Manufacture Co. Ltd.
Share on (1601212064019):
Product Overview
Description
Product Description
Product Name | MINI FAKRA single way two way 4 way male to male male to female female to female cable |
Material | BC+PC |
Working Voltage | 335V max |
Rated Resistance | 50Ω |
Insulation Resistance | ≥1000MΩ |
Application Temperature | -40℃~100℃ |
Standing-wave Ratio | ≤1.5 |
Function | Transmission signal |
Package | 1 pc in one PE bag |
Product application | It is used in automobile industry RF signal connector, GPS positioning system, satellite radio, car Internet access, etc. |
Product performance description
产品性能介绍说明
Fakra connector Cable is a connector system specifically designed for the automotive and communication fields.
Its functions and functions include the following aspects:
Signal transmission:
Signal transmission:
Fakra cables are mainly used for transmitting signals, such as audio, video, GPS, Bluetooth, Wi Fi, radio, and satellite signals.
They allow signal transmission between various electronic devices inside the vehicle or between devices
inside and outside the vehicle.
inside and outside the vehicle.
Antenna connection:
Fakra connection lines are typically used to connect vehicle antenna systems,
such as GPS antennas, radio antennas, satellite radio antennas, etc.
such as GPS antennas, radio antennas, satellite radio antennas, etc.
This helps vehicles access wireless communication, navigation, and entertainment services.
ELECTRICAL CHARACTERISTICS
Rated current：50Ω
Rated Voltage: 60V DC
Working Voltage: 335VOLTS RMS
Insulation Resistance: 1000MΩ MIN
Withstanding Voltage: 550VOLTS RMS
Current: 1A MAX
Inner Conductor Contact Resistance： 5MΩ MAX
Outer Conductor Contact Resistance: 5MΩ MAX
Standing Wave Ratio/Echo Loss: 0-3GHZ≤1.5, 3-6GHZ≤1.58
MECHANICAL PROPERTIES
Durable: 50 Cycles Min
Put-in Force: 30N Max
Pull-out Force: 2N Min
Snap Retention Force: 100N Min
Error Prevention Efficiency: 40N Min
ENVIRONMENTAL
Application Temperature: -40℃ to +105℃
Thermal Shock: -40℃ to +105℃, 100 Cycles
Vibration and Mechanical Impact: Random, 5-10ms, 35Gs, 1/2 Sine
Temperature, Temperature Cycle: 40 Cycles, 8Hrs/Cycles
Waterproof: IP65 Submersion Over 120Hours
Rohs: Support
Product Features
Vehicle grade materials
Insulation Flame Retardant
Stong Flexibility
