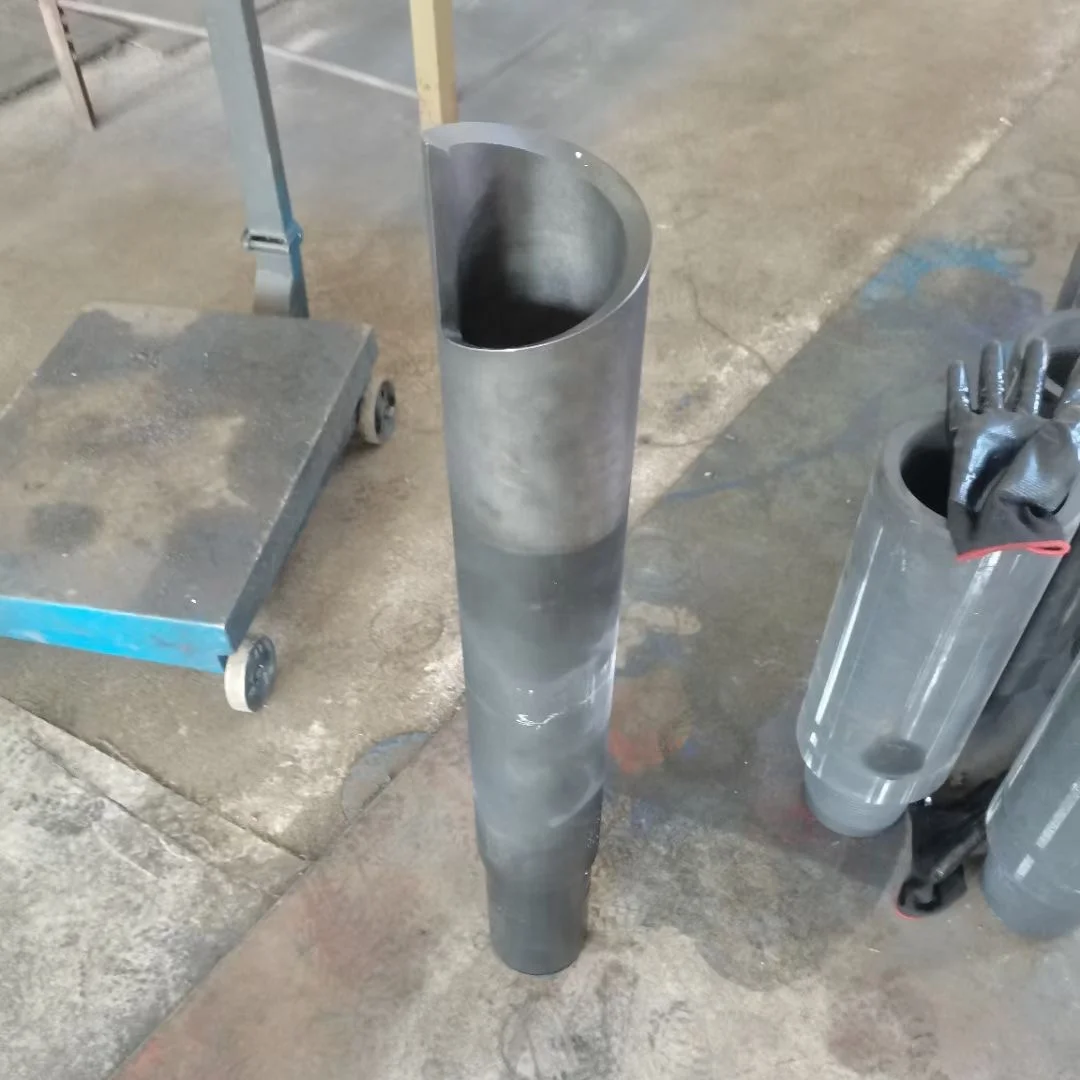

China Factory Downhole Fishing Tools API Oil Overshot
- Category: >>>
- Supplier: Qingdao Jincheng International Business Co. Ltd.
Share on (1601212159448):
Product Overview
Description
Product Description

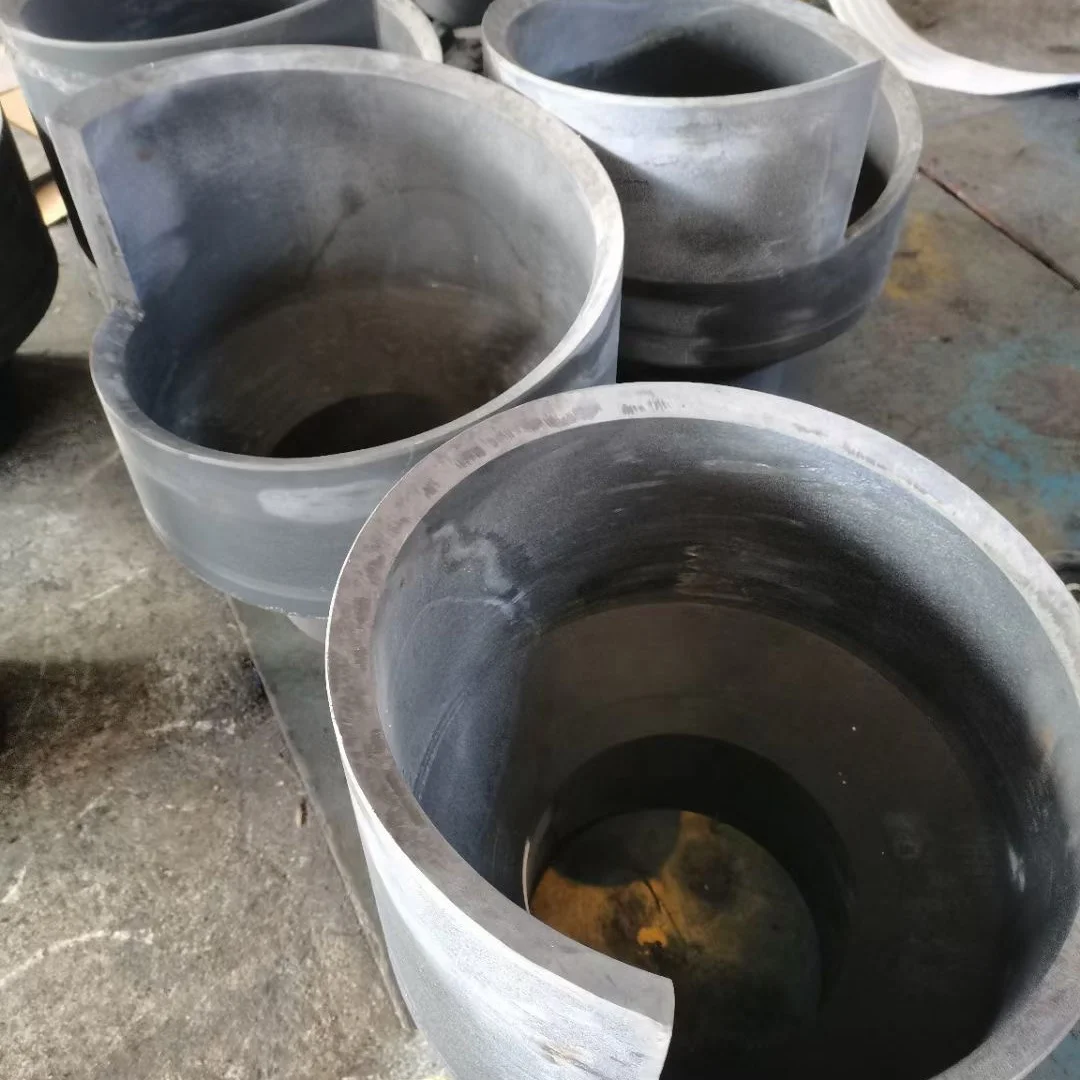

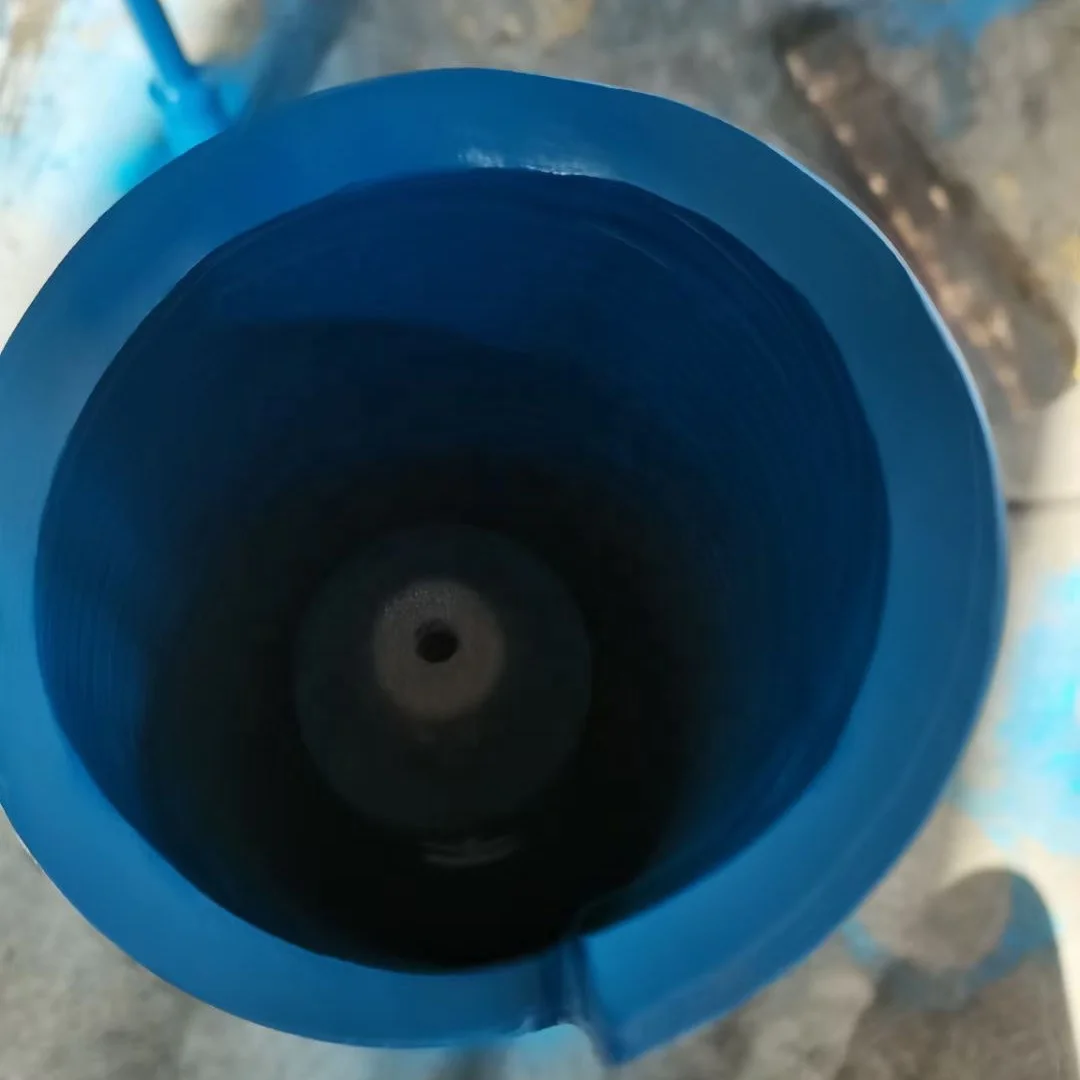

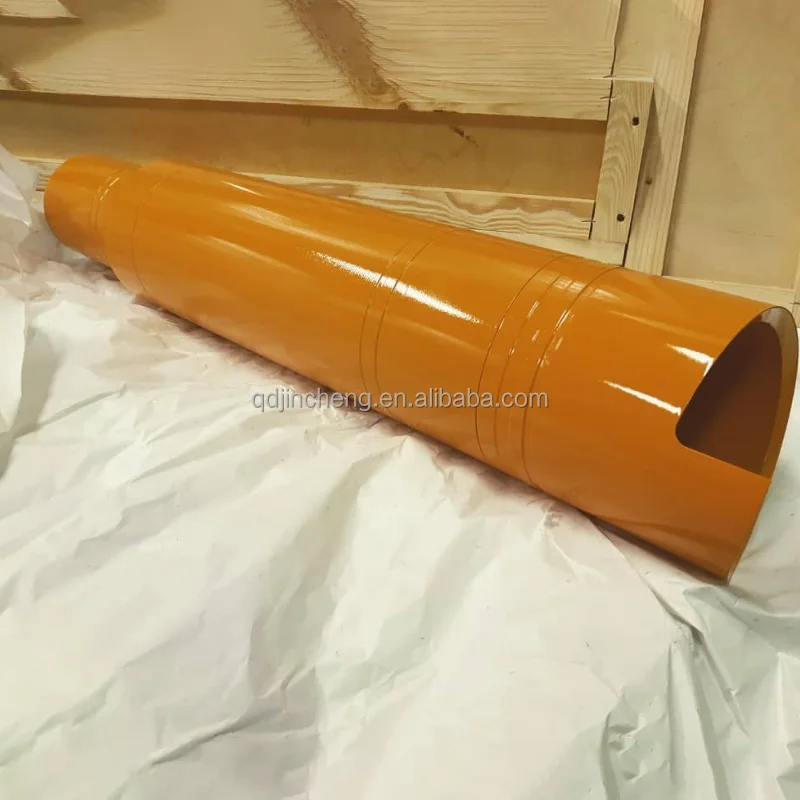

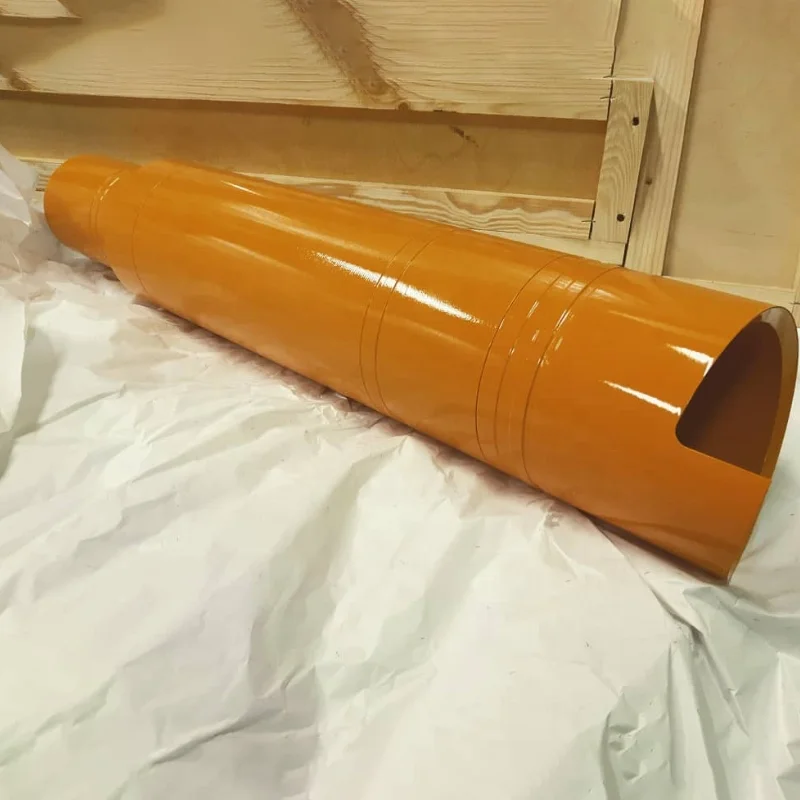

Overshot is one of the fishing tools which is fishing the pipes externally. It can catch drill collar, drill pipe, tubing, subs and other pipes. Because of the seals,the fluid can circulate with the high pump pressure after catching the fish. The top of the fish will be milled by under mill shoe. It can also work with jars to catch the stuck fishes. If the catched fish can't be released from stucking, we should release the overshot and lifting the drill string.
Type | O.D.(mm) | Max. catch size(mm) | API connection | ||

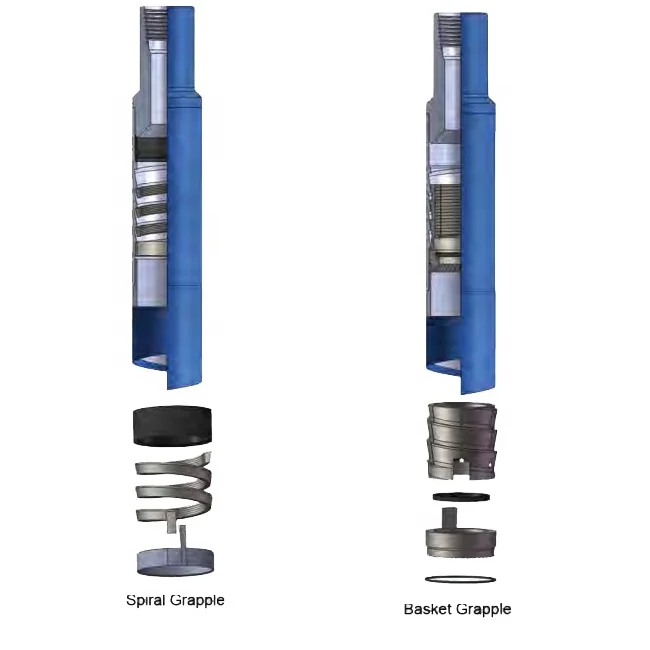

Spiral Grapple | Basket Grapple | ||||
LT-T89 | 89 | 60.3 | 47.6 | NC26 | |
LT-T92 | 92 | 73 | 63.5 | NC26 | |
LT-T105 | 105 | 85.7 | 73 | NC31 | |
LT-T143 | 143 | 120.6 | 102 | NC38 | |
LT-T168 | 168 | 127 | 114 | NC50 | |
LT-T219 | 219 | 178 | 159 | NC50 | |
LT-T340 | 340 | 286 | 260 | 6-5/8REG | |
