2 level multilayer puzzle car parking lift equipment two floor mechanical parking system for vehicle parking garage solution

Product Overview

Description

I am responsible for the safety of every vehicle!!!



Parameter

Car size(L X W X H)	5200MMX1900MMX1550MM
	5000MMX1850MMX1550MM
	4700MMX1800MMX1450MM
Loading capacity	2000kgs
Elevator Motor Power/Speed	2.2kw/5.25m/min
Horizontal Motor Power/Speed	0.2kw/7.28m/min
Rise & Drop Time	90s
Driving Mode	Motor and Chain or Wire Rope
Operation Code	PLC,Button,IC card
Safeguard	Preventing Falls,Photoelectric Relay,Restricted Place

Operating Principle

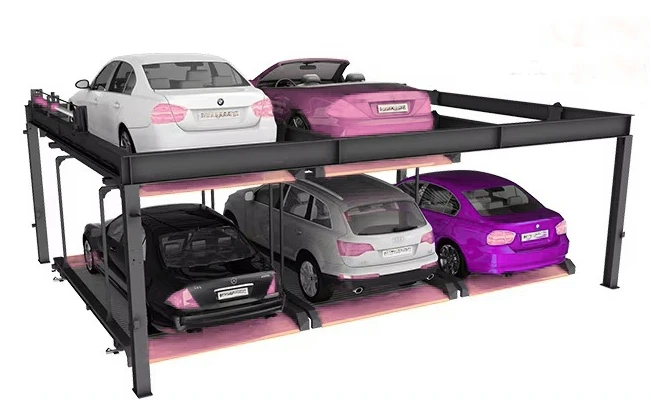

The equipment is adopted speed reducer to drive by chains or wires, which top board only lift and fall and the bottom of board only move horizontally. Reserving a parking space is at the bottom, it moves to left or right as loading board move horizontally, to top car can fall to the bottom.

Features

1.       PLC control, easy operation, convenient rise and drop, (button, PLC, IC card is optional on            operation)

2.       Move stably, lift and drop safely.

3.       Loading boards are whole, they are formed by cold rolling.

4.       Anti-dropping device, safe and reliable

5.       Cars size and parking place are controlled by photoelectric relay monitoring.

6.       Beams with grooves can collect water and oil over the car drop.

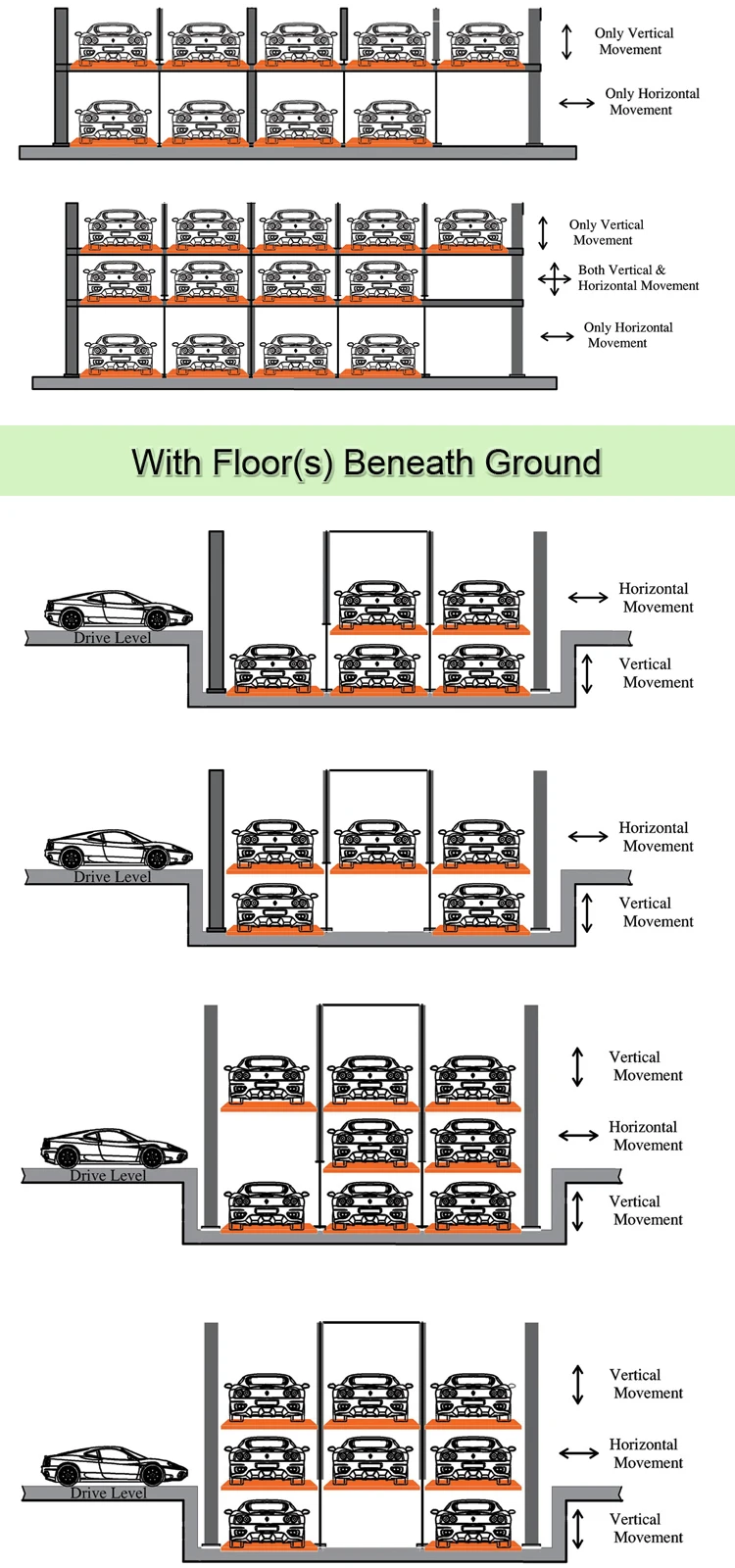

How to move

FAQ

Q: Are you a factory or trading company?

A: Qingdao Lifter Machinery Co., Ltd is a factory with more than 30 years’ manufacturing and design experience.

Q: Could the parking system be customized?

A: Yes. The parking system can be customized accordingly to your site and requirements.

Q: Could the parking system be used for parking SUV?

A: Yes.The system can be customized to fit for SUV. Please contact us for more details.

Q: Could the system be used outdoor?

A: Yes. The structure surface is galvanized or painted, which is water-proof, and extra covers could be installed to prevent from rain, snow and heavy wind.

Q: What's the voltage requirement?

A: The voltage can be customzied accordingly to your local voltage.



Kind Reminder

Our mechanical parking systems are the safest in China. We would like to establish the business with you.

Please give us a chance, and we can't make you feel disappointed!
