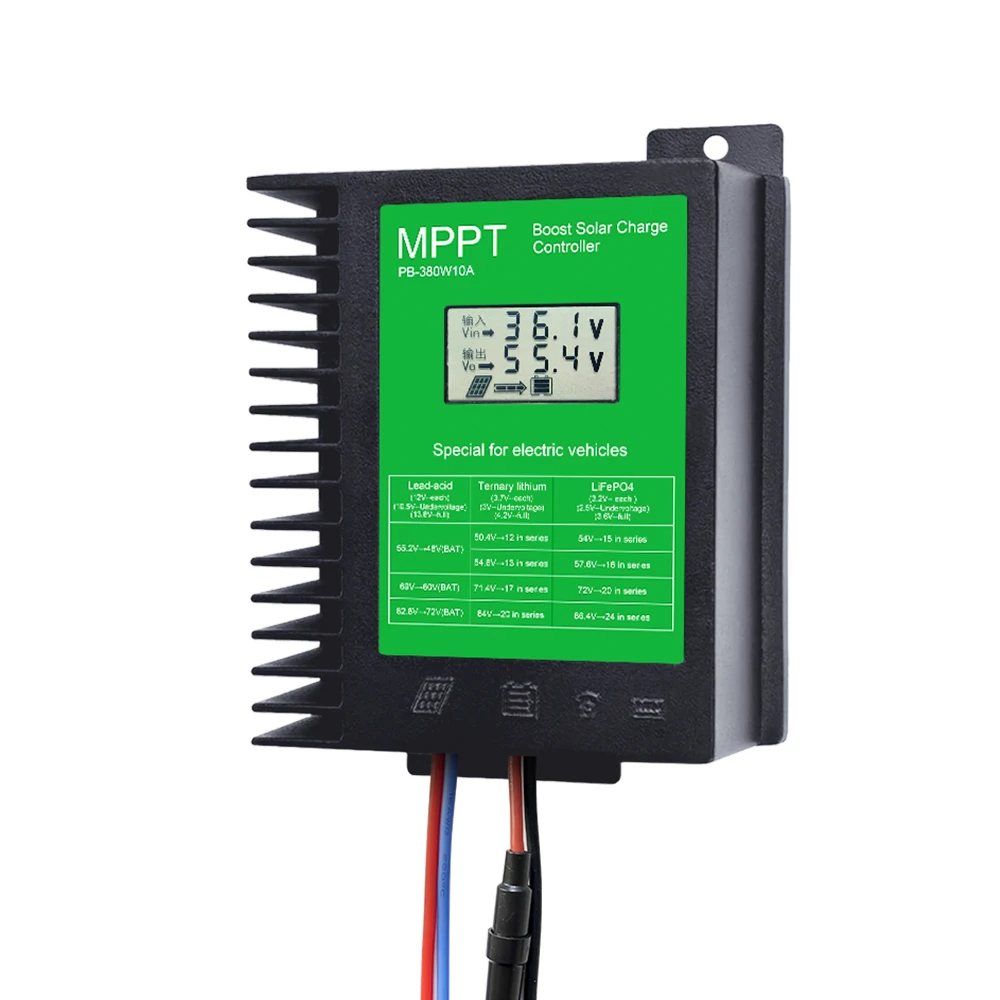

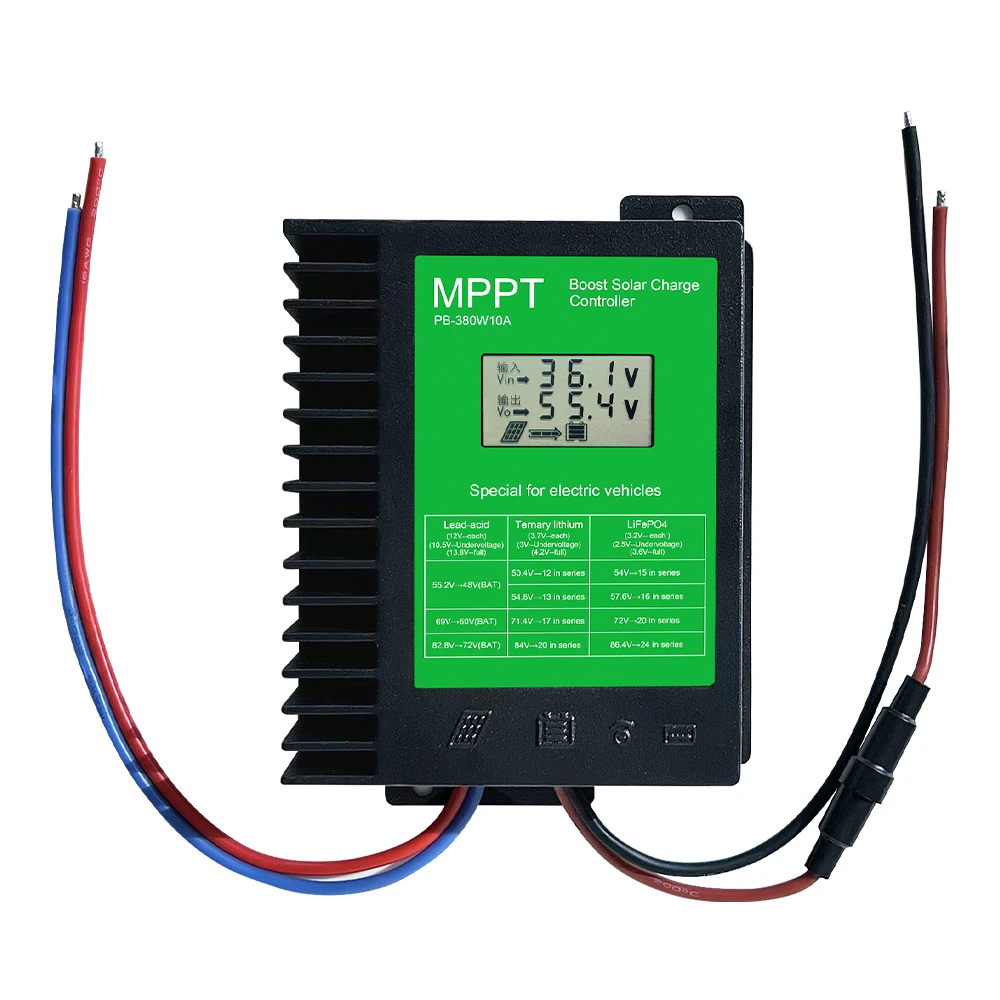

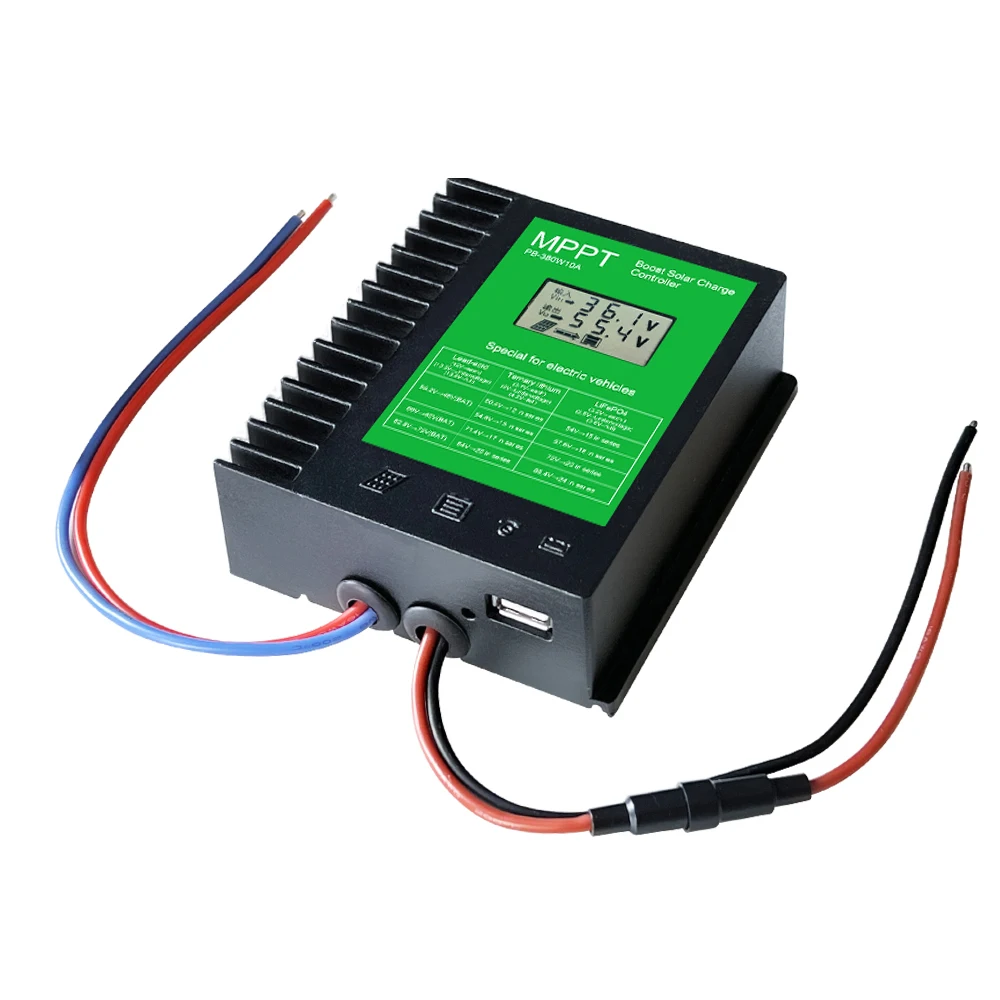

Boost Solar Charger 380W Charge for 48v 60v 72v Lithium Gel Battery Bank MPPT Charging Controller
- Category: >>>
- Supplier: Dongguan Jizida Technology Co. Ltd.Dongguan Ltd.
Share on (1601212305928):
Product Overview
Description
Product Description
SAFETY PRECAUTIONS
01.Please do not overload to use the controller, 18V solar panel (open circuit voltage 22V) max power 200W,
if divided into two pieces, can be connected in series or parallel, preferably in series. 36V solar panel (open
circuit voltage 44V) max power 360W, if divided into two or more, must be used in parallel.
02.Please note that long-term low voltage has a bad impact on the service life of the battery pack, please
keep full power for battery pack at least once a month, when the power generation from the solar panel is
greater than the load consumption, the battery pack may be filled.
03.Please note that the positive and negative poles of the solar panel and battery must not be reversed and
short-circuited.
04.Install the controller as close to the battery as possible to avoid voltage drop caused by too long cables,
which affects the normal voltage judgment.
05.According to the actual situation, you can choose to install a ≥20A PV DC circuit breaker in the "+" pole of
the solar panel (in front of the fuse), or install a ≥20A battery DC switch in the "+" pole of the battery.
06.This product adopts aluminum alloy die-casting molding, has good heat dissipation, pay attention to avoid
exposure, try to install it in a flat, well-ventilated place (the best metal surface) in order to better heat
dissipation.
07.This controller can only use the solar panel as the charging source, do not use other DC or other power
sources as the charging source.
08.This product protection grade is lP66, can prevent rain, recommended vertical installation, do not soak in
water, pay attention to dust and moisture, prevent electric shock.
01.Please do not overload to use the controller, 18V solar panel (open circuit voltage 22V) max power 200W,
if divided into two pieces, can be connected in series or parallel, preferably in series. 36V solar panel (open
circuit voltage 44V) max power 360W, if divided into two or more, must be used in parallel.
02.Please note that long-term low voltage has a bad impact on the service life of the battery pack, please
keep full power for battery pack at least once a month, when the power generation from the solar panel is
greater than the load consumption, the battery pack may be filled.
03.Please note that the positive and negative poles of the solar panel and battery must not be reversed and
short-circuited.
04.Install the controller as close to the battery as possible to avoid voltage drop caused by too long cables,
which affects the normal voltage judgment.
05.According to the actual situation, you can choose to install a ≥20A PV DC circuit breaker in the "+" pole of
the solar panel (in front of the fuse), or install a ≥20A battery DC switch in the "+" pole of the battery.
06.This product adopts aluminum alloy die-casting molding, has good heat dissipation, pay attention to avoid
exposure, try to install it in a flat, well-ventilated place (the best metal surface) in order to better heat
dissipation.
07.This controller can only use the solar panel as the charging source, do not use other DC or other power
sources as the charging source.
08.This product protection grade is lP66, can prevent rain, recommended vertical installation, do not soak in
water, pay attention to dust and moisture, prevent electric shock.
Product Paramenters
Model | PB-380W10A |
Maximum PV input | 38Vx10A=380W |
Maximum Current for Input | 10A(DC) |
MPPT Input voltage range | 12V~50V(DC) |
Output voltage range | 53V~90V(DC) |
Conversion efficiency | 96% |
Class of protection | IP66 |

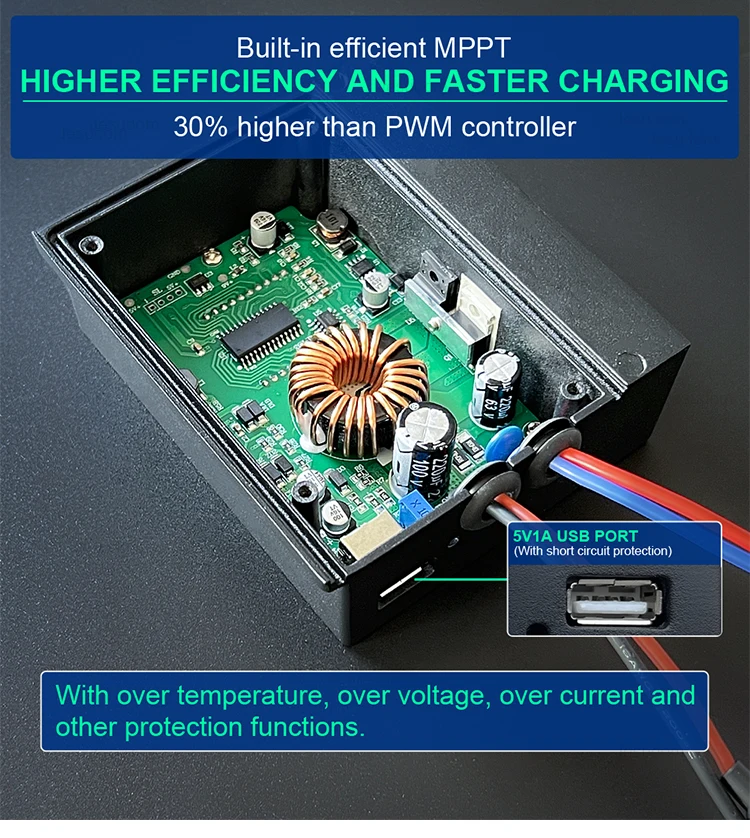

USB port | 5V-1A(With short circuit protection) |
Cable specification | The insulated copper core cannot be less than the national standard 2mm² |
Battery type | Lead-acid, Gel, Ternary lithium and LifePO4 battery. |
Protection | With over temperature, over voltage, over current and other protection functions. |
Material | Aluminum alloy |

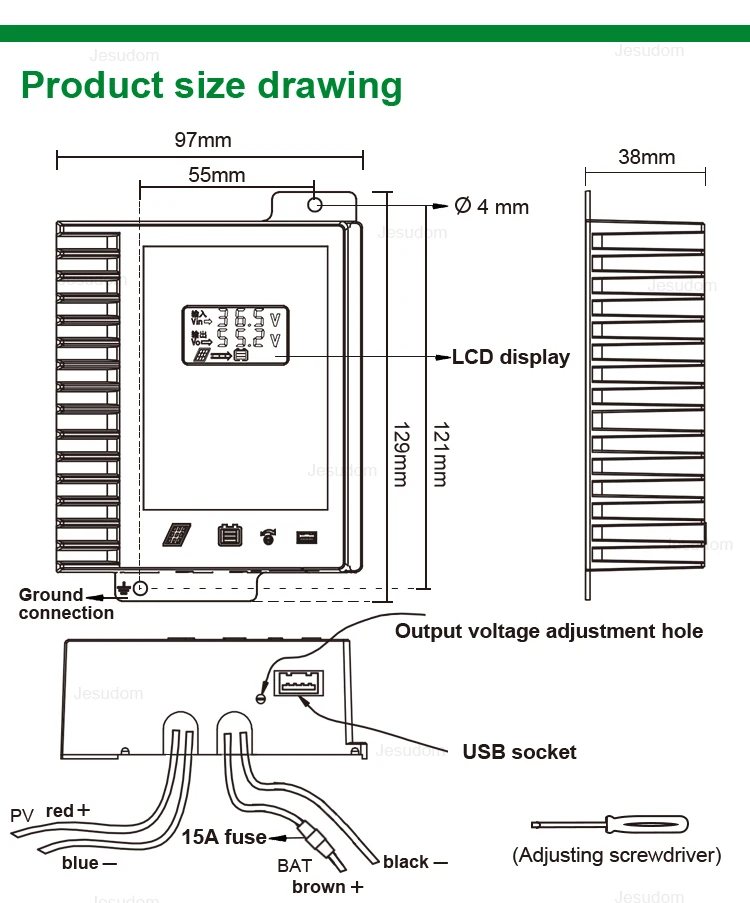

Product size | 129mmx97mmx38mm |
Packaging dimensions | 180mmx140mmx50mm |
Net product weight | 0.37kg |
Gross weight | 0.46kg |
Attachment | Attach 15A DC fuse and screwdriver |
